50 ton capacity swing cab
155’ five section full powered main boom
Single piece 39’ jib with offsets
35 ton three sheave hook block
2-speed Hoist w/ Grooved Drum
Rotation Resistant Wire Rope ⅝” diameter
Hydraulic Rotation Drum Indicator
5 Ton (4.5 mt) Hook and Ball, 35 Ton three sheave hook block
48” x 24” x 24” Aluminum tool box, A/C

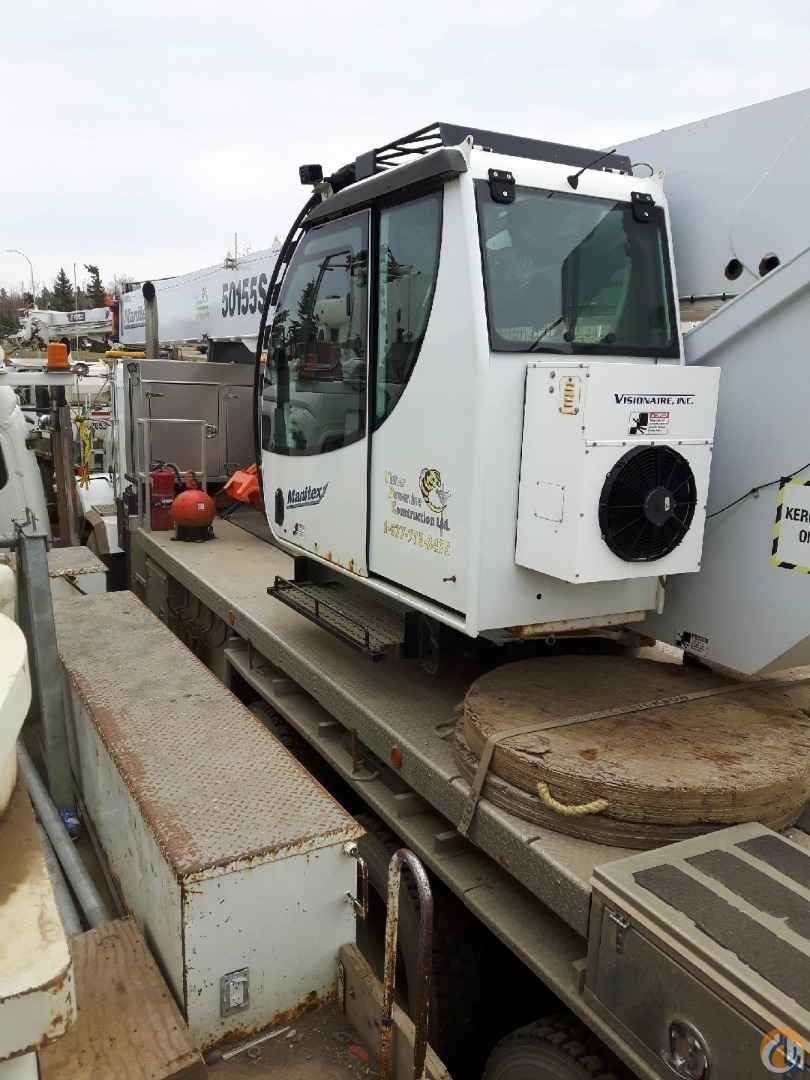

Deluxe operators cab with 20 degree tilt
Engine Monitoring System - Display in upper cab
Full LMI w/ All function visual and audible alerts with cutouts
Hard Wired Anti-Two Block w/ Lockout
Engine Start/Stop, Electronic Throttle, Oil Cooler
Out and And-down outriggers, 22' overall spread,
Front outrigger 360° Area of Operation, Continuous Rotation
Diamond Plated Aluminum Decking
2014 Kenworth T800 Tandem Tridem VIN# 1NKDX4TX4ER970108
Cummins ISX15 485HP
Eaton Fuller RTLO -16918B - 18 speed transmission
42,000 lbs tandem front axle,
62,000 lbs. rear axle – Air Ride Suspension (Wide Track)
Pintle hitch, Inverter
