Reduced 2013 Manitex 4596T MANITEX BLOW OUT Boom Truck Crane (Sold)

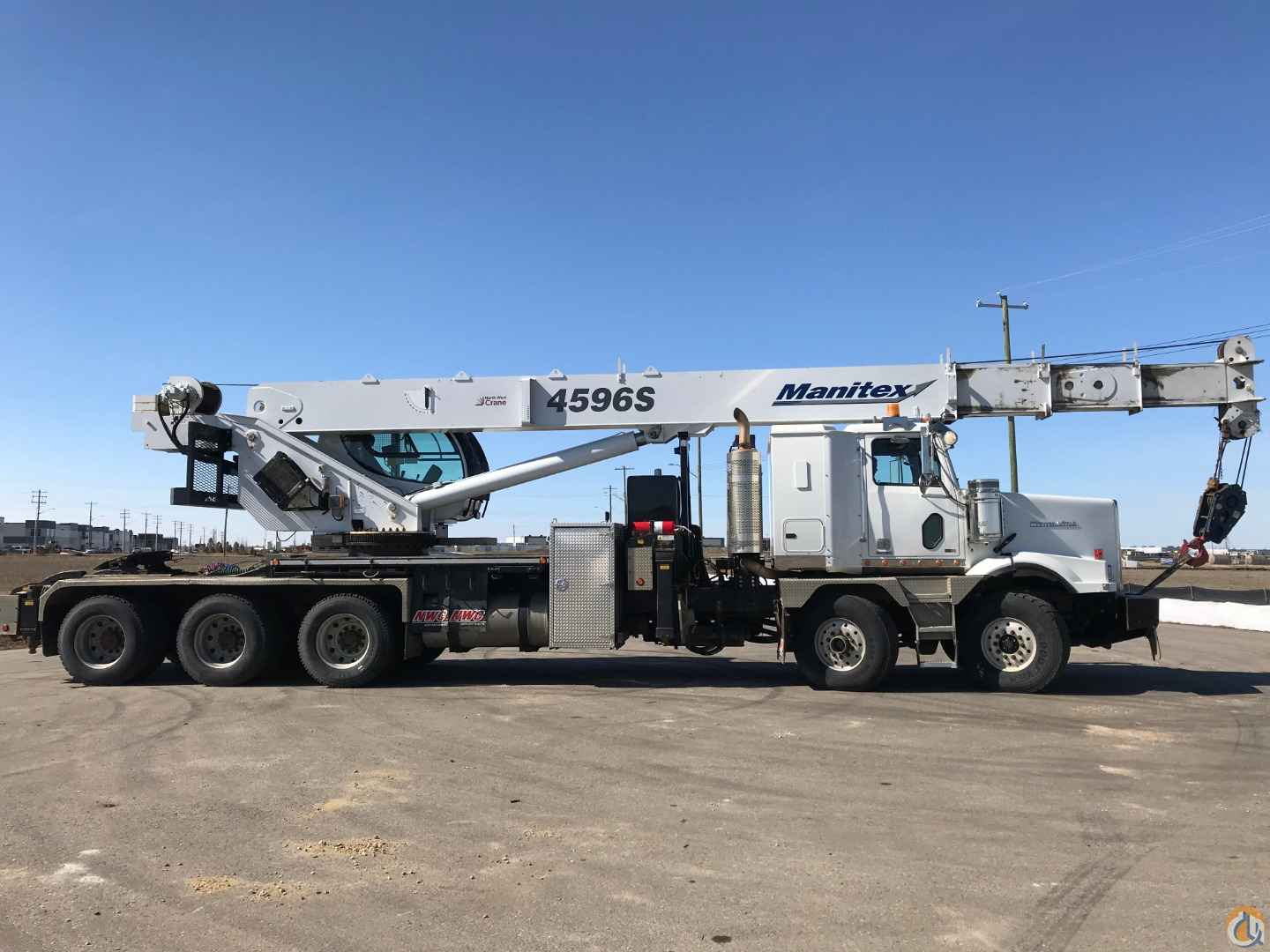

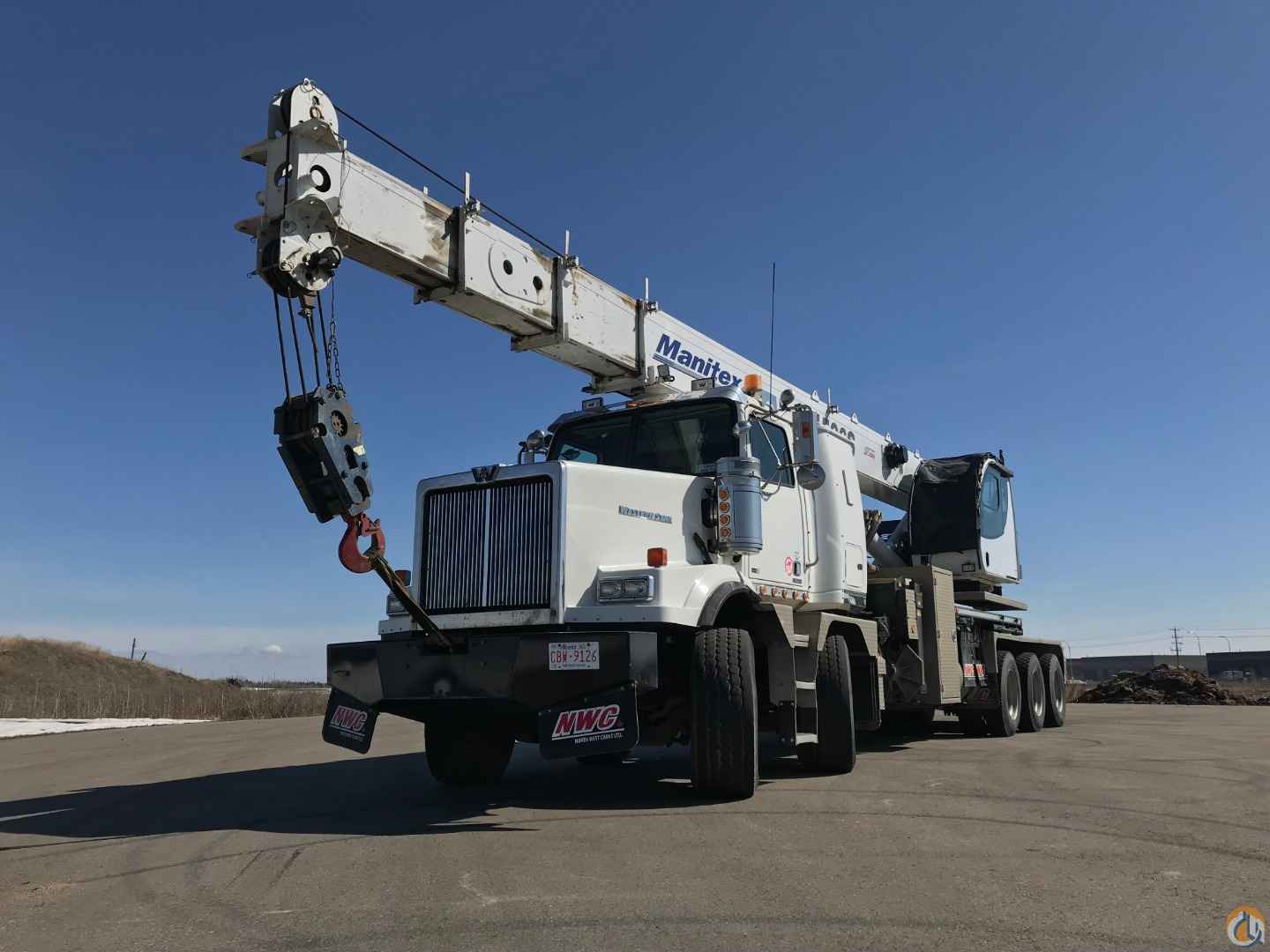

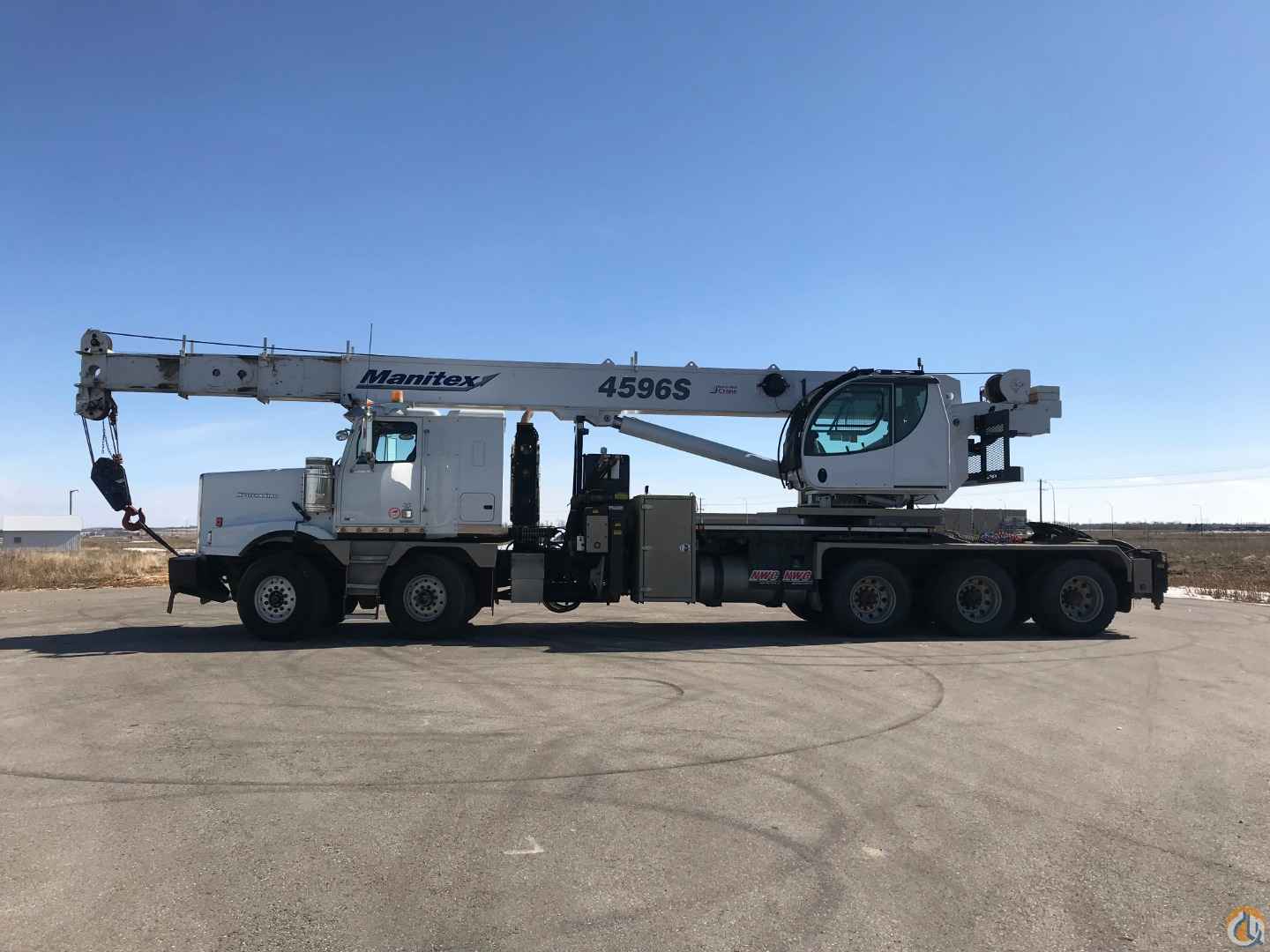

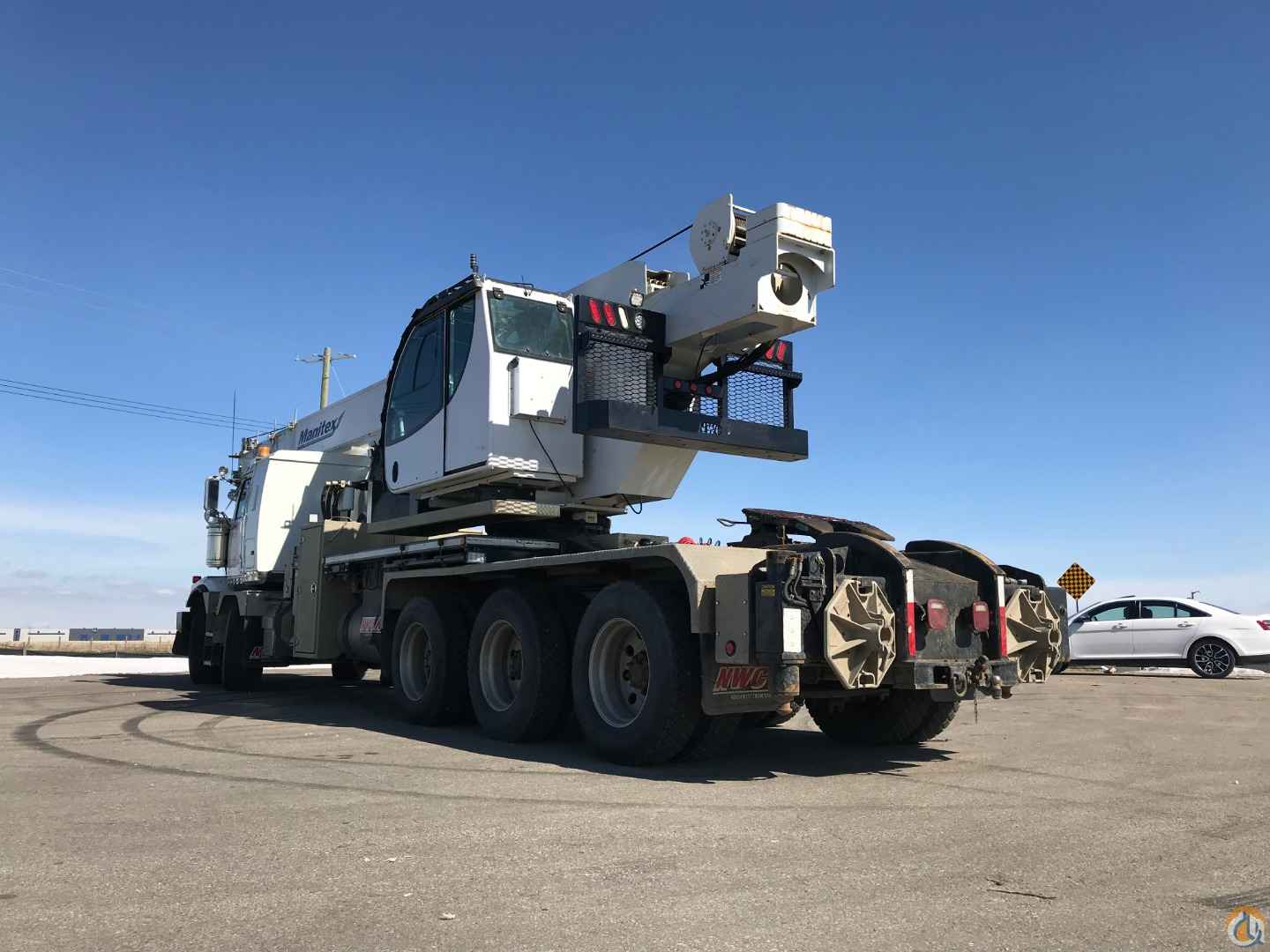

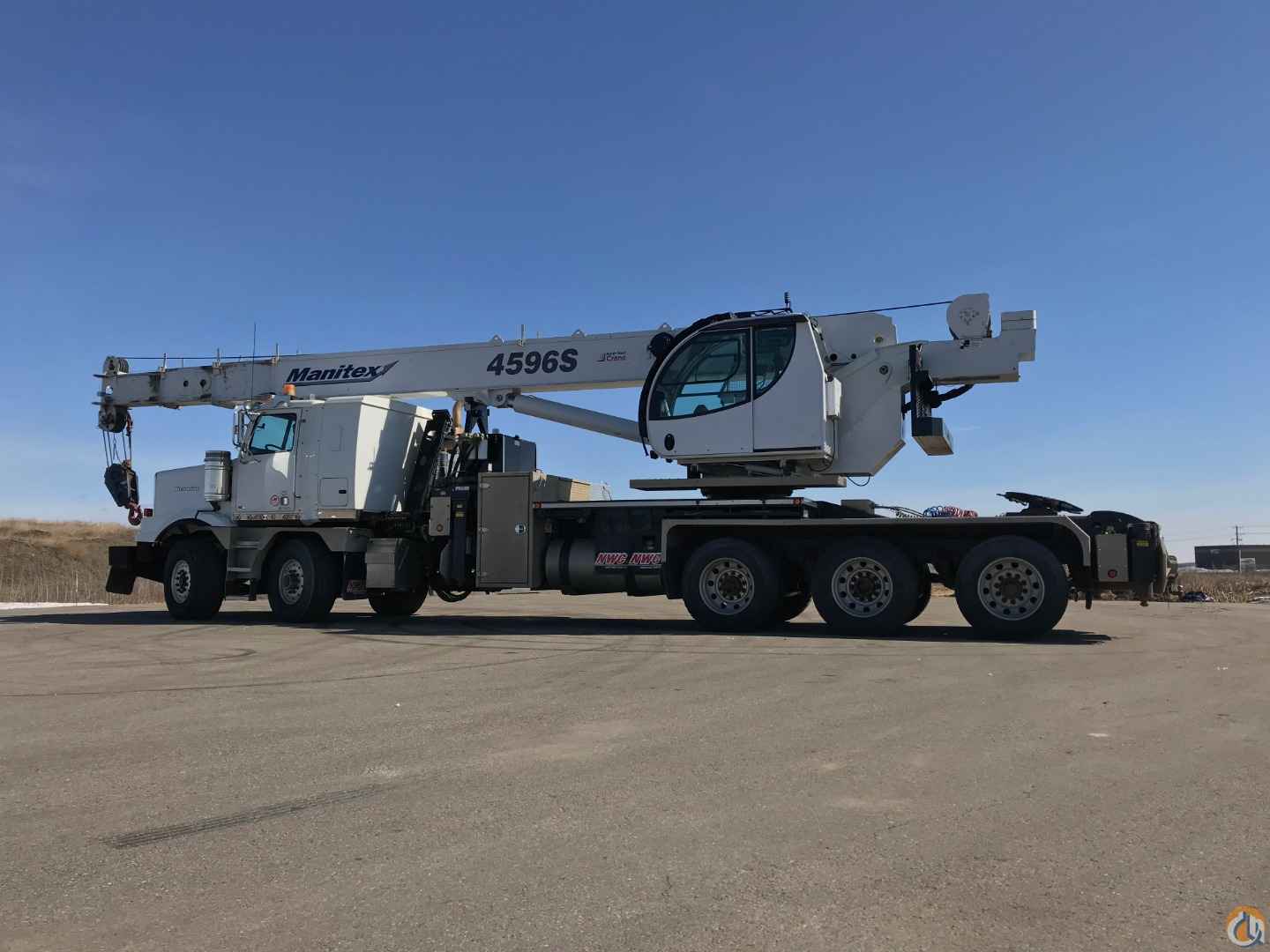

Reduced 2013 Manitex 4596T mounted on 2013 Western Star 4900SB

Only 125,000km / 8200hrs

ENGINE REBUILT - WARRANTY / EATS may or may not be active

· Maximum Lifting Capacity of 89,900 Pounds @ 6’ Radius

· Four-Section Telescopic Boom 32’ to 96’

· 4-Load Sheave Quick-Reeve Boom Head

· Maximum Sheave Height of 106'

· Continuous Rotation

· Two Speed Planetary Hoist w/ 5/8” Wire Rope

· Swing Around Operator Control Station

· Fully Enclosed Tilt Cab w/ Diesel Heater

· Fixed Front Windshield w/ Wiper & Washer

· Platform Includes Engine Stop/Start, Pressure Gauges & Signal horn

· Hydraulic Single Axis Control Levers for Swing, Lift, Extension & Winch

· Dynamic Brake Pedal

· ACCUSwing Feathering Control

· Foot Throttle

· Boom Length & Angle Indicators

· Bubble Level

· Boom Rest

· Hydraulic Oil Cooler

· Hardwired Anti-Two Block w/ Lockout

· LMI System w/ Operator Display

· Factory Supplied Tractor Mount Lower Frame

· 4 - Out & Down Outriggers – 22’ (6.71 m) Spread

· Radio Remote Outrigger Controls, Audible Outrigger Motion Alarm

· 4 - 22” Aluminum Float Pads.

· Reduced Load Charts w/ Fully Retracted & Mid-Span Outrigger Placement

· 115 Gallon Hydraulic Reservoir w/ Suction Strainer & Ball Valve

· Operators Service / Parts Manuals

· PTO, All Hydraulic Plumbing, Oil & Testing

· 35-ton 3 sheave quick reeve load block

2013 Western Star 4900SB” 40” sleeper tan-tri drive chassis complete with the following:

· Detroit DD15 560H.P. @ 1800 RPM; 1850 Lb Ft @ 1100 RPM

· Jacob Engine Brake

· 160 Amp Alternator

· Dual 13” Outside Stainless Steel Air Cleaners(Cowl Mounted)

· Fuller RTLO18918B 18-Speed Transmission

· Factory 40k Twin Steer Conversion

· Dual - Meritor 20,000 lbs. Capacity Front Axles

· 40,000 lb. Front Springs w/ Shocks

· Dual Power Steering Gears 20k Sheppard M110P

· Bendix Air Brake Package

· Tridem Meritor RZ166P Rear Wide Track Axle

· Airliner 69,000 lb. Tridem Rear Suspension (59” axle spacing)

· 4.30 Rear Axle Ratio

· 6-Way Wheel Differential Lock-Up

· 361” Wheel Base 120” Overhang

· 3/8x3 7/8x11 5/8 double channel frame rail (3/8” outer + 3/8” inner)

· Custom Bumper

· Dual 125g Fuel tanks + 100g hydraulic tank

· Goodyear G296 MSA 455/65R22.5 20 Ply Front Tires

· Alcoa 22.5” by 12.25” Aluminum Front Wheels

· Michelin XDE RSD 11R24.5 16 Ply Rear Tires

· Alcoa 24.5” by 8.25” Aluminum Rear Wheels

· Cab Heater w/ Integral Defrosters & Air Conditioning

· Driver Seat – National Air Cushion Premium Plus HB Cloth

· Rider Seat – Fixed HB with Tool Box Cloth

· Exterior White

· Positive Air Shut Off

Tractor rig-up complete with the following:

· Two (2) large front cabinets w/ ground level access complete w/ broom & shovel holders mounted on front of boxes.

· One single cabinet with top access between large front tool boxes.

· Two work lights on top of large cabinets.

· Pull-out stair case style ladder w/ grab handle on tool box, one per side.

· Walking deck to back side of turret.

· Chain hanger w/ 4 hooks over fuel tank w/ mud flaps, one per side.

· Swing around style headache rack with chain tray, chain hangers and lighting.

· Full length fenders w/ mud flap and anti-sail brackets front & back.

· Outrigger pad storage on top of fenders/under walking deck compete with composite pads.

· Visual light bar indicator on exterior of crane cab (becoming mandatory for certain clients)
