MANITEX 4596T Boom Truck Crane (Sold)

• 45 US tons maximum lifting capacity

• Four (4) section telescopic boom with quick reeving head – 96’ of horizontal reach

• Two (2) speed planetary hoist with 400’ of 5/8” non- rotating wire rope

• One 5 UST single line overhaul ball

• Hard wired anti - two blocking with lock out

• Load moment indicator with capacity alert and shutoff

• 360 degrees of continuous hydraulic slewing and free swing

• Four (4) out and down outriggers with an overall spread of 22’0”

• 100 US gallon hydraulic reservoir with, bubble level, system pressure gauge and hydraulic oil cooler

• New style cab with features such as: a lot more room inside the cab, more visibility, 20 degree tilt, heated seat – which slides for more leg room and the headrest also tilts and new upgraded computer. Window cover, upper hatch guard and AM/FM Stereo are included

Mounted on a new 2013 Western Star 4900SB Tandem - Tri-drive with bunk (full specs available)

• Cummins ISX - 550 HP engine

• 18 spd transmission

• Factory dual exhaust

• 34” sleeper

• 69,000 rears

• Full load interior

• Full spec available on request

One Rigging Package Including the following:

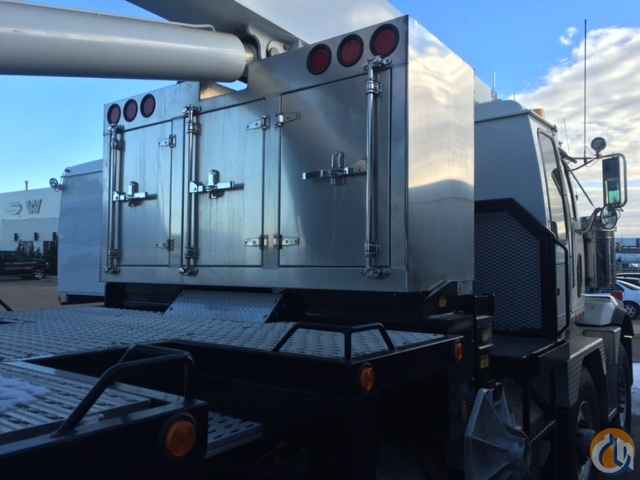

• Front storage locker complete with 3 cabinets and various shelves and hooks including LED lights inside.

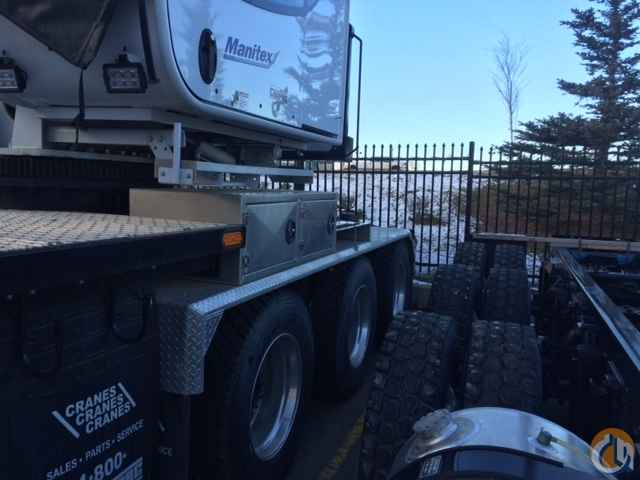

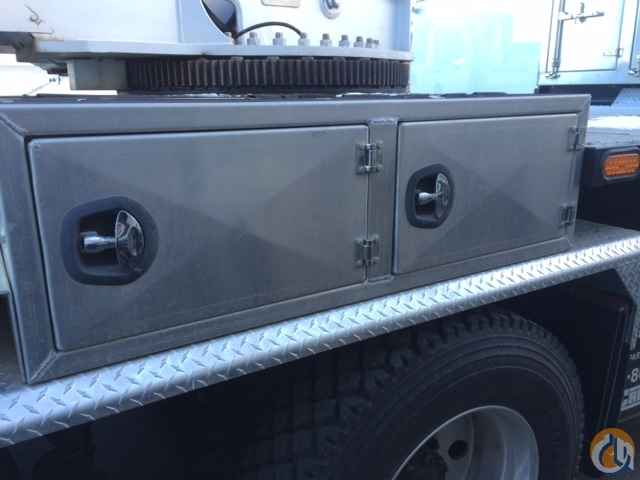

• 2 coffin style rigging boxes

• Full aluminum fenders that go through flat to sub-frame

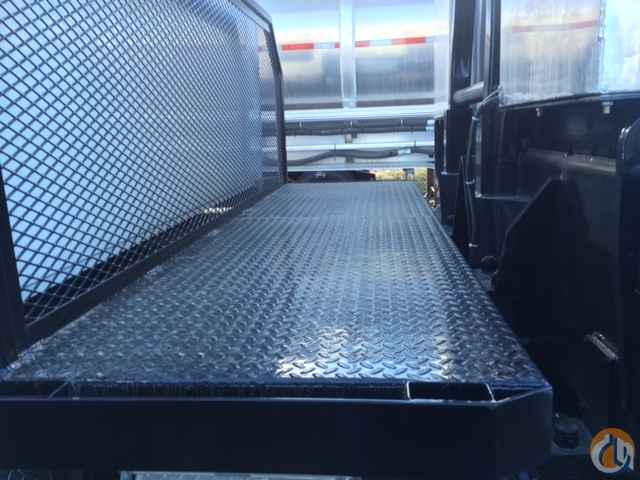

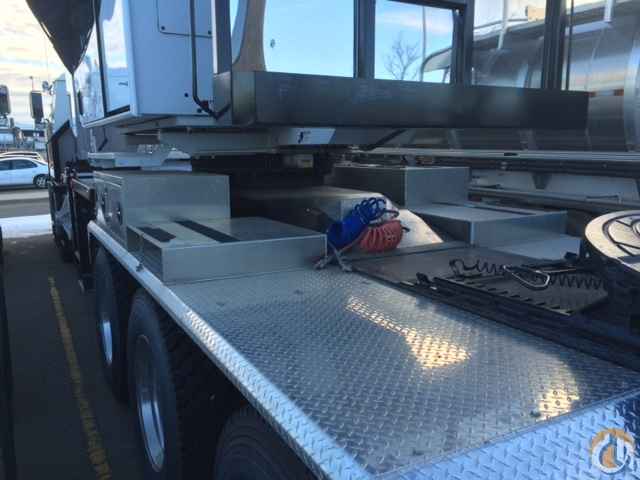

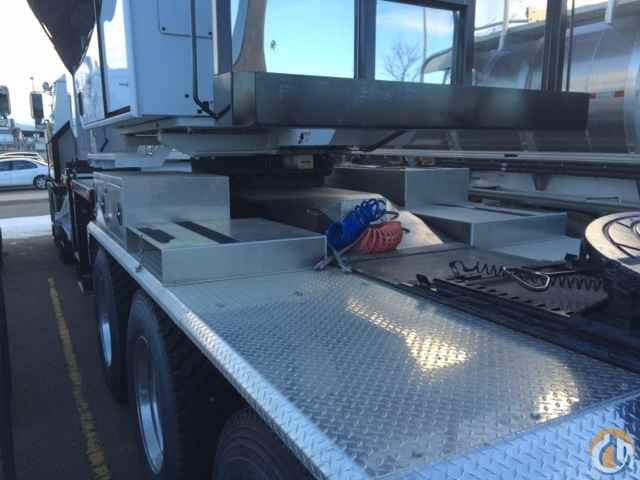

• Aluminum vent deck on walking deck

• 7 LED work lights 3-boom, 2 on rigging, 2 on cab

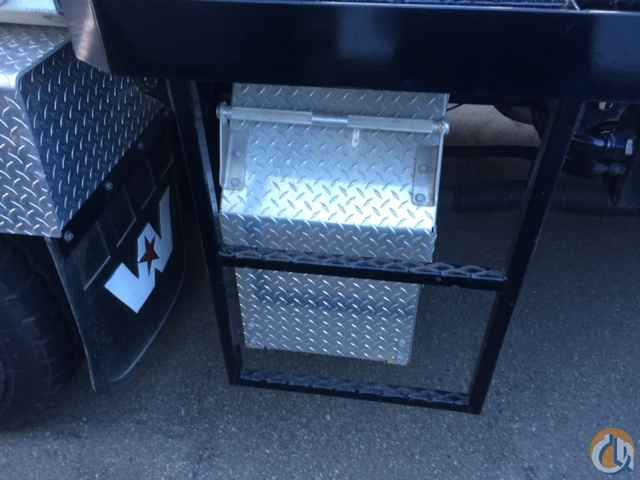

• Outrigger pad storage

• Full DOT led light package – marker lights

• All steel rigging sandblasted and painted with Endura gloss black
