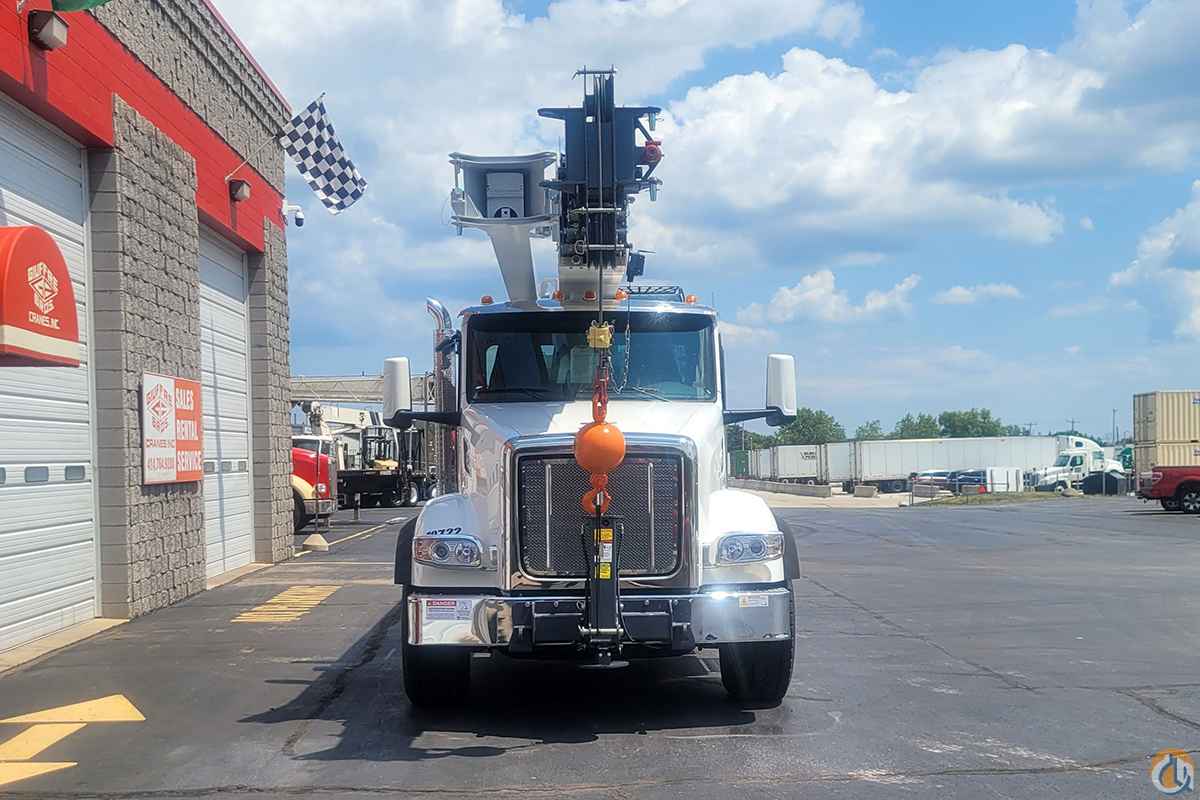

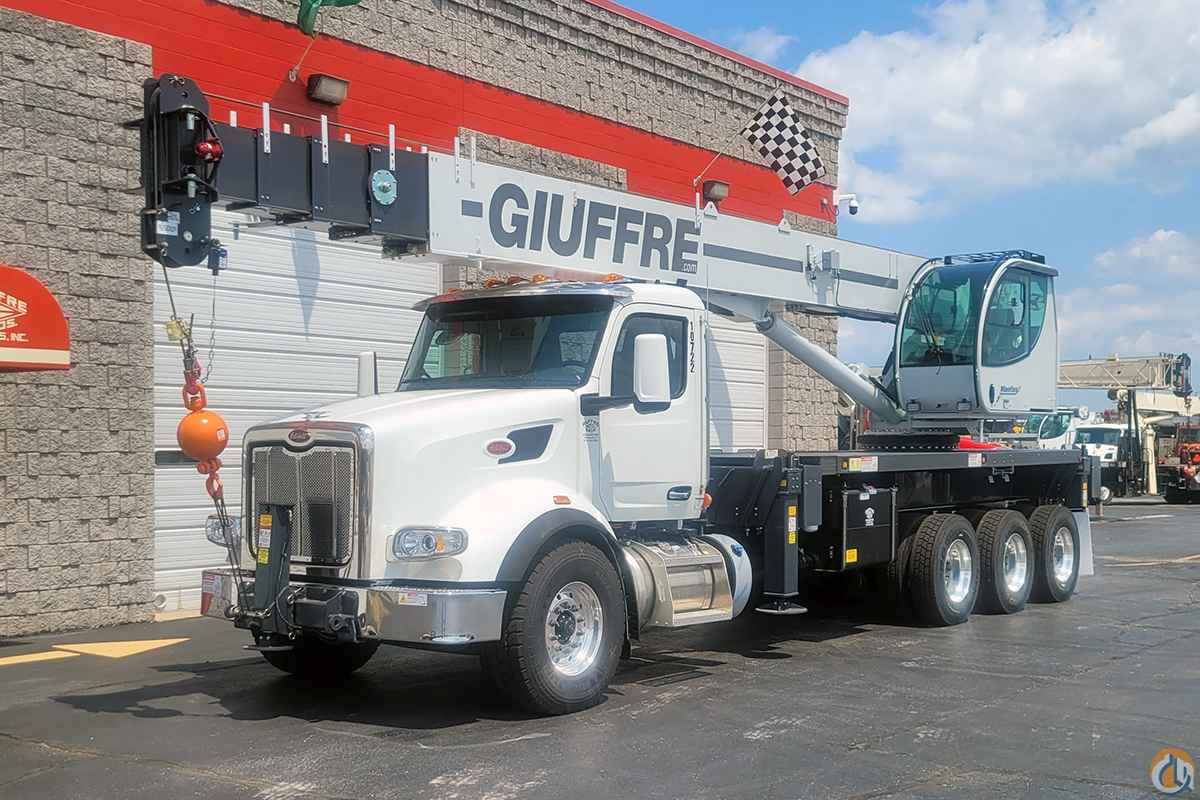

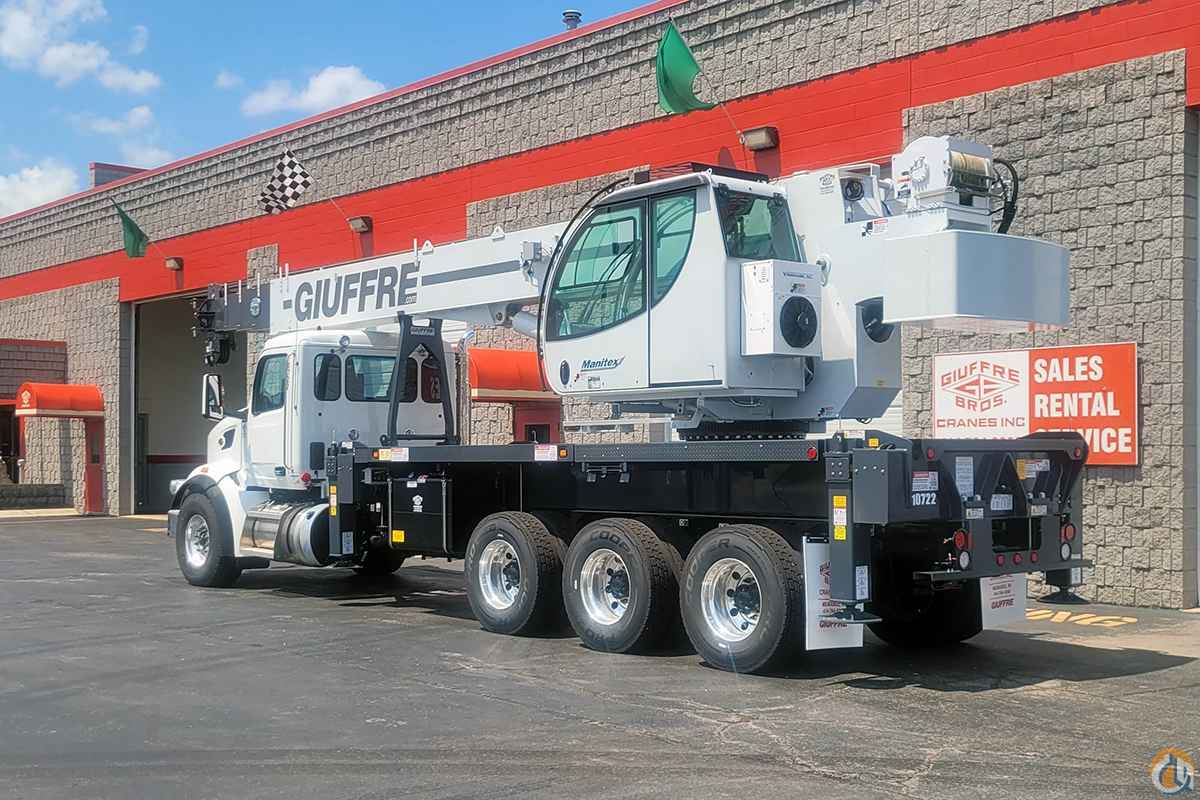

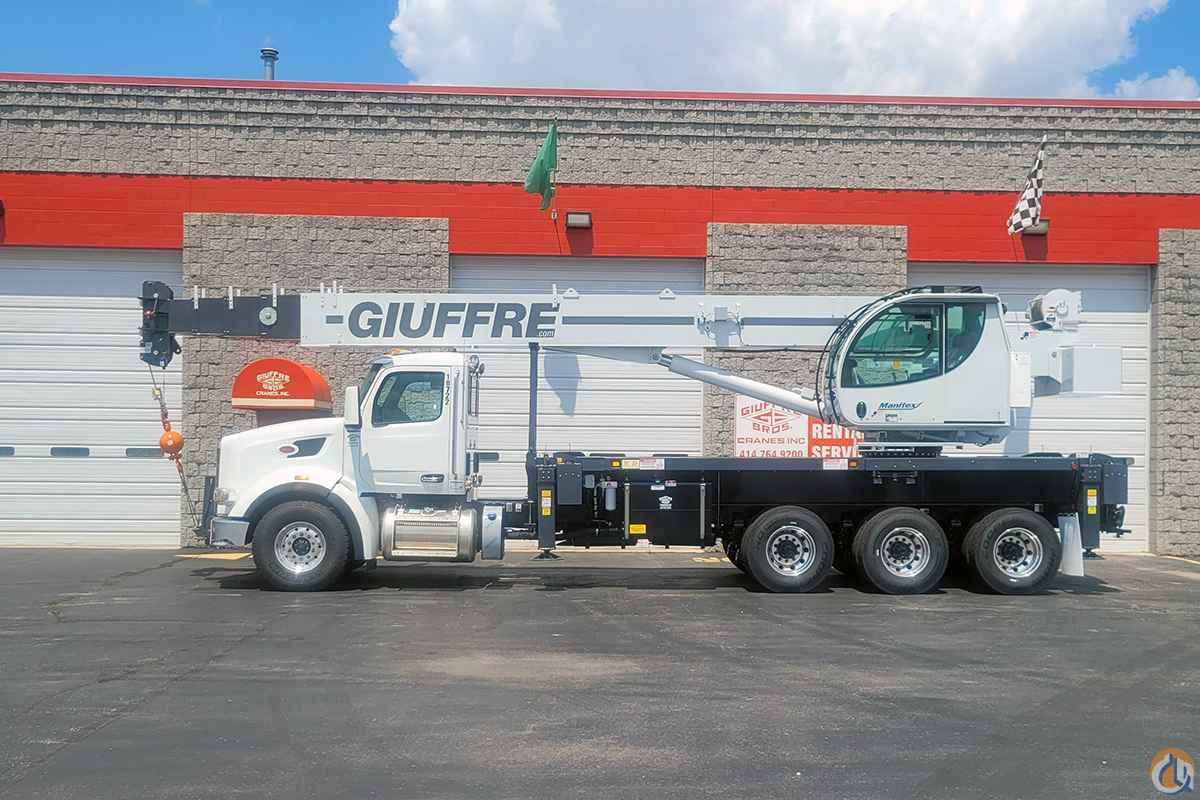

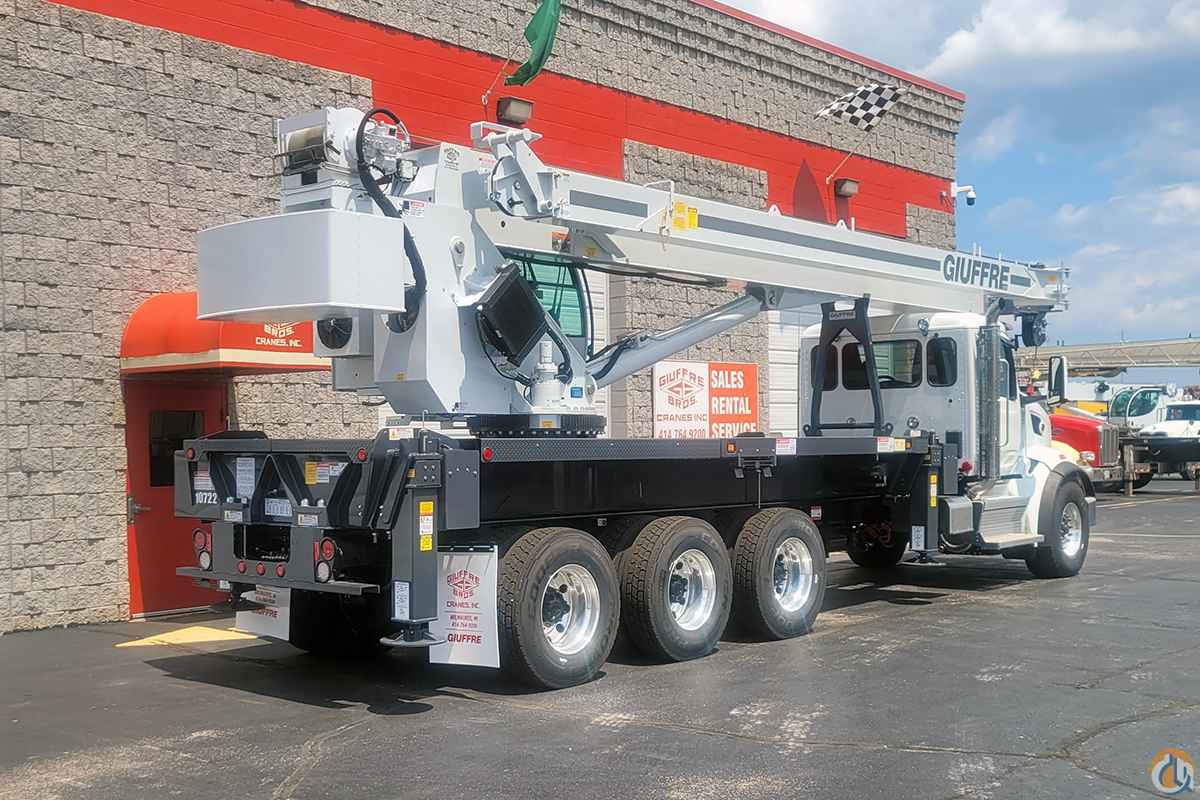

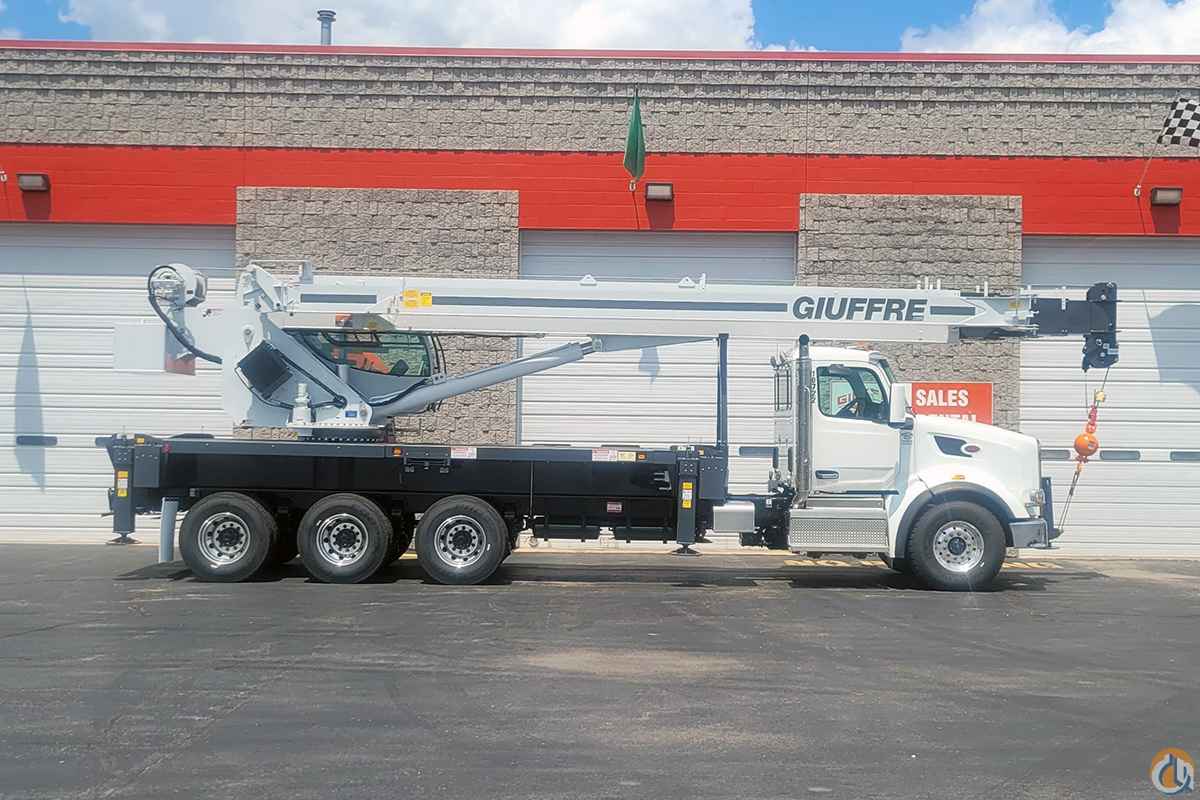

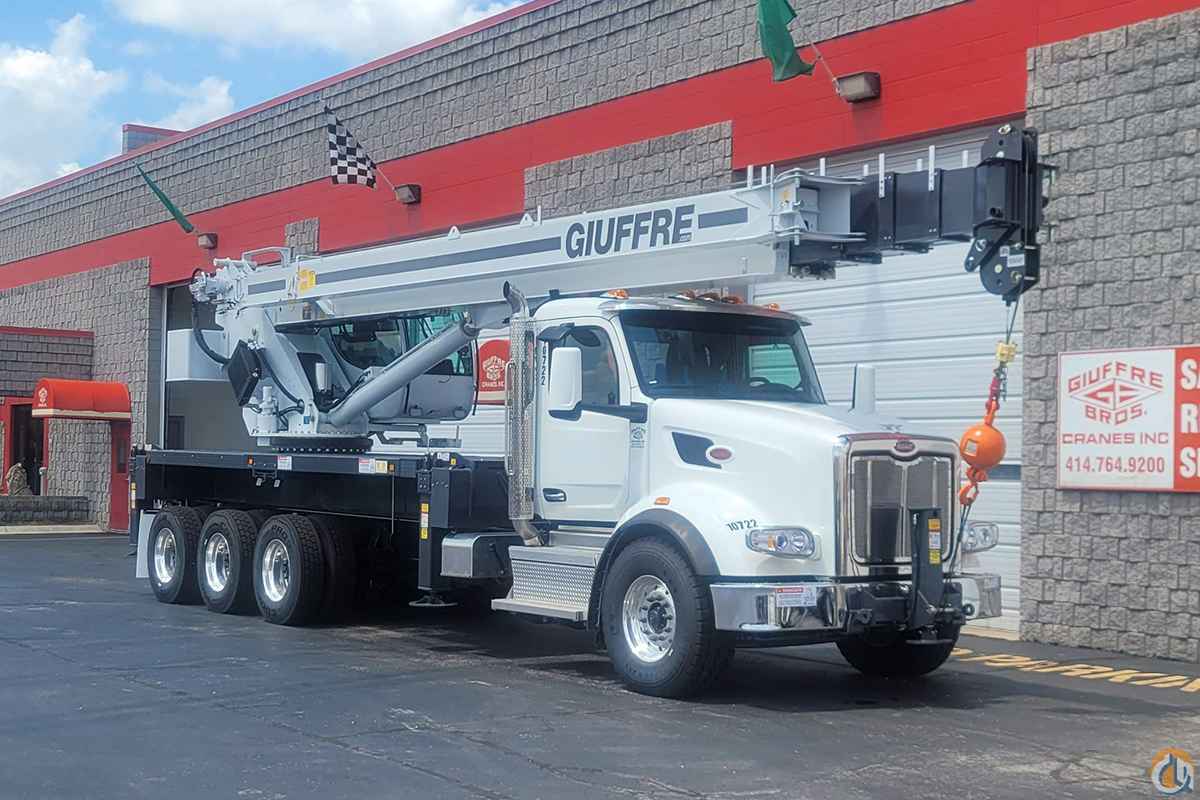

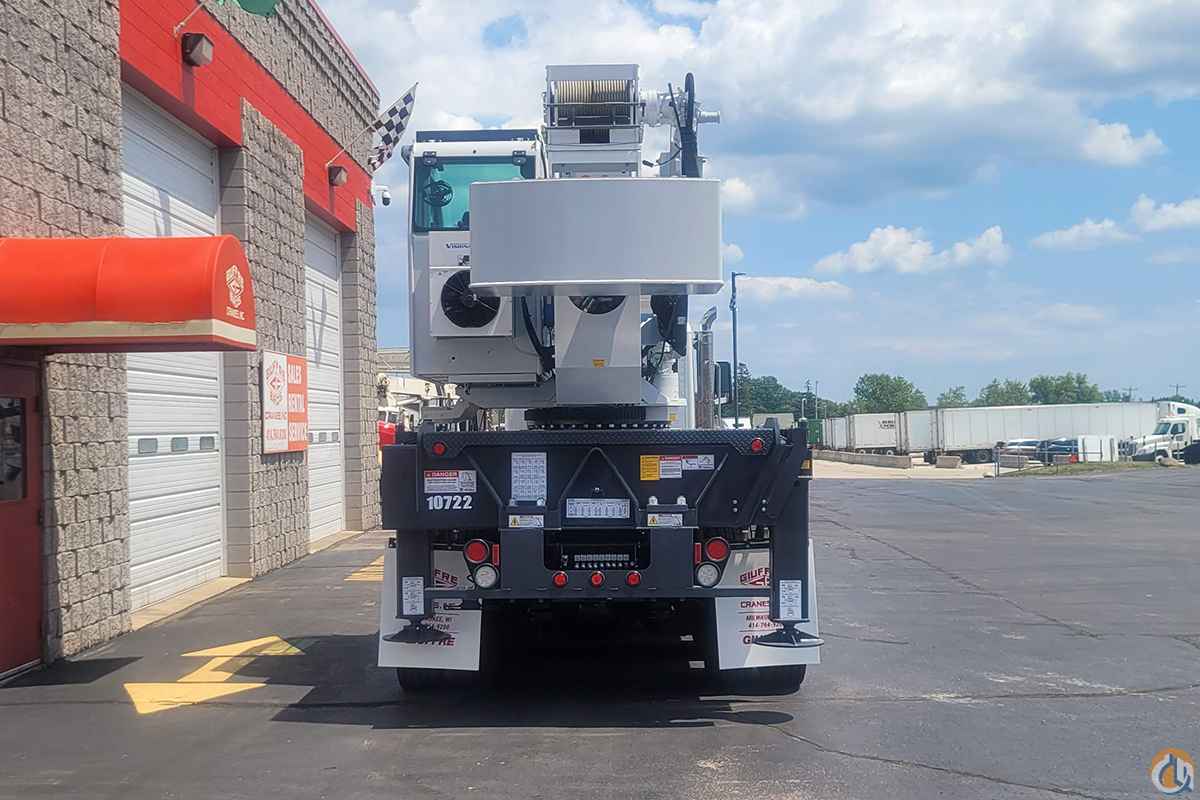

MANITEX CRANE
MANITEX 40124SHL
40 TON CAPACITY W/ REAR MOUNTED
OPERATOR'S CAB - HEAT & A/C
124 FT 5-SECTION TELESCOPIC BOOM
5-SHEAVE QUICK REEVE BOOM HEAD
189' TIP HEIGHT WITH 55 FT JIB

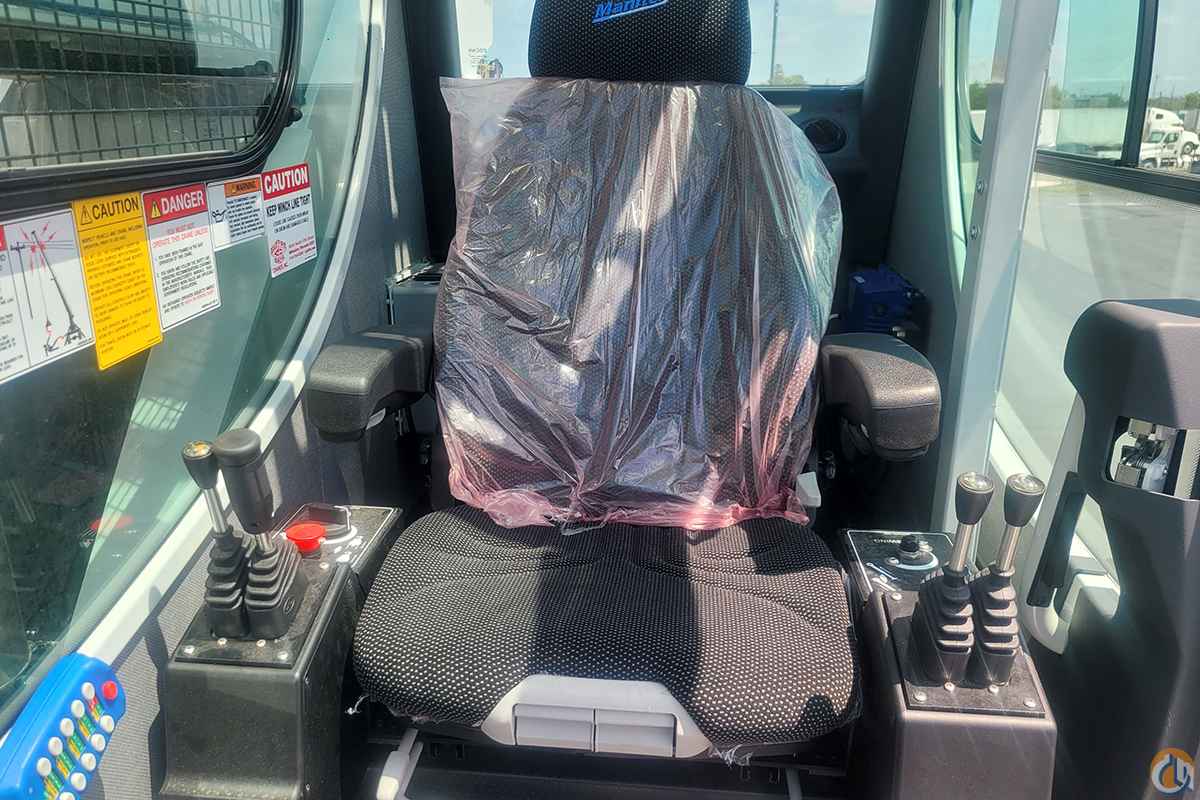

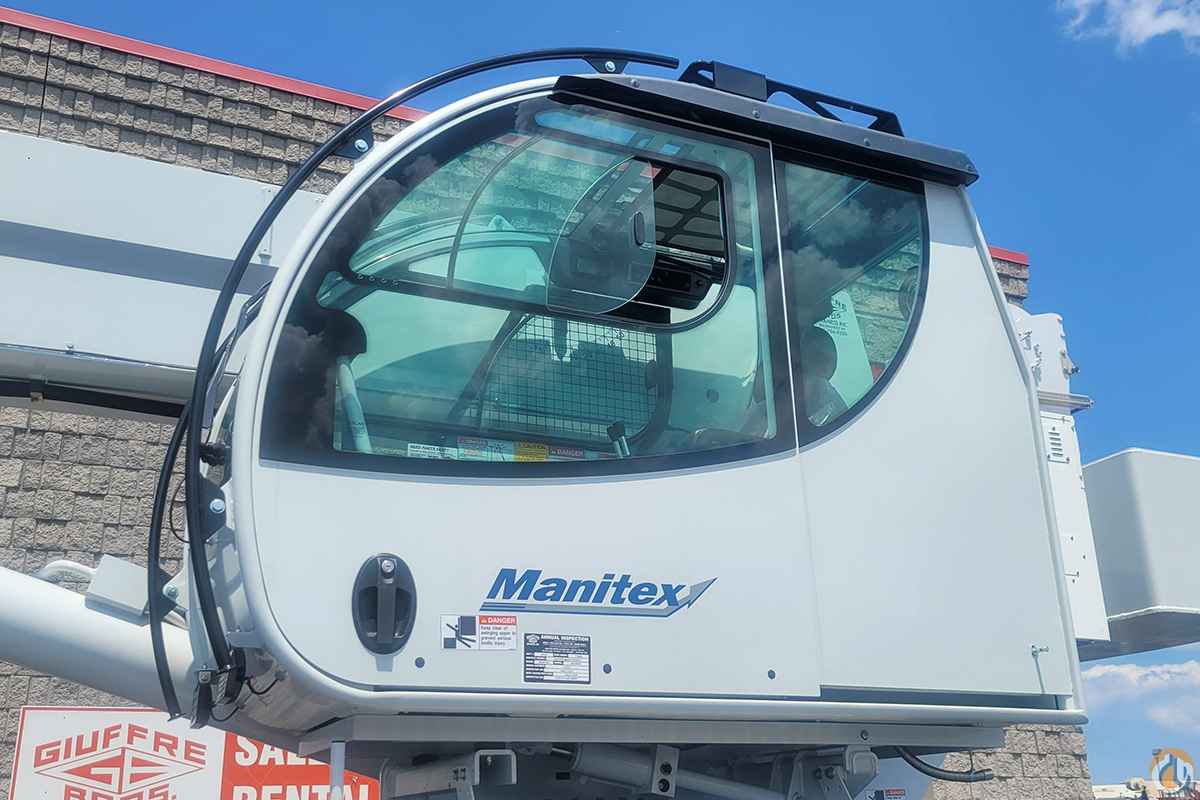

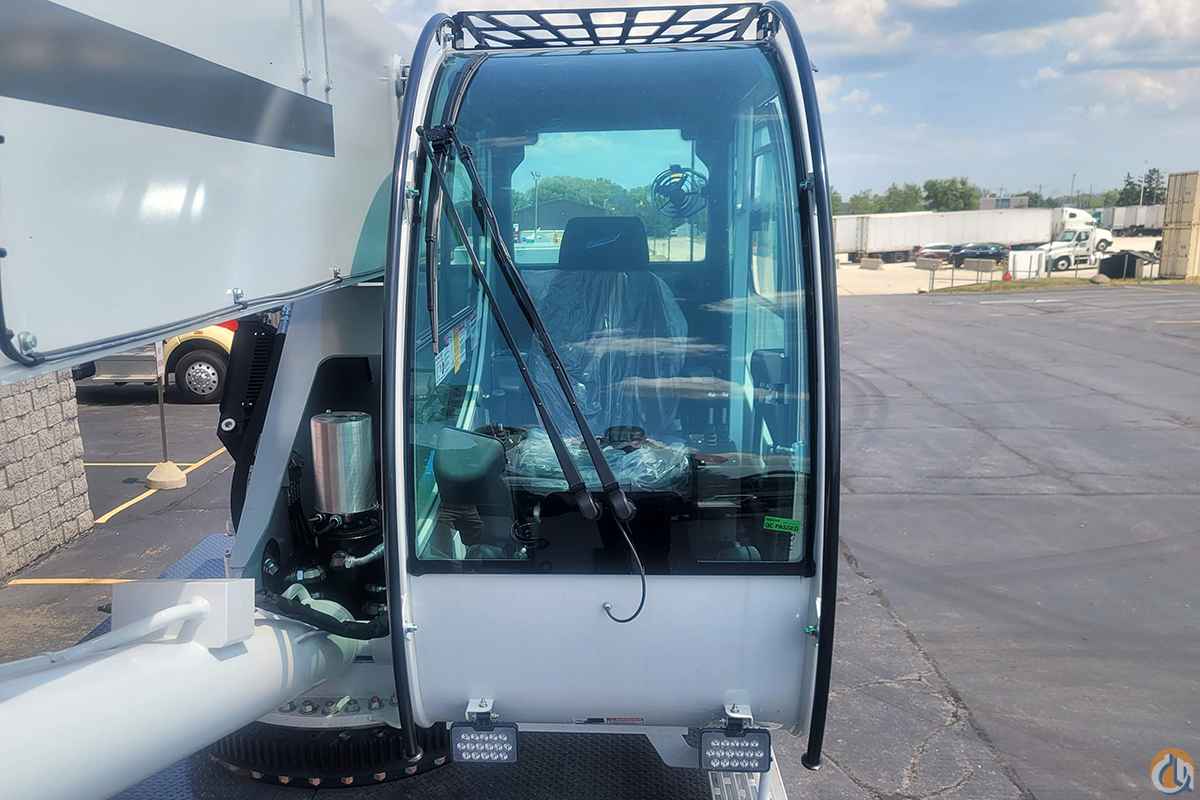

TILTING ENCLOSED CAB W/ HEAT AND A/C
FREE SWING OPTION WITH FOOT BRAKE
380' 5/8" ROTATION RESISTANT WIRE ROPE

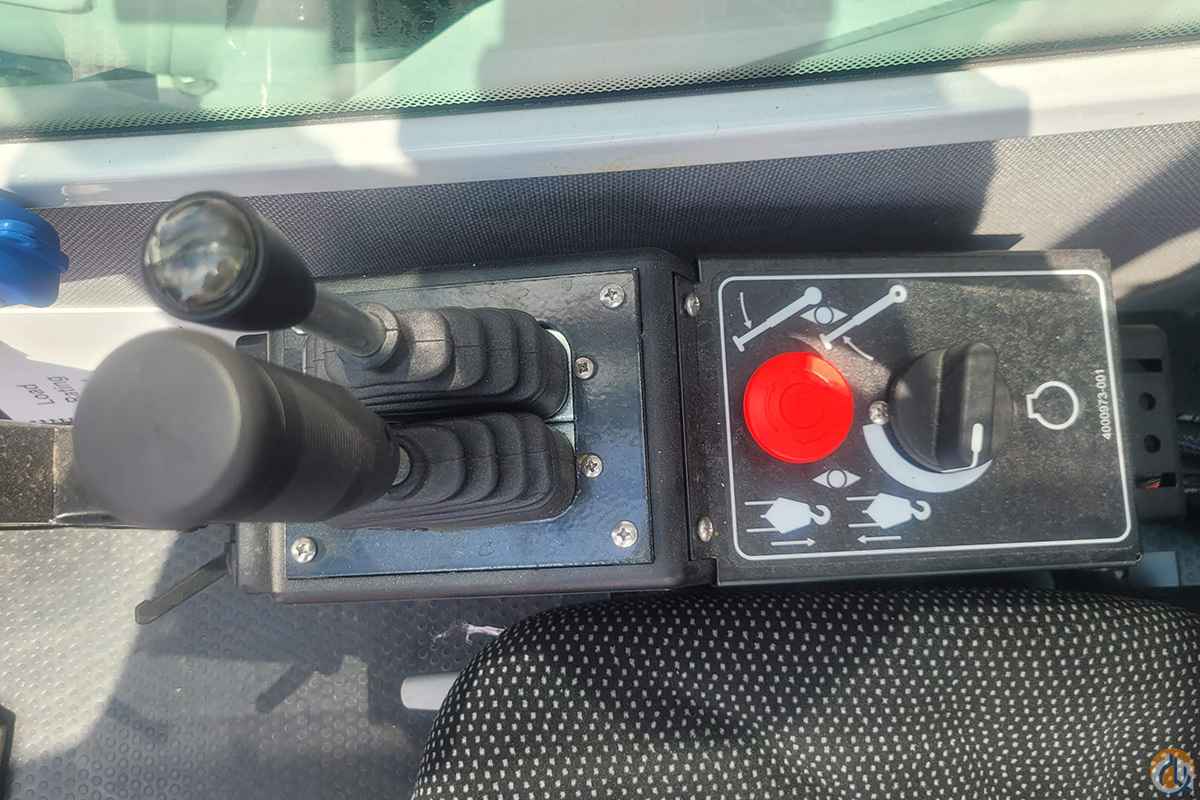

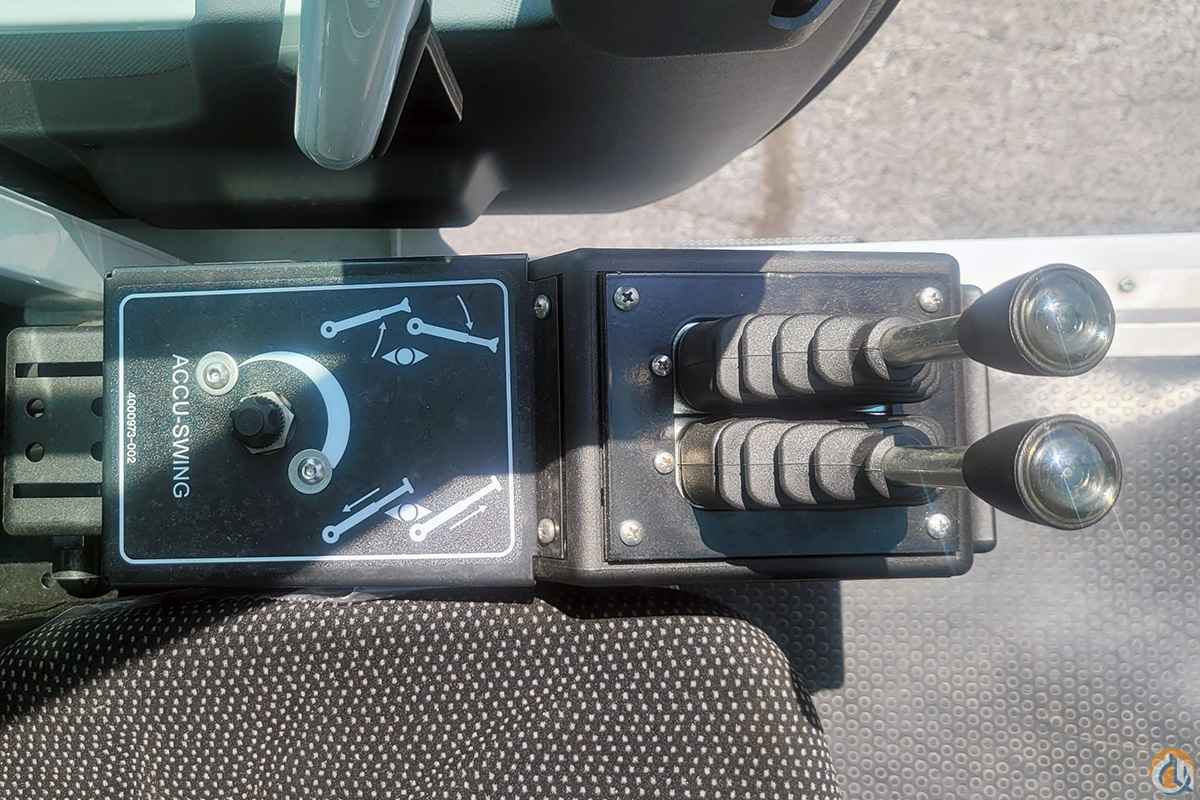

PILOT OPERATED DUAL AXIS CONTROLLERS

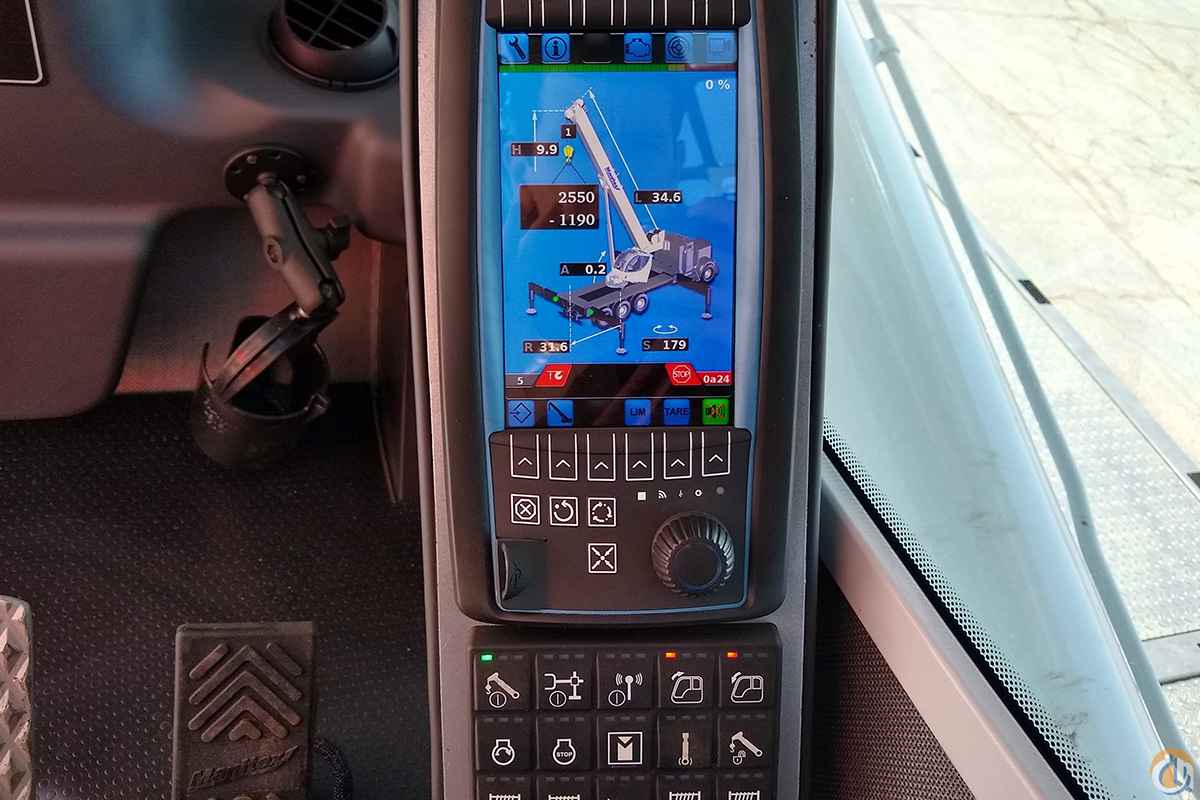

LMI CAPACITY ALERT WITH VISUAL DISPLAY
& OVERLOAD SHUT-OFFS
HARDWIRED ANTI-TWO BLOCK SYSTEM
360 DEGREE AREA OF OPERATION W/
CONTINUOUS ROTATION
4 HYDRAULIC OUT-AND-DOWN OUTRIGGERS
LOAD CHARTS FOR FULLY EXTENDED/
INTERMEDIATE/RETRACTED OUTRIGGERS
10 FT BED & RETRACTABLE LADDERS
PAINTED STD MANITEX COLORS
ALL STANDARD EQUIPMENT
STANDARD MANITEX FACTORY WARRANTY
MODEL 567 NEW 2023 PETERBILT
CUMMINS X15 - 450HP TURBO DIESEL ENGINE
w/ 1600 LB-FT TORQUE & JAKE BRAKE
81,000 LB G.C.W.R
61,000 LB TRIDEM REAR AXLE
20,000 LB FRONT STEER AXLE
MERITOR RZ-XX166 TRIDEM REAR AXLE
EATON FO16E308LL-VCS 10-SPEED
ULTRASHIFT AUTOMATIC TRANSMISSION
FULL DIFFERENTIAL LOCK TRI-DRIVE AXLES-
w/ DRIVER CONTROLLED ROCKER SWITCH
IMMERSION TYPE BLOCK HEATER 110 - 120V
OIL PAN HEATER 120V / 300W
425-65R22.5 20PLY FRONT TIRES
11R-22.5 16PLY REAR TIRES
ALCOA POLISHED ALUMINUM WHEELS
FULL DOUBLE FRAME W/ FULL STEEL INSERT
AIR BRAKES w/ ABS & BENDIX SMART ATC
TRACTION CONTROL & AIR DRYER & HEATER
FRONT TOW HOOKS
4 PACCAR 12V BATTERIES (2920CCA) w/
DISCONNECT & JUMPER TERMINAL
STAINLESS STL CROWN & GRILLE
VERTICAL CHROME RH EXHAUST STACK
AIR CONDITIONING / CRUISE / AIR HORN
CHROME STEEL SWEPT BACK BUMPER
200 AMP ALTERNATOR -STD. BRUSH
90 GAL ALUMINUM FUEL TANK (LH - U/C)
PACCAR FUEL/WATER SEPARATOR WITH
12V HEAT FOR FUEL FILTER
AM/FM/WB/USB/MP3 RADIO w/ BLUETOOTH

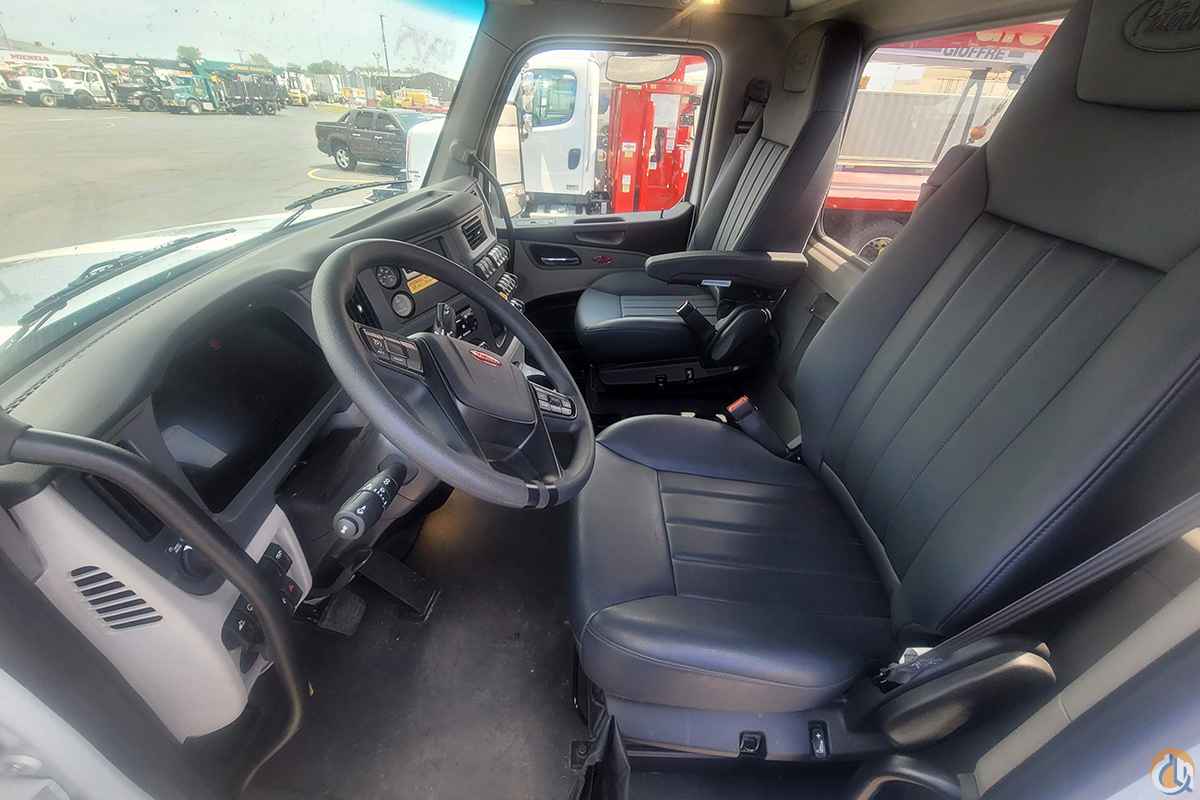

AIR RIDE HIGH BACK DRIVER'S SEAT
ALUMINUM CAB WITH AIR SUSPENSION
DUAL WEST COAST STEEL MIRRORS
ONE PIECE CURVED WINDSHIELD
POWER DOOR LOCKS & POWER WINDOWS
EXTERIOR STAINLESS STEEL SUNVISOR

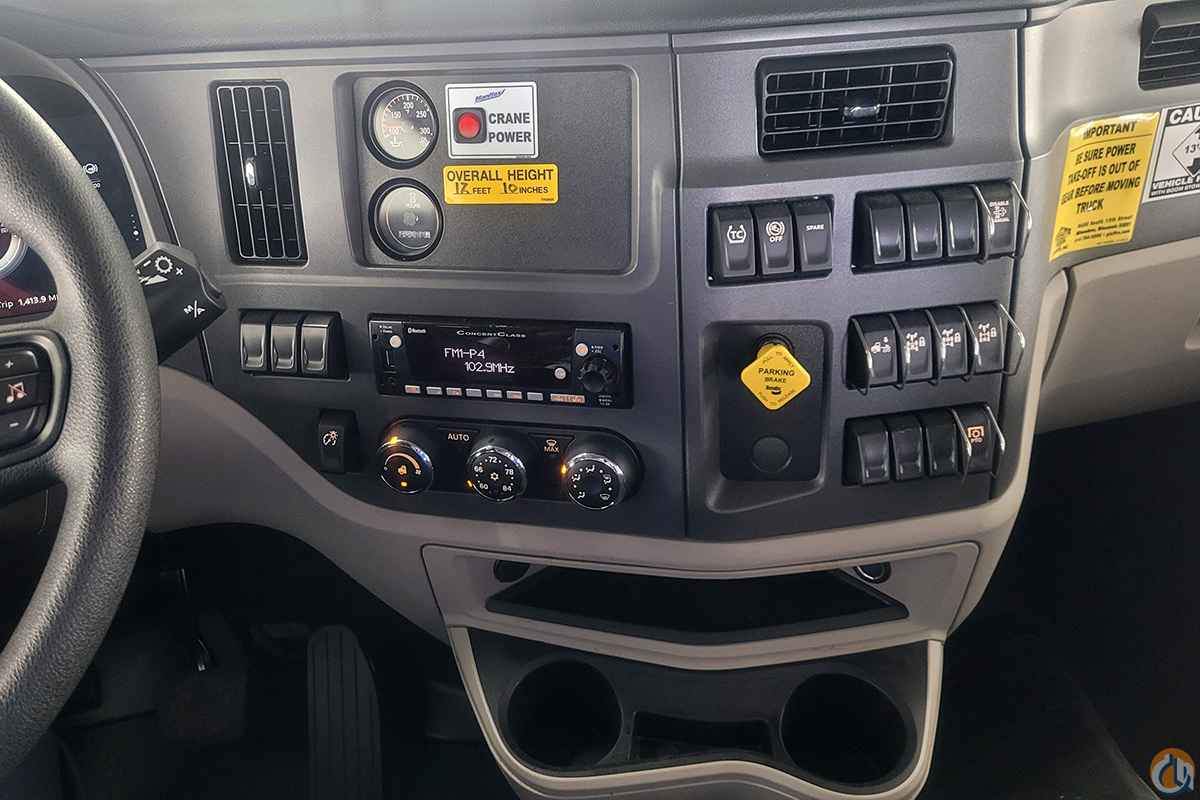

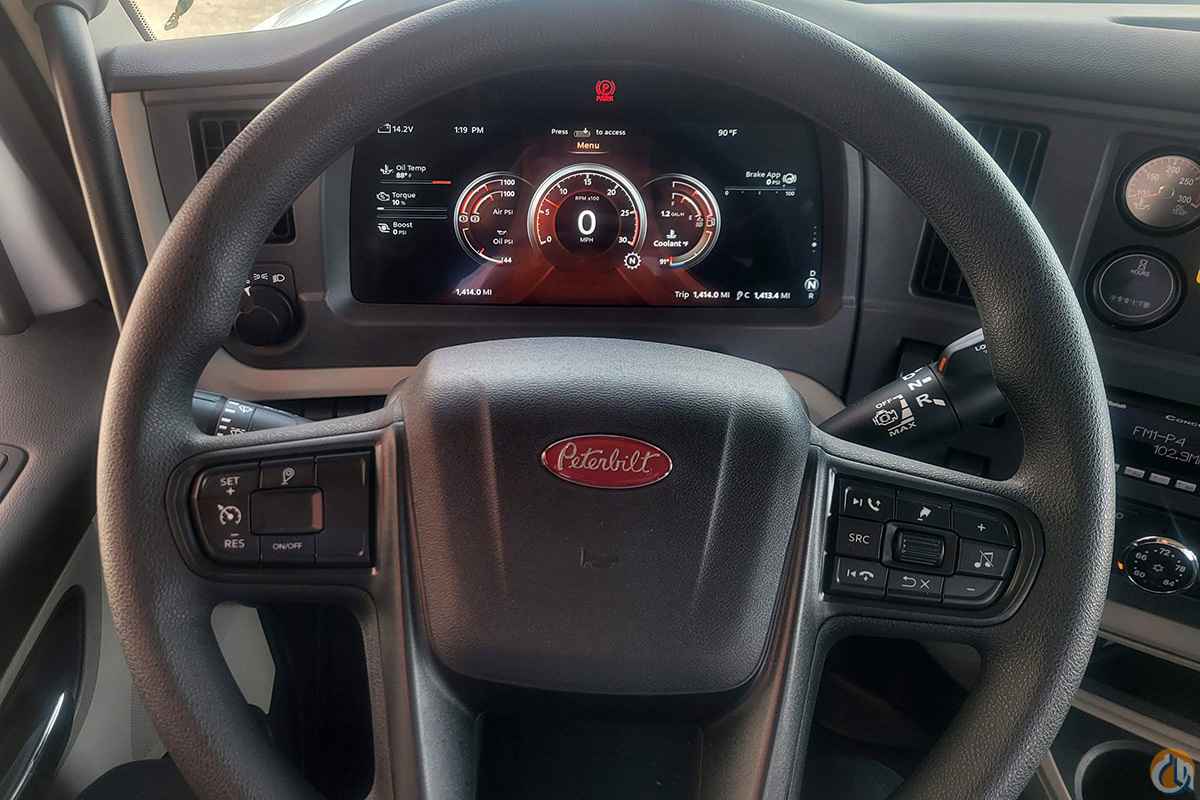

COMPLETE GAUGE PACKAGE
PAINTED PETERBILT WHITE L0006EY
STD PETERBILT FACTORY WARRANTY
