Equipment Specifications:
Year:
2023
Boom:

Capacity:
40.00
Jib:

Condition:
New
Hours:
Inquire
Unit #:
99538
Serial #:
300774
Location:
Sacramento, California, USA
Seller Contact:
Coastline Equipment Crane Division
Neil Goodale - Division Manager
916-440-8090
562-673-4049 (alt)
www.coastlinecd.com
95814 95811Bldg. A 325 N. 5th Street Sacramento California United States
Seller Notes:

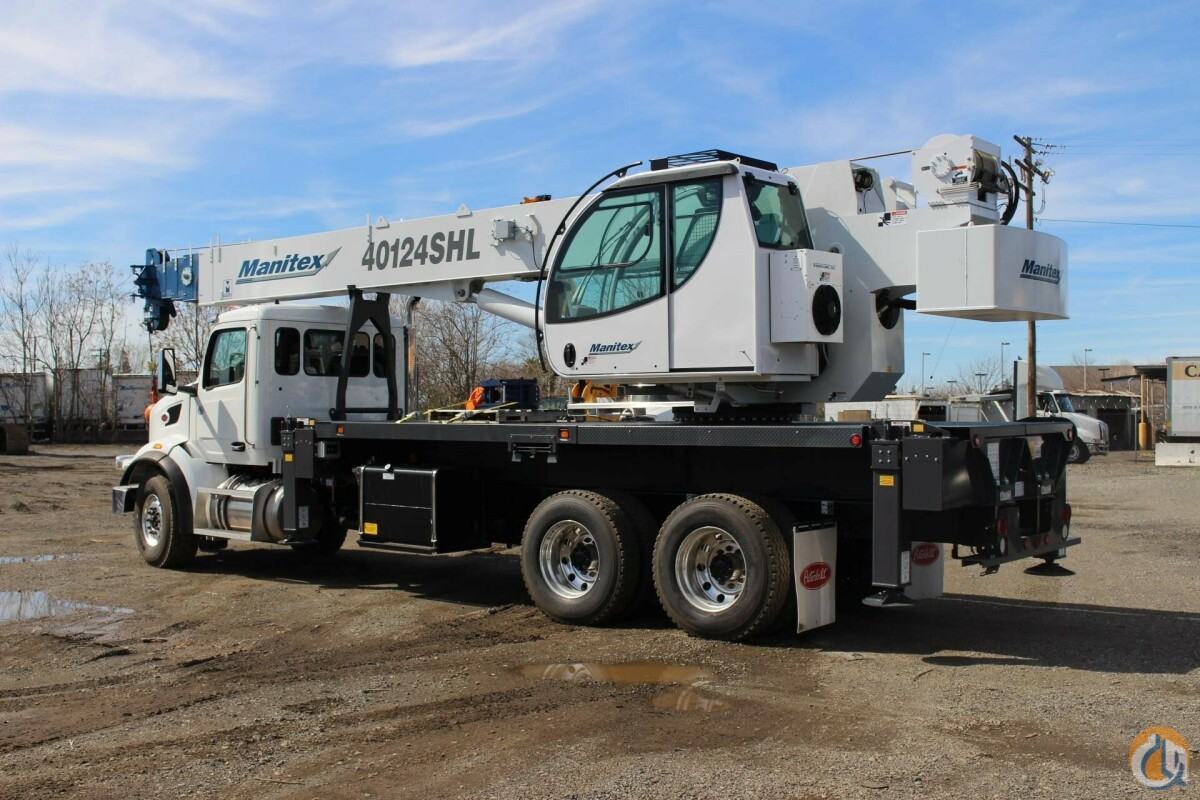

Manitex 40124SHL - 40 Ton
Standard features:
124’ five-section telescopic boom, 2 speed hoist with grooved drum & hoist drum rotation indicator, 7 ton hook and ball, 2-Upper and 3-Lower load sheave quick reeve boom head, External wired anti-two block with lockout, Boom hoist cylinder, System pressure gauge, 360° area of operation. Continuous rotation. Tilting Cab w/Heater and Windshield cover & upper Hatch guard, Engine Monitoring system, Engine start/stop. Operators service/parts manuals. Boom length and angle indicators. Electronic throttle. Foot throttle, free swing, signal horn, 380’ of 5/8” rotation resistant wire rope, Audible Outrigger Motion Alarm, 115 gallon reservoir with suction strainer and ball valve, Outrigger Monitoring System for Verification only, Turret, rotation bearing and swing system, Load moment indicator-audio/visual capacity alert with shutoff, 4 out-and-down outriggers, 22’ spread including capacities for intermediate 13’ 4” and retracted 7’ 2” spreads, Removable Boom Rest, 2 retractable ladders for easy access to bed. 3-section Vane pump counterclockwise rotation is standard, Lower frame for 10’ flatbed, Oil Cooler, Pilot controls, bubble level, ROC solid radio remote outrigger control and control valve for FBS.
Additional Options Included:
• LMI 40124SHL Radio Only
• 1 Piece Jib 31’
• 10’ Steel Bed
• Air Conditioning
• Hotshift PTO
• 35 ton 3-Sheave Block for 1-6 part line
• Hydraulic Reservoir Chassis Mount
• Front Center Stabilizer
• Aluminum Tool Box (36” L x 24” W x 24” H) Chassis Mount

MOUNTED ON 2023 PETERBILT 567
Mounted on a 2023 Peterbilt 567 tractor chassis with a Cummins X15 500 HP diesel engine, Eaton RTL0-A 13-Speed Transmission, Dana Spicer 22,000 lb. front axle, Meritor RT46-160 46,000 lb. rear axle, Full set of Alcoa Polished wheels, Single Aluminum 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Sterling Gray, AM/FM/WB radio, Air horn under cab, dual heated mirrors, Stainless steel sunvisor, Halogen headlights, and unit is painted Axalta Two Stage White.
