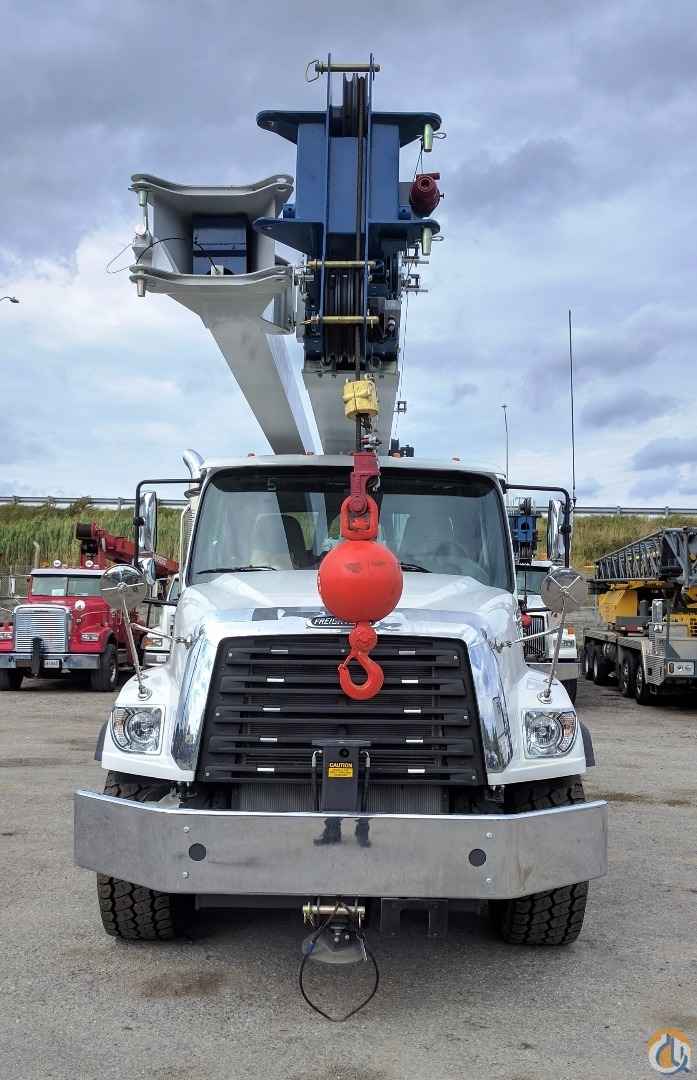

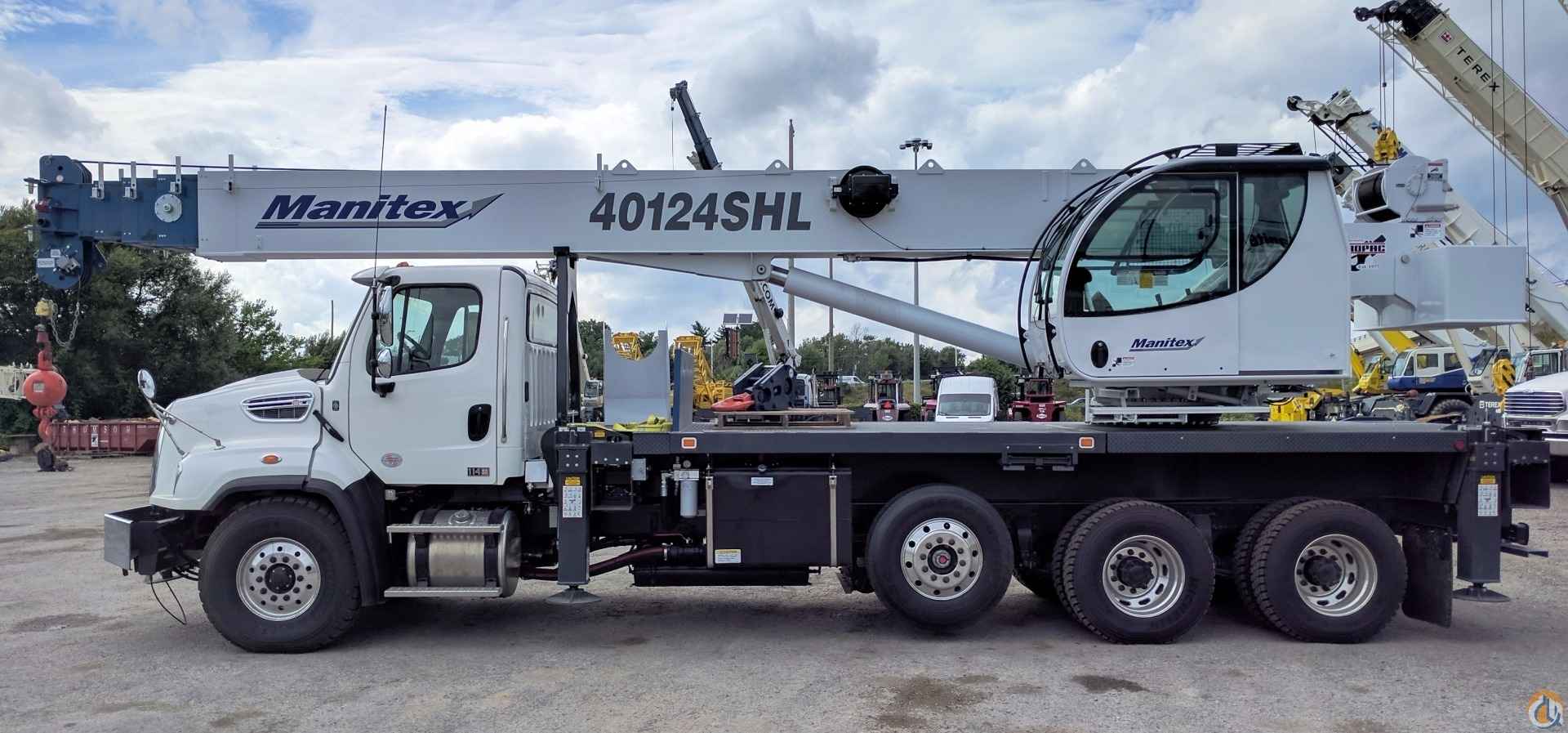

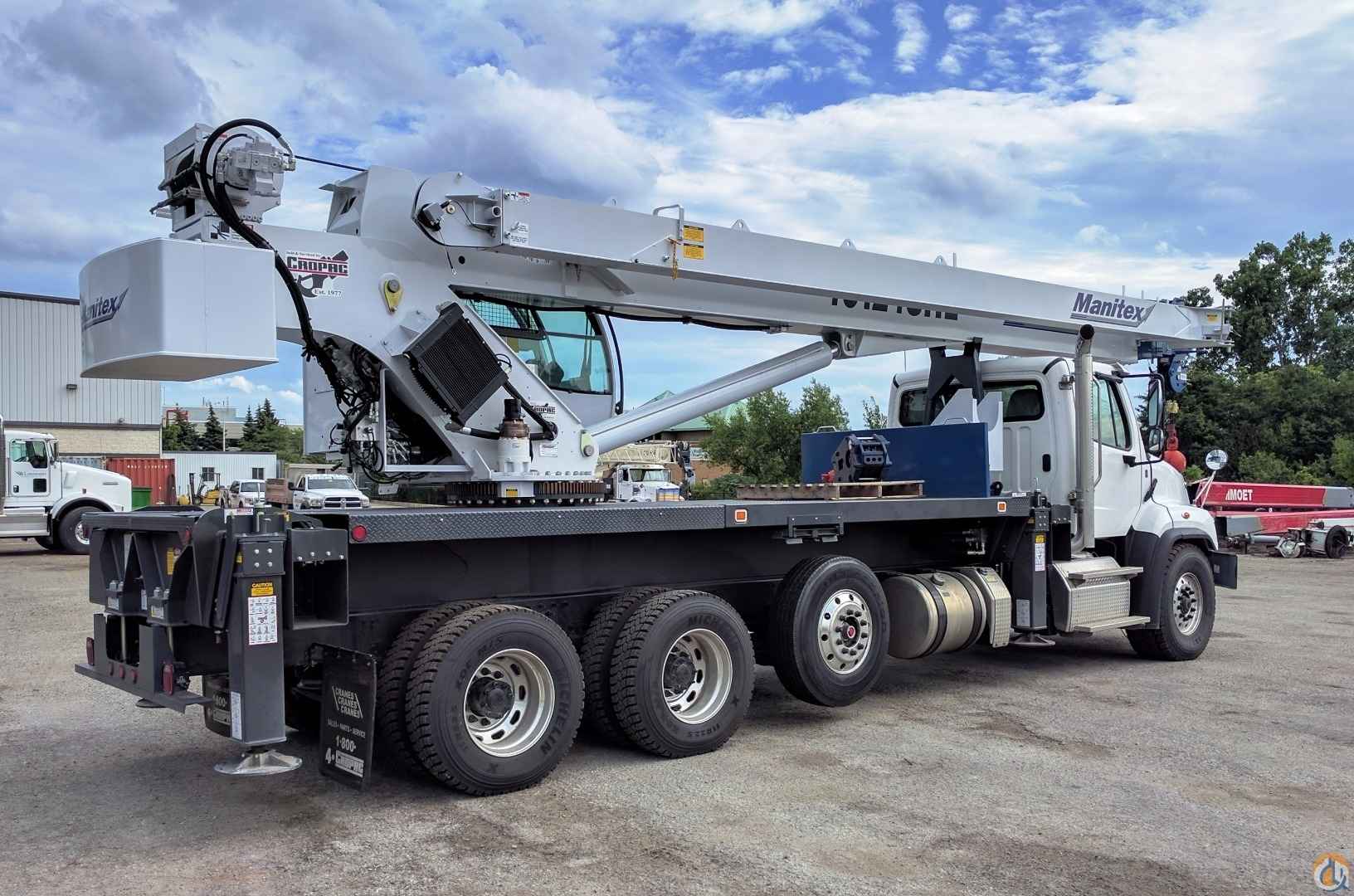

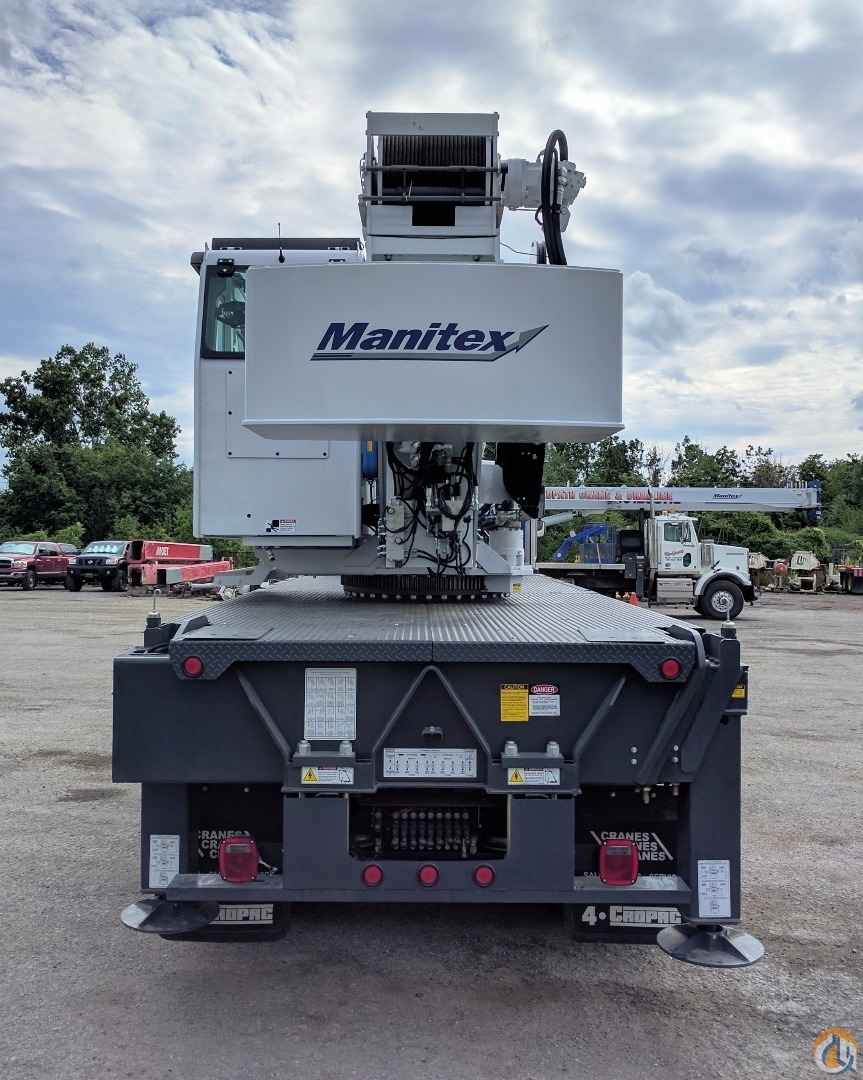

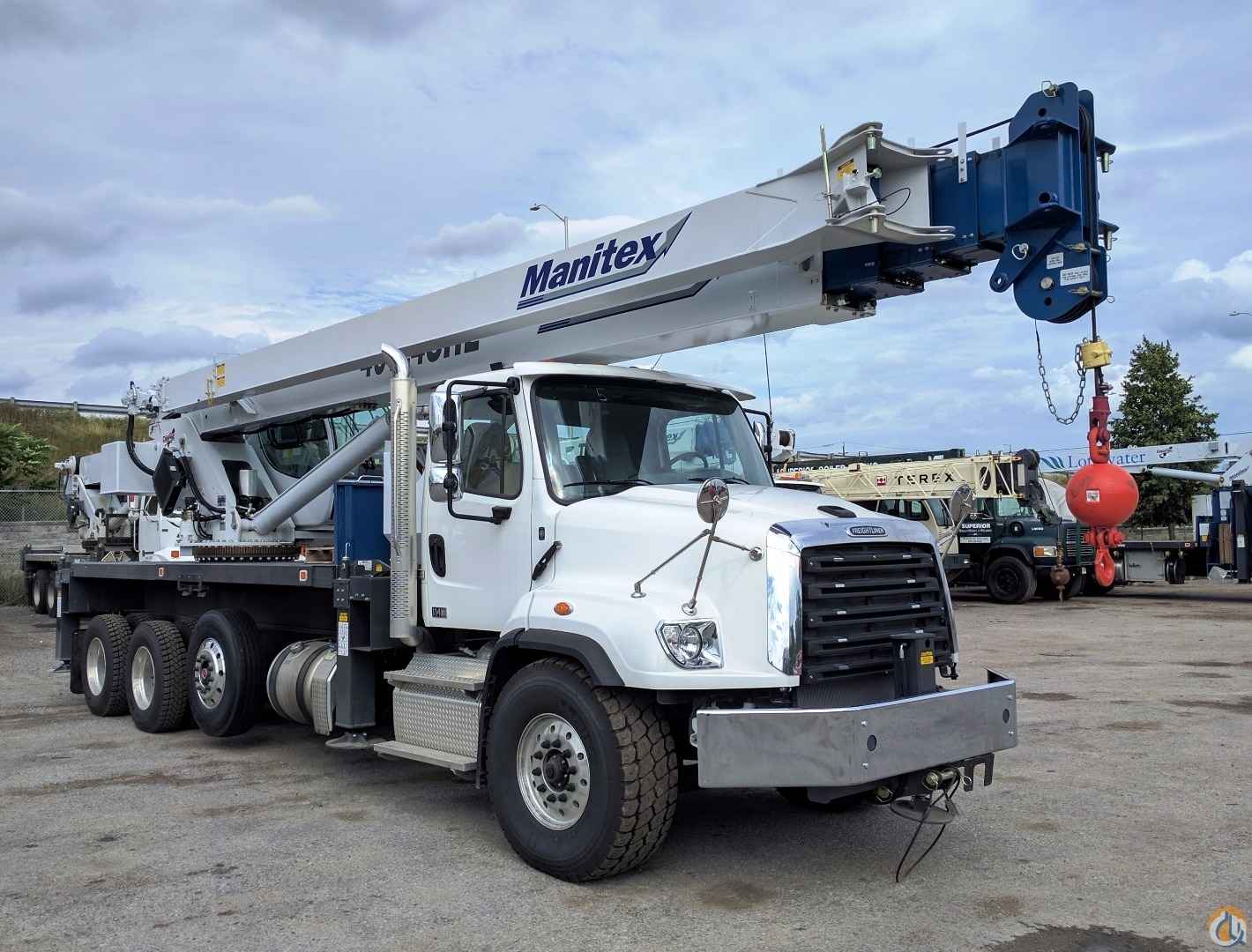

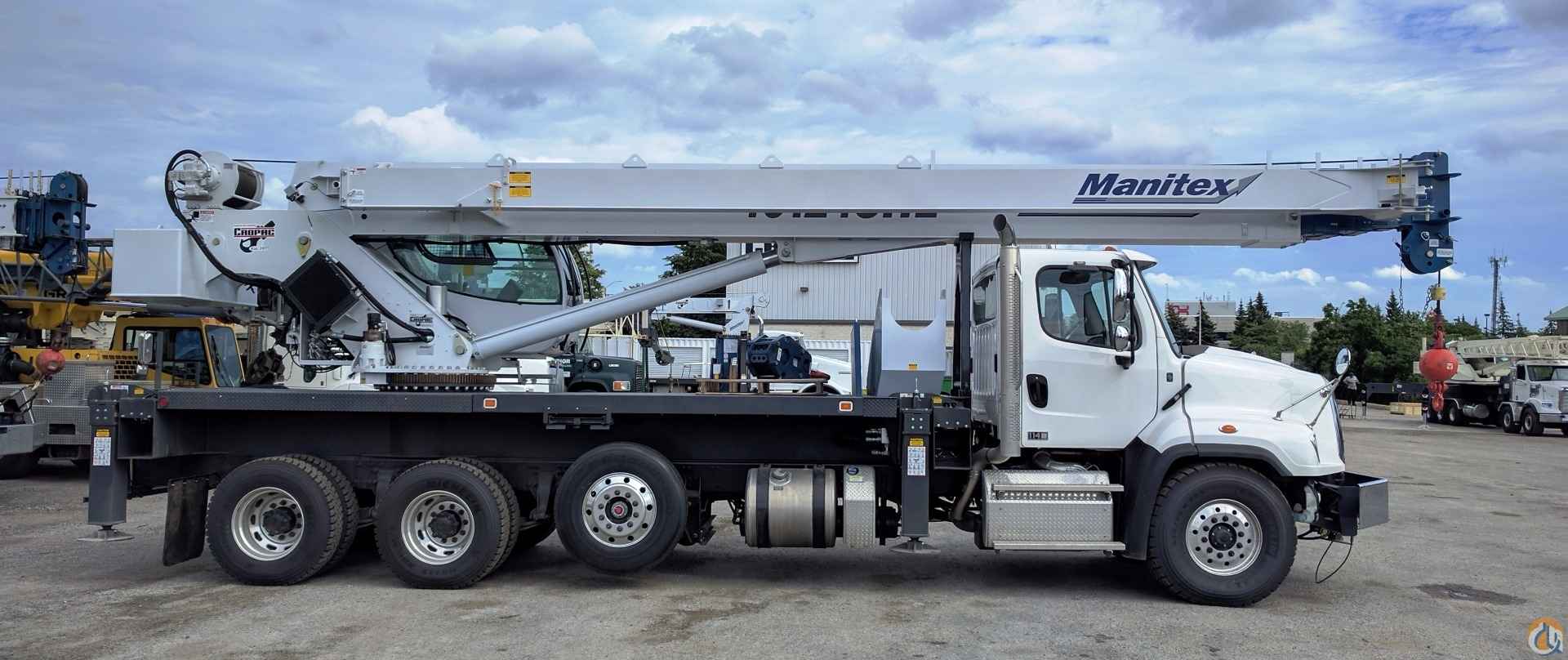

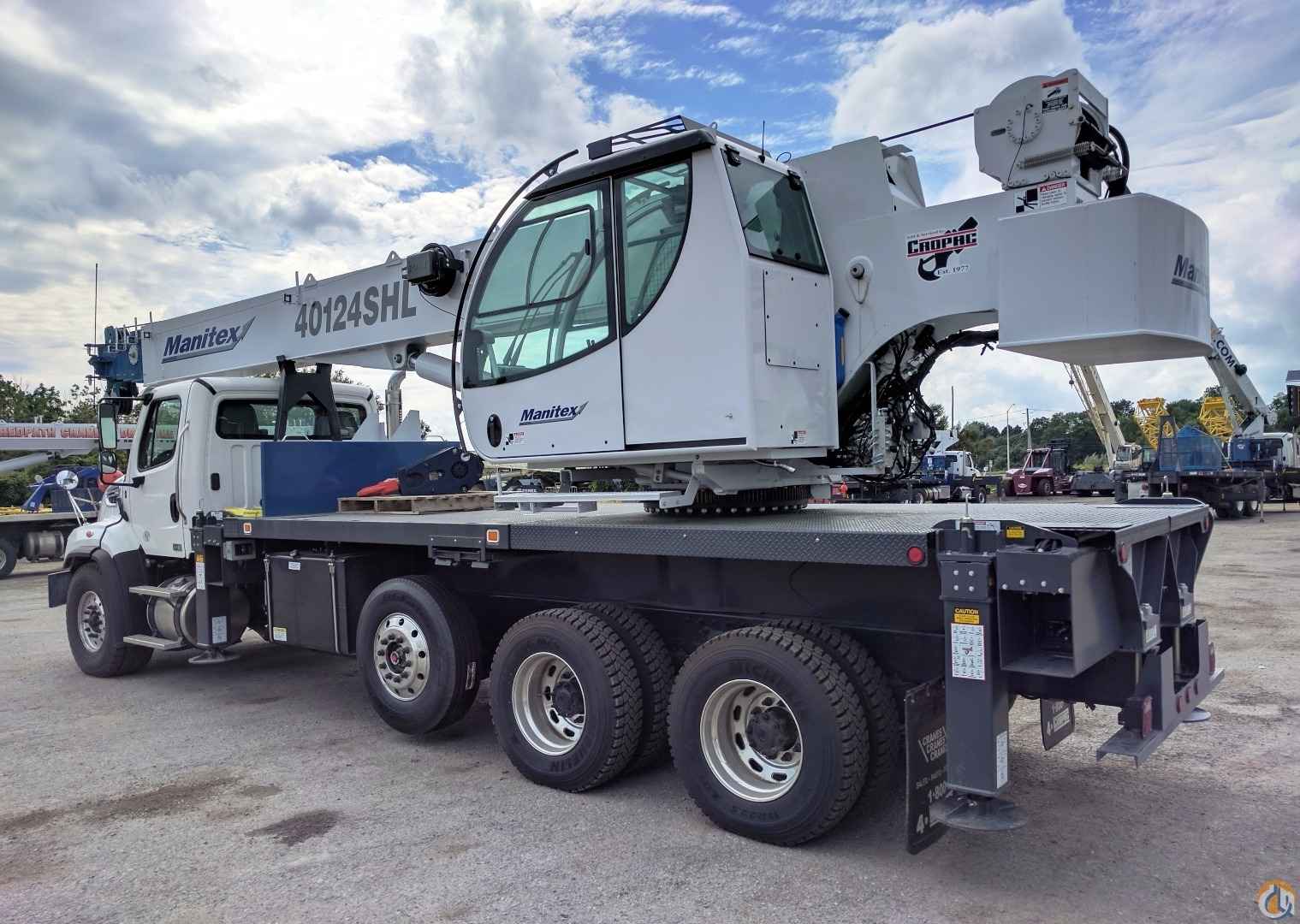

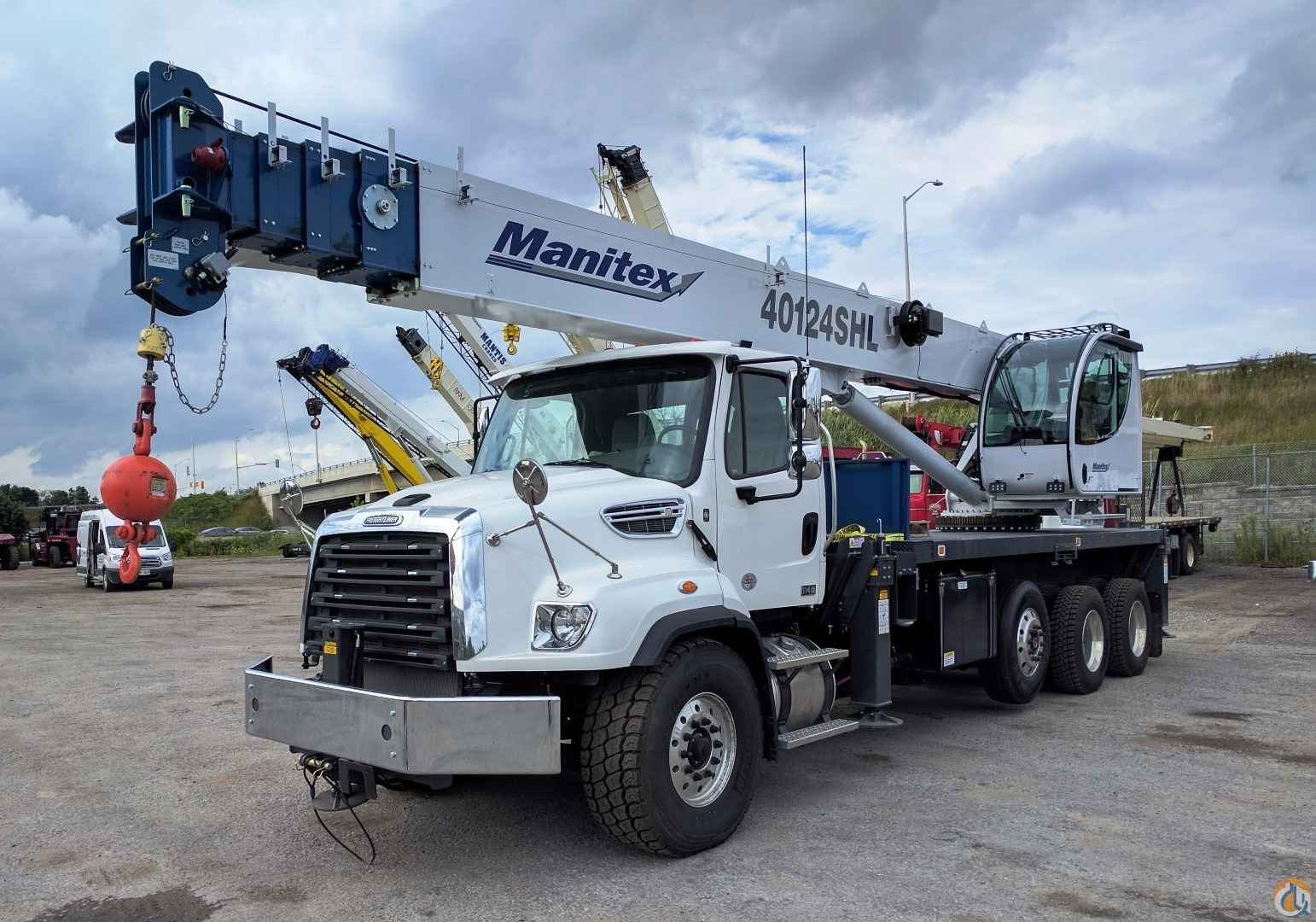

2017 Manitex 40124 SHL

• 5 Section telescopic boom 30’9” – 124’

• 2 Piece 31’ – 55’ telescopic jib

• 8,350 lbs. counterweight option

• 7 ton hook and ball

• 30 ton three sheave quick reeve block

• Front stabilizer assembly

• Deluxe operators cab with 20 degree tilt

• Pilot Controls, diesel heater

• Heated fully adjustable seat

• Engine Monitoring System - Display in upper cab, Cab Stereo

• Full LMI with with all function visual and audible alerts with cutouts

• Hard wired Anti-Two Block w/ Lockout

• Engine Start/Stop, Electronic Throttle

• Free Swing, Oil Cooler

• Headache Ball

• 380’ 5/8” rotation resistant wire rope

• Continuous rotation

• Out and down outriggers, 22’ spread, with intermediate and straight down

• Two ladders for easy access to bed

• Audible outrigger motion alarm

• 3 section vane type hydraulic pump

• Signal horn, Air throttle

Mounted on a New 2017 Freightliner 114SD

• DD13 470HP

• Eaton Fuller RTO-16908LL transmission

• 20,000lbs front axle,

• 40,000lbs rear axles, with 46,000lbs airliner

• 20,000 lbs. steering lift axle

• Driver controlled differential lock

• Air conditioning
