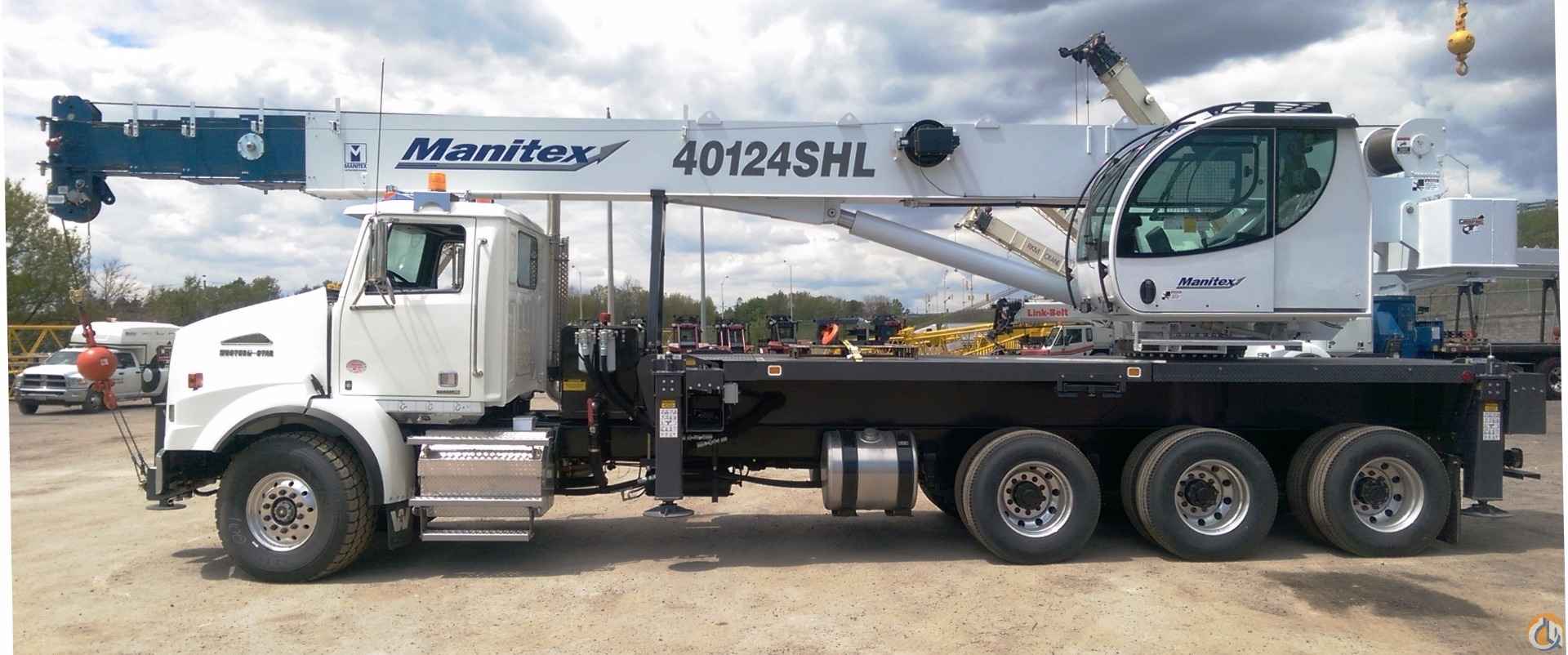

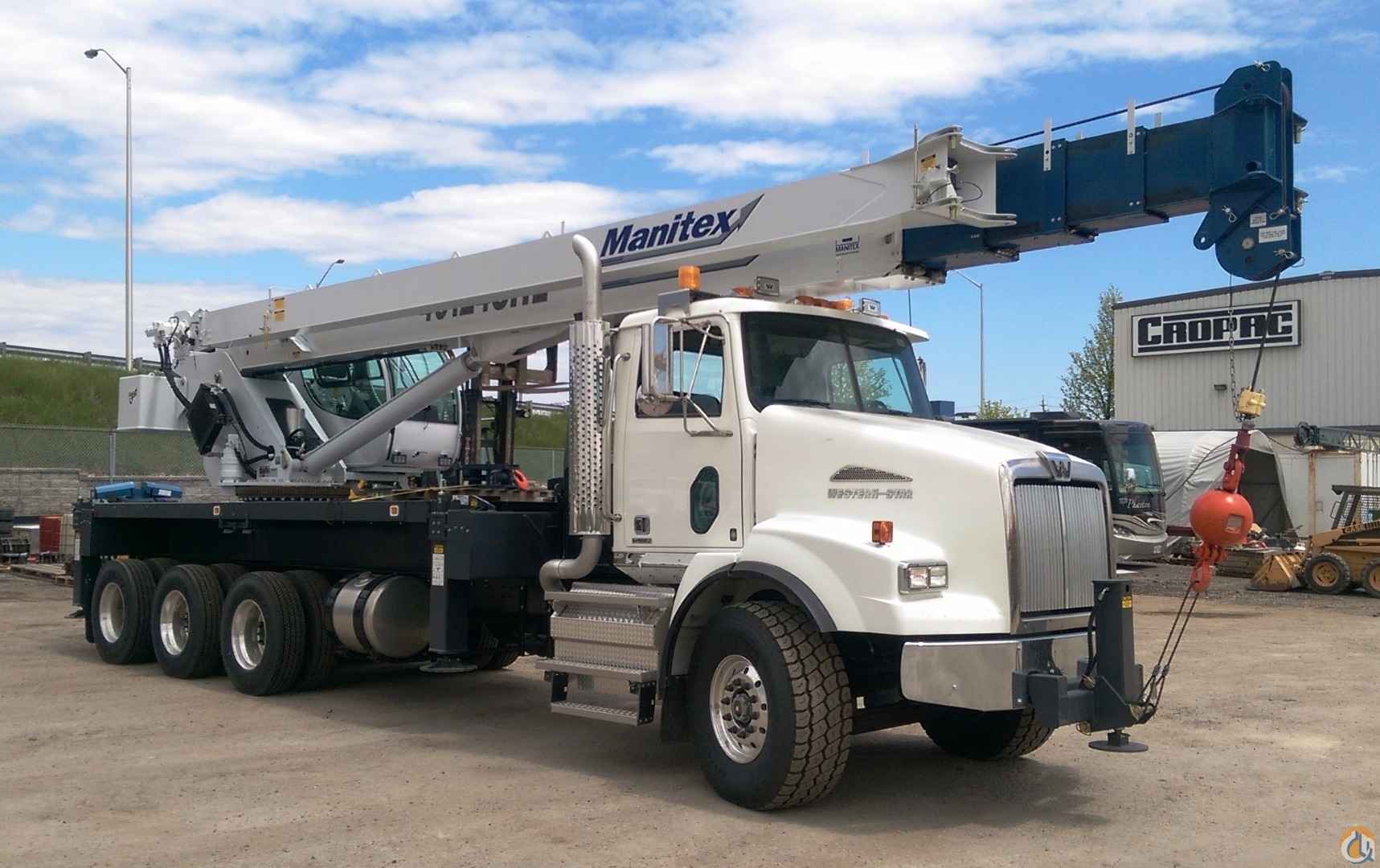

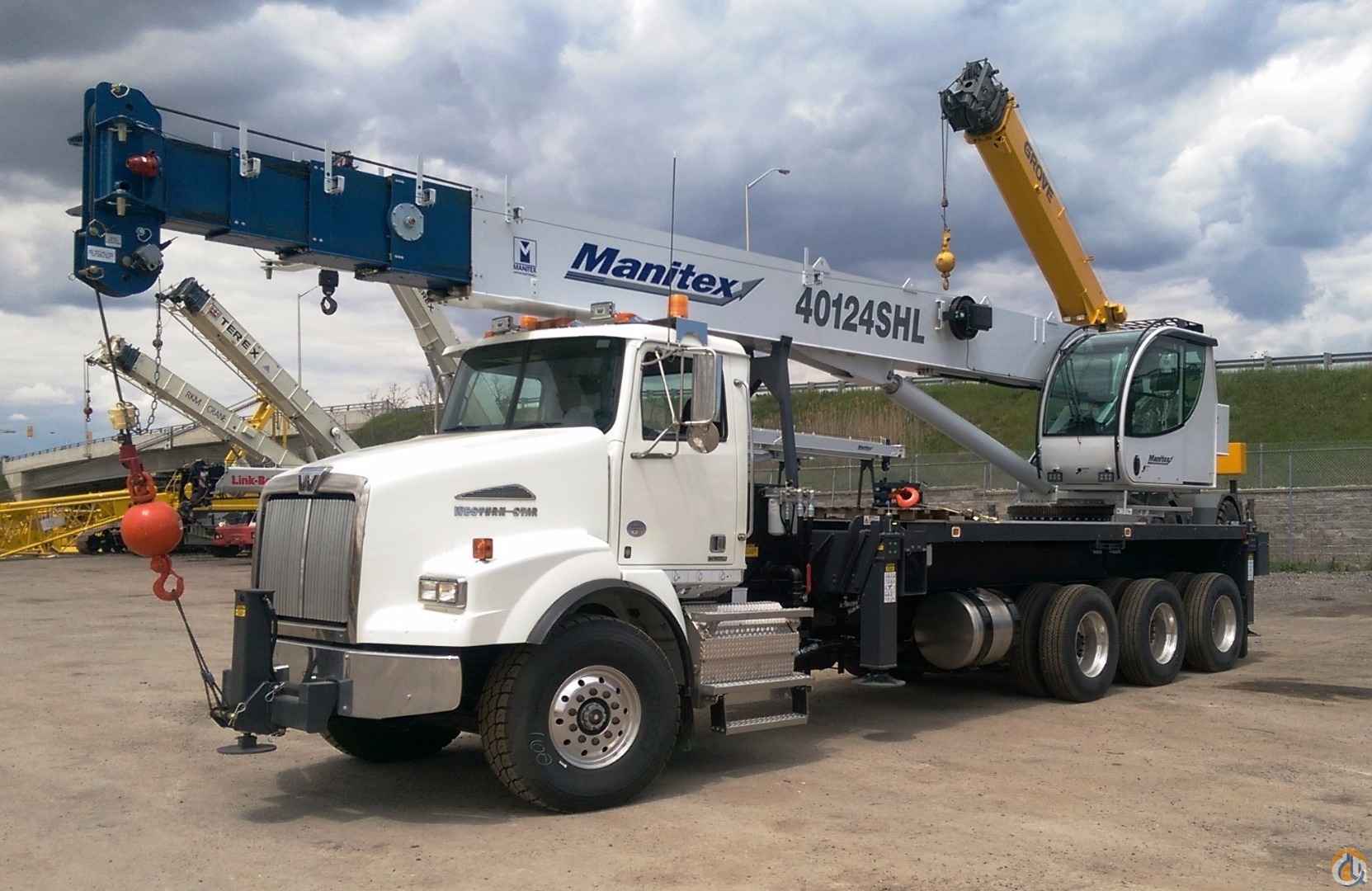

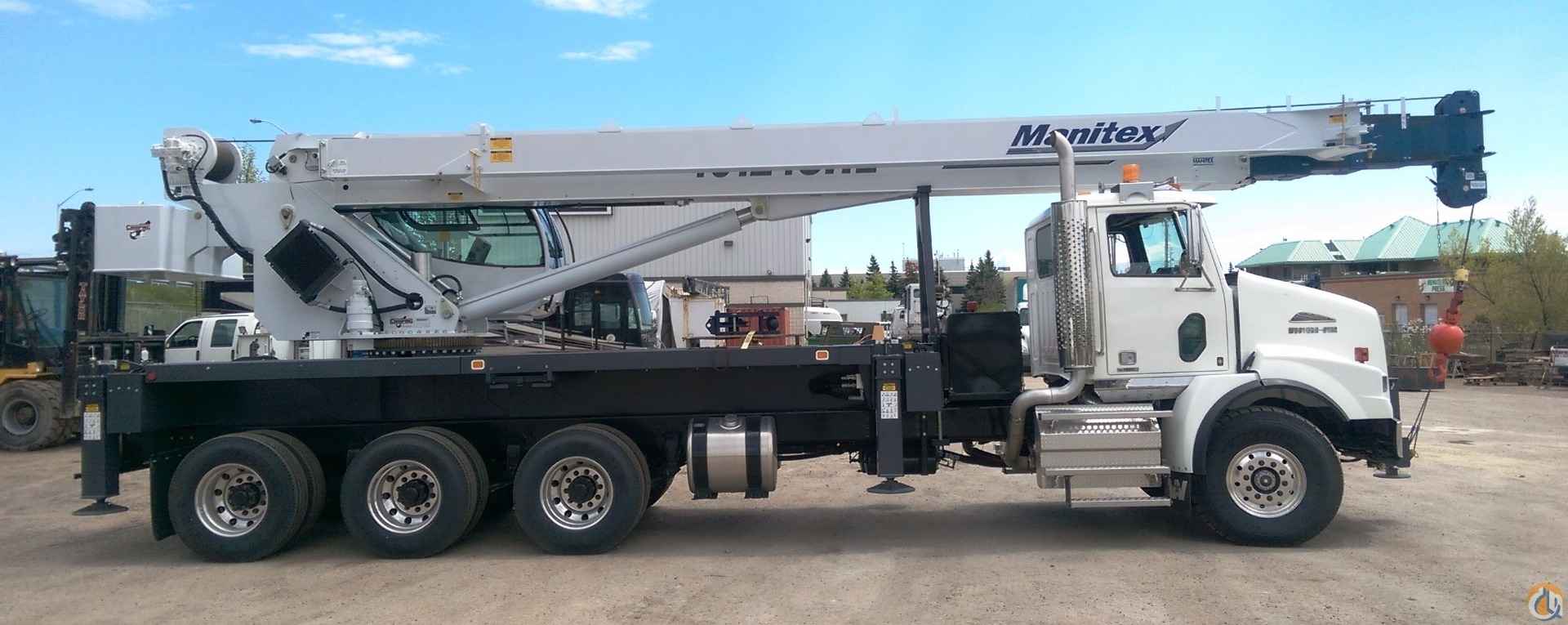

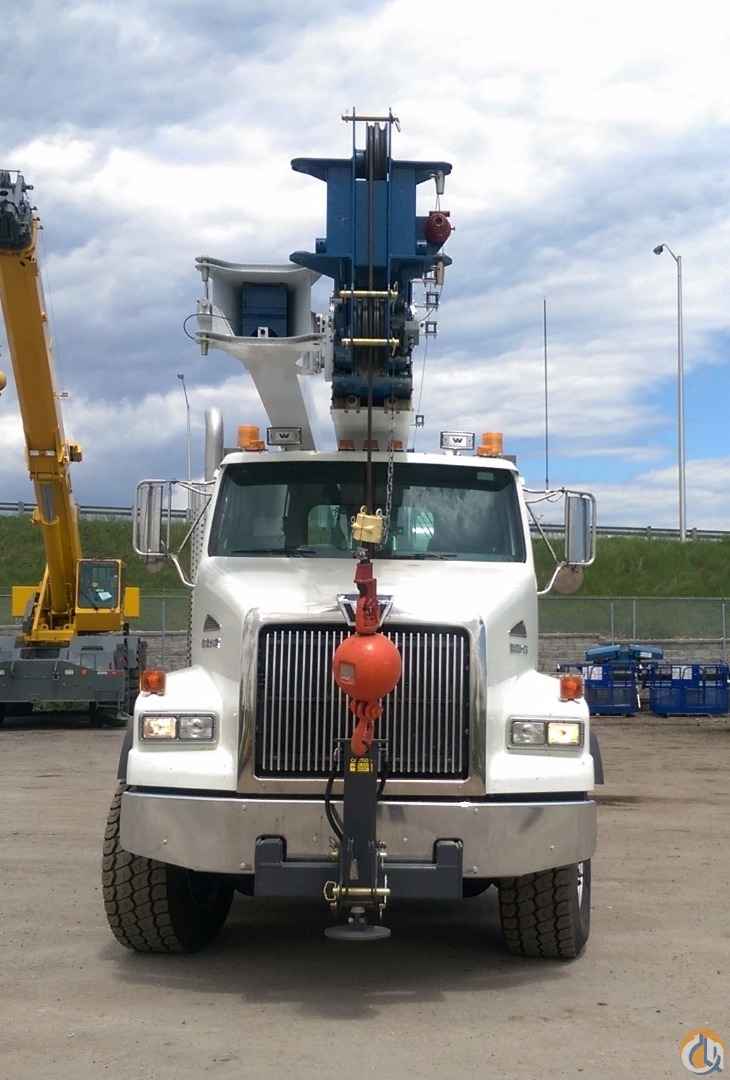

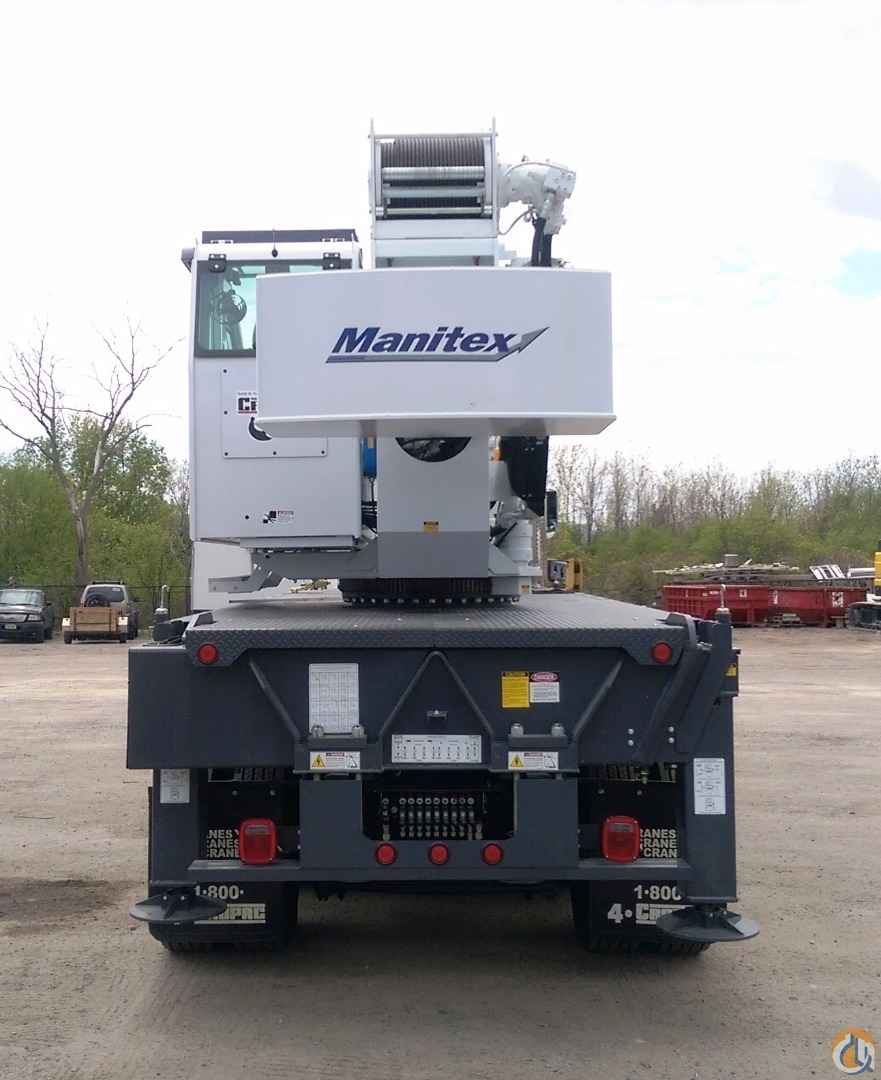

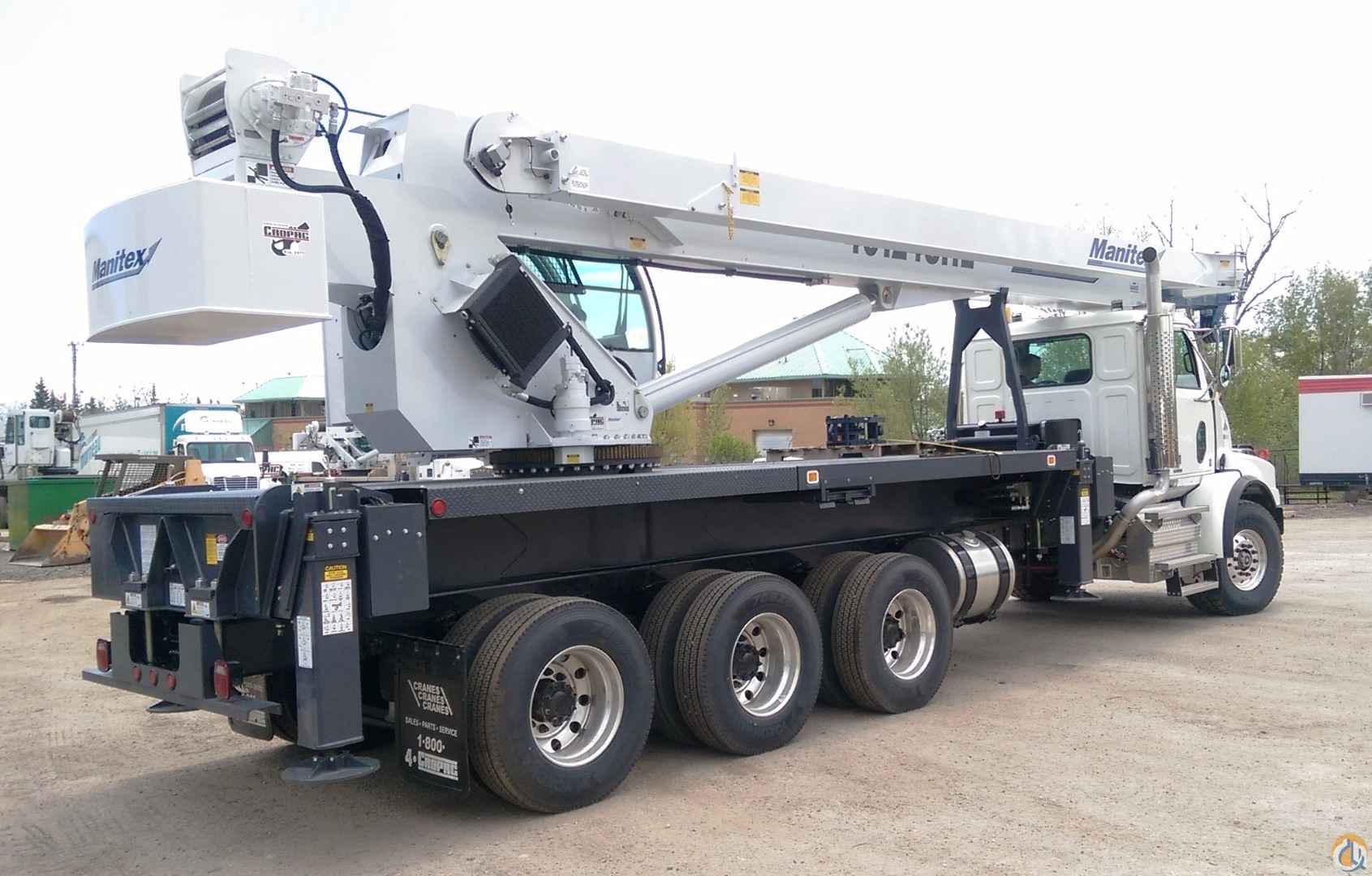

2016 Manitex 40124SHL

• 5 Section telescopic boom 30’9” – 124’
• 2 Piece 31’ – 55’ telescopic jib
• 8,350 lbs. counterweight option
• 7 ton hook and ball
• 15 ton single sheave quick reeve block
• Front stabilizer assembly

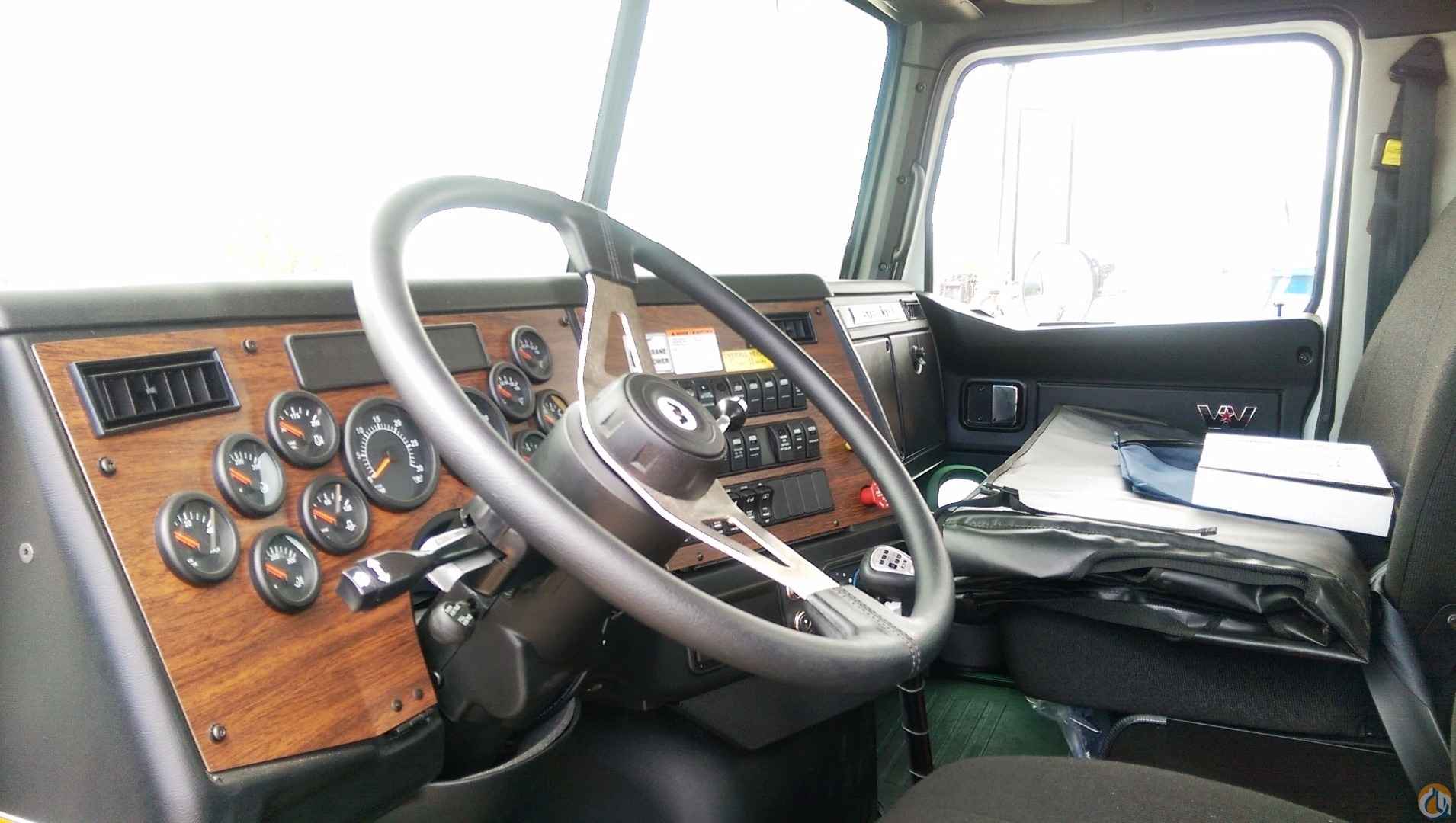

• Deluxe operators cab with 20 degree tilt
• Pilot Controls, diesel heater
• Heated fully adjustable seat
• Engine Monitoring System - Display in upper cab, Cab Stereo
• Full LMI with with all function visual and audible alerts with cutouts
• Hard Wired Anti-Two Block w/ Lockout
• Engine Start/Stop, Electronic Throttle
• Free Swing, Oil Cooler
• Headache Ball
• 380’ 5/8” rotation resistant wire rope
• Continuous rotation
• Out and down outriggers, 22’ spread, with intermediate and straight down
• Two ladders for easy access to bed
• Audible outrigger motion alarm
• 3 section vane type hydraulic pump
• Signal horn, Air throttle

Mounted on a new 2016 4800SB Western Star Tri-Drive

• 20,000 lbs. front Axle, 69,000 lbs. tridem wide track airliner suspension
• DD13 – 12.8 L 450 HP engine
• Eaton fuller RTLO-16918B transmission
• 125 gallon fuel tank
• 445 65R22.5 front tires, 11R22.5 Rear tires
• Full spec available.
