72 recent views
Your Price:
Equipment Specifications:
Year:
2015
Boom/Jib:
124'/55'
Capacity:
40.00
Condition:
Excellent
Unit #:
Verify
Serial #:
Verify
Hours:
Inquire
Location:
Florida, USA
Seller Contact:
The Titans Cranes Inc.
Cein Quezada
904-487-0731
3545 St Johns Bluff Rd S, Jacksonville, FL 32224, USA
Seller Notes:

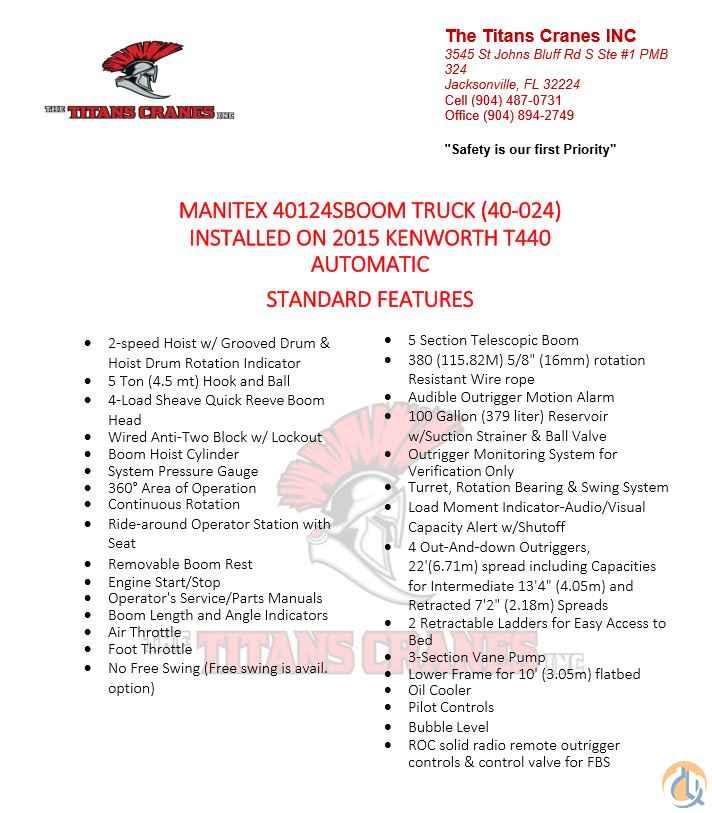

STANDARD FEATURES
• 2-speed Hoist w/ Grooved Drum & Hoist Drum Rotation Indicator • 5 Ton (4.5 mt) Hook and Ball • 4-Load Sheave Quick Reeve Boom Head • Wired Anti-Two Block w/ Lockout • Boom Hoist Cylinder • System Pressure Gauge • 360° Area of Operation • Continuous Rotation • Ride-around Operator Station with Seat • Removable Boom Rest • Engine Start/Stop • Operator's Service/Parts Manuals • Boom Length and Angle Indicators • Air Throttle • Foot Throttle • No Free Swing (Free swing is avail. option)
• 5 Section Telescopic Boom • 380 (115.82M) 5/8" (16mm) rotation Resistant Wire rope • Audible Outrigger Motion Alarm • 100 Gallon (379 liter) Reservoir w/Suction Strainer & Ball Valve • Outrigger Monitoring System for Verification Only • Turret, Rotation Bearing & Swing System • Load Moment Indicator-Audio/Visual Capacity Alert w/Shutoff • 4 Out-And-down Outriggers, 22'(6.71m) spread including Capacities for Intermediate 13'4" (4.05m) and Retracted 7'2" (2.18m) Spreads • 2 Retractable Ladders for Easy Access to Bed • 3-Section Vane Pump • Lower Frame for 10' (3.05m) flatbed • Oil Cooler • Pilot Controls • Bubble Level • ROC solid radio remote outrigger controls & control valve for FB

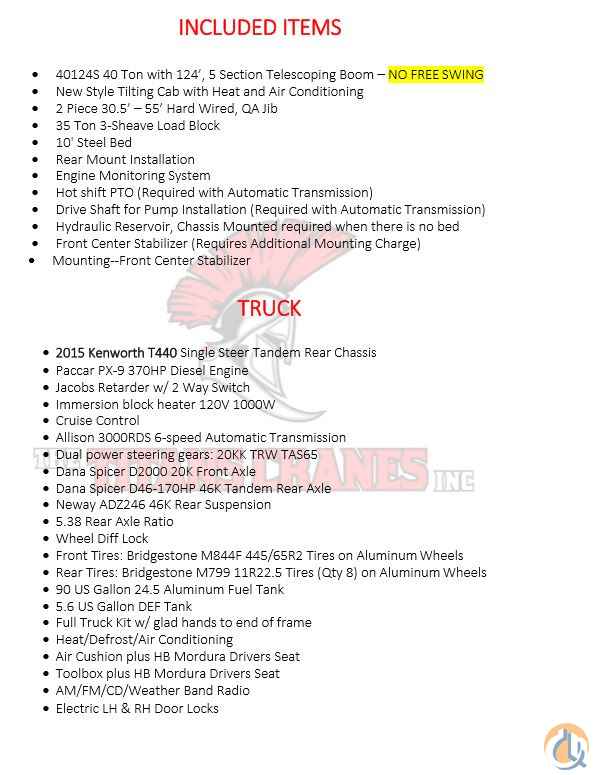

INCLUDED ITEMS

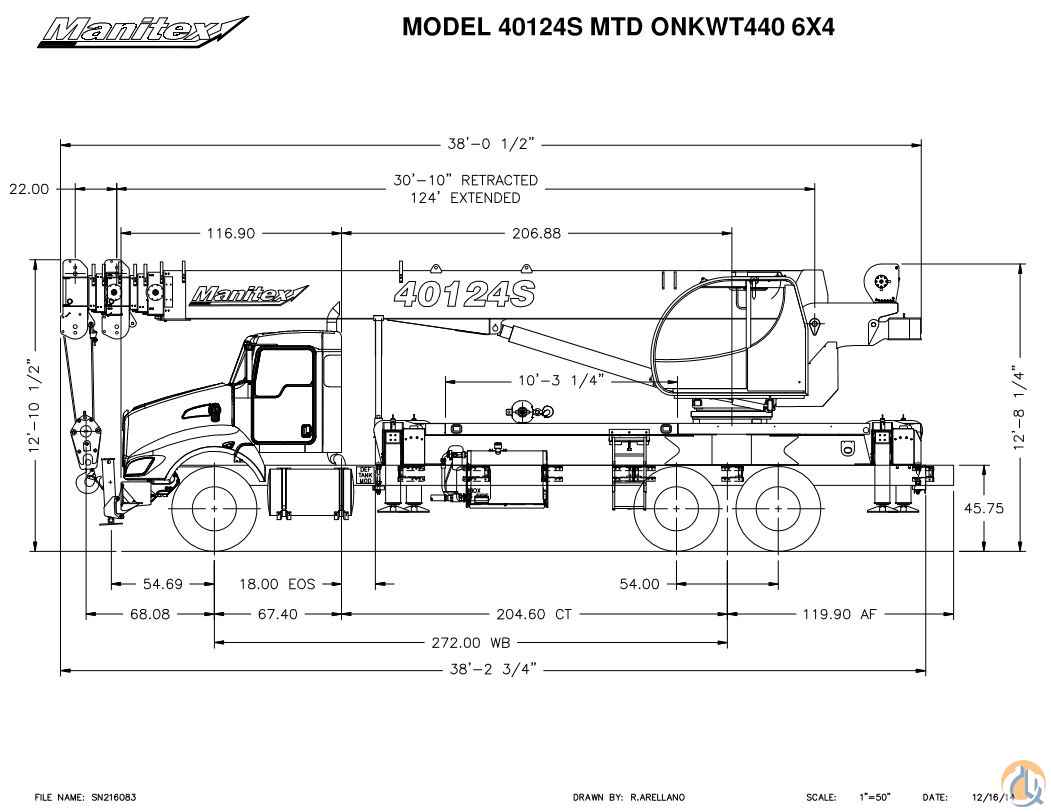

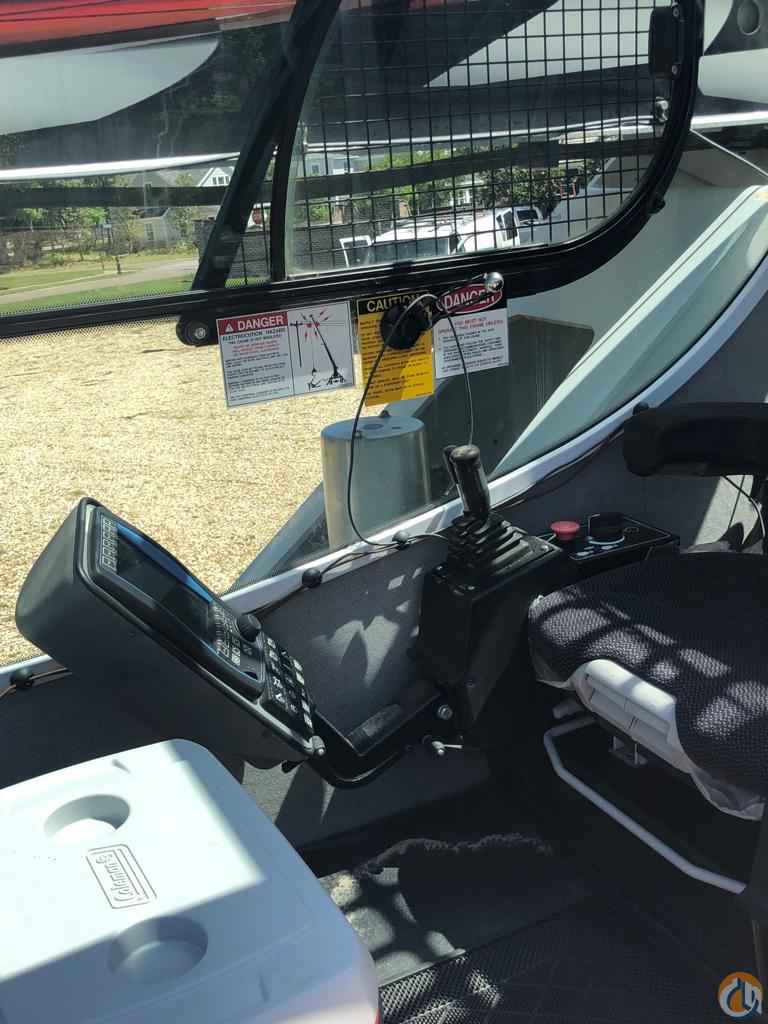

• 40124S 40 Ton with 124’, 5 Section Telescoping Boom – NO FREE SWING • New Style Tilting Cab with Heat and Air Conditioning • 2 Piece 30.5’ – 55’ Hard Wired, QA Jib • 35 Ton 3-Sheave Load Block • 10' Steel Bed • Rear Mount Installation • Engine Monitoring System • Hot shift PTO (Required with Automatic Transmission) • Drive Shaft for Pump Installation (Required with Automatic Transmission) • Hydraulic Reservoir, Chassis Mounted required when there is no bed • Front Center Stabilizer (Requires Additional Mounting Charge) • Mounting--Front Center Stabilizer



TRUCK

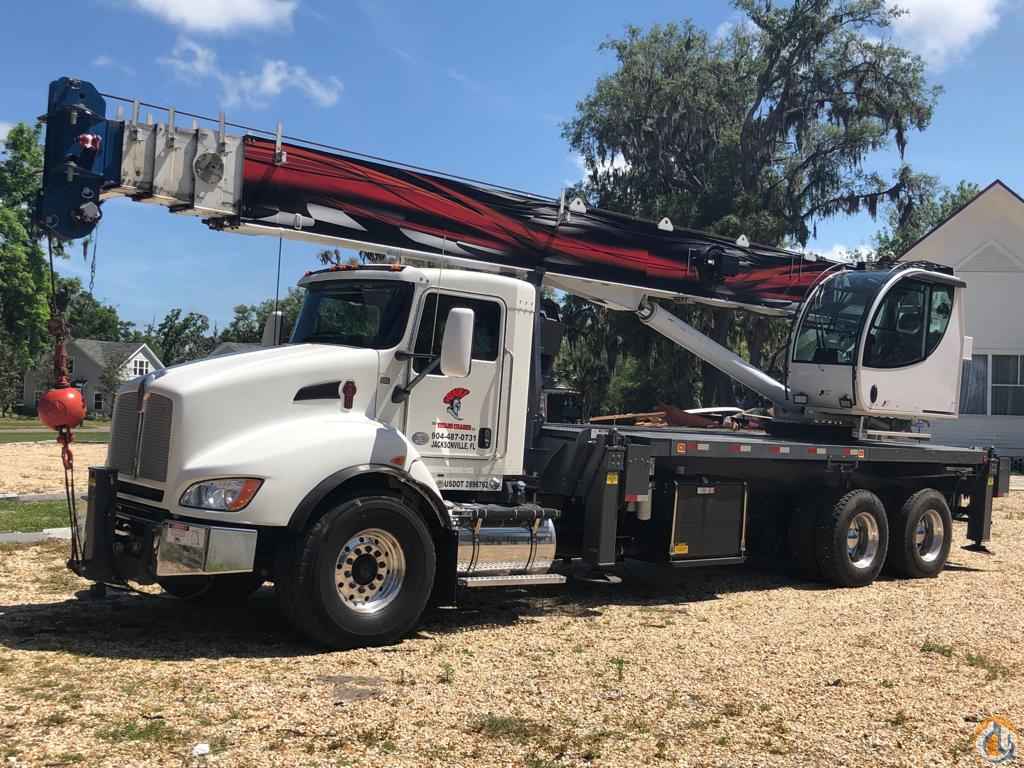

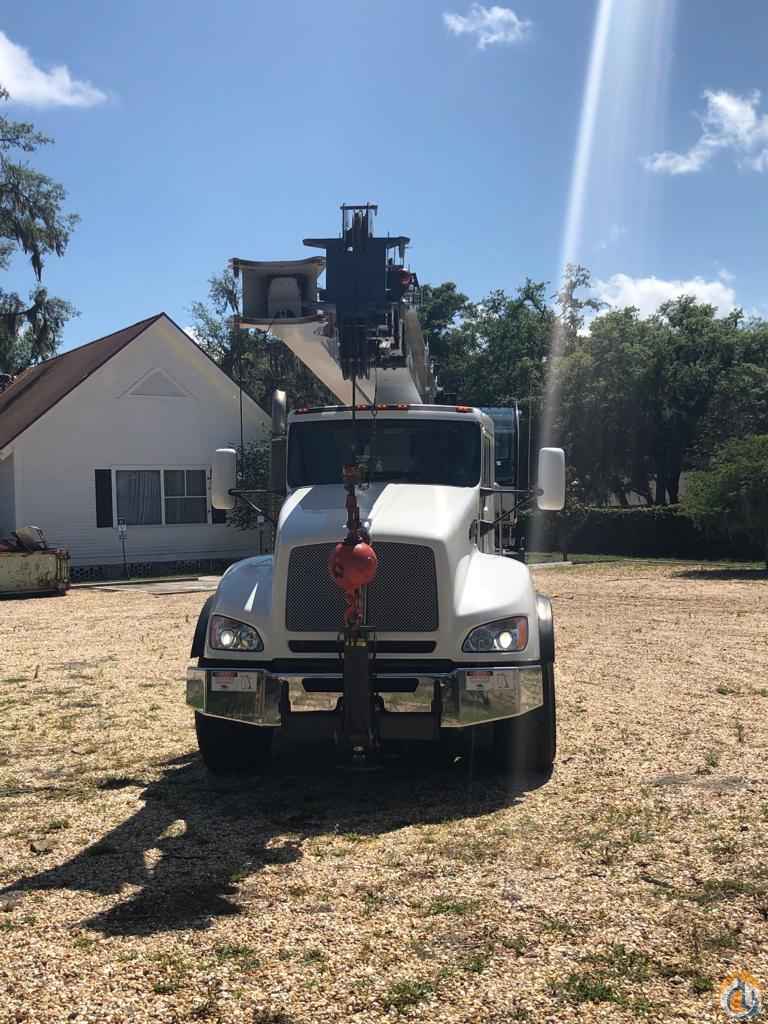

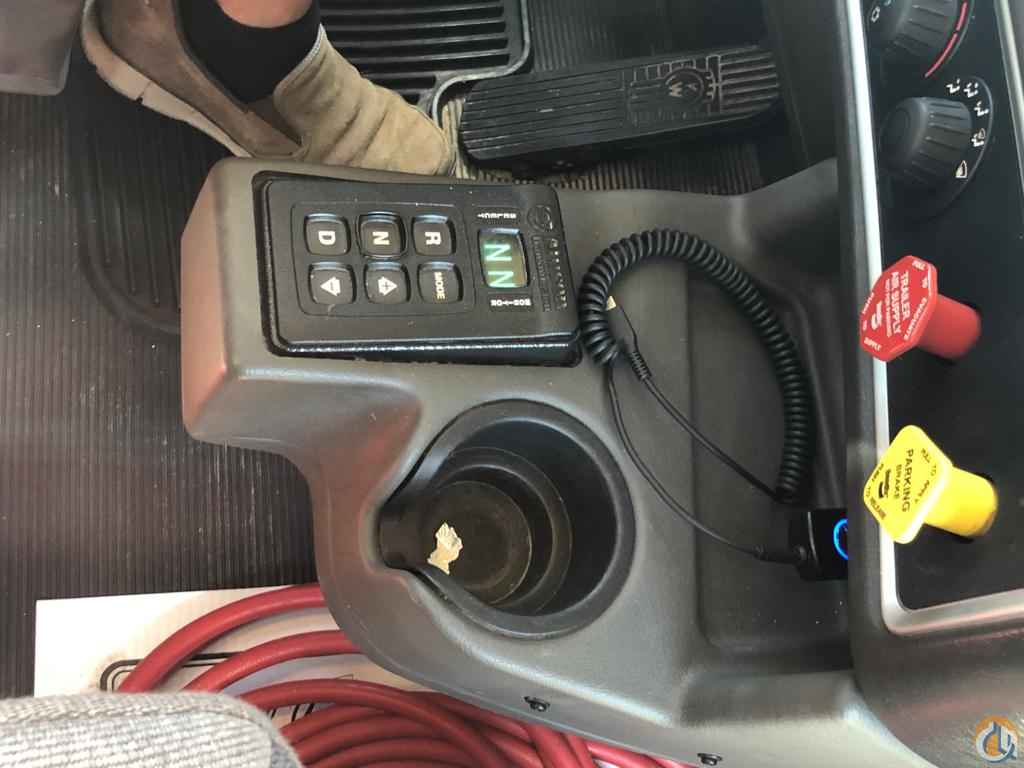

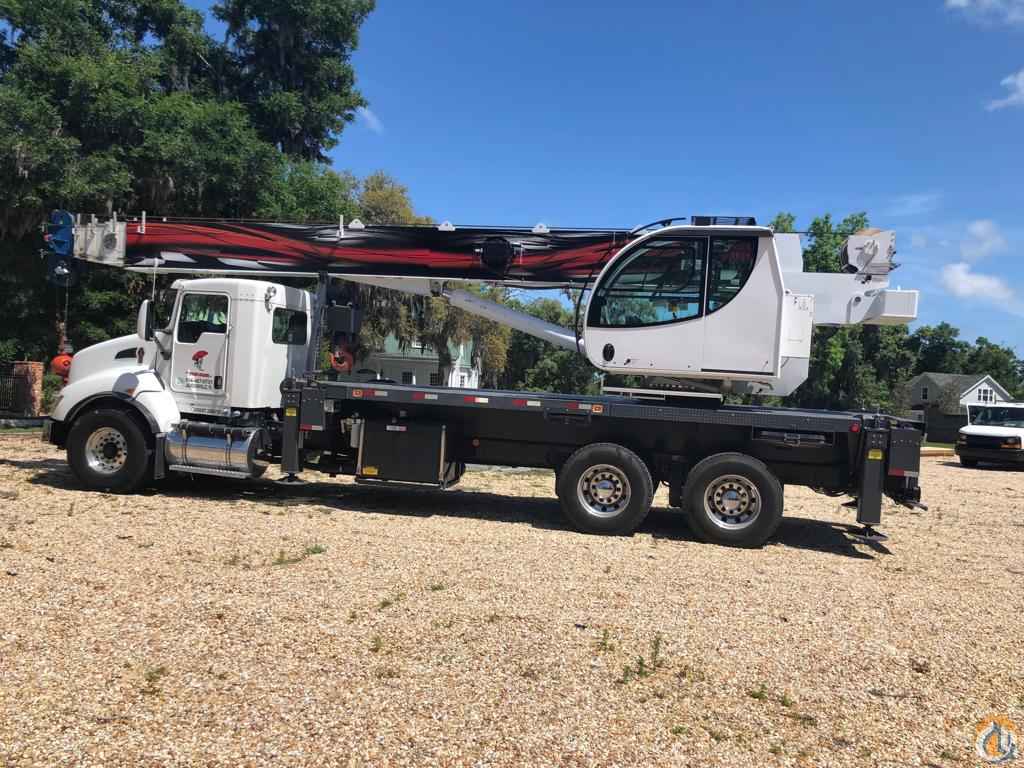

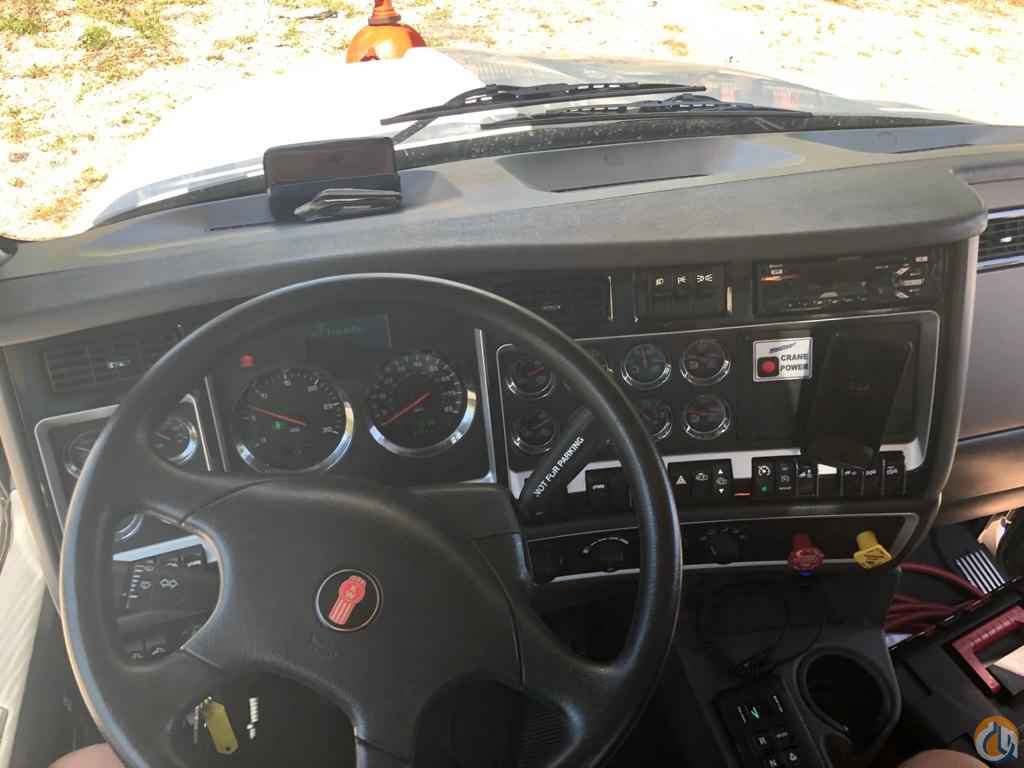

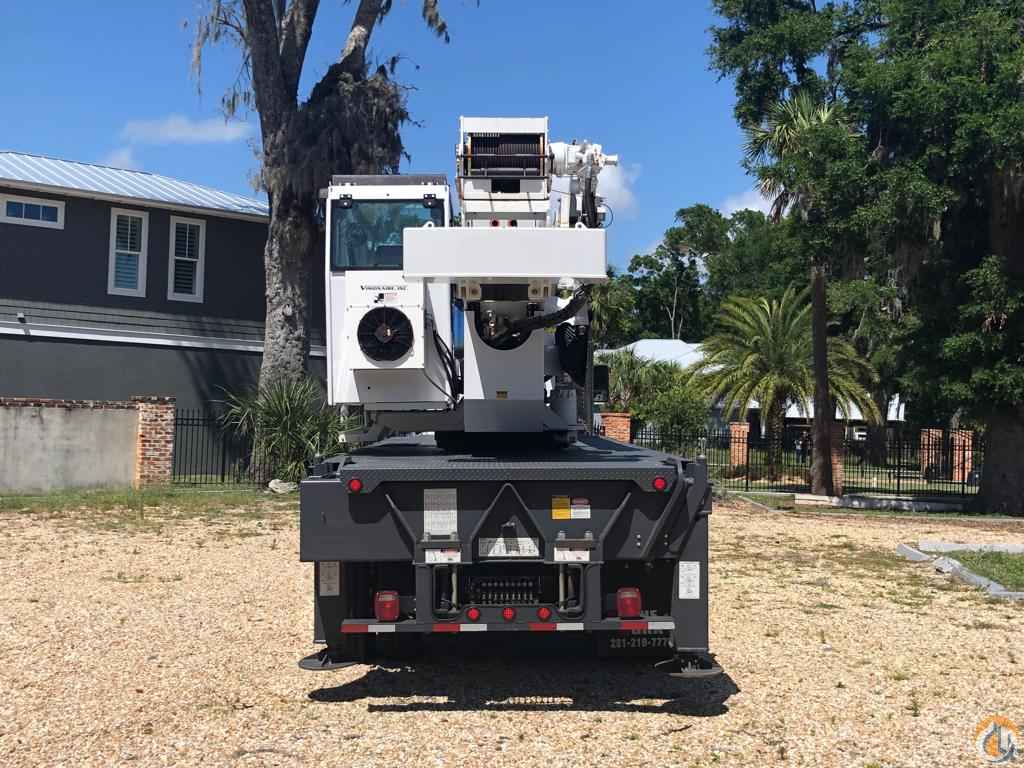

• 2015 Kenworth T440 Single Steer Tandem Rear Chassis • Paccar PX-9 370HP Diesel Engine • Jacobs Retarder w/ 2 Way Switch • Immersion block heater 120V 1000W • Cruise Control • Allison 3000RDS 6-speed Automatic Transmission • Dual power steering gears: 20KK TRW TAS65 • Dana Spicer D2000 20K Front Axle • Dana Spicer D46-170HP 46K Tandem Rear Axle • Neway ADZ246 46K Rear Suspension • 5.38 Rear Axle Ratio • Wheel Diff Lock • Front Tires: Bridgestone M844F 445/65R2 Tires on Aluminum Wheels • Rear Tires: Bridgestone M799 11R22.5 Tires (Qty 8) on Aluminum Wheels • 90 US Gallon 24.5 Aluminum Fuel Tank • 5.6 US Gallon DEF Tank • Full Truck Kit w/ glad hands to end of frame • Heat/Defrost/Air Conditioning • Air Cushion plus HB Mordura Drivers Seat • Toolbox plus HB Mordura Drivers Seat • AM/FM/CD/Weather Band Radio • Electric LH & RH Door Locks
