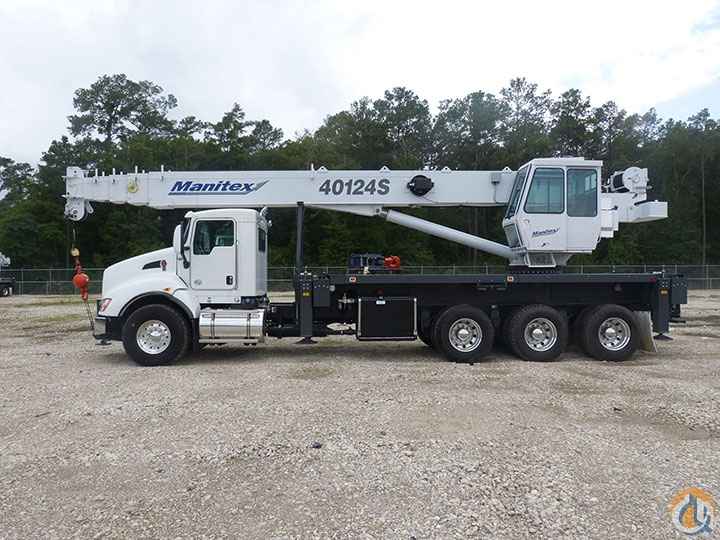

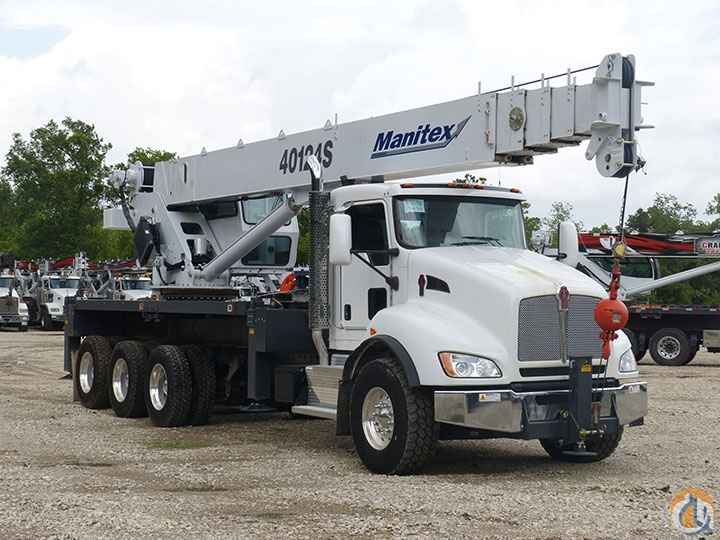

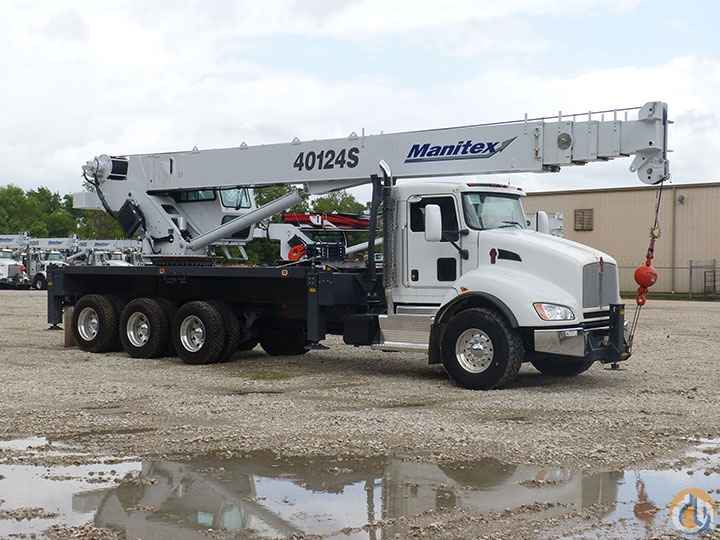

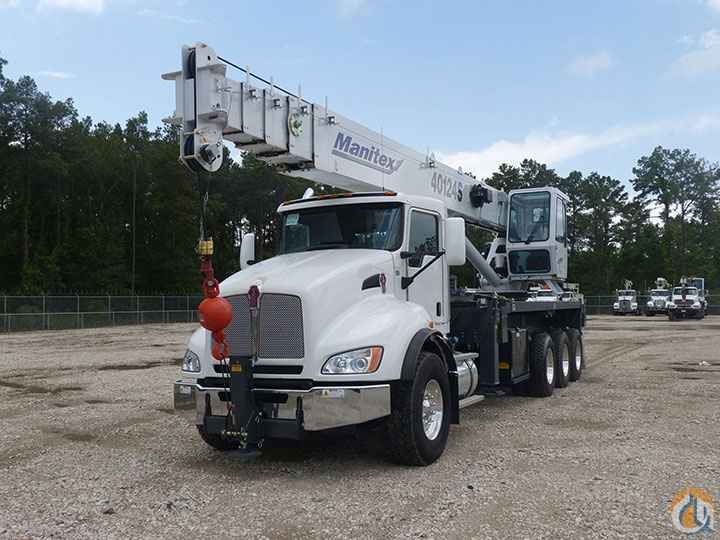

Manitex 40124S Boom Truck Boom Truck Crane (Sold)

STANDARD FEATURES

2-speed Hoist w/ Grooved Drum & Hoist Drum Rotation Indicator

5 Ton (4.5 mt) Hook and Ball

4-Load Sheave Quick Reeve Boom Head

Wired Anti-Two Block w/ Lockout

Boom Hoist Cylinder

System Pressure Gauge

360° Area of Operation

Continuous Rotation

Ride-around Operator Station with Seat

Removable Boom Rest

Engine Start/Stop

Operator's Service/Parts Manuals

Boom Length and Angle Indicators

Air Throttle

Foot Throttle

No Free Swing (Free swing is avail. option)

Signal Horn

Pilot Controls

Bubble Level

5 Section Telescopic Boom

380 (115.82M) 5/8" (16mm) rotation Resistant Wire rope

Audible Outrigger Motion Alarm

100 Gallon (379 liter) Reservoir w/Suction Strainer & Ball Valve

Outrigger Monitoring System for Verification Only

Turret, Rotation Bearing & Swing System

Load Moment Indicator-Audio/Visual Capacity Alert w/Shutoff

4 Out-And-down Outriggers, 22'(6.71m) spread including Capacities for Intermediate 13'4" (4.05m) and Retracted 7'2" (2.18m) Spreads

2 Retractable Ladders for Easy Access to Bed

3-Section Vane Pump

Lower Frame for 10' (3.05m) flatbed

Oil Cooler

ROC solid radio remote outrigger controls & control valve for FBS

INCLUDED OPTIONS

Rear mount installation

35-Ton 3 sheave load block

Cab Heater and A/C

Hydraulic Reservoir Chassis Mounted

10’ Steel Bed

Front Stabilizer Jack

Mounting front stabilizer

TRUCK

Kenworth T440

Engine: PX-9 370 2013 370@2000

Transmission: Allison 3000RDS 6-speed

Immersion block heater 120V

Retarder Jacobs for PX-8-9 ISL w/ 3-way switch

Front Axle: Dana Spicer D2000, rated 20K

Front Springs: Taperleaf 20K w/ shock absorbers

Rear Axle: Dual Dana Spicer D46-170HP rated at 46K

Rear Axle Ratio – 5.38

Rear Suspension: Tandem Neway ADZ246 46K

Front Tires & Wheels: Bridgestone M844F 445-65R22.5 20PR, Alcoa 82362 22.5x12.25 aluminum

Rear Tires & Wheels: Bridgestone M711 11R22.5 14PR, Alcoa 88367 22.5x8.25 aluminum, quantity 8

Fuel Tank: 90 US gallon located LH under cab

Cab Heater w/integral defrosters & A/C 45,000 btu cab heater

Driver Seat: Kenworth Air cushion Plus HB Mordura

Rider Seat: Kenworth Toolbox Plus HB Mordura

Kenworth Radio with AM/FM/WB/CD/USB and Bluetooth

Electric LH & RH door locks

Electric-powered LH & RH door window lifts
