Standard Features
2-speed Hoist w/ Grooved Drum & Hoist Drum Rotation Indicator
5 Ton (4.5 mt) Hook and Ball
4-Load Sheave Quick Reeve Boom Head
Wired Anti-Two Block w/ Lockout
Boom Hoist Cylinder
System Pressure Gauge
360° Area of Operation
Continuous Rotation
Ride-around Operator Station with Seat
Removable Boom Rest
Engine Start/Stop
Operator's Service/Parts Manuals
Boom Length and Angle Indicators
Air Throttle
Foot Throttle
5 Section Telescopic Boom
380 (115.82M) 5/8" (16mm) rotation Resistant Wire rope
Audible Outrigger Motion Alarm
100 Gallon (379 liter) Reservoir w/Suction Strainer & Ball Valve
Outrigger Monitoring System for Verification Only
Turret, Rotation Bearing & Swing System
Load Moment Indicator-Audio/Visual Capacity Alert w/Shutoff
4 Out-And-down Outriggers, 22' (6.71m) spread including Capacities for Intermediate 13' 4" (4.05m) and Retracted 7' 2" (2.18m) Spreads
2 Retractable Ladders for Easy Access to Bed
3-Section Vane Pump
Lower Frame for 10' (3.05m) flatbed
Oil Cooler
Pilot Controls
Bubble Level
ROC solid radio remote outrigger controls & control valve for FBS
Included Items

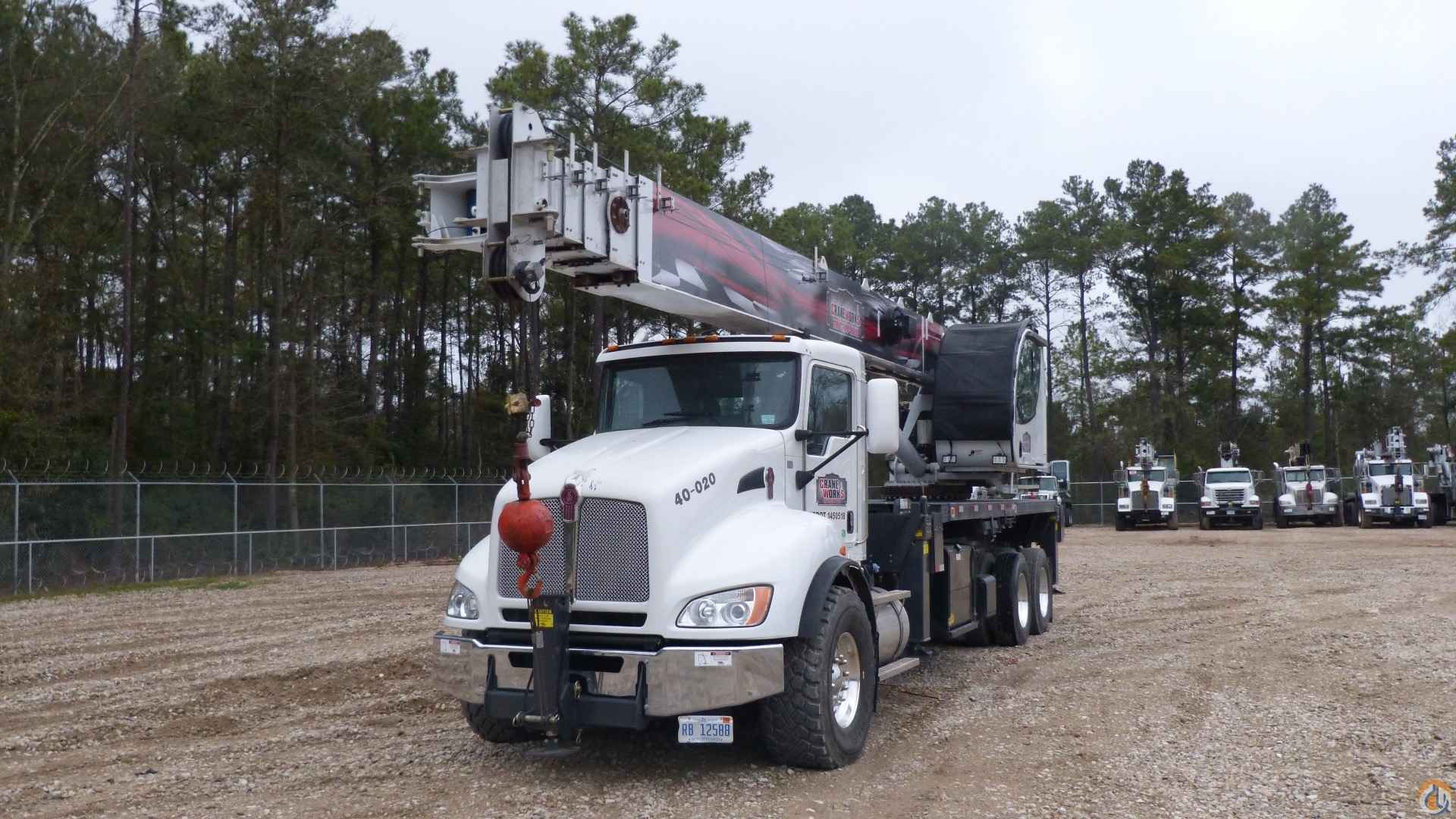

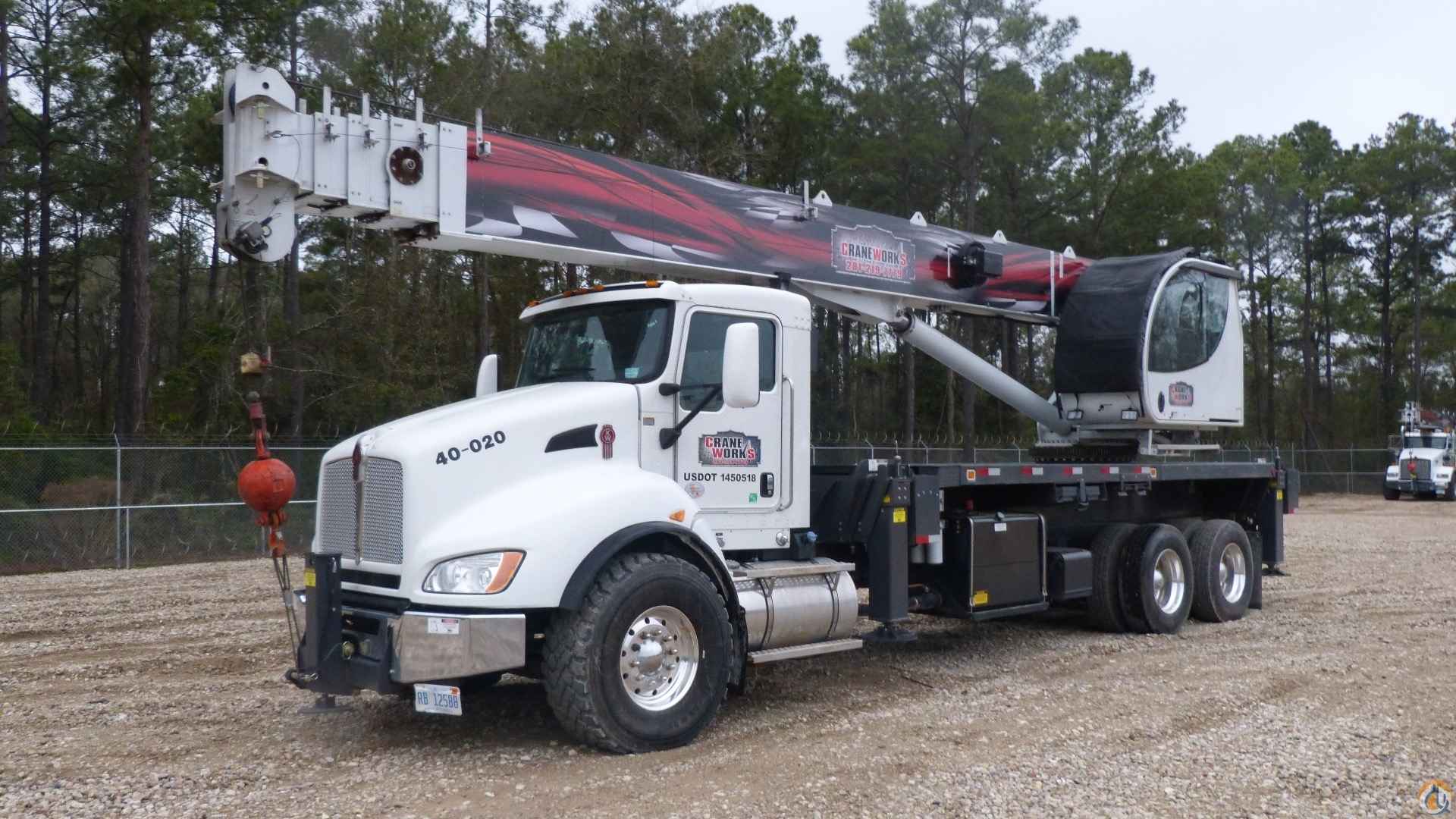

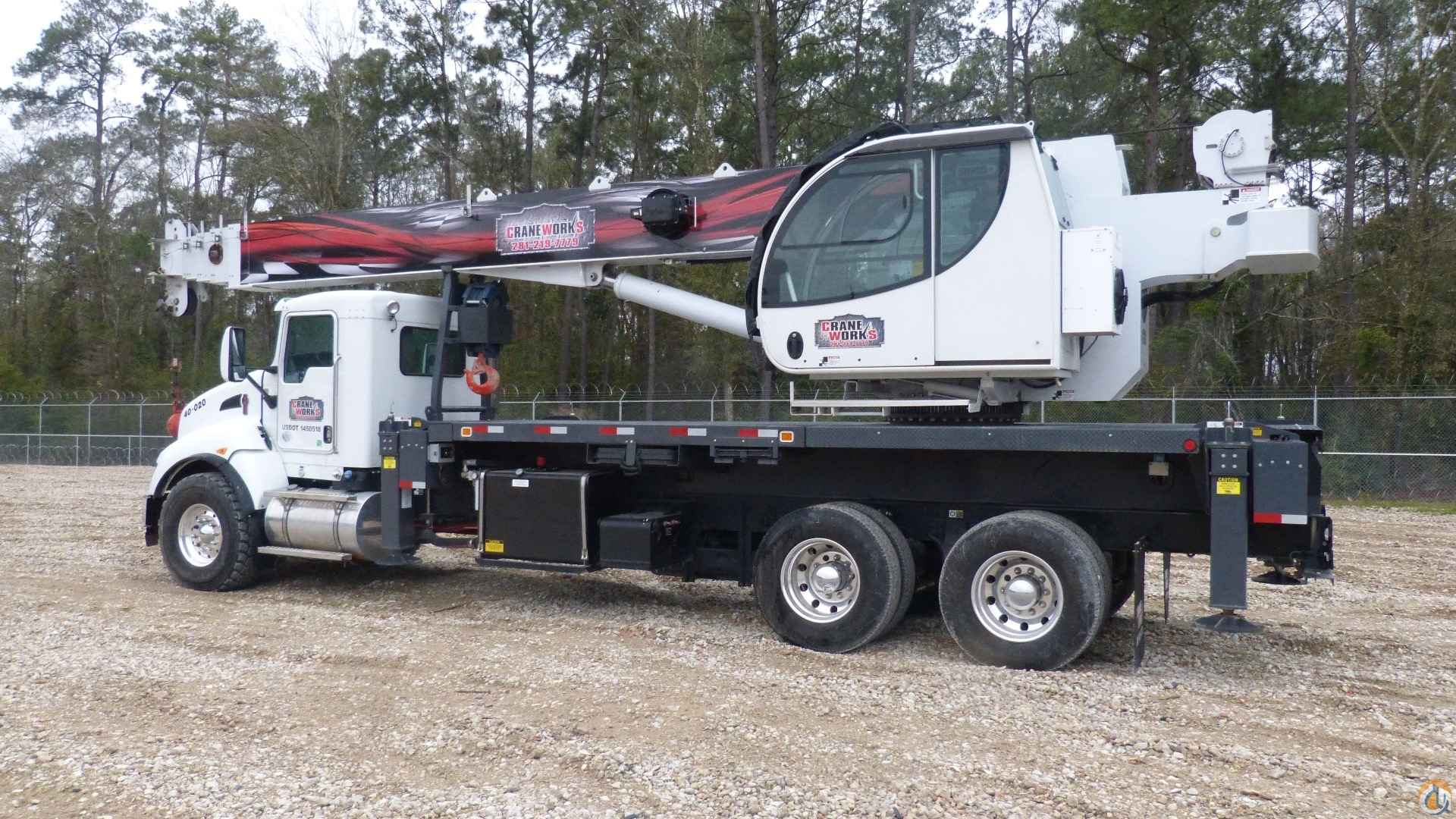

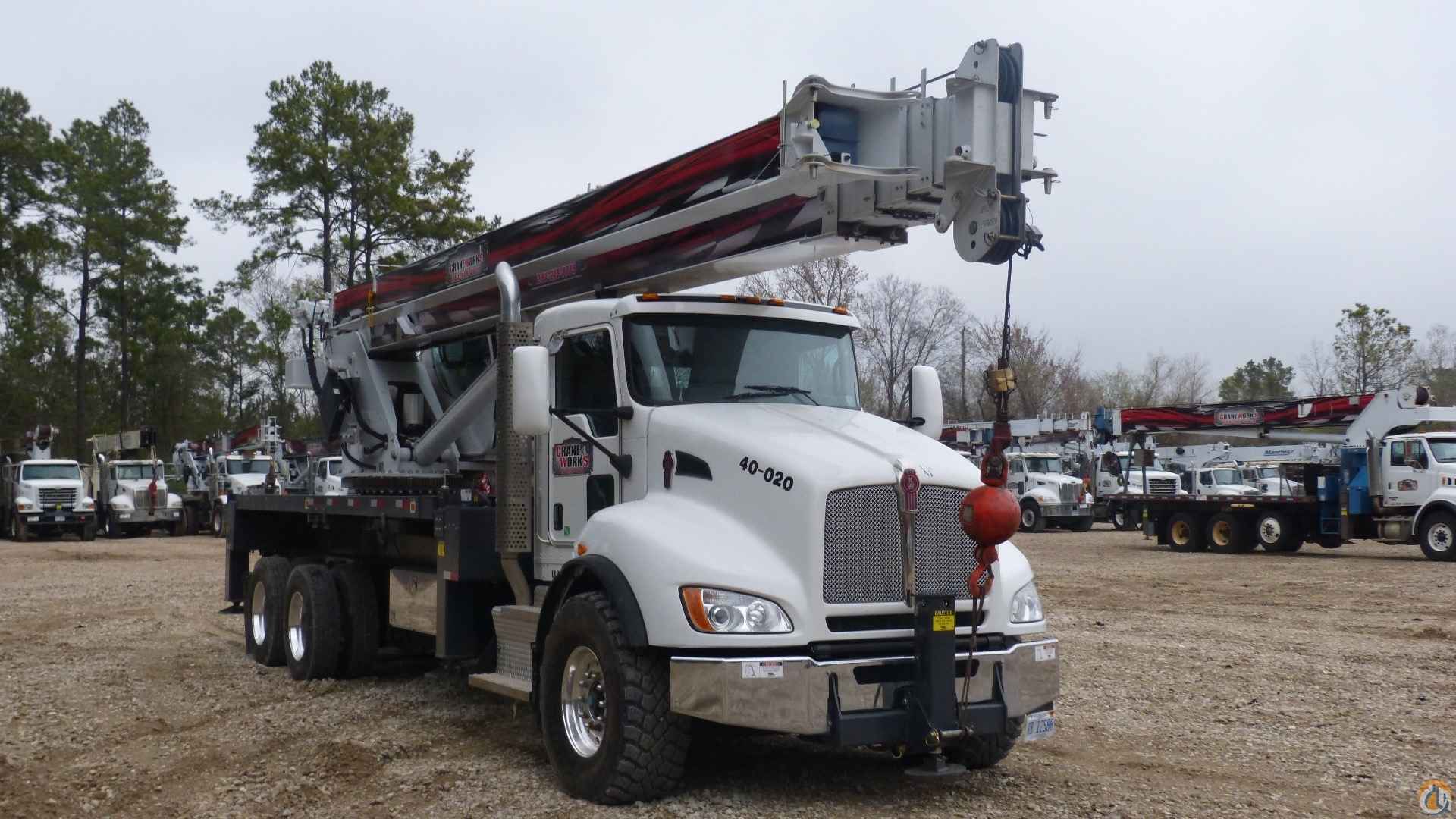

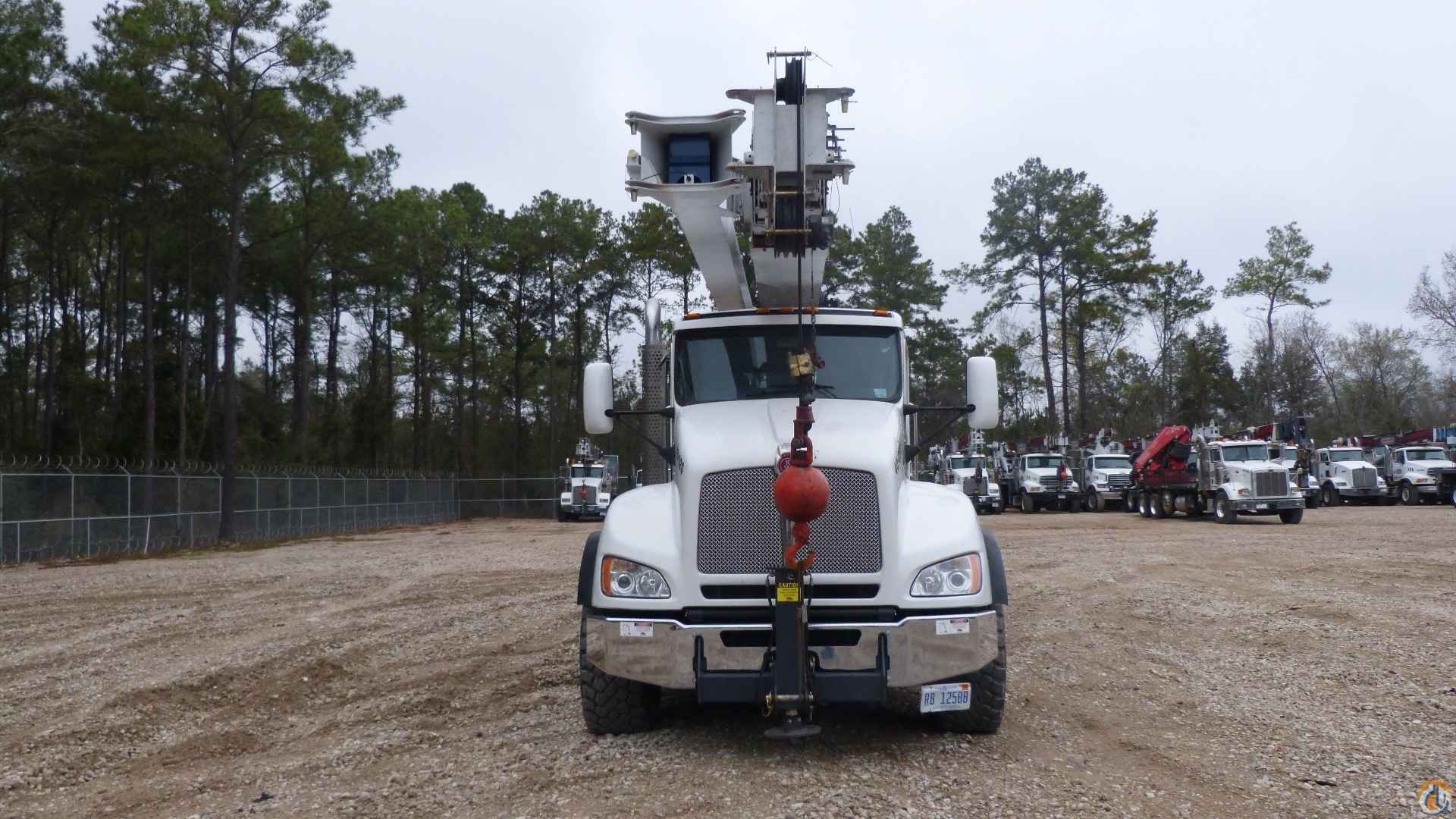

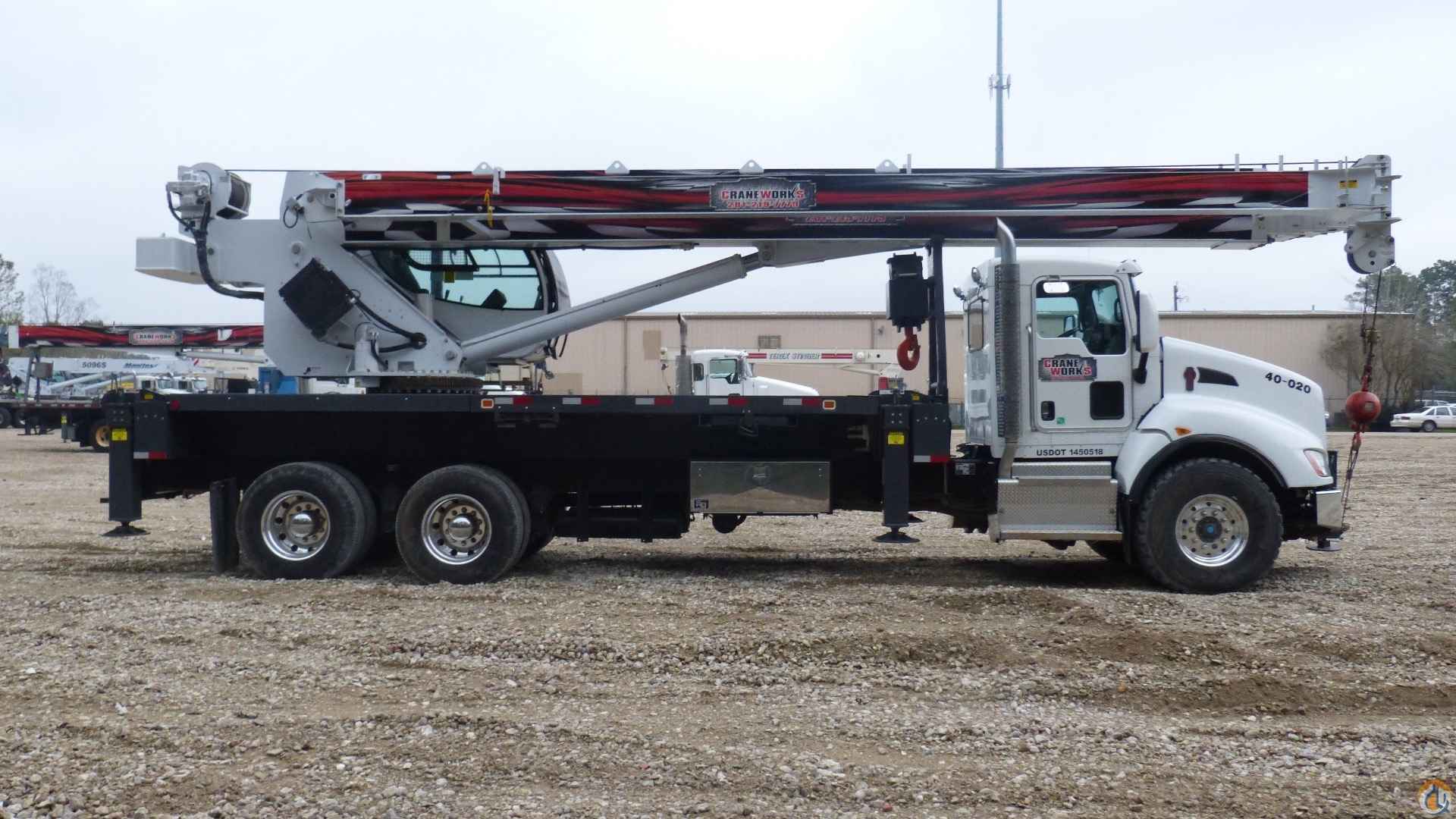

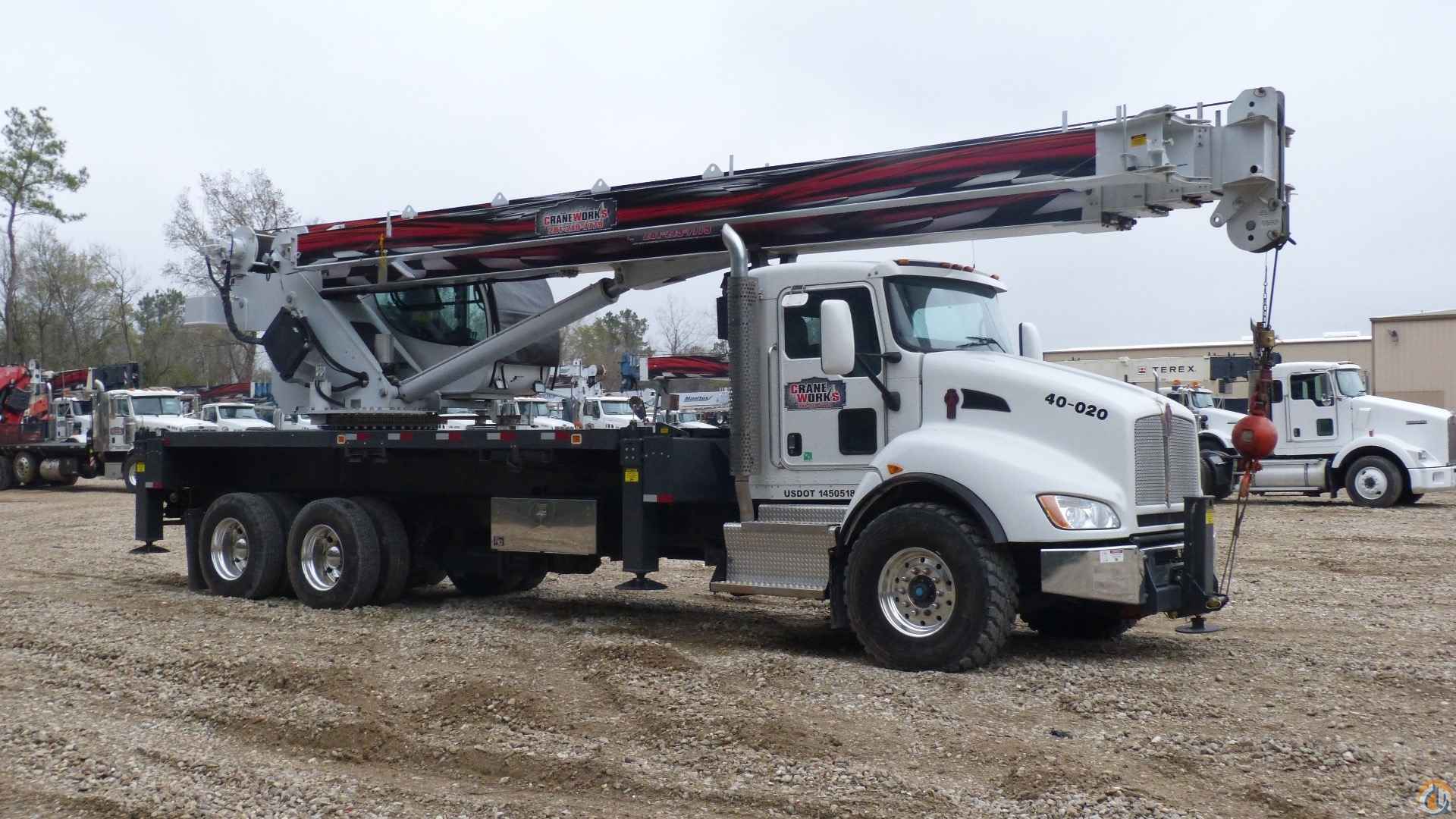

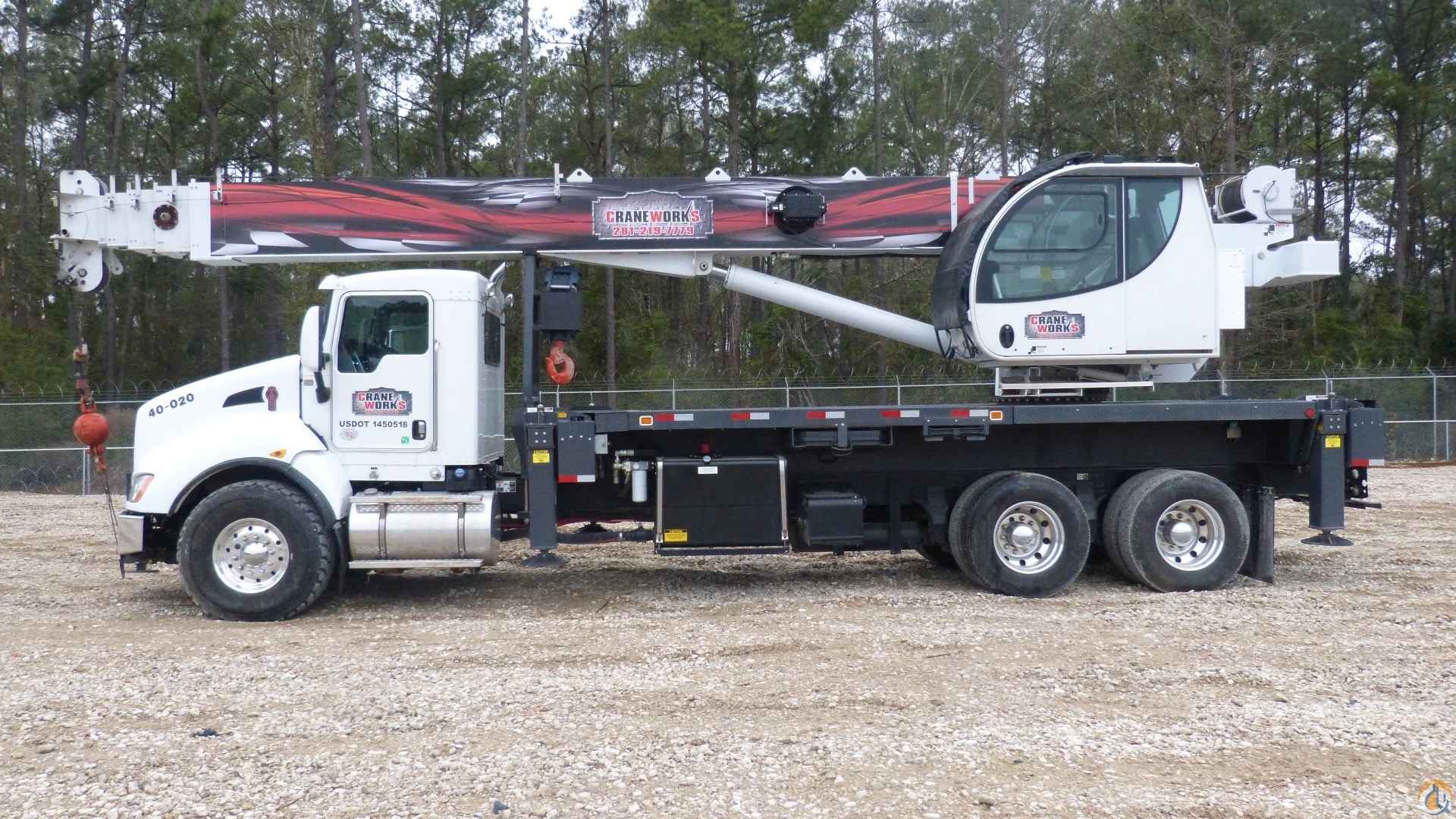

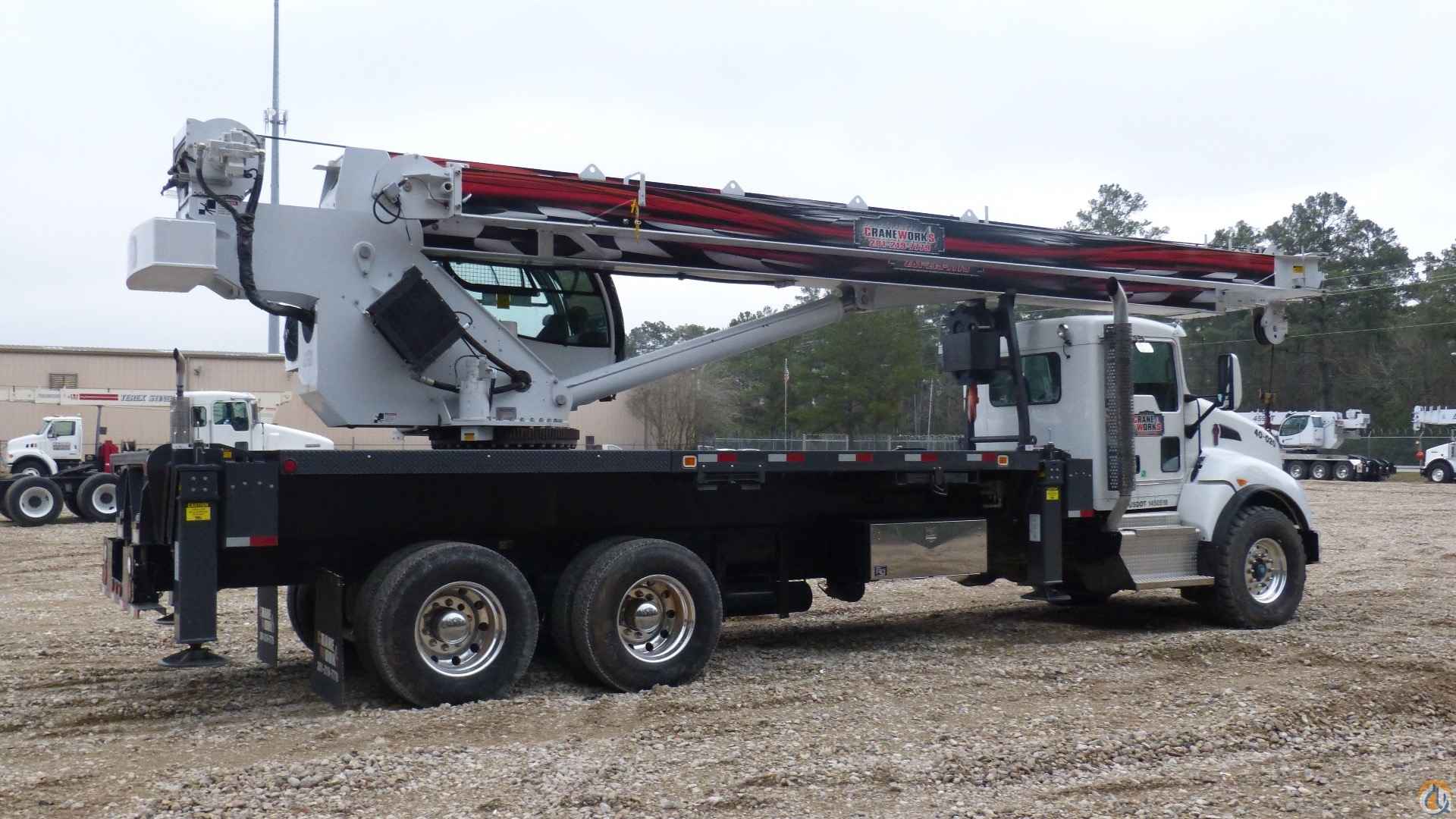

40124S 40 Ton with 124’, 5 Section Telescoping Boom – NO FREE SWING

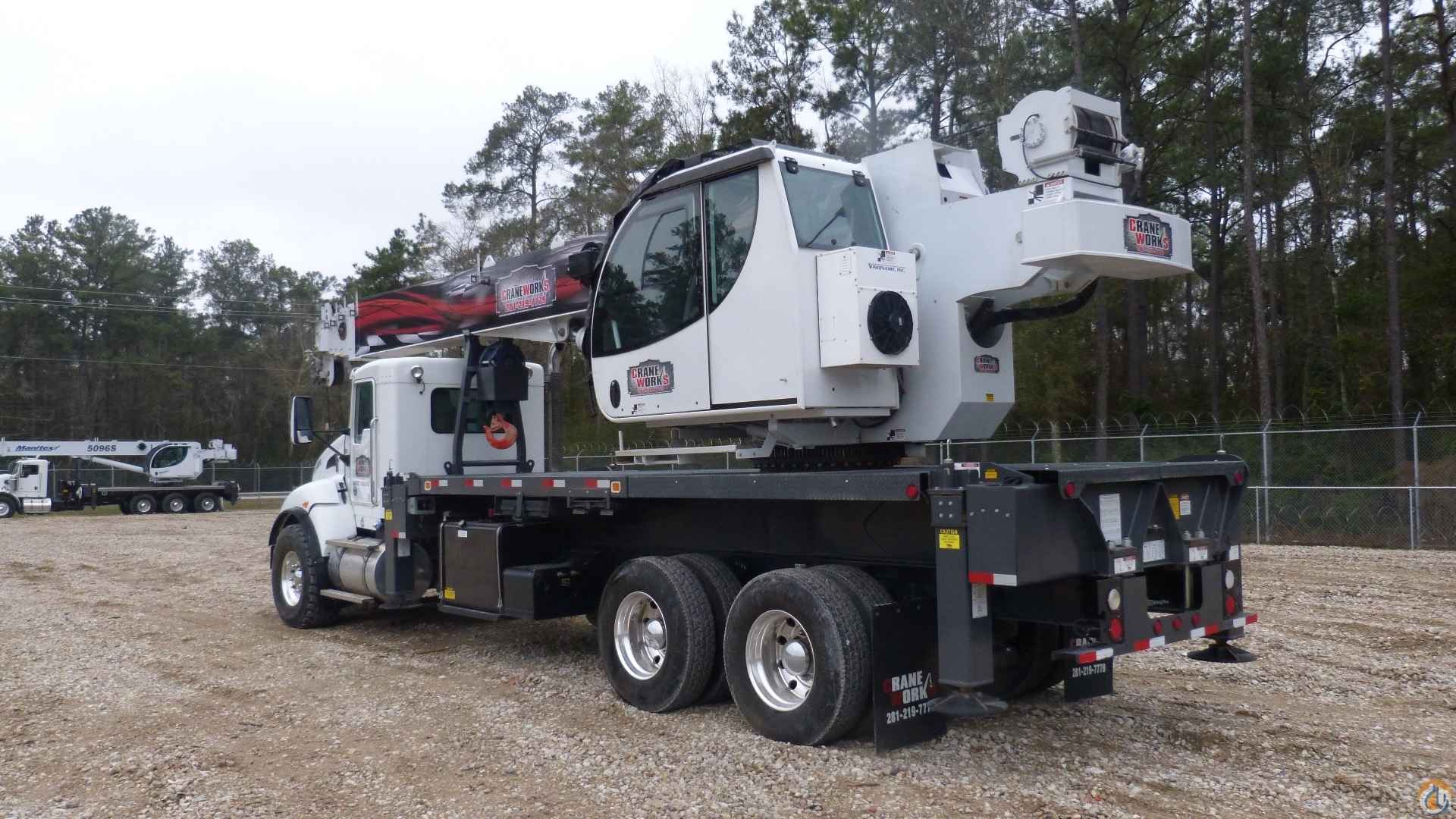

New Style Tilting Cab with Heat and Air Conditioning
10' Steel Bed

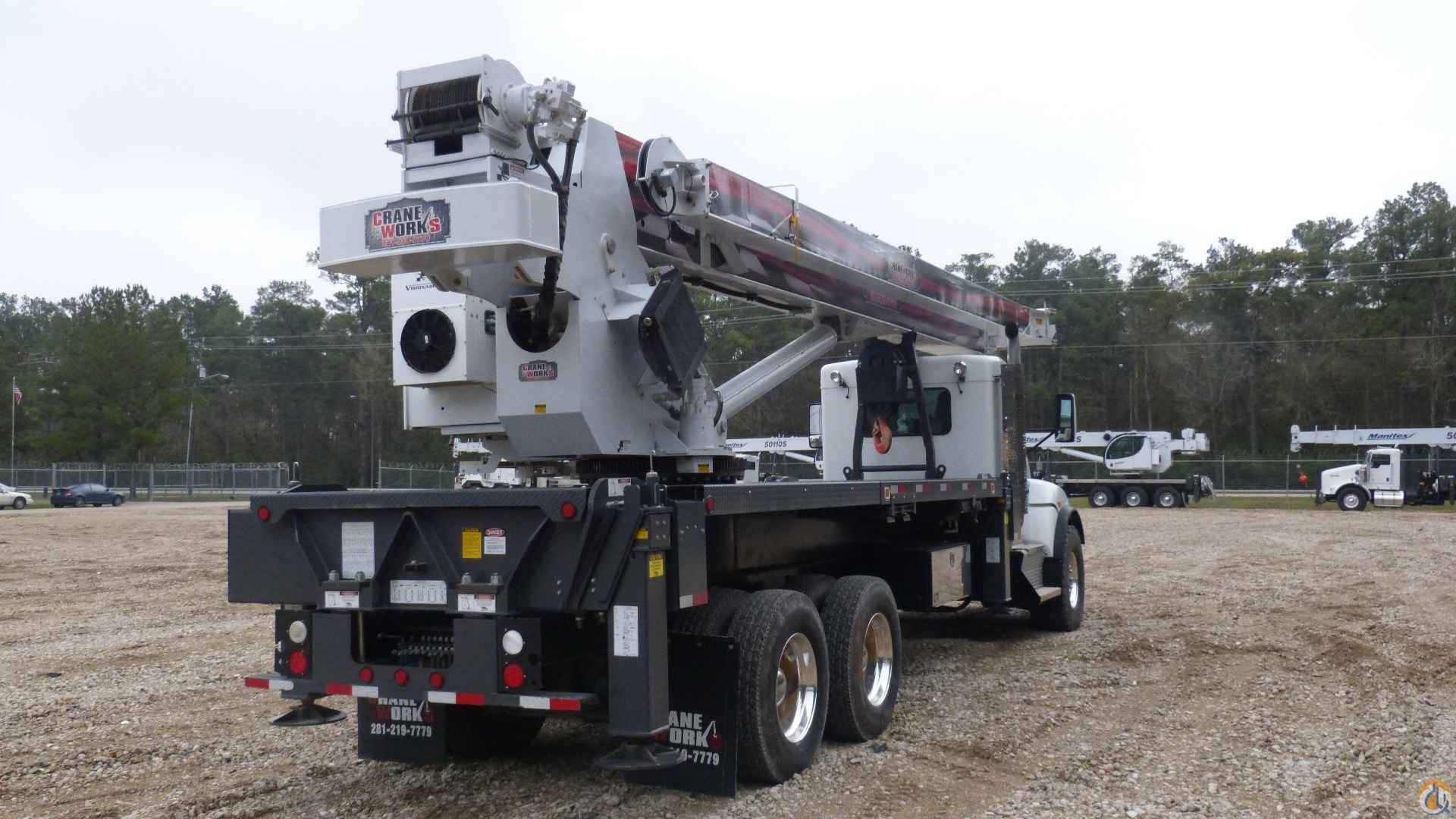

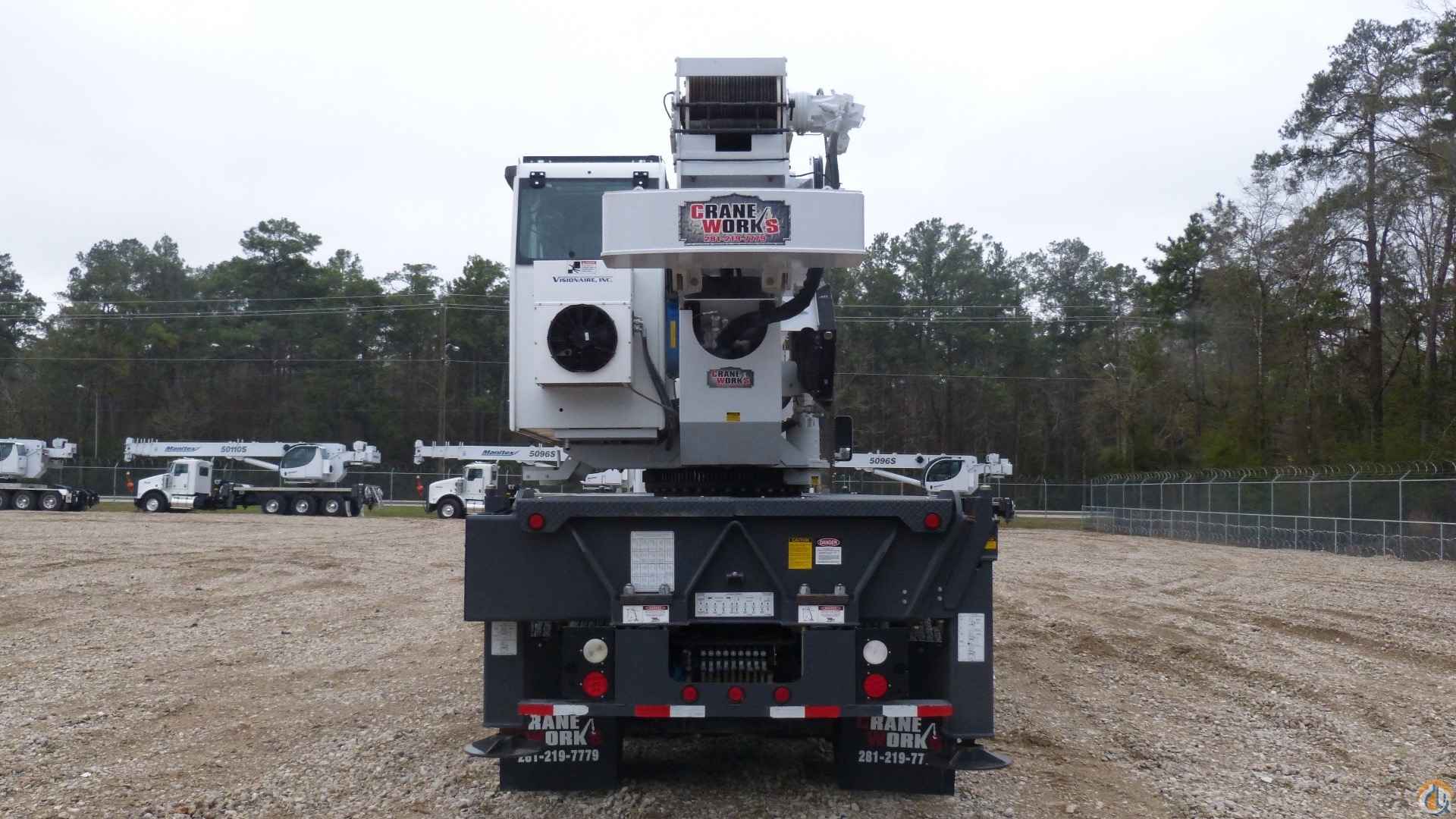

Rear Mount Installation
Engine Monitoring System
35 Ton 3-Sheave Block for 1 – 6 Part Line
Hydraulic Reservoir, Chassis Mounted required when there is no bed
Mounting--Front Center Stabilizer
Truck

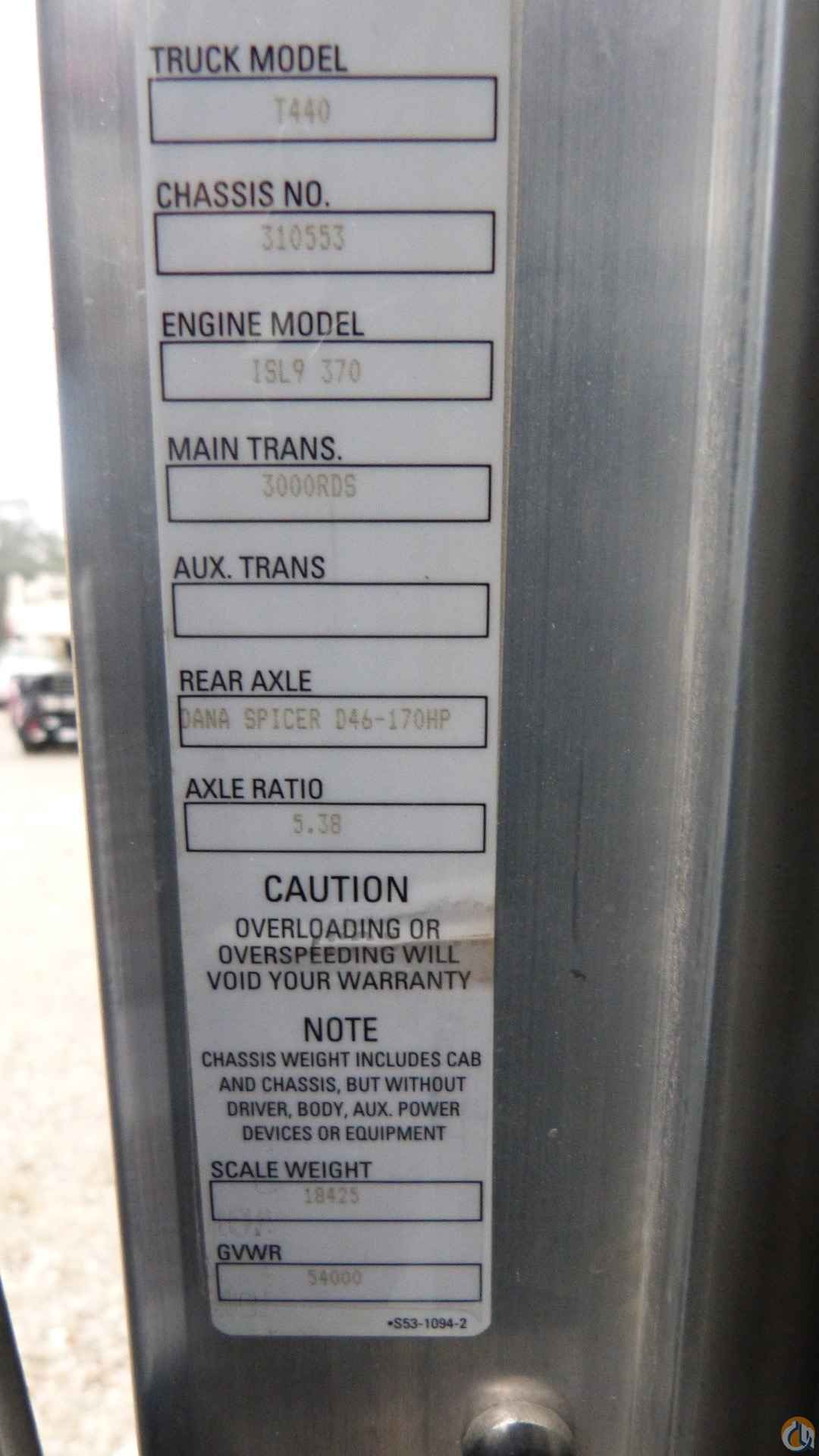

2013 Kenworth T440 Single Steer Tandem Rear Chassis
ISL9 370HP, 1250 Ft. Lbs. Diesel Engine
Jacobs Retarder w/ 2 Way Switch
Immersion block heater 120V 1000W
Engine oil pan heater 120V 300W
Cruise Control
Allison RDS 3000 Automatic Transmission, 6 Speed
Dual power steering gears: 20KK TRW TAS65
Dana Spicer D2000 20K Front Axle
Dana Spicer D46-170HP 46K Tandem Rear Axle
Neway ADZ246 46K Rear Suspension
5.38 Rear Axle Ratio
Wheel Diff Lock, Both Axles
Front Tires: Michelin XZL 445/65R2 Tires on Aluminum Wheels
Rear Tires: Michelin XDA 3 11R22.5 Tires (Qty 8) on Aluminum Wheels
90 US Gallon 24.5 Aluminum Fuel Tank
5.6 US Gallon DEF Tank
Full Truck Kit w/ glad hands to end of frame
Heat/Defrost/Air Conditioning
Air Cushion plus HB Mordura Drivers Seat
Toolbox plus HB Mordura Drivers Seat
AM/FM/CD/Weather Band Radio
Electric LH & RH Door Locks
