MANITEX 35124C
MANITEX 35124C
35 TON (31,8 MTON) CAPACITY
5-SECTION 124' PROPORTIONAL BOOM
165' TIP HEIGHT WITH OPTIONAL 31' JIB
22' 1" OUT-AND-DOWN OUTRIGGERS
INTERMEDIATE AND FULLY EXTENDED
OUTRIGGER CHARTS ARE STANDARD
FIRST UP FOR OPTIONAL FRONT STABILIZER
2-SPEED PLANETARY HOIST WITH GROOVED
DRUM AND NEGATIVE DRAFT FLANGE

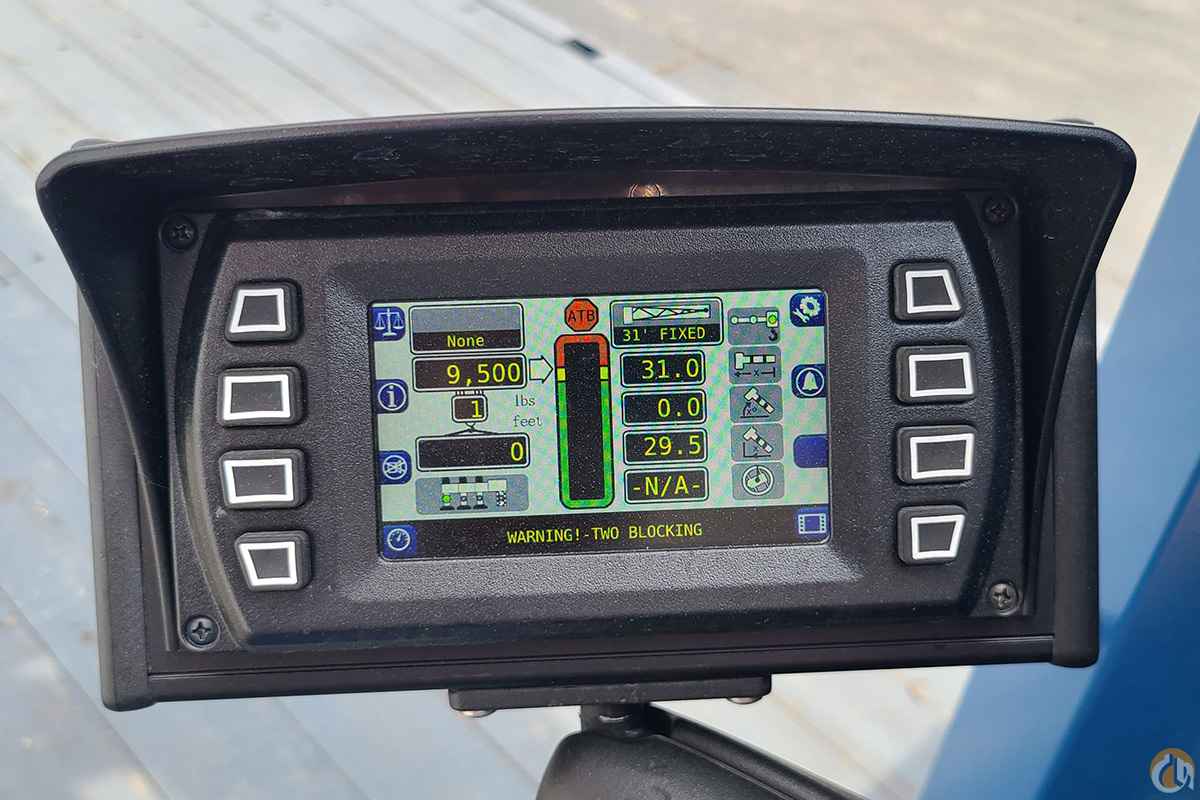

LOAD MOMENT INDICATOR WITH DIGITAL
DISPLAY, OVERLOAD SHUTDOWN ,
AND INTERNAL BOOM LENGTH CABLE
RUGGED, WEATHERPROOF ELECTRICAL
SYSTEM WITH CIRCUIT STATUS LEDS
SYSTEM PRESSURE GAUGE
REMOVABLE BOOM REST
AEROQUIP STC HYDRAULIC FITTINGS
22' x 8' HEAVY DUTY WOOD BED
MANITEX UPTIME COMPREHENSIVE SUPPORT
PAINTED STANDARD MANITEX WHITE
ALL STANDARD EQUIPMENT
STD MANITEX ONE YEAR WARRANTY
******************************************************
NEW 2025 KENWORTH T880
430HP PACCAR MX-11 TURBO-DIESEL
ENGINE w/ EXHAUST BRAKE (1650 lb-ft)
73,500 LB G.V.W.R.
40,000 LB TANDEM w/ 13.5K PUSHER
20,000 LB FRONT STEER AXLE
MERITOR RT40-160 TANDEM REAR AXLE
PACCAR TX-18 PXD-16F118D 18-SPEED
AUTOMATED TRANSMISSION
DIFFERENTIAL LOCK TANDEM AXLES
w/ DRIVER CONTROLLED ROCKER
IMMERSION TYPE BLOCK HEATER 120V
425-65R22.5 20PLY FRONT TIRES
11R-22.5 16PLY REAR TIRES
ALCOA POLISHED ALUMINUM WHEELS
FULL DOUBLE FRAME
AIR BRAKES w/ ABS & BENDIX SMART ATC
TRACTION CONTROL & AIR DRYER & HTR
FRONT TOW HOOKS
3 PACCAR 12V BATTERIES (2190CCA) w/
DISCONNECT & JUMPER TERMINAL
STAINLESS STL CROWN & GRILLE
VERTICAL CHROME RH EXHAUST STACK
AIR CONDITIONING / CRUISE / AIR HORN
TAPERED CHROME STEEL BUMPER
160 AMP ALTERNATOR -STD. BRUSH
100 GAL ALUMINUM FUEL TANK (LH - U/C)
PACCAR FUEL/WATER SEPARATOR WITH
12V HEAT FOR FUEL FILTER
AM/FM/WB/USB/MP3 RADIO w/ BLUETOOTH
AIR RIDE HIGH BACK DRIVER'S SEAT
ALUMINUM CAB WITH AIR SUSPENSION
DUAL WEST COAST STEEL MIRRORS
ONE PIECE CURVED WINDSHIELD
POWER DOOR LOCKS & POWER WINDOWS
EXTERIOR STAINLESS STEEL SUNVISOR
COMPLETE GAUGE PACKAGE
PAINTED KENWORTH WHITE L0006EY
STD KENWORTH FACTORY WARRANTY
******************************************************
