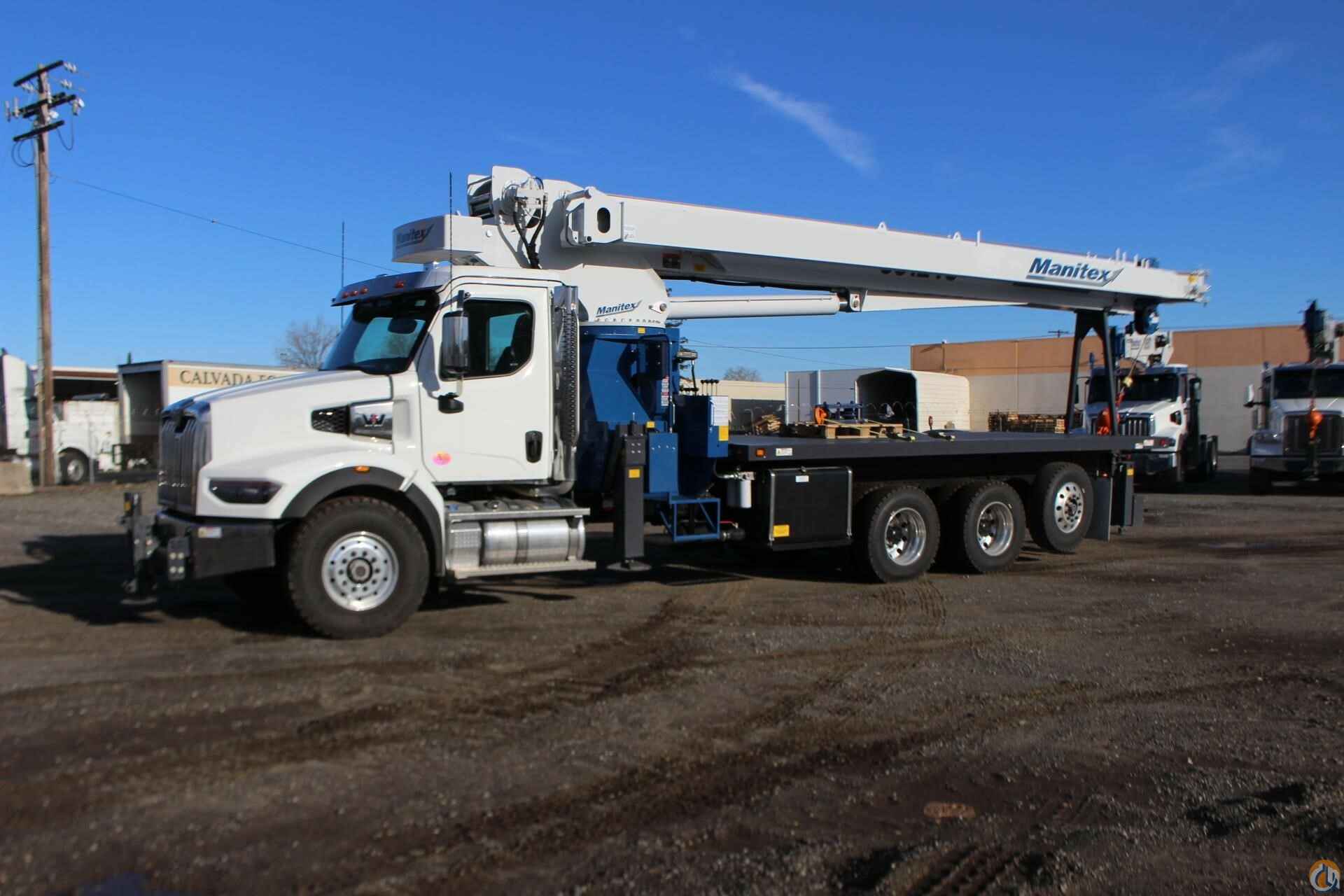

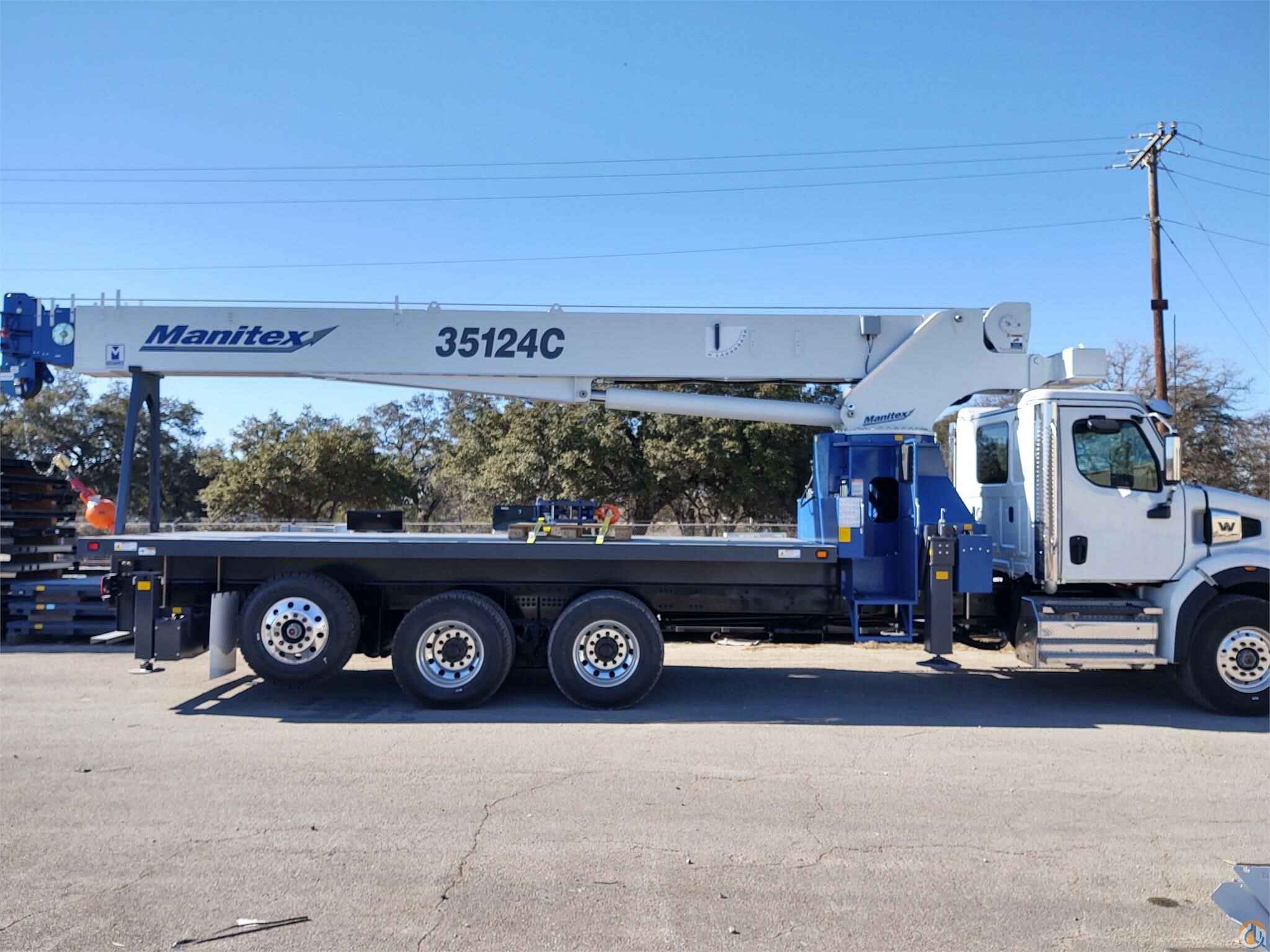

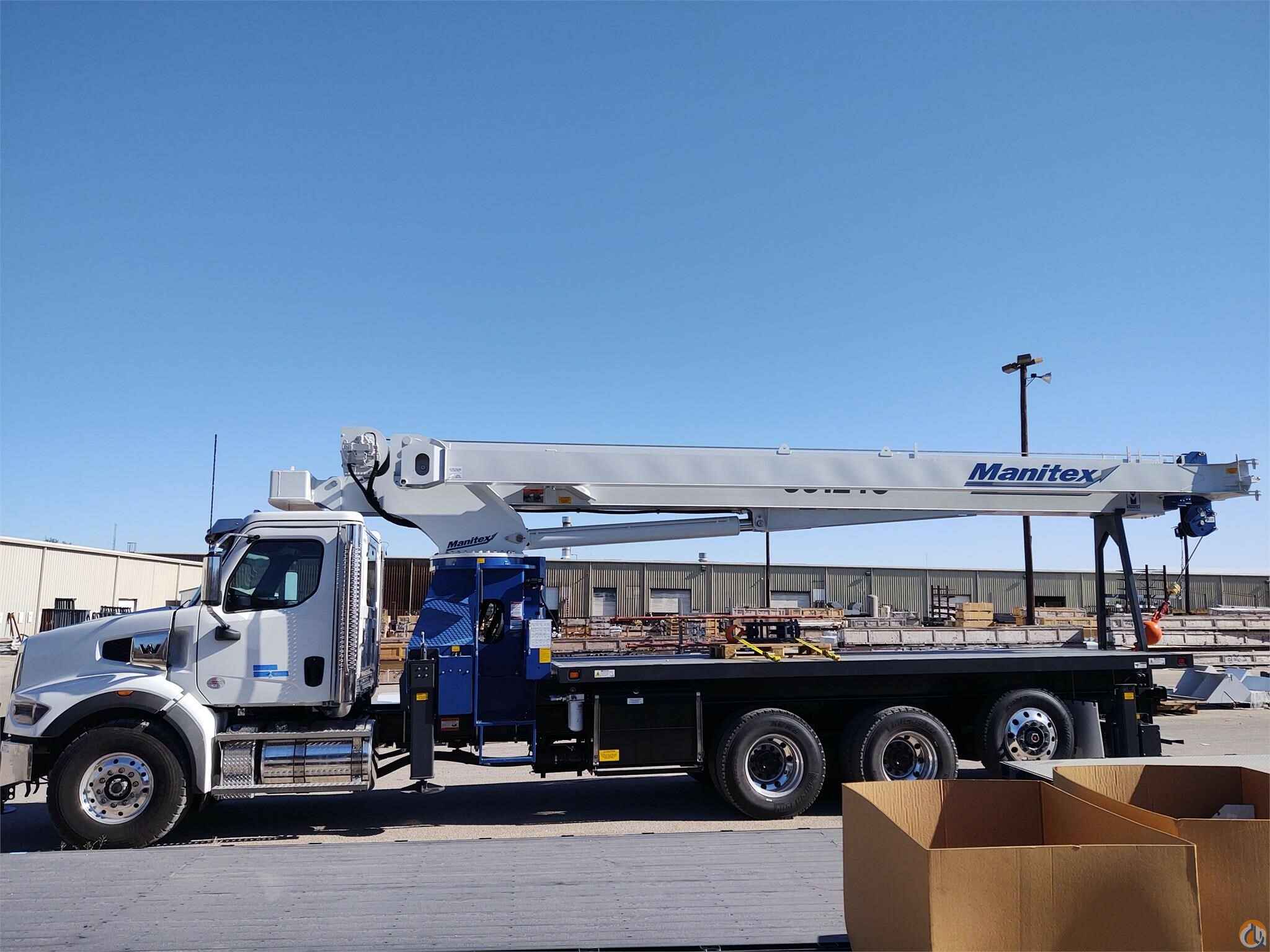

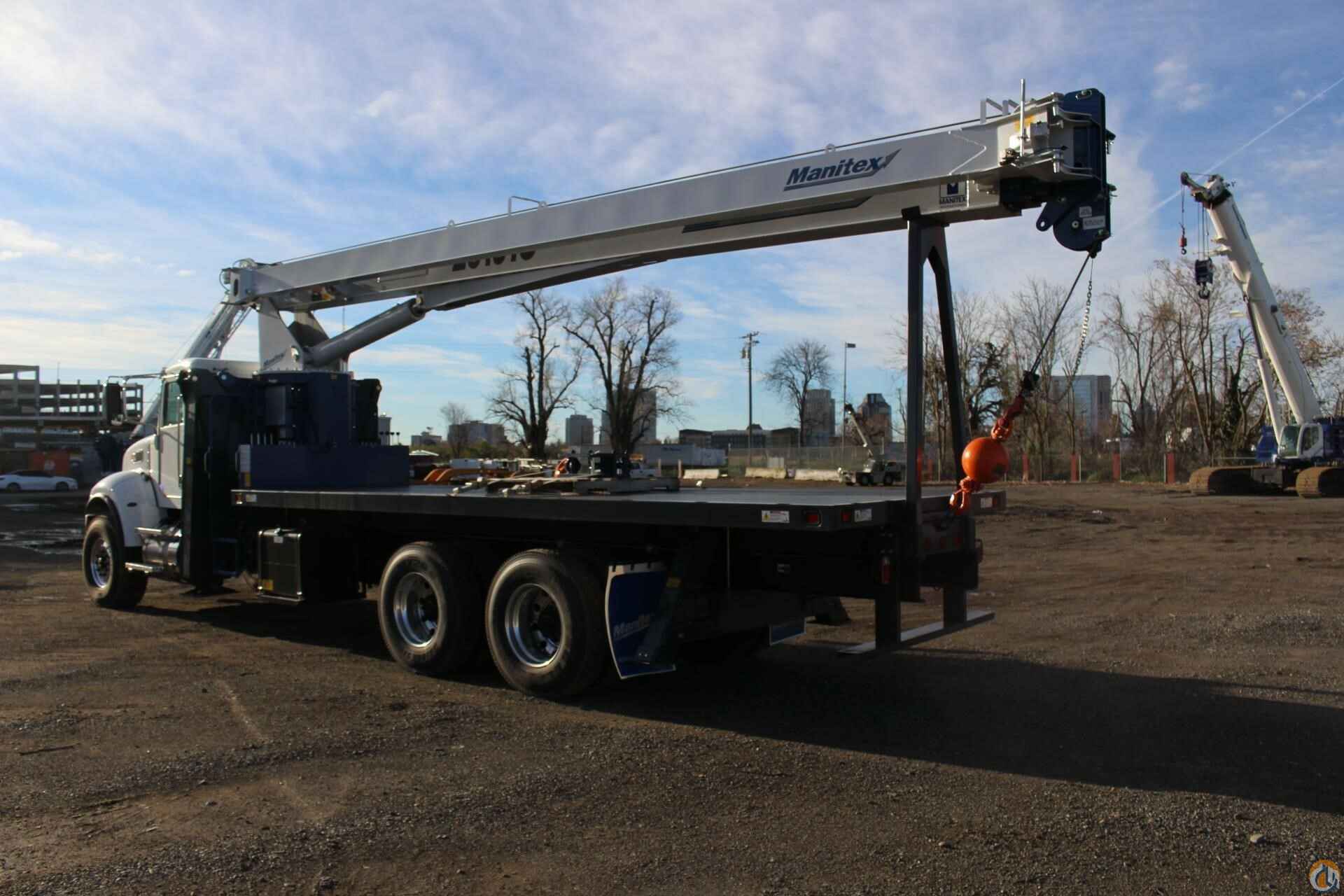

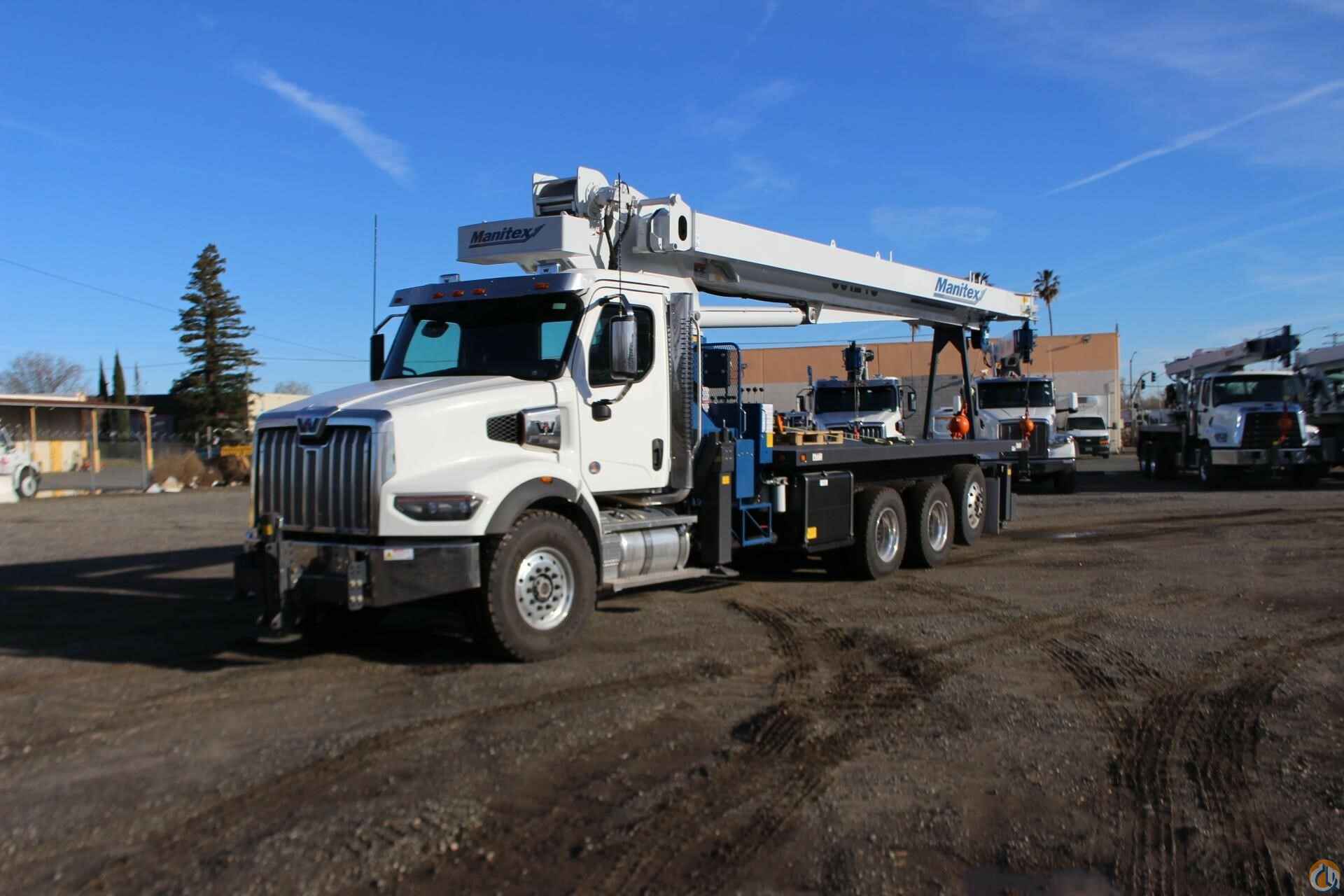

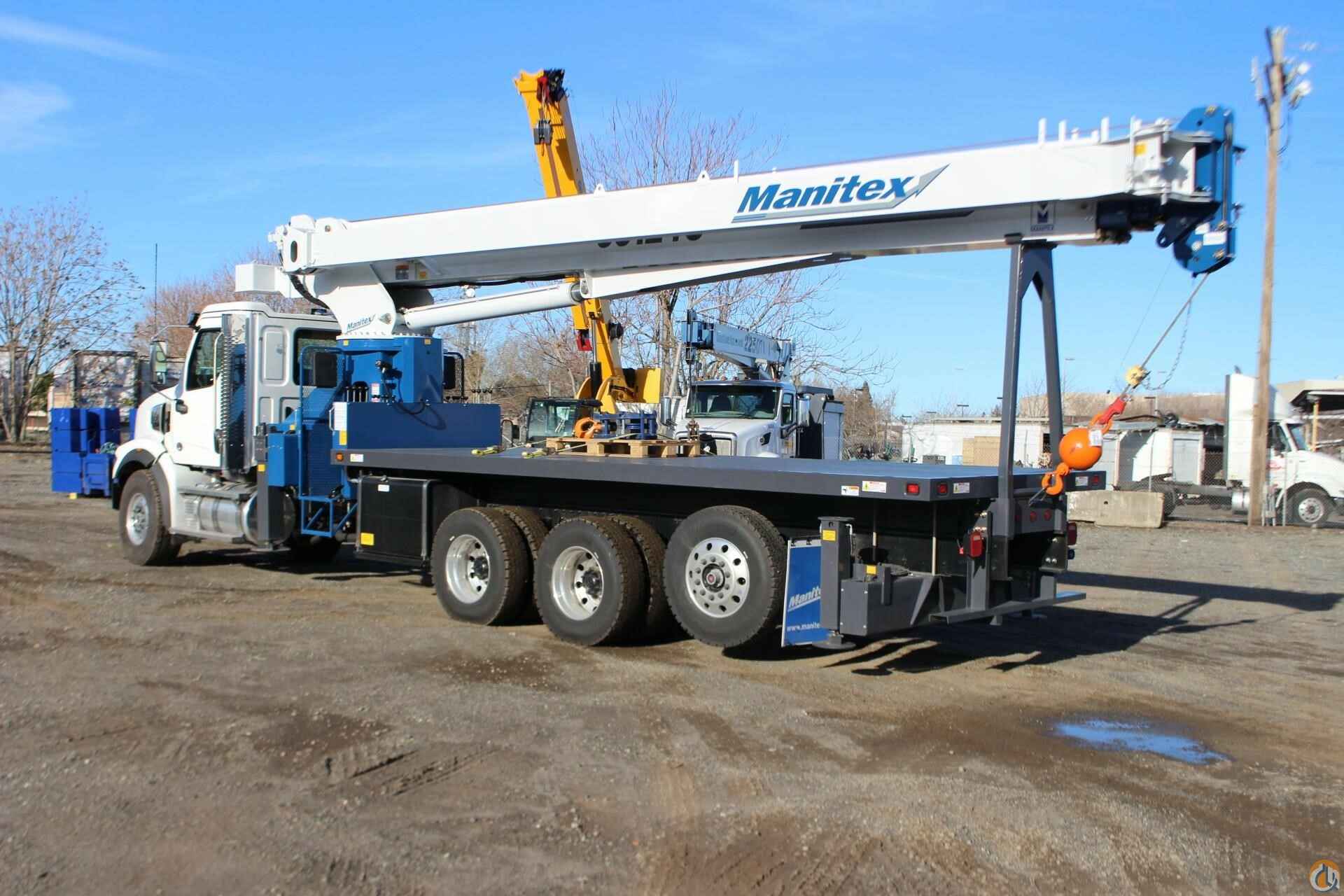

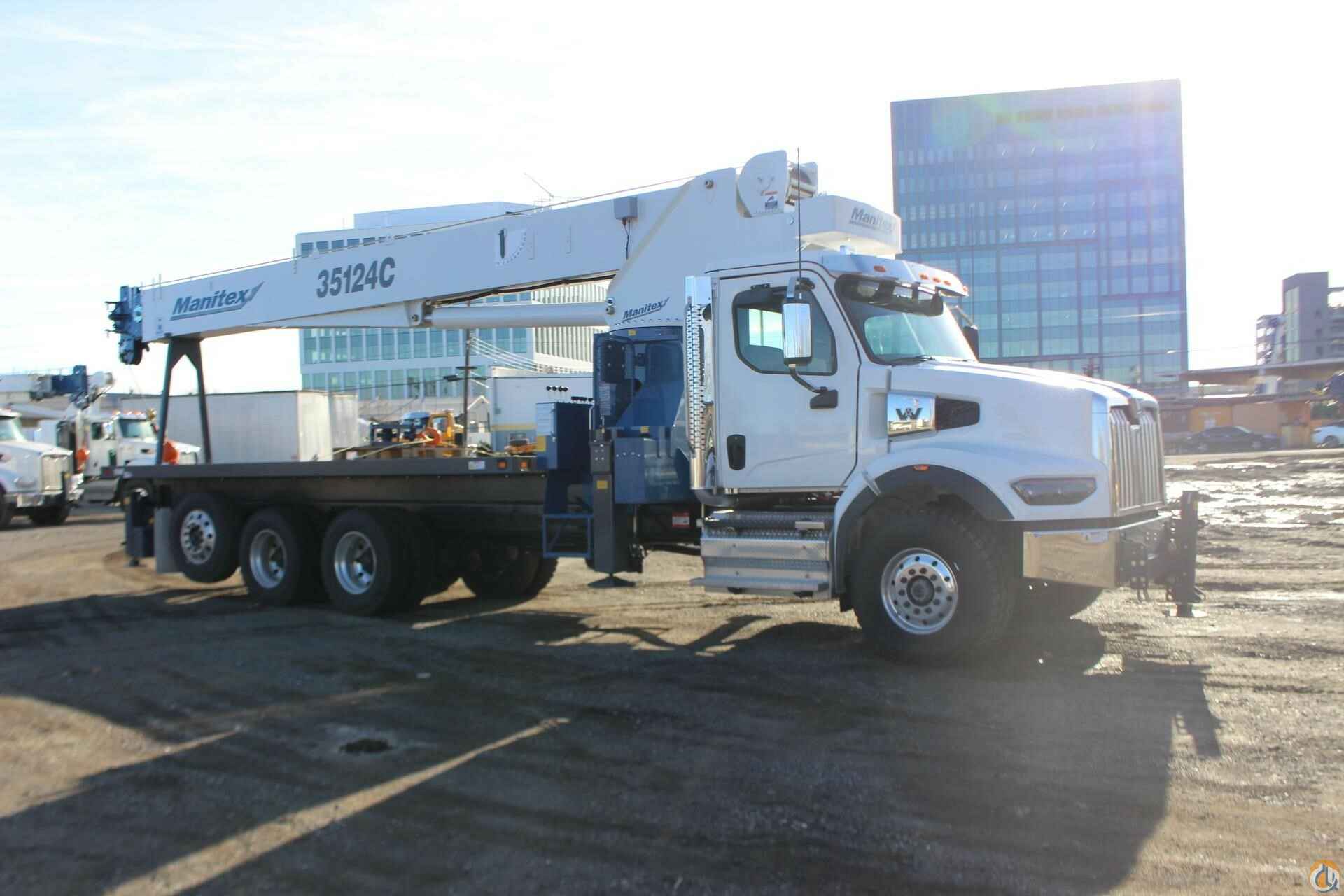

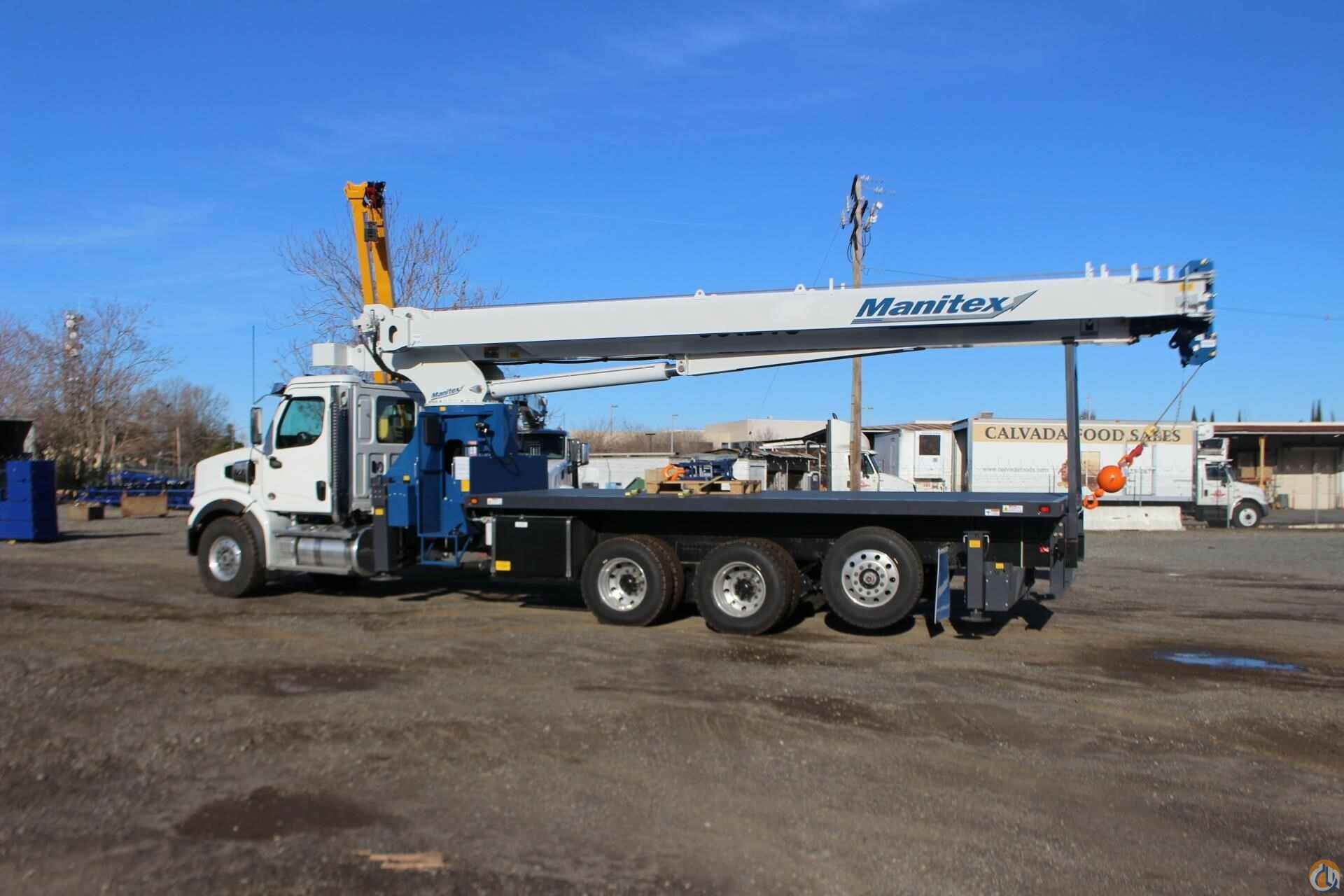

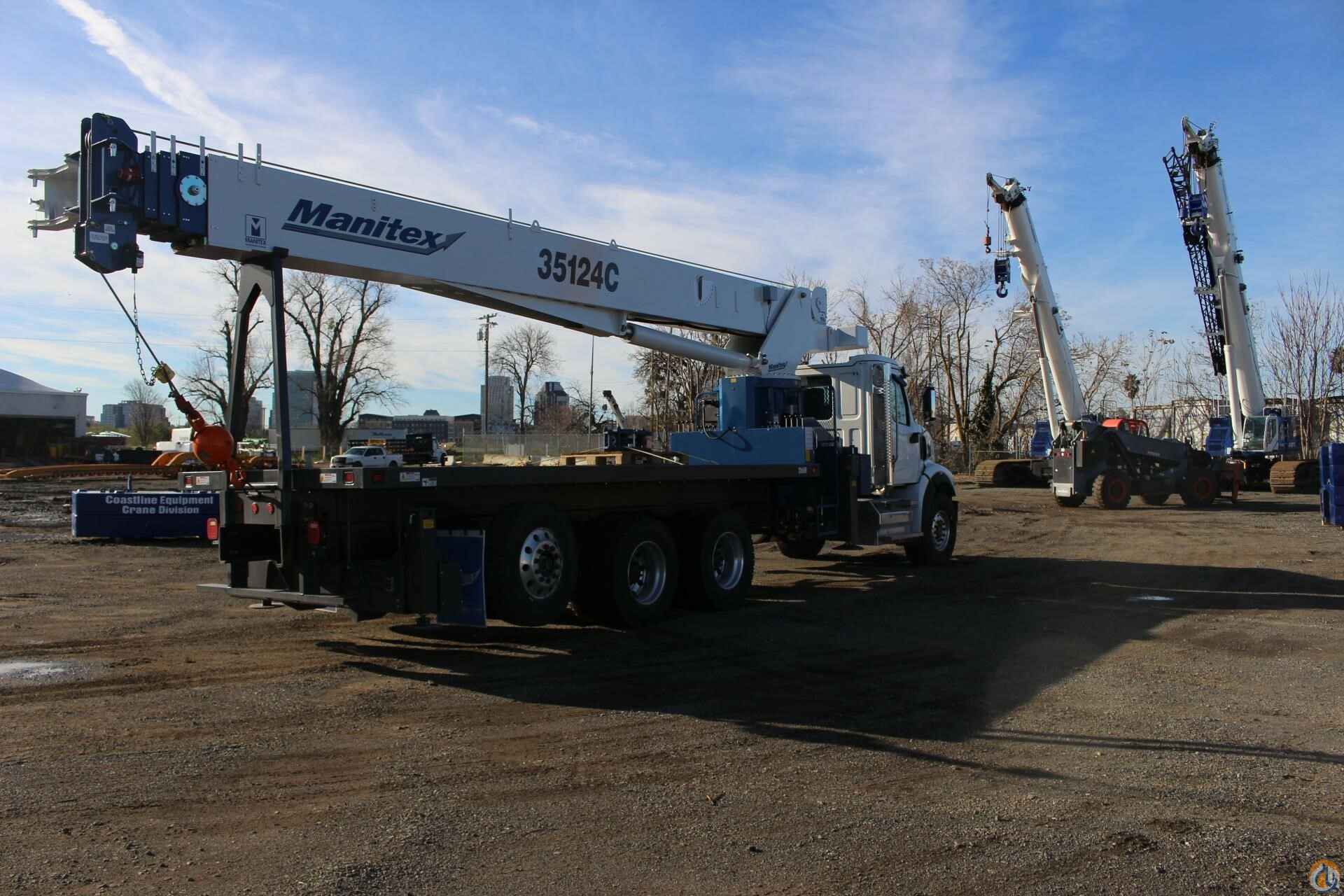

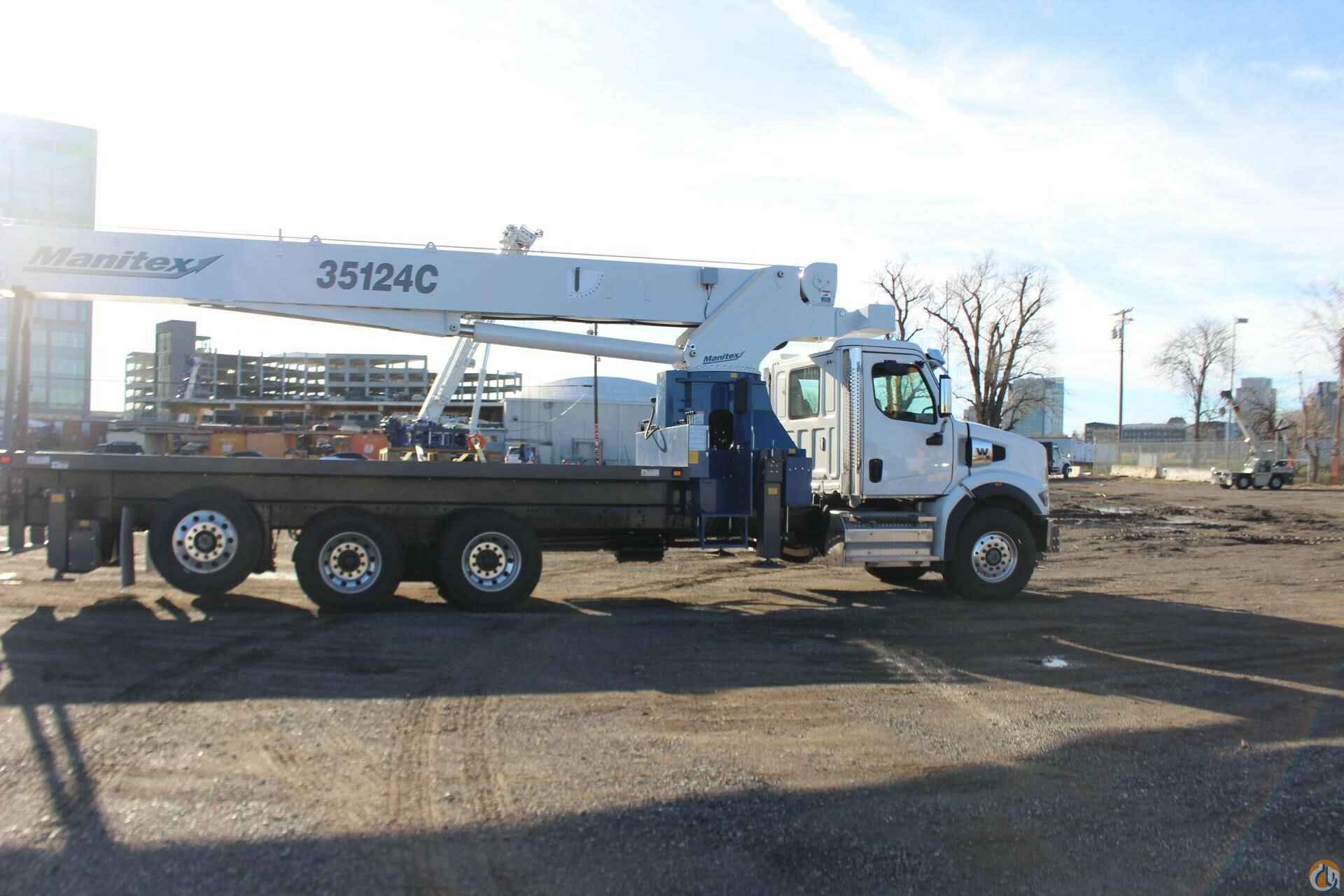

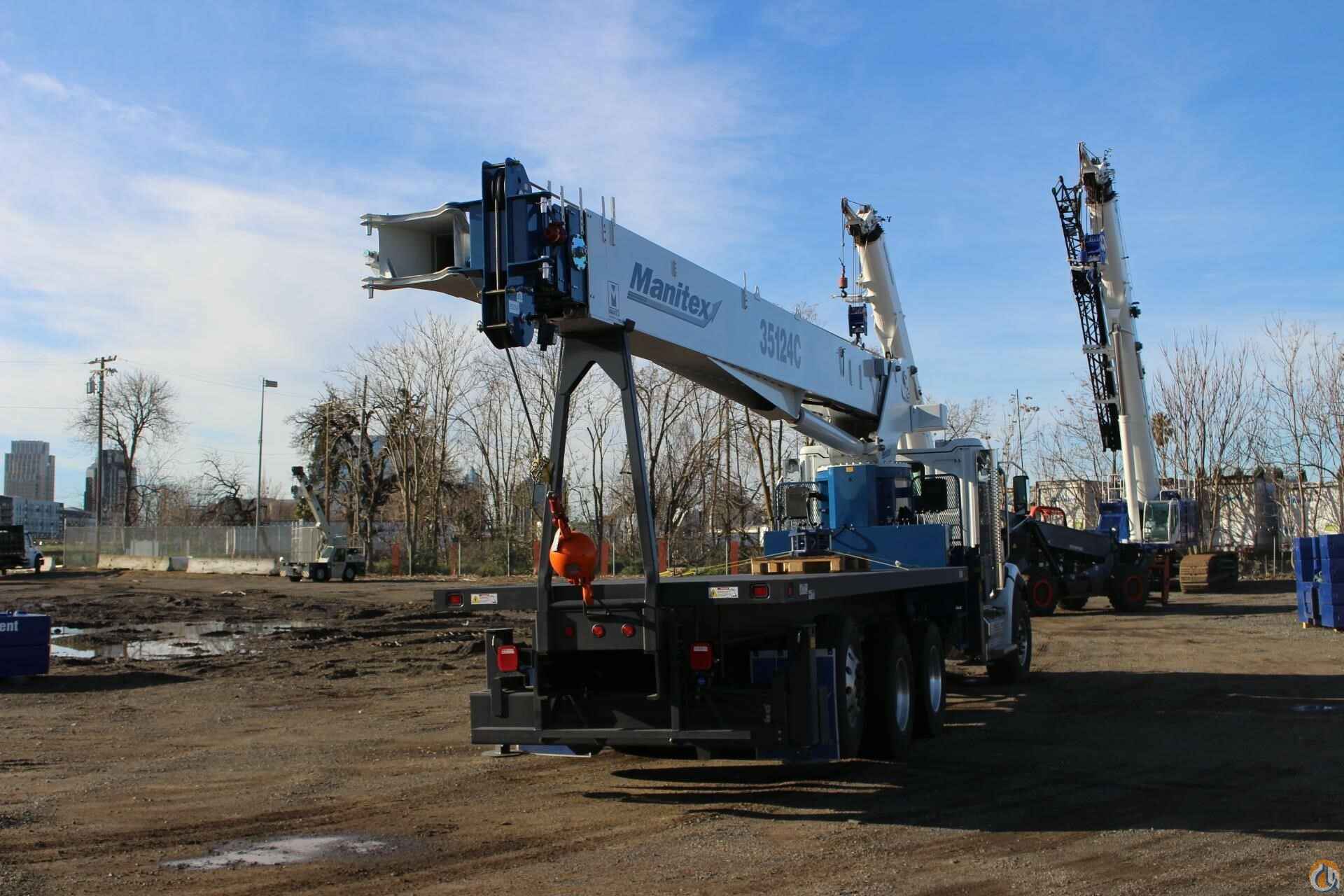

NEW MANITEX 35124C
35 TON CRANE
Standard features:
124’ Five-Section Telescopic Boom, 2-speed hoist with grooved drum, 7 ton hook and ball, , 3-Load Sheave Quick Reeve Boom Head, Radio Anti-Two Block Option, Normal Pedestal, Boom Hoist Cylinder, System Pressure Gauge, 372° Non Continuous Rotation, Removable Boom Rest, Engine Start/Stop, Operator’s Service/ Parts Manuals, Boom Length and Angle Indicators, Foot Throttle, Electronic Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 380’ of 5/8” rotation Resistant Wire Rope, 115 Gallon Reservoir w/Suction Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator – Audio/Visual Alert w/Shutoff Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, Out and Down Front Outriggers w/22’ Spread, 3-Section Vane Pump Counterclockwise Rotation is Standard, Subframe for 22’ Bed, Outrigger Monitoring System for Verification only.
Additional Options Included:
• Normal Pedestal
• 1 Piece 31’ Jib Radio
• 22’ Steel Bed with 1/8” thick Steel Thread Plate
• Hotshift PTO
• Heavy Duty Hydraulic Reservoir
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Toolbox (48” x 24” x 24”) flatbed mount

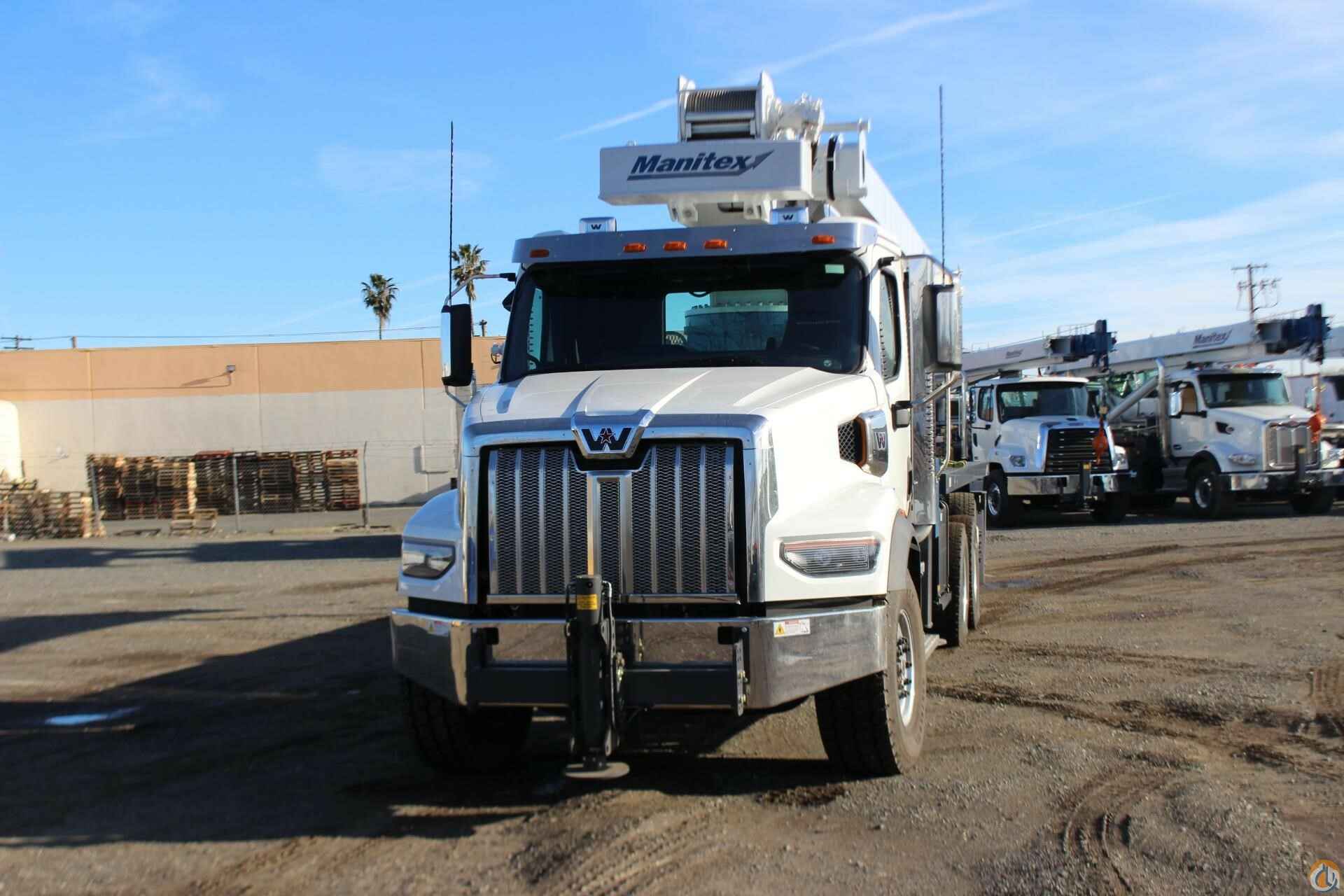

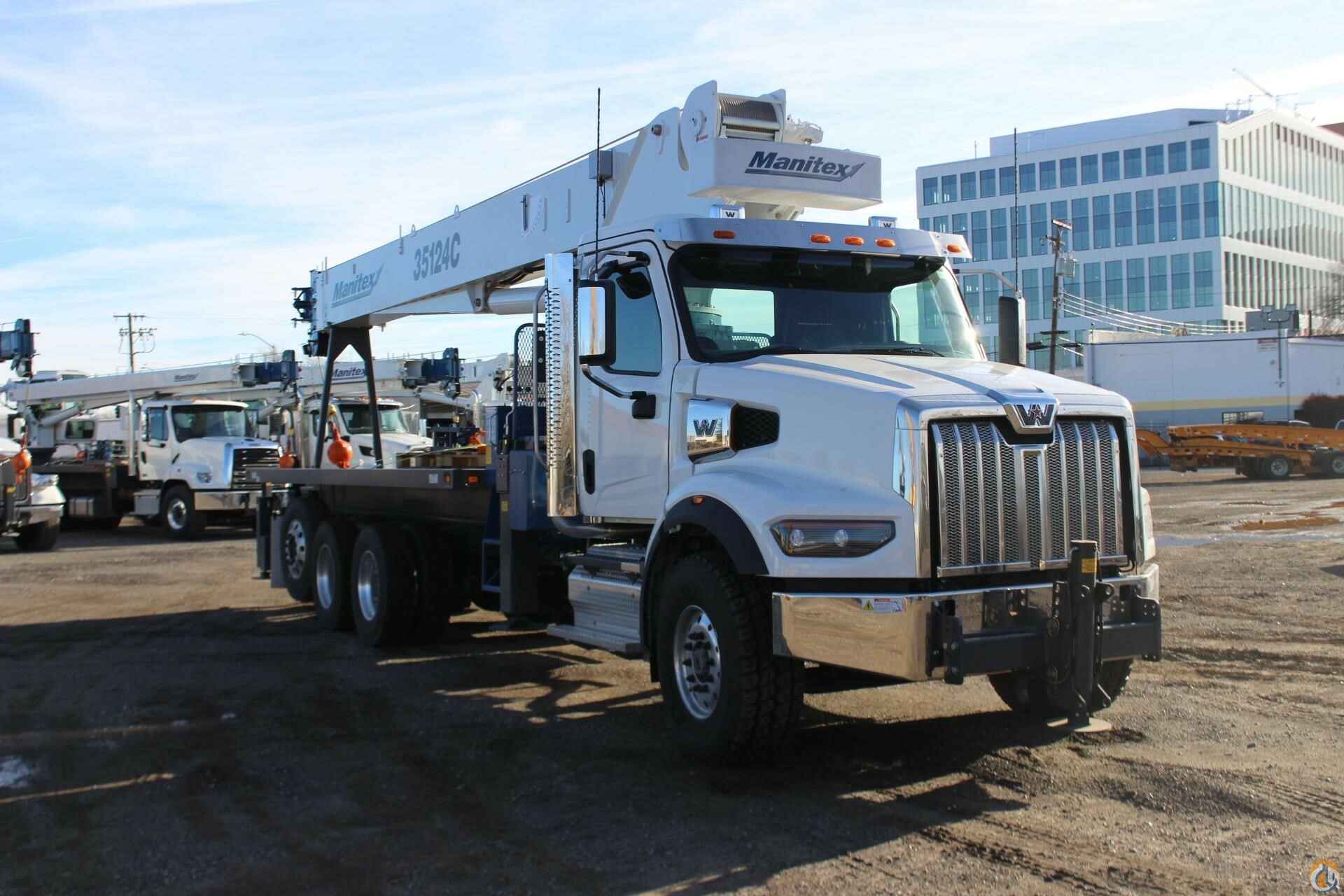

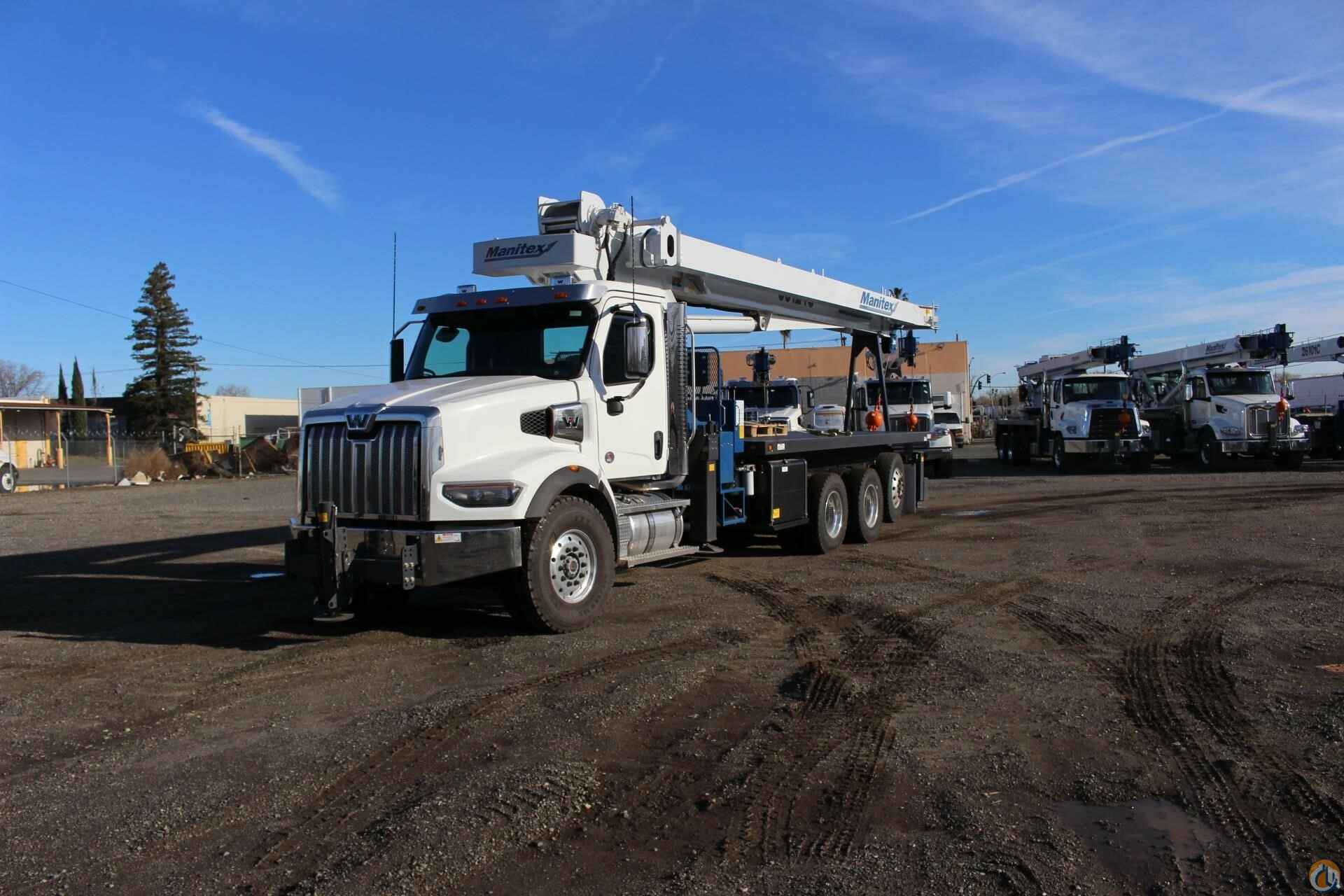

MOUNTED ON 2023 WESTERN STAR 49X
Mounted on a 2023 Western Star 49X tractor chassis with a Detroit DD16 15.6L 500 HP diesel engine with a Allison 4000 RDS automatic Transmission, Detroit DA-F-23.0-5 23,000 lb. front axle, RT46-160 46,000 lb. tandem rear axle, Hendrickson Haulmaax EX 46,000lbs. rear suspension, Full set of Alcoa Aluminum Polished wheels, Single polished Aluminum 80 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, dual heated mirrors, interior color Charcoal Black, AM/FM/WB World tuner radio with SiriusXM, Bluetooth, IPOD interface, USB and auxiliary inputs, dual air horns, exterior stainless steel sunvisor, Halogen headlights, and unit is painted White Elite.
