MANITEX 35124C

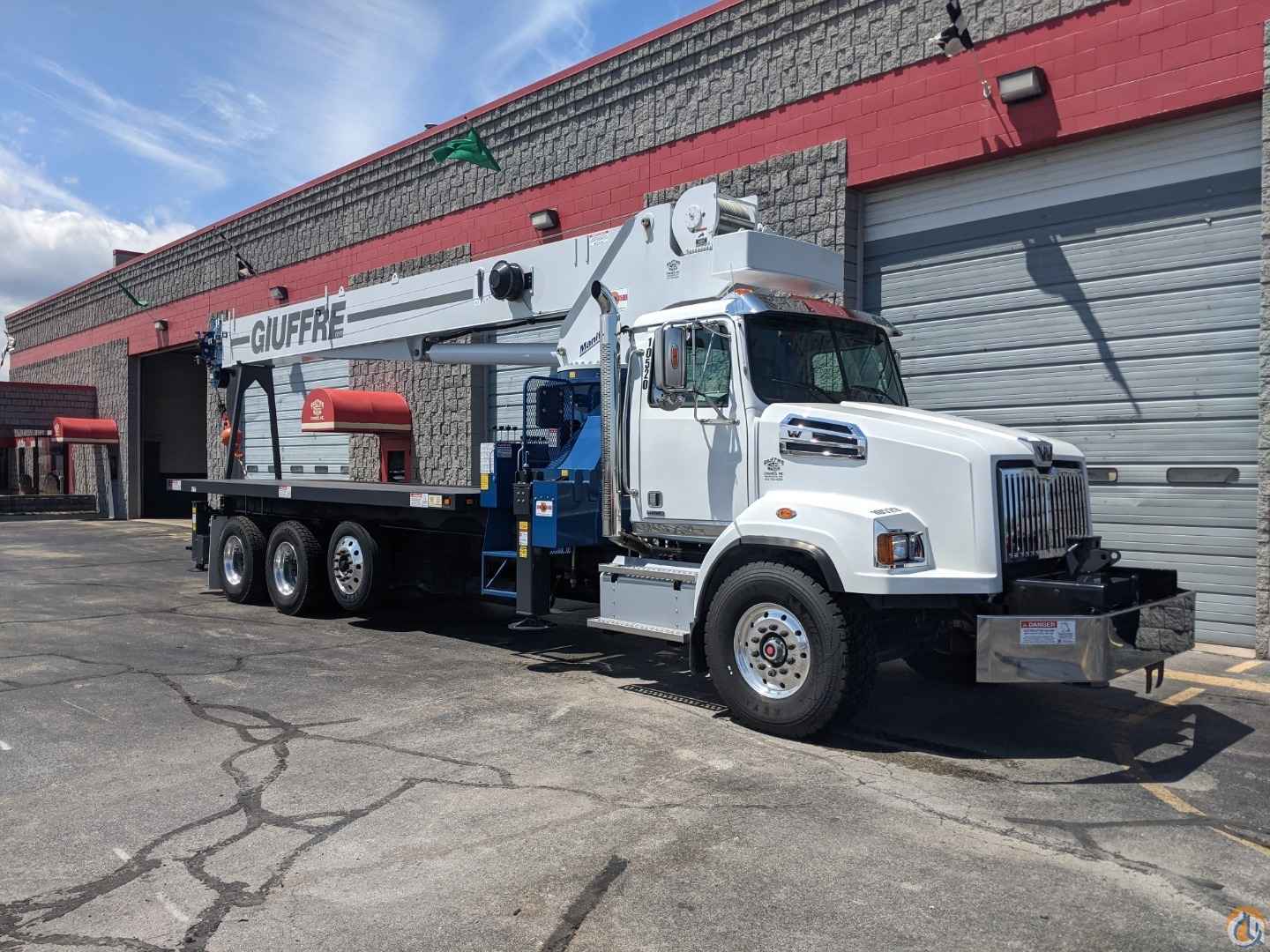

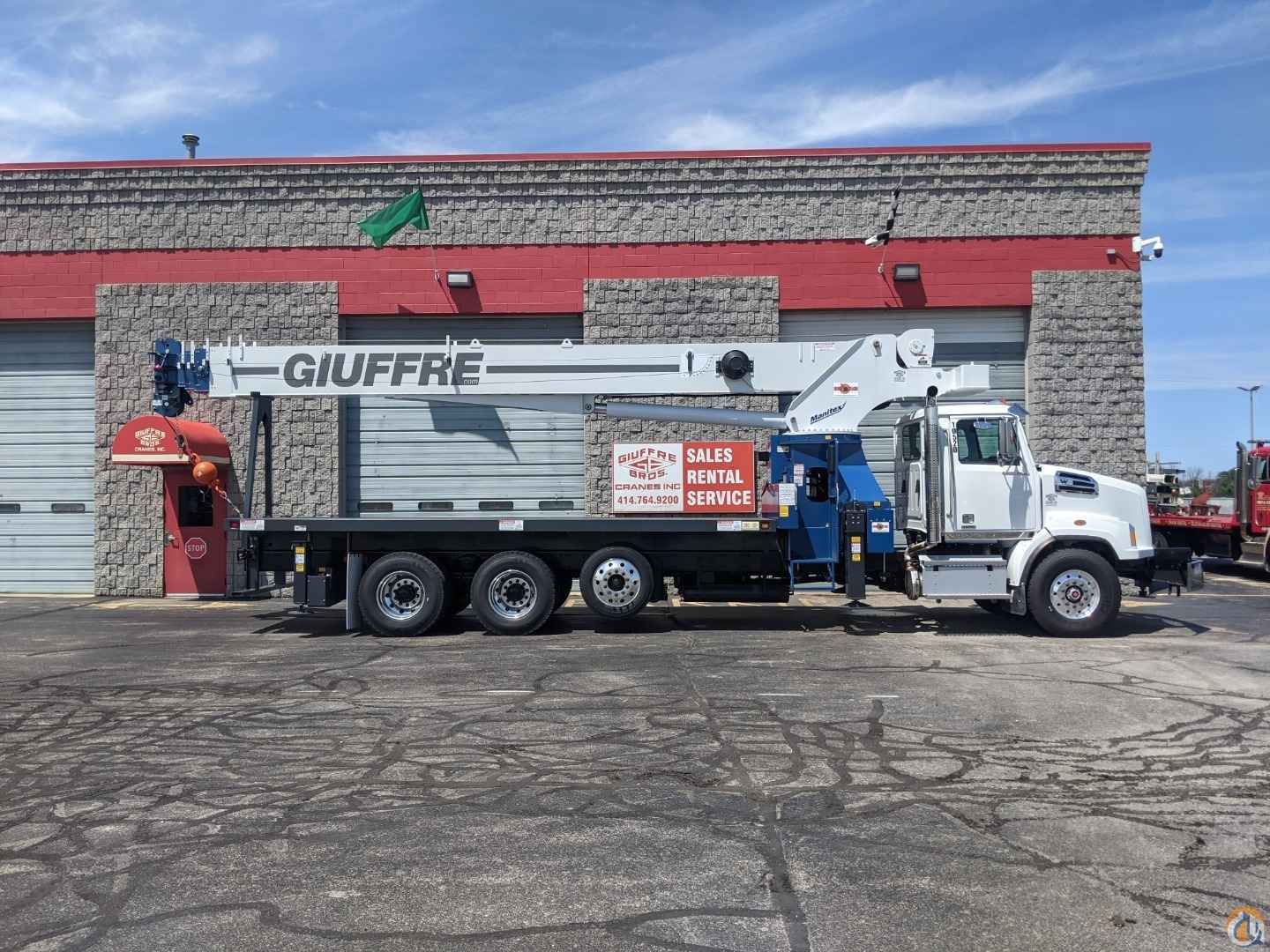

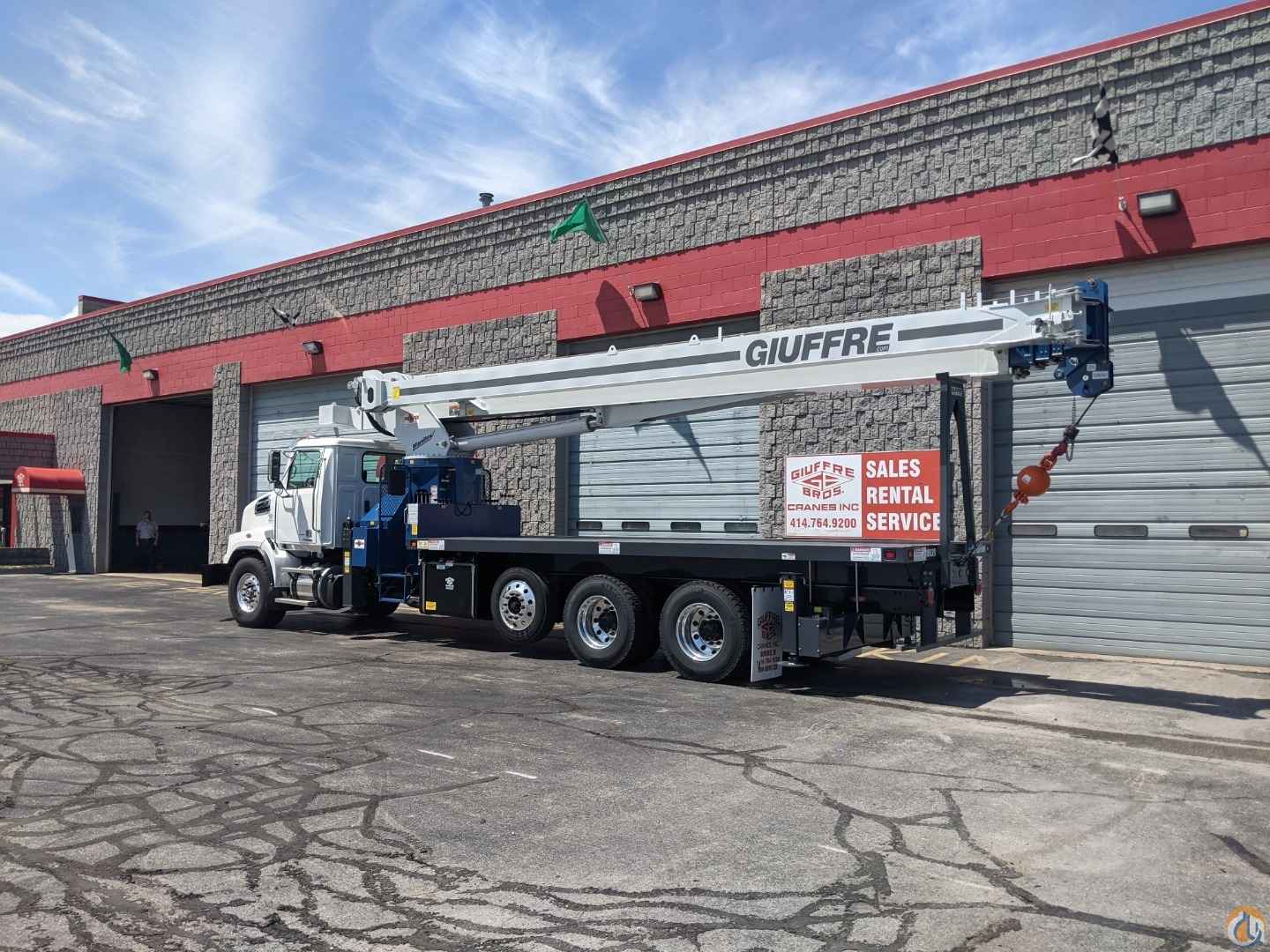

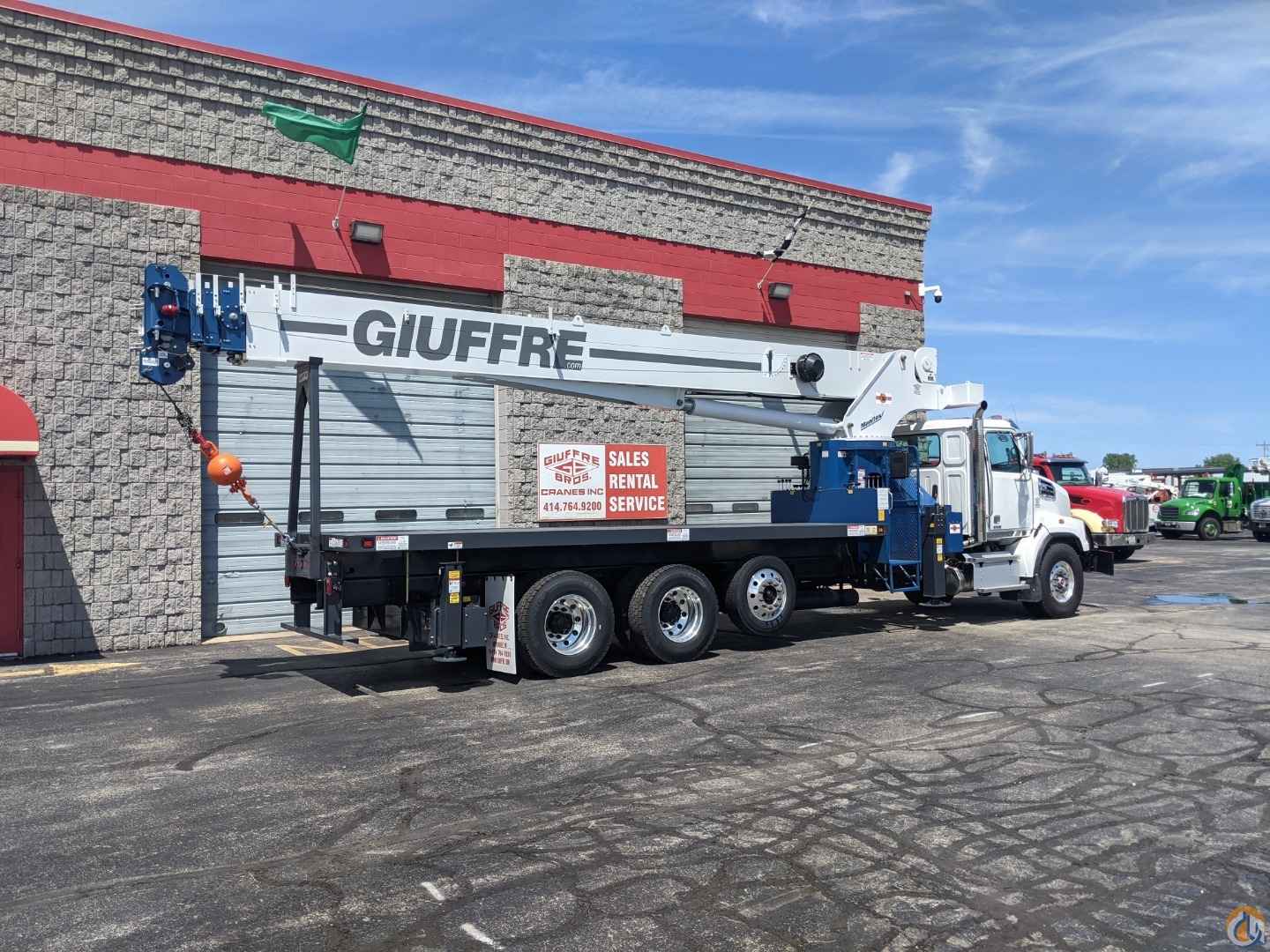

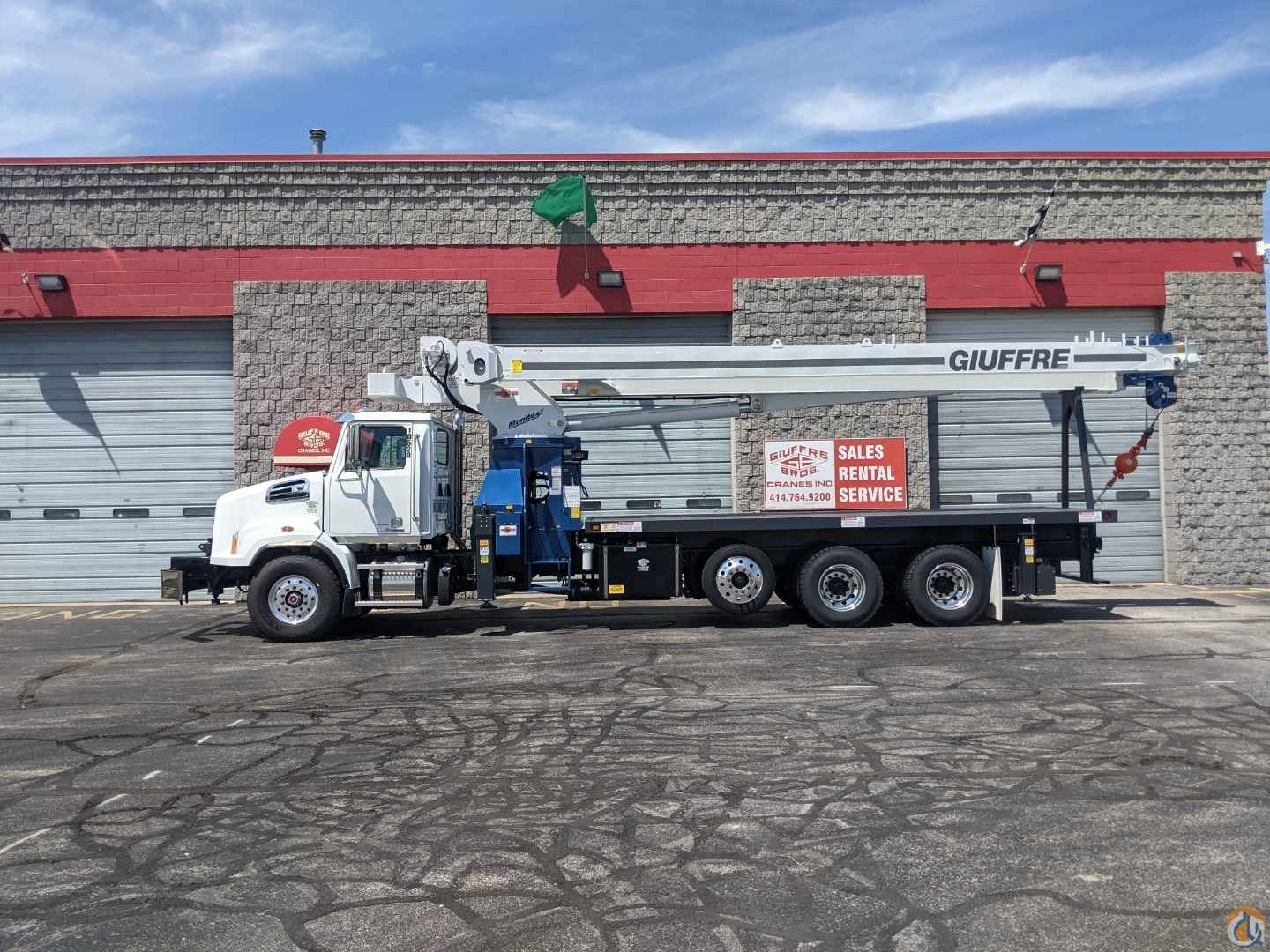

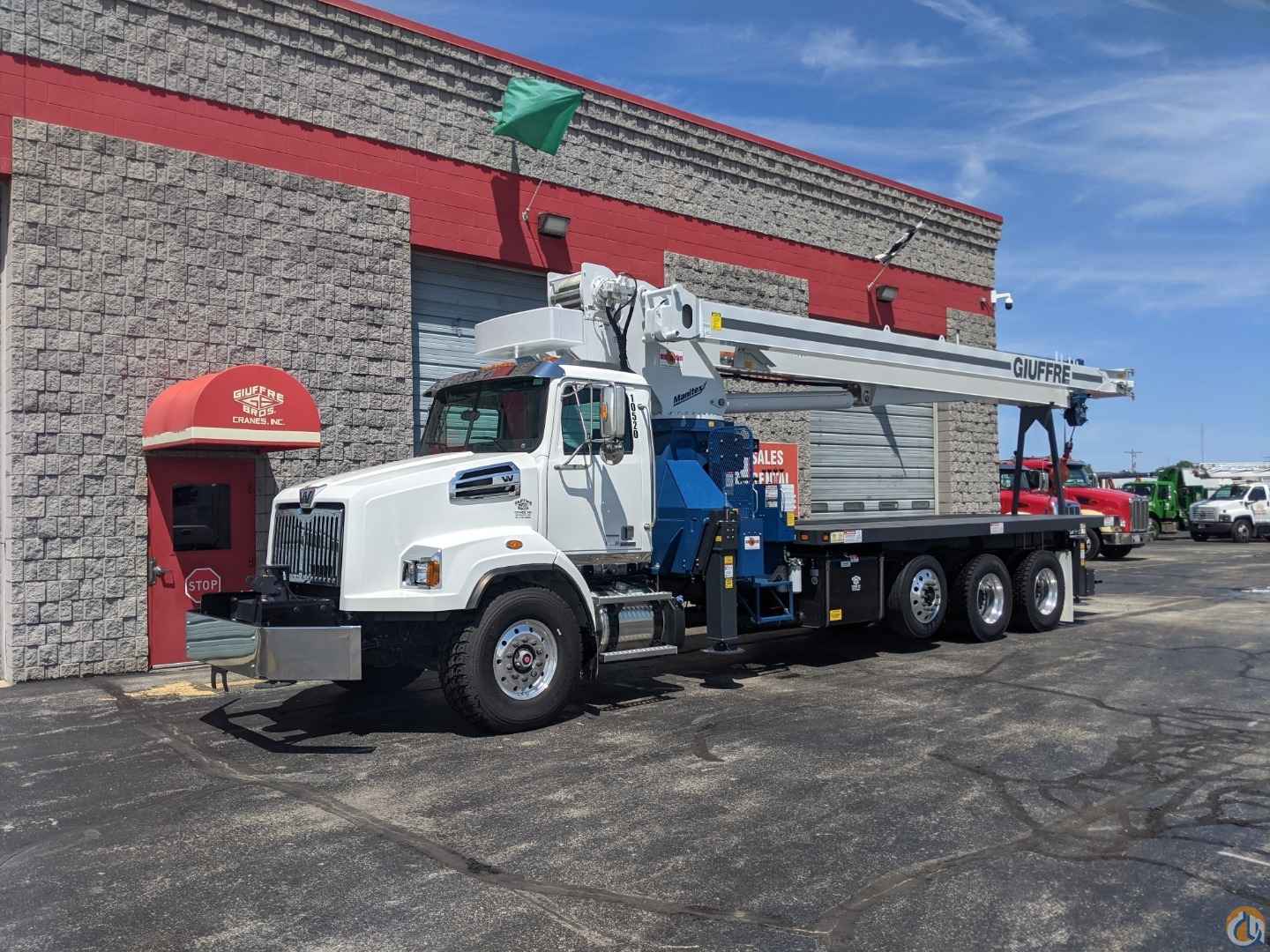

NEW MANITEX 35124C
35 TON (31,8 MTON) CAPACITY
5-SECTION 124' PROPORTIONAL BOOM
165' TIP HEIGHT WITH OPTIONAL 31' JIB
22' 1" OUT-AND-DOWN OUTRIGGERS
INTERMEDIATE AND FULLY EXTENDED
OUTRIGGER CHARTS ARE STANDARD
FIRST UP FOR OPTIONAL FRONT STABILIZER
2-SPEED PLANETARY HOIST WITH GROOVED
DRUM AND NEGATIVE DRAFT FLANGE

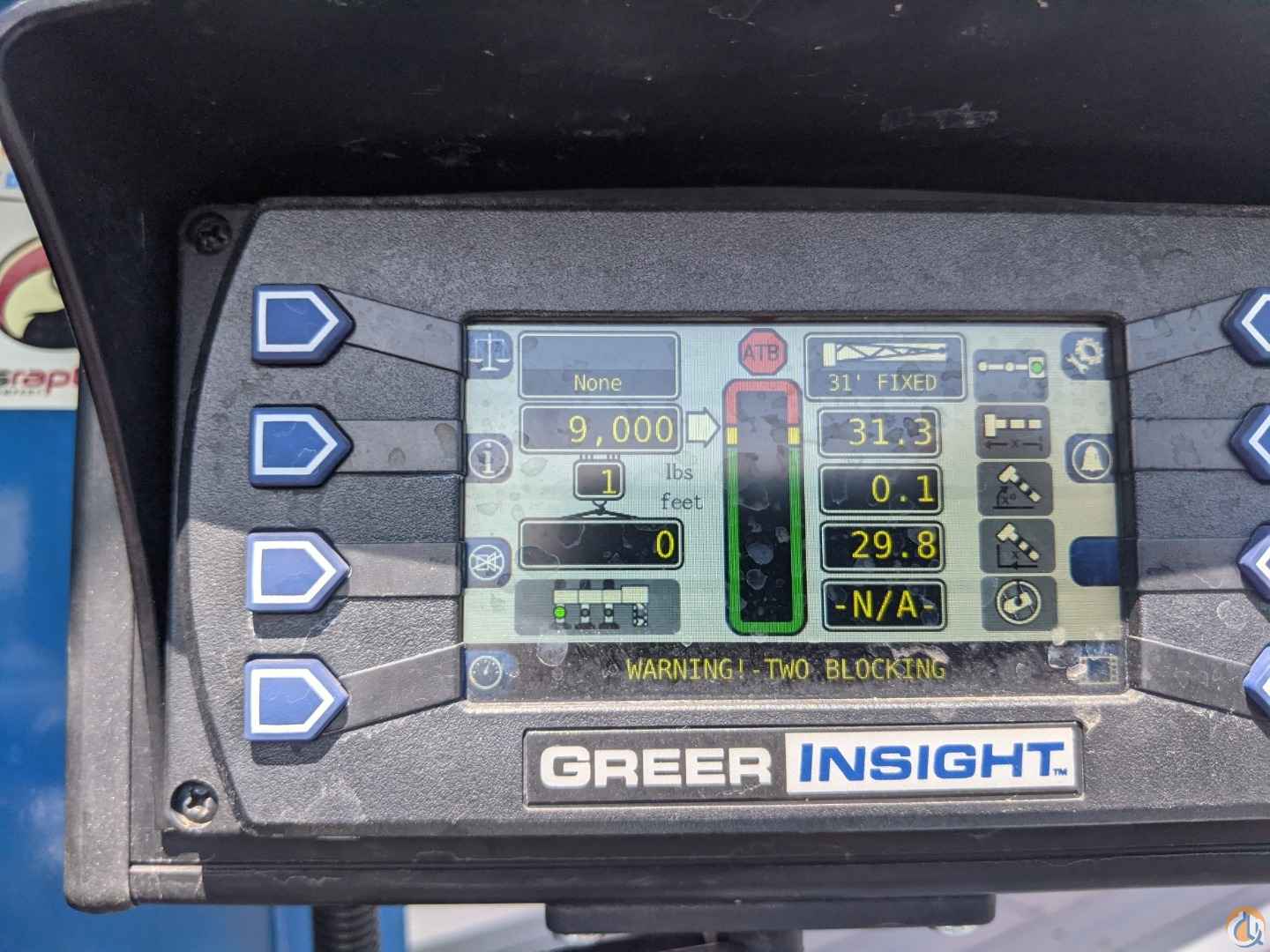

LOAD MOMENT INDICATOR WITH DIGITAL
DISPLAY, OVERLOAD SHUTDOWN ,
AND INTERNAL BOOM LENGTH CABLE
RUGGED, WEATHERPROOF ELECTRICAL
SYSTEM WITH CIRCUIT STATUS LEDS
SYSTEM PRESSURE GAUGE
REMOVABLE BOOM REST
AEROQUIP STC HYDRAULIC FITTINGS
22' x 8' HEAVY DUTY WOOD BED
MANITEX UPTIME COMPREHENSIVE SUPPORT
PAINTED STD MANITEX COLORS
ALL STANDARD EQUIPMENT
12 MONTHS PARTS-LABOR WARRANTY

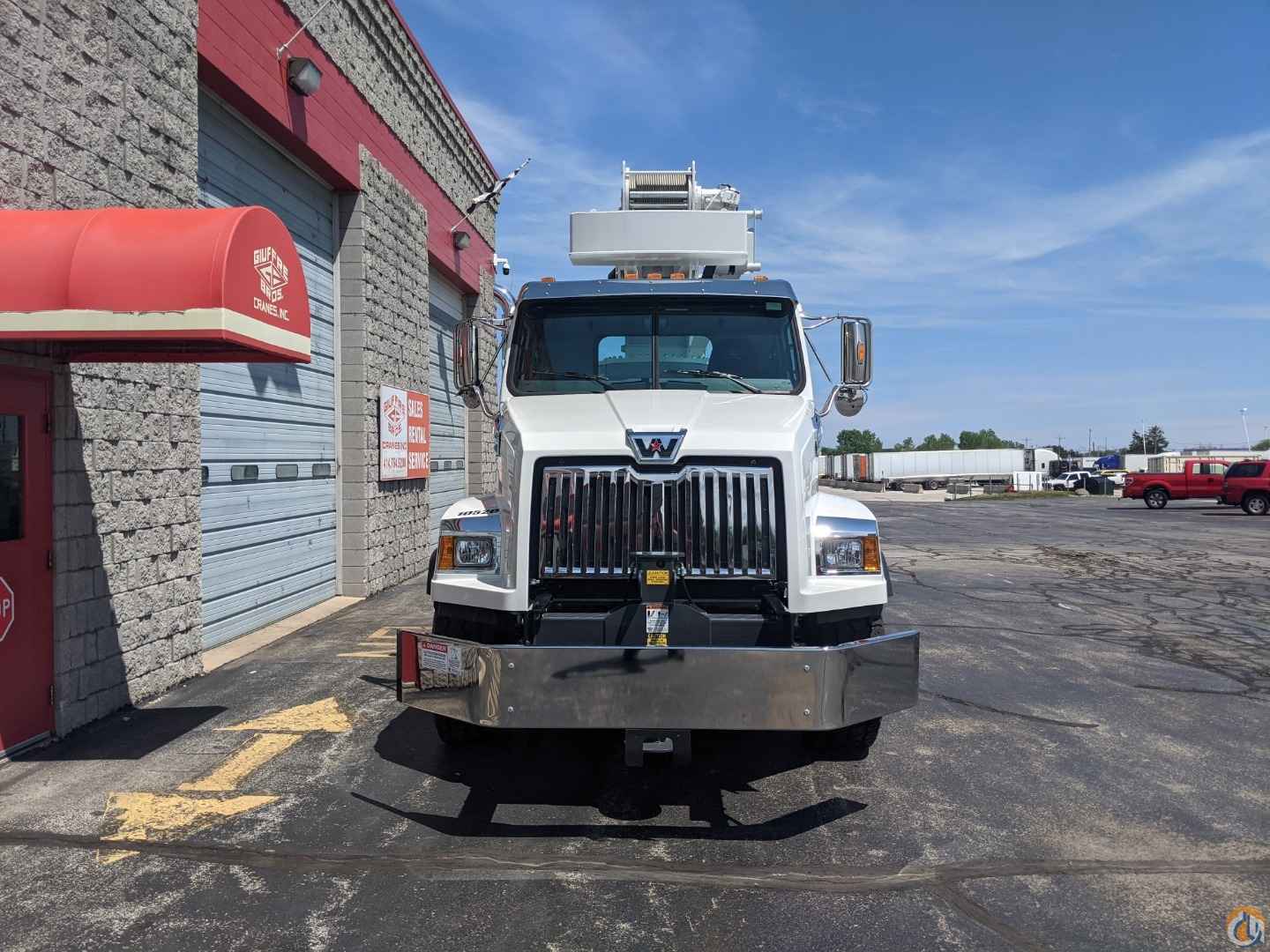

NEW 2021 WESTERN STAR 4700 SB
370HP CUMMINS L9 TURBO DIESEL
CUMMINS EXHAUST BRAKE INTEGRAL W/ VGT
1250 lb-ft TORQUE RATING
ALLISON 3000RDS AUTOMATIC TRANSMISSION
ELECTRIC GRID AIR INTAKE WARMER
PHILLIPS 1000 WATT / 115V BLOCK HEATER
20,000 LB FRONT STEER AXLE
40,000 LB REAR AXLE w/ 13,300 LB PUSHER
70,000 LB G.V.W.R.
TUFTRAC 40K REAR SPRING SUSPENSION
20K FLAT LEAF FRONT SUSPENSION
4.63 REAR AXLE RATIO
INTERAXLE TANDEM LOCK VALVE
425/65R22.5 20 PLY RADIAL FRONT TIRES
11R22.5 14 PLY RADIAL REAR TIRES
AIR BRAKES W/ WABCO 4S/4M ABS SYSTEM
WABCO AIR BRAKES w/ HEATER & DRYER
FULL STEEL REINFORCED FRAME
HEAVY DUTY SUSPENSION CROSS MEMBER
12V 160AMP ALTERNATOR
3- ALLIANCE 12V 2190 CCA BATTERIES
14" CHROMED STEEL BUMPER
11'6" VERTICAL EXHAUST WITH BRIGHT
UPPER STACK & STAINLESS STEEL
TAILPIPE SHIELD & MUFFLER
60 GALLON ALUMINUM FUEL TANK
DAVCO FUEL/WATER SEPARATOR WITH
12V HEAT & WATER FUEL SENSOR
FUEL COOLER
AIR CAB MOUNTS WITH CHECK VALVE
BRIGHT FINISH GRILLE & CHROME HOOD
MOUNTED AIR INTAKE GRILLE
DUAL WEST COAST STAINLESS STEEL
HEATED MIRRORS W/ RH REMOTE
STAINLESS STEEL EXTERIOR SUN VISOR
TINTED DOOR GLASS/2-PIECE WINDSHIELD

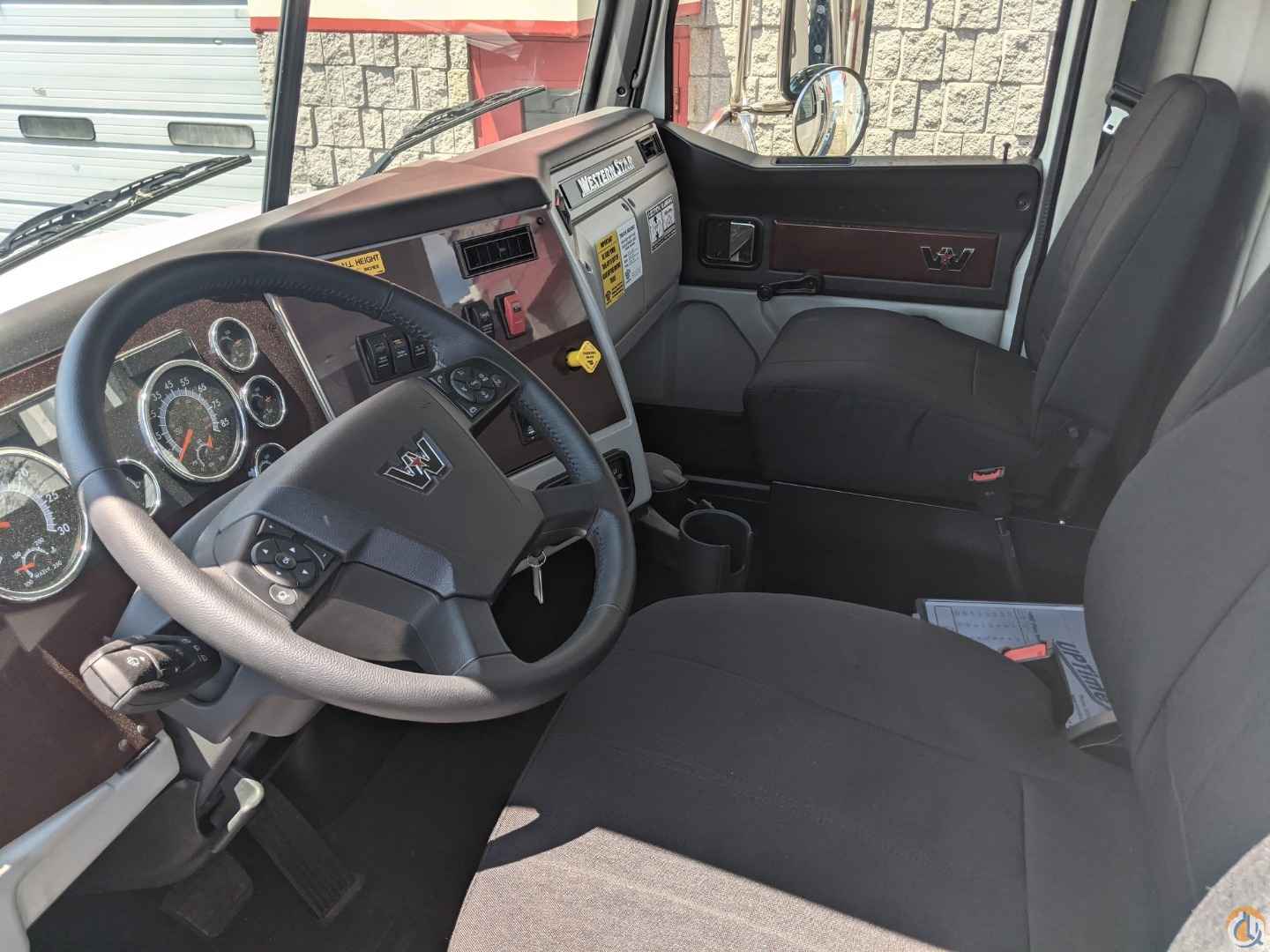

A/C HEAT DEFROSTER & CRUISE CONTROL

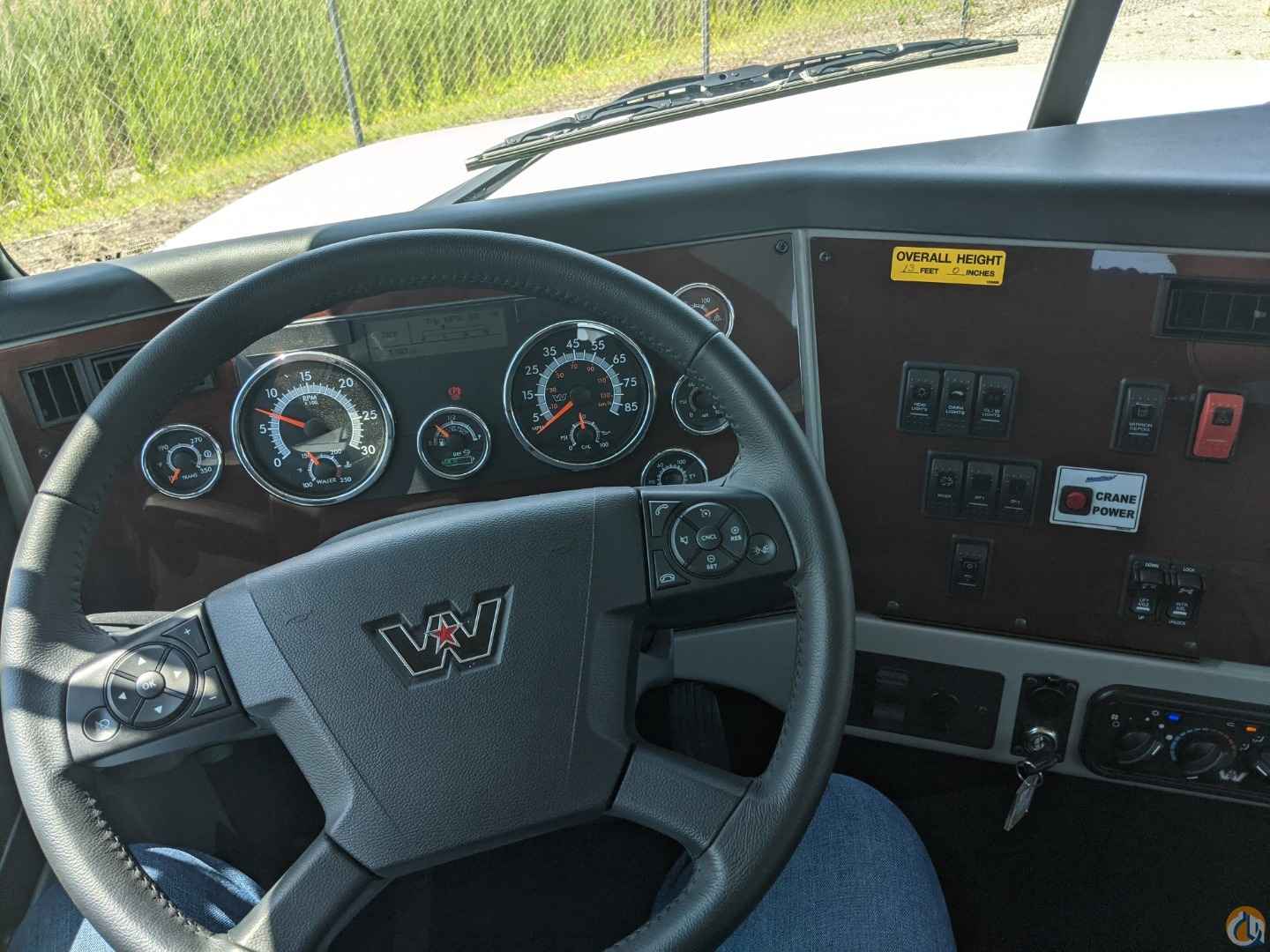

ADJUSTABLE TILT & TELESCOPING
STEERING COLUMN
HIGH BACK AIR SUSPENSION DRIVER SEAT
AM/FM/WB RADIO-USB & AUX. INPUTS & BT
PAINTED ELITE WHITE BC L0005EB
ALL STANDARD EQUIPMENT
STANDARD WESTERN STAR NEW TRUCK
WARRANTY
