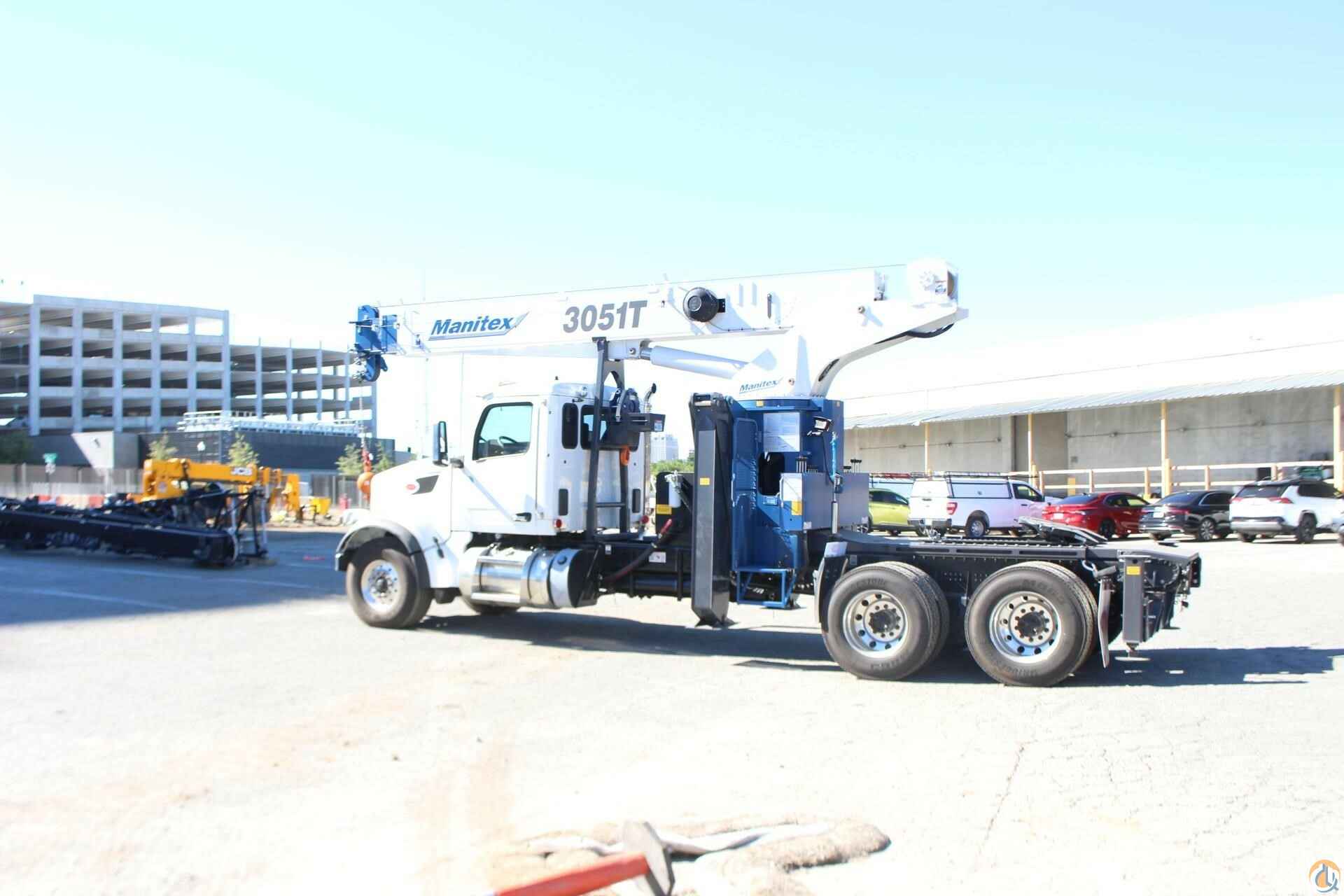

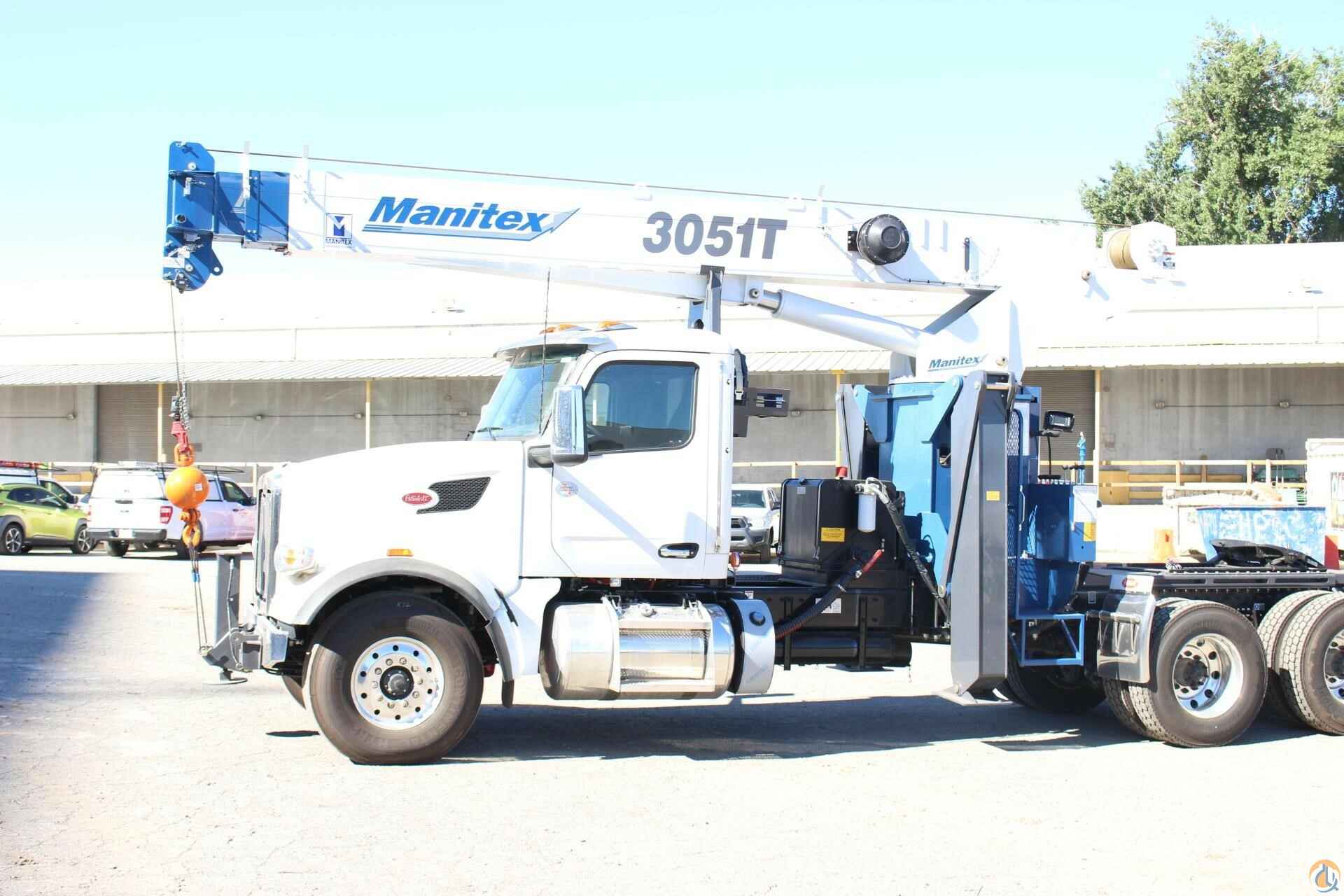

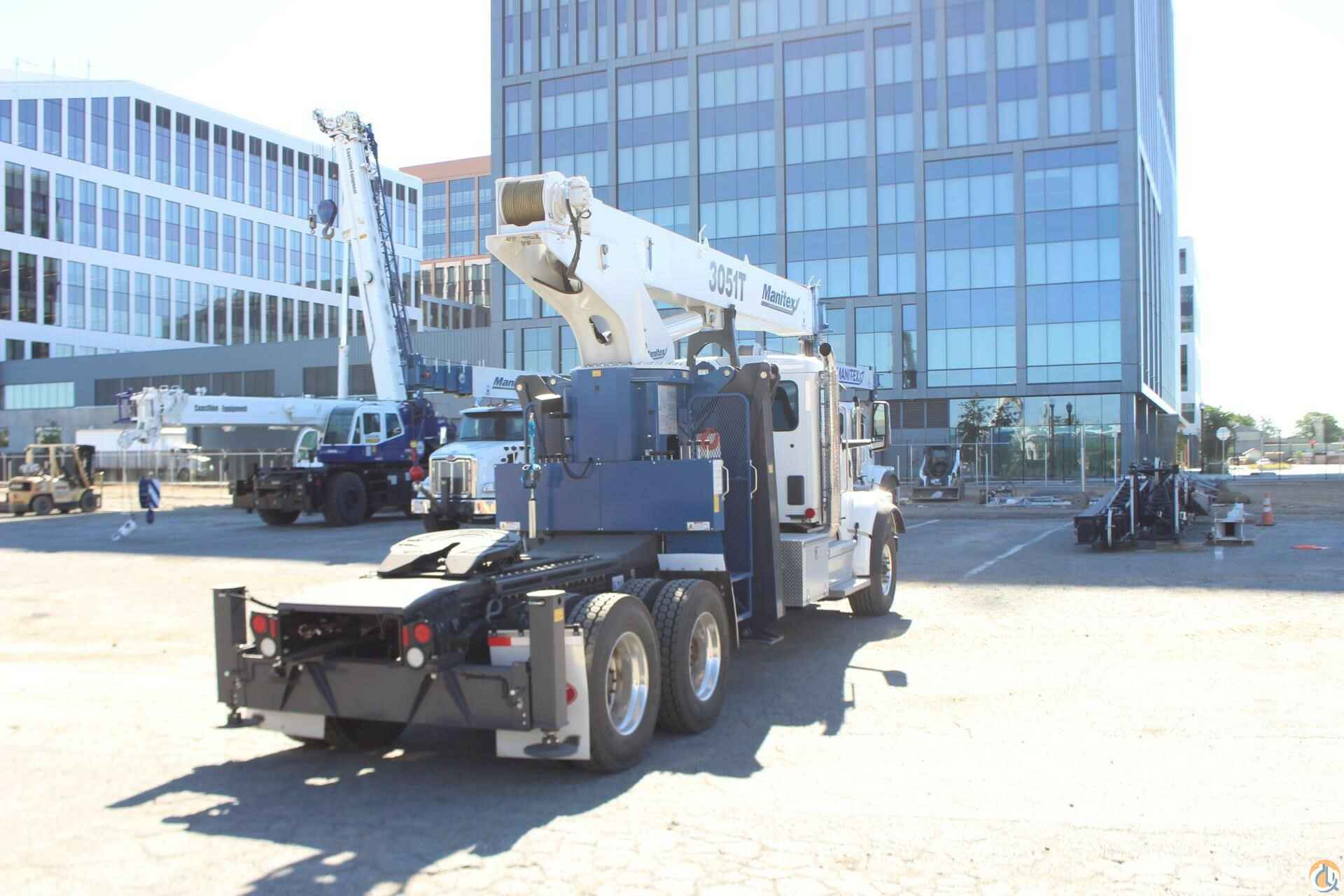

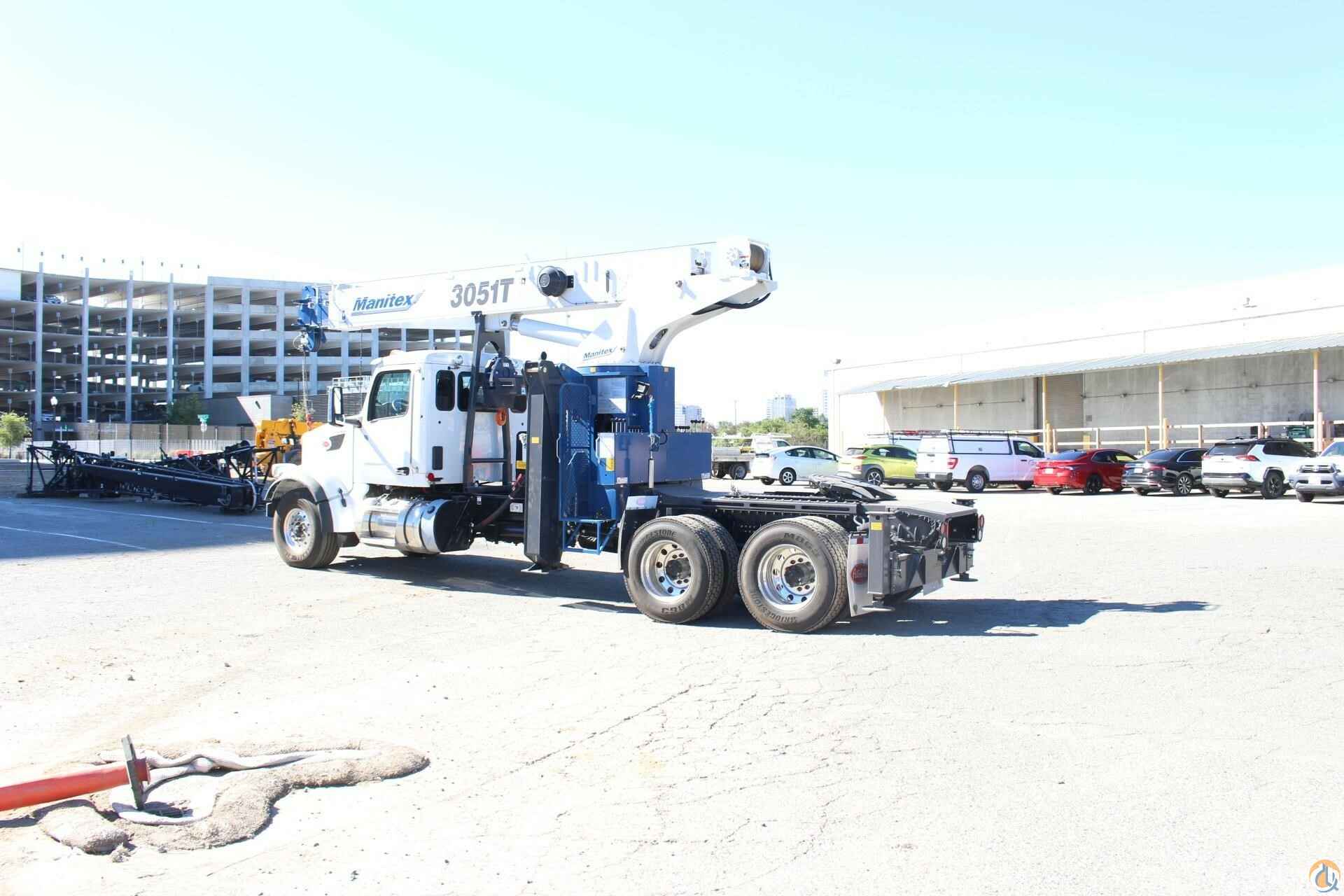

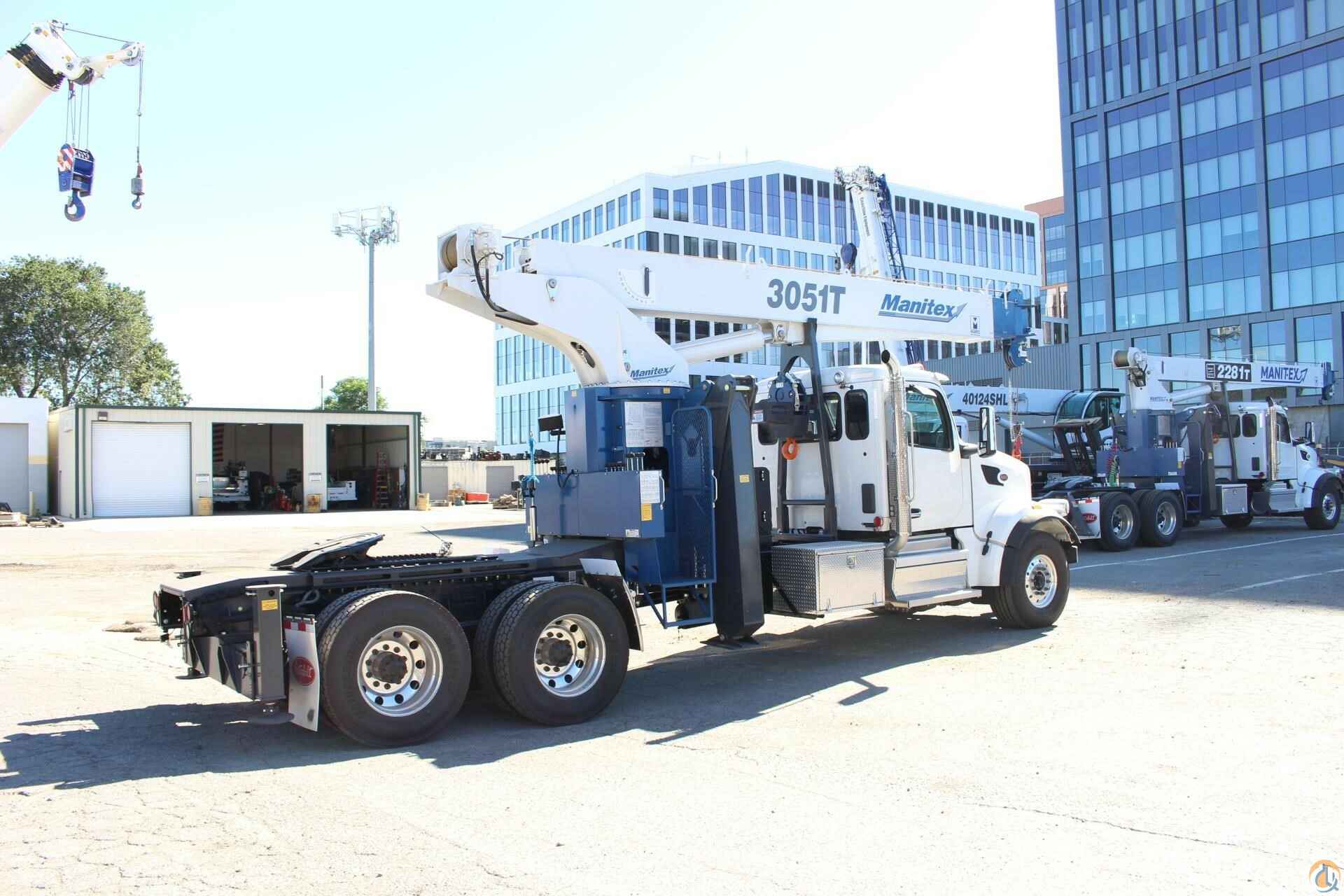

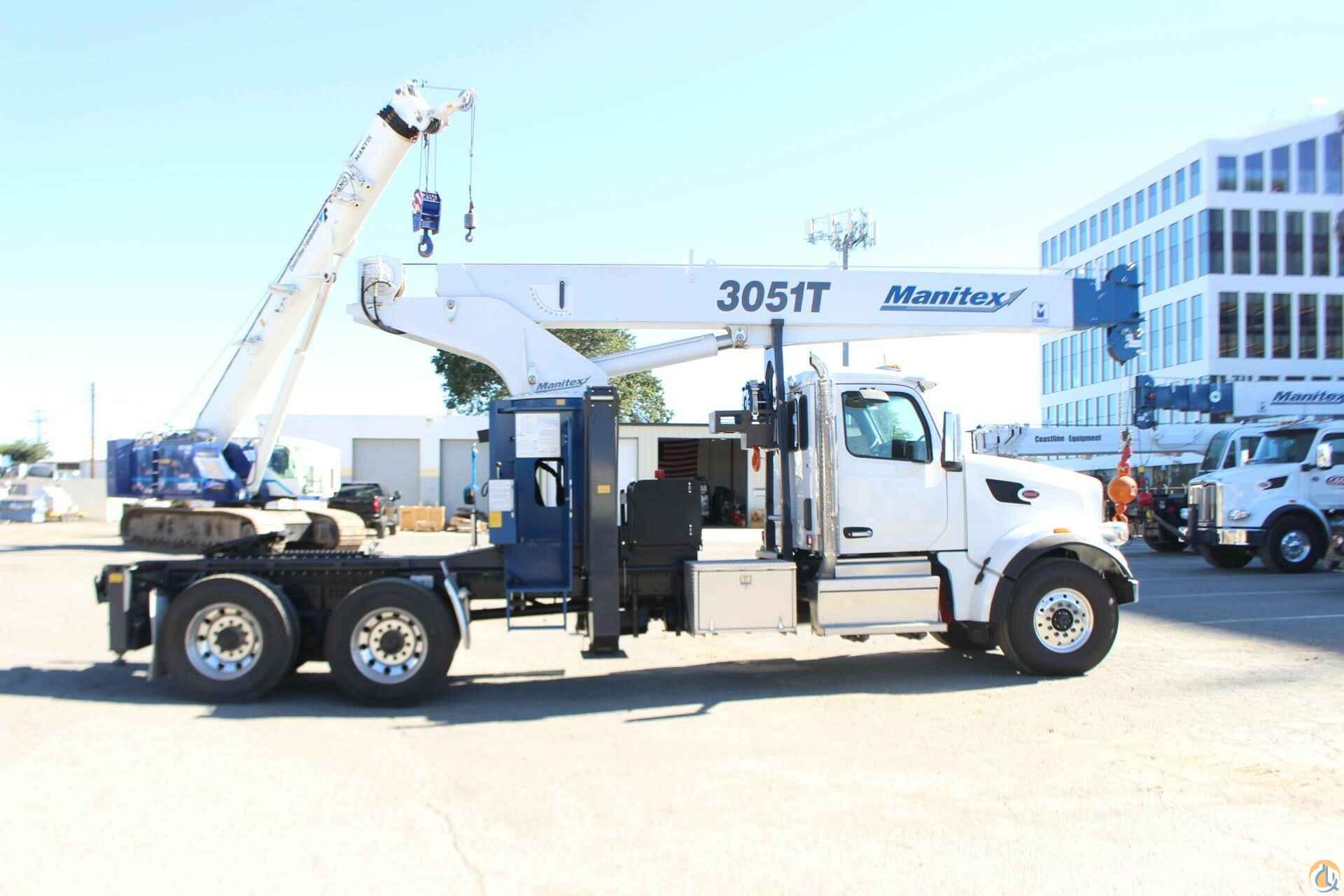

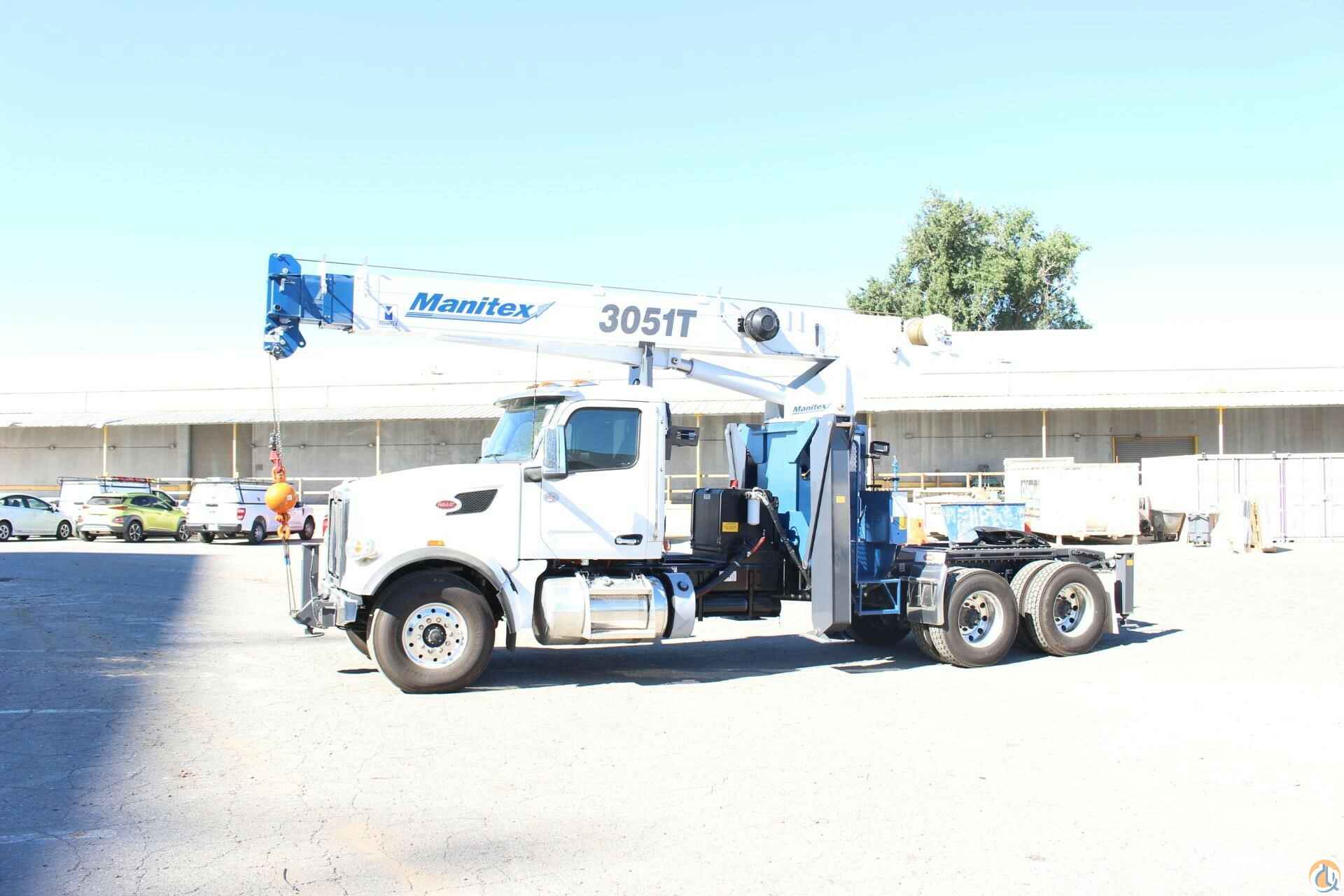

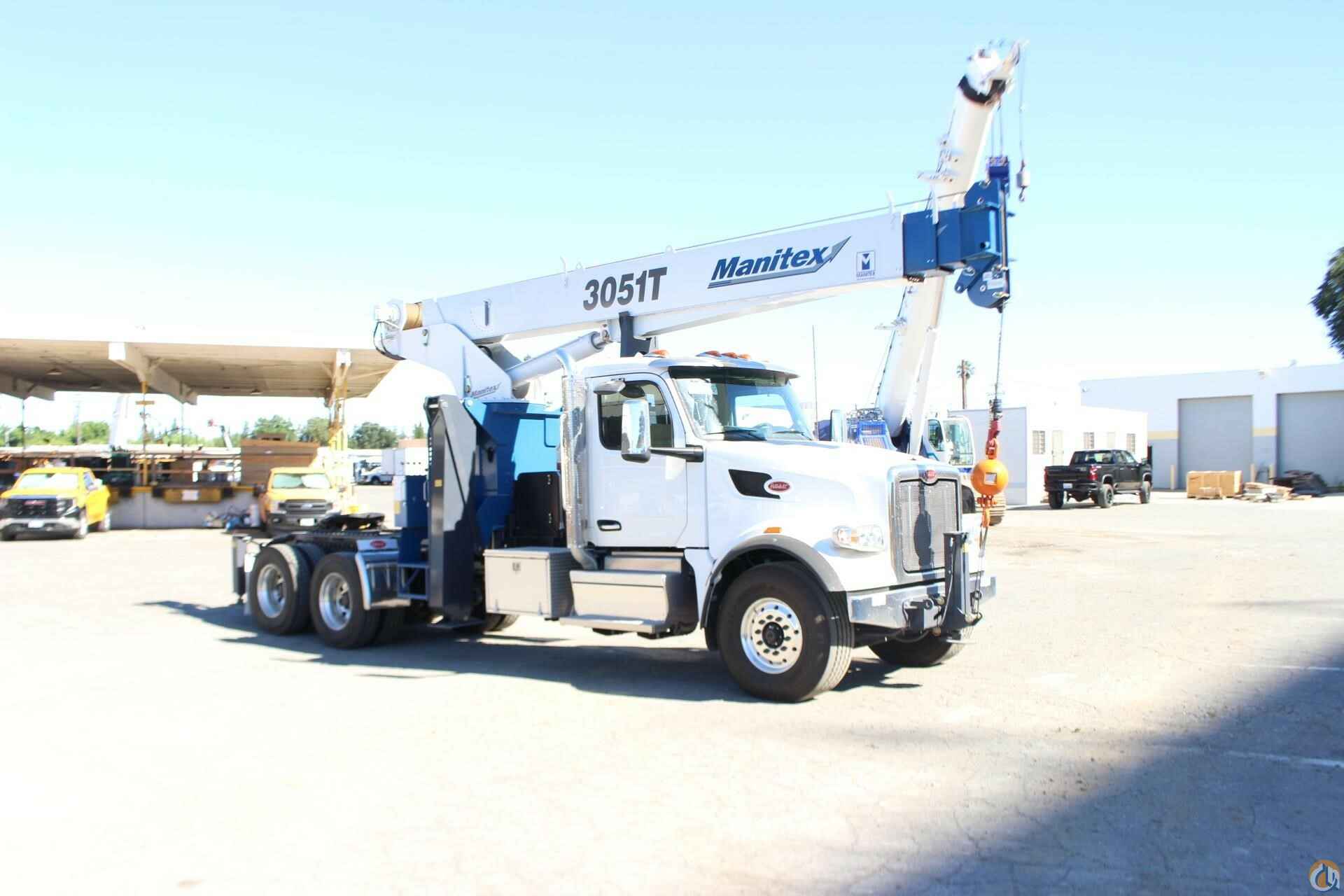

MANITEX 3051T
30 TON
Standard features:
51’ Three-Section Telescopic Boom, 7 Ton Hook and Ball, 3-Load Sheave Quick Reeve Boom Head, Hard-Wired Anti-Two Block w/lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non continuous Rotation, Boom Rest- Tractor Mount with Load Block Bracket, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Electronic Foot Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 2-speed Hoist w/Grooved Drum, 335’ of 9/16” Rotation Resistant Wire Rope, 70 Gallon Reservoir Mount for Tractor Mount w/Suction Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator w/Internal length Cable – Audio/Visual Capacity Alert w/Shutoff, Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators, Audible Outrigger /Stabilizer Motion Alarm, Out and Down Rear Stabilizers, A-Frame Outriggers, 3-Section Gear Hydraulic Pump – CCW Rotation is Standard, Outrigger Monitoring System.
Additional Options Included:
• Heavy Duty Hydraulic Reservoir
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Toolbox (36” x 24” x 24”) Chassis Mount

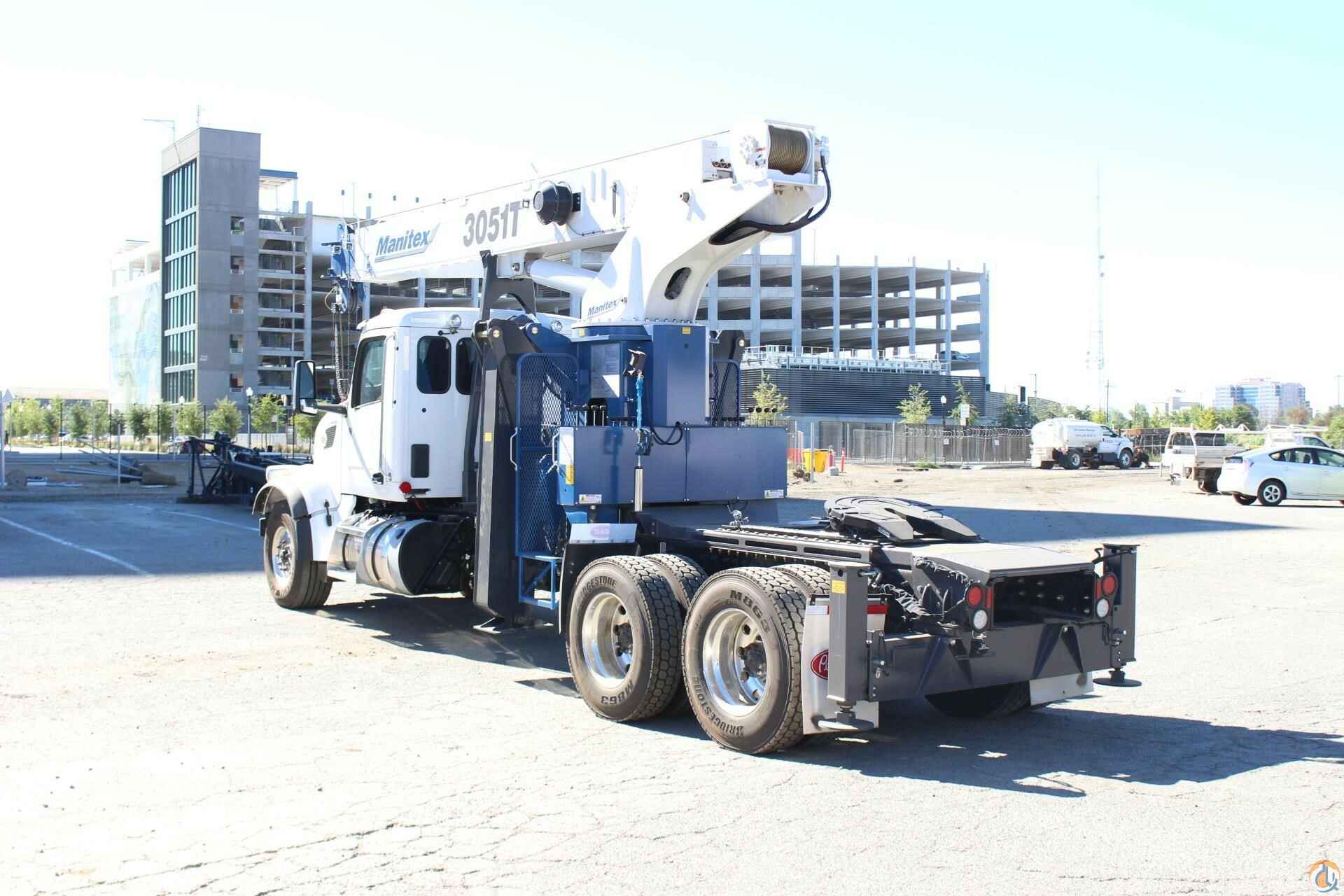

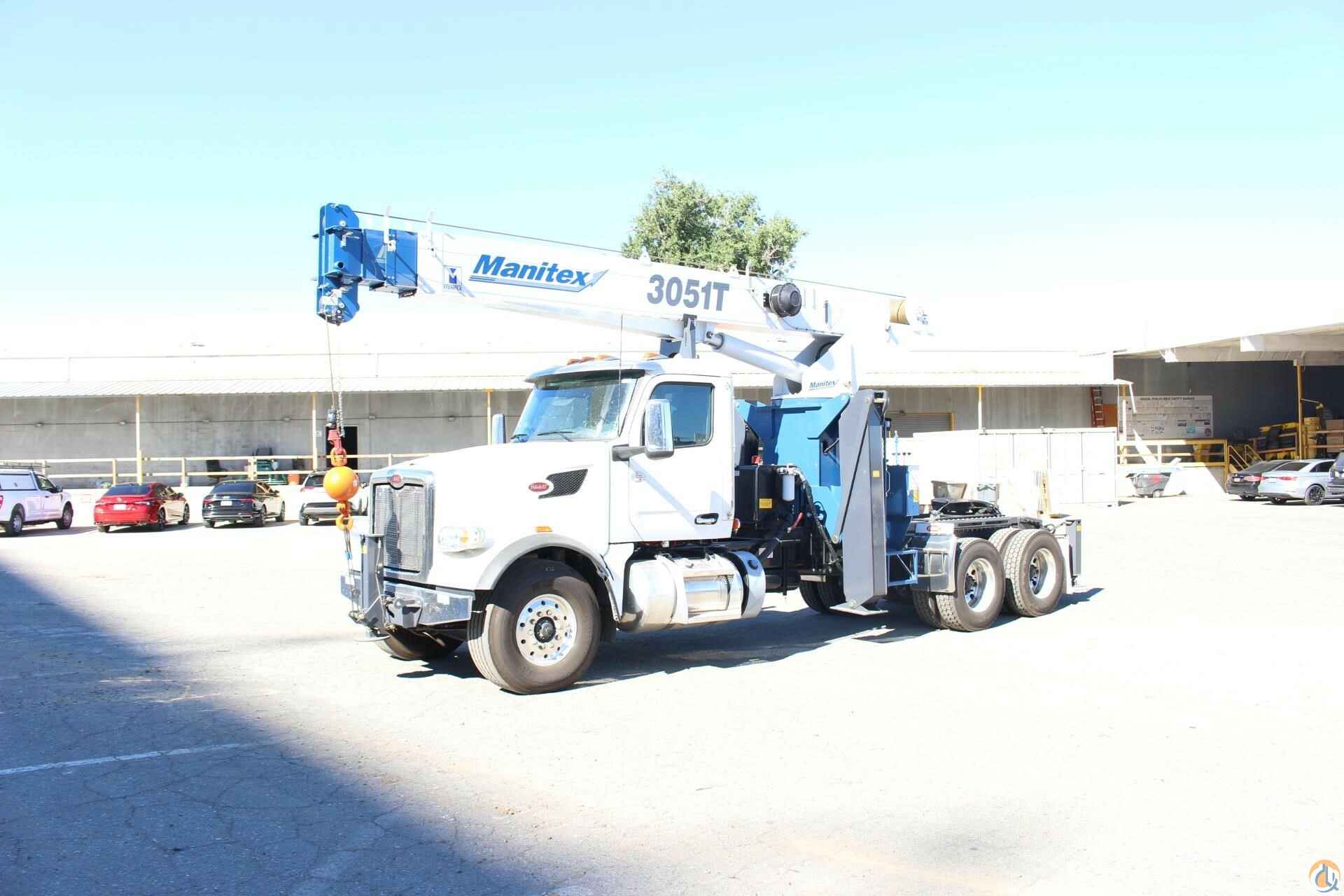

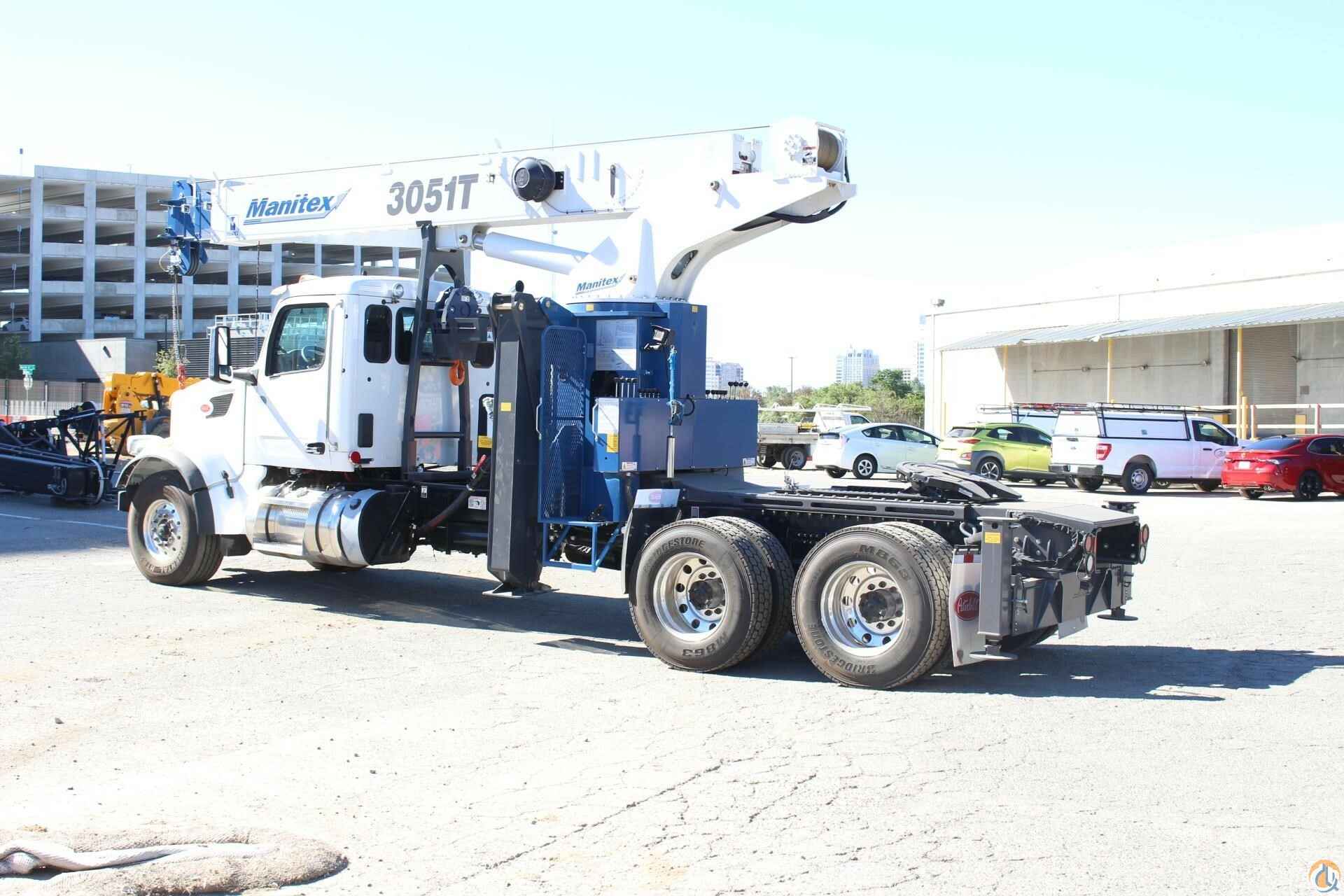

MOUNTED ON 2023 PETERBILT 567
Mounted on a 2023 Peterbilt 567 tractor chassis with a Paccar MX13 510 HP diesel engine with a 13 Speed Eaton RTLO18913A Transmission w/oil-to-water cooler, Paccar FX22 22,000 lb. front axle, Meritor RT46-160 46,000 lb. rear axle, Hendrickson HMX EX 46,000lbs. rear suspension, Holland FW35 fifth wheel, Full set of Alcoa Aluminum Polished wheels, Single polished Aluminum 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, dual heated mirrors, interior color Sterling Gray, ConcertClass radio AM/FM/WB, air horn mounted under cab, exterior stainless steel sunvisor, Halogen headlights, and unit is painted Axalta Two Stage White.
