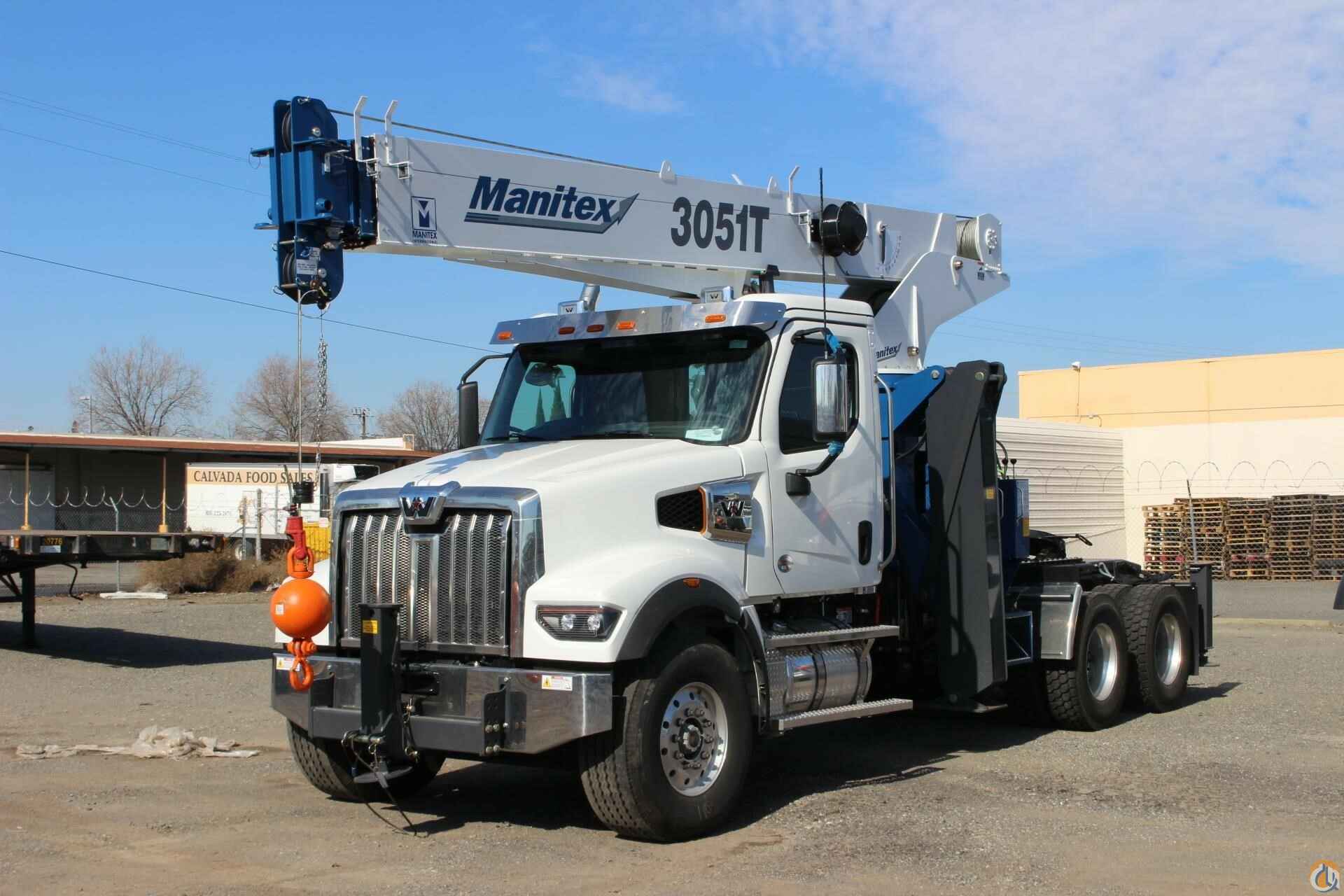

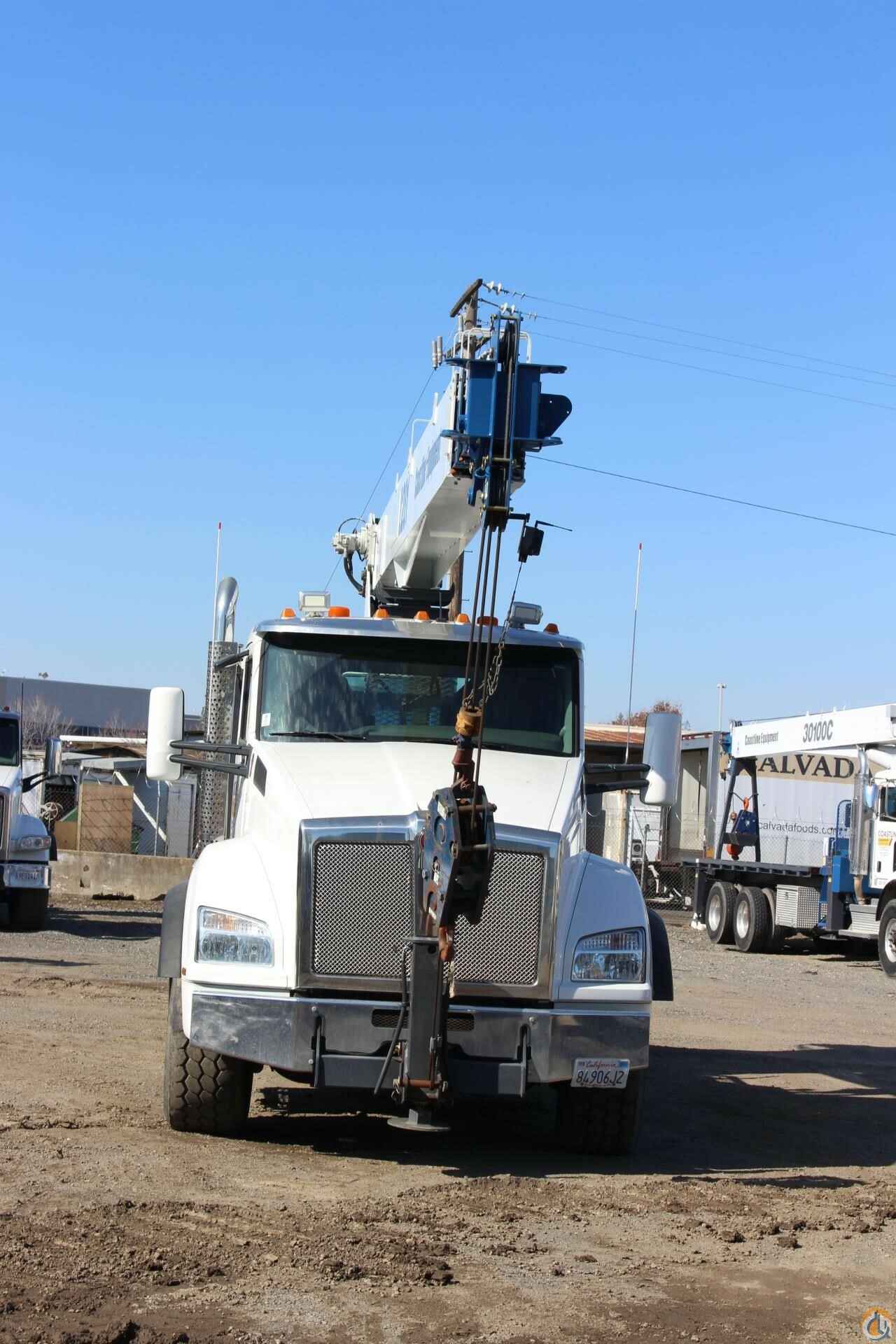

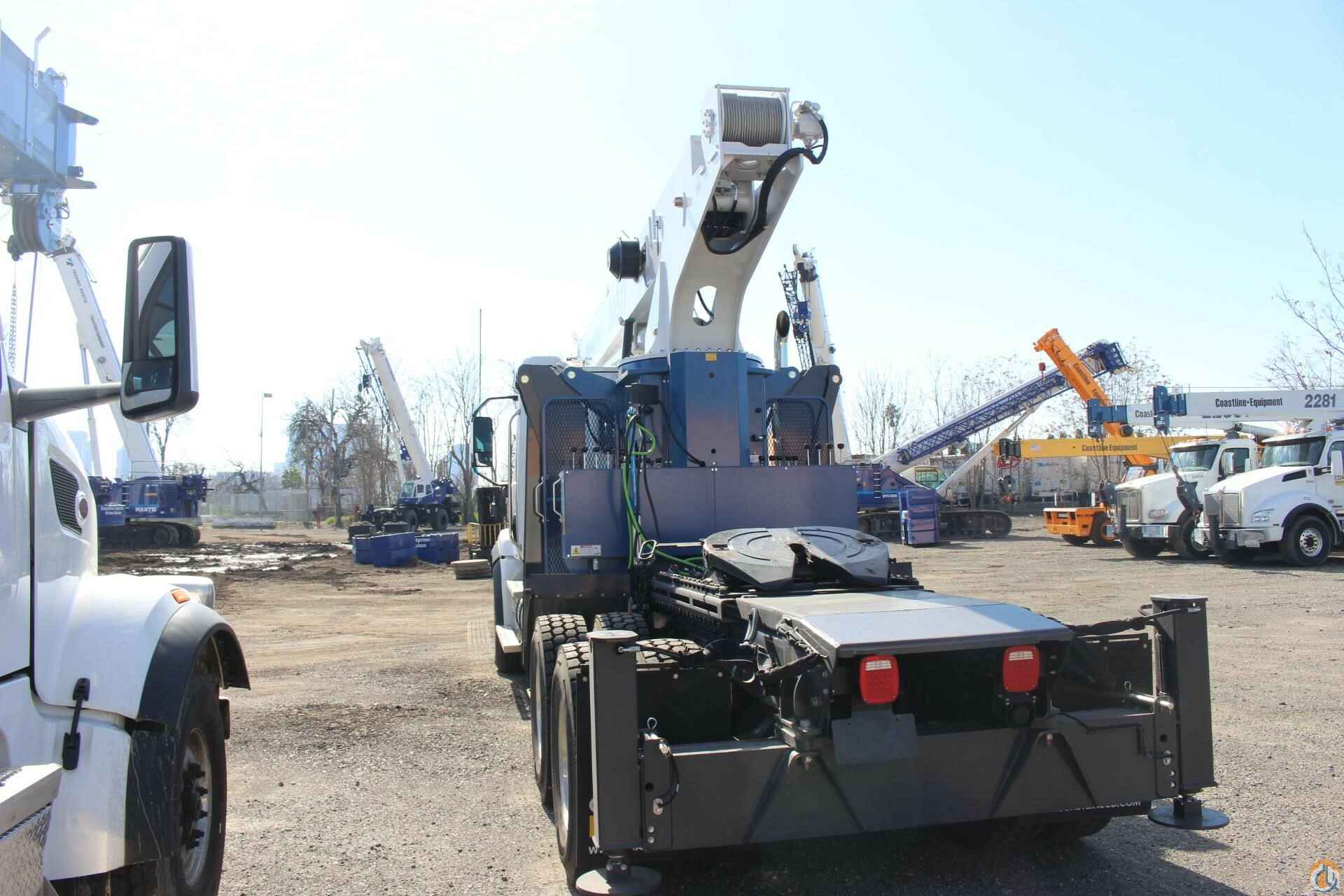

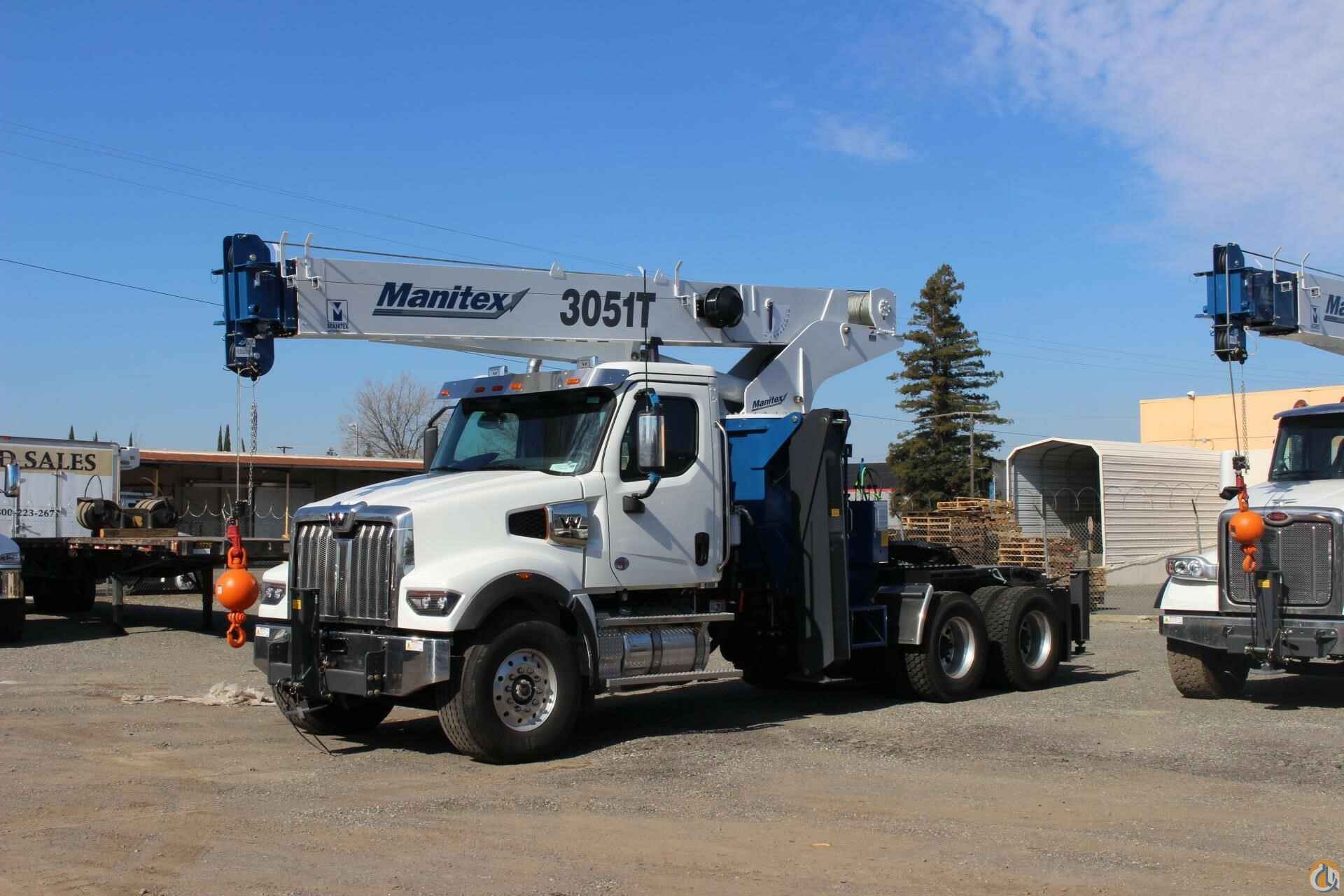

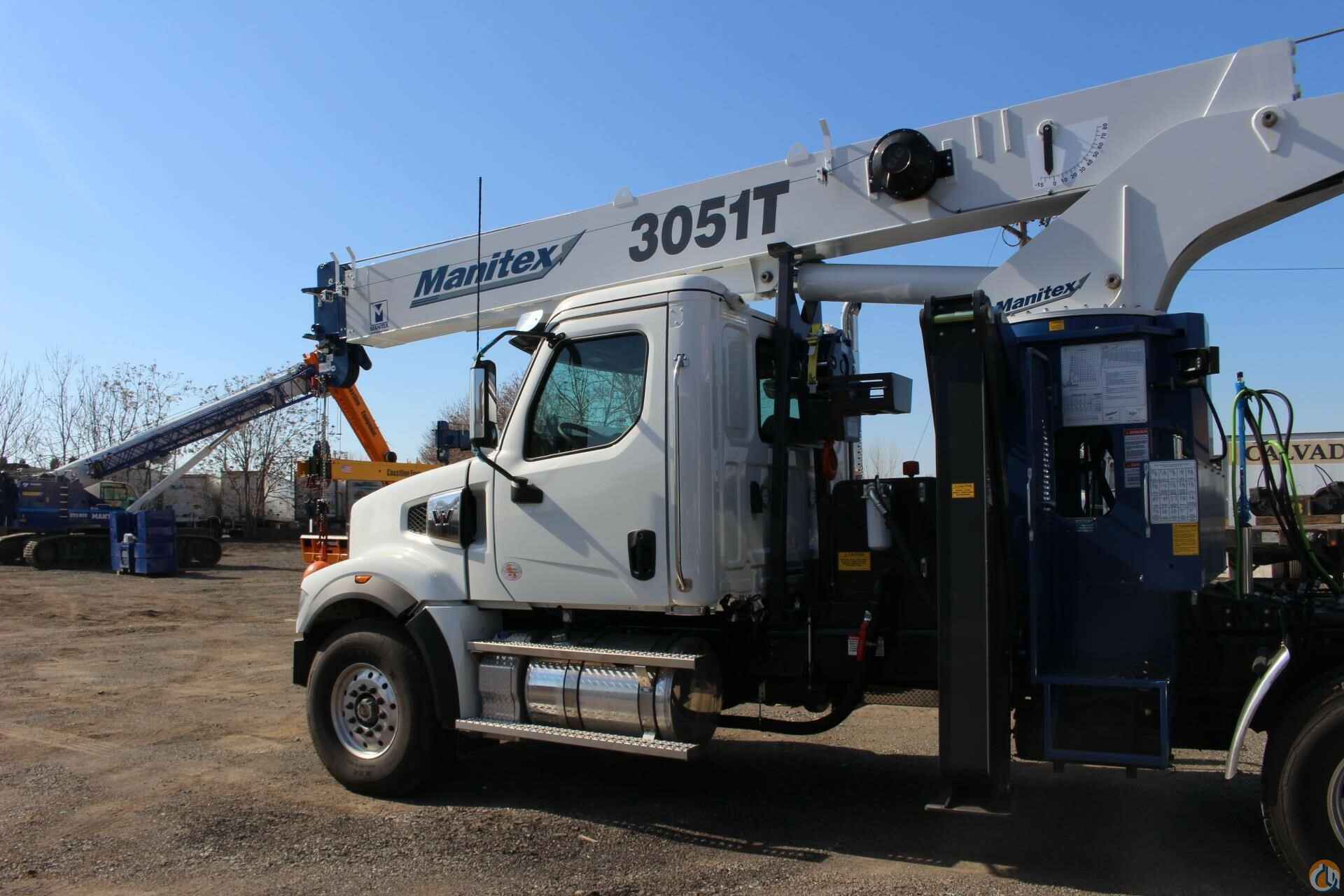

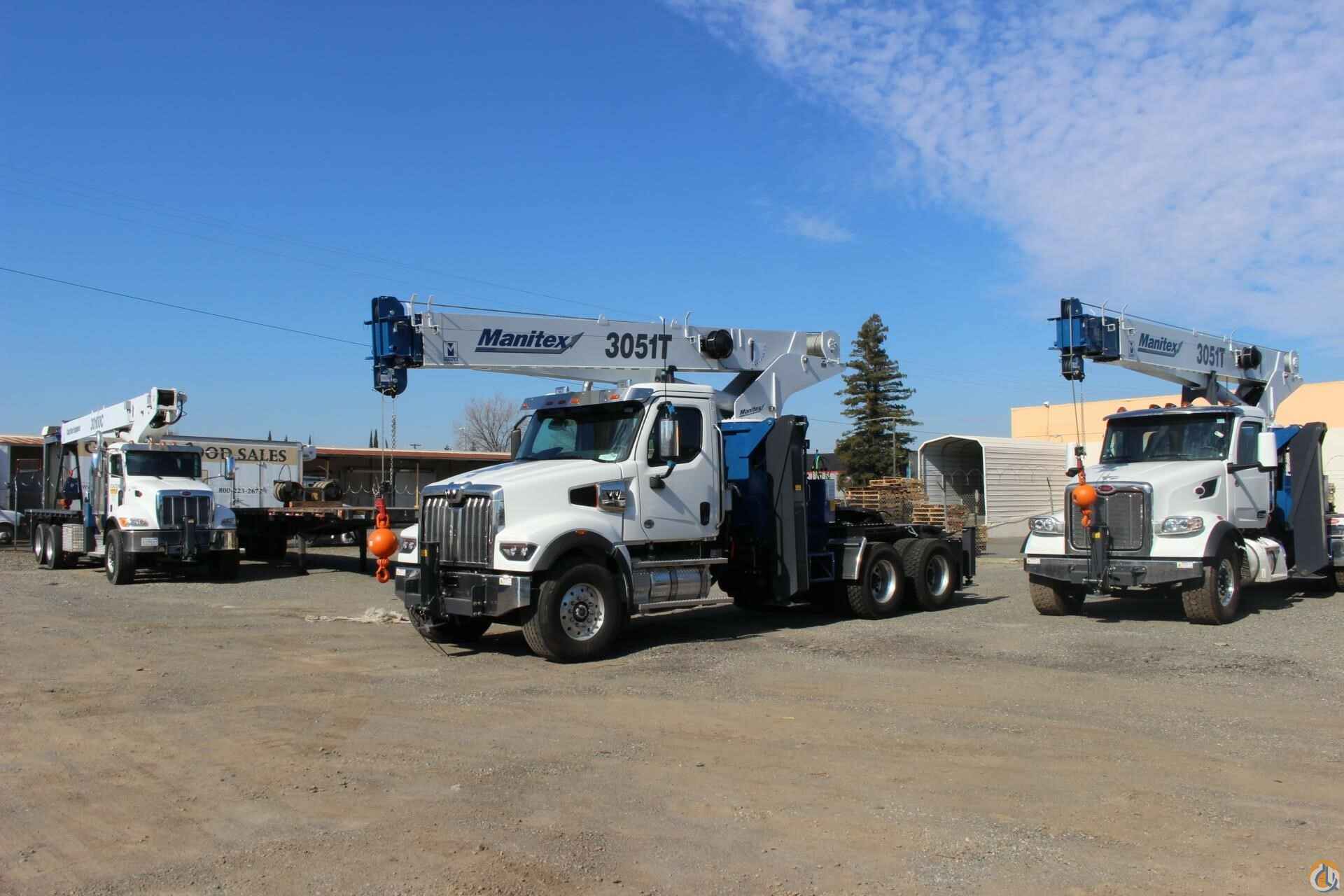

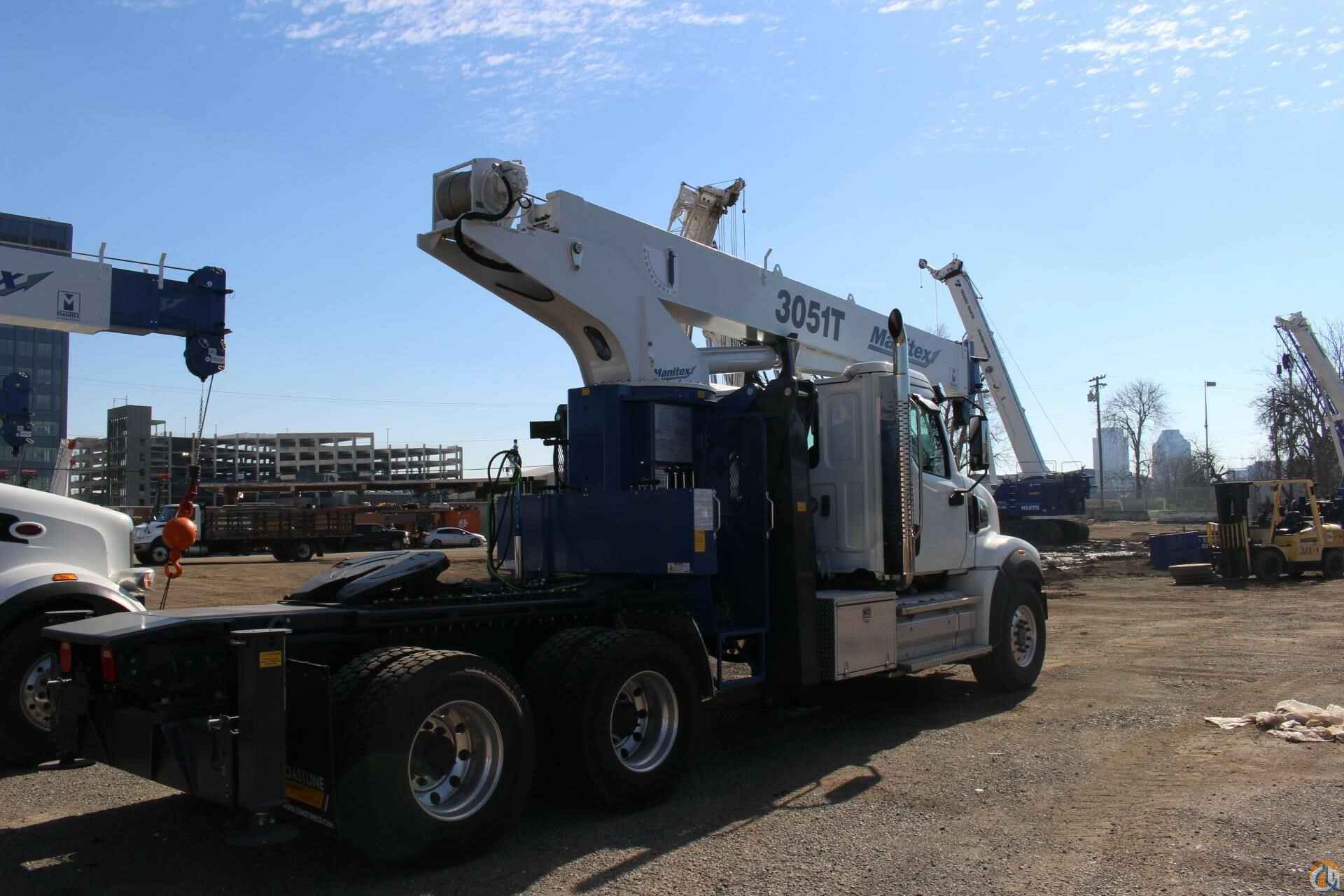

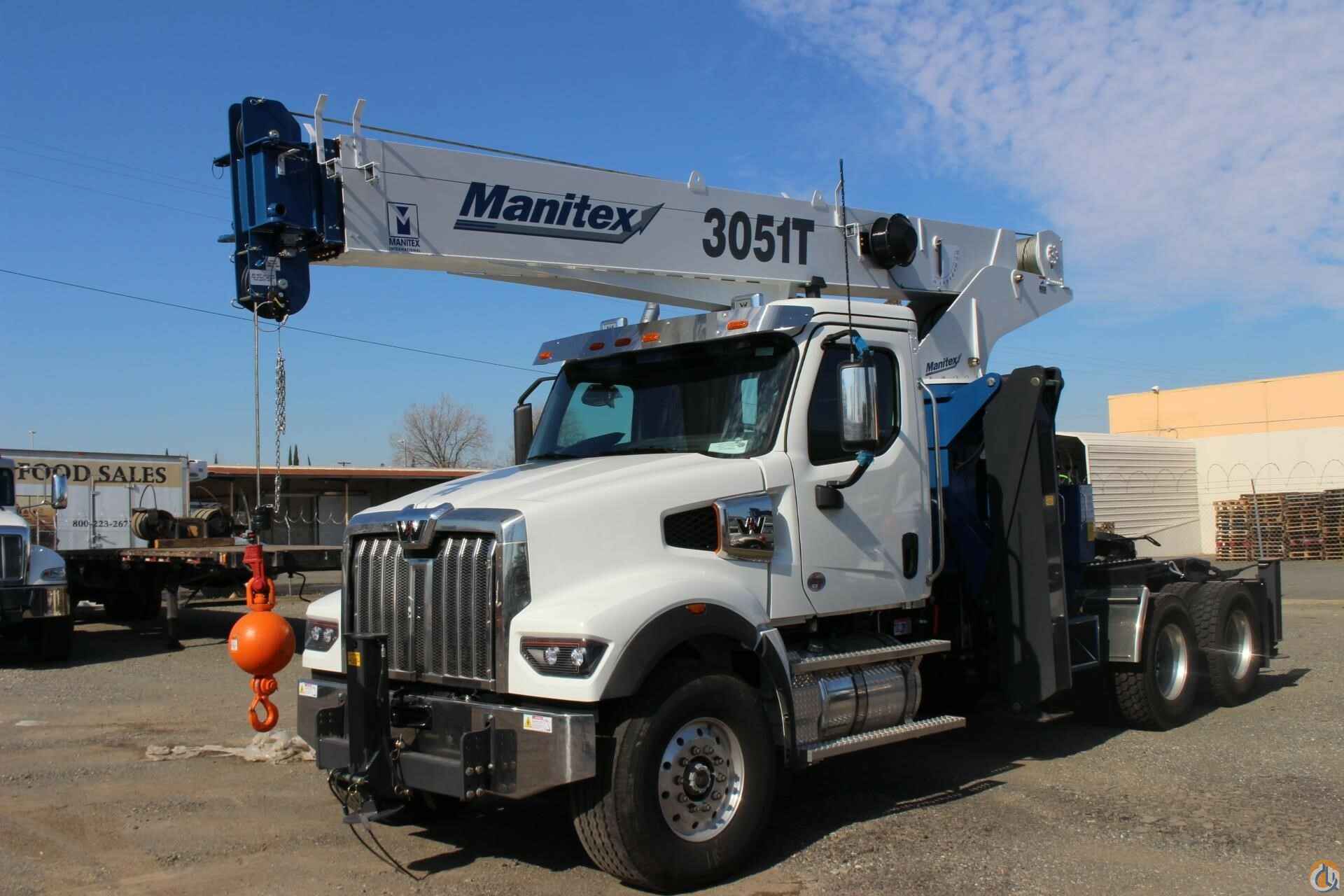

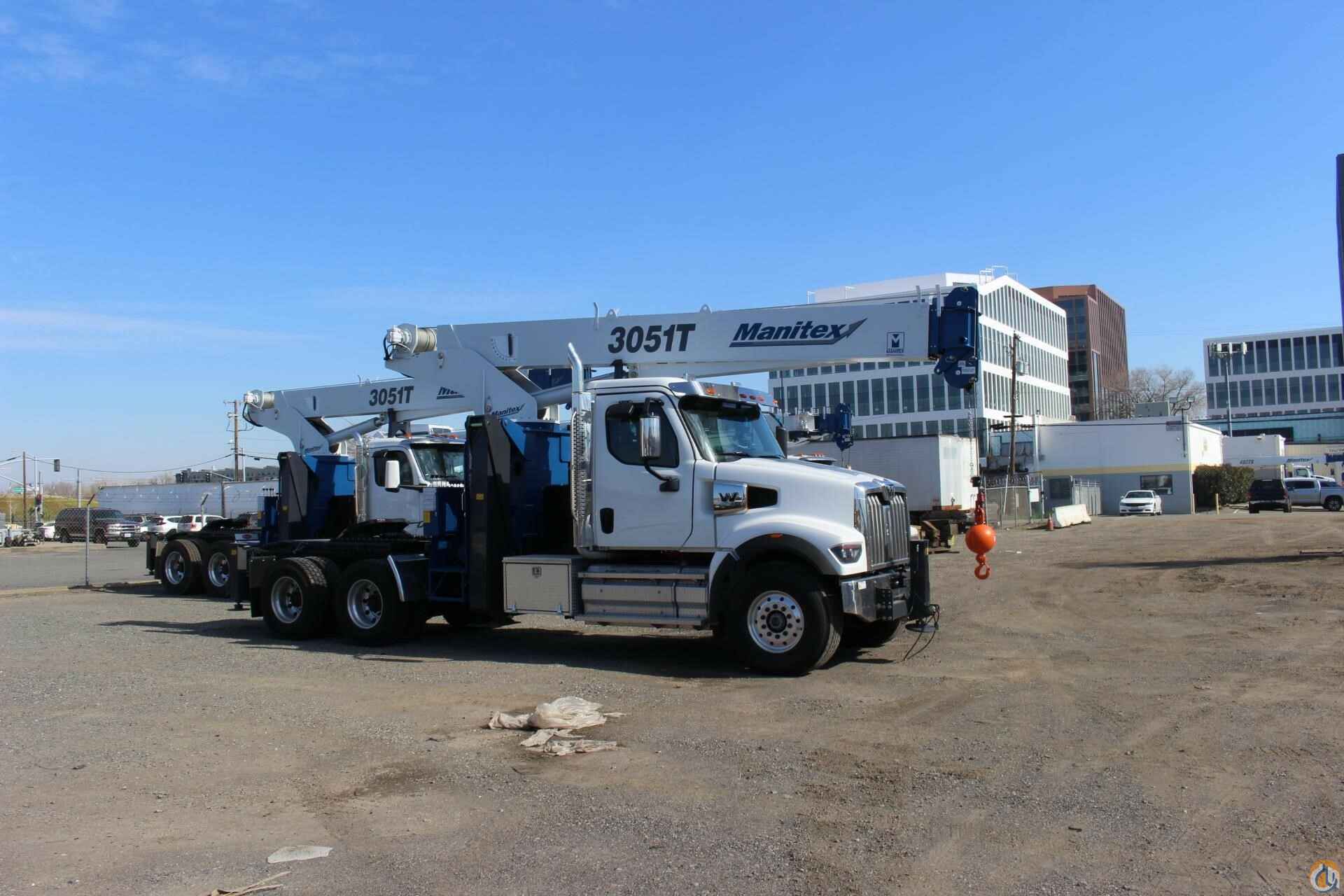

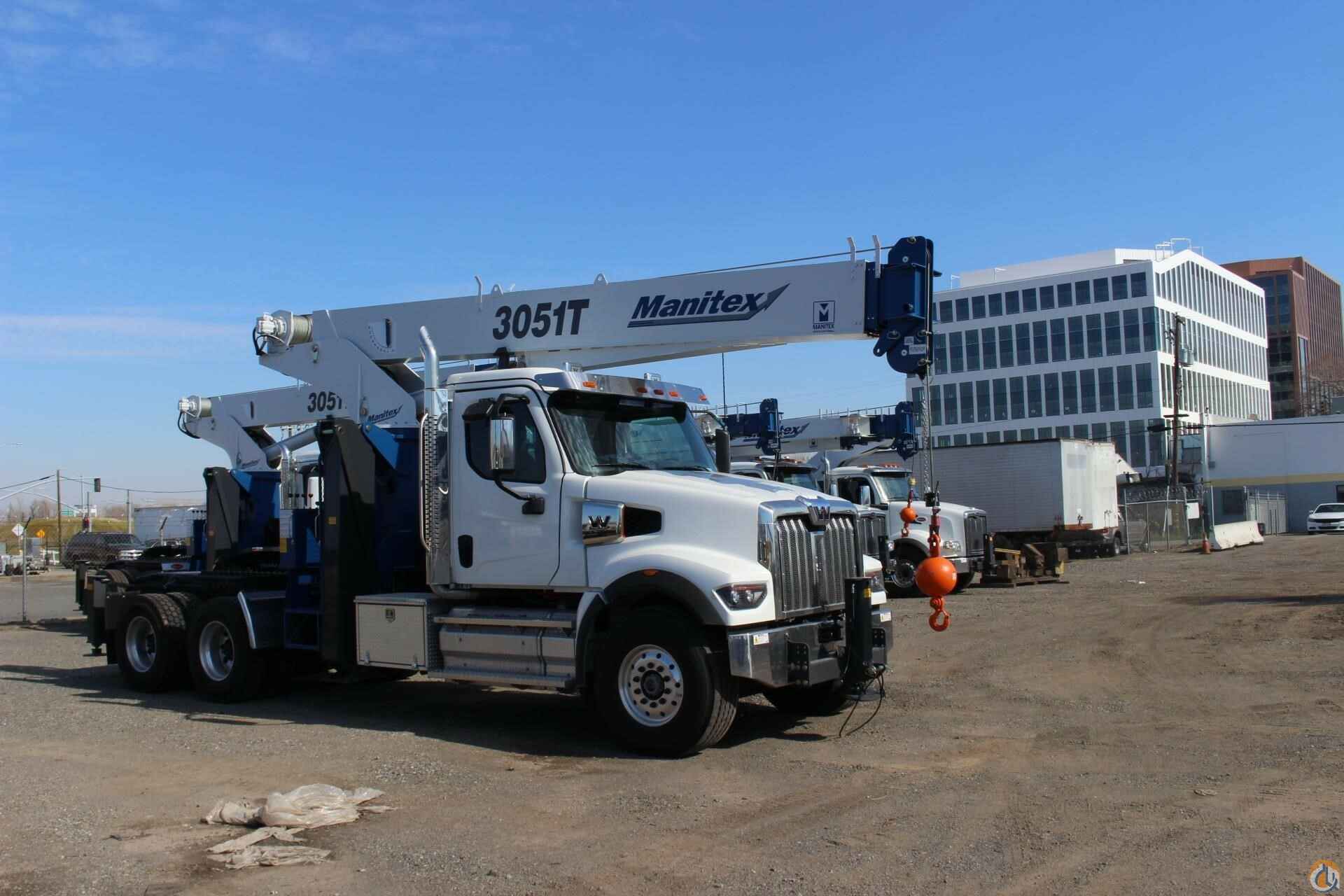

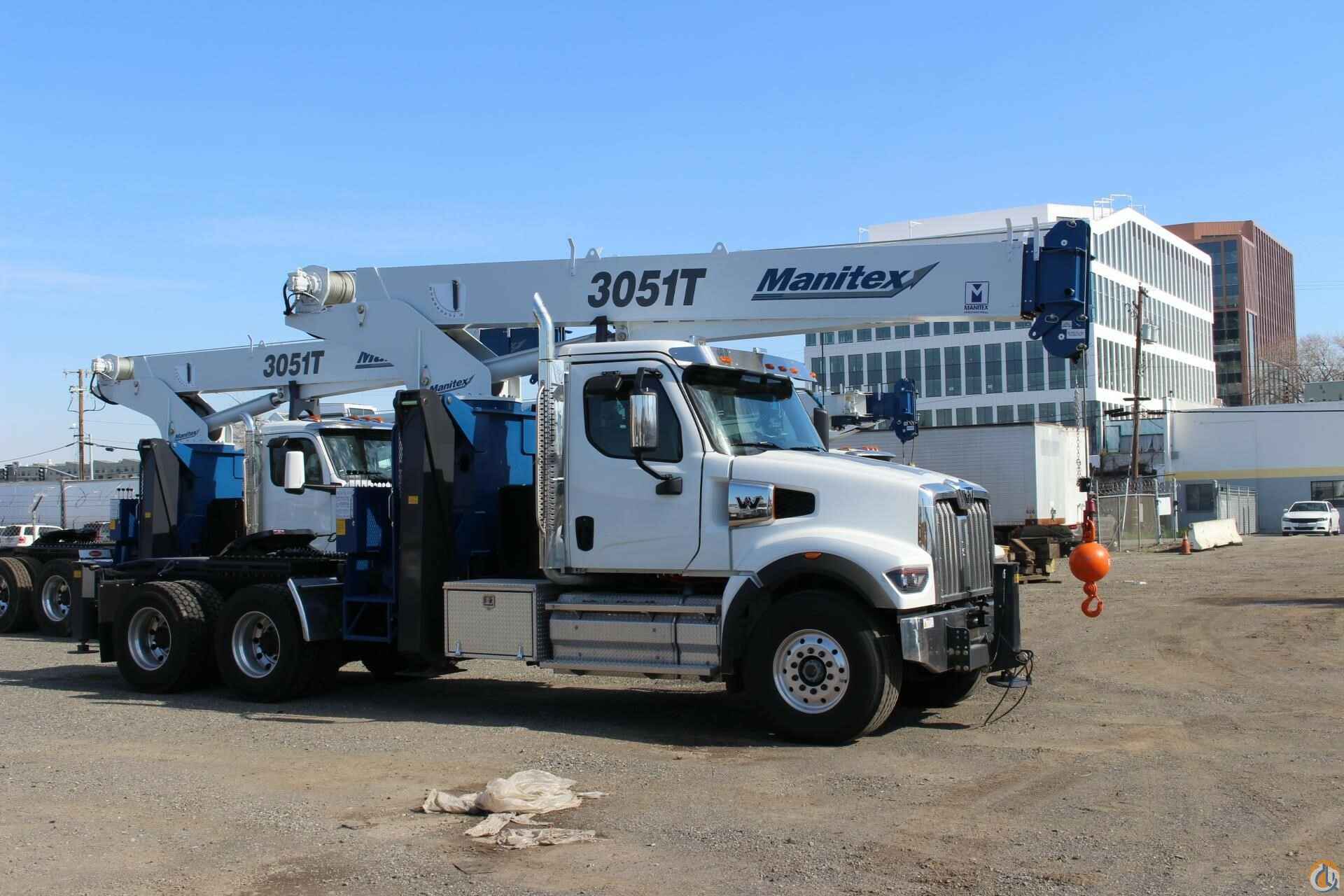

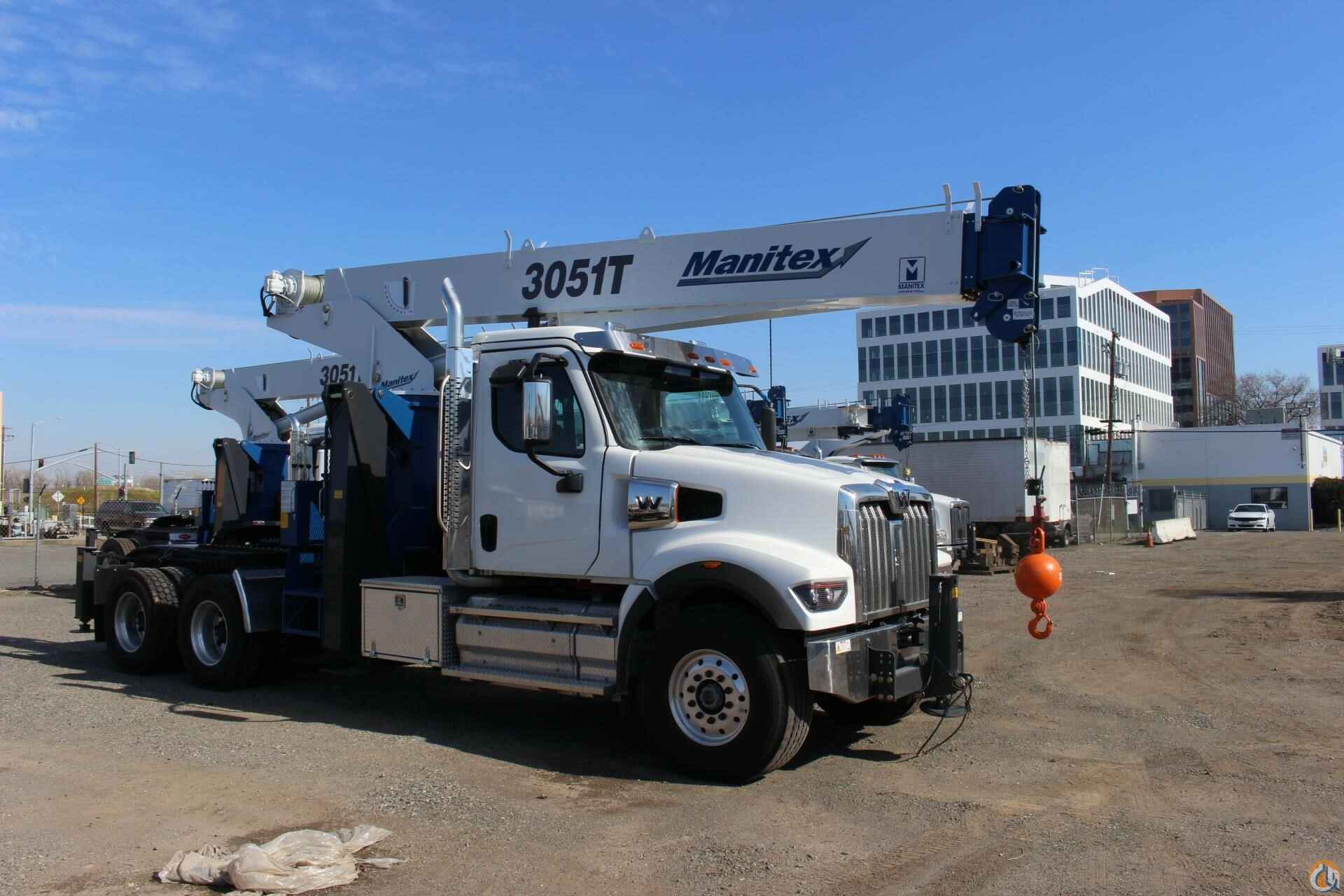

MANITEX 3051T
30 TON
Standard features:
51’ Three-Section Telescopic Boom, 7 Ton Hook and Ball, 3-Load Sheave Quick Reeve Boom Head, Hard-Wired Anti-Two Block w/lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non continuous Rotation, Boom Rest- Tractor Mount with Load Block Bracket, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Electronic Foot Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 2-speed Hoist w/Grooved Drum, 335’ of 9/16” Rotation Resistant Wire Rope, 70 Gallon Reservoir Mount for Tractor Mount w/Suction Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator w/Internal length Cable – Audio/Visual Capacity Alert w/Shutoff, Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators, Audible Outrigger /Stabilizer Motion Alarm, Out and Down Rear Stabilizers, A-Frame Outriggers, 3-Section Gear Hydraulic Pump – CCW Rotation is Standard, Outrigger Monitoring System.
Additional Options Included:
• Heavy Duty Hydraulic Reservoir
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Toolbox (36” x 24” x 24”) Chassis Mount

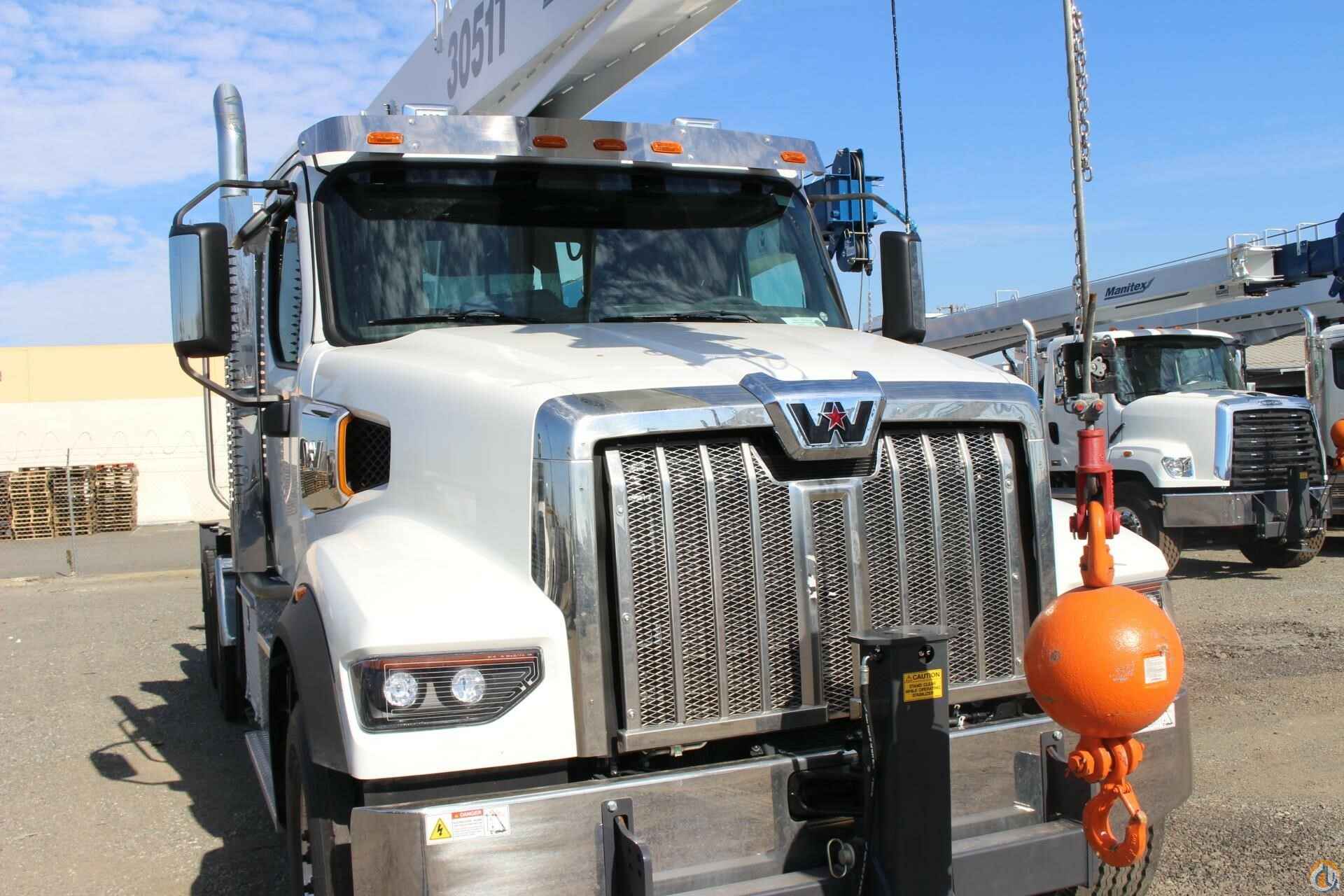

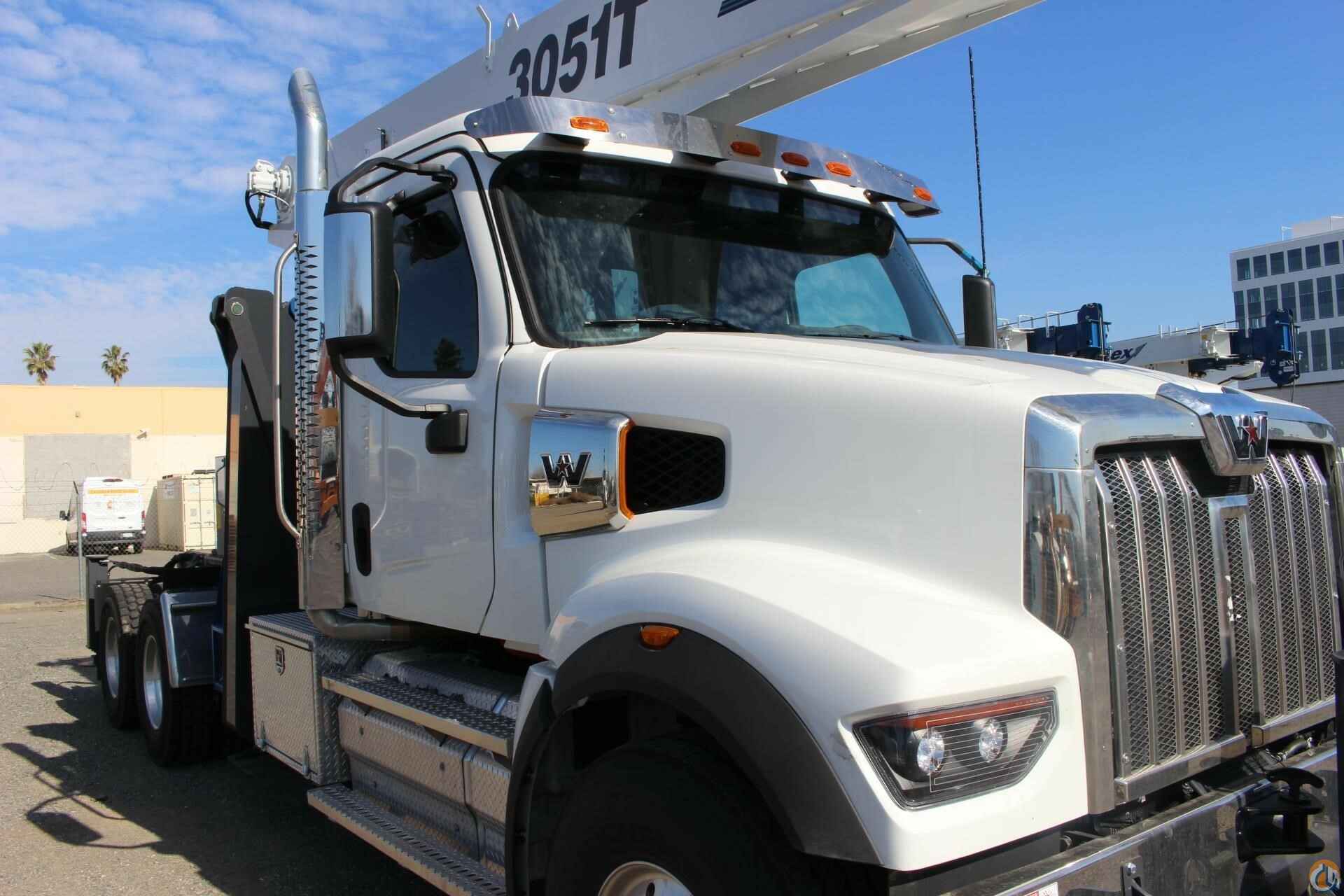

MOUNTED ON 2023 WESTERN STAR 49X
Mounted on a 2023 Western Star 49X tractor chassis with a Cummins X12 500 HP diesel engine with a 13 Speed Eaton Fuller RTLO-18913A Transmission, MFS-20 22,000 lb. front axle, RT46-160 46,000 lb. tandem rear axle, Hendrickson EX 46,000lbs. rear suspension, Differential - both tandem rear axles, JOST JSK37 Series 36.0”air slide fifth wheel, Full set of Alcoa Aluminum Polished wheels, Single polished Aluminum 80 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, dual heated mirrors, interior color Sterling Gray, AM/FM/WB World tuner radio with SiriusXM, Bluetooth, IPOD interface, USB and auxiliary inputs, dual air horns, exterior stainless steel sunvisor, Halogen headlights, and unit is painted White Elite.
