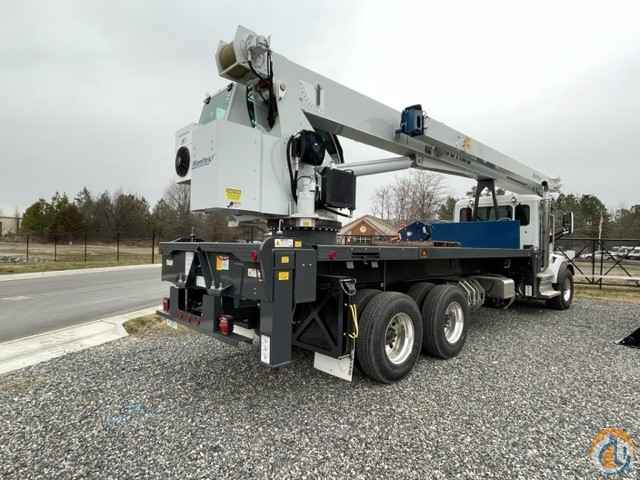

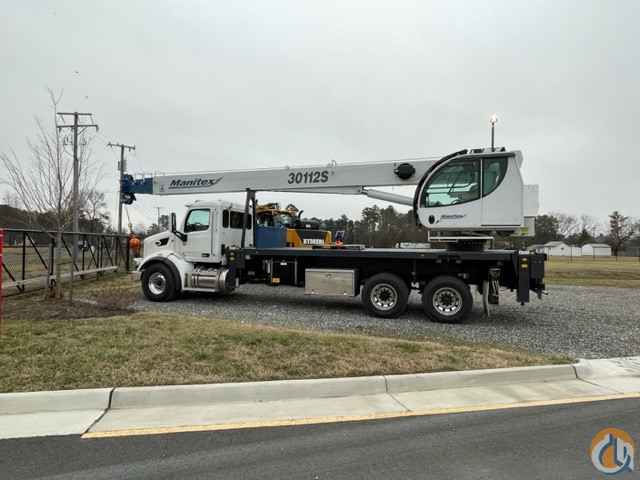

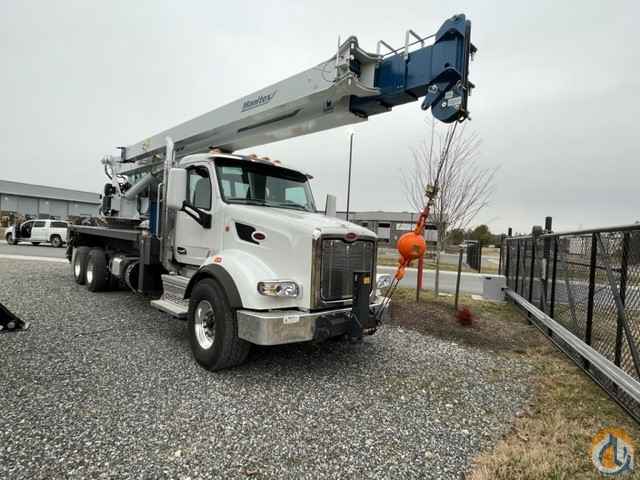

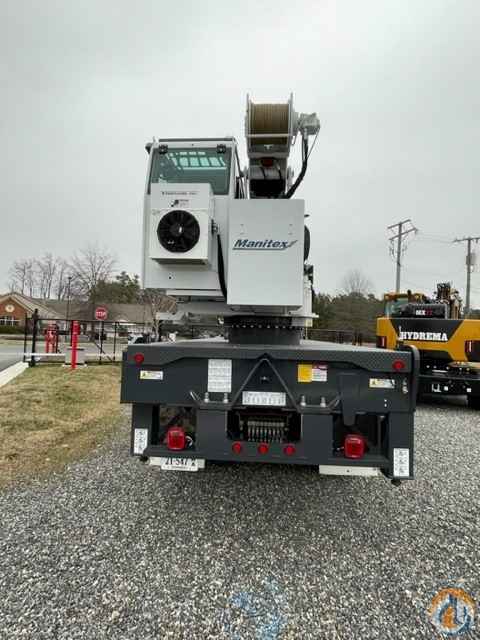

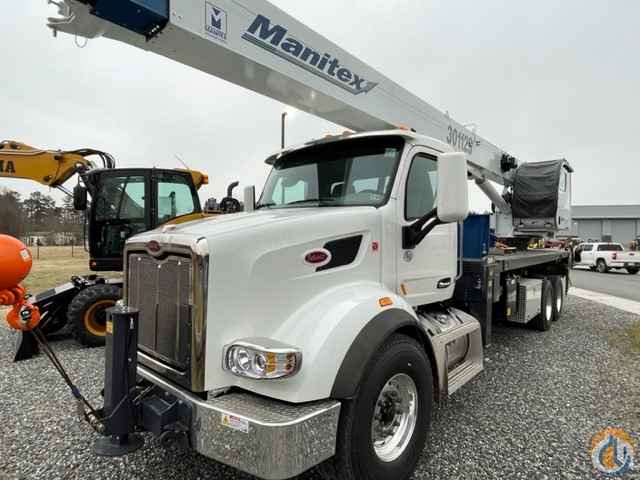

One—NEW MANITEX MODEL TC-30112- S 30 Ton Truck Mounted Crane equipped as follows:

CRANE STANDARD:

4 section, 112’ Telescopic Main Boom

335’ of 9/16” Rotation Resistant Wire Rope

Audible Outrigger Motion Alarm

70 Gallon Hydraulic Reservoir with suction strainer

Outrigger Monitoring System for Verification

Turret, Rotation Bearing, & Swing System

Load Moment Indicator w/ Audio/ Visual Capacity / Shut-off

4- Out & Down Outriggers 19’8”’ Maximum Spread

Capacities for Intermediate 13’4”, and Retracted 7’2”

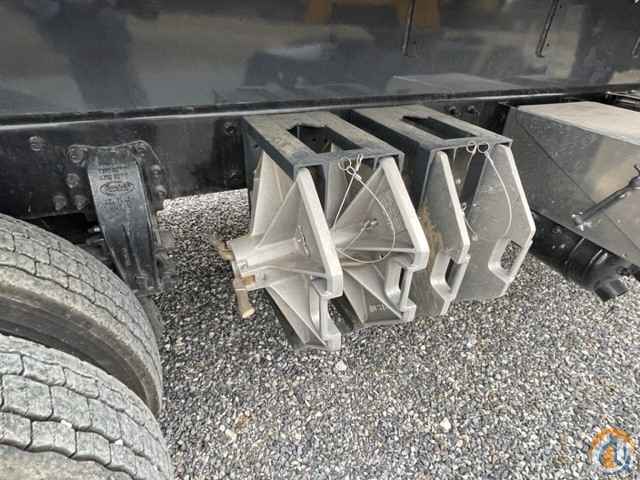

Removable Aluminum outrigger pads with storage

2 Retractable ladders for bed access

3-Section Vane Pump-CCW Rotation Standard

Lower Frame for 14’ Flatbed

Pilot Controls

Signal Horn

Bubble Level

ROC Solid Radio Remote Outrigger Controls Valve for FBS

EQUIPMENT:

3-load 2 Speed Hoist, Grooved Drum

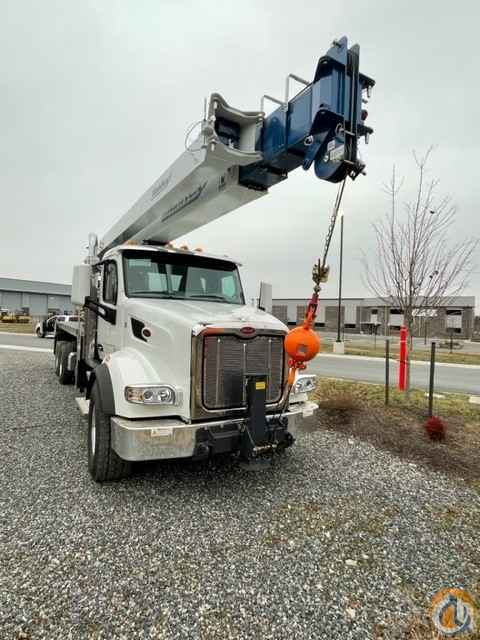

7-ton Ball

2-Load Sheave Quick-Reeve Boom nose

Externally Wired Anti-two block with Lockout

Boom Hoist Cylinder

System Pressure Gauge

360 degrees Area of Operation

Continuous Rotation

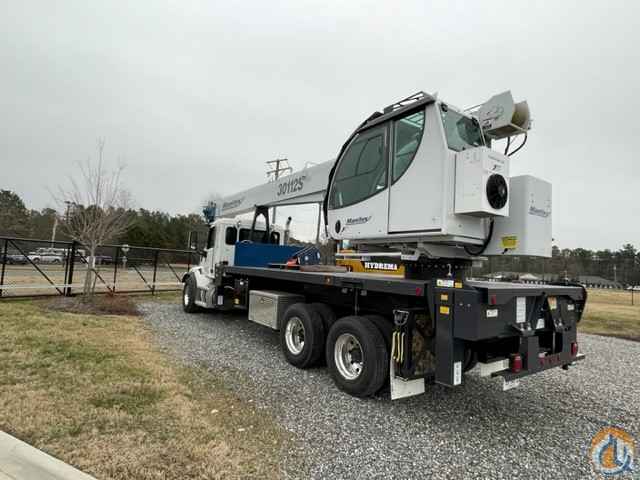

DELUXE Tilting Cab, Pilot Operated Controls w/ Heater

Removable Boom Rest

Engine Start Stop

Operators / Parts/ Service Manuals

Electronic Throttle

Foot Throttle

Hydraulic Oil Cooler

Engine Monitoring System

INCLUDED CRANE OPTIONS:

92

- Externally wired ATB

- 26’ TO 46’ 2 Piece Jib with Hardwired Anti- Two Block

- 14’ Steel Bed

- Standard Mount Installation

- Hot Shift PTO

- 15 ton Quick Reeve Block

- 1000 lbs. Counterweight

- Air Conditioning

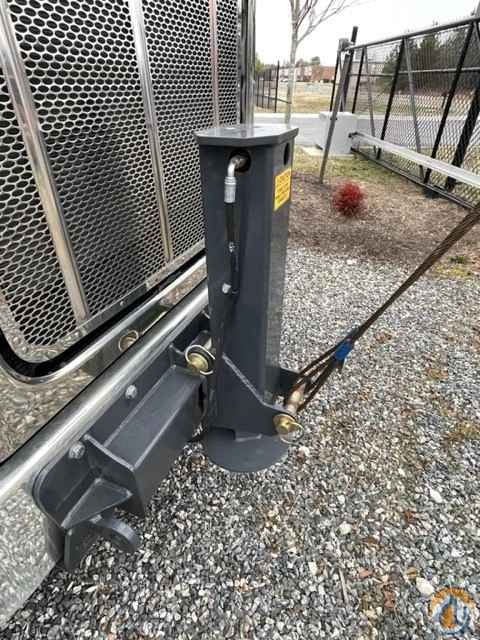

- 5^th Front Center Stabilizer

- Auxiliary Oil Cooler

- 24” Bulk head

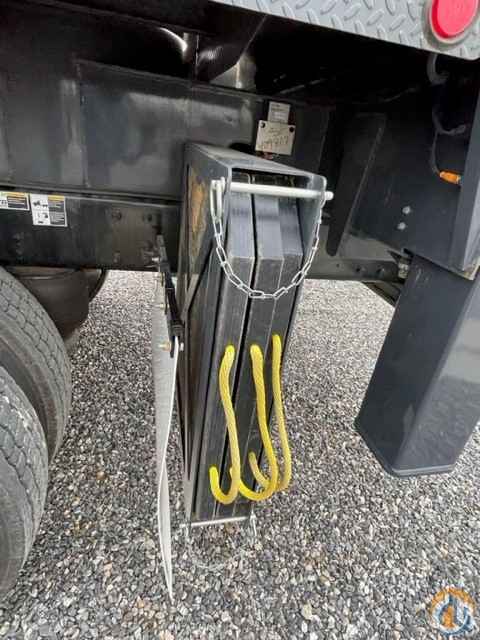

- 5 - 31” x 31” Cribbing Plates

- Cribbing Storage Racks

- 1-Toolboxes Aluminum 48” x 24” x 24” Chassis Mount

- Current Annual Certification

CHASSIS CRANE WILL BE MOUNTED ON:

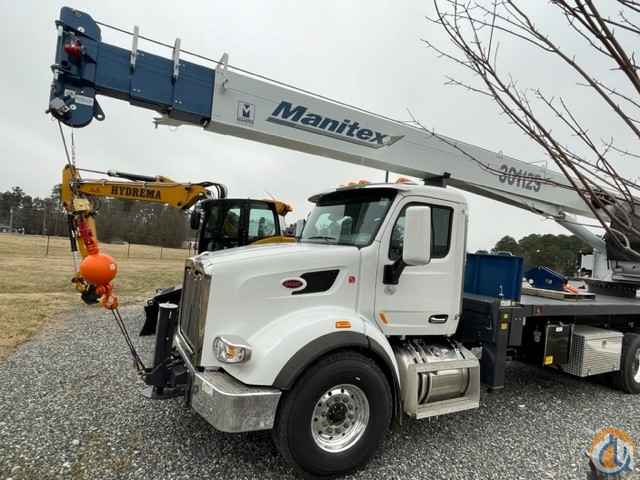

2022 Peterbilt 567

PACCAR MX-13 485 HP Engine

EATON 10 SPEED ULTRA SHIFT TRANSMISSION

Front Axle: 20,000 lb

Front Tires: 425/65R22.5

Rear Tandem Axle: 46,000 lb

Rear Tires: – 11R22.5

Tag or Pusher Axle

90 Gallon fuel tank

Current State Inspection

For more information, contact Robert Greene at (703) 975-8200 or via email at rgreene@linkbelt.com
