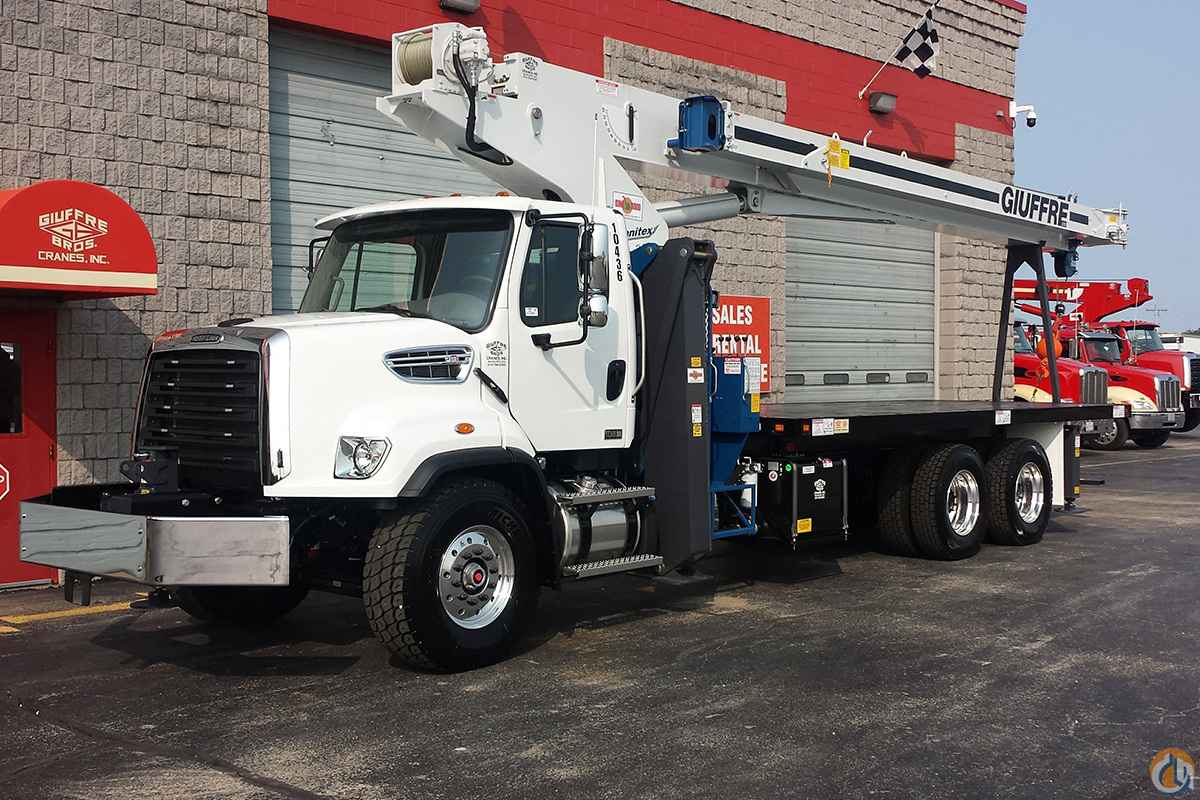

Manitex 30102C
NEW MANITEX 30102C
30 TON CAPACITY
4 SECTION PROPORTIONAL BOOM -102' FT
112' WORKING TIP HEIGHT WITH MAIN BOOM
(158' WITH OPTIONAL JIB QUOTED ON PG 2)
335' ROTATION RESISTANT WIRE ROPE

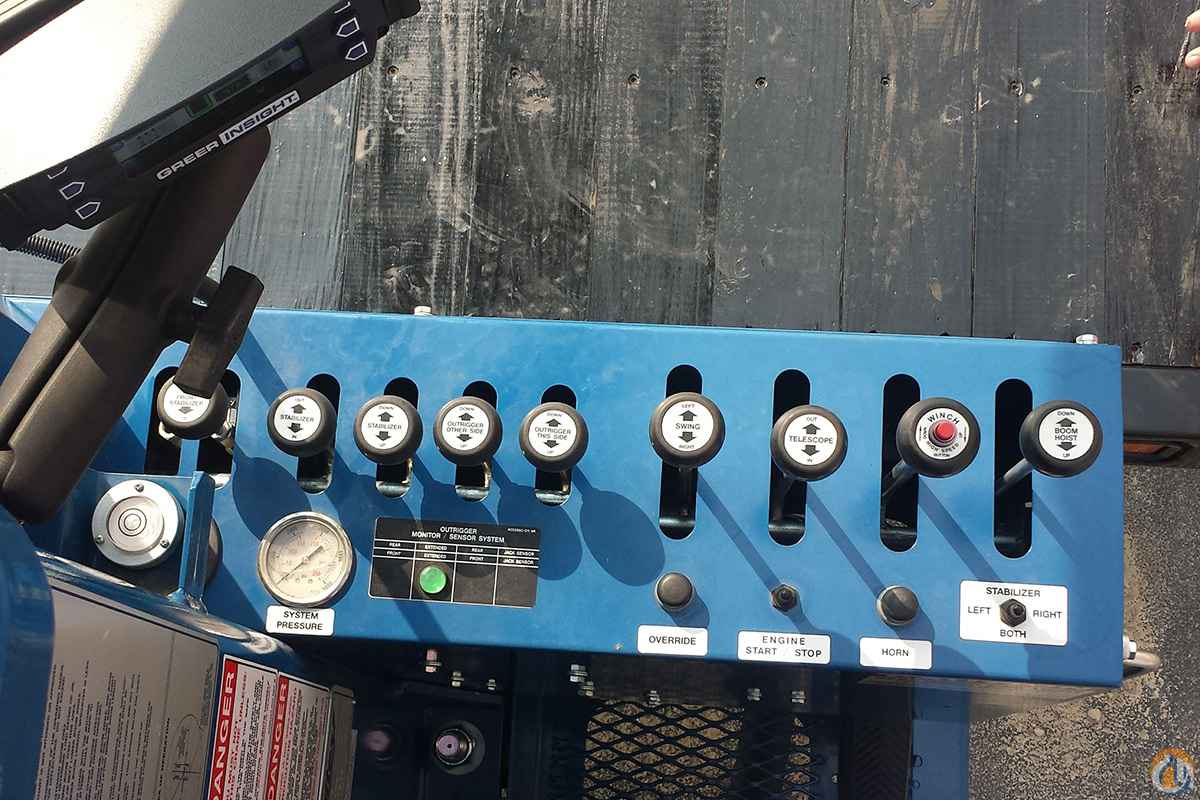

3 SEC. HYD. PUMP WITH SYSTEM PRESSURE
GAUGE & 2 -SPEED PLANETARY HOIST

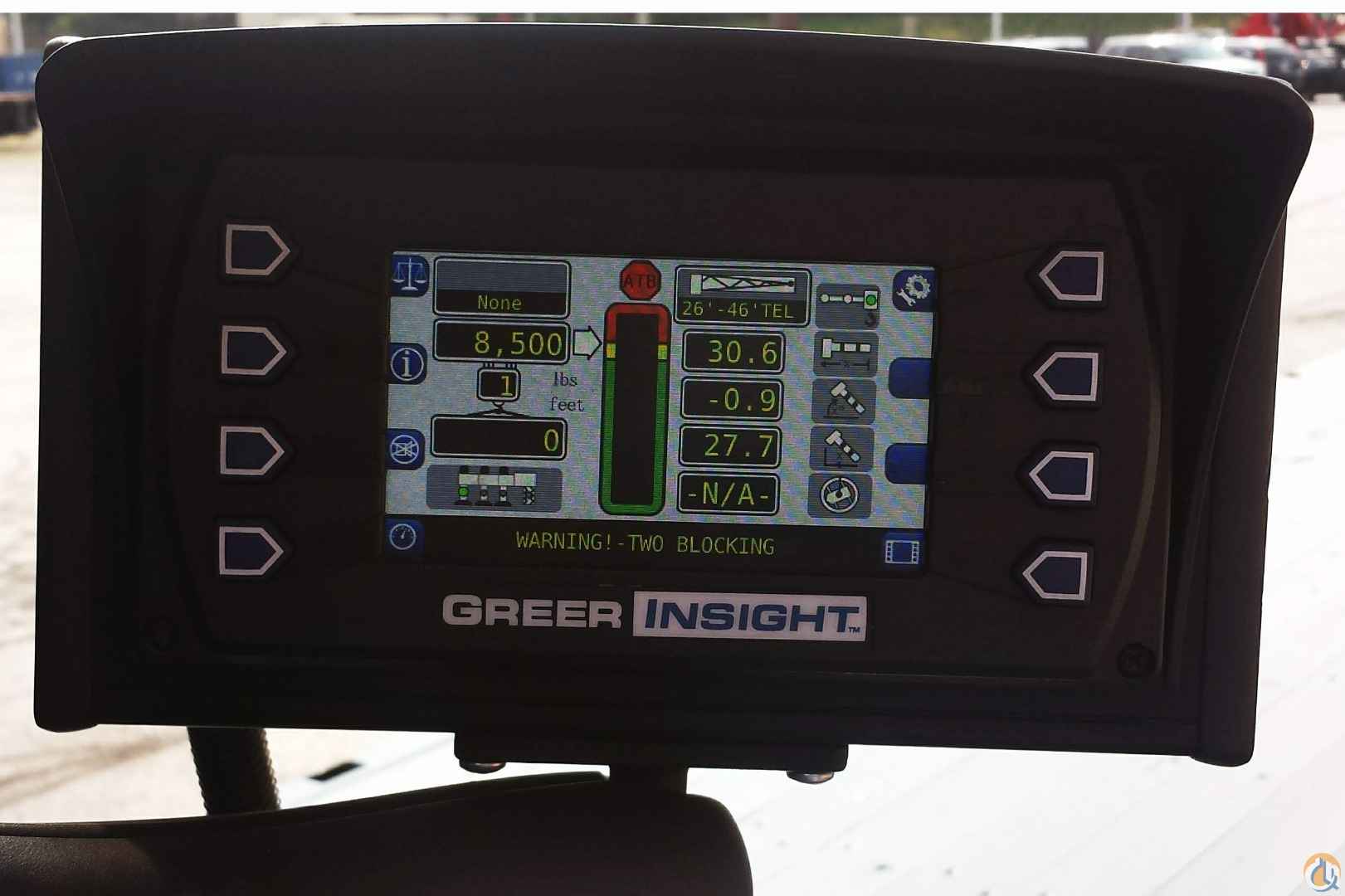

LMI W/DIGITAL DISPLAY, CAN BUS, OVER-
LOAD SHUTDOWN & INTERNAL BOOM
LENGTH CABLE
ANTI-TWO BLOCK
FRONT HYDRAULIC STABILIZER (INCLUDED)
AEROQUIP STC (SNAP TO CONNECT) HYD
FITTINGS-FOUR HYD OUTRIGGERS
W/OUT & DOWN REARS & A-FRAME FRONTS
REMOVABLE BOOM REST
HEAVY DUTY 22' X 8'6" BODY
ICC BUMPER
PAINTED STD MANITEX COLORS
ALL STANDARD EQUIPMENT
12 MONTHS PARTS-LABOR WARRANTY

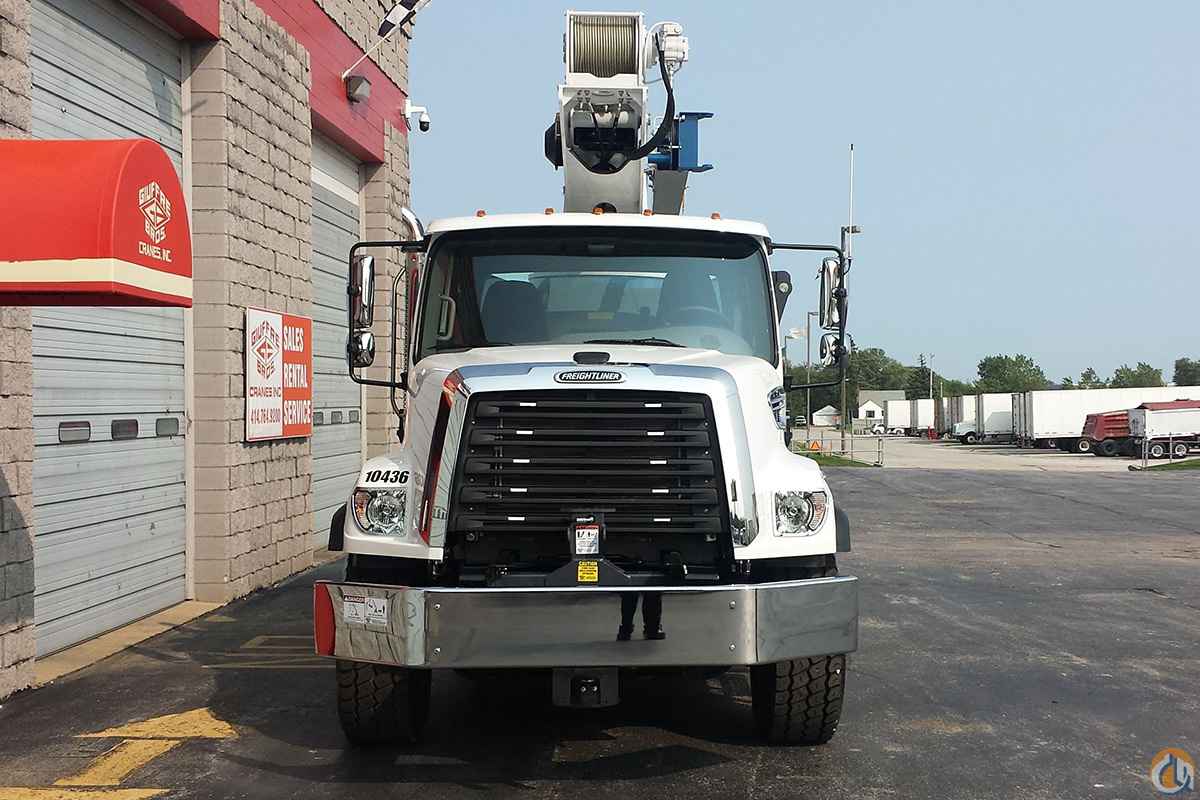

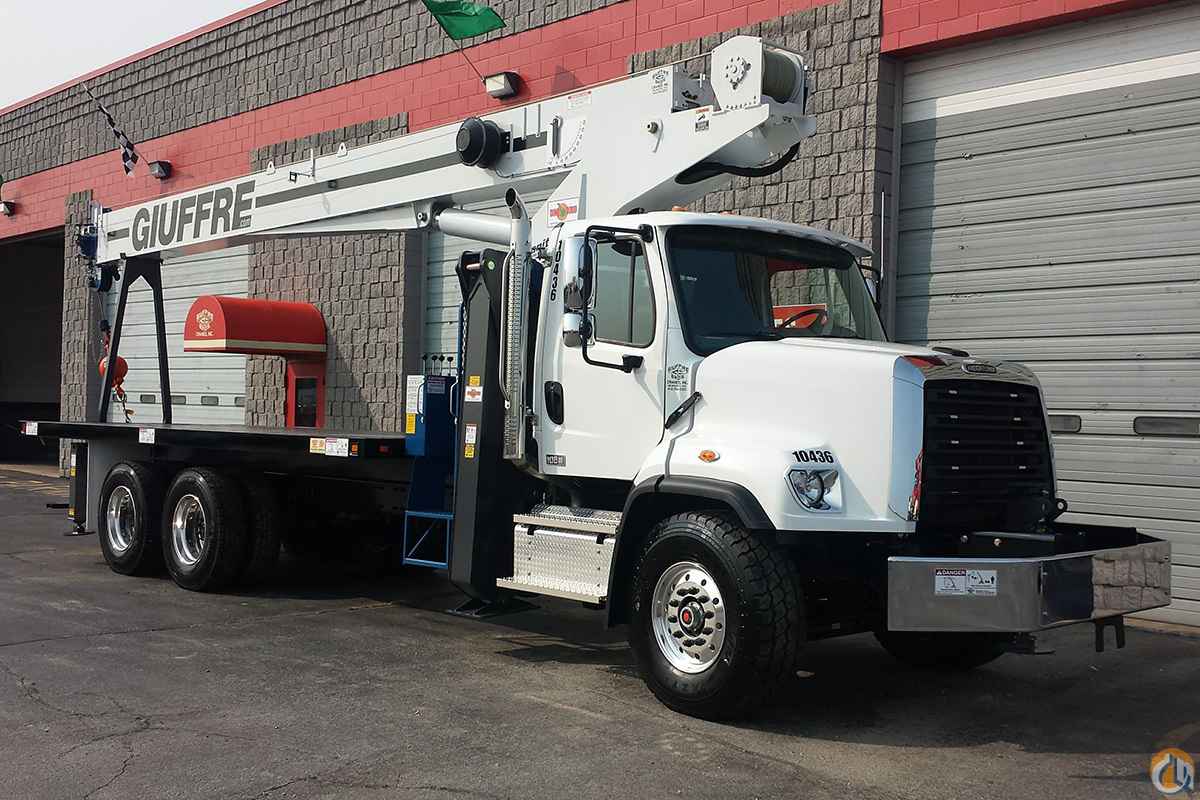

NEW 2023 FREIGHTLINER
MODEL 108SD CONVENTIONAL
350HP CUMMINS L9 - 9.3L TURBO-
DIESEL ENGINE WITH V.G.T.
1000 LB/FT TORQUE @1400 RPM
60,000 LB G.V.W.R.
40,000 LB TANDEM REAR AXLE
20,000 LB FRONT STEER AXLE
ENGINE EXHAUST BRAKE
1000 WATT BLOCK HEATER
ALLISON 3000RDS 6-SPEED
AUTOMATIC TRANSMISSION
INTERAXLE TANDEM PWR LOCK
425 / 65R 22.5 20 PLY RADIAL FRONT TIRES
11R22.5 14 PLY RADIAL REAR TIRES
ALUMINUM FRONT AND REAR
OUTER WHEELS
40K 4-SPRING FLAT LEAF REAR SUSPEN.
20K LB FLAT LEAF FRONT SUSPENSION
REINFORCED INNER FRAME
WABCO AIR DRYER WITH HEATER
POWER STEERING
FRONT TOW HOOKS
(2) ALLIANCE 1231 BATTERIES (2250CCA)
12 VOLT 160 AMP ALTERNATOR
RH CHROMED VERTICAL EXHAUST STACK
CHROMED STATIONARY GRILL & BUMPER
AIR CONDITIONING & CRUISE CONTROL
SINGLE 14" HADLEY AIR HORN
AIR SUSPENSION DRIVER'S SEAT
ALUMINUM CAB WITH AIR CAB MOUNTS
60 US GAL ALUMINUM FUEL TANK
AM/FM/WB RADIO W/ USB & BLUETOOTH
DUAL WEST COAST HEATED MIRRORS
EXTERIOR CAB SUN VISOR
CUSTOM INTERIOR
TINTED CAB GLASS ALL AROUND
COMPLETE GAUGE PACKAGE
PAINTED FREIGHTLINER WHITE (N0006)
ALL STANDARD EQUIPMENT
STANDARD FREIGHTLINER FACTORY 24
MONTH PARTS AND LABOR WARRANTY
