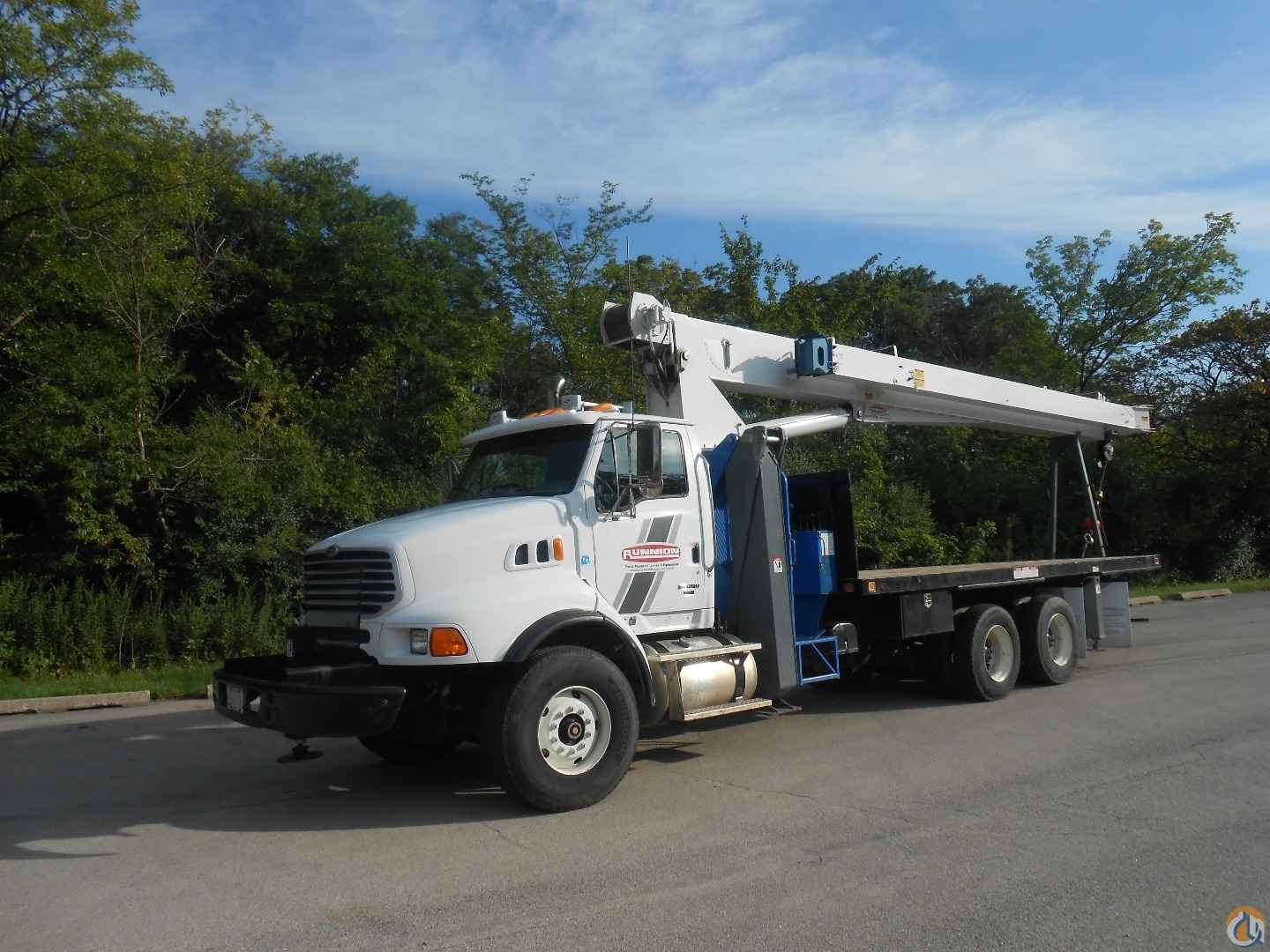

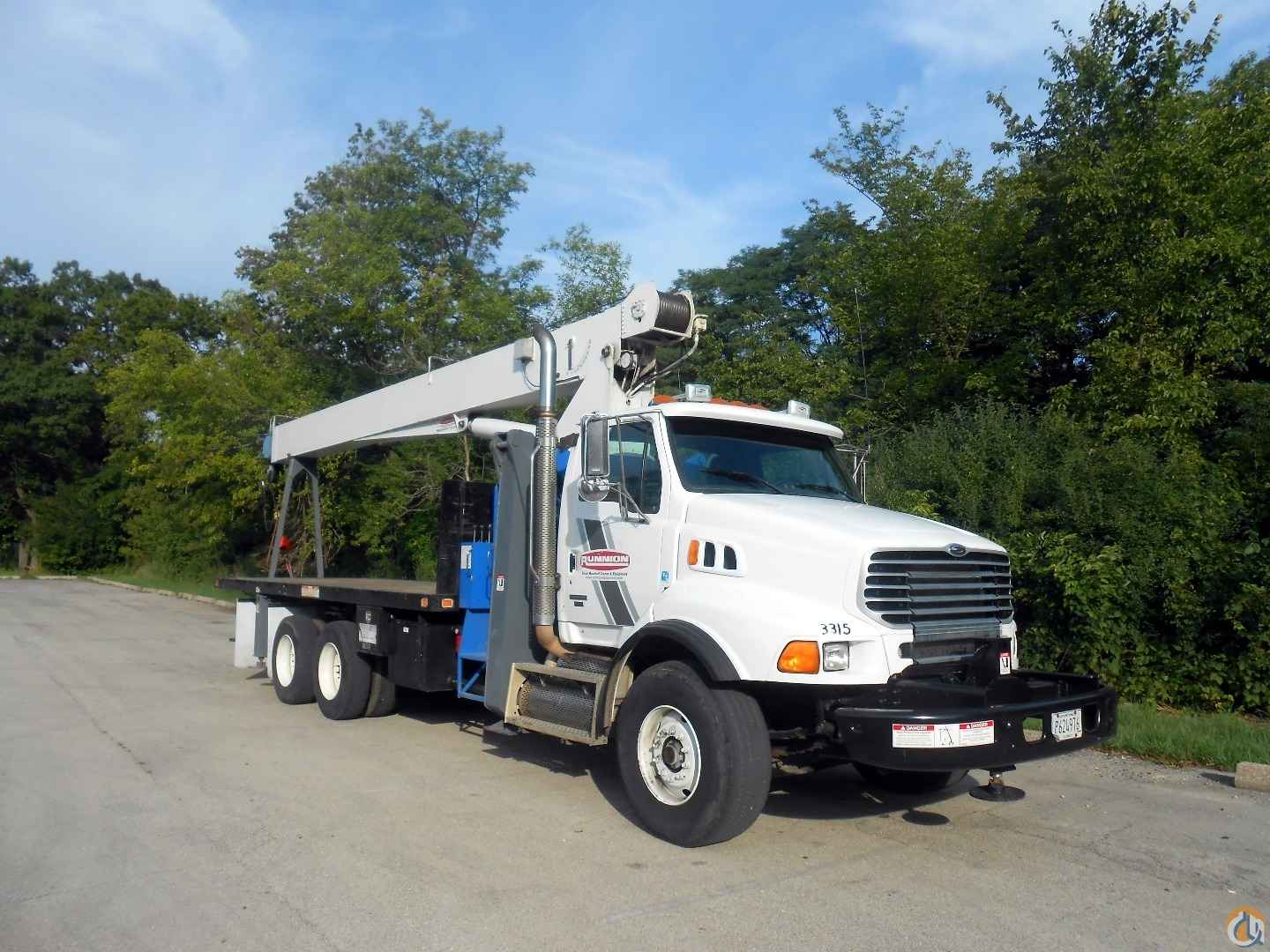

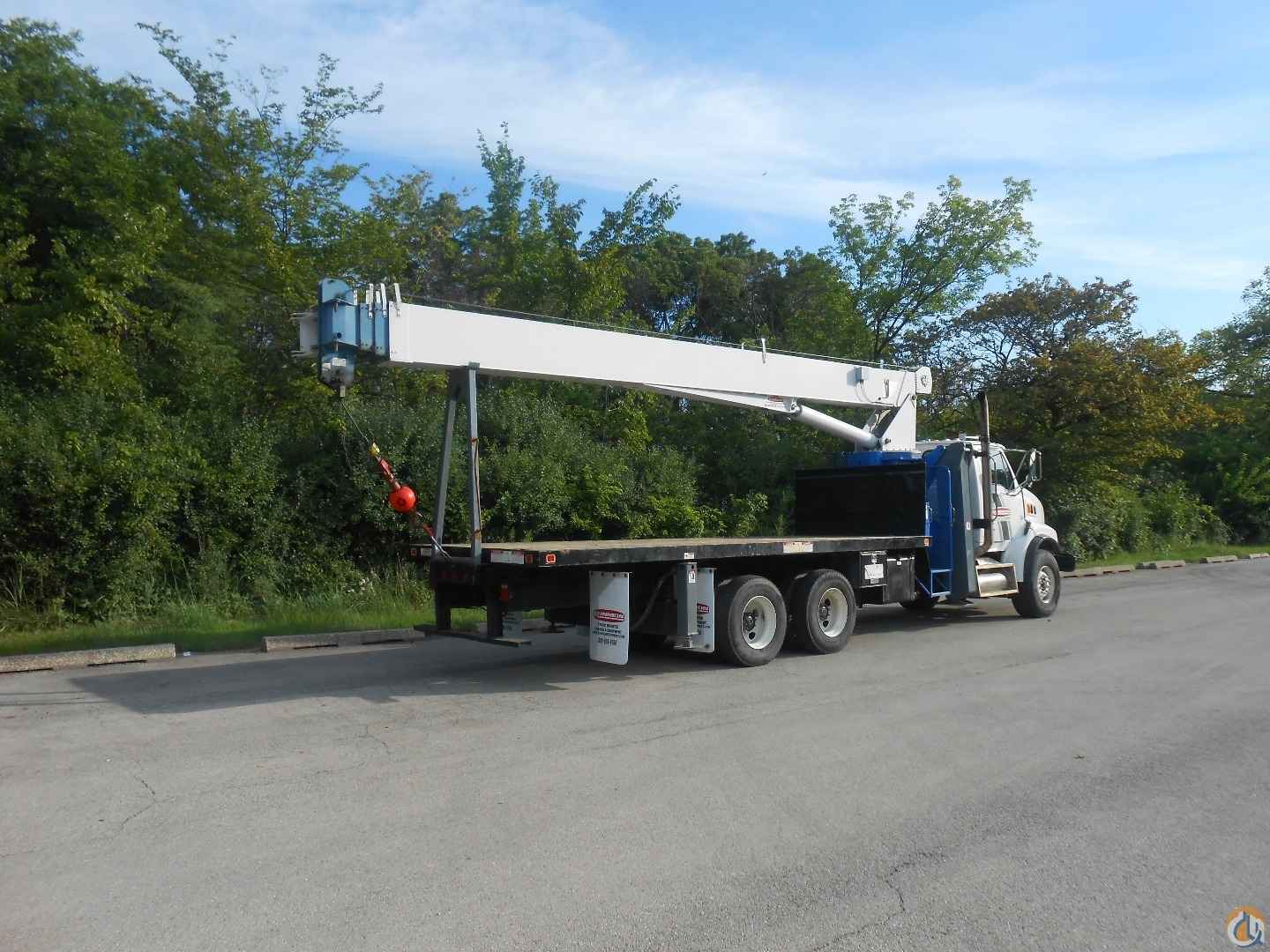

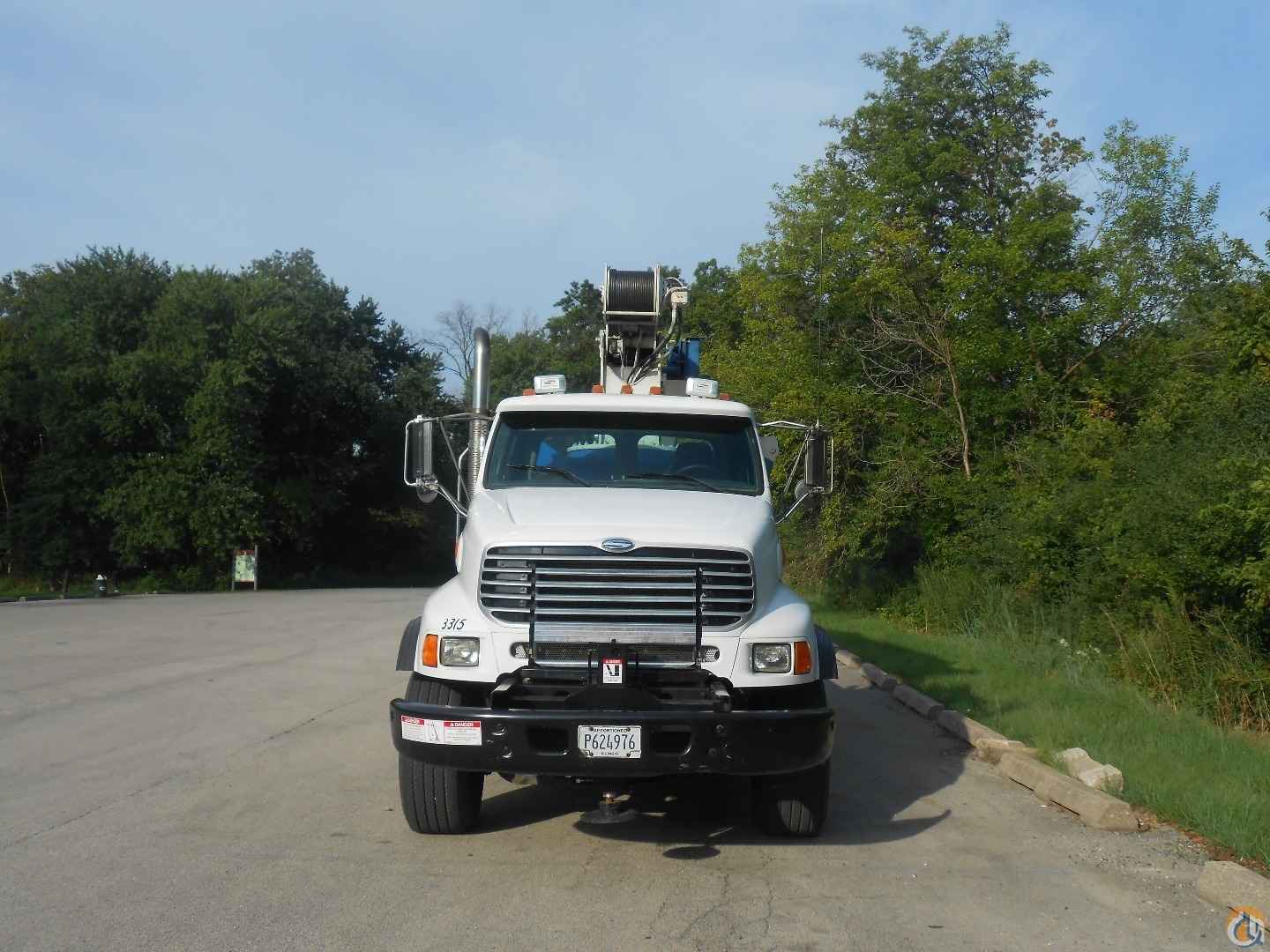

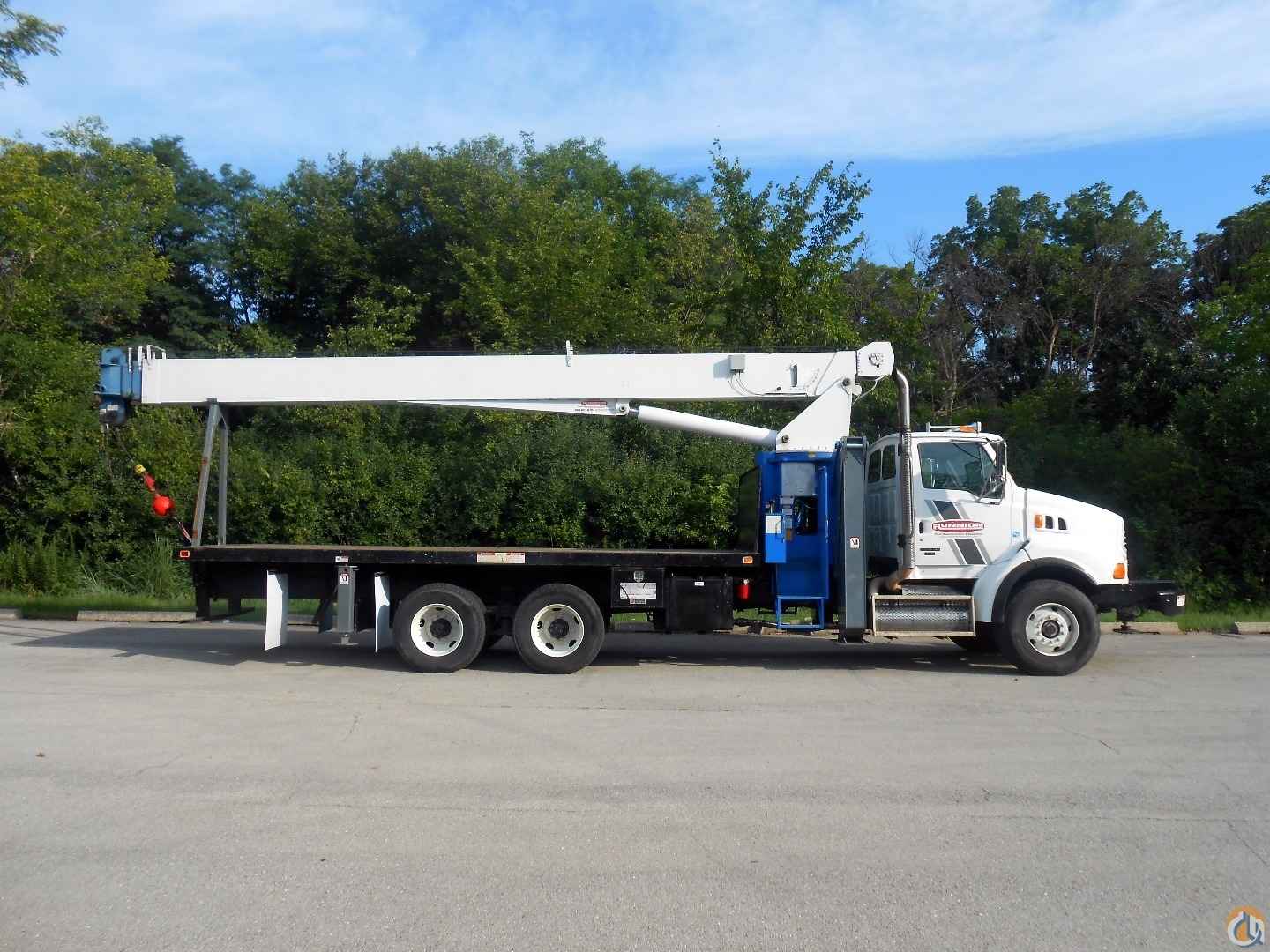

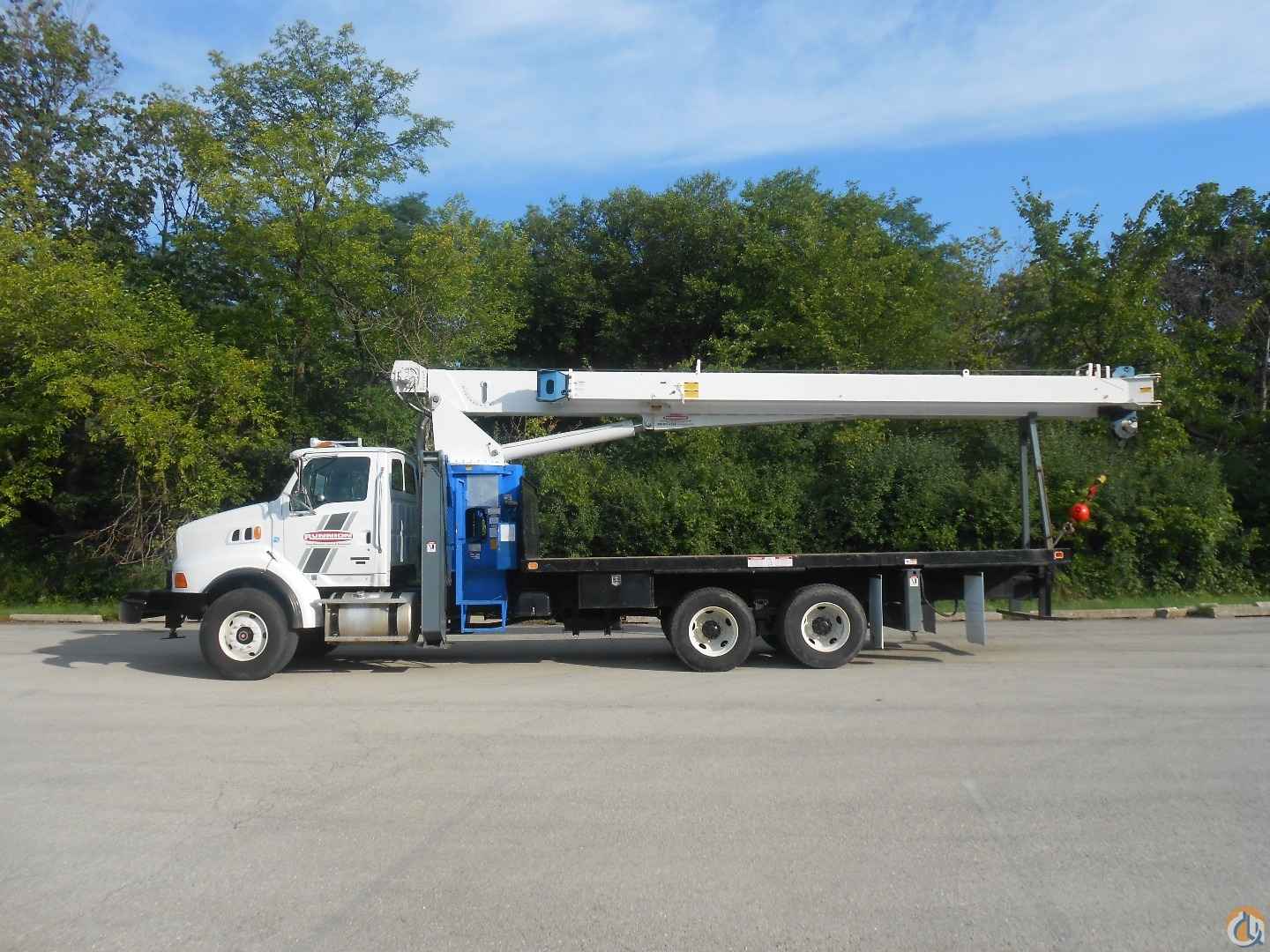

Manitex 30102 Stand Up Boom Truck.

• 30 Ton capacity.
• 29 to 102 foot four section boom.
• 26 feet to 46 feet side fold / stowing extension jib
• 22 foot bed.

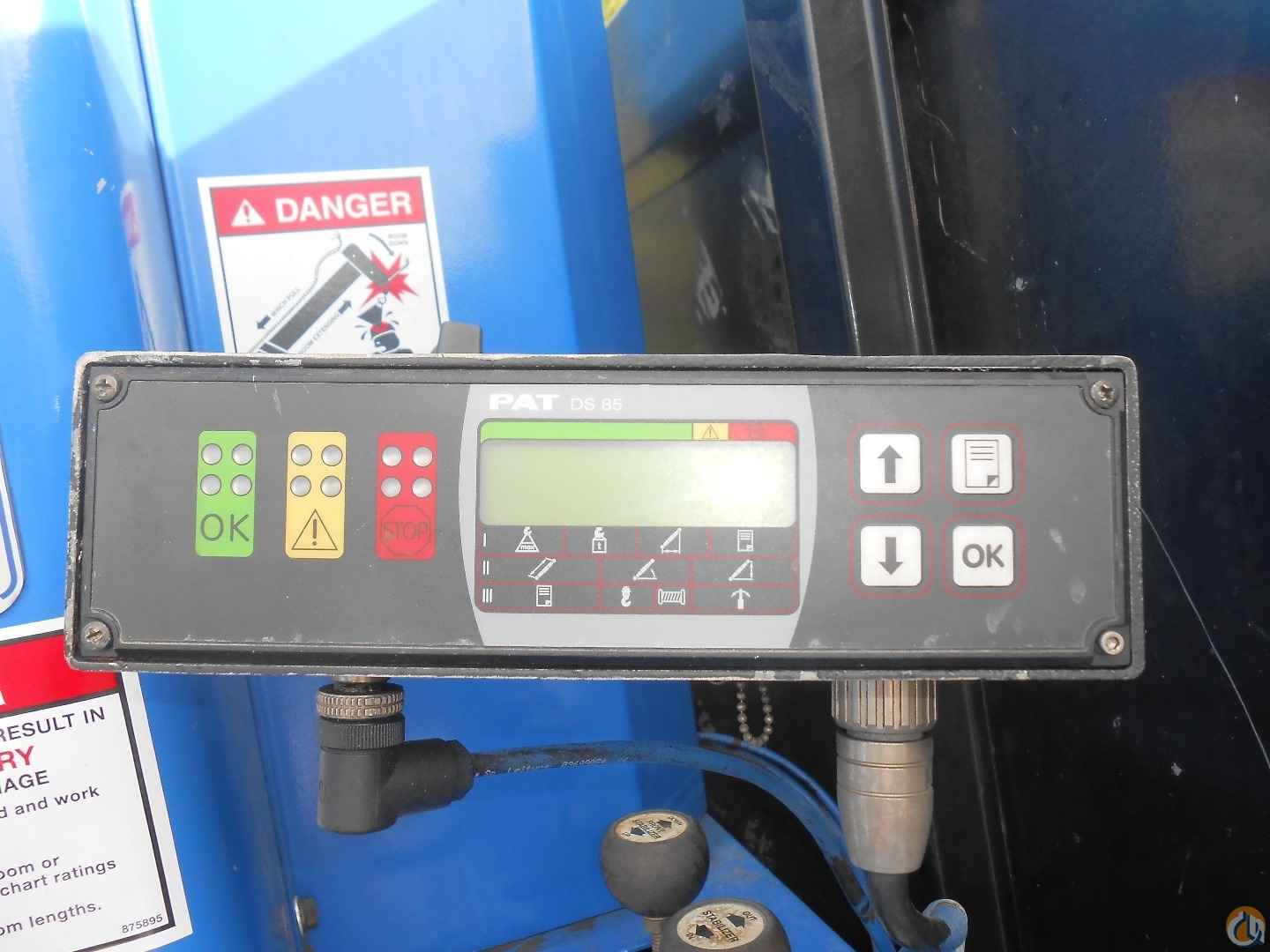

• LMI and Radio anti-two block system.
• 372 degrees non continuous rotation .
• Two speed winch.
• A-Frame link type front outriggers (22 feet-4 inches) spread.
• Rear out and down rear stabilizers (13 feet-7 inches) spread.
• Front SFO. Audible outrigger/stabilizer motion alarm.

Mounted on a 2009 Sterling Model LT9500.

• 60,000# GVW. - Front axle 20,000#, Rear axle 40,000#.
• MBE4000, 370 hp @ 1900 rpm, 2000 GOV rpm,1450 lb/ft @1100 rpm.
• Eaton Fuller RTO-14908LL transmission, 4
• Driver controlled traction differential-both tandem rear axles.
• block heater.
• 70 gallon fuel tank.
• 425/65R22.5 20 ply radial front tires,
• Goodyear G164 RTD 11R22.5 16 ply radial rear tires.
• 2007 EPA/CARB EMISSION CERTIFICATION ON TRUCK
