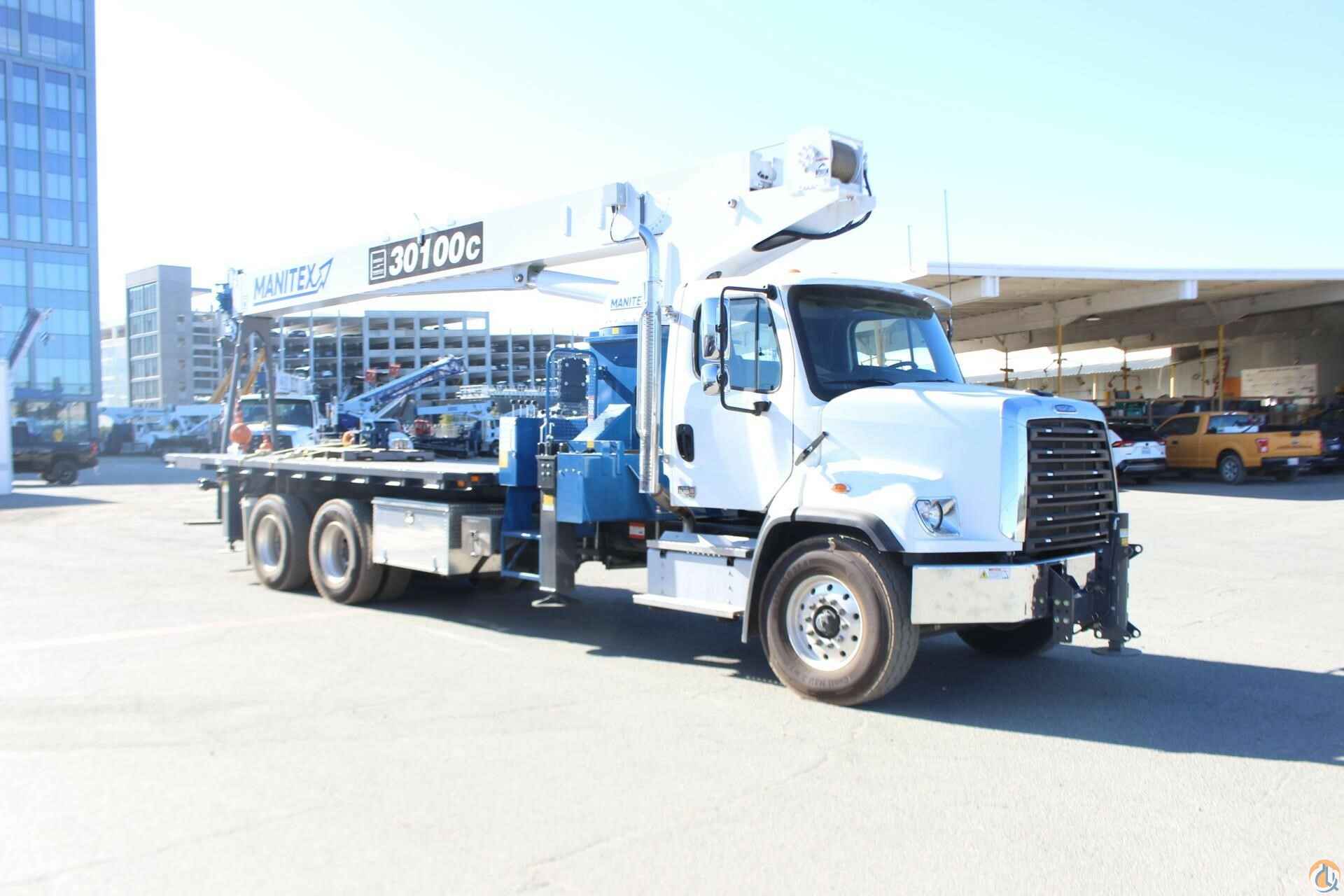

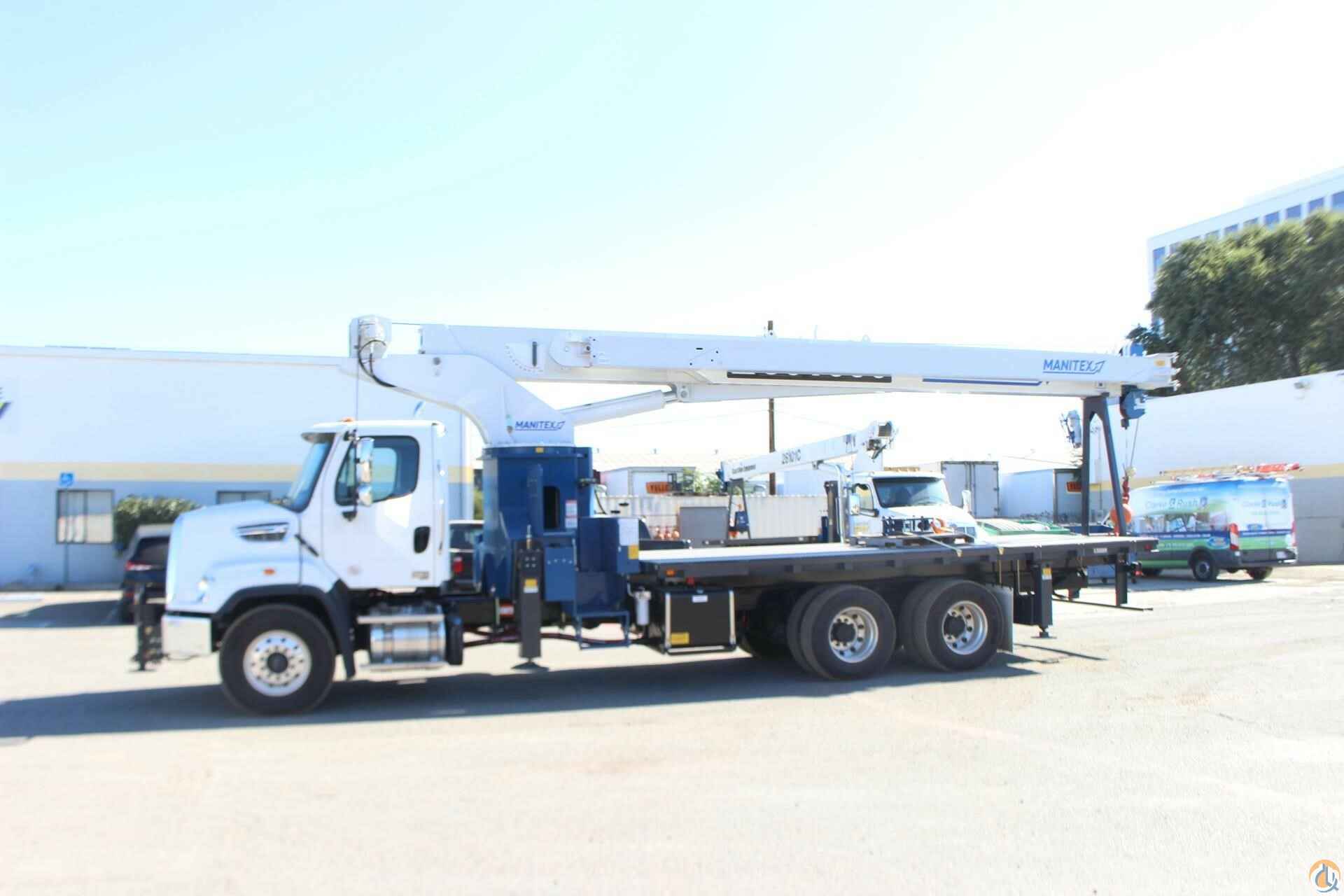

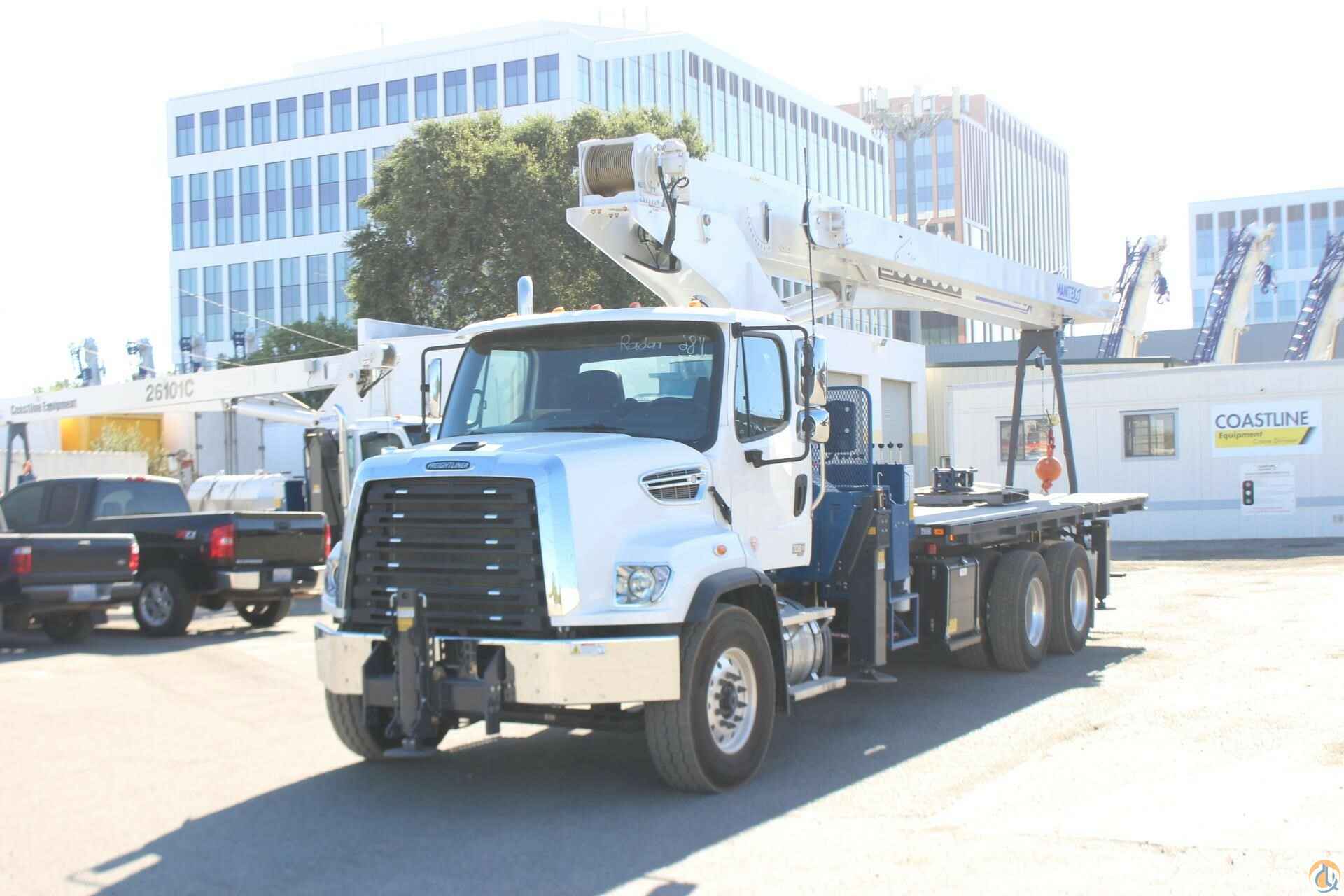

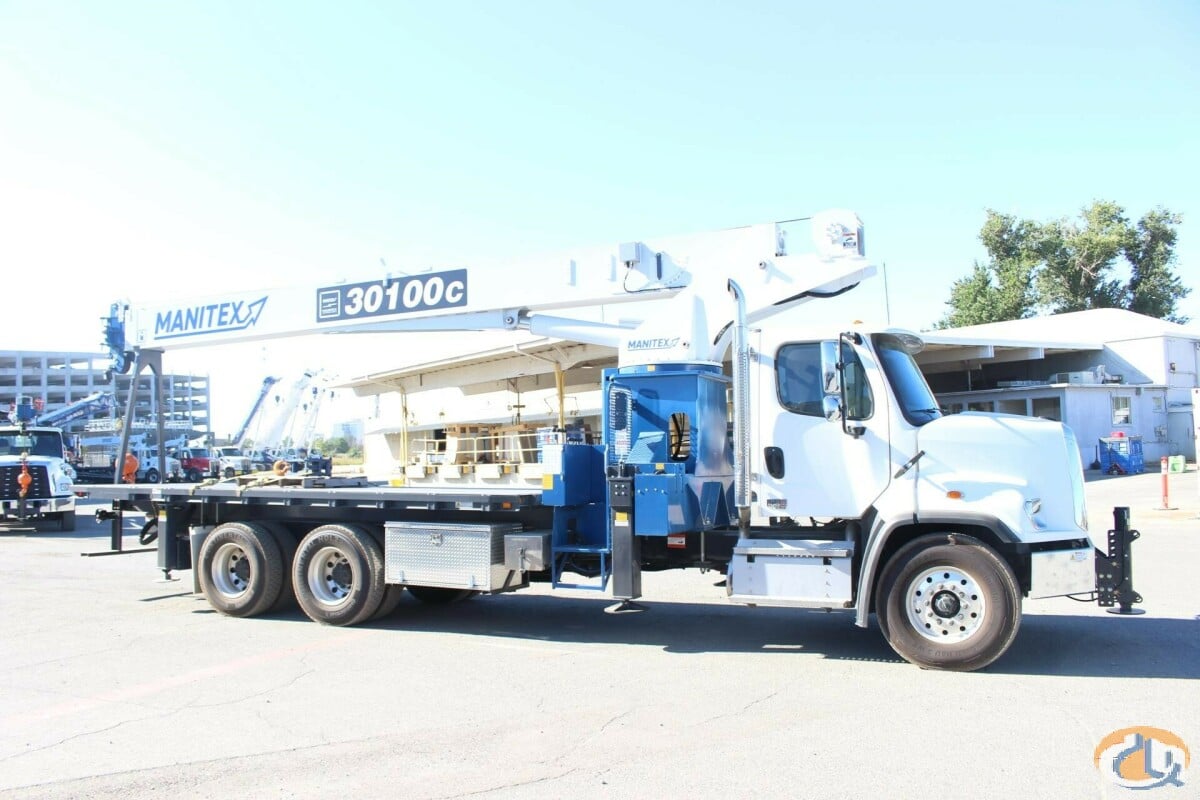

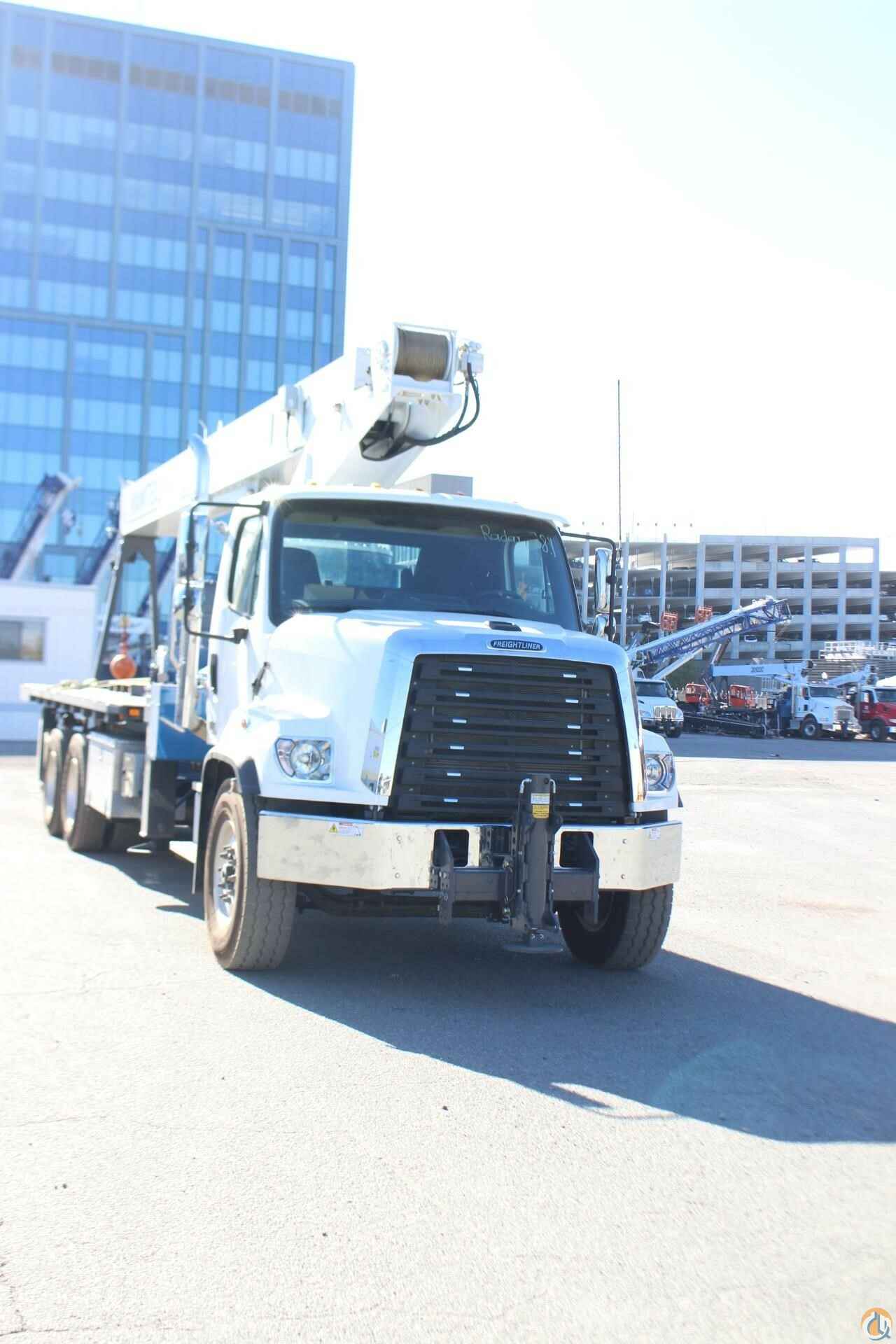

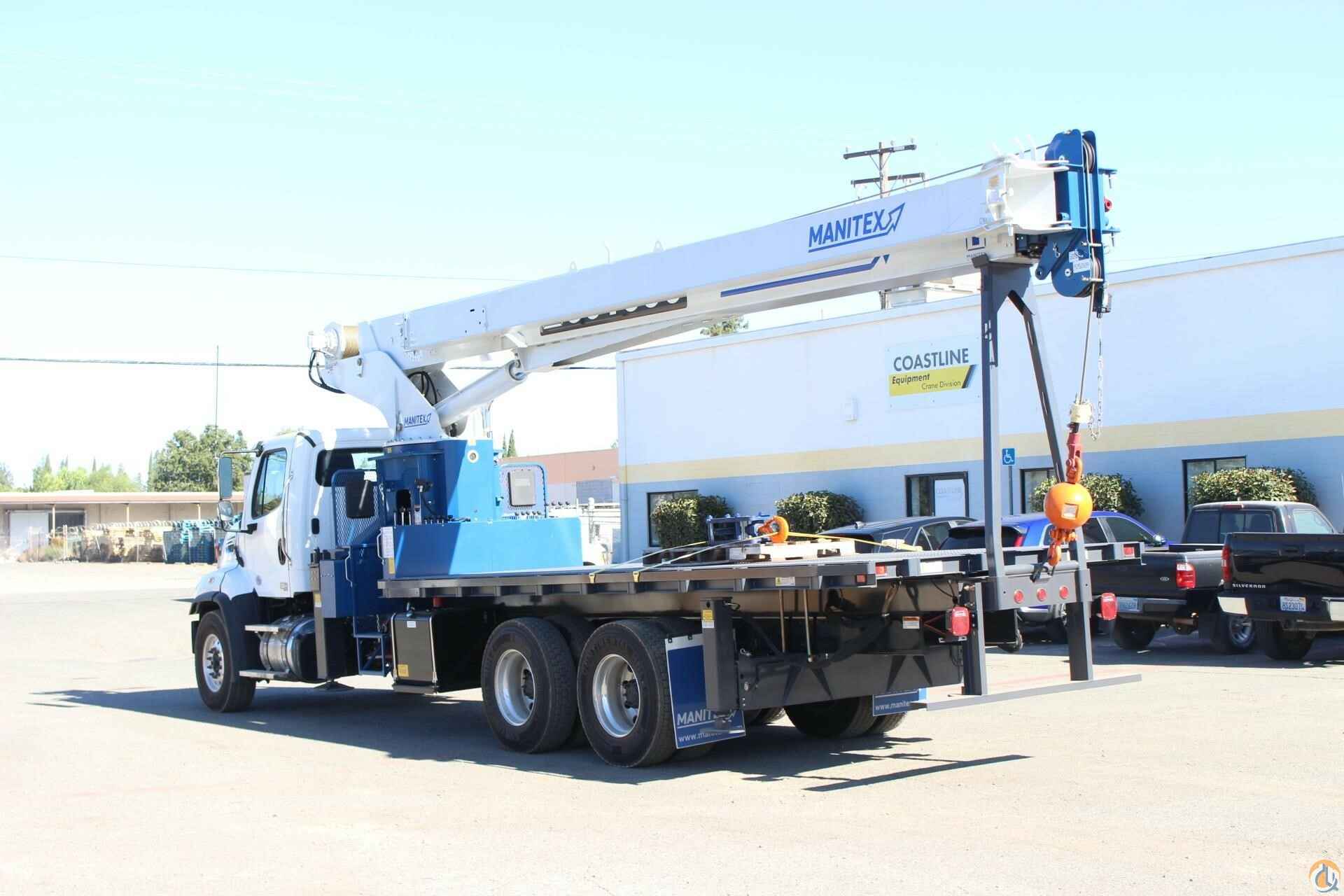

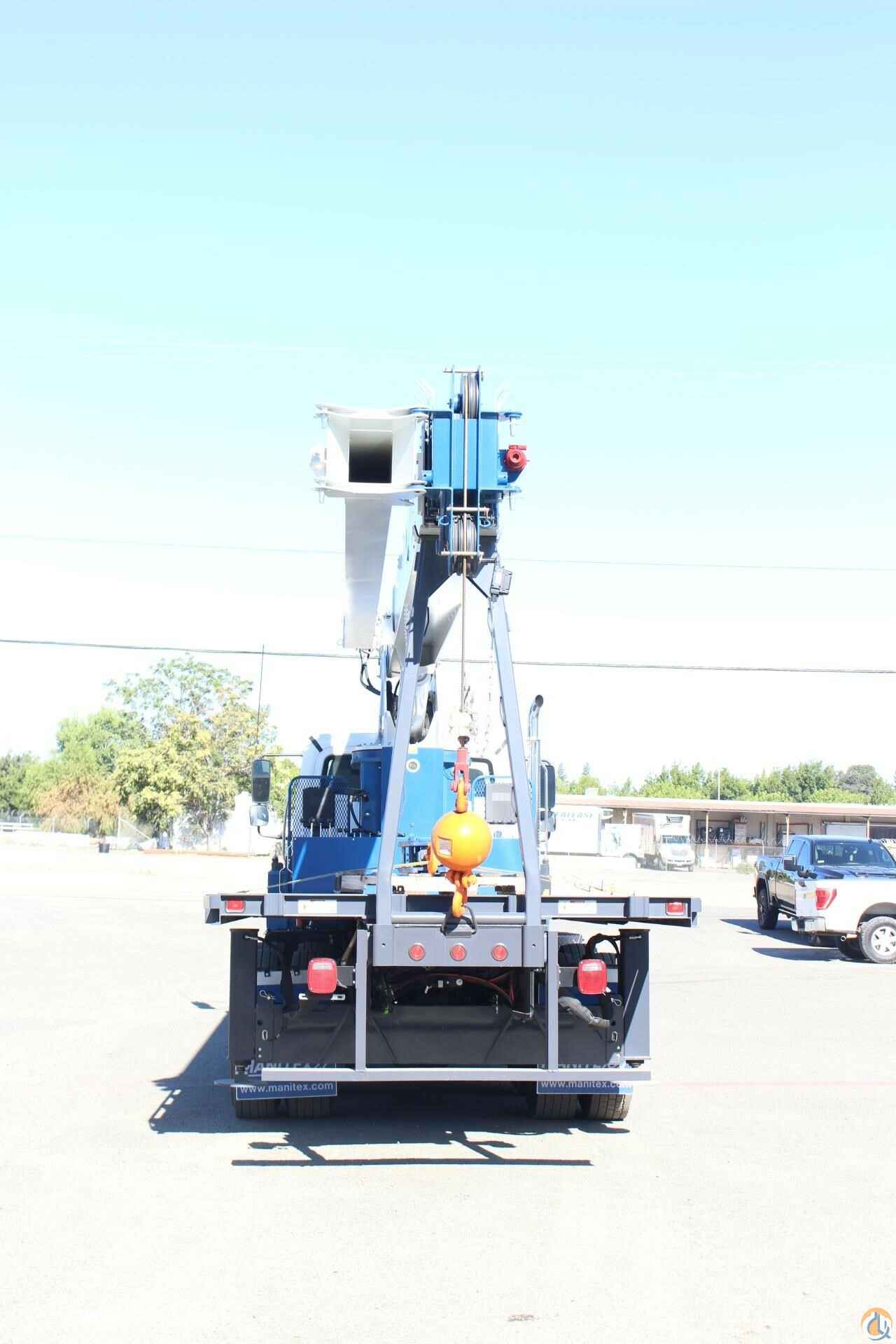

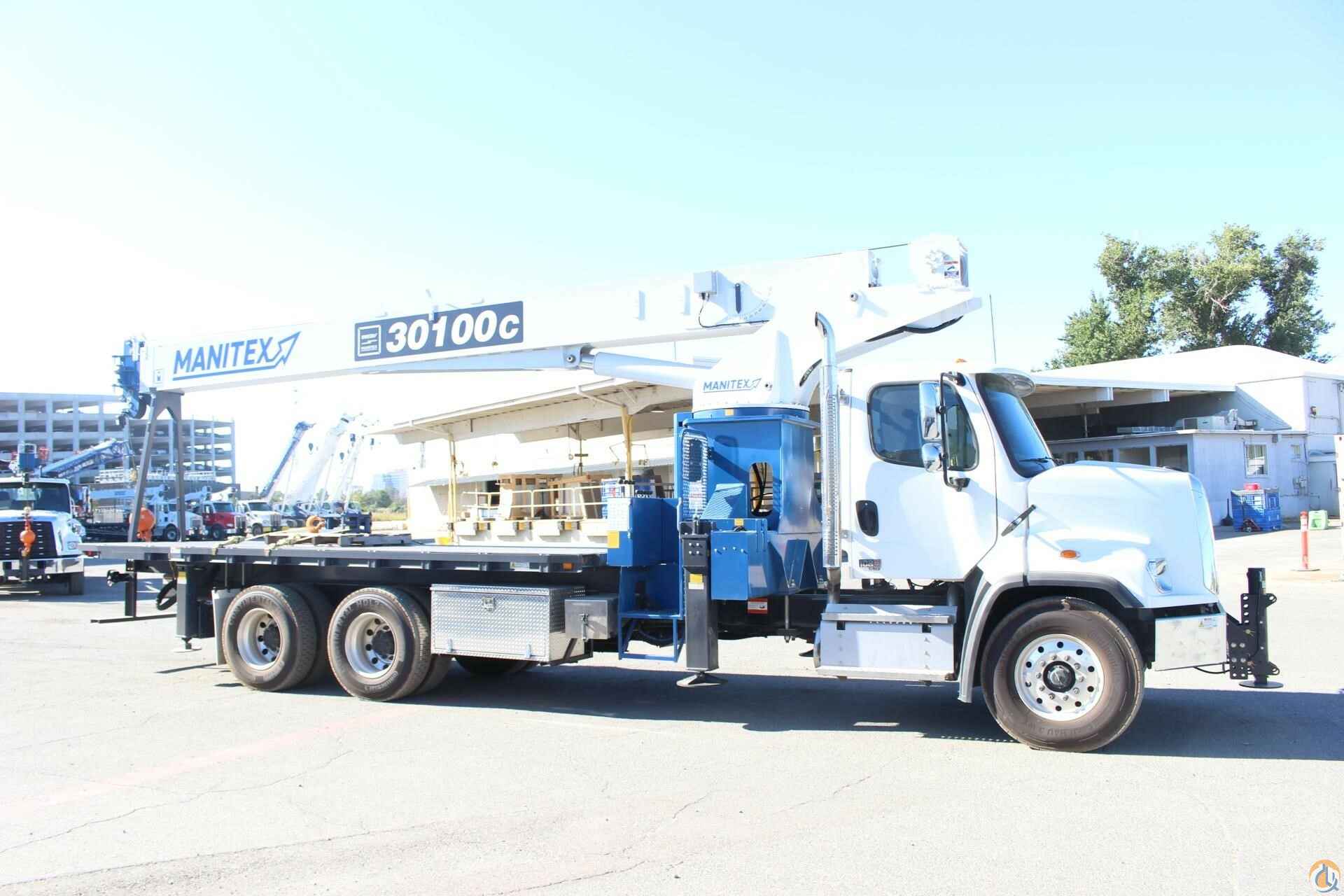

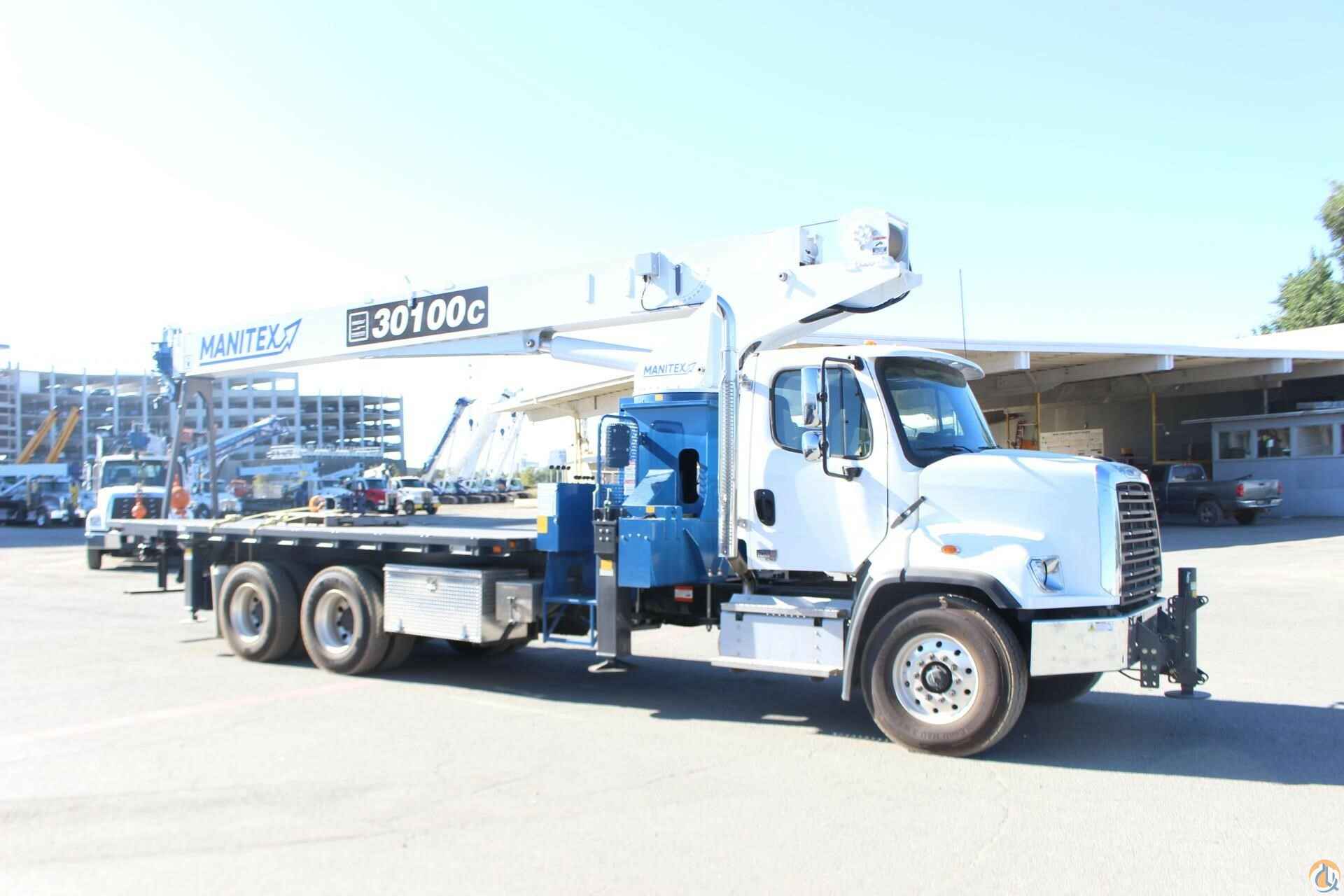

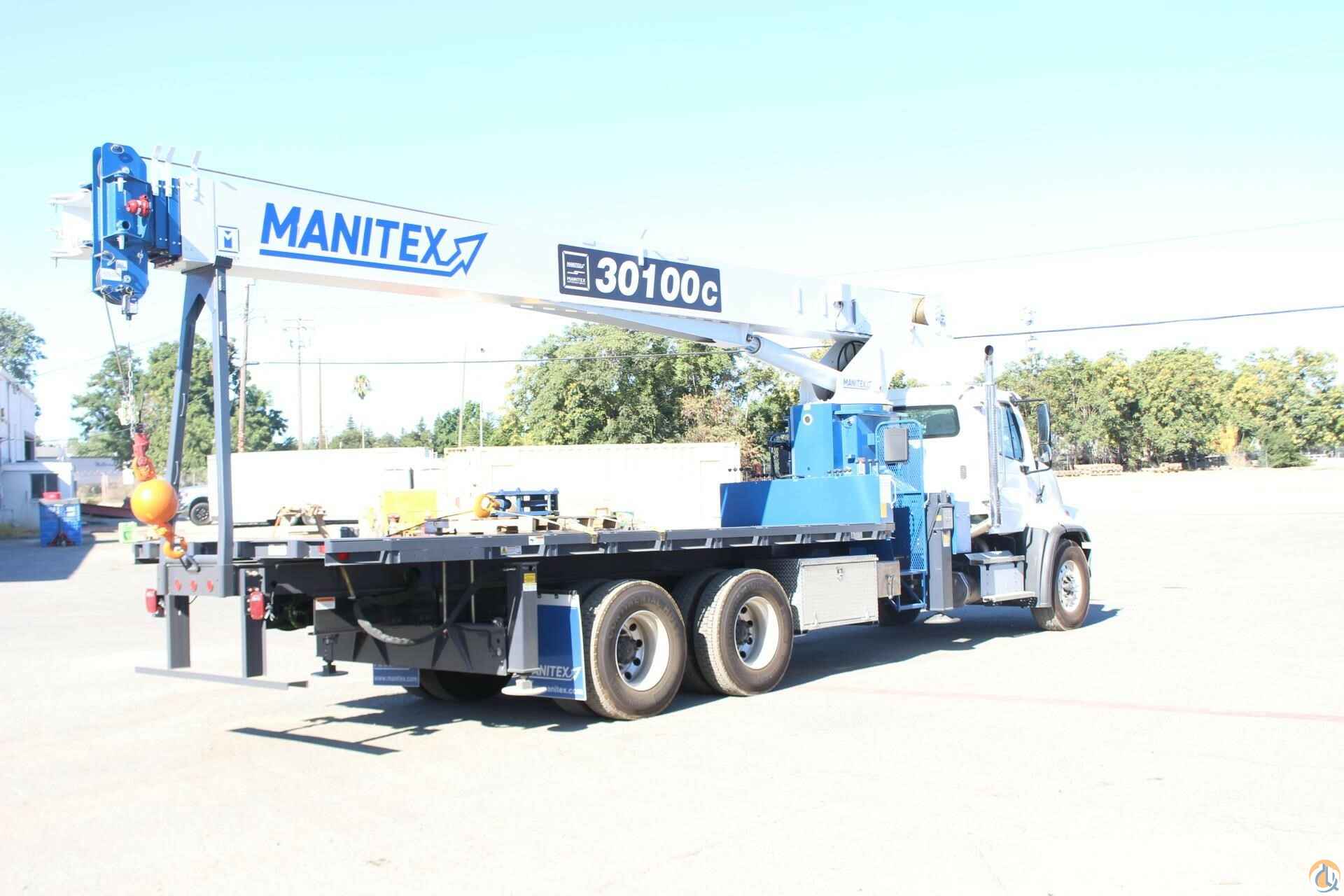

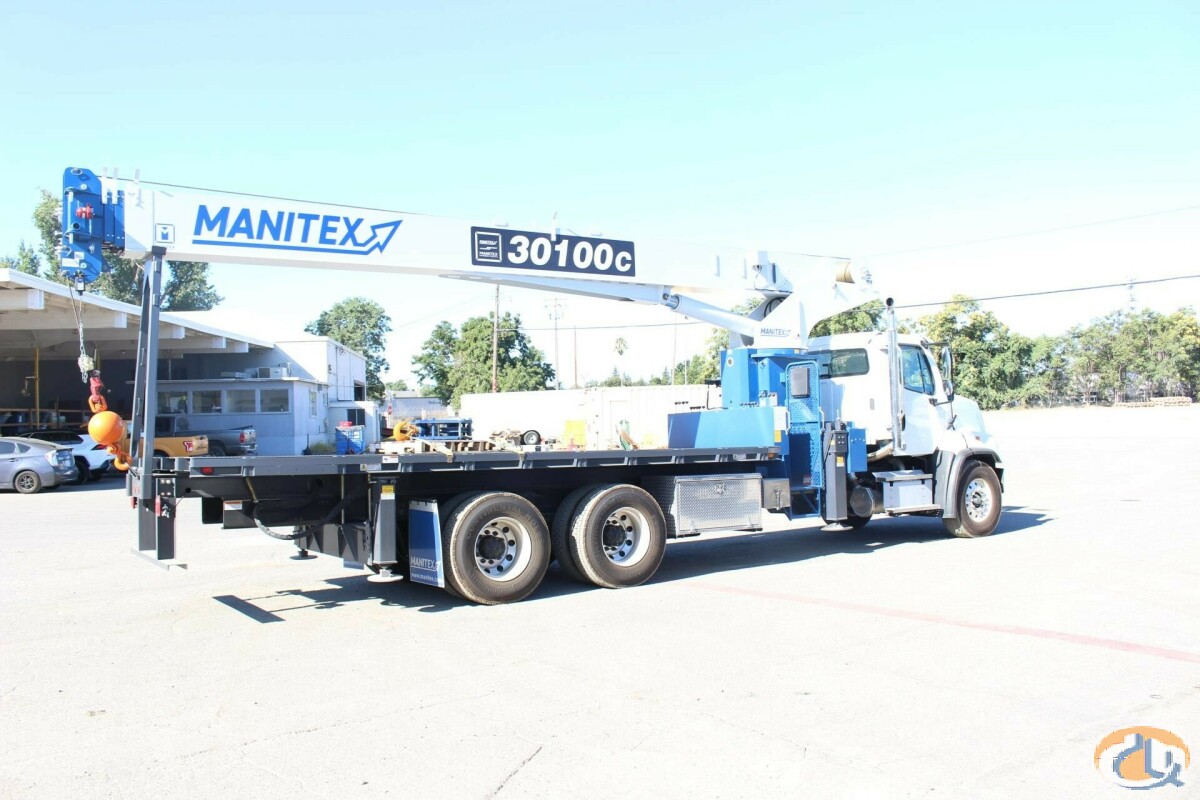

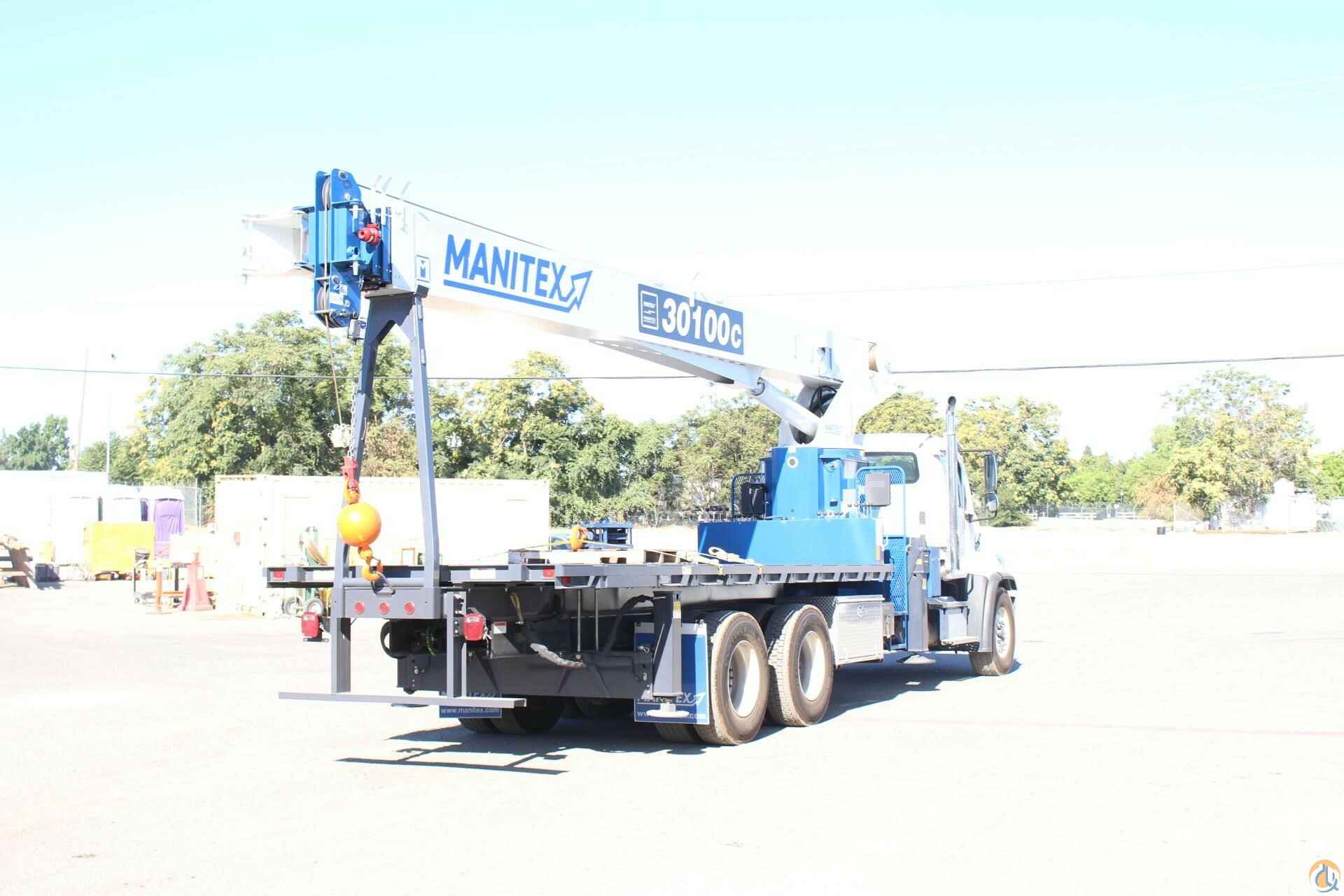

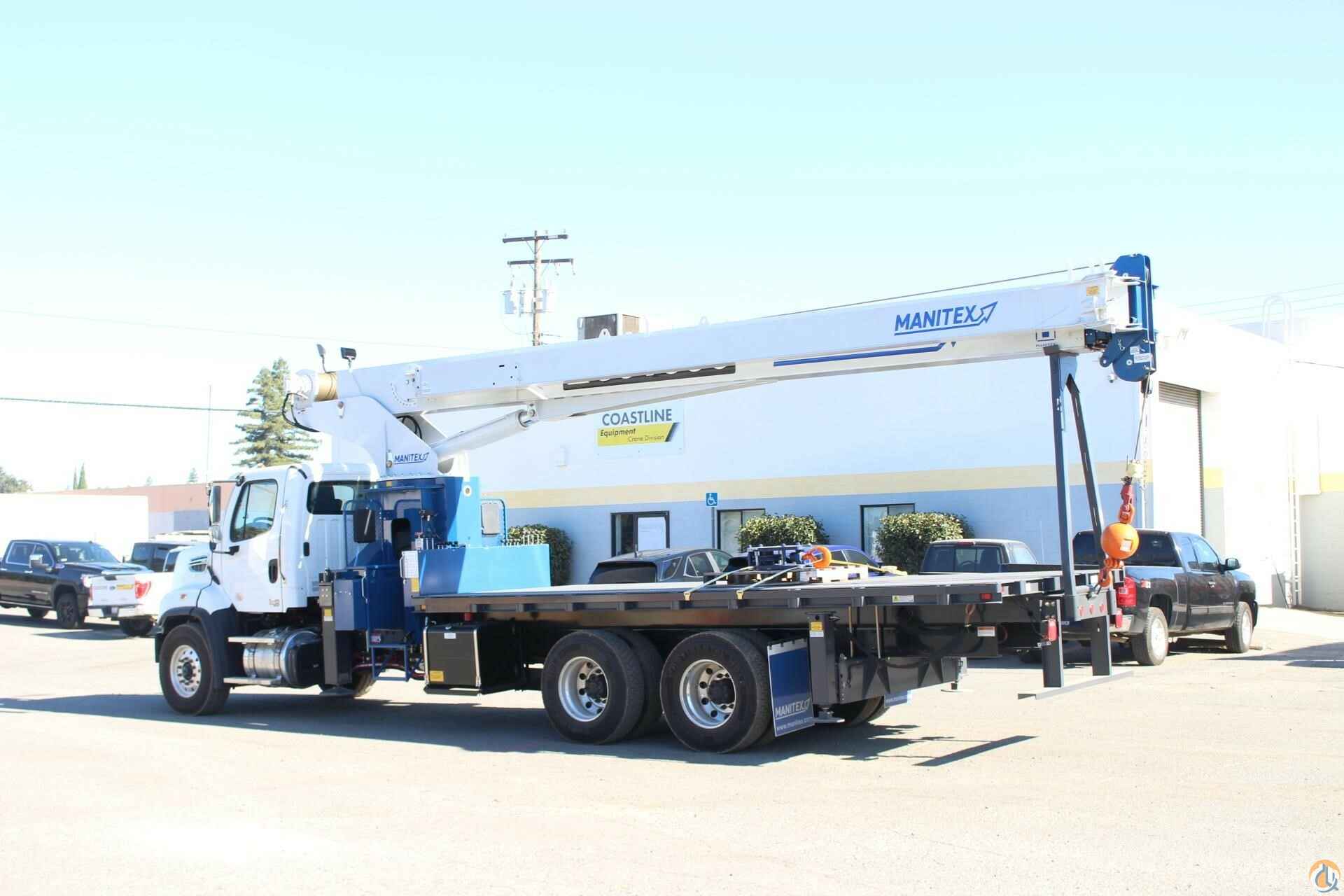

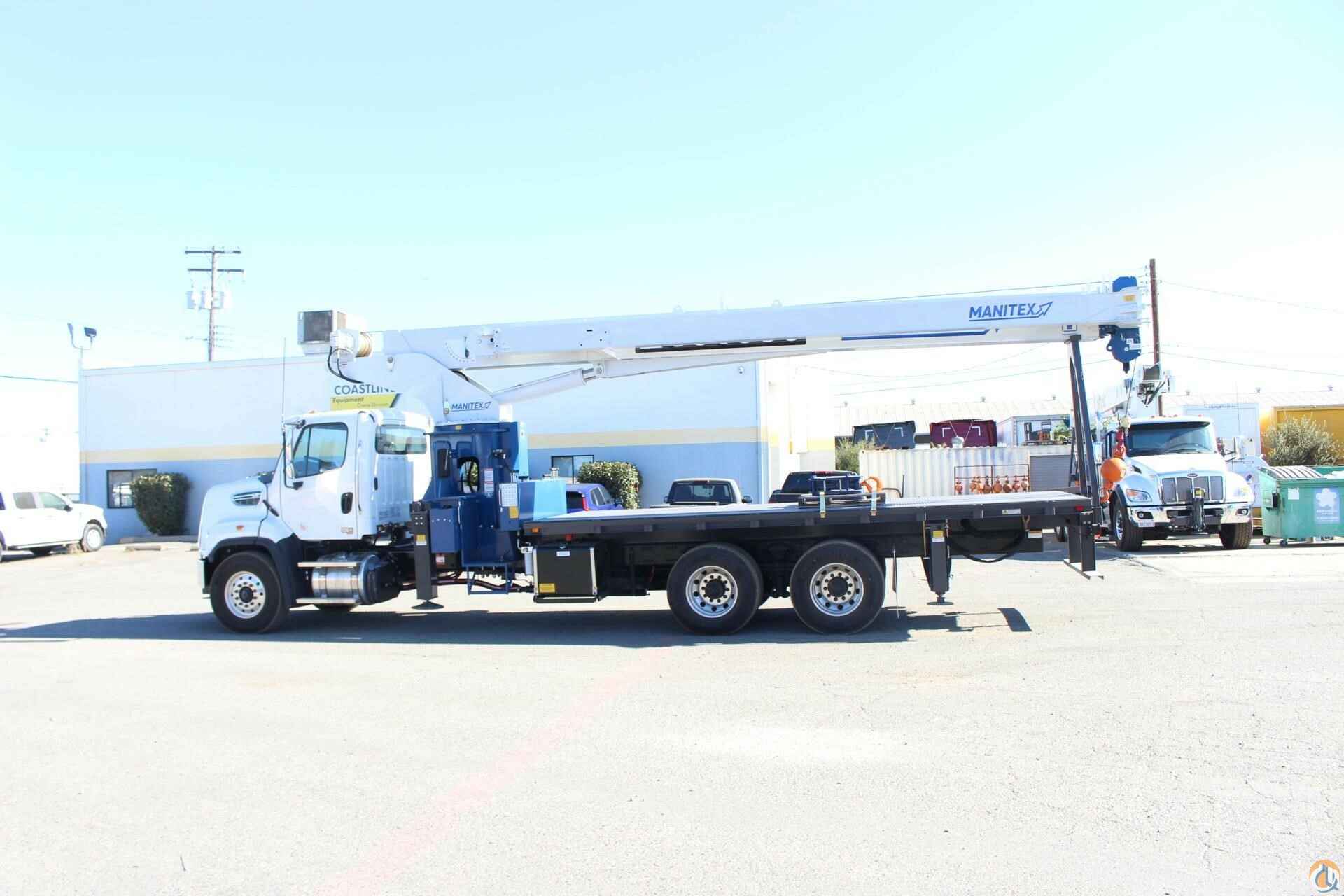

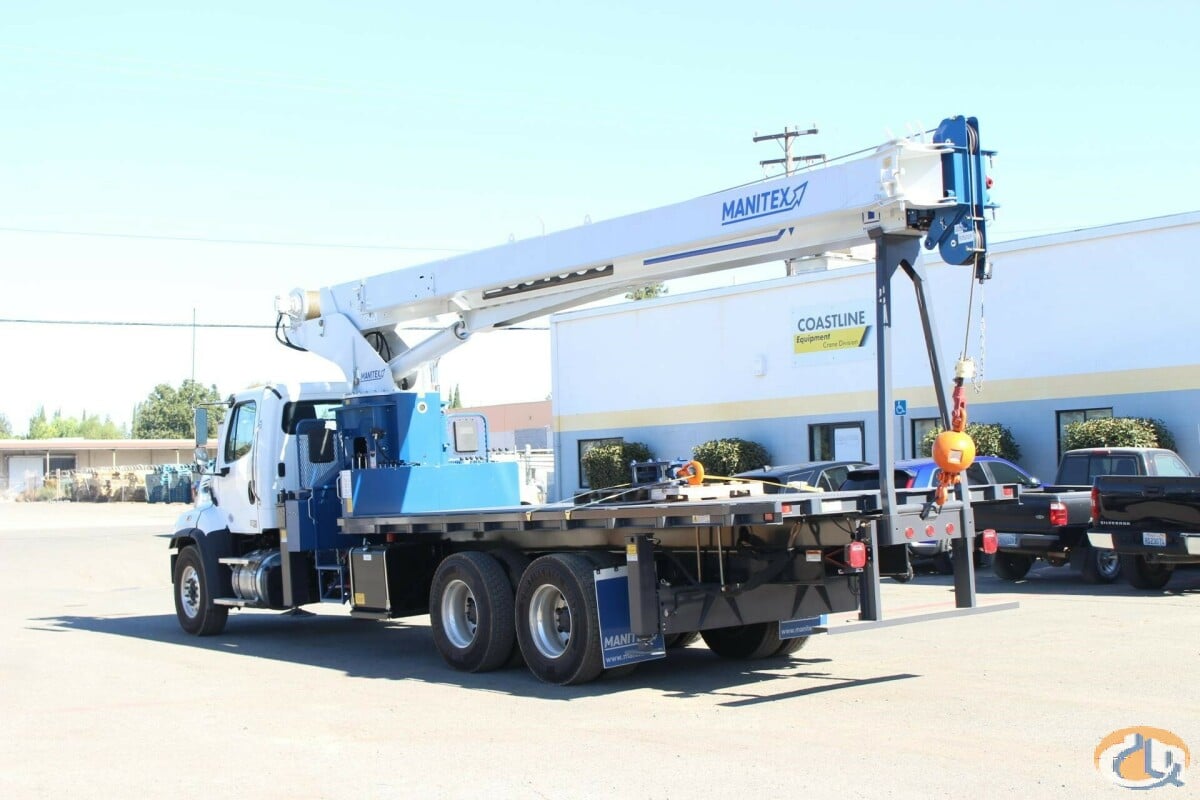

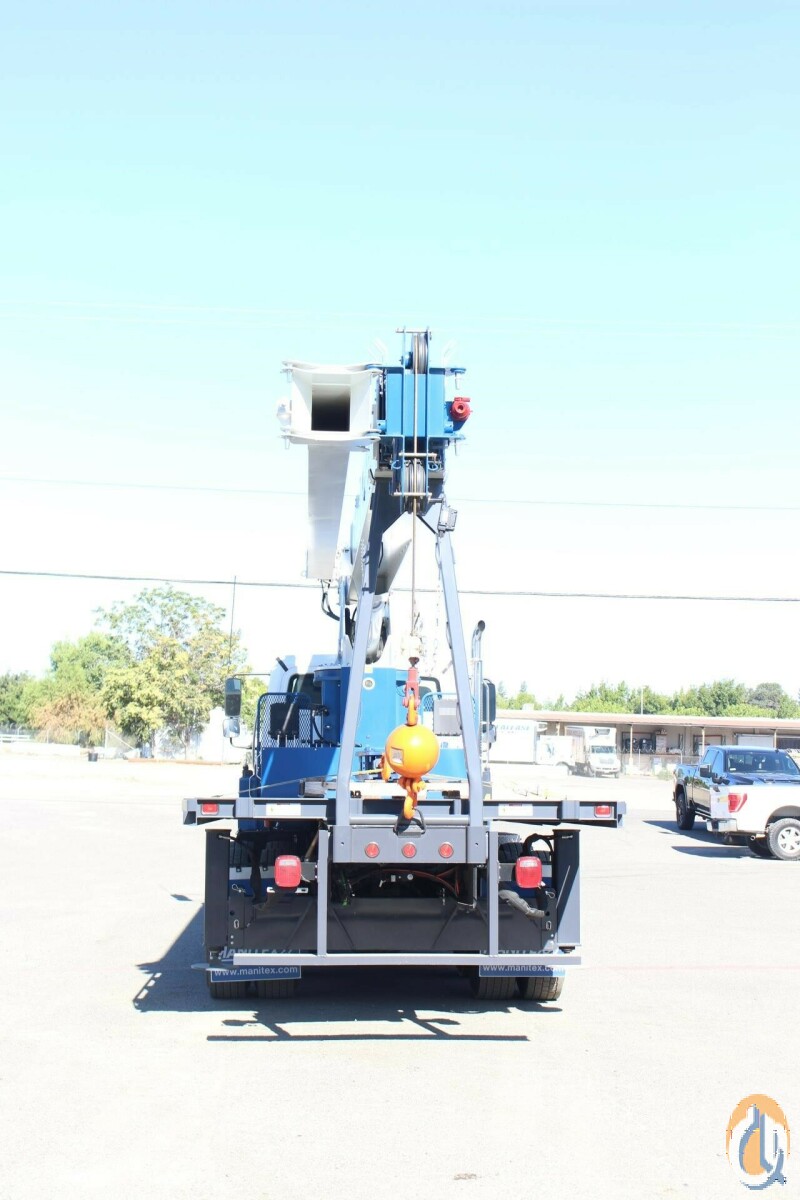

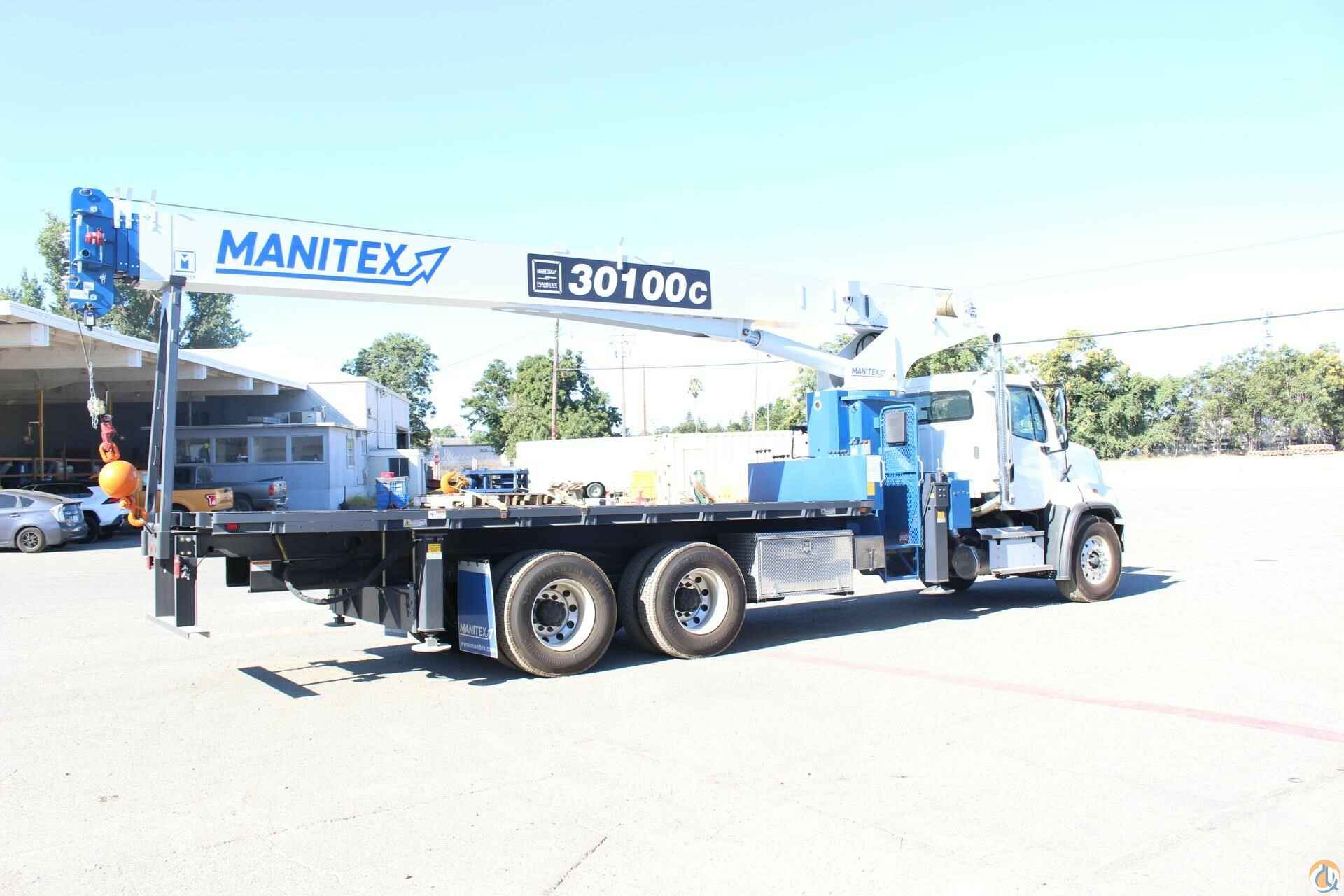

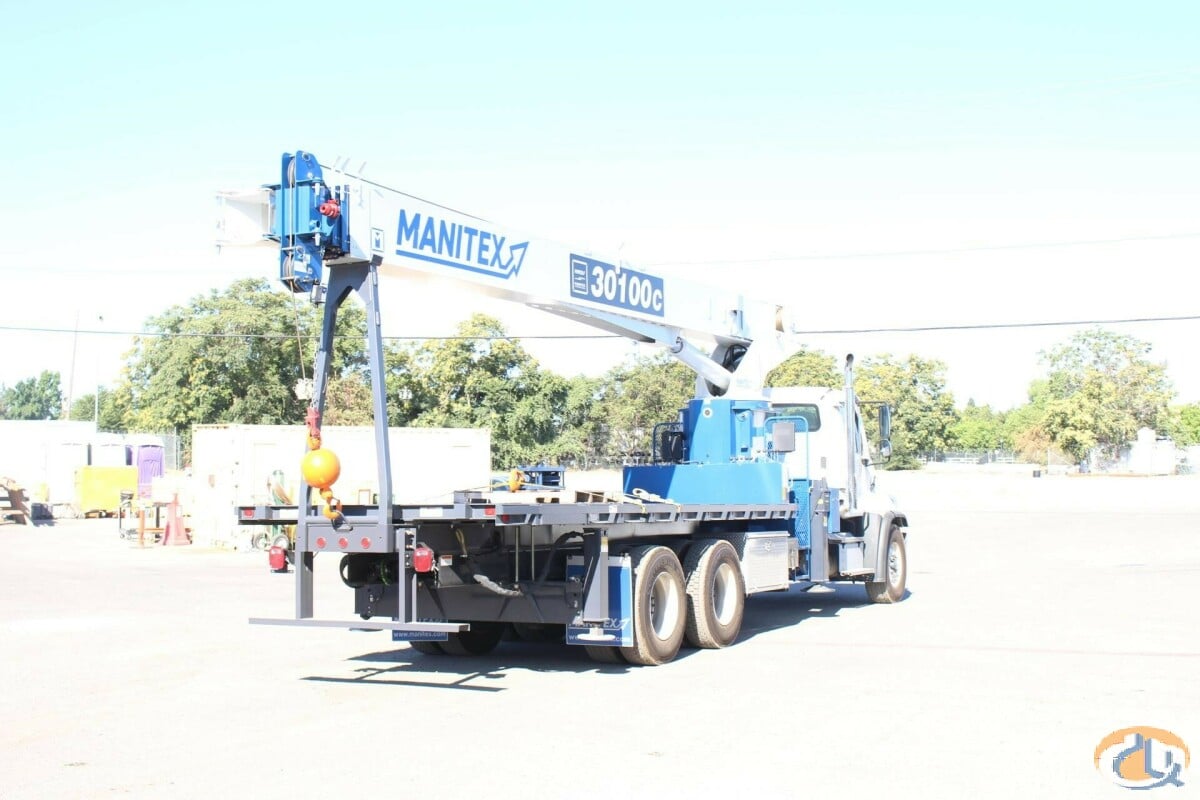

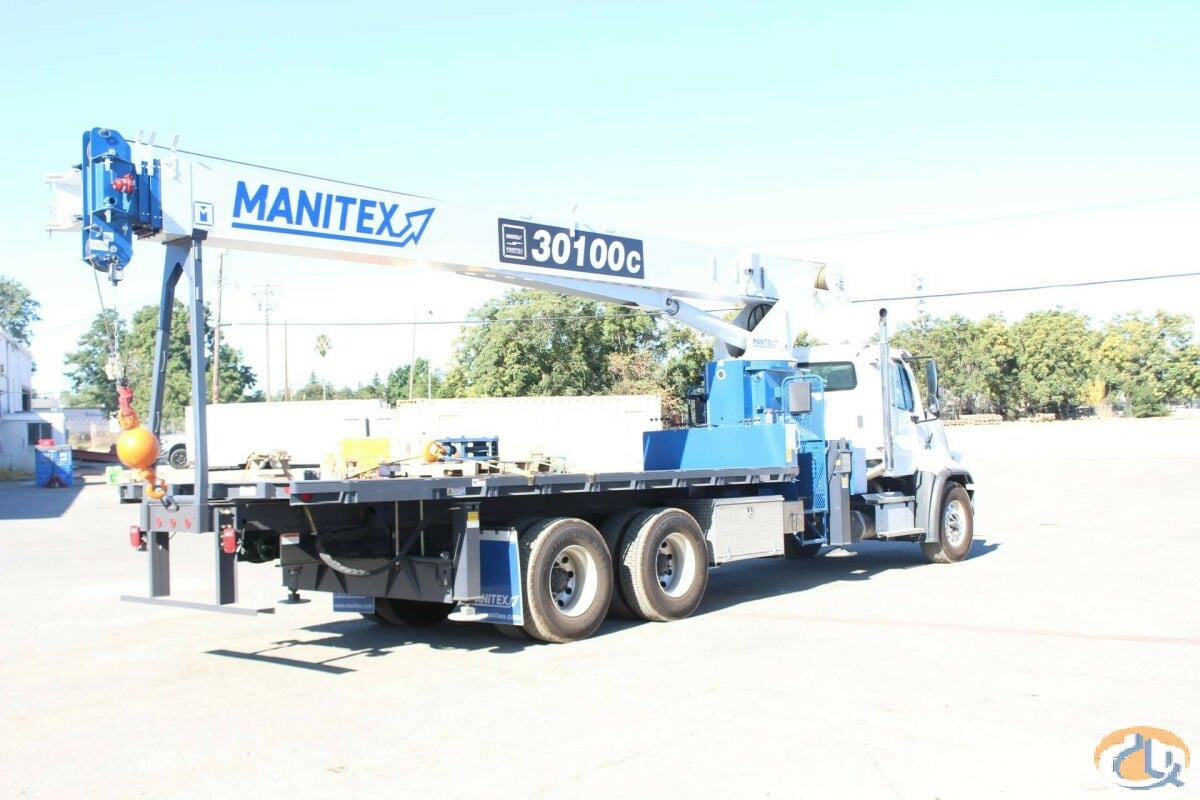

MANITEX 30100C
Standard features:
100’ Four-Section Telescopic Boom A-Frame, 7-ton hook and ball, 3- load sheave quick reeve boom head, Externally Wired anti-two block w/lockout, Boom hoist cylinder, System pressure gauge, 372° Non Continuous rotation, Removable boom rest, Engine start/stop, Operators service/parts manuals, Boom length and angle indicators, Electronic Foot throttle, Signal Horn, Bubble Level, Beverage cup holders, Braden Winch, 2-speed Hoist w/grooved drum, 335’of 9/16” Rotation Resistant Wire Rope, Subframe for 21’ Bed, 70 gallon reservoir w/suction strainer and ball valve, Pedestal, Swept Back Turret, Rotation bearing and Swing system, Dual Operator Control Stations, Can Bus Load moment indicator w/Internal length Cable-audio/visual capacity alert w/shutoff, Hermetically sealed Printed Circuit board electrical system w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-frame Link Type Front Outriggers (22’4” Spread Width), Out and Down Rear Stabilizers (13’7” Spread), 3-Section Hydraulic Pump-Counterclockwise Rotation is standard, Outrigger Monitoring System.
Additional Options Included:
• Out/Down Outrigger
• 1 piece 26’ Jib
• 21’ HH Steel Bed x 102”
• Standard Mount Installation
• Hot Shift PTO
• Heavy Duty Hydraulic Reservoir Mounting
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Aluminum Tool Box (48” x 24” x 24”) Chassis Mount

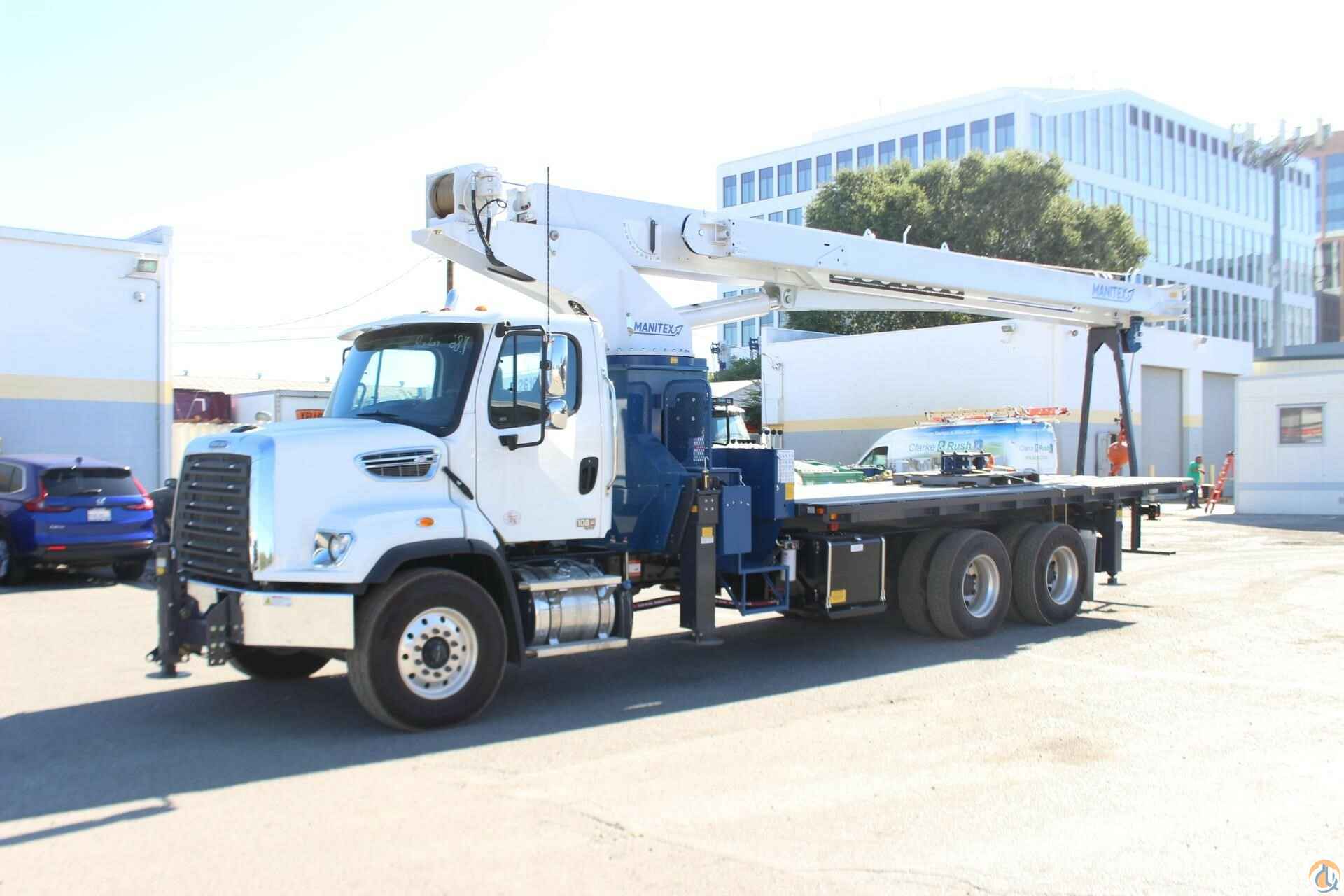

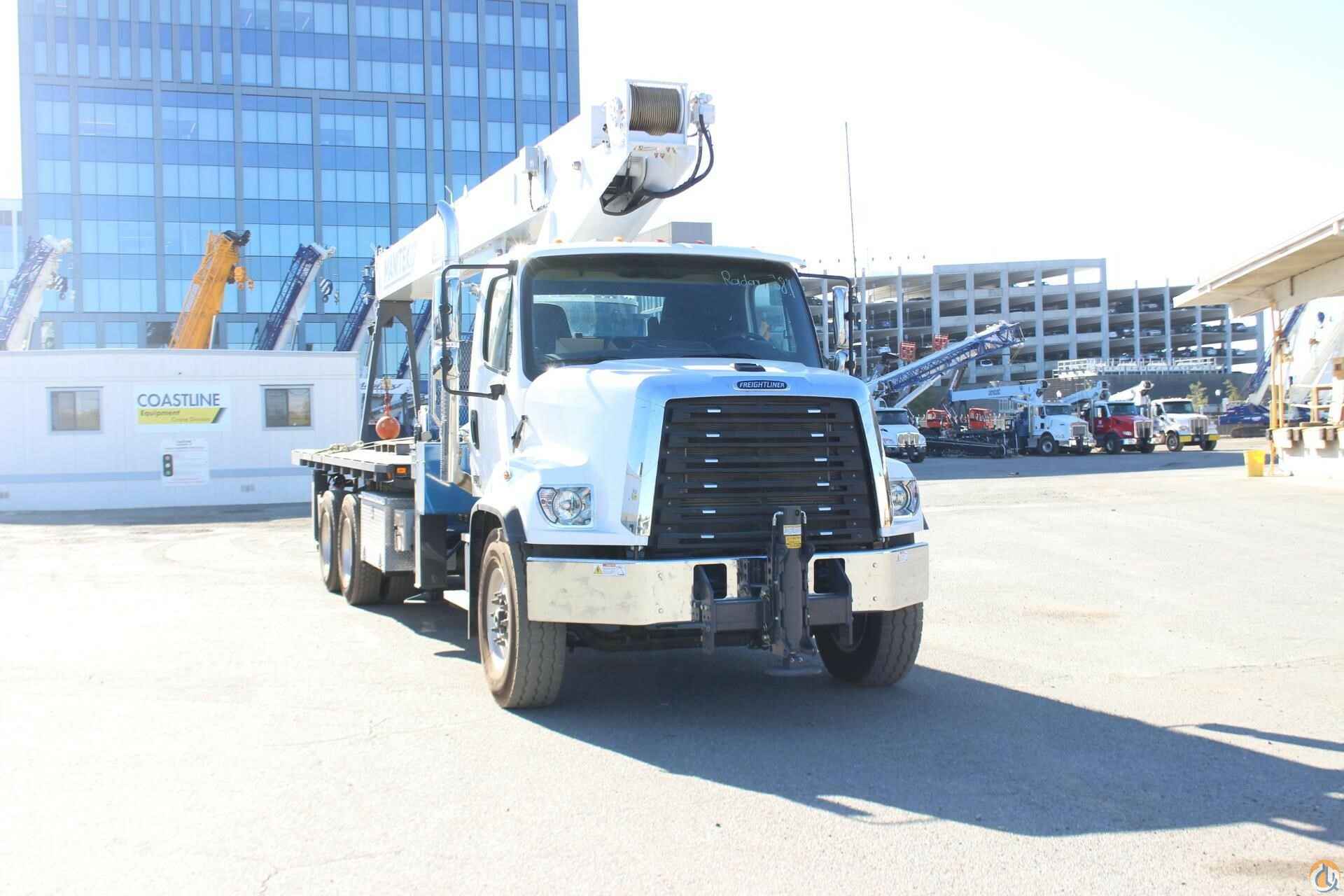

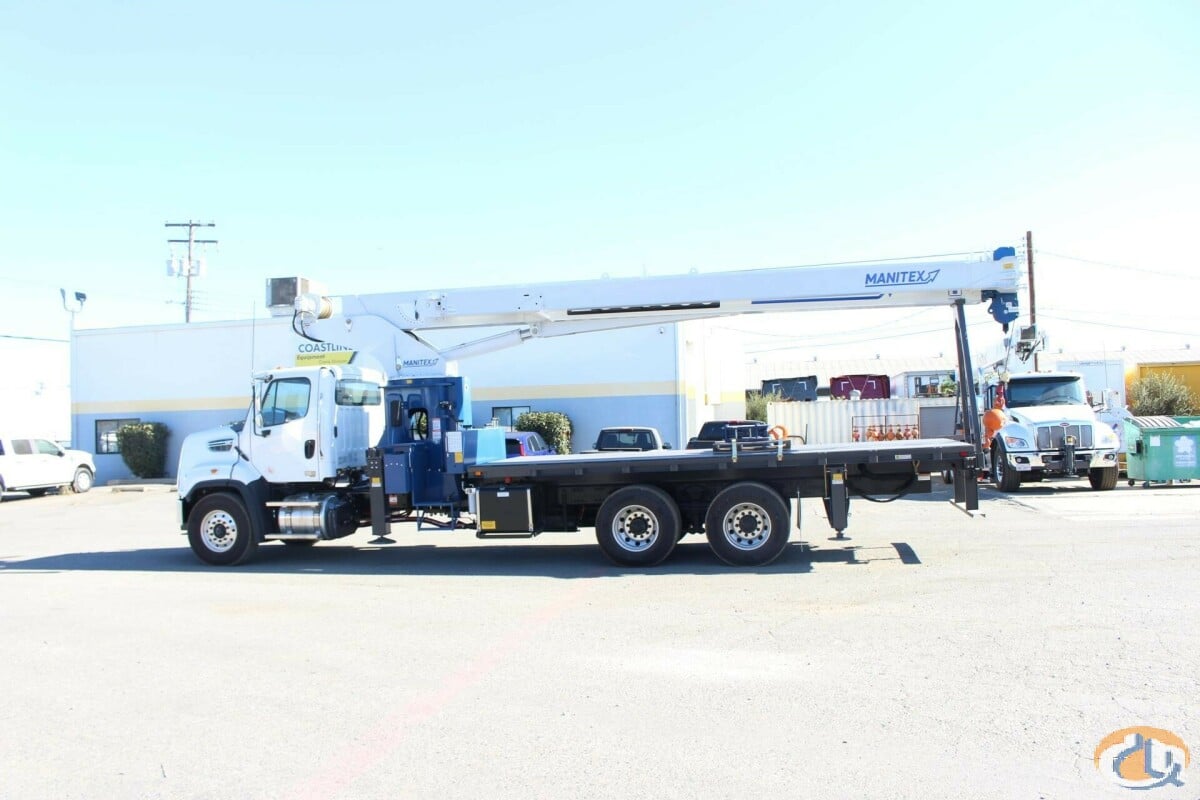

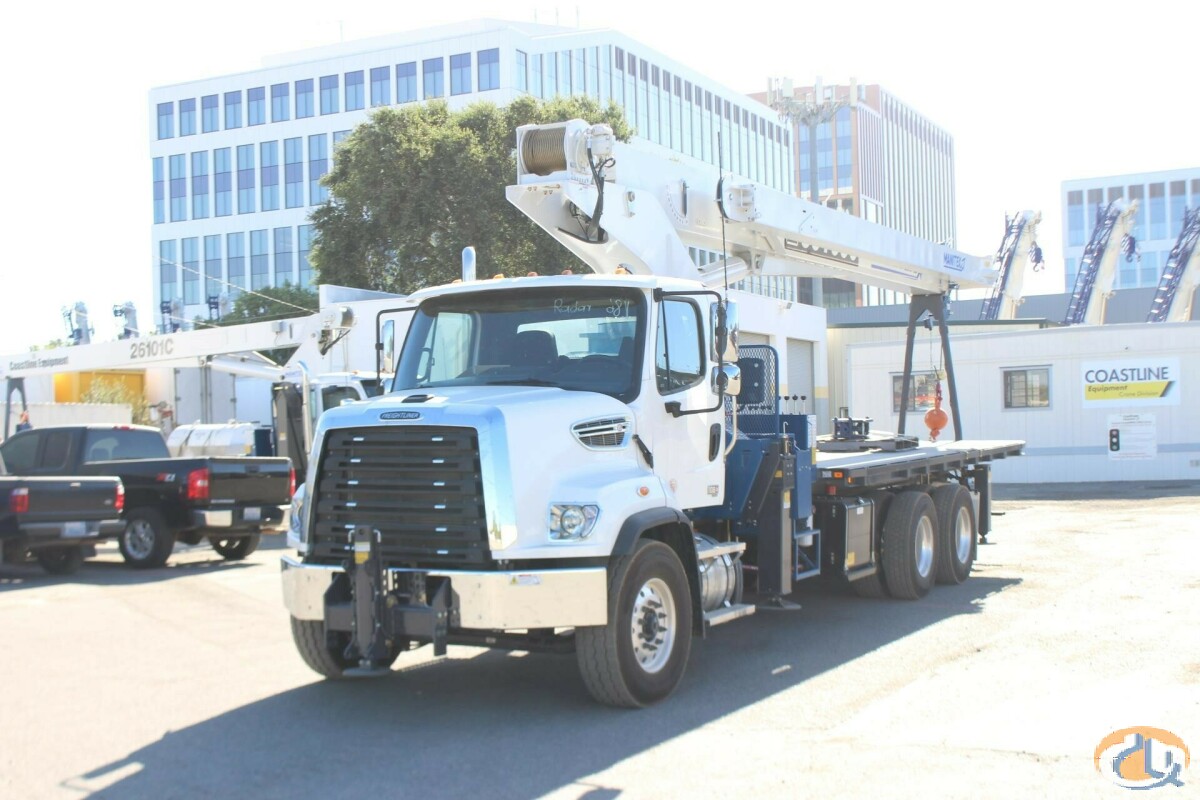

MOUNTED ON 2024 FREIGHTLINER 108SD
Mounted on a 2024 Freightliner 108SD with a Cummins L9 370 HP diesel engine, Allison 3000 RDS Automatic Transmission, Detroit DA-F-20.0.5 20,000 lbs. front axle, MT-40-14X 40,000 lb. R-series tandem rear axle, Full set Alcoa polished aluminum wheels, Single 60 gallon fuel tank, Heater and air conditioning with defrosters, full instrumentation, Full power windows, interior color Opal Gray, AM/FM/WB world tuner radio with USB, auxiliary inputs and Bluetooth, Single Electric Horn, Dual Heated Mirrors, External Composite Sunvisor, Halogen headlamps and unit is painted Elite White.
