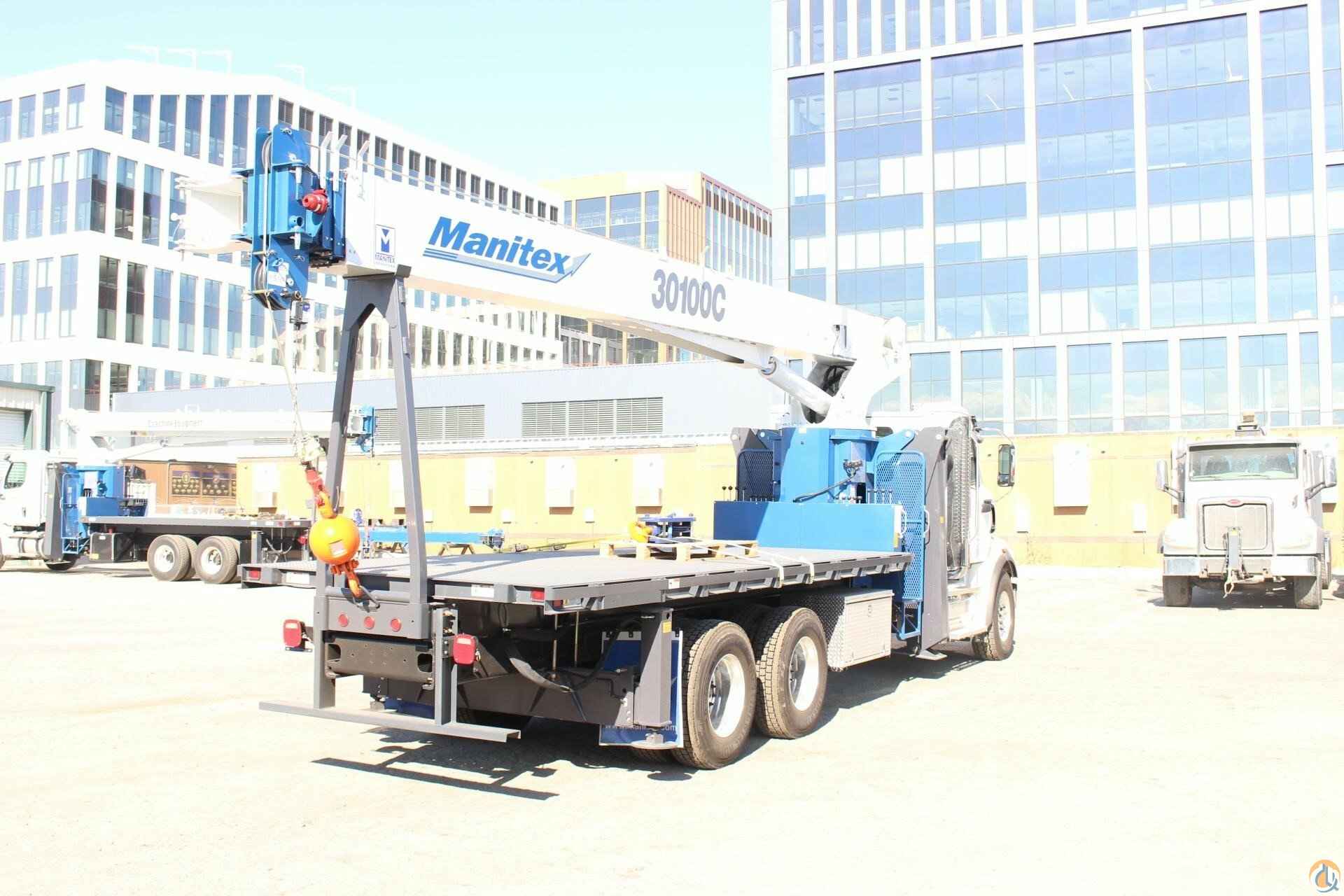

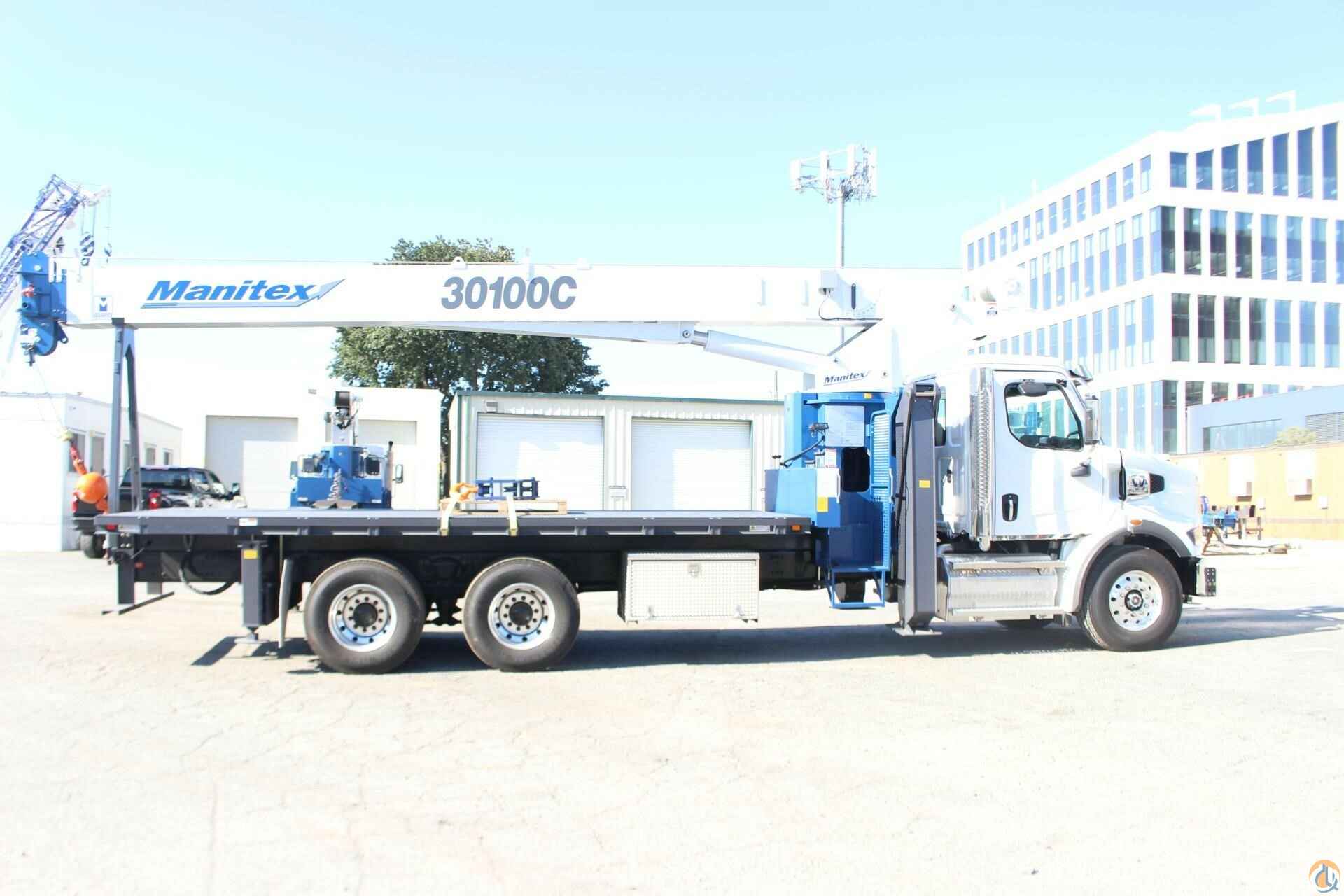

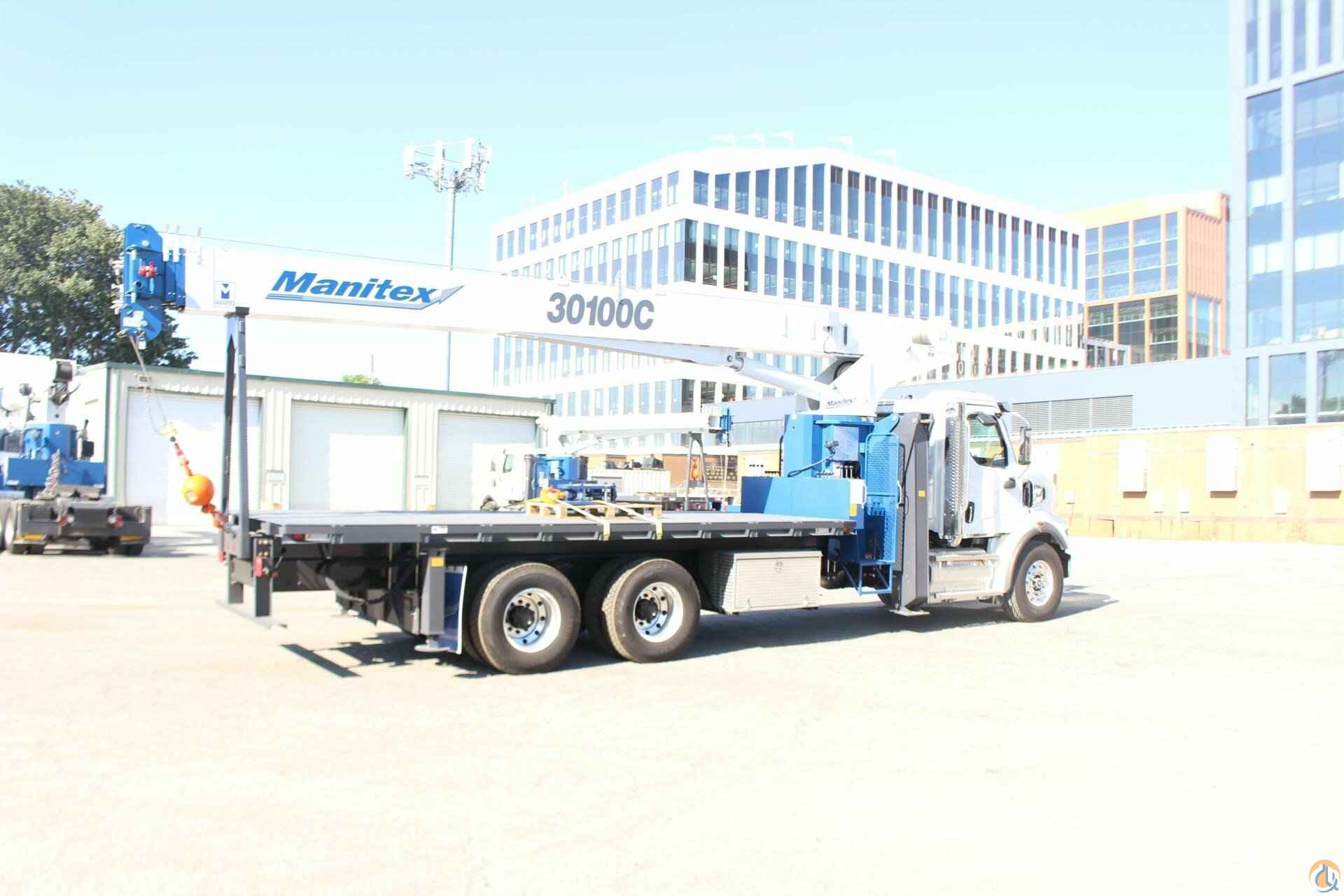

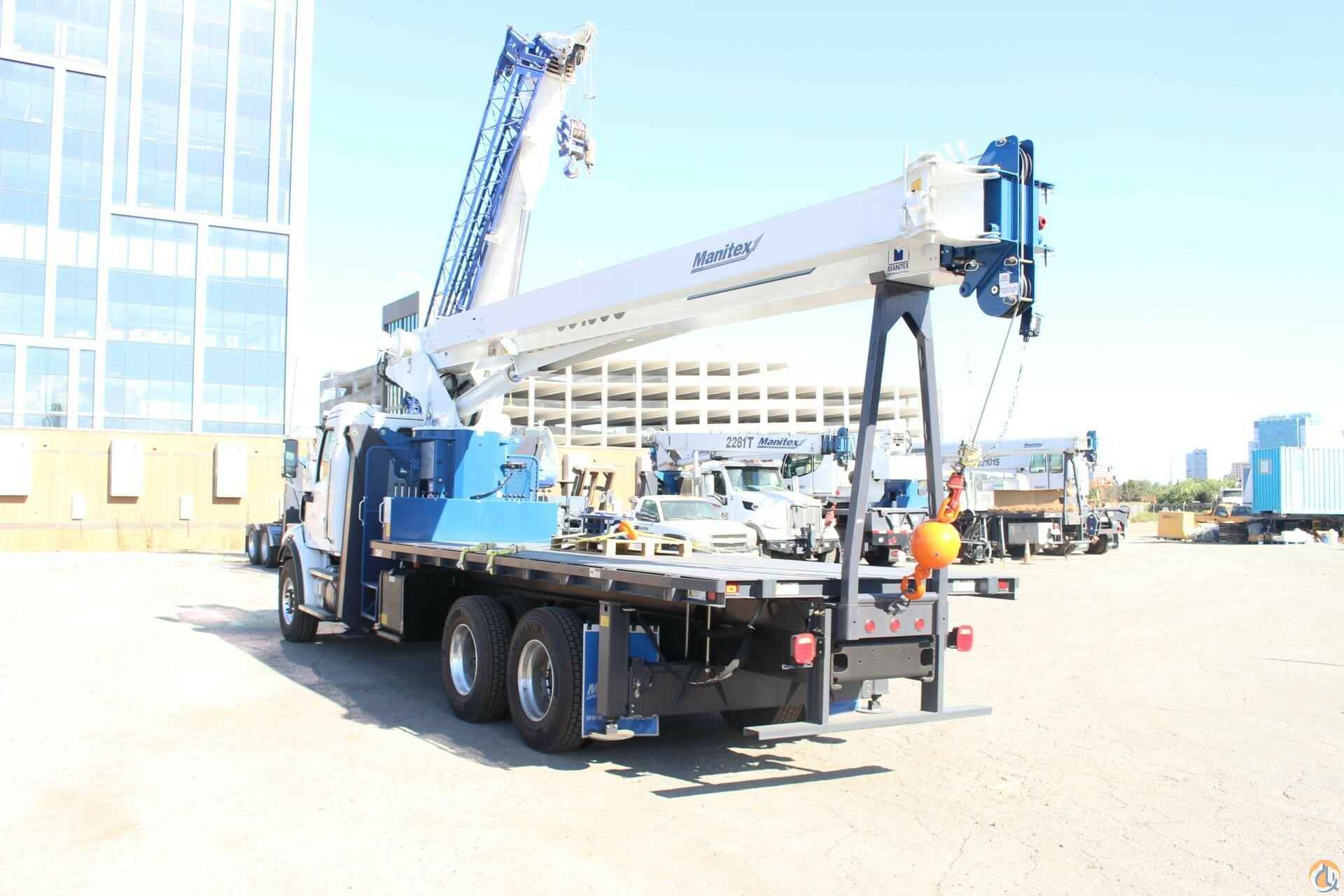

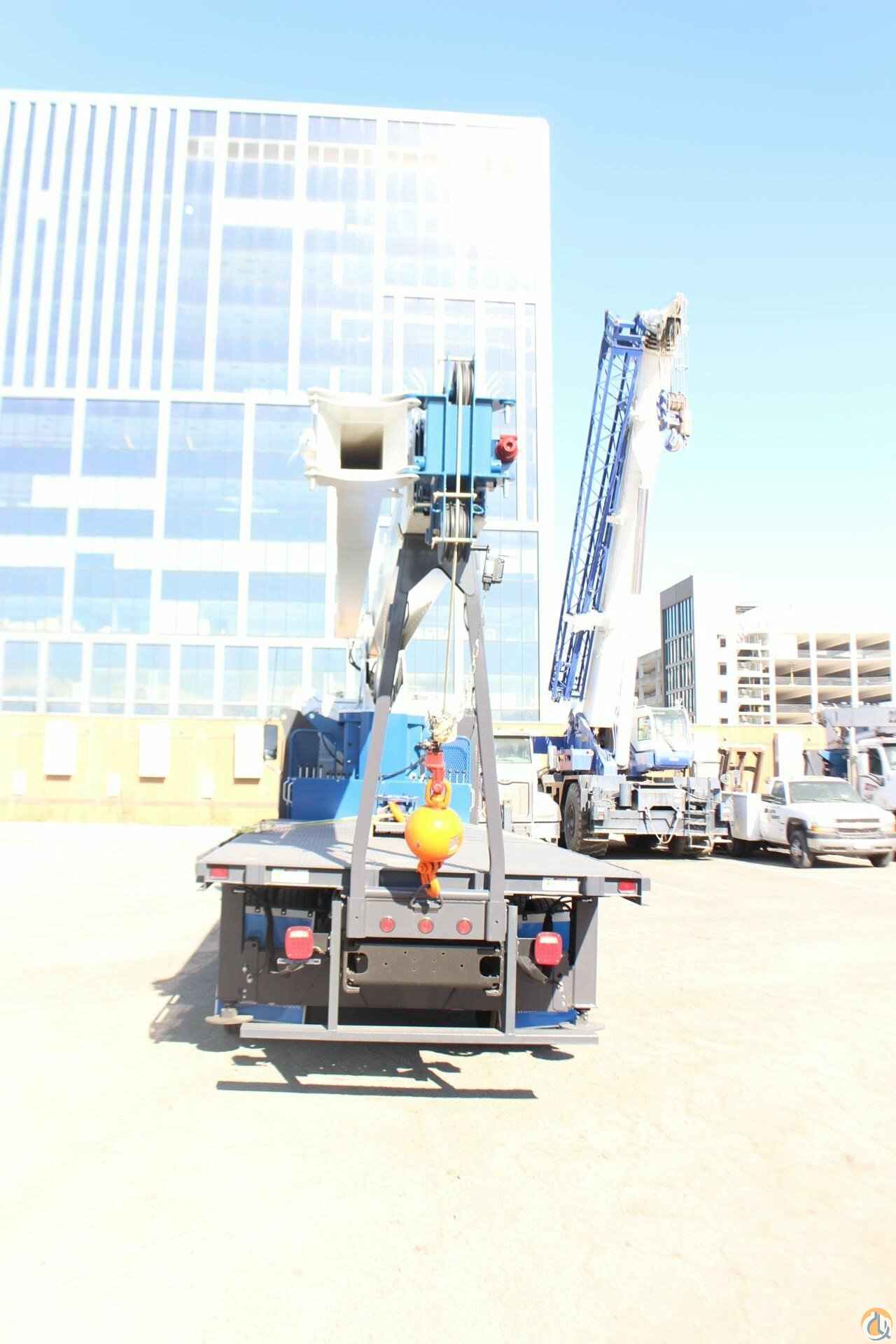

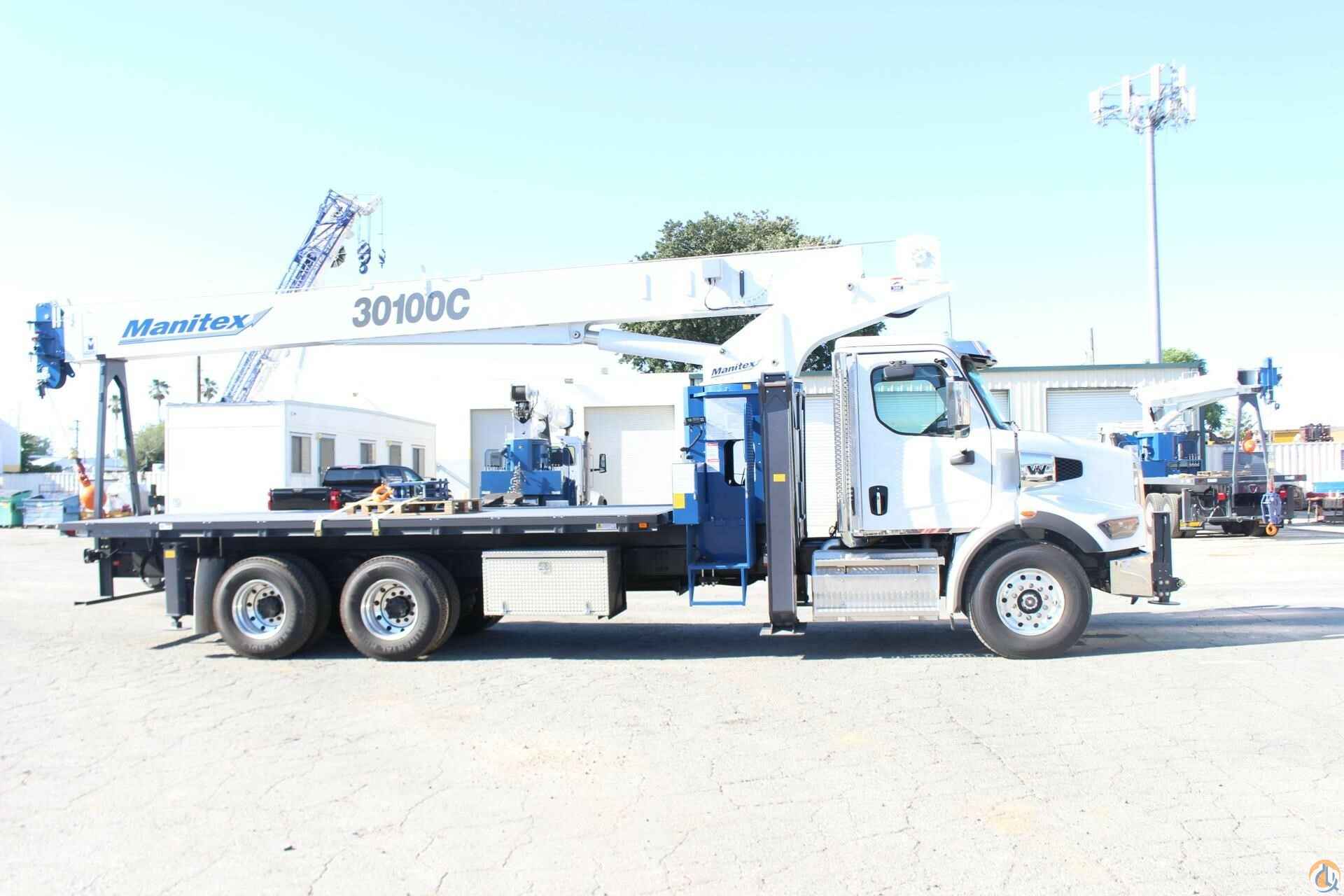

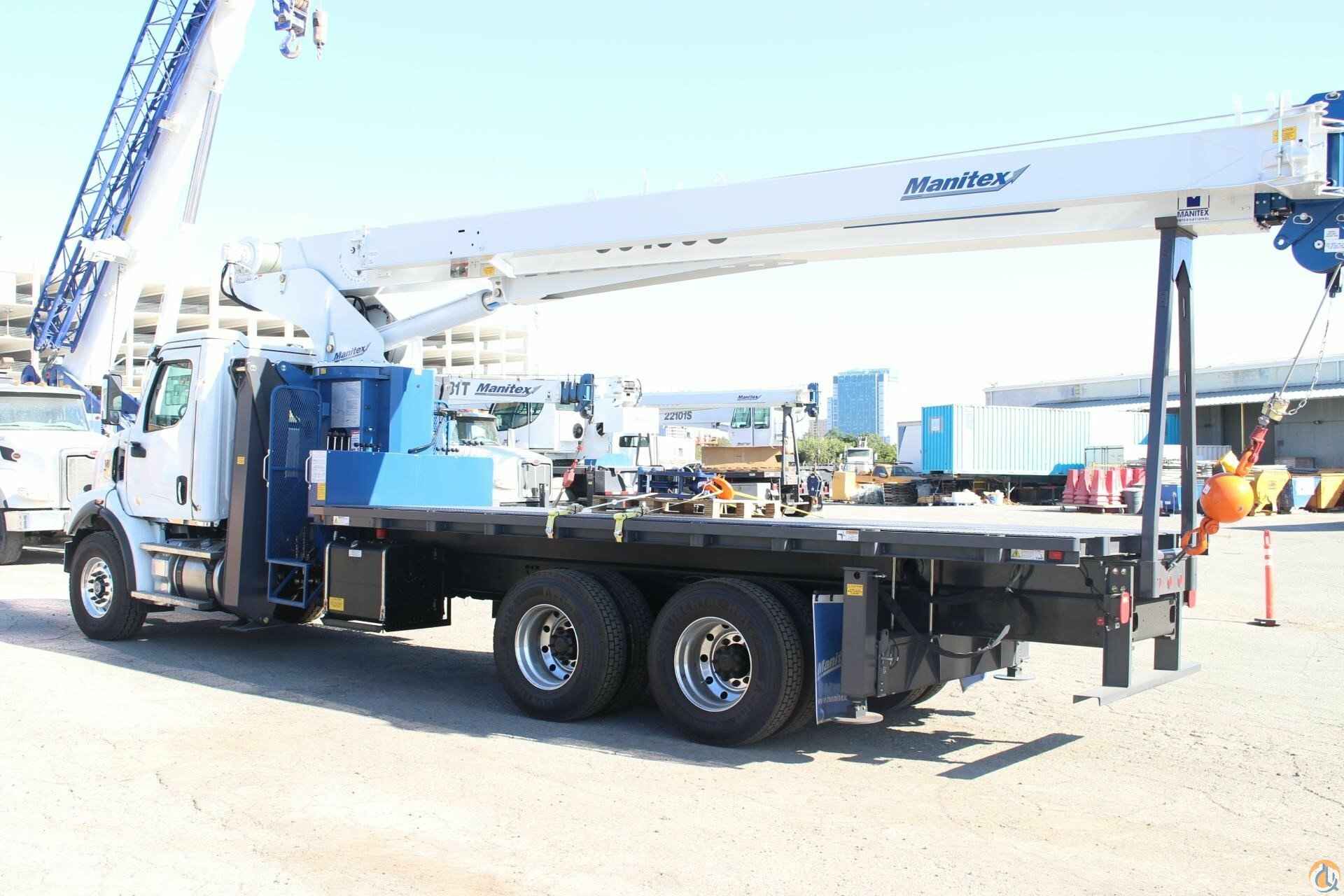

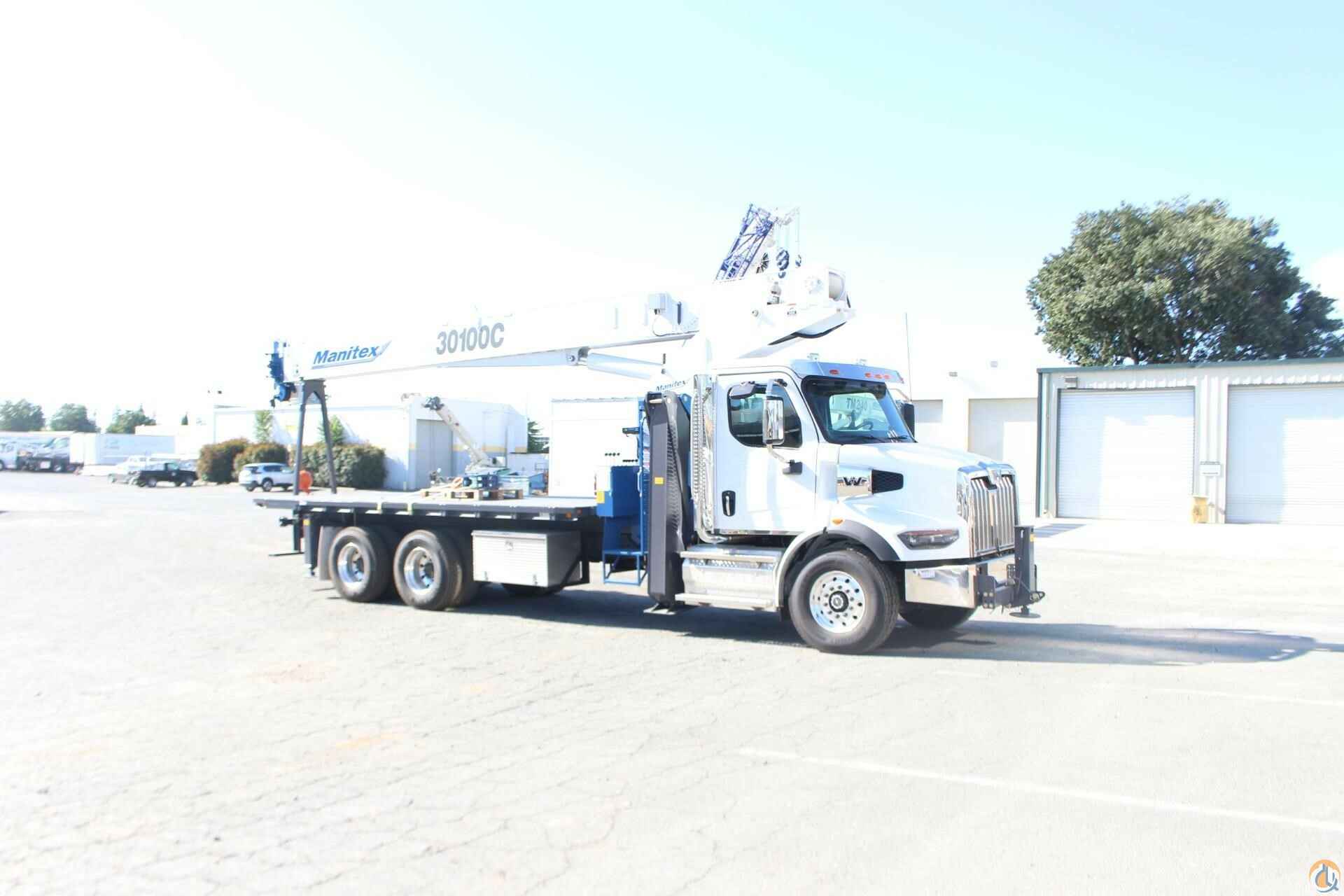

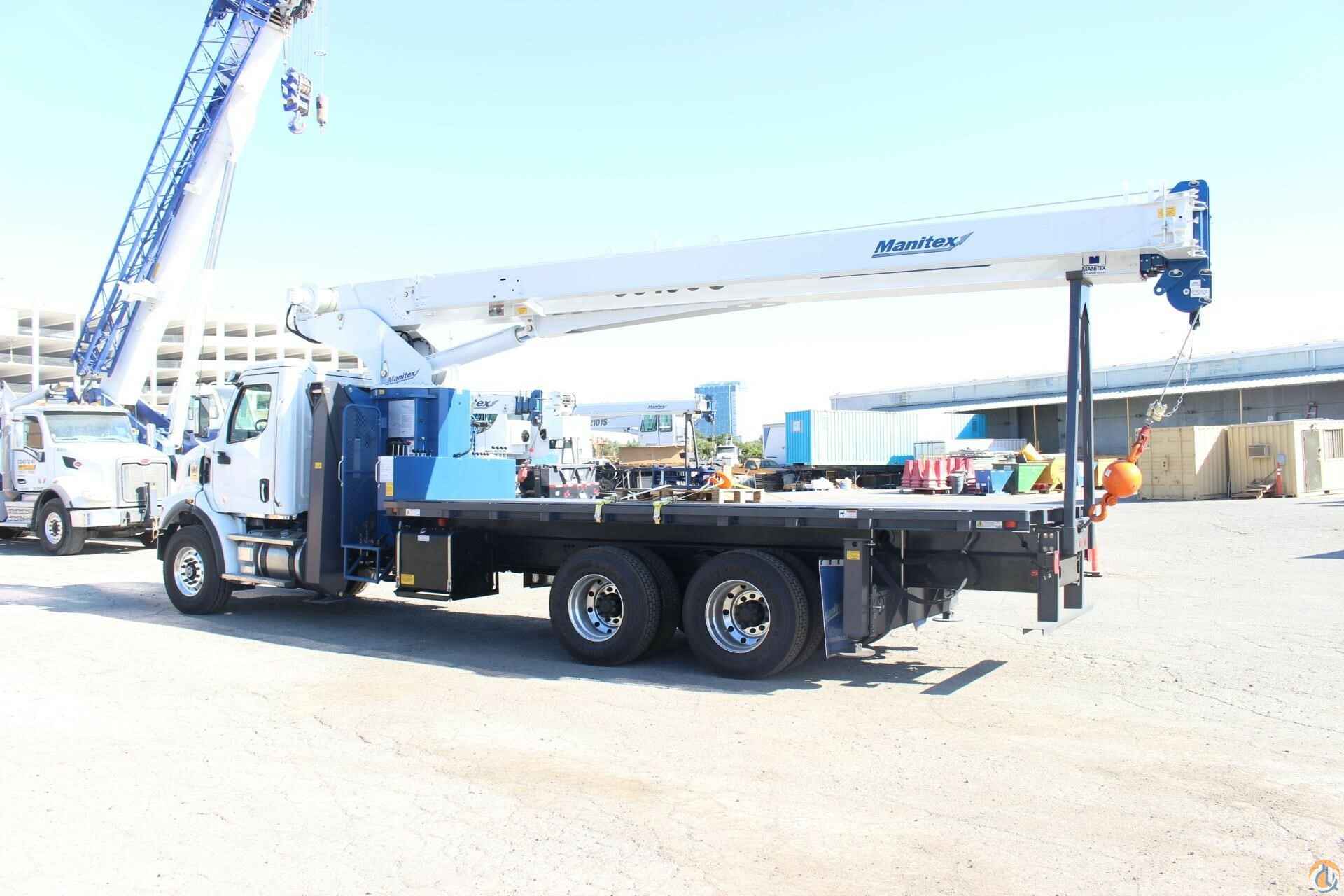

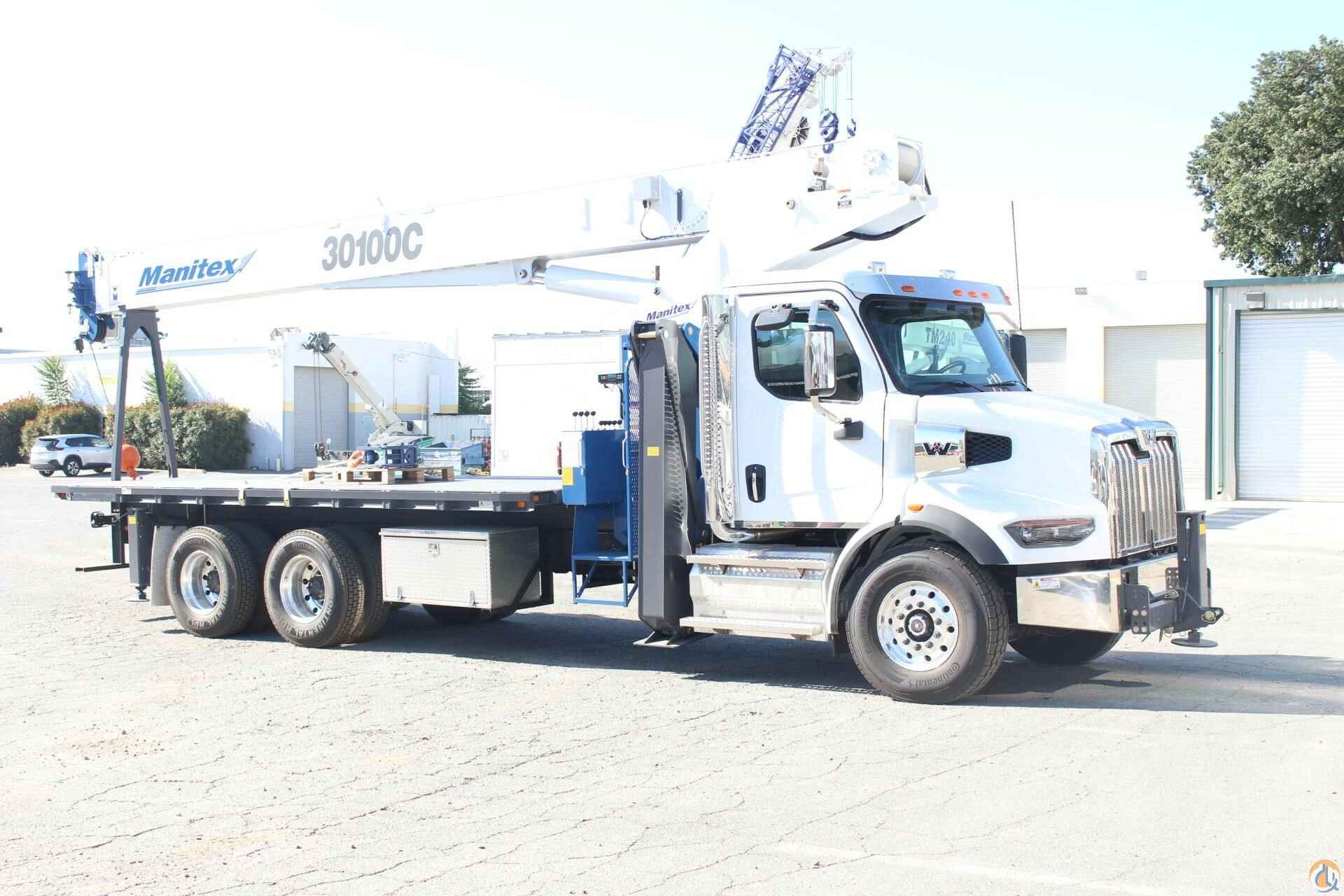

MANITEX 30100C
Standard features:
100’ Four-Section Telescopic Boom A-Frame, 7-ton hook and ball, 3- load sheave quick reeve boom head, Externally Wired anti-two block w/lockout, Boom hoist cylinder, System pressure gauge, 372° Non Continuous rotation, Removable boom rest, Engine start/stop, Operators service/parts manuals, Boom length and angle indicators, Electronic Foot throttle, Signal Horn, Bubble Level, Beverage cup holders, Braden Winch, 2-speed Hoist w/grooved drum, 335’of 9/16” Rotation Resistant Wire Rope, Subframe for 21’ Bed, 70 gallon HD reservoir w/suction strainer and ball valve, Pedestal, Swept Back Turret, Rotation bearing and Swing system, Dual Operator Control Stations, Can Bus Load moment indicator w/Internal length Cable-audio/visual capacity alert w/shutoff, Hermetically sealed Printed Circuit board electrical system w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-frame Link Type Front Outriggers (22’4” Spread Width), Out and Down Rear Stabilizers (13’7” Spread), 3-Section Hydraulic Pump-Counterclockwise Rotation is standard, Outrigger Monitoring System.
Additional Options Included:
• Radio ATB – 100’ Boom Out/Down Outrigger
• 1 Piece 26’ Jib 100’ Boom Hirsch (G)
• 21’ HH Steel Bed x 102”
• 3 section Vane Pump-Clockwise rotation
• Hot Shift PTO
• Heavy Duty Hydraulic Reservoir
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Toolbox (48” x 24” x 24”) Chassis Mount

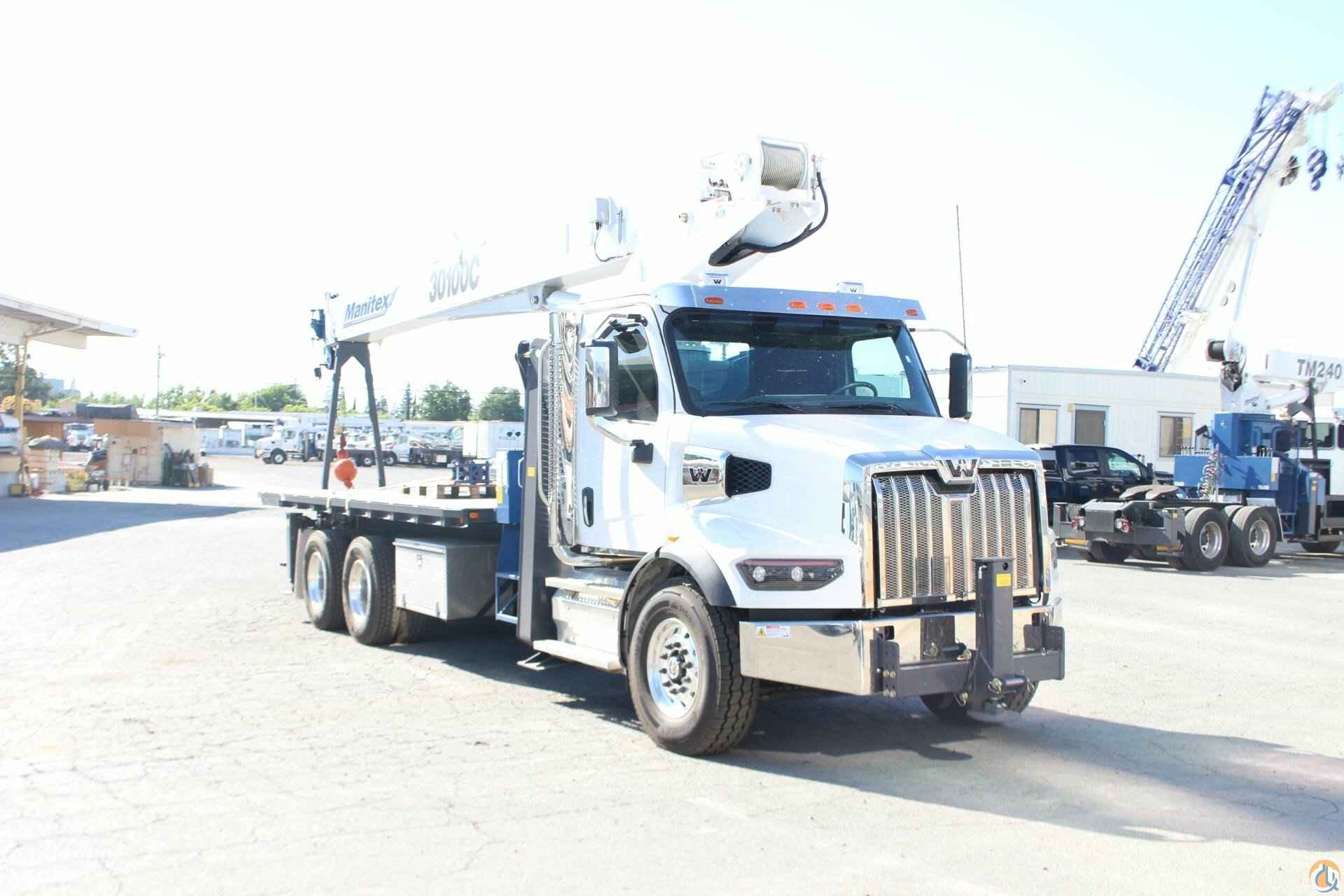

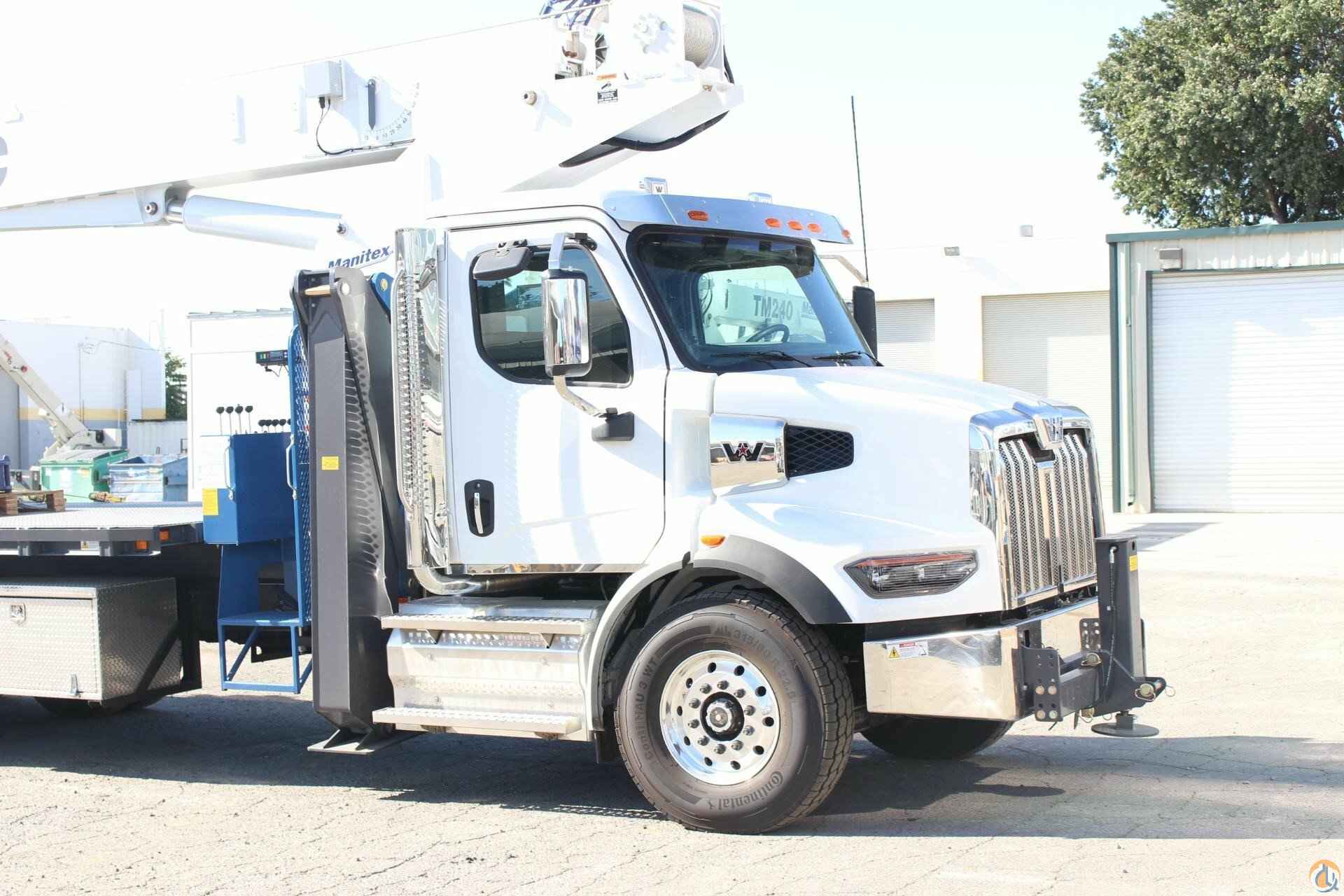

MOUNTED ON 2023 WESTERN STAR 47X
Mounted on a 2023 Western Star 47X tractor chassis with a Cummins L9 370 HP diesel engine with a Allison 3000 RDS automatic Transmission, MFS-20-133A 20,000 lb. front axle, MT40-14X 40,000 lb. tandem rear axle, TufTrac Gen2 40,000lbs. rear suspension, Single polished Aluminum 60 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, dual heated mirrors, interior color Charcoal Black, AM/FM/WB World tuner radio with Bluetooth, USB and auxiliary inputs, dual air horns, exterior stainless steel sunvisor, Halogen headlights, and unit is painted White Elite.
