Standard features:
100’ Four-Section Telescopic Boom O&D O/R, 7-ton hook and ball. 3- load sheave quick reeve boom head, Externally Wired anti-two block w/lockout, Boom hoist cylinder. System pressure gauge, 372° Non Continuous rotation, Removable boom rest, Engine start/stop, Operators service/parts manuals, Boom length and angle indicators, Electronic Foot throttle, Signal Horn, Bubble Level, Beverage cup holders, Braden Winch, 2-speed Hoist w/grooved drum, 335’of 9/16” Rotation Resistant Wire Rope, 70 gallon reservoir w/suction strainer and ball valve, Pedestal, Swept BackTurret, Rotation bearing and Swing system, Dual Operator Control Stations, Can Bus Load moment indicator w/Internal length Cable-audio/visual capacity alert w/shutoff, Hermetically sealed Printed Circuit board electrical system w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-frame Link Type Front Outriggers (22’4” Spread Width), Out and Down Rear Stabilizers (13’7” Spread), 3-Section Hydraulic Pump-Counterclockwise Rotation is standard, Outrigger Monitoring System.
Additional Options Included:
• Radio ATB – 100’ Boom Out/Down Outrigger
• 2 Piece 26’ – 46’ Jib 100’ Boom
• 21’ HH Steel bed
• Heavy Duty Hydraulic Reservoir Mount mounting
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• Control valve for operation of single stabilizer
• Aluminum Tool Box (36” x 24” x 24”) Chassis Mount
• Wireless Radio Remotes for both Aerial (luffing, Telescope, Swing) & Ground (includes Winch)
• 2 Person (600 lbs. capacity) Steel Gravity Leveled Basket with Friction Brake

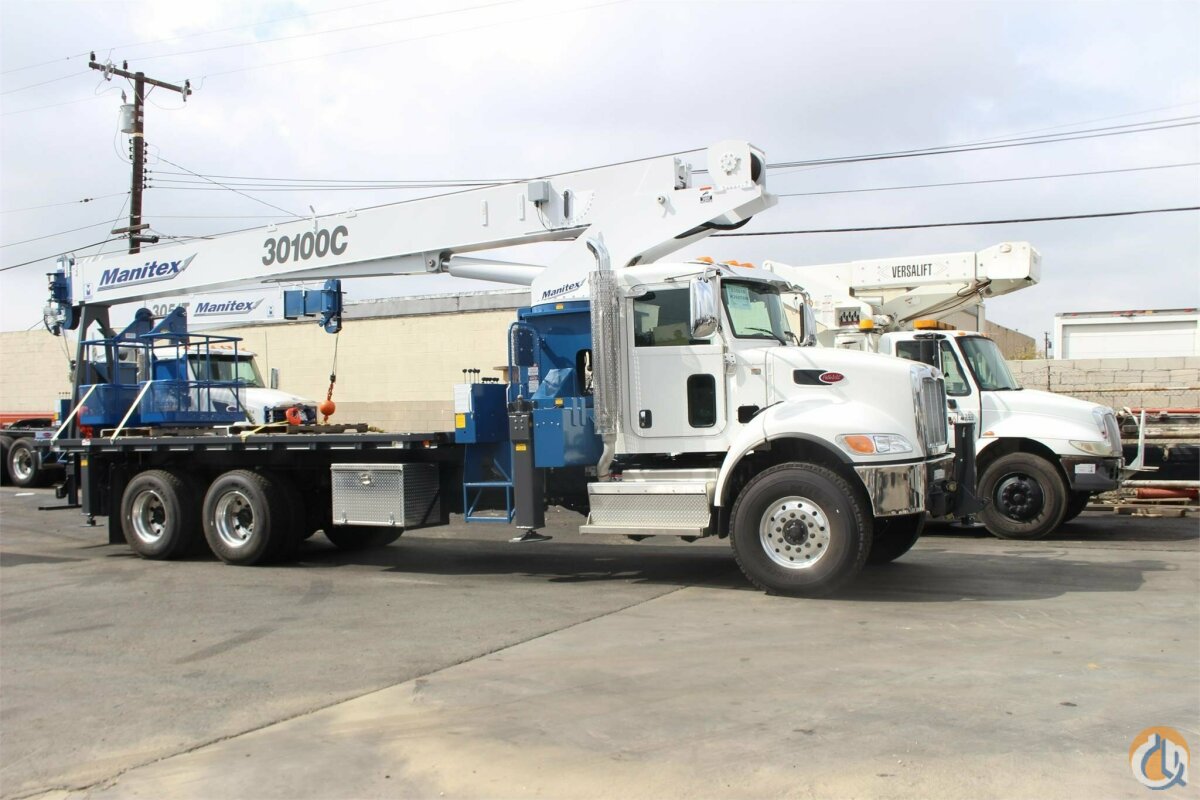

Mounted on a 2019 Peterbilt 348 tractor chassis with a Paccar PX-9 380 HP diesel engine, 10-speed RTO14908LL Eaton Fuller Transmission, Dana Spicer 20,000 lb. front axle, Dana Spicer DSH40 40,000 lb. rear axle, Full set of Alcoa Polished wheels, Single Aluminum 50 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Grey/Black, AM/FM/WB/MP3/USB/CD radio with Bluetooth, Air horn mounted under cab, dual heated mirrors, Stainless steel sunvisor, Composite Fender mounted headlights, and unit is painted Axalta Two Stage White.
  • Year: 2019
  • Capacity: 30.00
  • Condition: Good
  • Unit #: 80863
  • Serial #: 265776
  • Location: Santa Ana California USA
