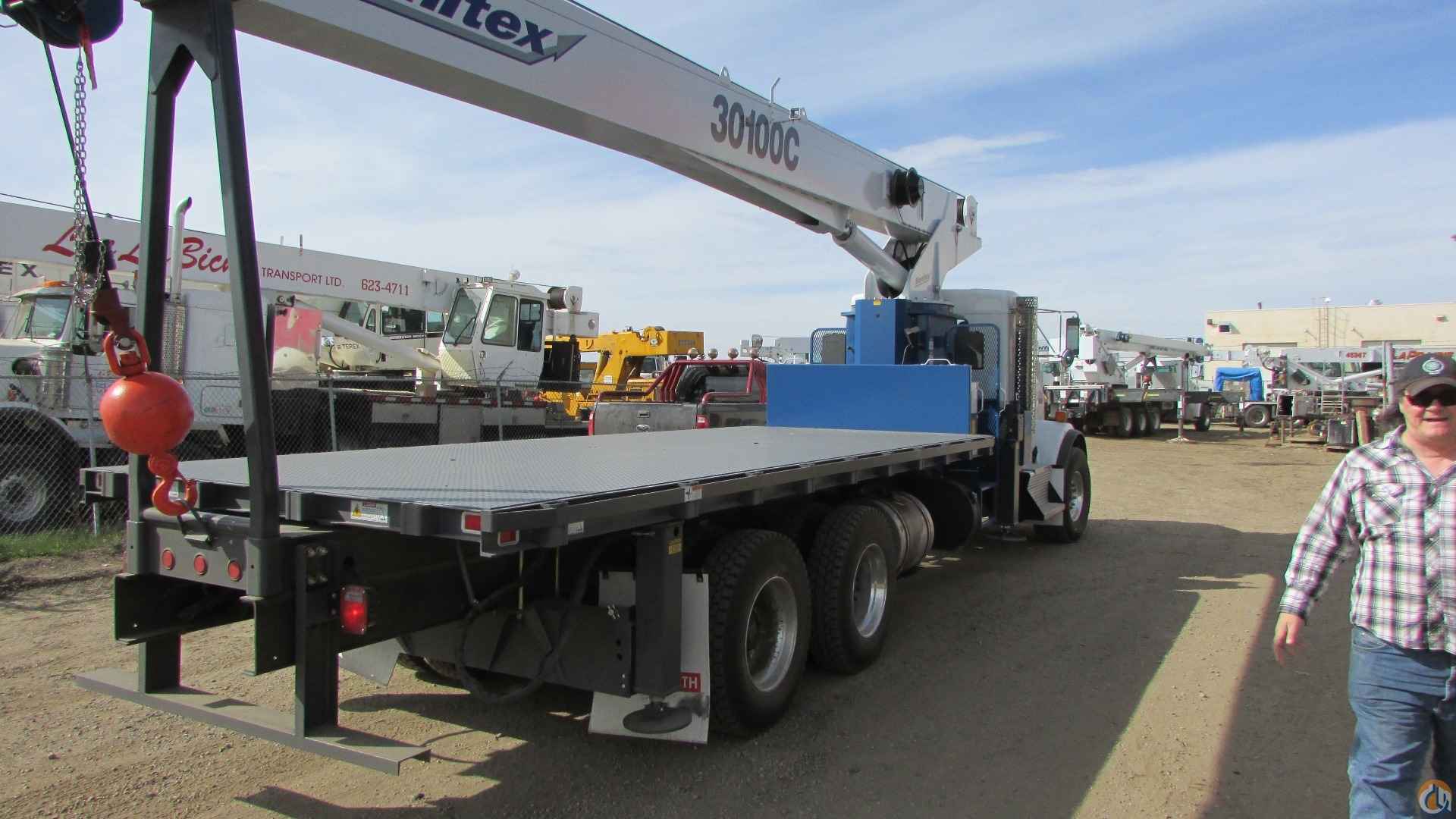

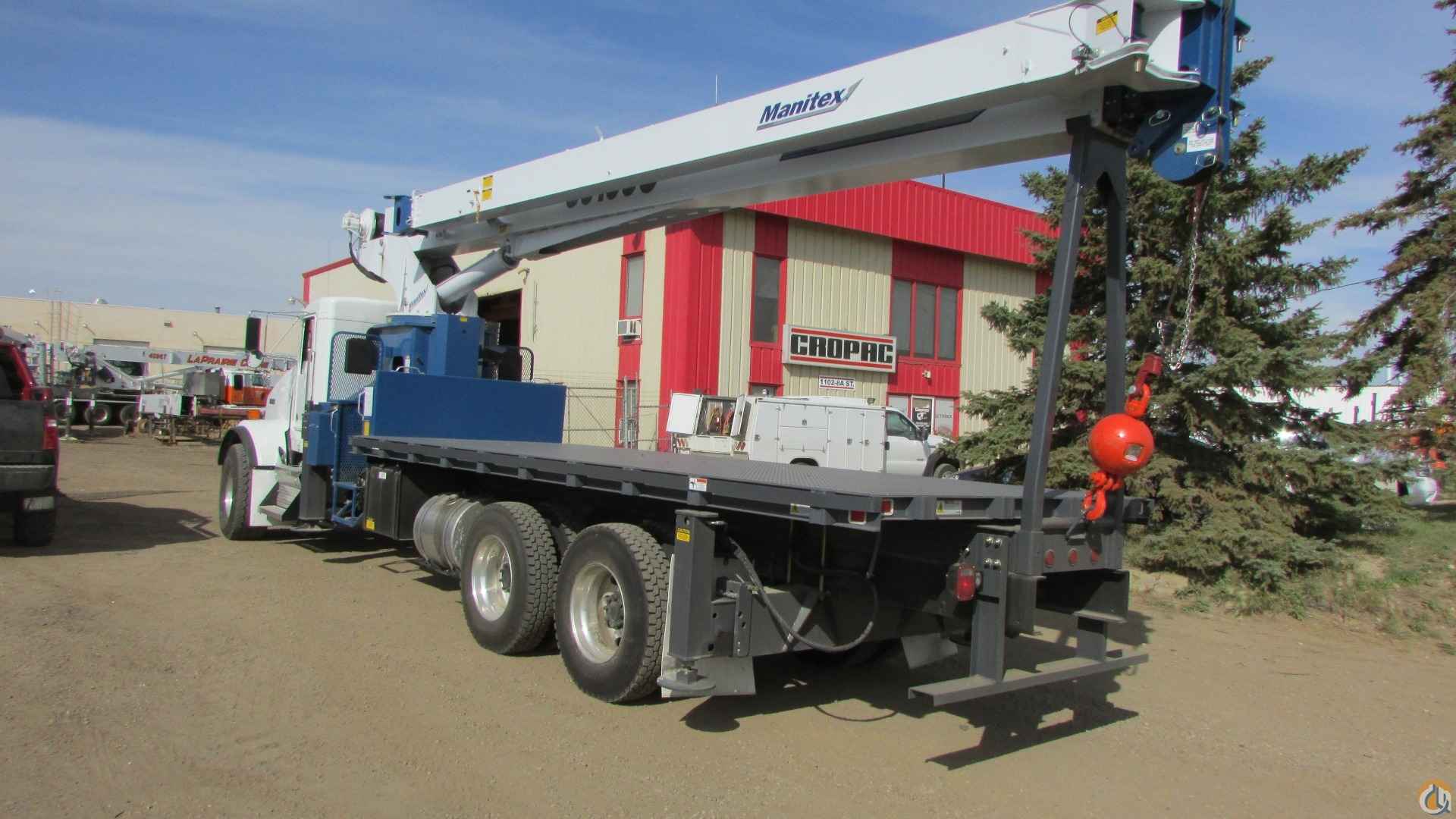

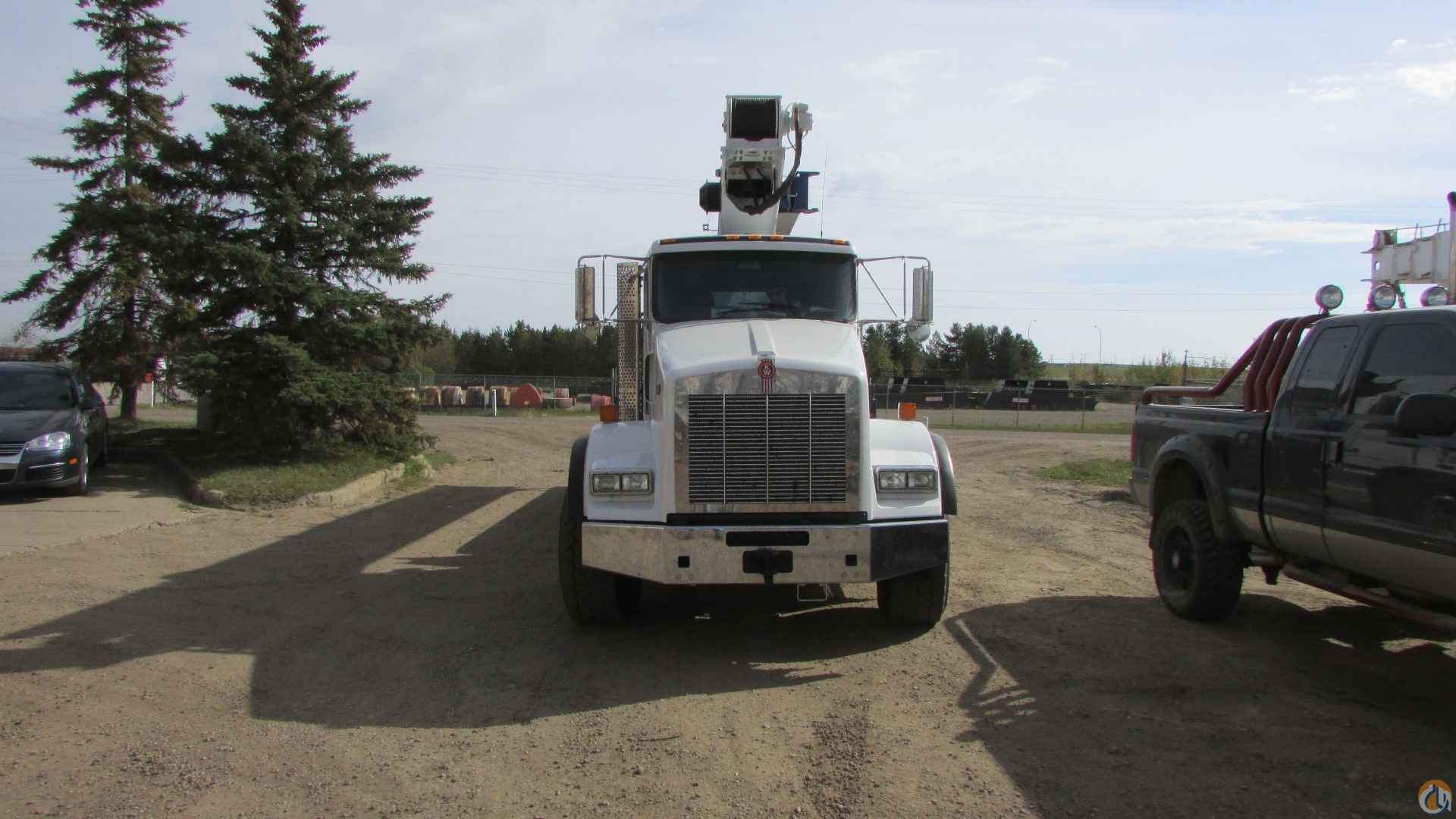

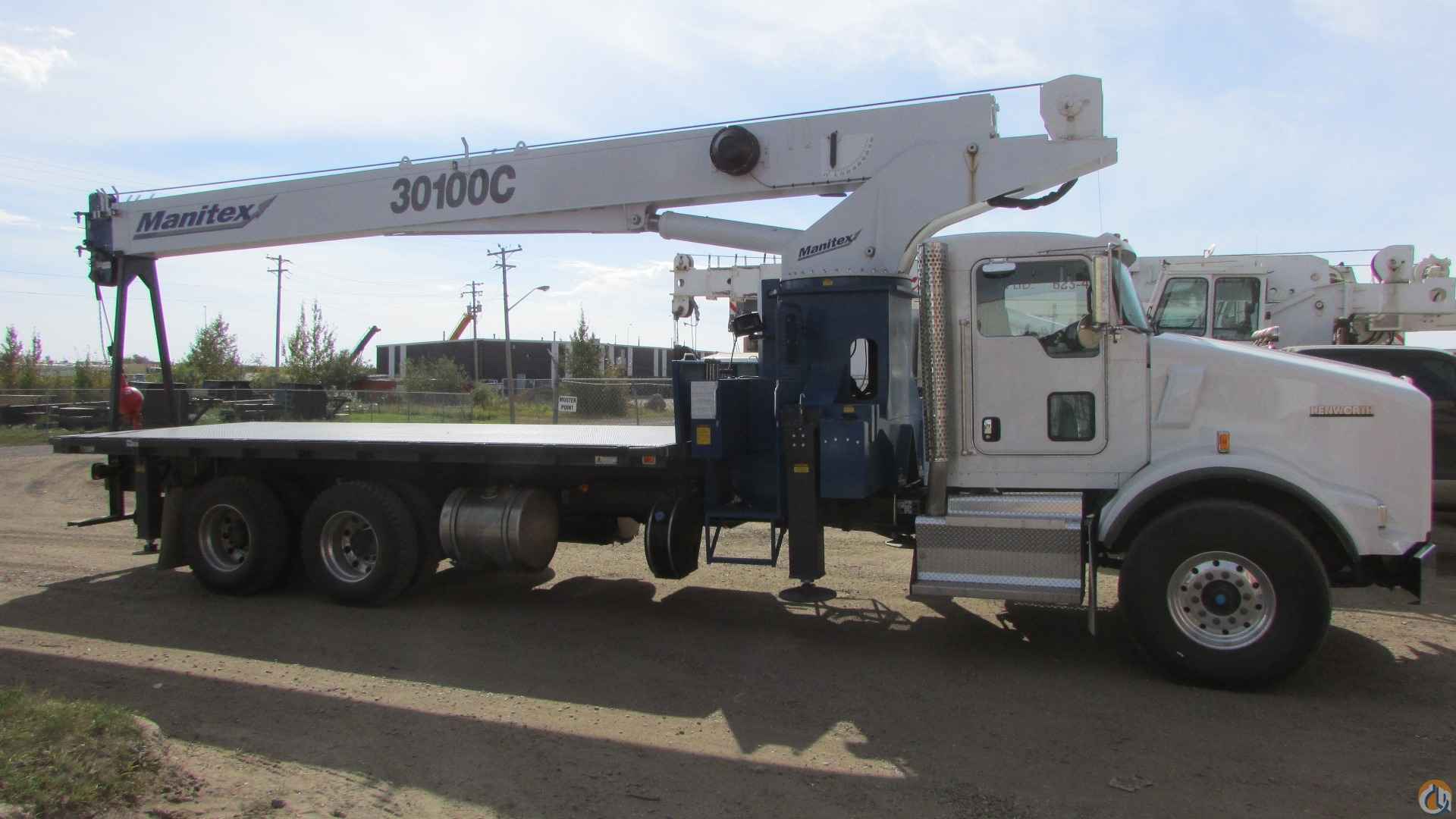

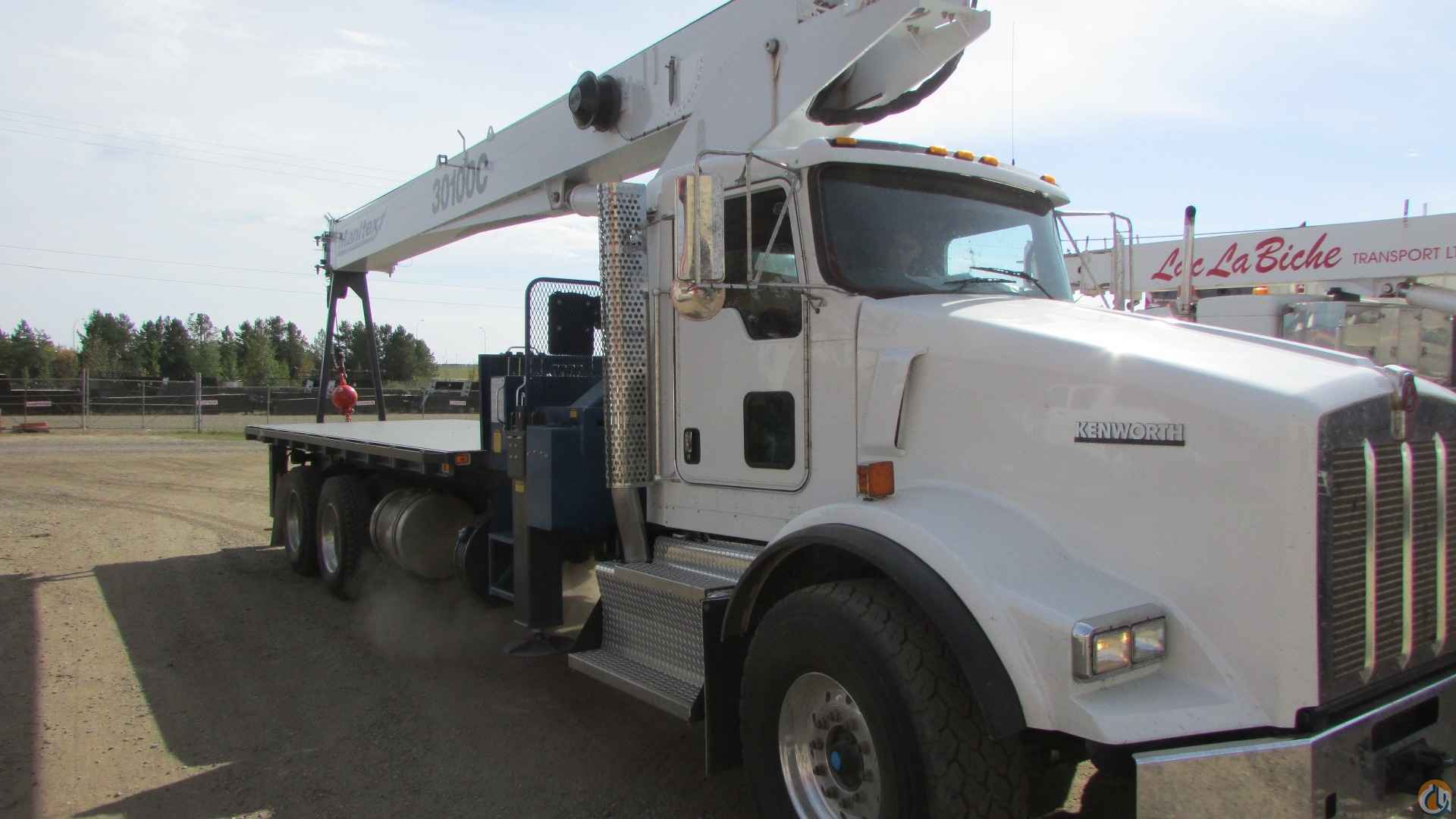

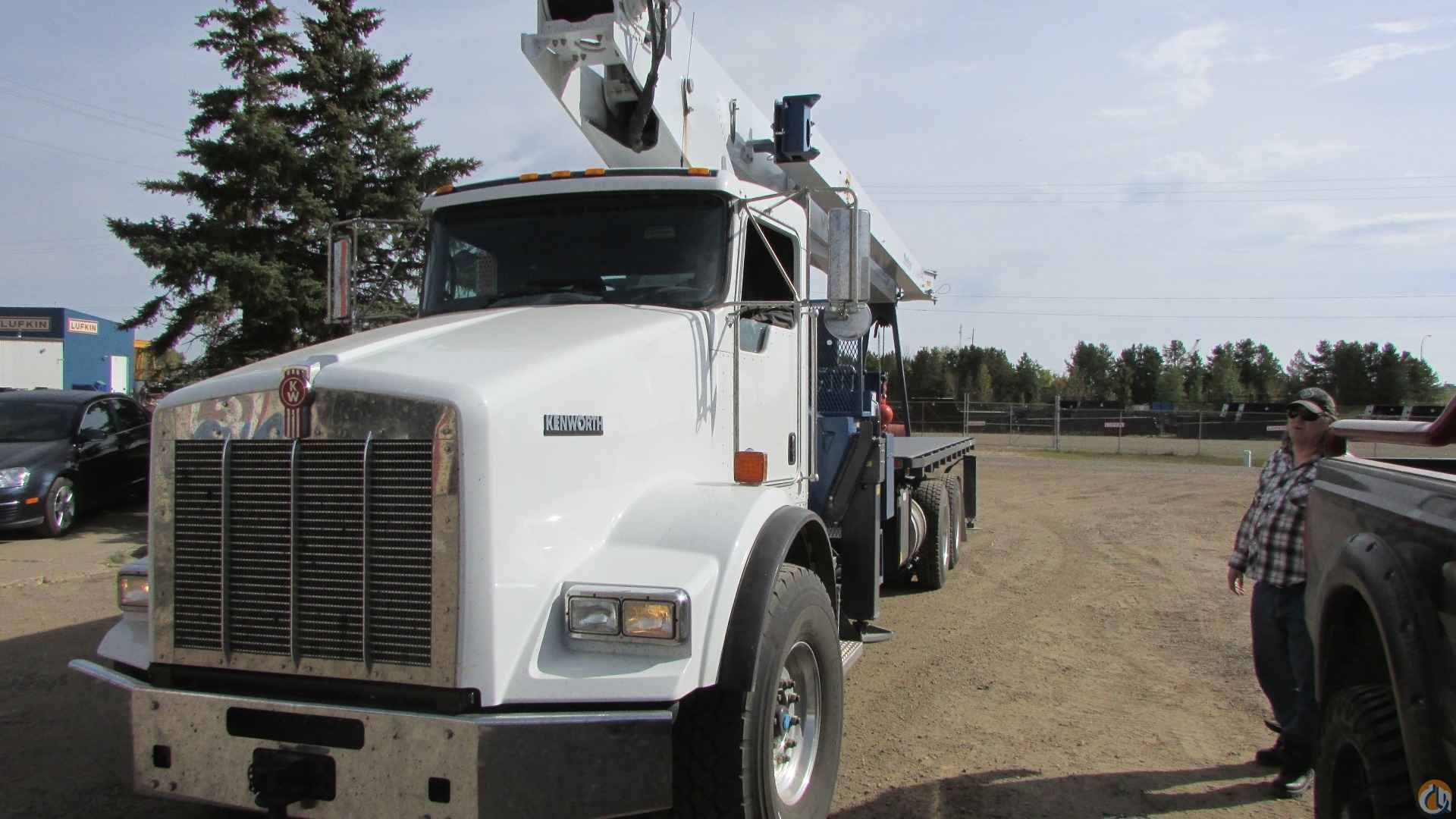

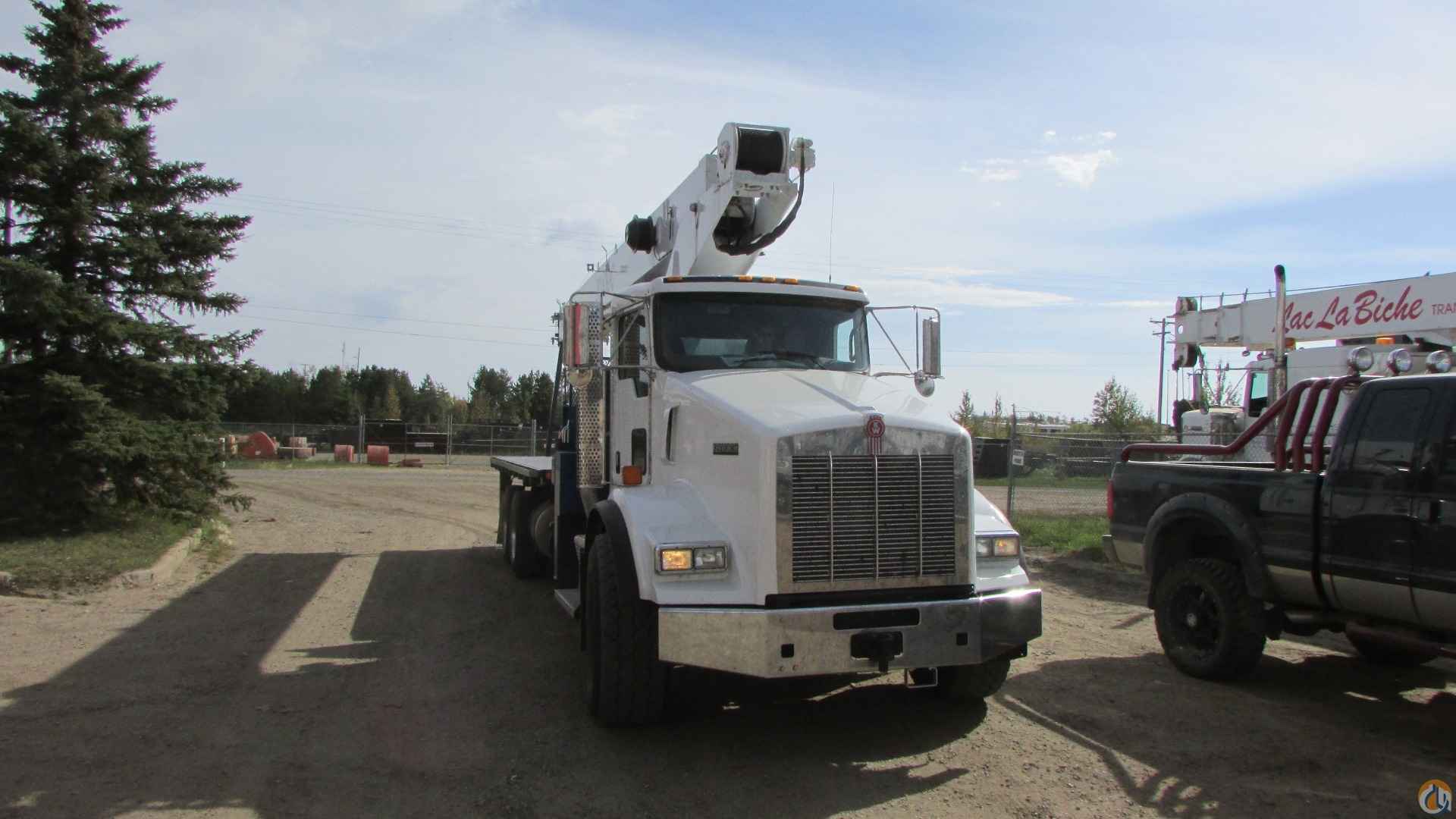

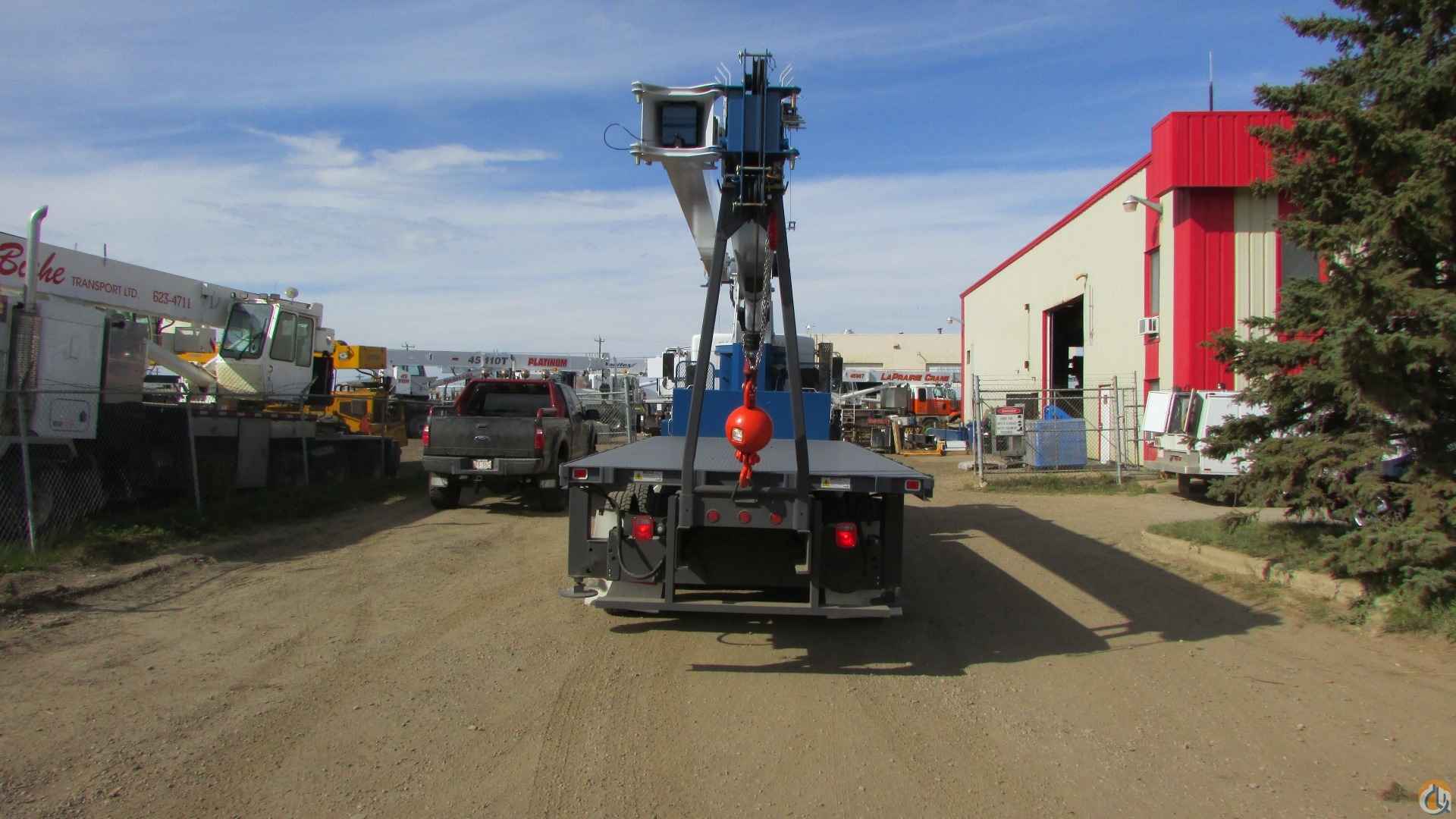

One new Manitex Model 30100C A Frame - 30 Ton
100’ four section main boom with quick reeve head
Two piece 46’ swing-away jib
A Frame front stabilizers
2 Speed planetary hoist W/ Grooved drum
Single sheave quick reeve block for three part line
5 Ton hook & ball
335' , 9/16” rotation resistant wire rope
21’ steel deck with 24” headboard
Greer Can Load Moment Indicator w/Internal Length Cable Audio/visual with shutoff.
372 Degree non-continuous rotation
Radio Anti-two block with cut out
Dual operator control stations
Removable boom rest
Out and down rear stabilizers
Mounted on a new 2014 Kenworth T800
20,000 lbs. Front axle
40,000 lbs. Rear axle (46,000 lbs. airliner suspension)
Cummins ISX15 425 HP
16908LL – 10 speed transmission
Air conditioning
