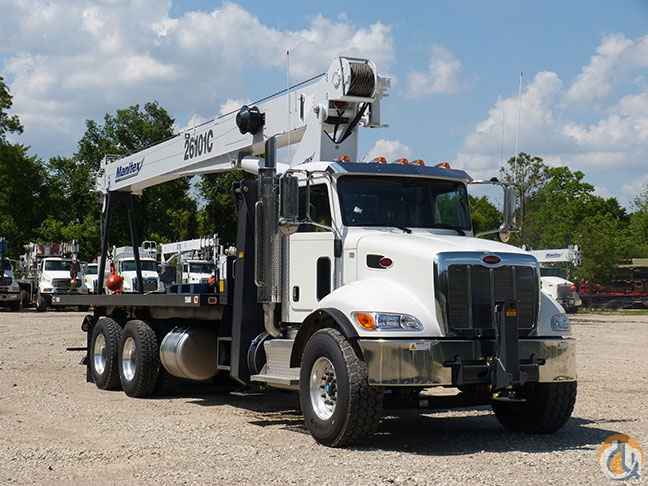

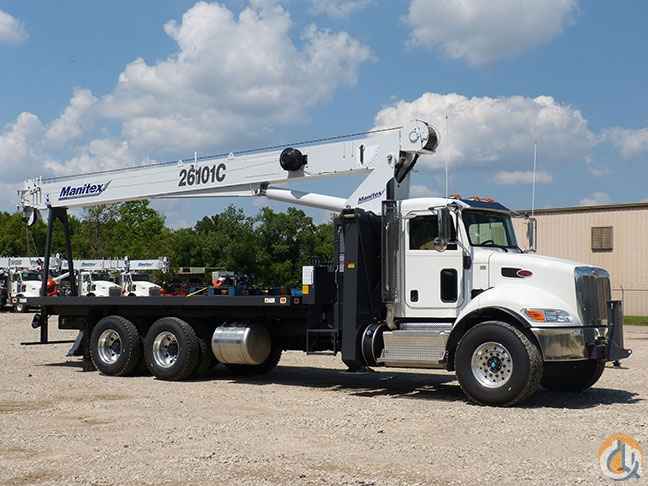

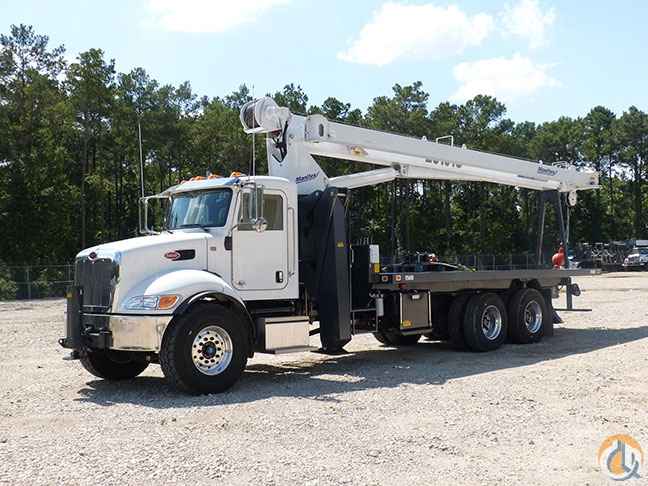

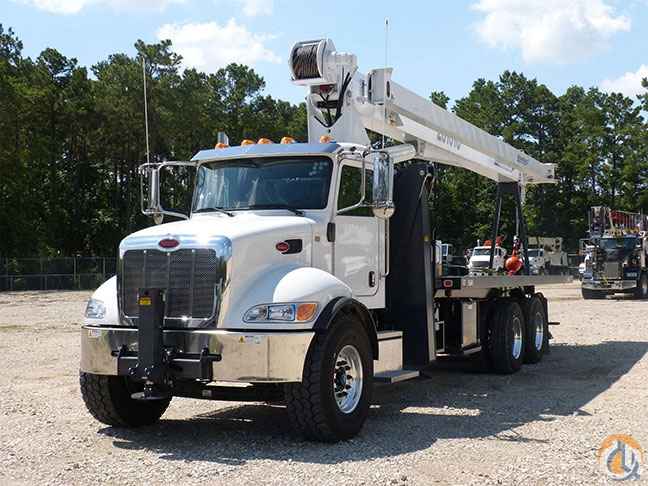

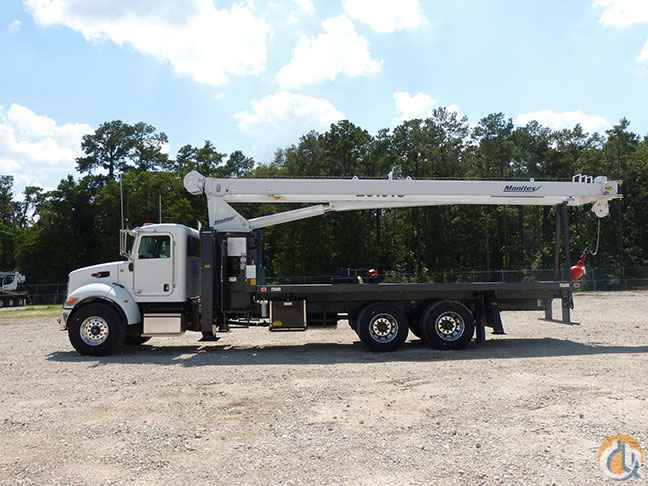

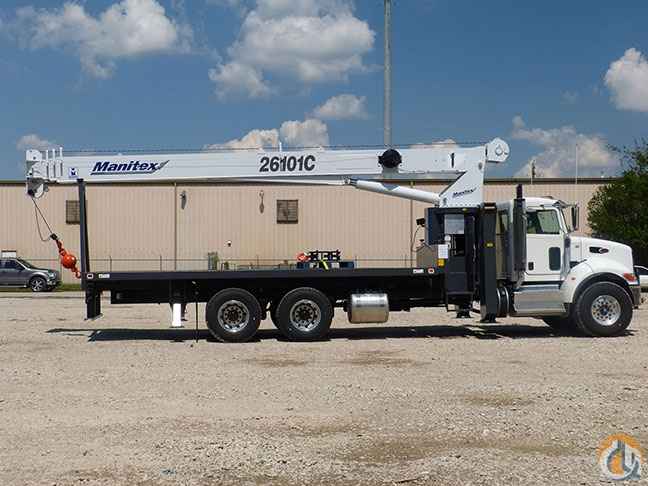

Manitex 26101C Boom Truck Crane (Sold)

STANDARD FEATURES

2-speed Hoist w/ Grooved Drum

5 Ton (4.5 mt) Hook and Ball

3-Load Sheave Quick Reeve Boom Head

Radio Anti-Two Block w/ Lockout

Boom Hoist Cylinder

System Pressure Gauge

372° Non Continuous Rotation

Removable Boom Rest

Engine Start/Stop

Operator's Service/Parts Manuals

Boom Length and Angle Indicators

Function Overload Shutoff

Electronic Throttle

Bubble Level

SignalHorn

Subframe for 22’ (6.71 m) Bed

4-Section Telescopic Boom

300' of 9/16" (14.3mm) EIPS IWRC Wire Rope

70 Gallon (265 liter) Reservoir w/Suction Strainer & Ball Valve

Pedestal, Turret, Rotation Bearing & Swing System

Dual Operator Control Stations

Load Moment Indicator -Audio/Visual Alert w/Shutoff

Audible Outrigger/Stabilizer Motion Alarm

A-frame Outriggers (21' 6" Spread Width)

A-frame Rear Stabilizers

3-Section Hydraulic Gear Pump Counterclockwise Rotation is Standard

Outrigger Monitoring System for Verification only.

INCLUDED ITEMS

26101C 101' Four-Section Telescopic Boom

22' Steel Bed w/ 1/8” steel tread plate

1 Piece 29’ jib

Standard Mount Installation

3 Section Vane Pump Clockwise Rotation Required with Automatic Transmissions

Hotshift PTO (Required with Automatic Transmission)

Drive Shaft for Pump Installation (Required with Automatic Transmission)

15 ton 1-Sheave Quick Reeve Block for 2-3 part line

Chassis Mounted Hydraulic Reservoir in lieu of standard

Front Center Stabilizer (Requires Additional Mounting Charge)

Mounting--Front Center Stabilizer

Control valve for operation of single stabilizer, Required w/FBS

TRUCK

2016 Peterbilt 348, Tandem axle chassis

Paccar PX-9 engine, 350 HP @2000 RPM; 1000 Lb./Ft/ @ 1400 RPM

Jacobs C-Brake, engine compression brake

Cruise control

Allison 3000 RDS-P Transmission, automatic

Dana Spicer D2000 front axle, 20,000 lb.

Dana Spicer DSP 41 rear axle, rated @ 40,000 lbs. w/ Differential Locks (2) axles

Wheel differential locks, both rear axles

Neway ADZ 246 air ride suspension, 46,000 lb.

Front tires: Bridgestone M854, 425/65R 22.5 on Alcoa aluminum wheels

Rear Tires: Bridgestone M799, 11R 22.5 on Alcoa aluminum wheels

Single, 70 gallon aluminum fuel tank, 11 gal DEF tank

Peterbilt UltraRide air suspension , high back driver seat

Peterbilt UltraRide air suspension, high back passenger seat

Tilt/Telescope steering column

Peterbilt “ConcertClass” AM/FM/WB/CD/USB/Sat/MP3 w/ Bluetooth

CabMate, cab air suspension
