Type: Boom Truck Cranes
Make: Manitex

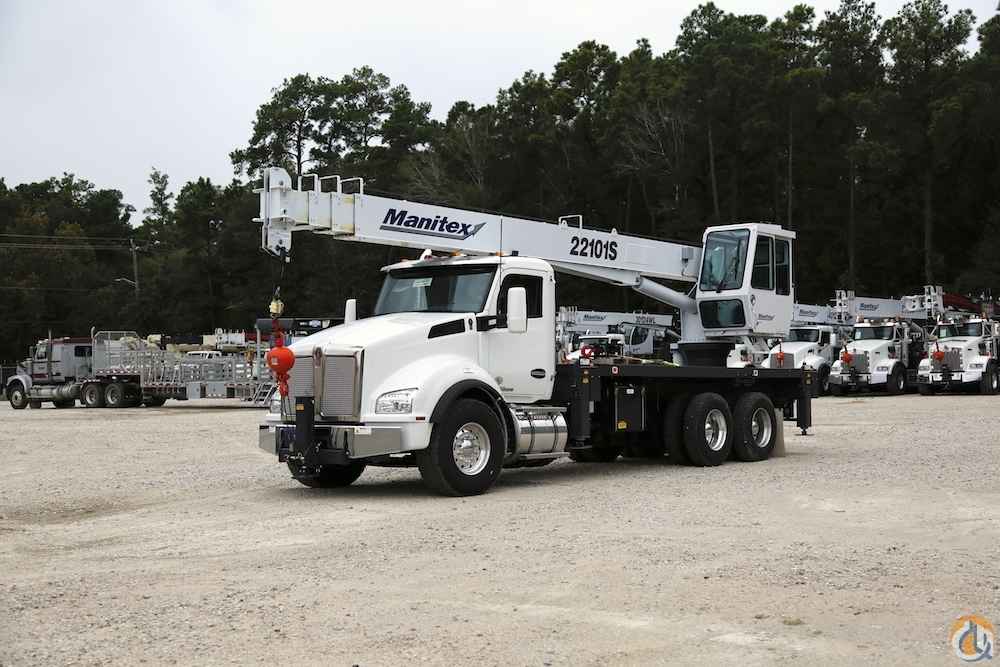

Model: 22101 S
Year: 2019
Capacity: 22.00 Tons
Condition: New
Serial #: 261415
Unit #: PO42671
Location: Houston, Texas
Boom: 101
Available for immediate sale with delivery in April 2018.
22 Ton (20 mton) Capacity
4-Section 101’ (30,8 m) Proportional Boom
29’ (8,8 m) Fixed Jib
29’ (8,8 m) to 52’ (15,9) Telescopic Jib
139’ 10’’ (42,6 m) Maximum Tip Height
Self-Lubricating Slider Pads
Continuous Rotation
Retracted, Intermediate and Fully Extended Outrigger Charts are Standard
Pilot Operated Controls
2-Speed Planetary Hoist with Grooved Drum and Negative Draft Flange
Load Moment Indicator features Digital Display, CAN Bus Interface and Internal Boom Length Cable
Overload Shutdown
Radio ATB
Radio Load Cell Option
Rugged Weatherproof Electrical
System with Circuit Status LEDs
System Pressure Gauge
Optional Cab; Heater and Air Conditioner options
Clamp-On Mounting
Manitex UPTime Comprehensive Support
Inverted T-cross section, 3 or 4-section telescoping type, extended and retracted proportionally by a double-acting hydraulic cylinder and cable-crowd system. Equipped with easily replaceable teflon-plugged nylatron wear pads for smooth operation.
4-section 29’6”(9m) to 101’-6”(30,9m). 1-Section, 29’ (8,8 m) jib
Quick Reeve Boom Point – Three high-density nylon load sheaves mounted on heavy-duty roller bearings. Two removable pin-type rope guards.
Boom Elevation – Double-acting hydraulic cylinder. Working range from 9.5° below horizontal to 80.5° above.
Load Hook – 5-ton (4,5 mton) capacity hook with heavyduty swivel and weight is provided for single-line operation.
Maximum theoretical line speed 300 fpm (91 mpm). Maximum theoretical bottom-layer line pull 11,500 lb (5 216 kg).
Two-speed planetary reducer with wet multidisc spring applied, pressure-released internal brake and grooved drum.
Wire Rope – 300’ (91,4 m) of 9/16” (14,3 mm) diameter 6 X 25 EIPS IWRC.
Externally mounted, double-reduction planetary gearbox driven by hydraulic motor. Maximum swing speed 1.5 rpm. Spring-applied hydraulically-released Parking Brake. Ball-bearing swing circle with external gear. Continuous rotation is standard. Manitex ACCUSwing control allows operator to adjust crane swing speed up to a maximum of 1.5 rpm (nominal).
Out-and-down style outriggers, operated independently for precise leveling. Fully extended, intermediate extension and fully retracted positions. 12” (305 mm) diameter floats. Bubble level located near outrigger controls.
Lower frame is mounted to chassis by threaded rods and clamp plates. No welding, drilling, or bolting to truck frame is required.
Lower Frame – Torsion resistant, rigid 4-plate design with integrated outrigger and pedestal.
Rear Underride Protection – Supplied on factory mounted cranes. Fabricated structure mounted at rear of carrier. Complies with Bureau of Motor Carrier Safety Standard 393.86.
Boom Rest – Heavy-duty fabrication, removable.
Single operator platform and seat mounted to turret. Four “pilot operated” single-axis crane controls provide precise metering and multifunction capability. Swing is further refined using Manitex ACCUSwing control to allow setting to individual operator preference. Controls are arranged in accordance with ANSI B30.5 standards. The operator station also includes engine start/stop, air foot throttle, signal horn, load moment indicator display, boom angle indicator, load chart and range diagram. Enclosed cab optional, heater and air conditioner options also available.
Hydraulic System – A 3-section pump direct-mounted to power take-off on truck transmission provides 32 gpm (123 lpm) to the hoist, 21 gpm (78 lpm) to the boom hoist and telescope circuit, and 10 gpm (38 lpm) to the swing and outrigger circuit. 70-gallon (265 liter) baffled hydraulic reservoir with strainer and 25-micron filter in the return line. Ball-type shutoff valve and strainer are provided in suction line. Use of SAE O-ring and face seal O-ring hydraulic fittings throughout system.
Hydraulic Cylinders – All load-holding cylinders are equipped with integral holding valves.
Load Moment Indicator (LMI) – CAN bus system maximize expansion capabilities. Senses boom hoist cylinder pressure, boom length and boom angle. Audio-visual warning indicates overload conditions and overload shutoff feature prevents continuing overload. Operator can access all load conditions via display at the operator station. Internal boom length cable.
Radio Anti-Two-Block System – Audible warning and shutoff functions prevent hook from contacting boom point.
Back-Up Alarm – Electronic audible motion alarm activated when truck transmission is in reverse gear.
Radio Load Cell – Required option on HYCAS machines for jib operations, includes wireless transmitter and receiver/display. Screen displays weight of load on crane hook; intended as an operator aid, helps prevent against jib overloads.
Electrical – State-of-the-art, weather-resistant components throughout. Hermetically sealed power in relays. Enclosure includes power in relays and circuit status LEDs. Designed to withstand high pressure washing and varying climates.
Design/Welding – Design conforms to ANSI B30.5. Welding conforms to AWS D1.1. Tested to SAE 1063 and SAE 765.
Manuals – Operator / maintenance and parts manuals depict correct crane operation, maintenance procedures and parts listing.
Warranty – 12-month warranty covers parts and labor resulting from defects in material and workmanship.
