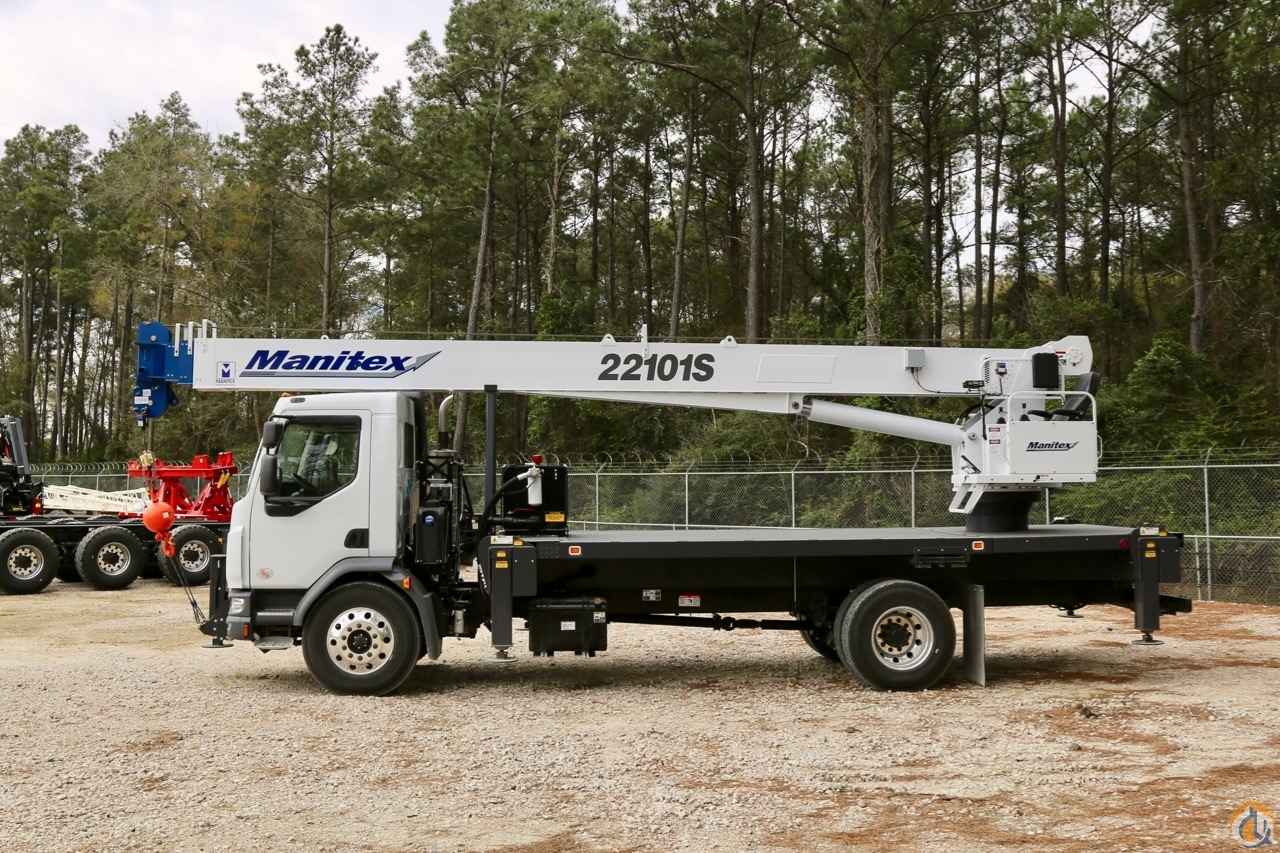

STANDARD FEATURES

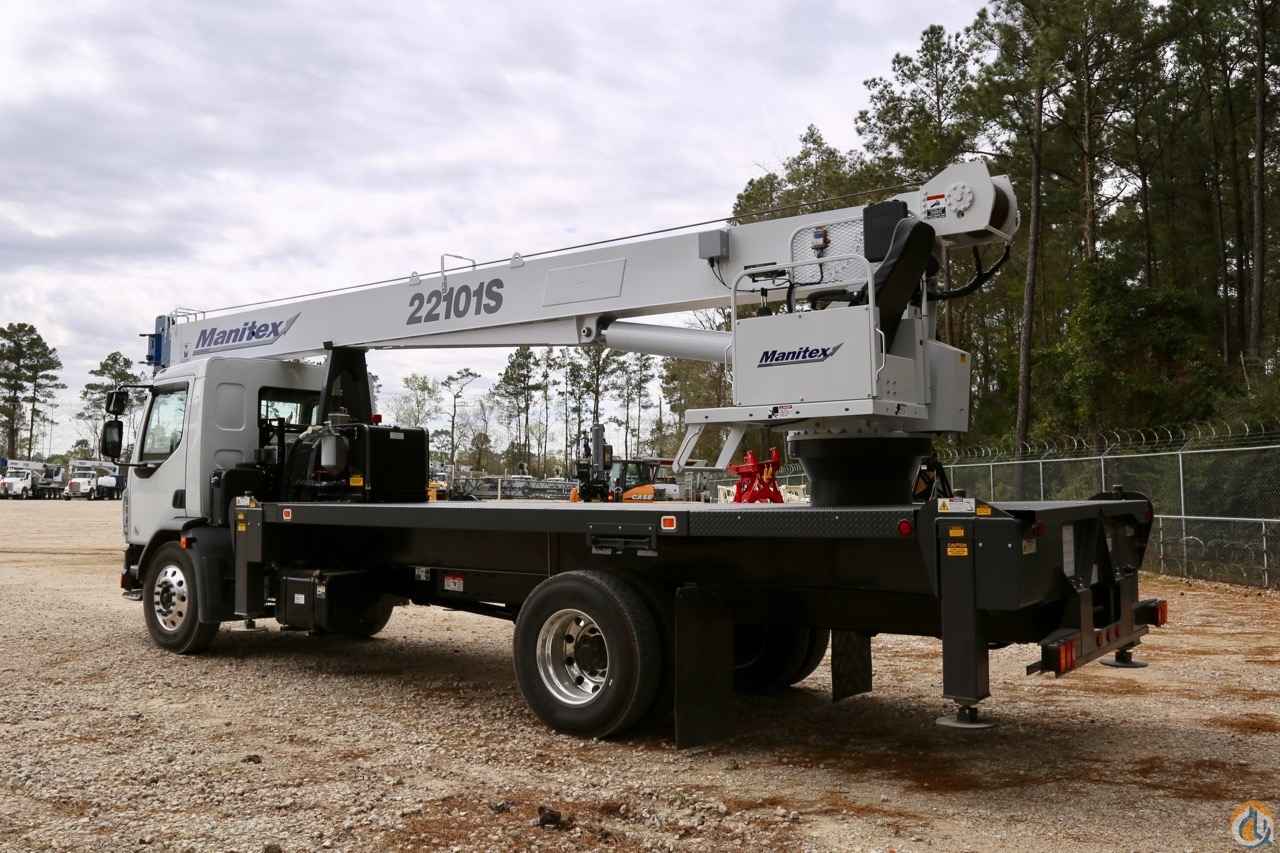

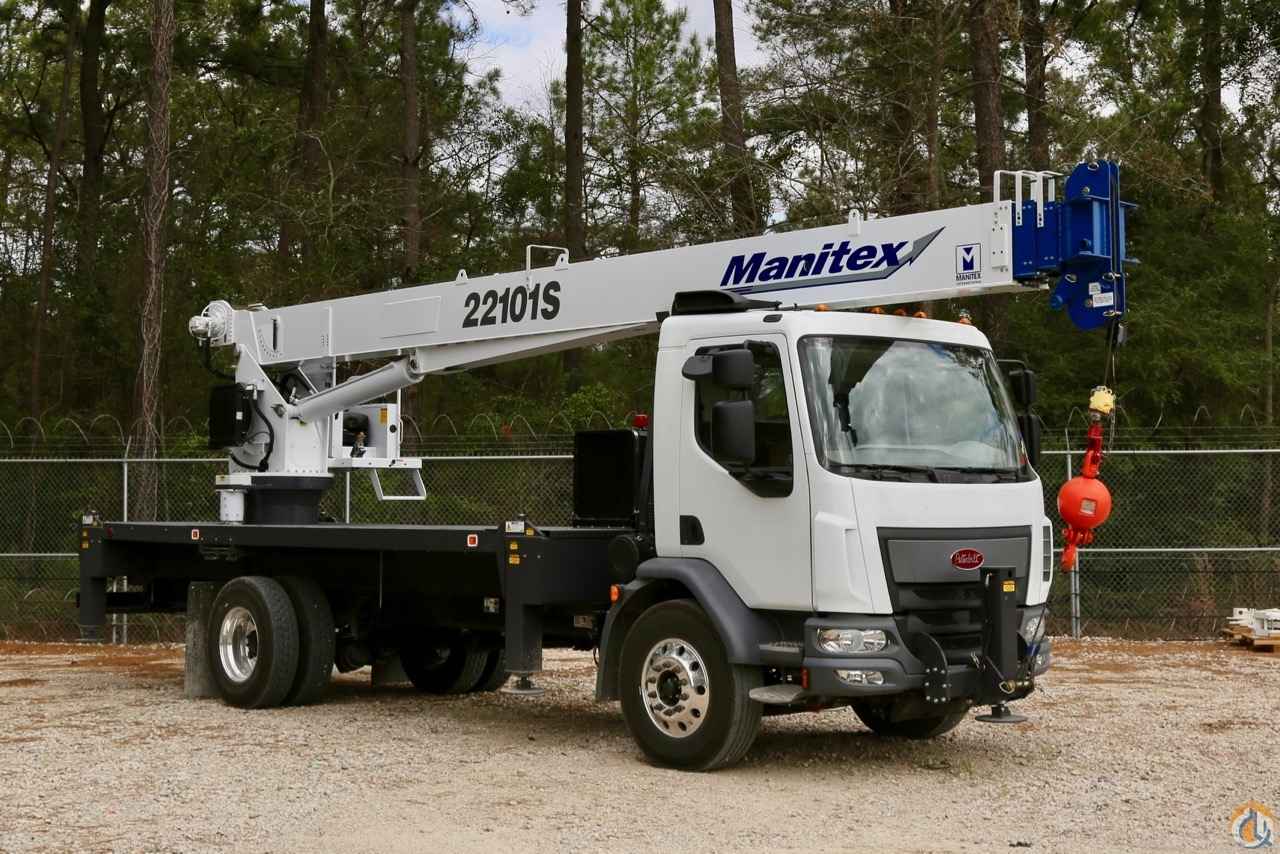

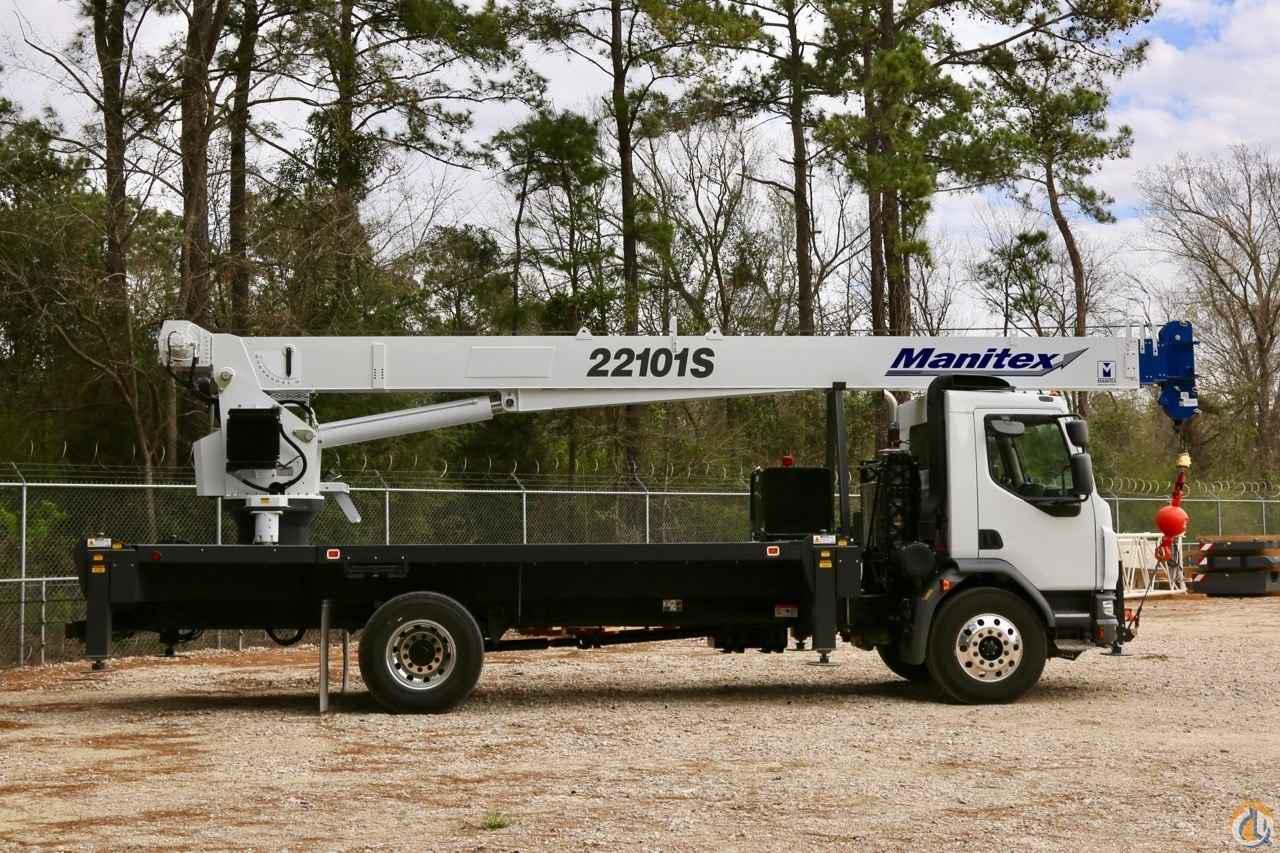

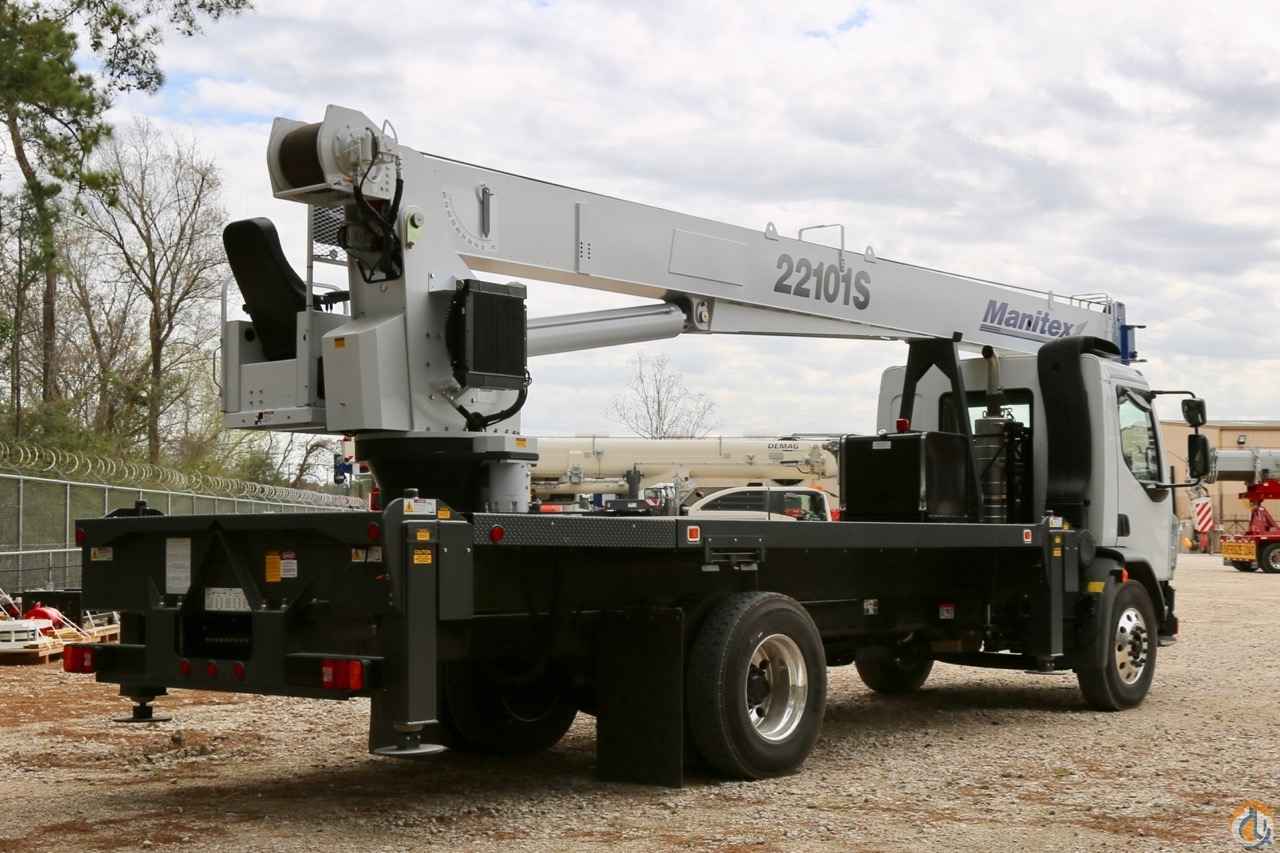

101' four section telescopic boom

111' tip height

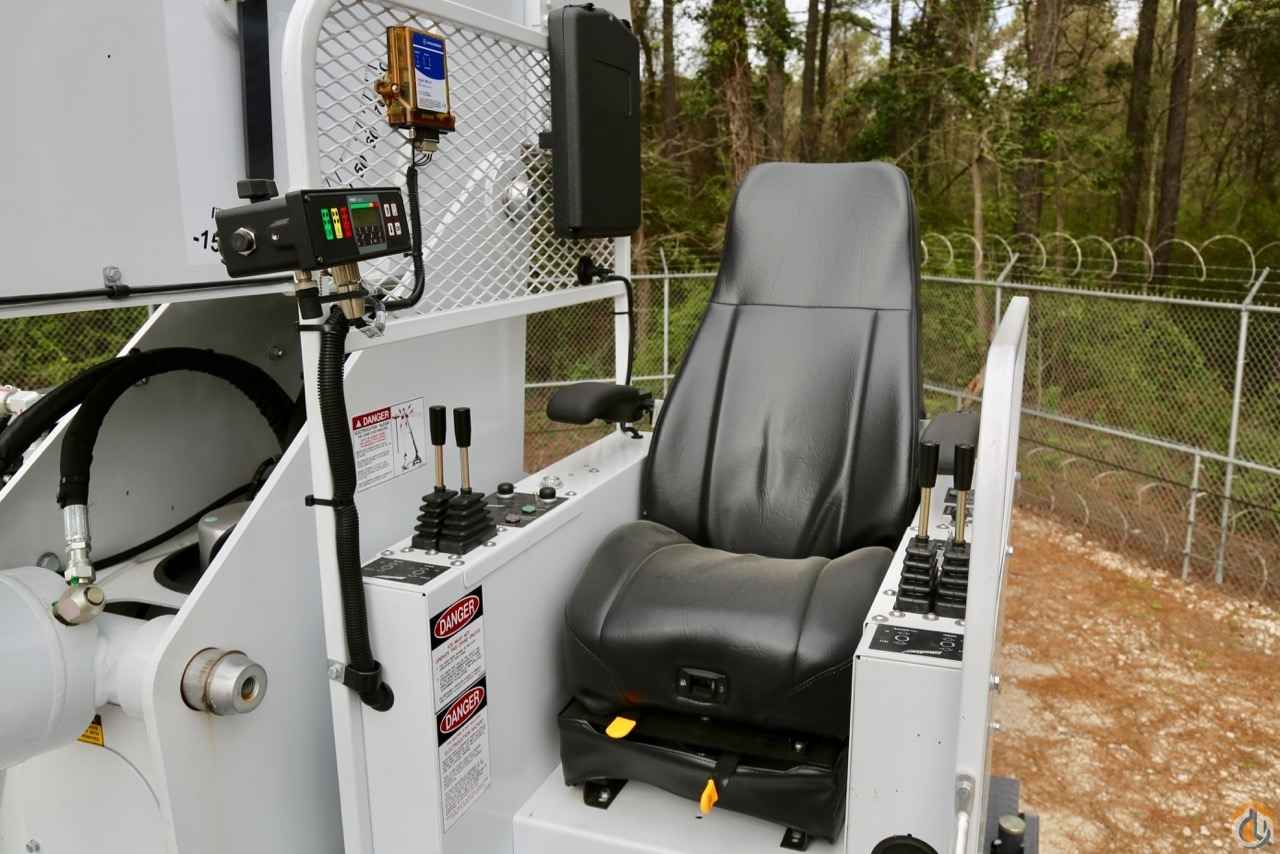

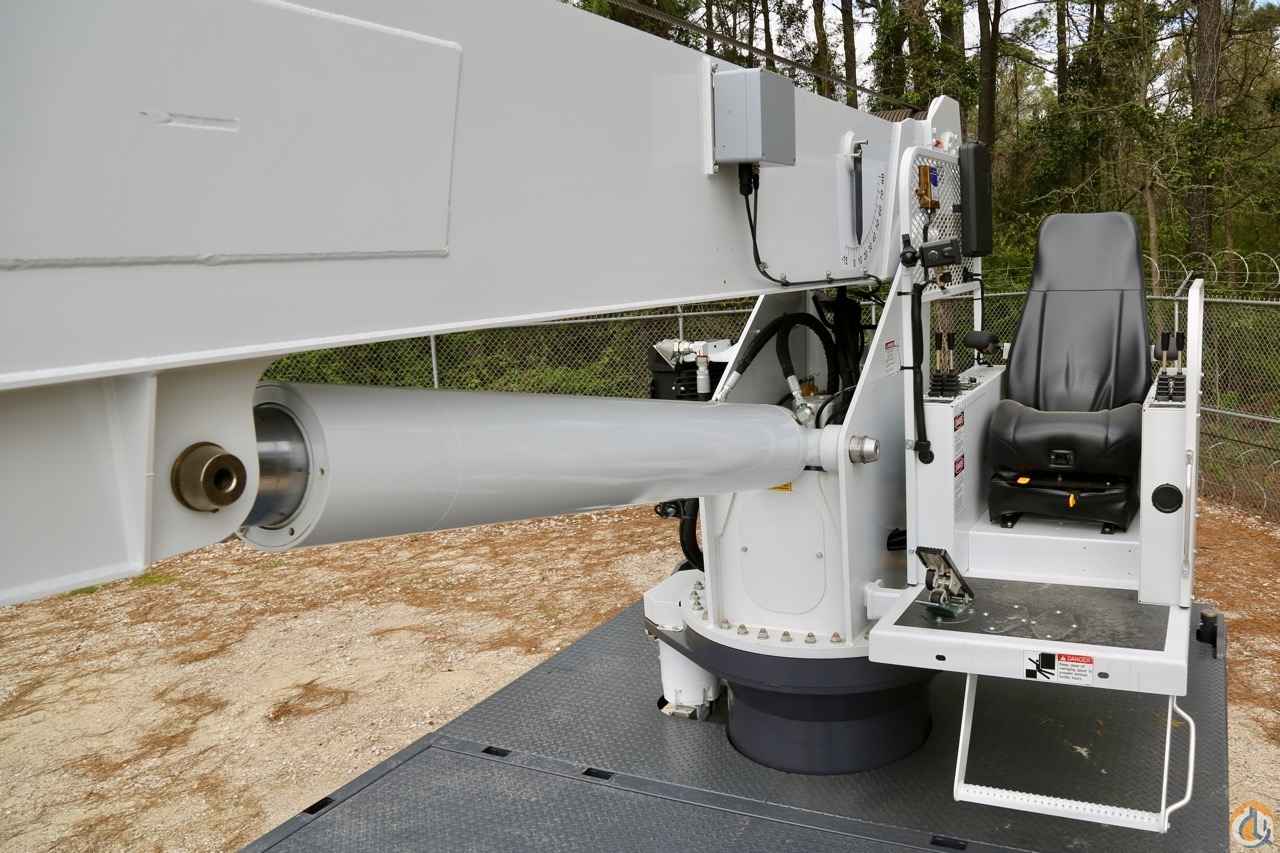

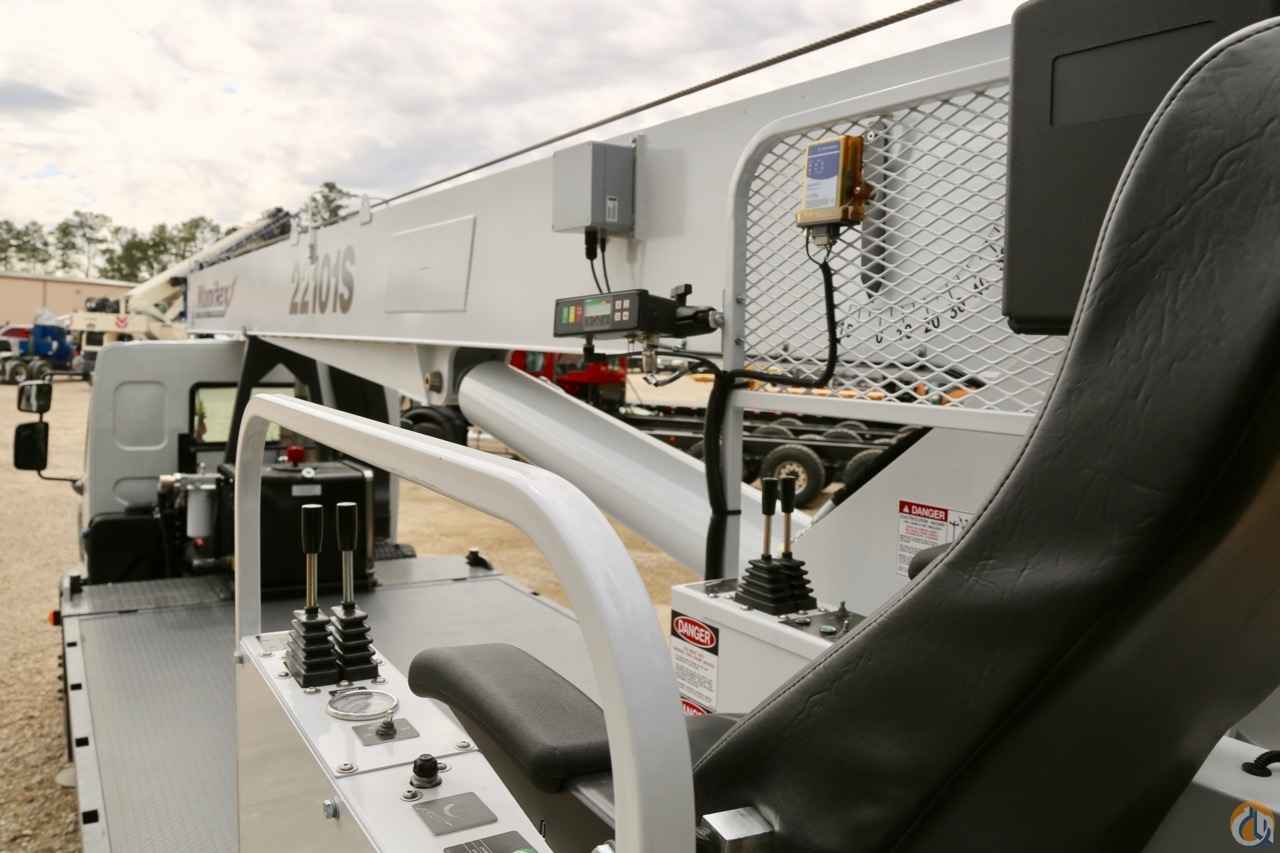

Ride-around operator station with seat

2-speed hoist with grooved drum

5 ton hook and ball

3-load sheave quick reeve boom head

300' of 9/16" wire rope

Radio anti-two block

Boom hoist cylinder

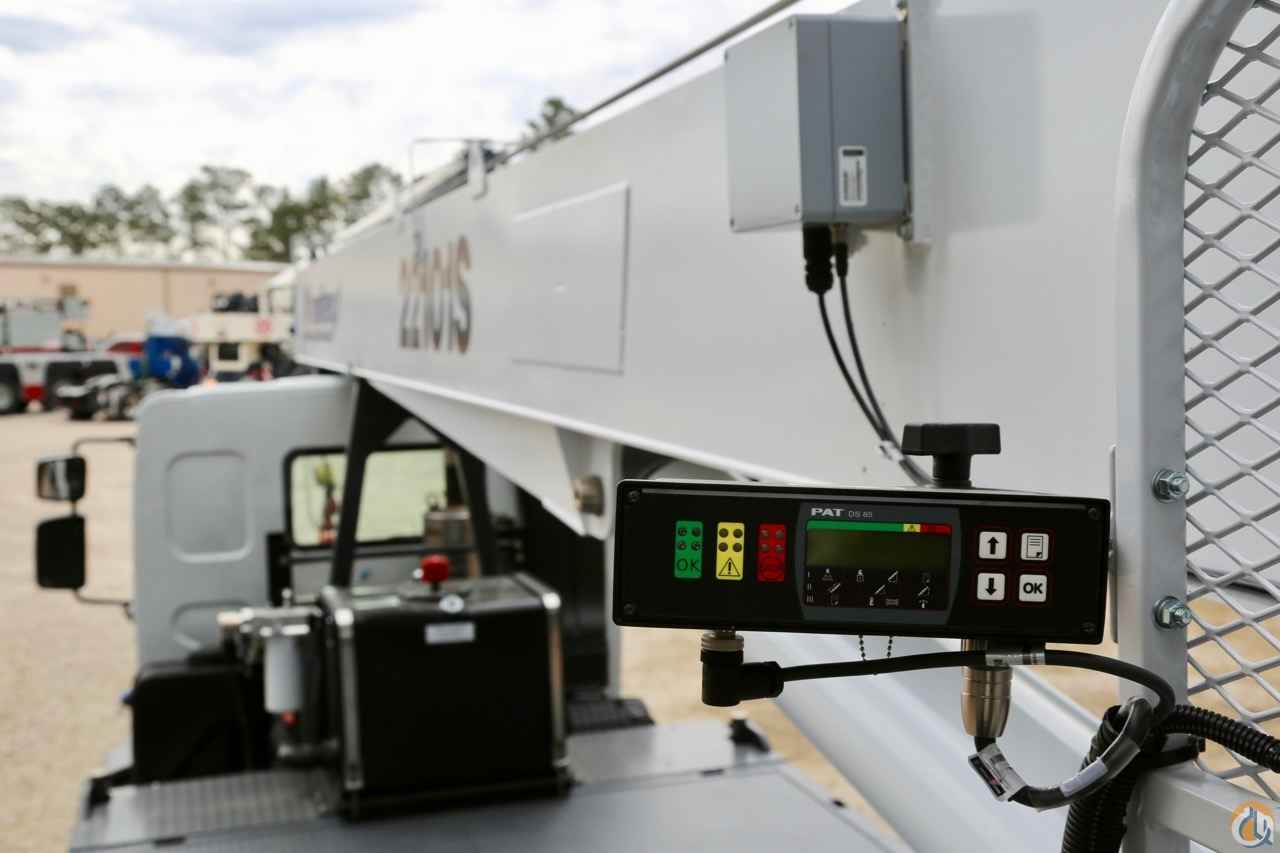

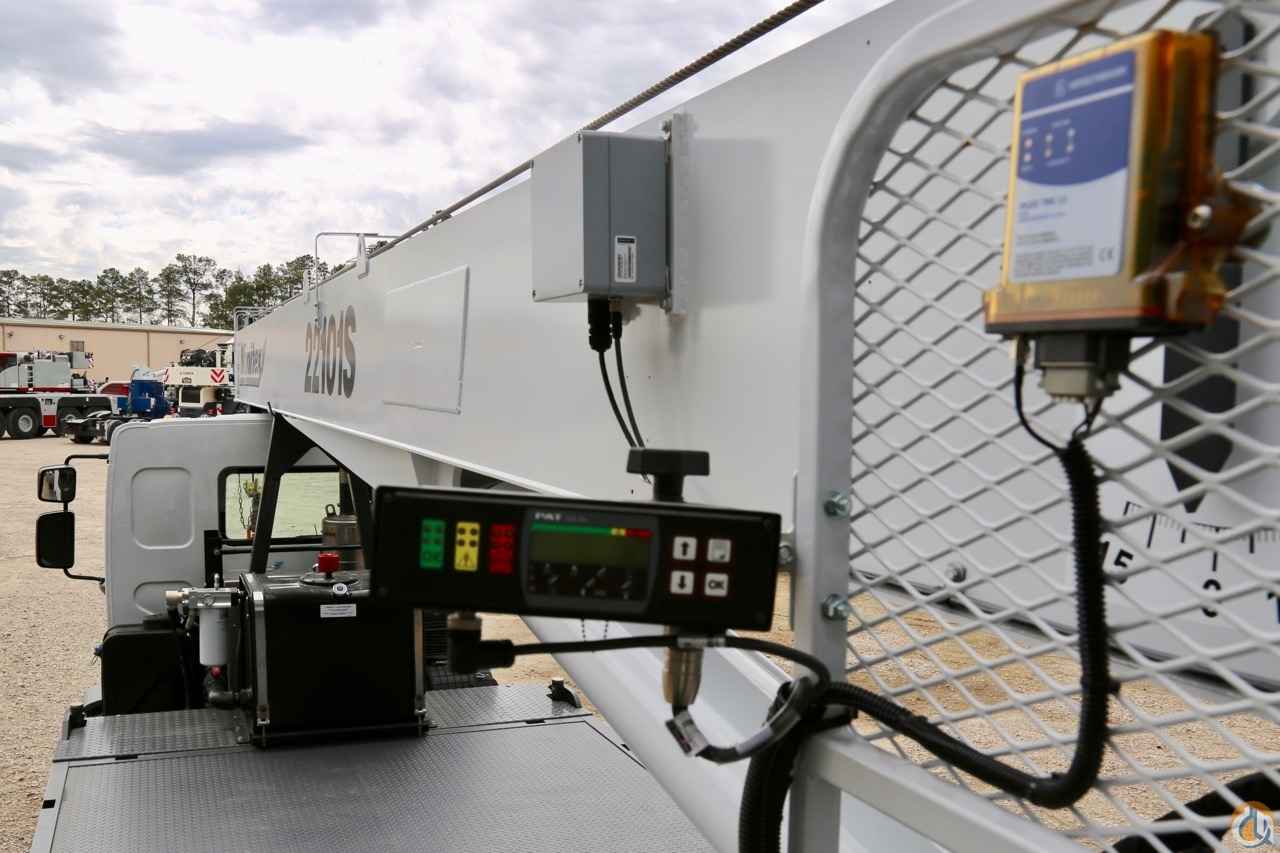

Load moment indicator with audio/visual alert

Boom length and angle indicators

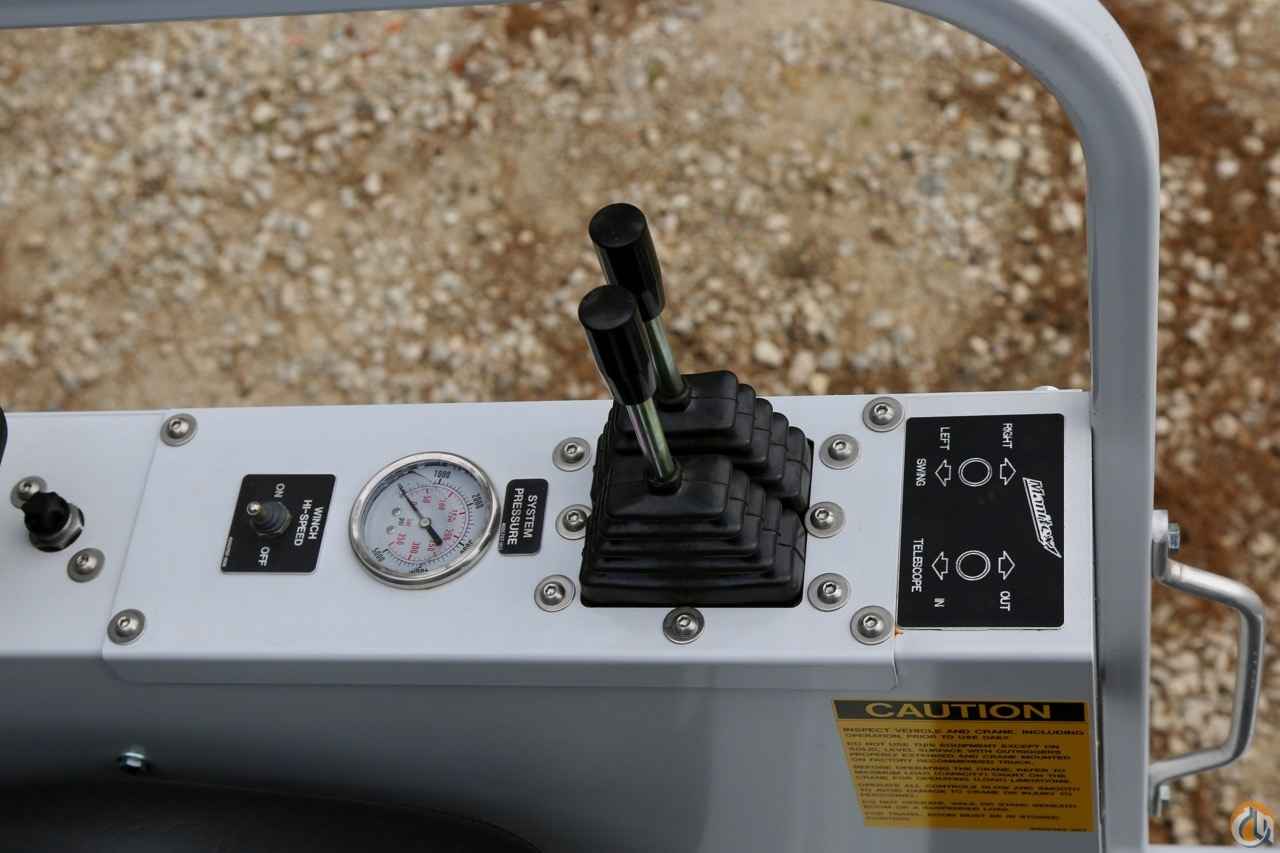

System pressure gauge

Engine start/stop

Electronic throttle

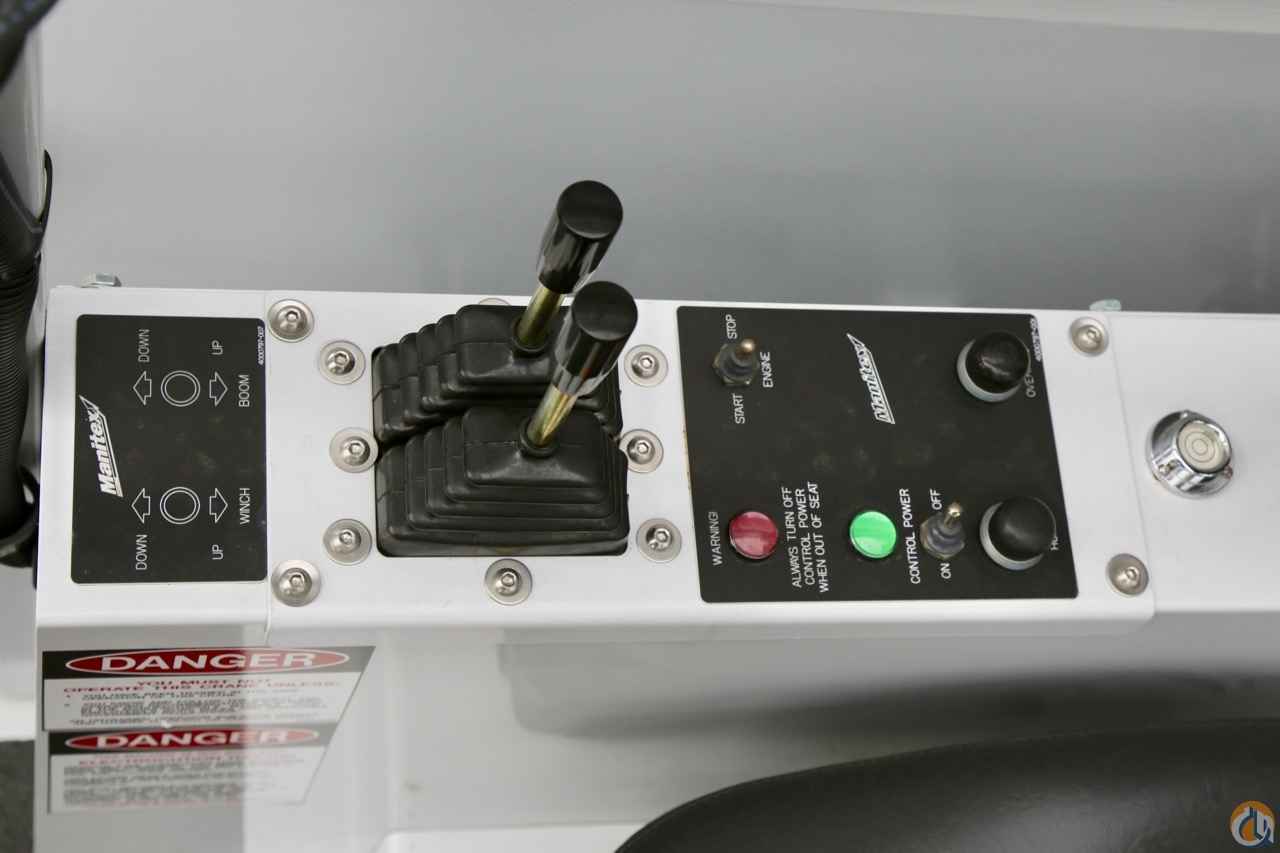

Pilot controls ¢ 360 degree area of operation

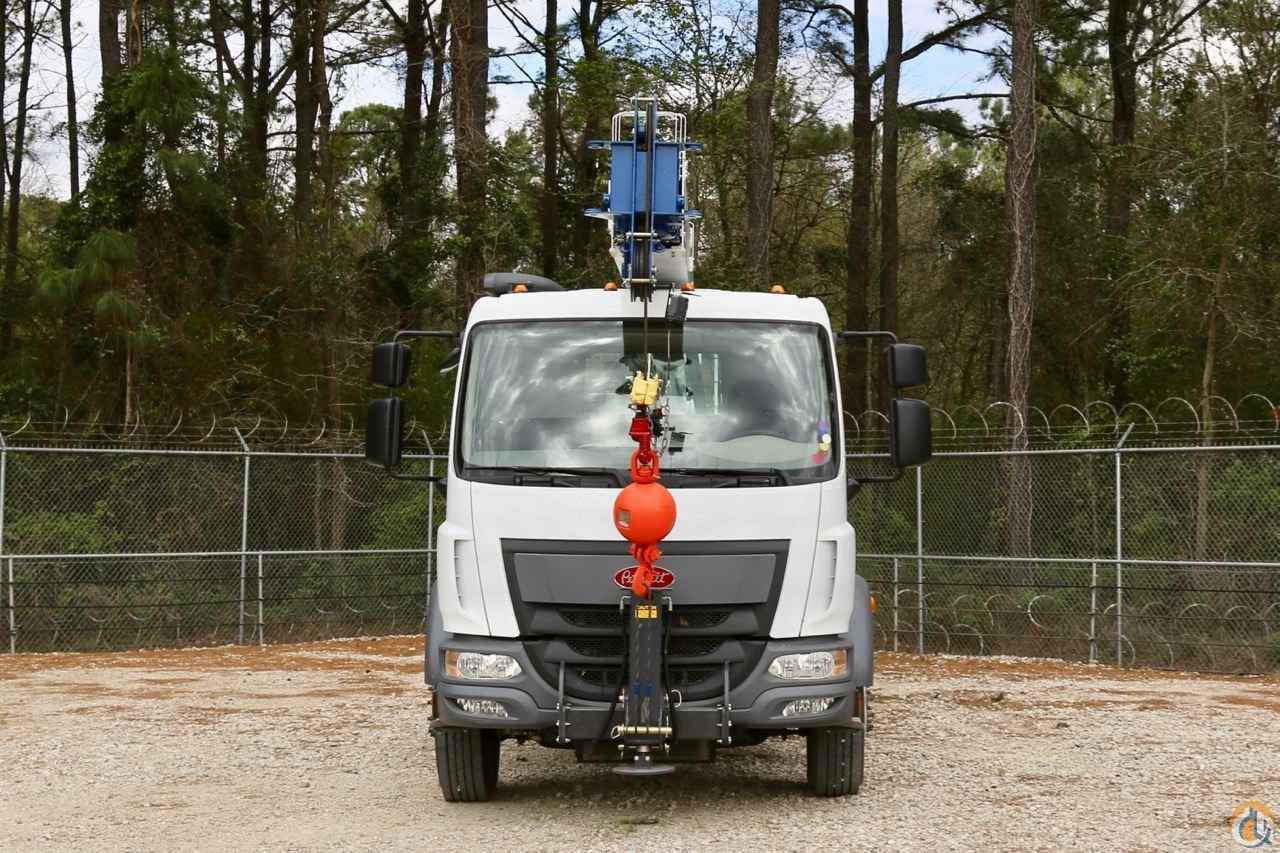

Front center stabilizer

Continuous rotation

70 gallon reservoir with suction strainer and ball valve

Oil cooler

Hot shift PTO

Four (4) out and down outriggers (19'9" spread)

Outrigger monitoring system for verification only

Outrigger motion alarm

One ladder for easy access to bed

13' steel bed

One (1) tool box

TRUCK

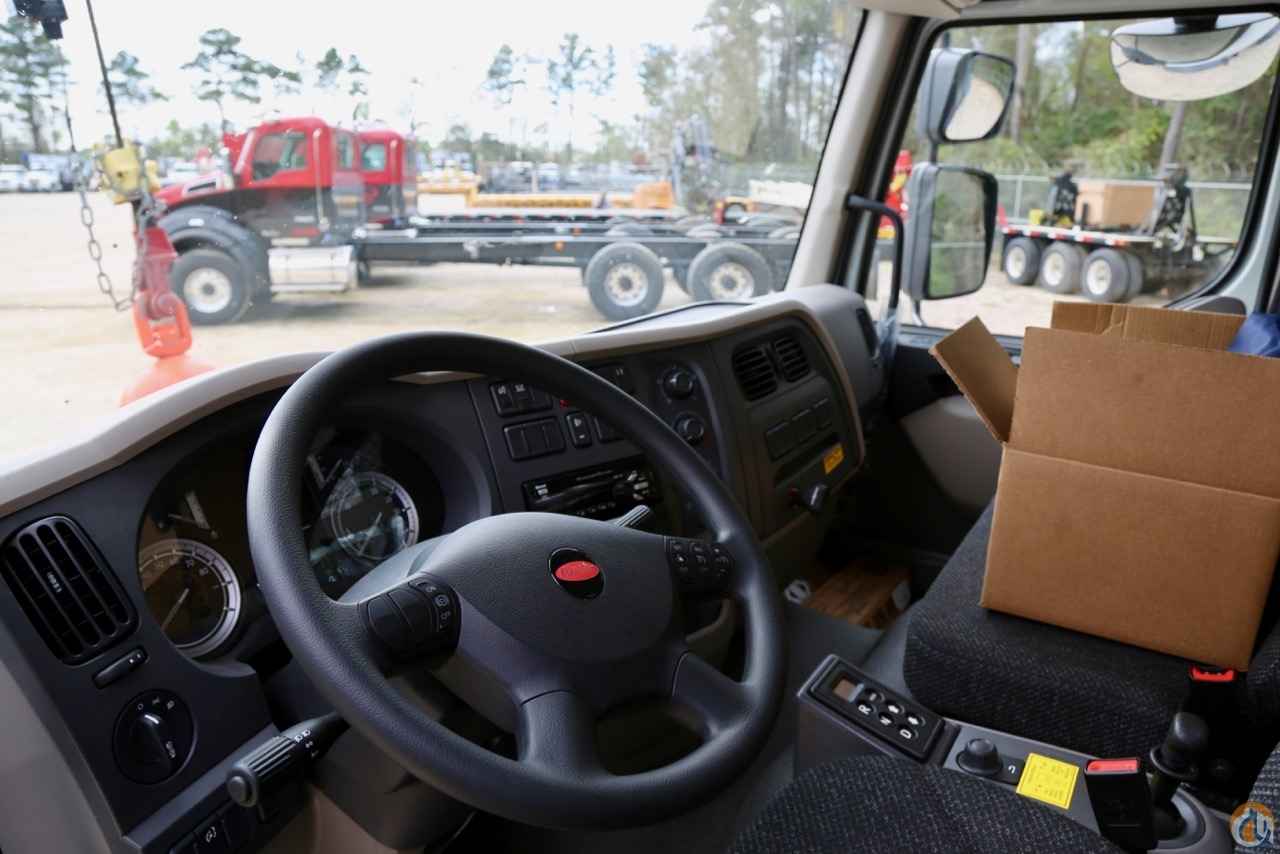

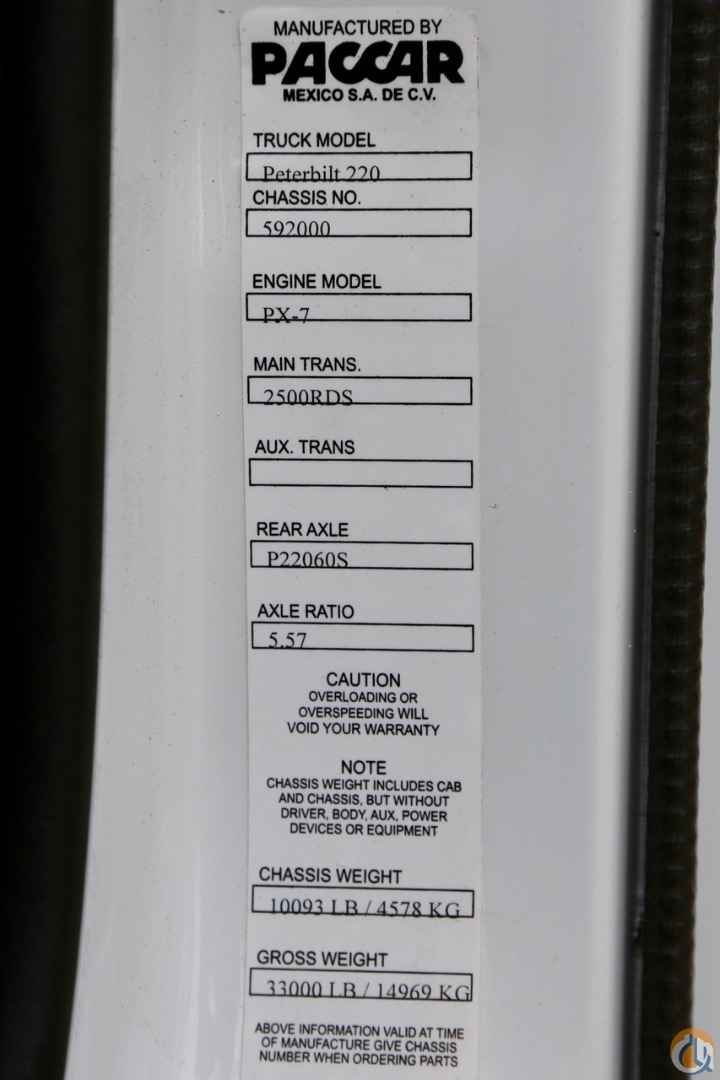

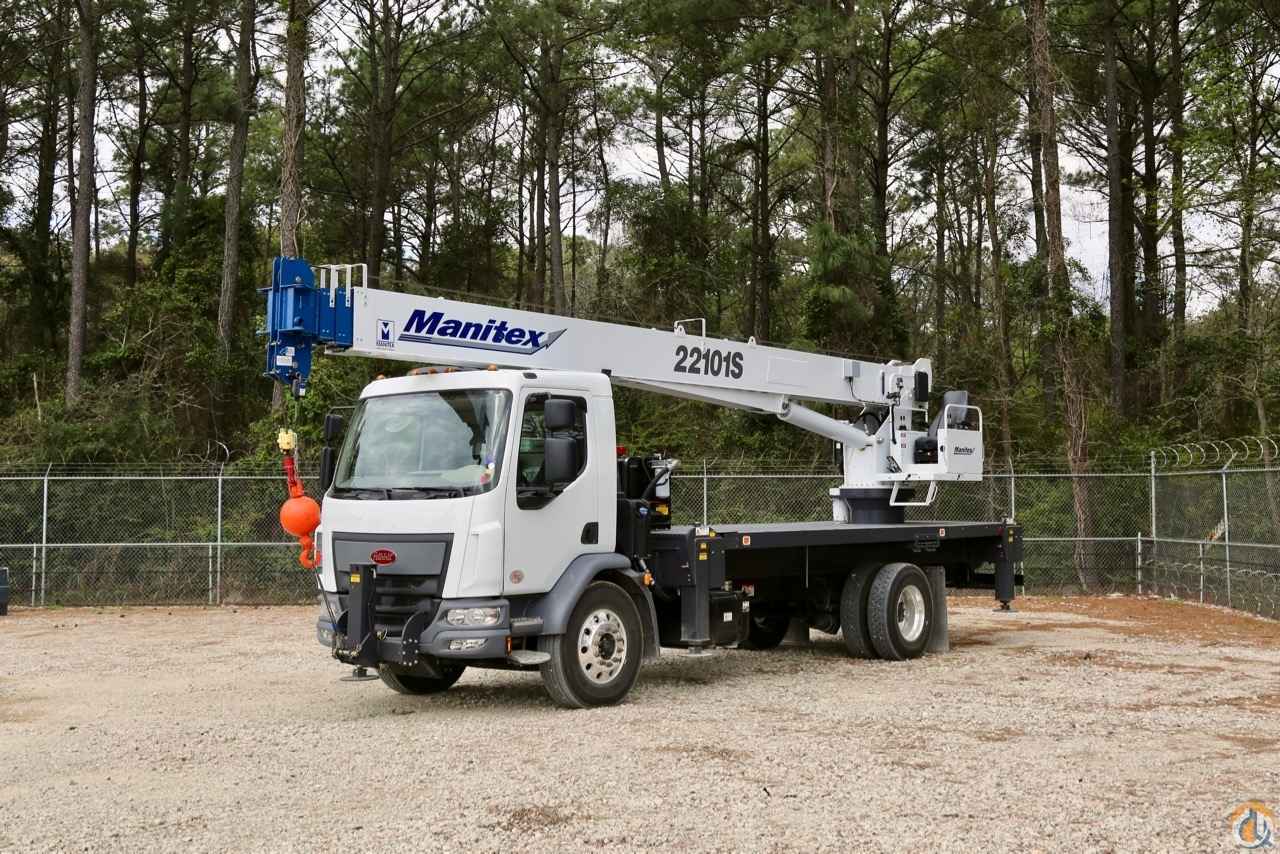

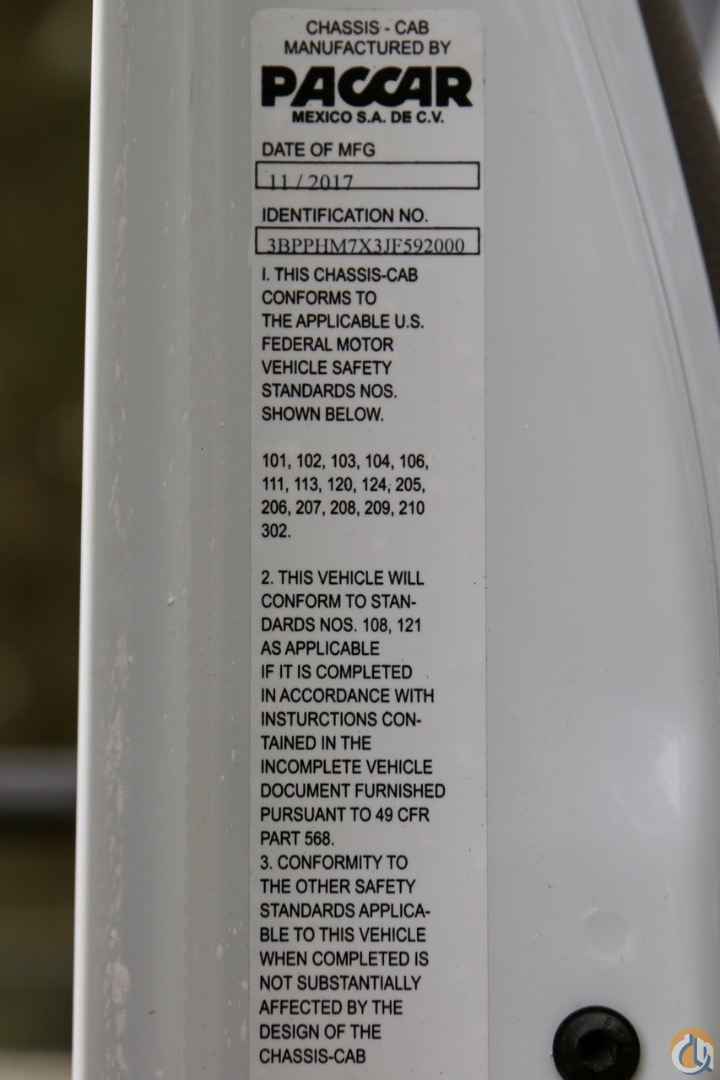

New 2018 Peterbilt 220 Cabover Daycab

Paccar PX-7 Engine, 260 hp, 660 lbs/ft at 1600 RPM

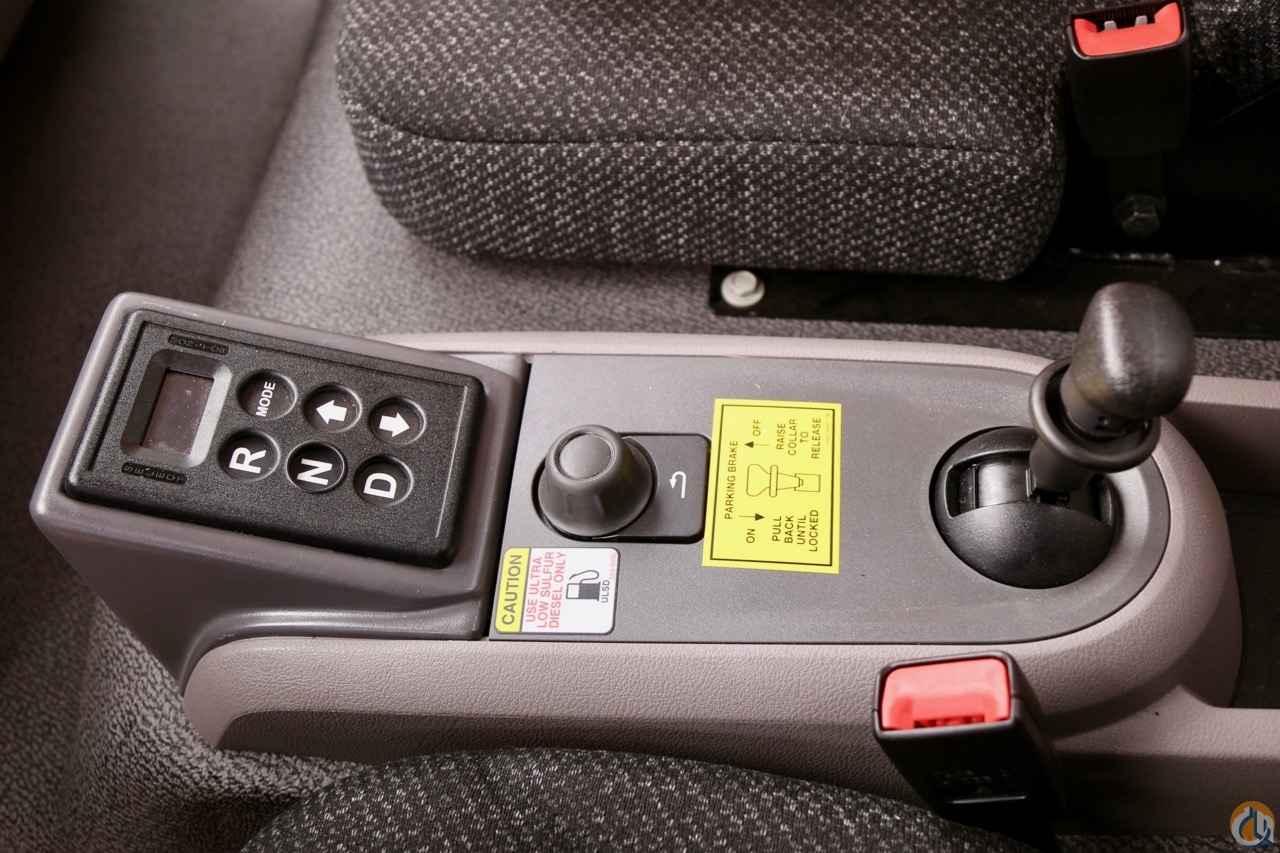

Allison 2500 RDS-P Automatic Transmission

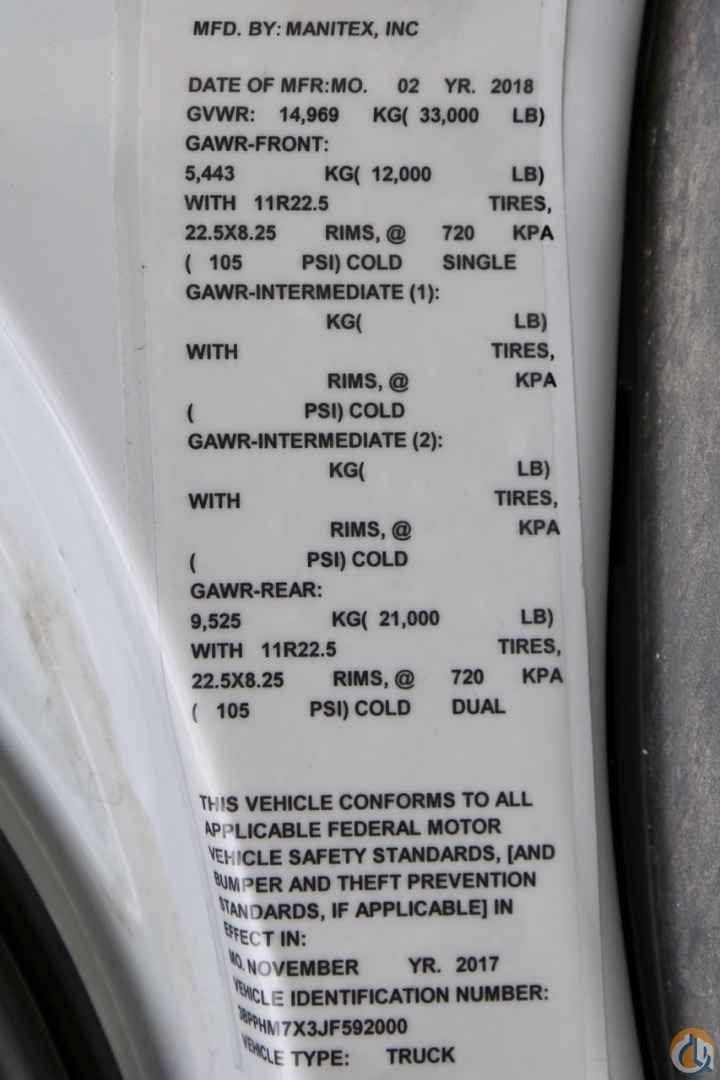

33,000# GVW

Front Axle - Dana Spicer 12,000#

Taper Leaf springs, 12,000#

Rear Axle - Dana Spicer 21,000#

22.5x8.25 Aluminum wheels

45 gallon rectangular fuel tank

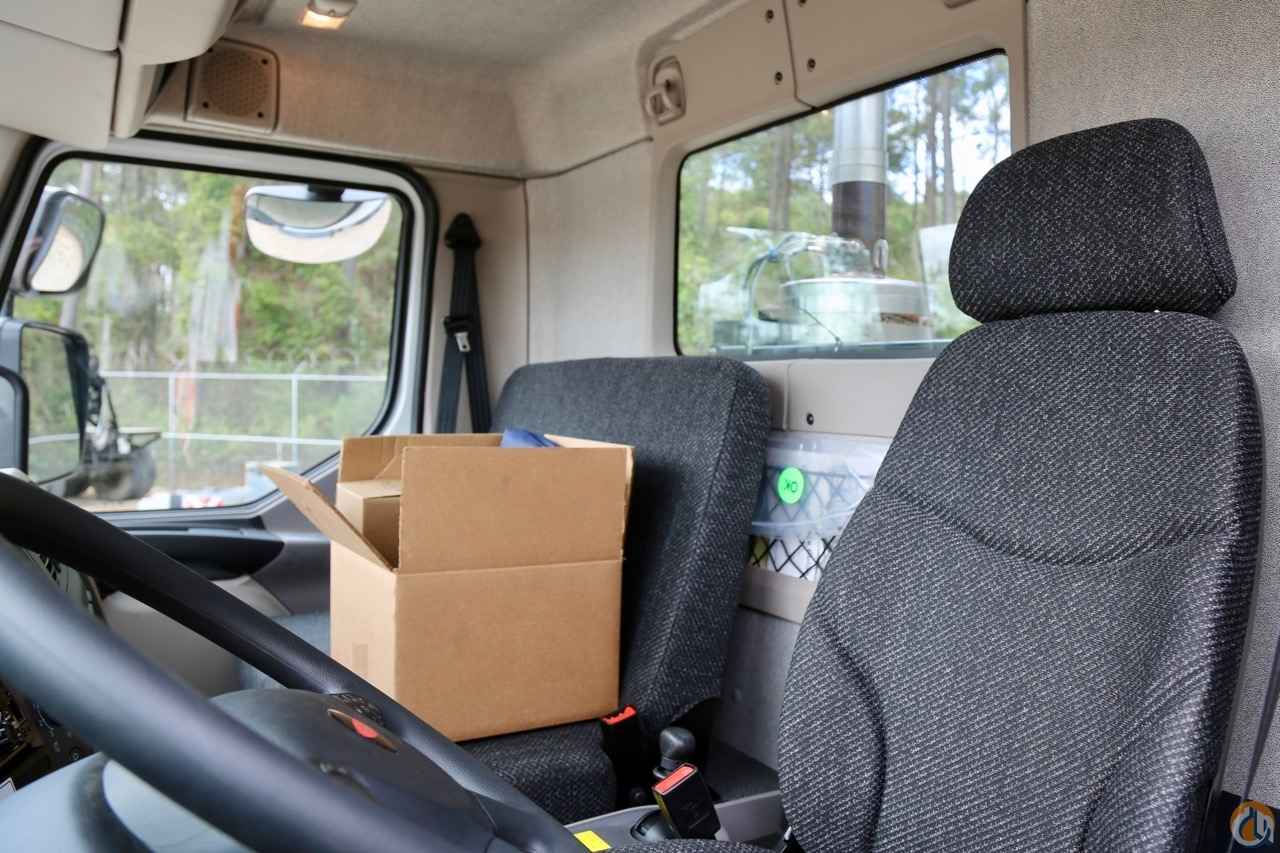

Air ride driver seat, fabric

Tilt steering column

Two-person, non-air ride passenger seat

Electric windows

Heater/Air conditioner

Driving mirrors heated and motorized

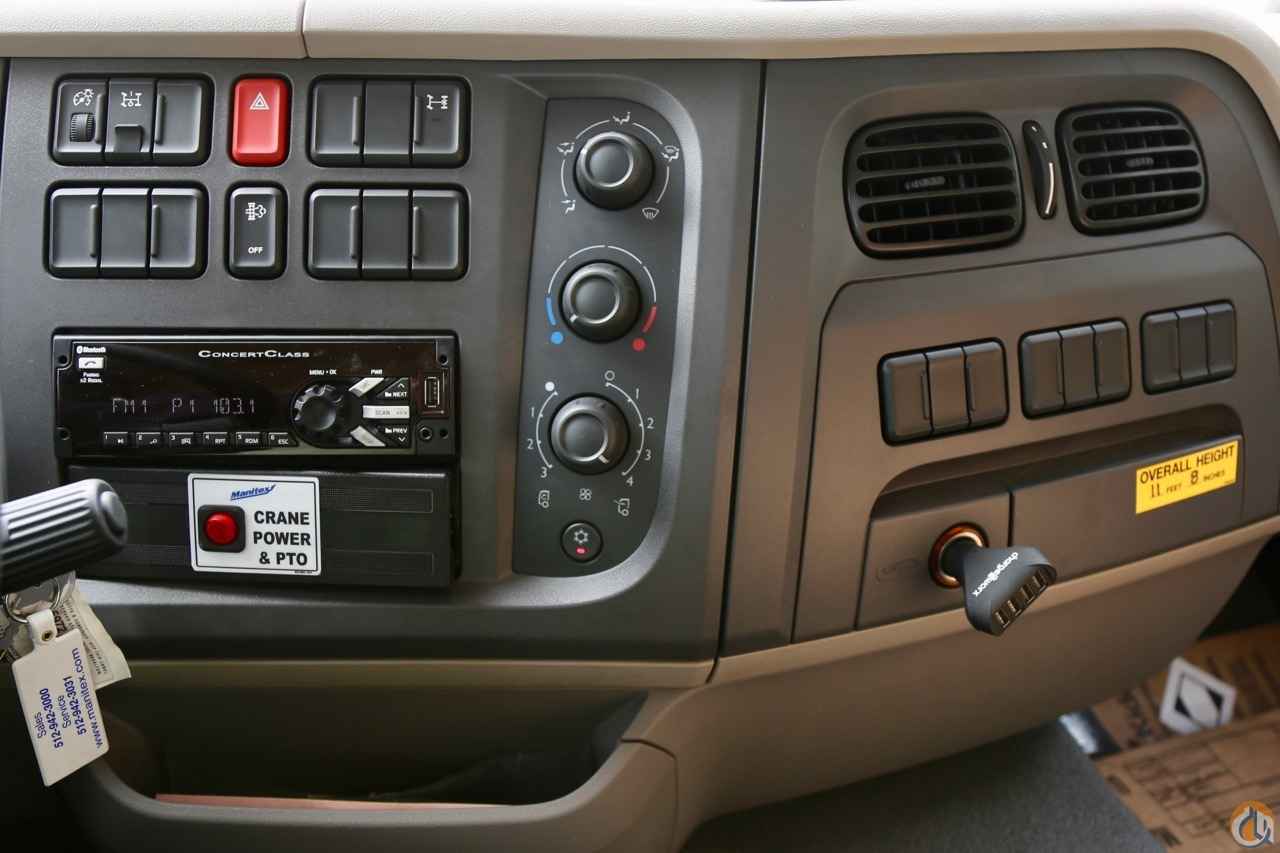

ConcertClass Audio - AM/FM, WB, USB, MP3, and Bluetooth

Painted White
