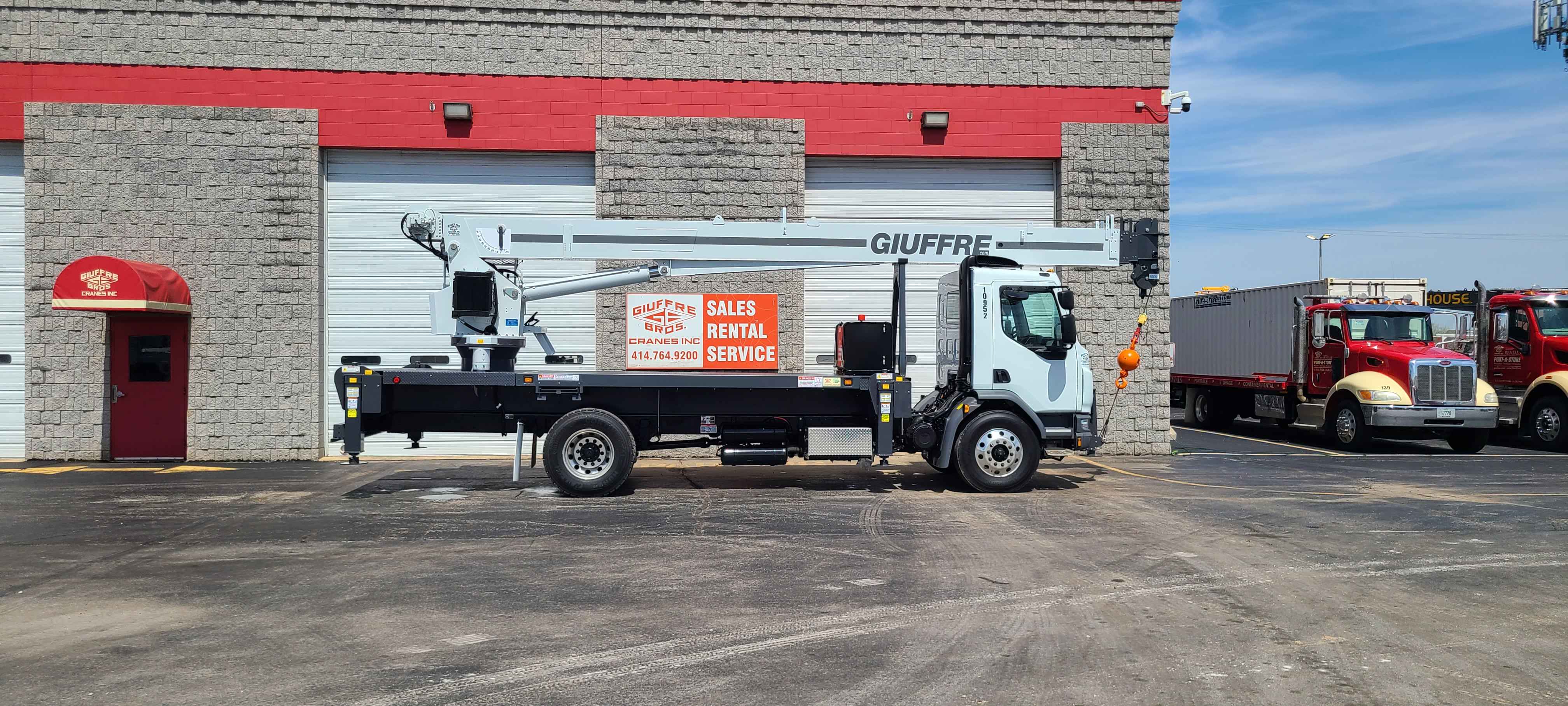

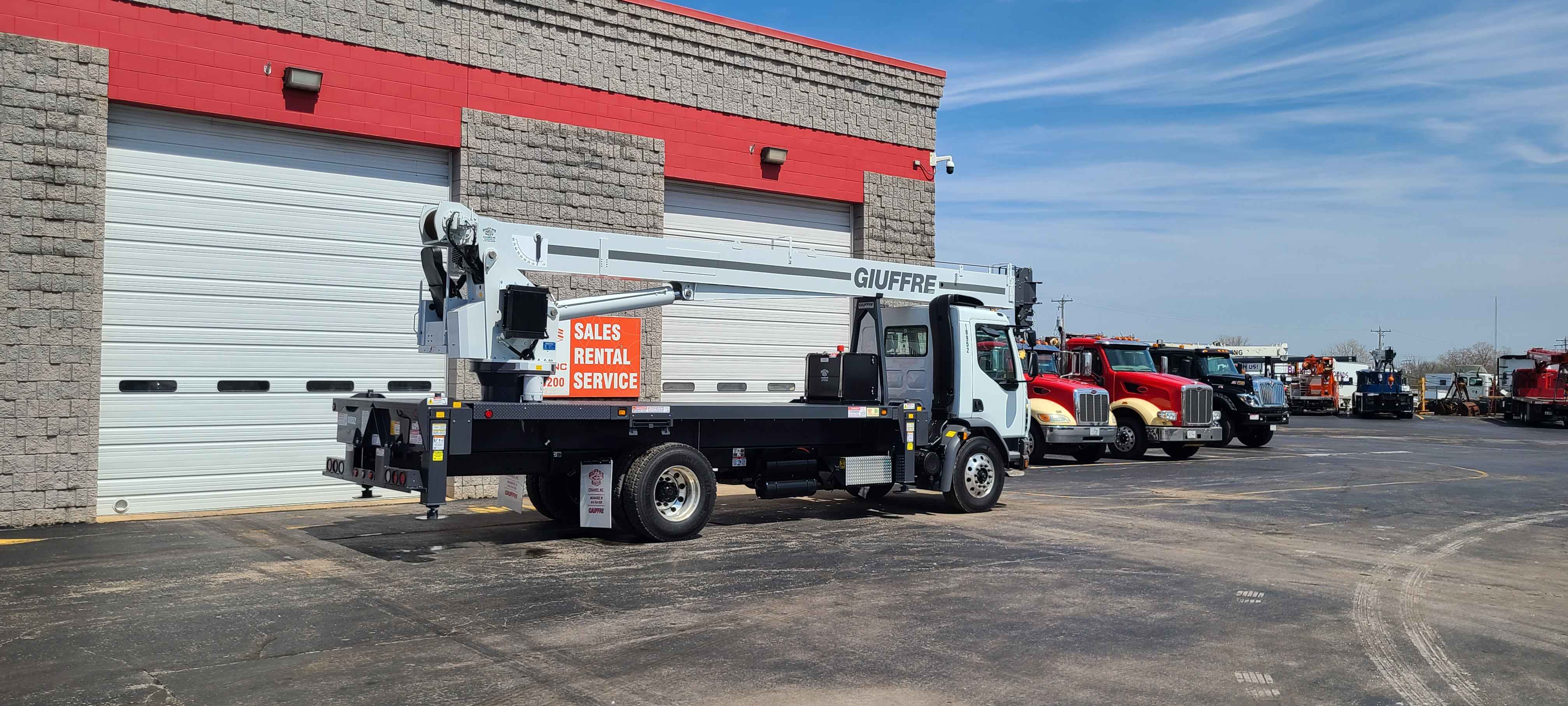

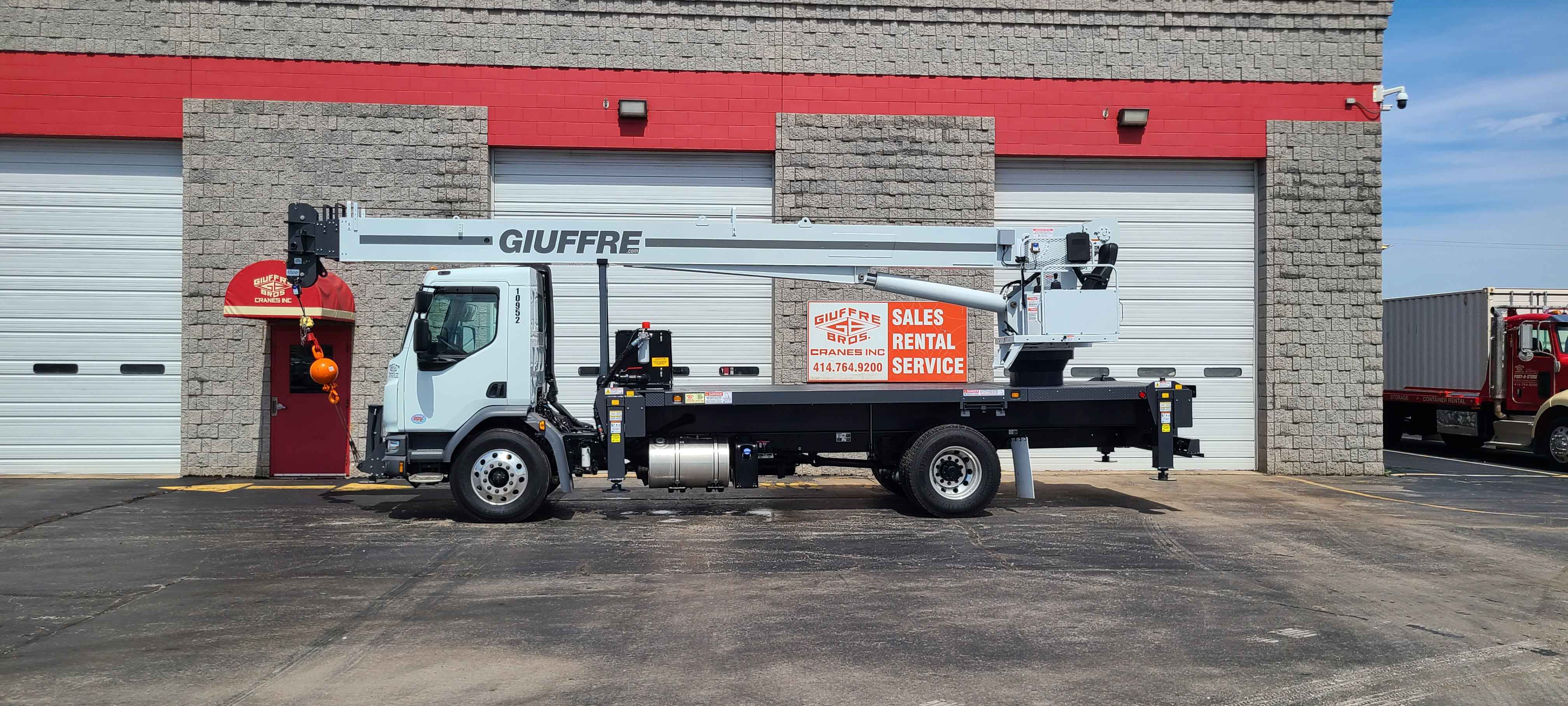

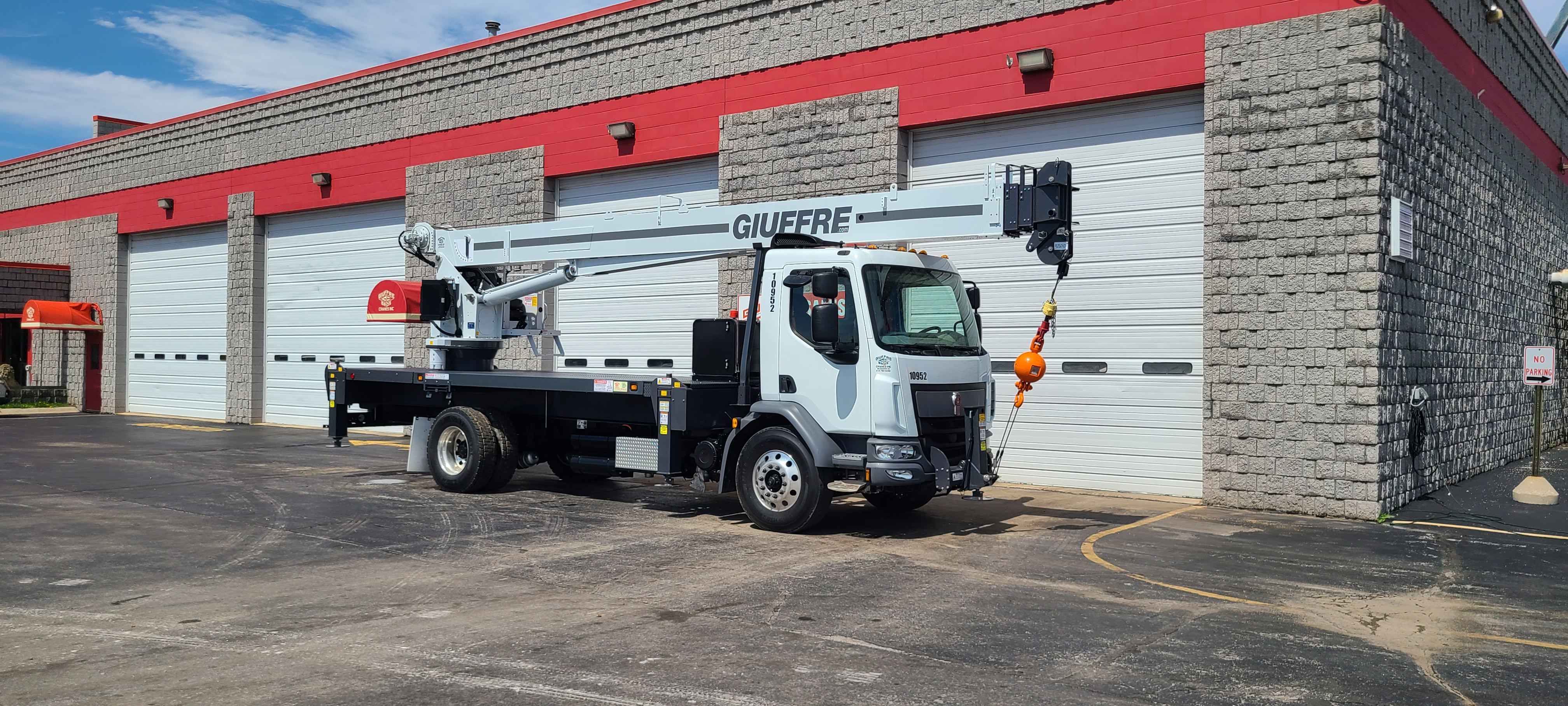

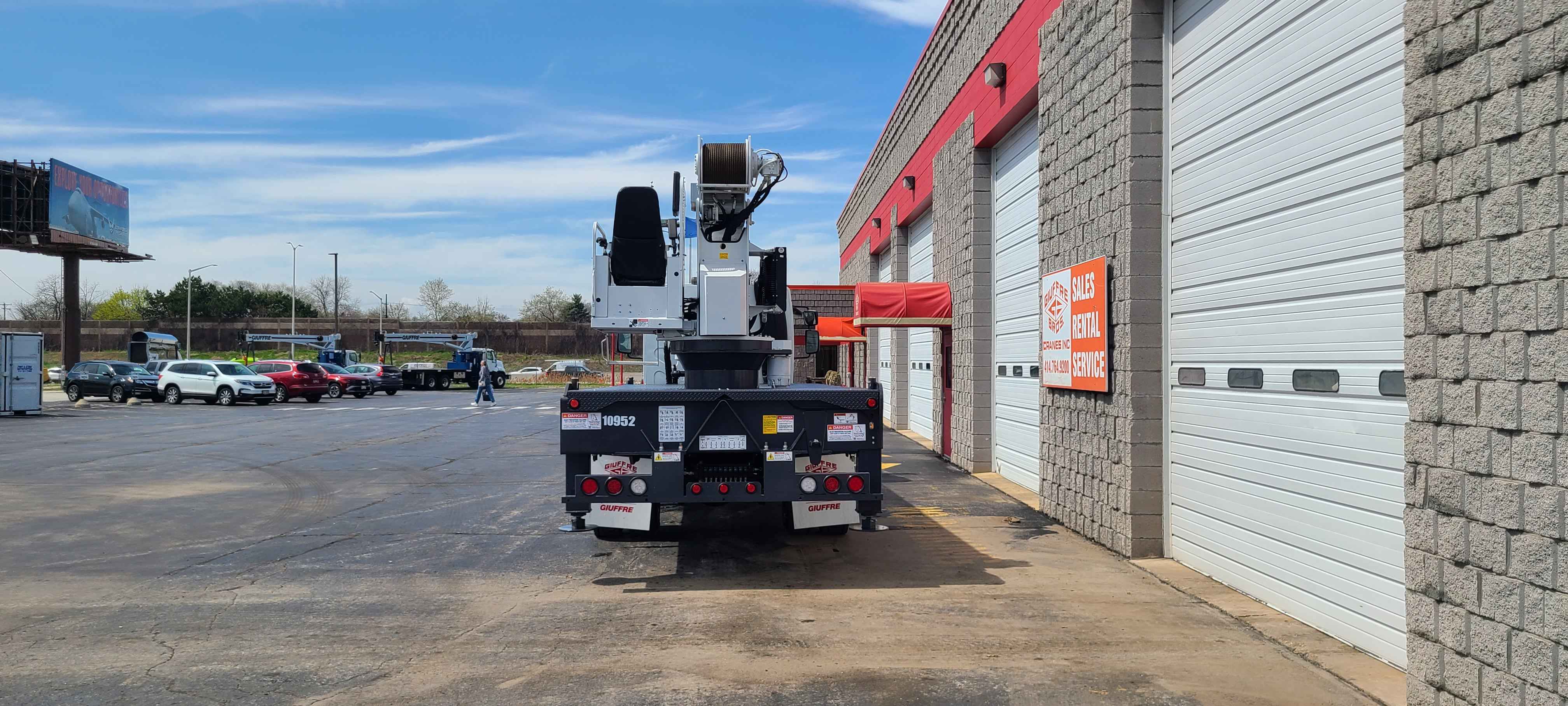

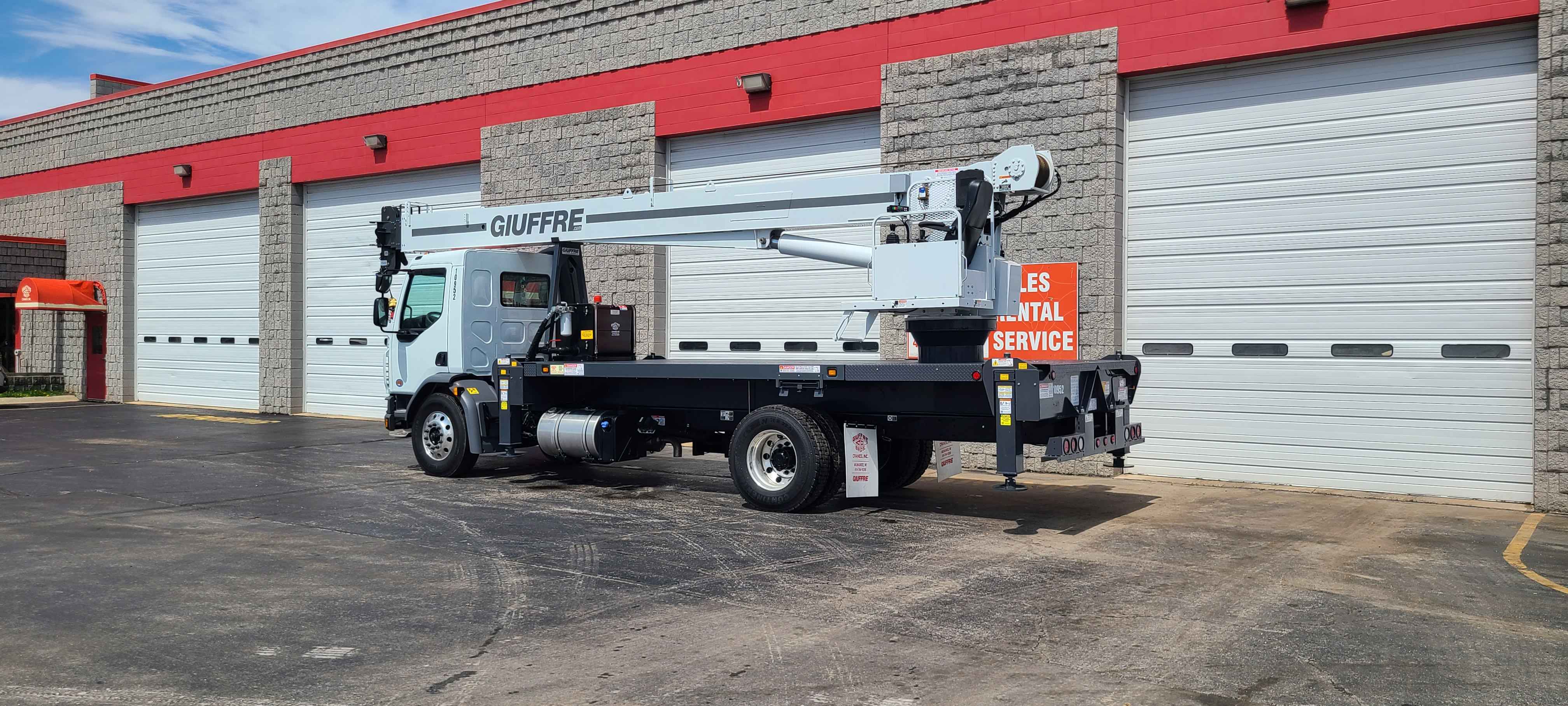

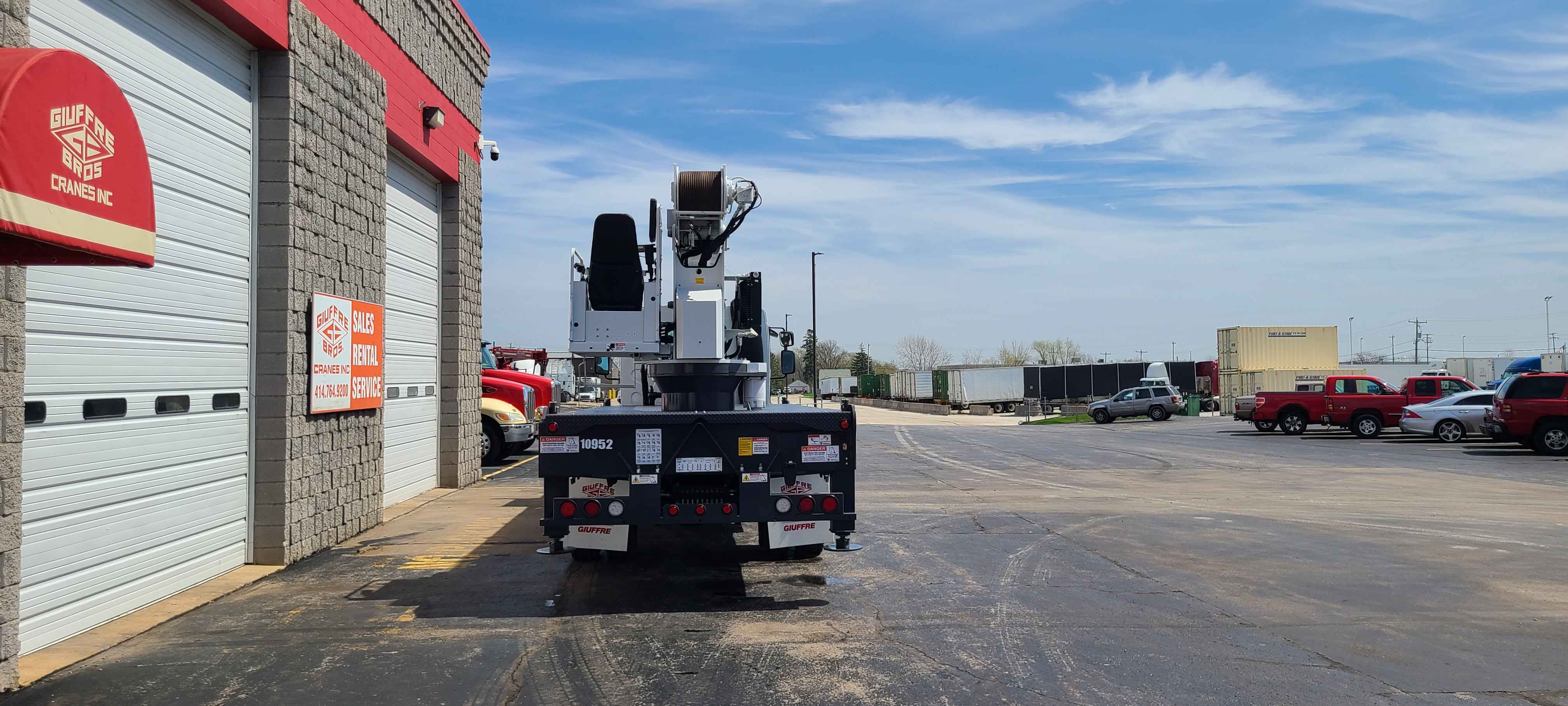

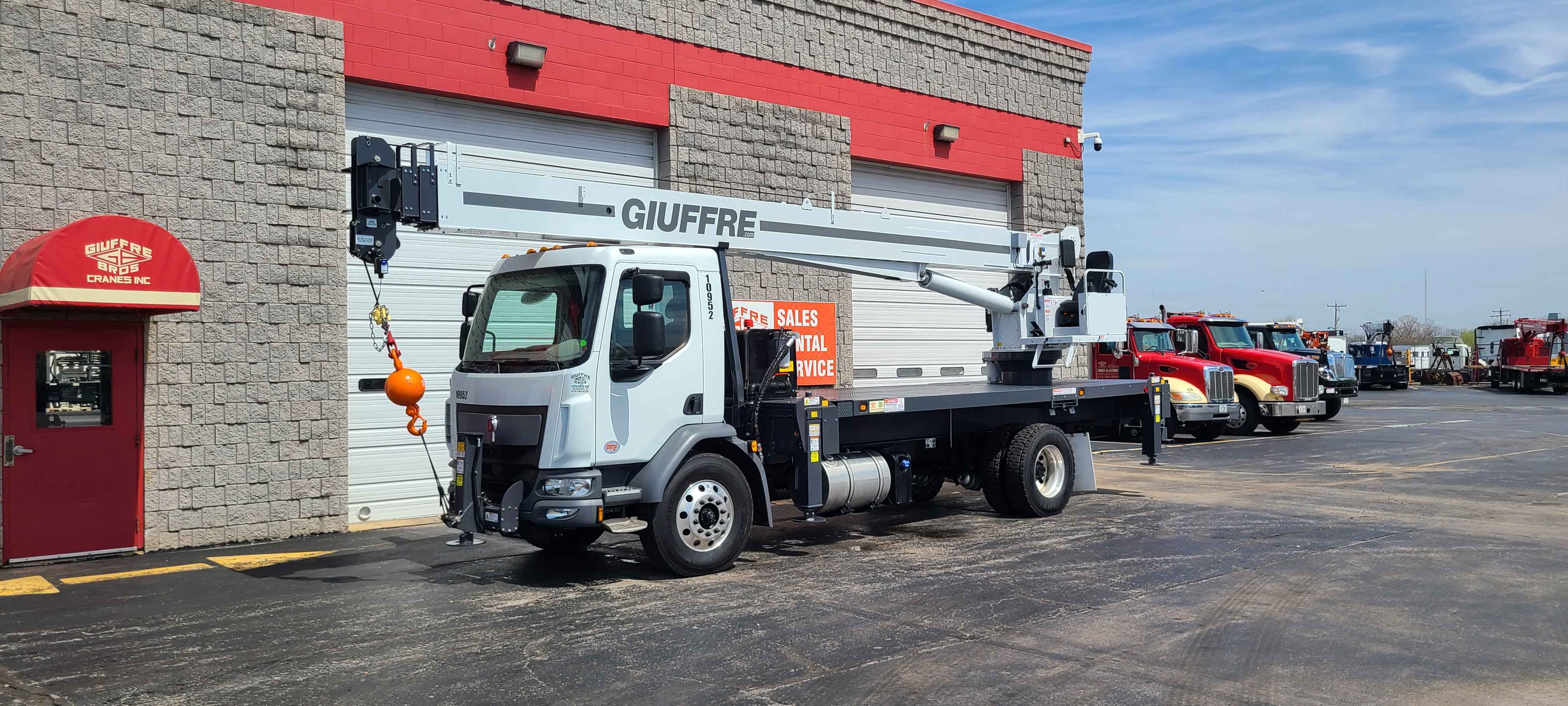

MANITEX 22101S
22 TON CAPACITY

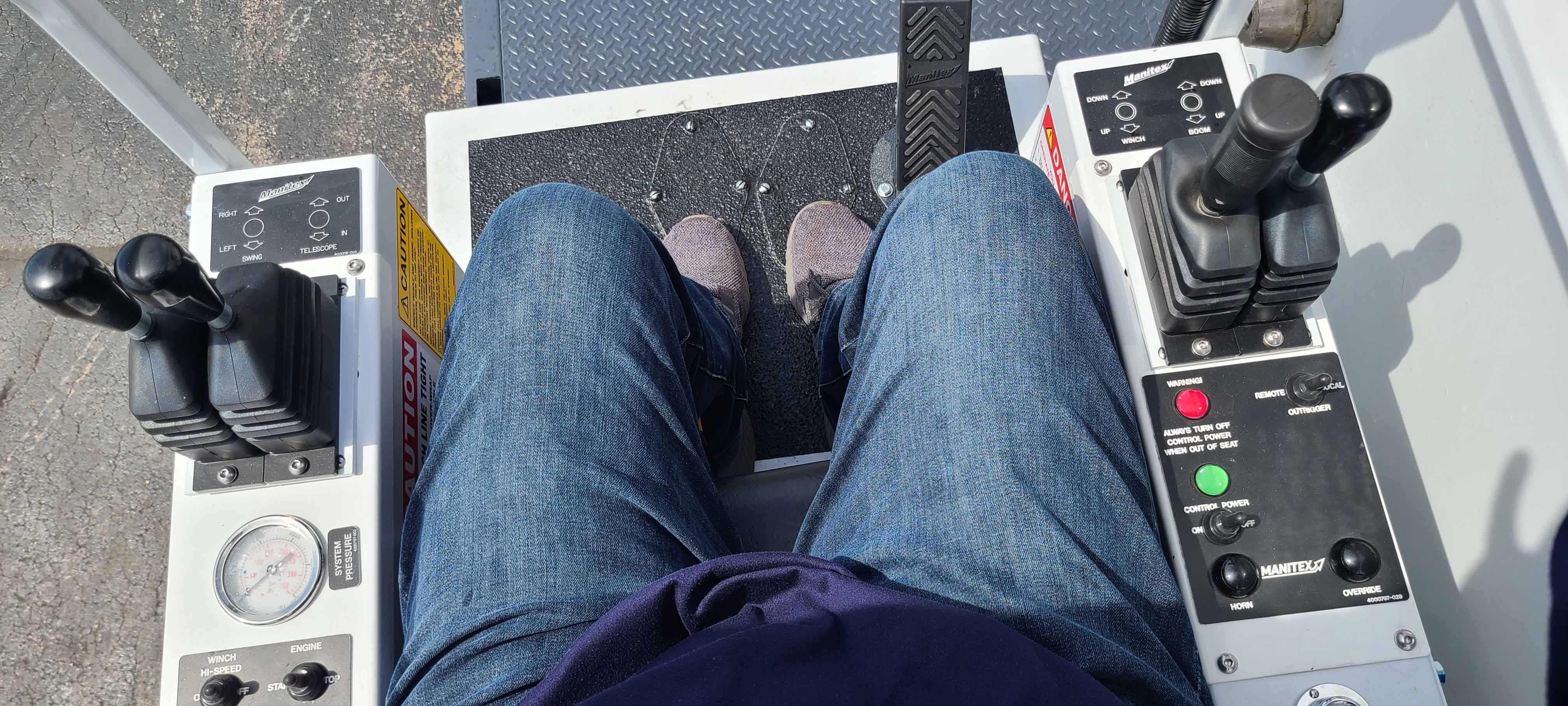

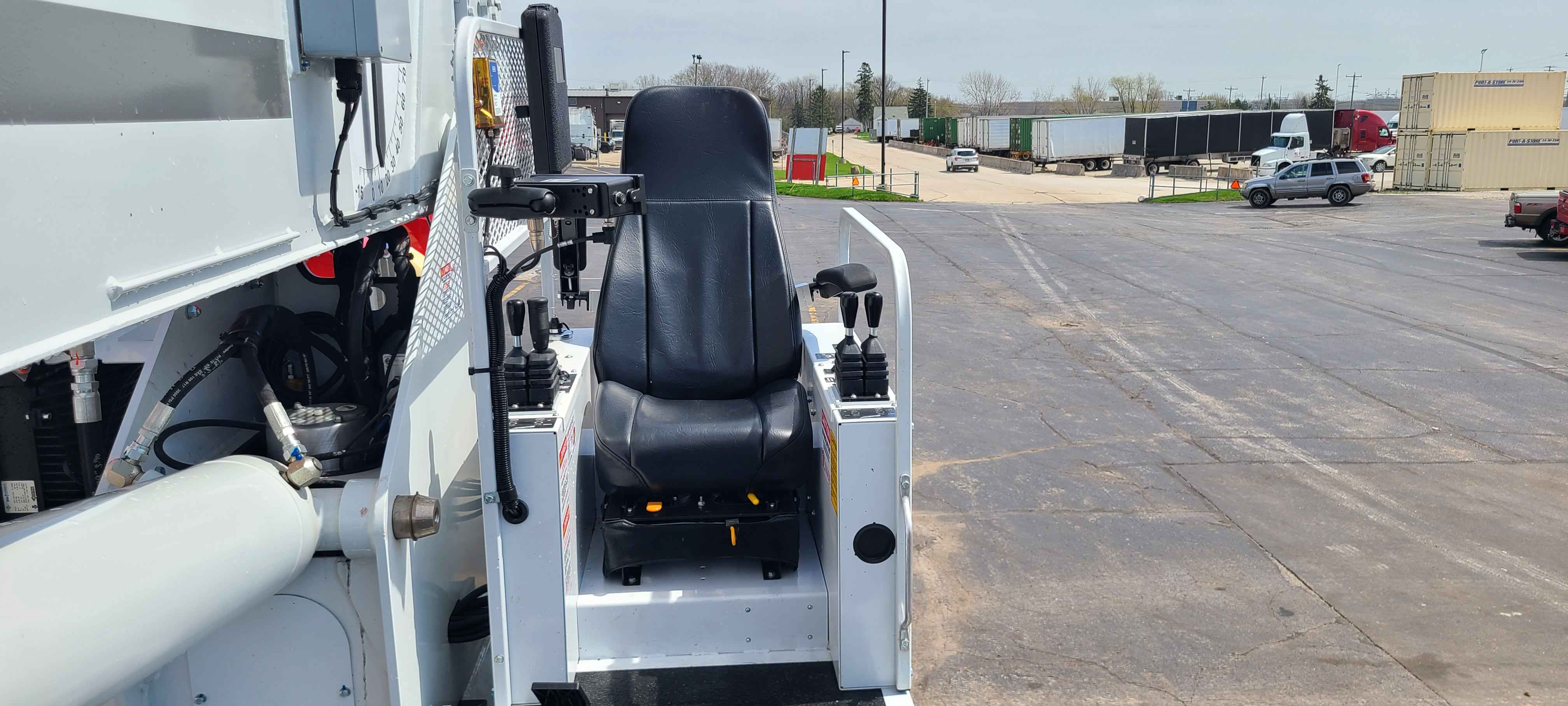

RIDE-AROUND OPERATOR STATION W/ SEAT
4-SECTION 101' BOOM WITH 111' TIP HEIGHT
3-SECTION CW HYDRAULIC VANE PUMP
360 DEGREE OF OPERATION W/
CONTINUOUS ROTATION
PILOT CONTROLS
OUTRIGGER MONITORING SYSTEM
(4) OUT & DOWN OUTRIGGERS

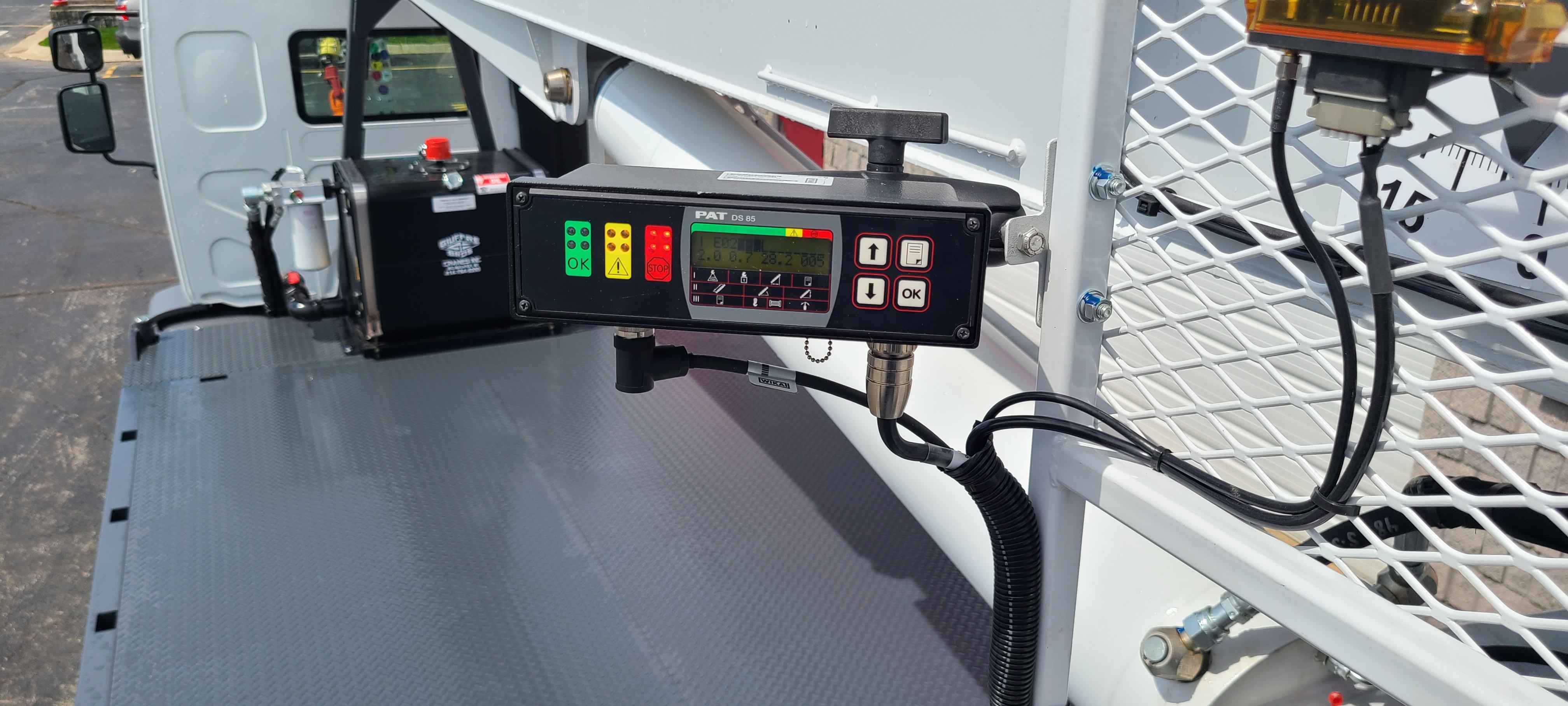

LOAD MOMENT INDICATOR - AUDIO/VISUAL
ALERT W/ SHUTOFF
RADIO ANTI-TWO BLOCK W/ LOCKOUT
2 RETRACTABLE LADDERS FOR ACCESS
TO HEAVY DUTY 13' STEEL BED
BOOM HOIST CYLINDER
AUDIBLE OUTRIGGER MOTION ALARM
SYSTEM PRESSURE GAUGE
SIGNAL HORN AND OIL COOLER
PAINTED MANITEX WHITE
STANDARD MANITEX 12 MONTH WARRANTY

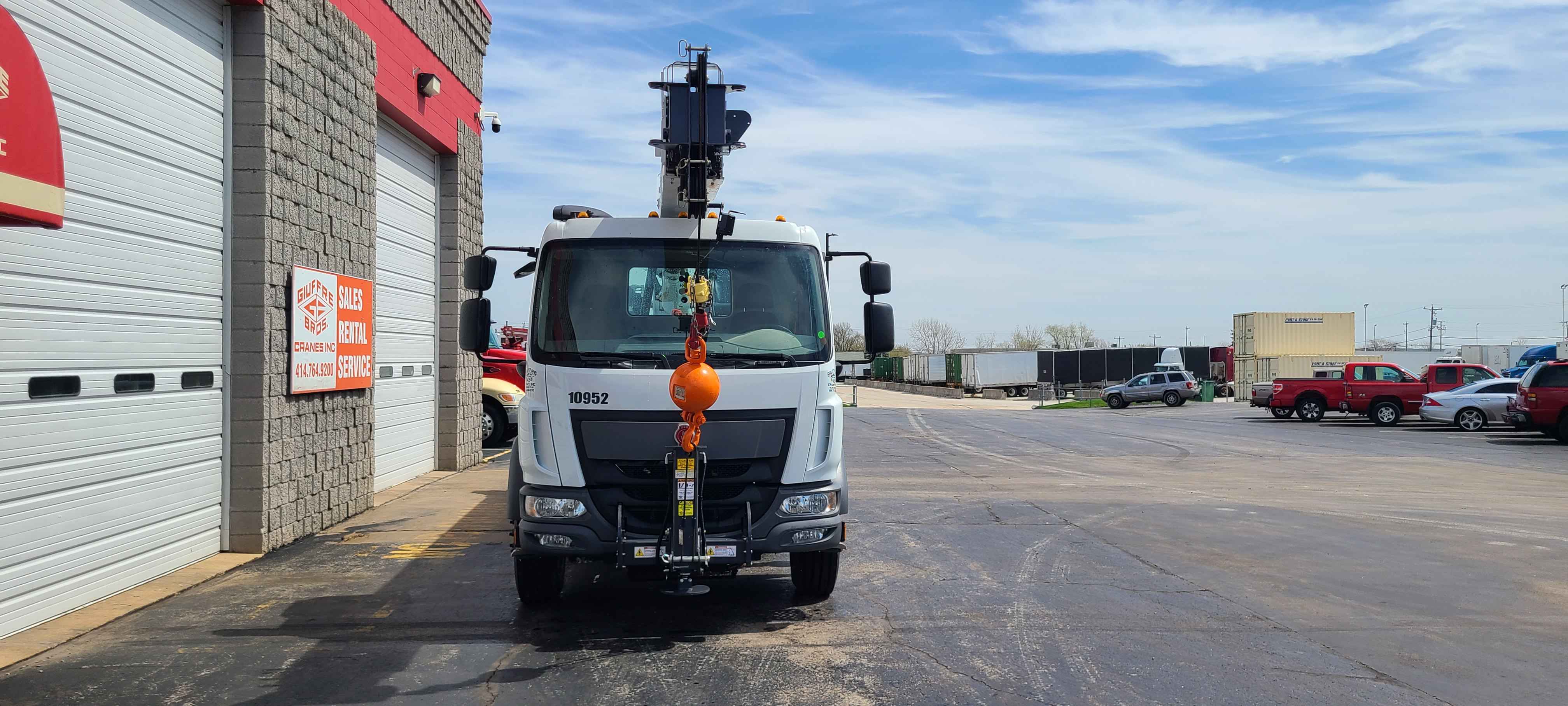

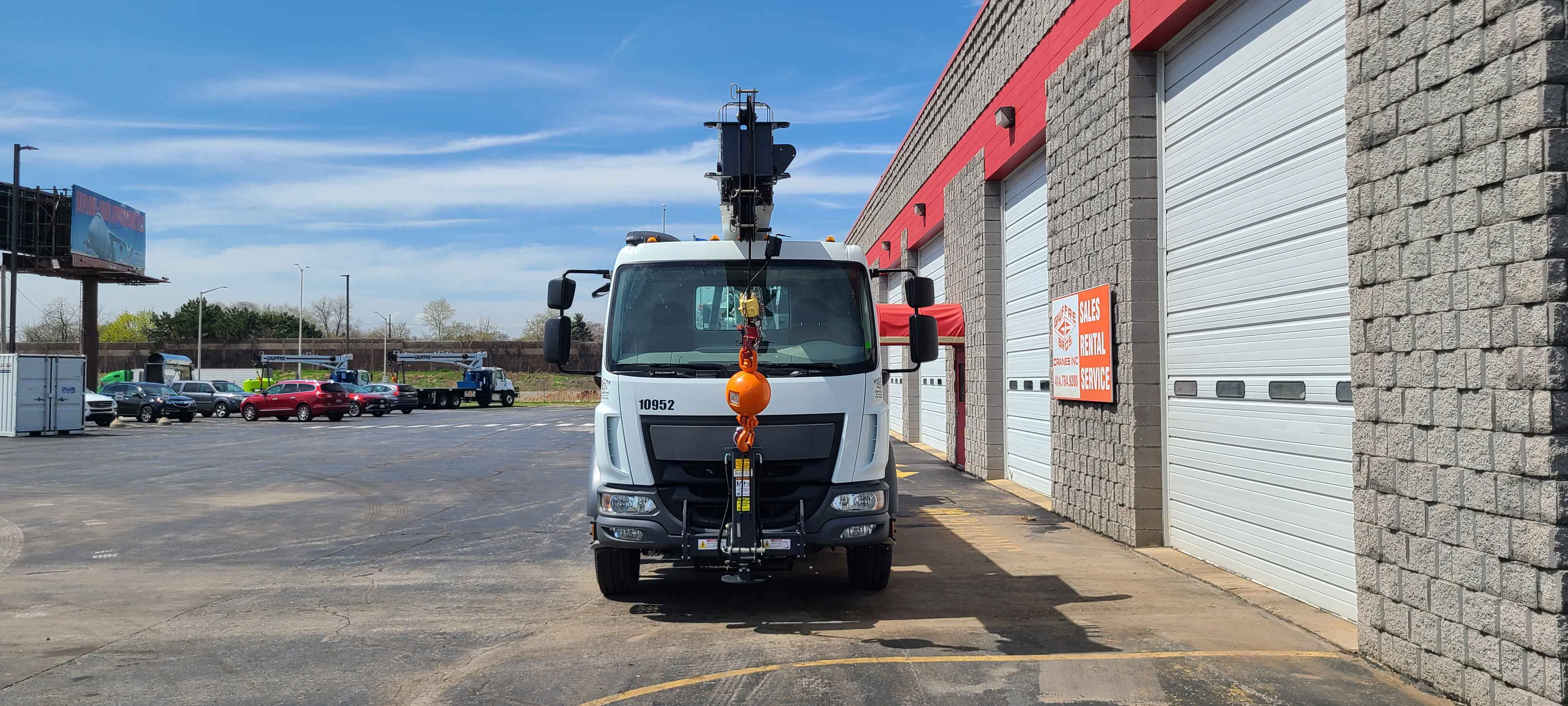

NEW 2026 KENWORTH K370
220HP PACCAR PX-7 TURBO-DIESEL
ENGINE
33,000 LB G.V.W.R.
12,000 LB FRONT STEER AXLE
21,000 LB REAR DRIVE AXLE
ALLISON 2500 RDS-P 5-SPEED, GEN 5
AUTOMATIC TRANSMISSION W/
CONSOLE MTD PUSH BUTTON SHIFTER
COLD START ENGINE GRID HEATER
WABCO PLUS AIR DRYER W/ HEATER
C.A.R.B. ENGINE IDLING COMPLIANCE
ALCOA ALUMINUM WHEELS F & R
11R22.5 FRONT & REAR TIRES
AIR BRAKES W/ WABCO ABS SYSTEM
6.50 REAR AXLE RATIO
TAPER LEAF REAR SUSPENSION
18.7 CFM AIR COMPRESSOR
12V HEATER FOR FUEL FILTER
REAR AXLE STABILIZER BAR
(2) PACCAR 12V BATTERIES (2000 C.C.A.)
BATTERY DISCONNECT SWITCH
ALUMINUM BATTERY BOX
160A BRUSHED ALTERNATOR
POWER STEERING 12K CAPACITY
56 U.S. GALLON FUEL TANK

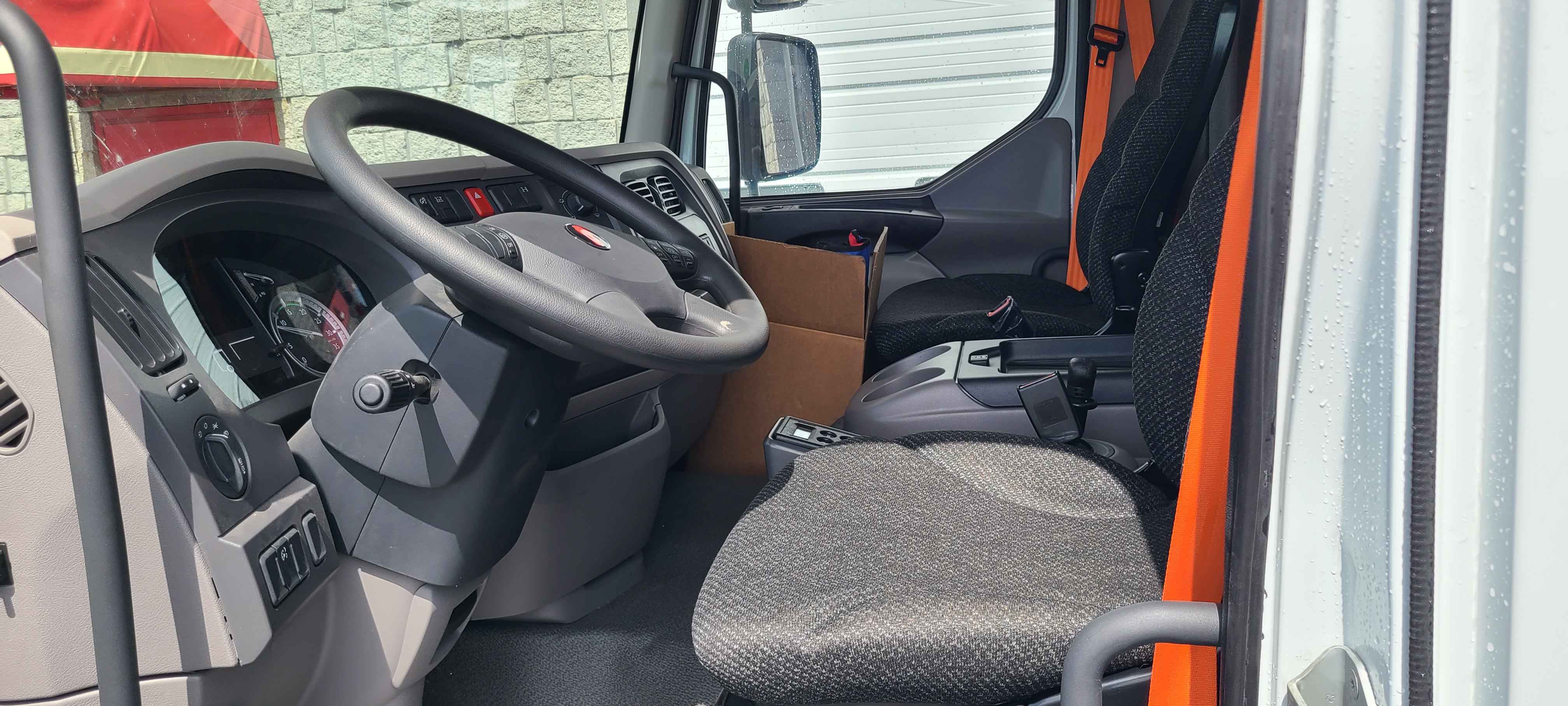

STEEL 63.4" BBC PROBILT CAB
STEEL BUMPER PAINTED GRAY
HIGH BACK AIR RIDE DRIVER'S SEAT
HIGH BACK AIR RIDE PASS. SEAT
ONE-PIECE CURVED WINDSHIELD
ELECTRIC POWERED WINDOWS LH/RH
MIRRORS BOTH HEATED AND MOTORIZED
AM/FM/WB/USB RADIO W/ BLUETOOTH

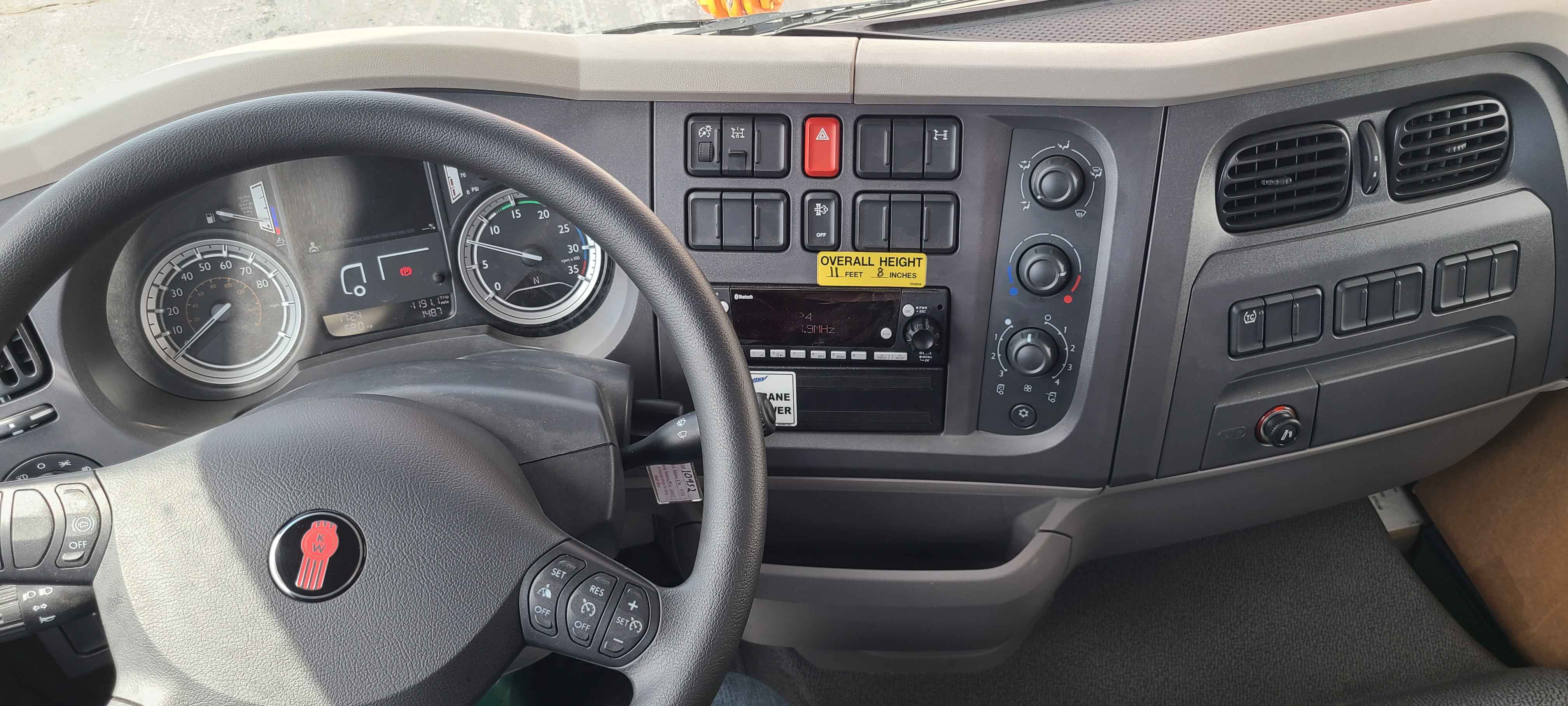

FULL GAUGE PACKAGE
ALL STANDARD EQUIPMENT
PAINTED KENWORTH ICE WHITE ( 00389)
STANDARD KENWORTH WARRANTY
