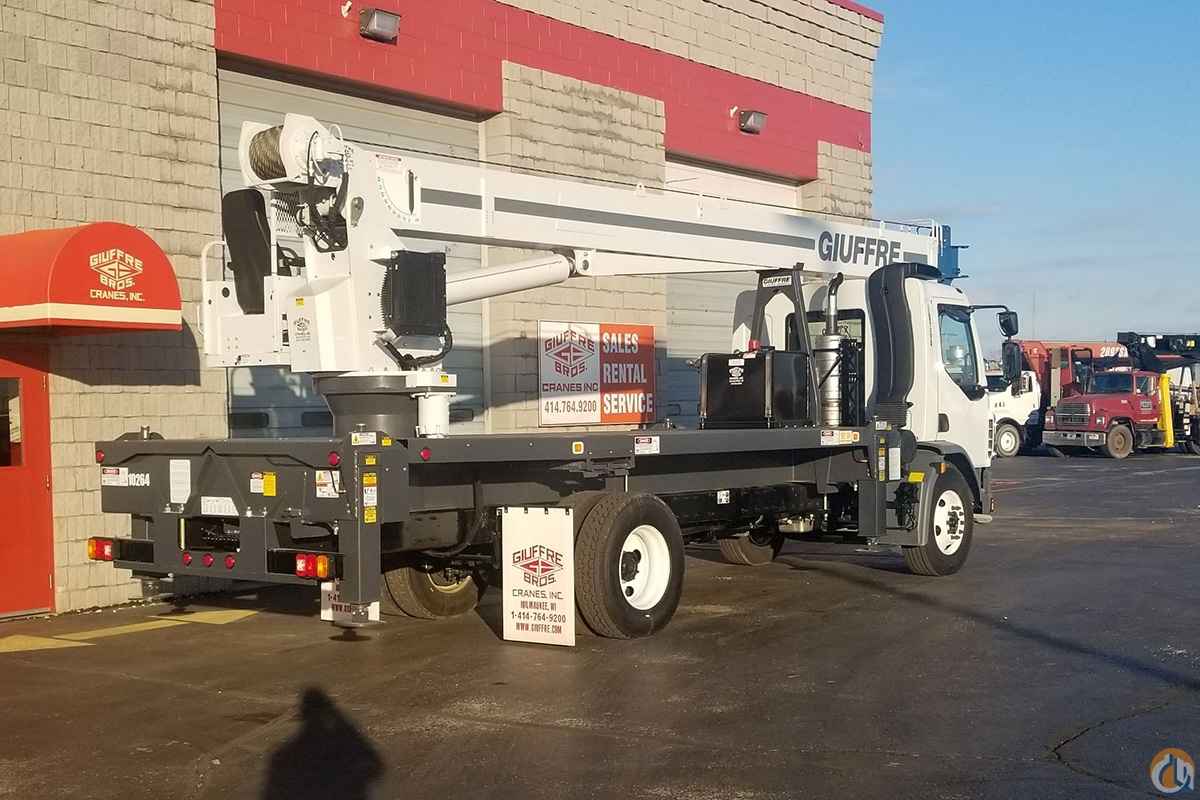

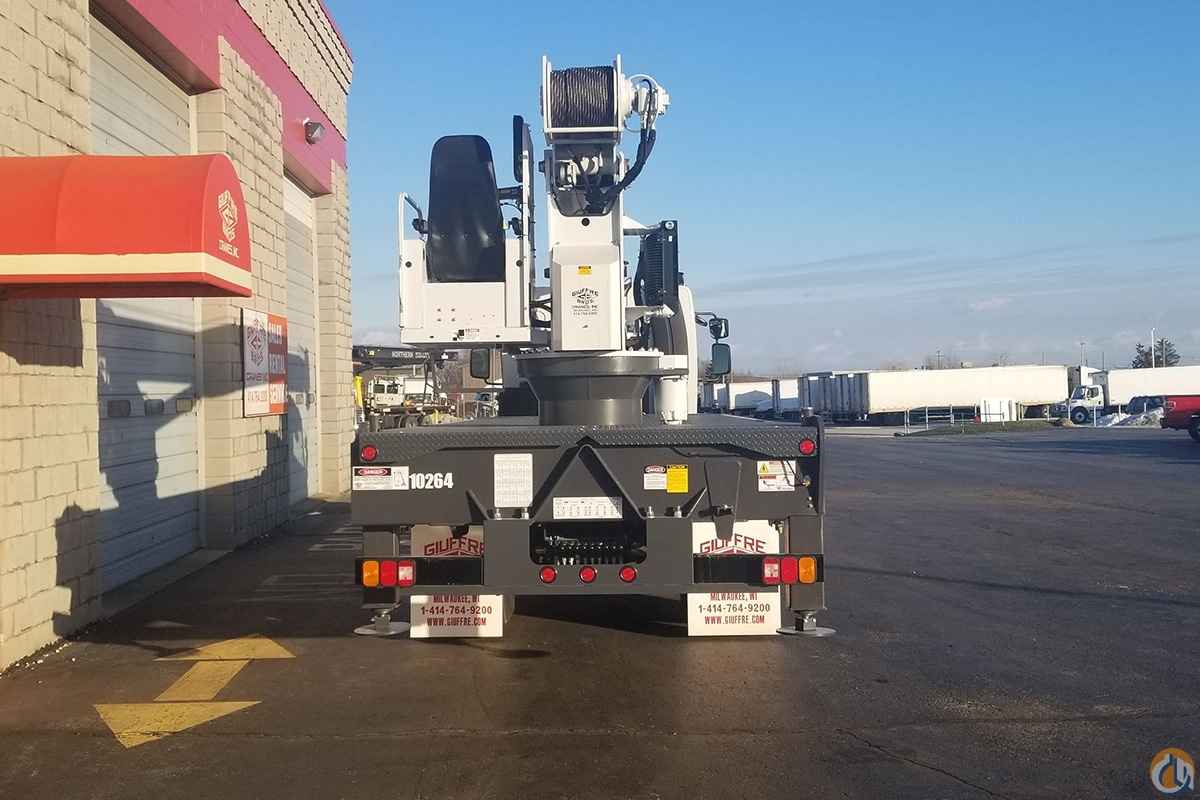

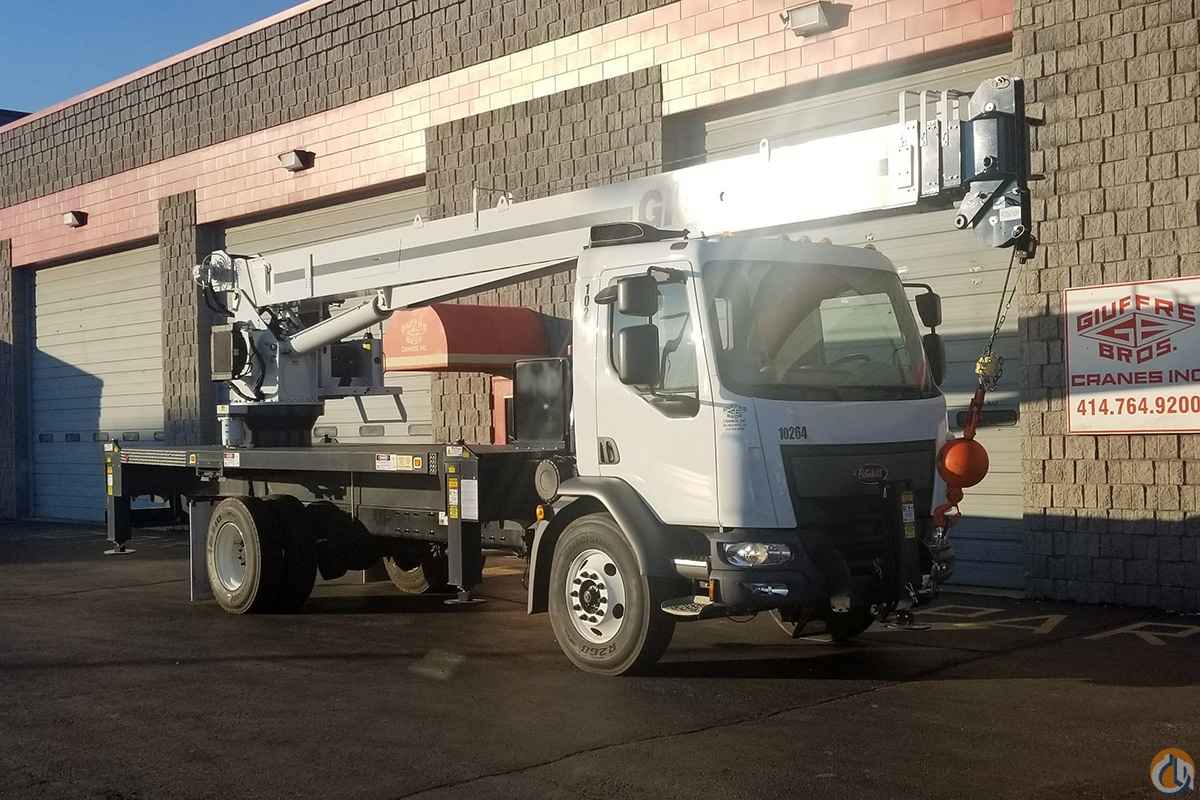

MANITEX 22101S
22 TON CAPACITY
RIDE-AROUND OPERATOR STATION W/ SEAT
4-SECTION 101' BOOM WITH 111' TIP HEIGHT
3-SECTION CW HYDRAULIC VANE PUMP
360 DEGREE OF OPERATION W/
CONTINUOUS ROTATION

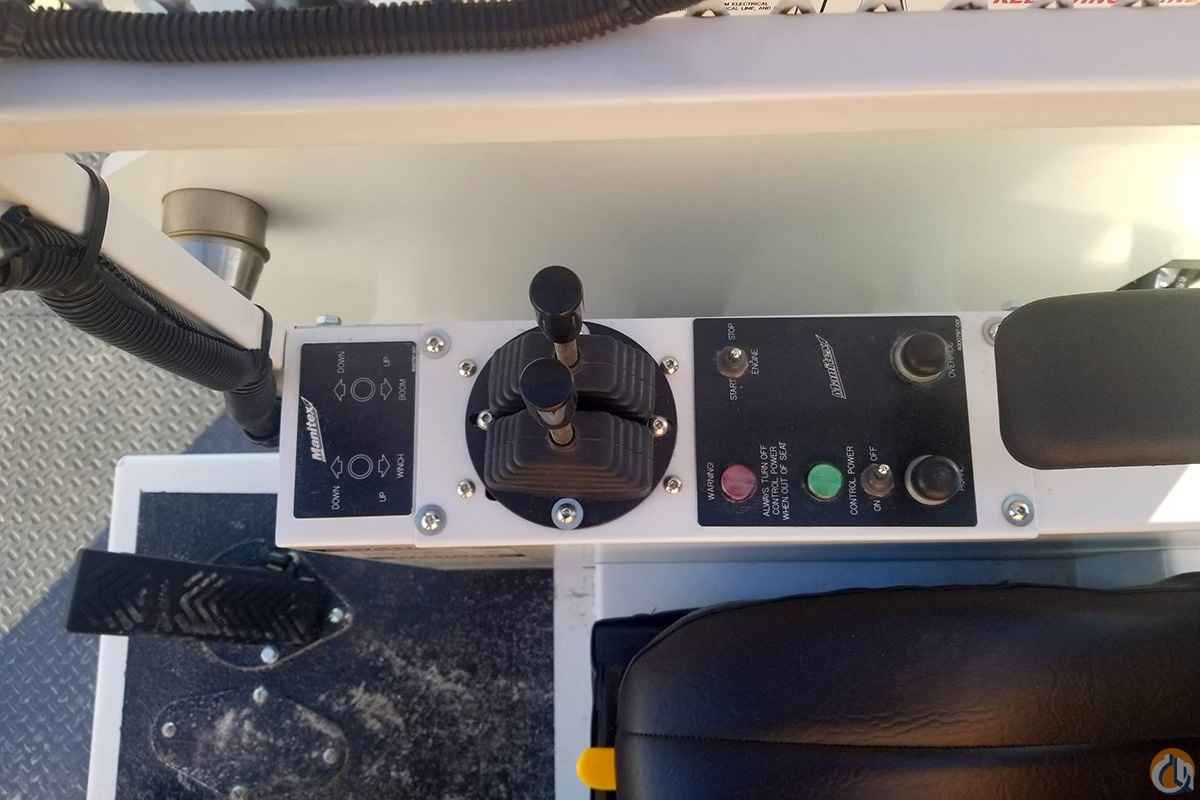

PILOT CONTROLS
OUTRIGGER MONITORING SYSTEM
(4) OUT & DOWN OUTRIGGERS W/ CAPACITIES
FOR 3 SPREAD OPTIONS (19'9", 13'6", 7'3")

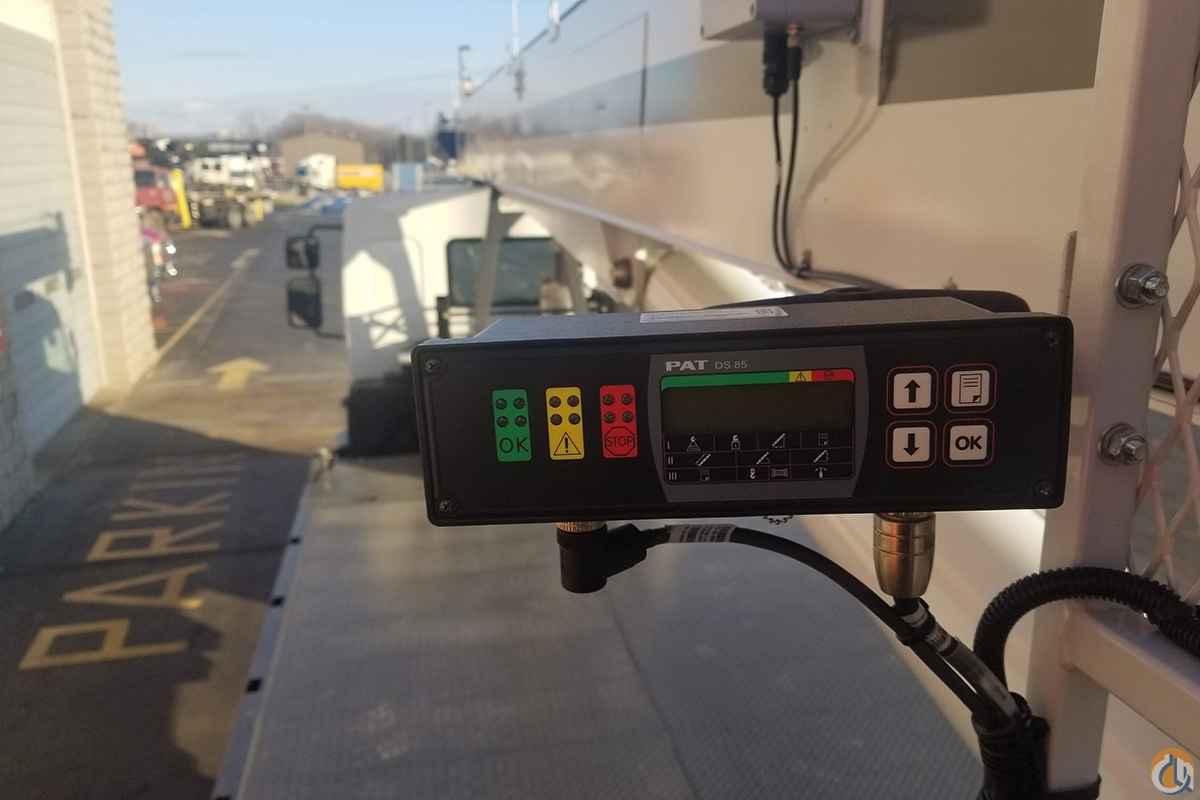

LOAD MOMENT INDICATOR - AUDIO/VISUAL
ALERT W/ SHUTOFF
RADIO ANTI-TWO BLOCK W/ LOCKOUT
2 RETRACTABLE LADDERS FOR ACCESS
TO HEAVY DUTY 13' STEEL BED
BOOM HOIST CYLINDER
AUDIBLE OUTRIGGER MOTION ALARM
SYSTEM PRESSURE GAUGE
SIGNAL HORN AND OIL COOLER
PAINTED MANITEX WHITE
STANDARD MANITEX 12 MONTH WARRANTY
NEW 2020 PETERBILT 220 C/O
250HP PACCAR PX-7 TURBO-DIESEL
ENGINE
33,000 LB G.V.W.R.
12,000 LB FRONT STEER AXLE
21,000 LB REAR DRIVE AXLE
ALLISON 2500 RDS-P 5-SPEED, GEN 5
AUTOMATIC TRANSMISSION W/
CONSOLE MTD PUSH BUTTON SHIFTER
COLD START ENGINE GRID HEATER
WABCO PLUS AIR DRYER W/ HEATER
C.A.R.B. ENGINE IDLING COMPLIANCE
ACCU-LITE STEEL PAINTED WHEELS
11R22.5 FRONT & REAR TIRES
AIR BRAKES W/ WABCO ABS SYSTEM
5.57 REAR AXLE RATIO
TAPER LEAF FRONT & REAR SUSPENSION
18.7 CFM AIR COMPRESSOR
12V HEATER FOR FUEL FILTER
REAR AXLE STABILIZER (2) PACCAR 12V BATTERIES (2000 C.C.A.)
KISSLING BATTERY DISCONNECT SWITCH
ALUMINUM BATTERY BOX
160A BRUSHED ALTERNATOR
POWER STEERING 12K CAPACITY
EXHAUST SINGLE RH BOC COMPACT
45 U.S. GALLON LH BACK OF CAB
STEEL 63.5" BBC PROBILT CAB
STEEL BUMPER PAINTED GRAY
HIGH BACK AIR RIDE DRIVER'S SEAT
2-PERSON NON-AIR RIDE PSGR SEAT
ONE-PIECE CURVED WINDSHIELD
ELECTRIC POWERED WINDOWS LH/RH
MIRRORS BOTH HEATED AND MOTORIZED
AM/FM/WB/USB RADIO W/ BLUETOOTH

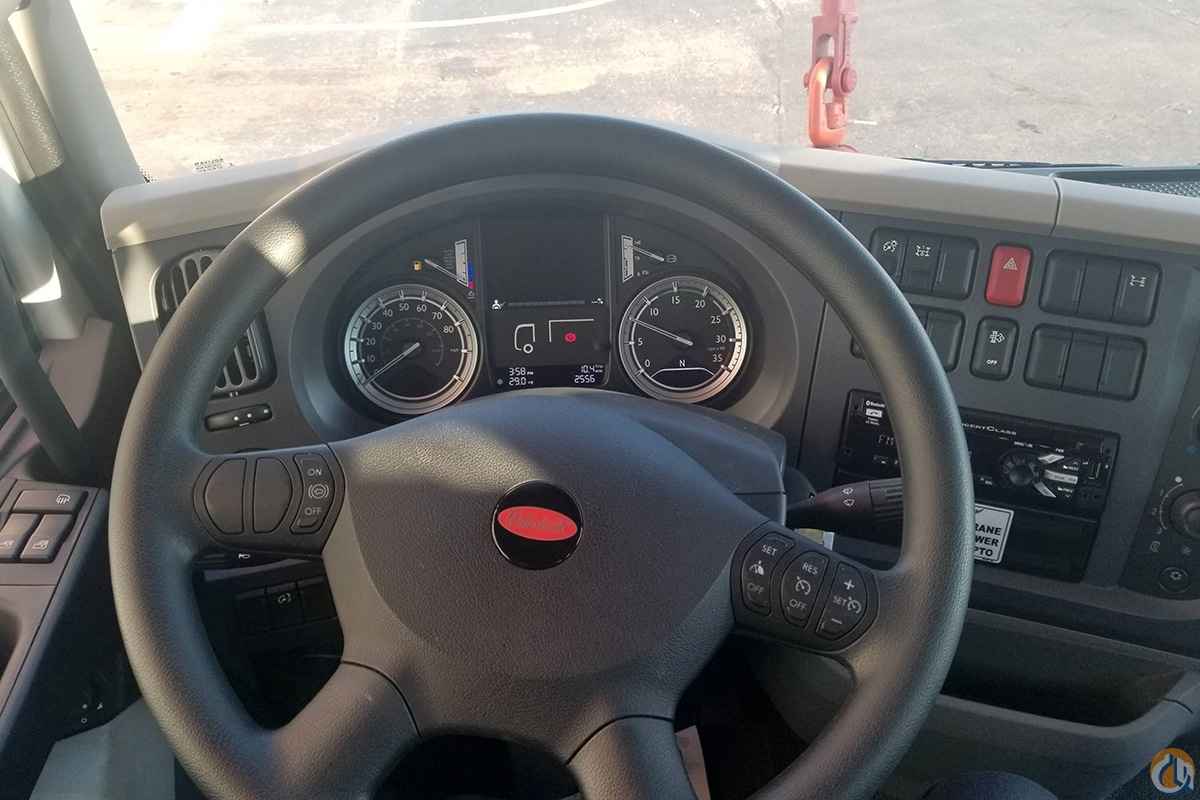

FULL GAUGE PACKAGE
ALL STANDARD EQUIPMENT
PAINTED PETERBILT ICE WHITE (M8870)
STANDARD PETERBILT WARRANTY
