2017 Manitex 2085 T Boom Truck Crane (Sold)

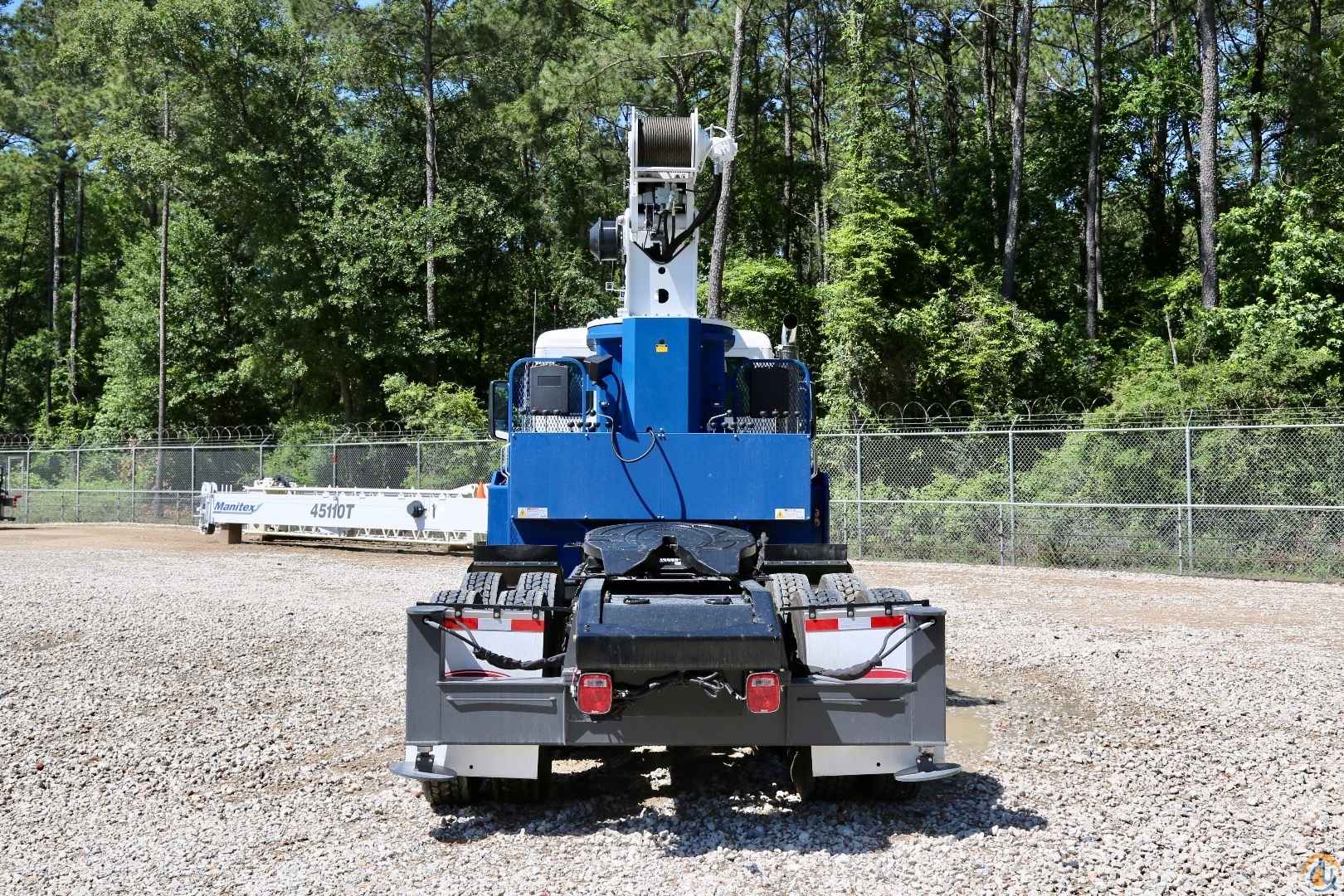

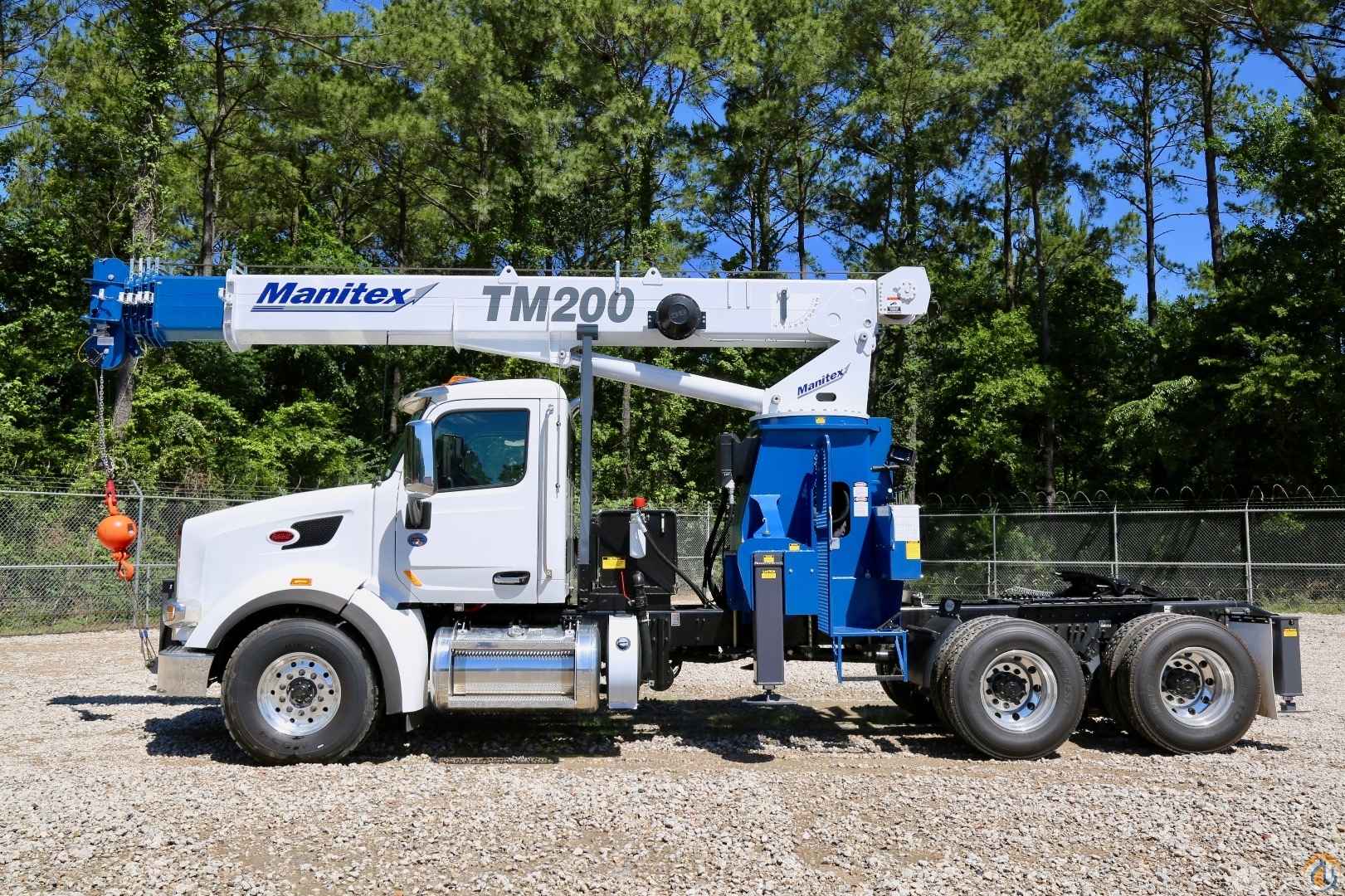

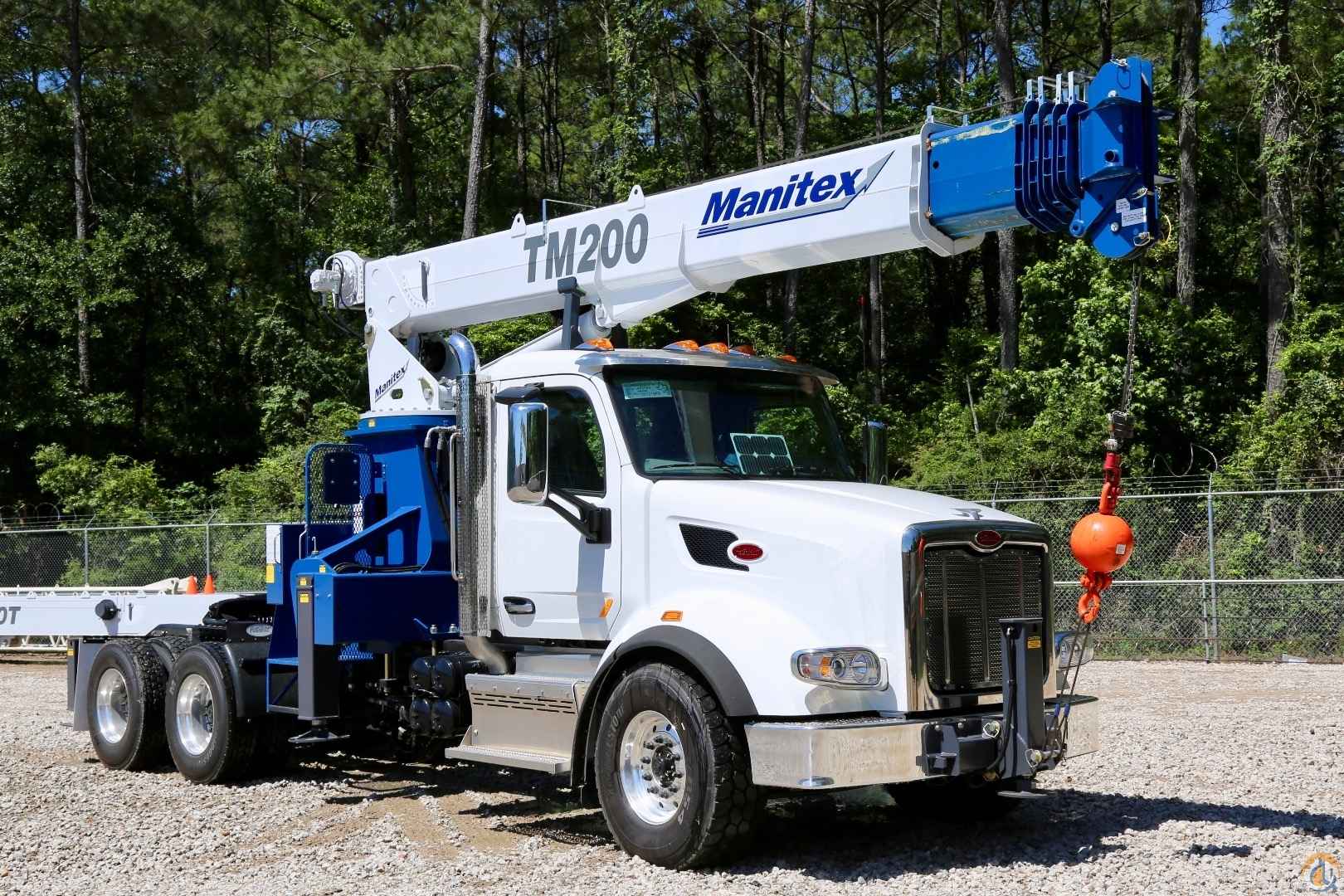

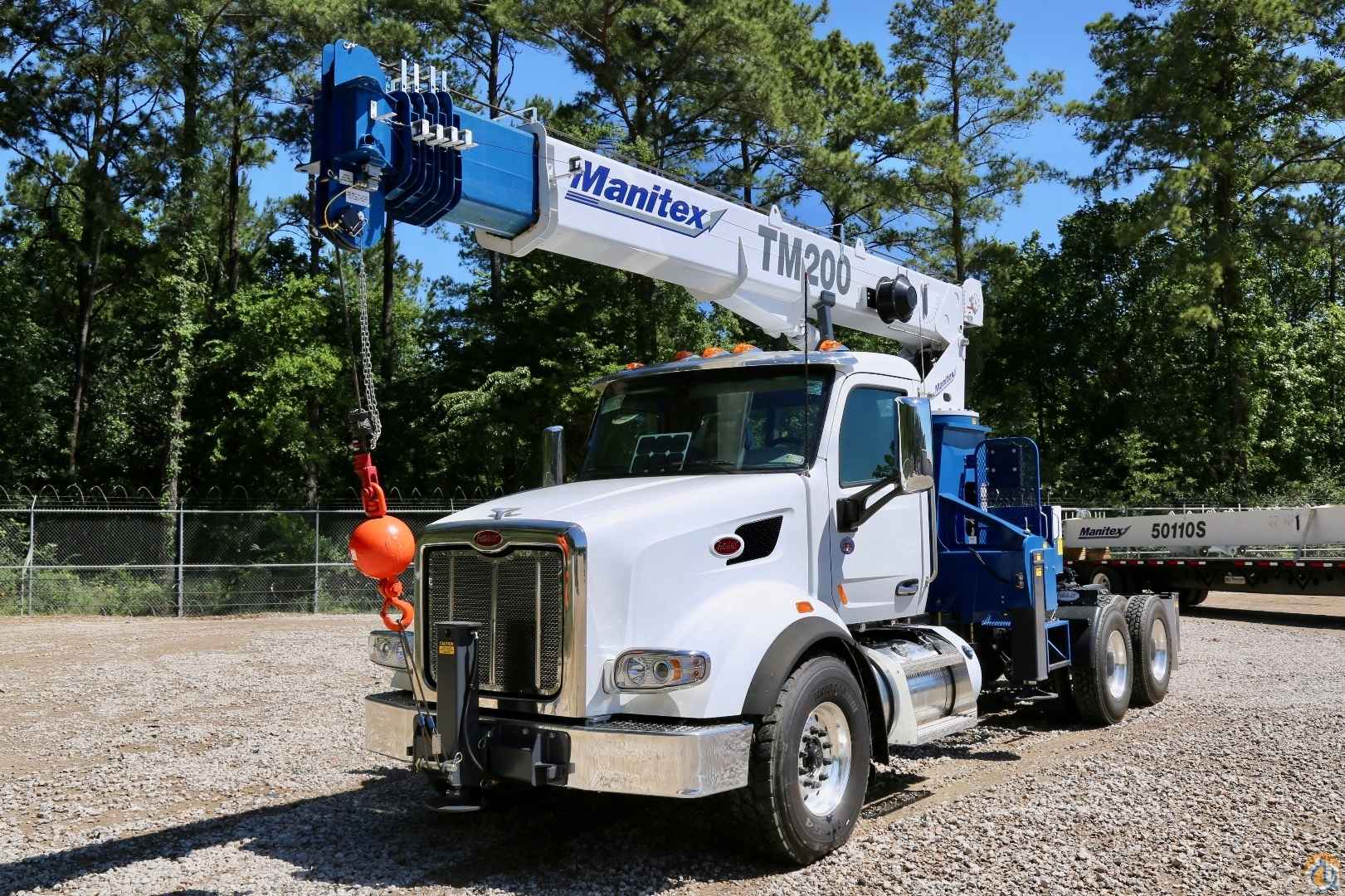

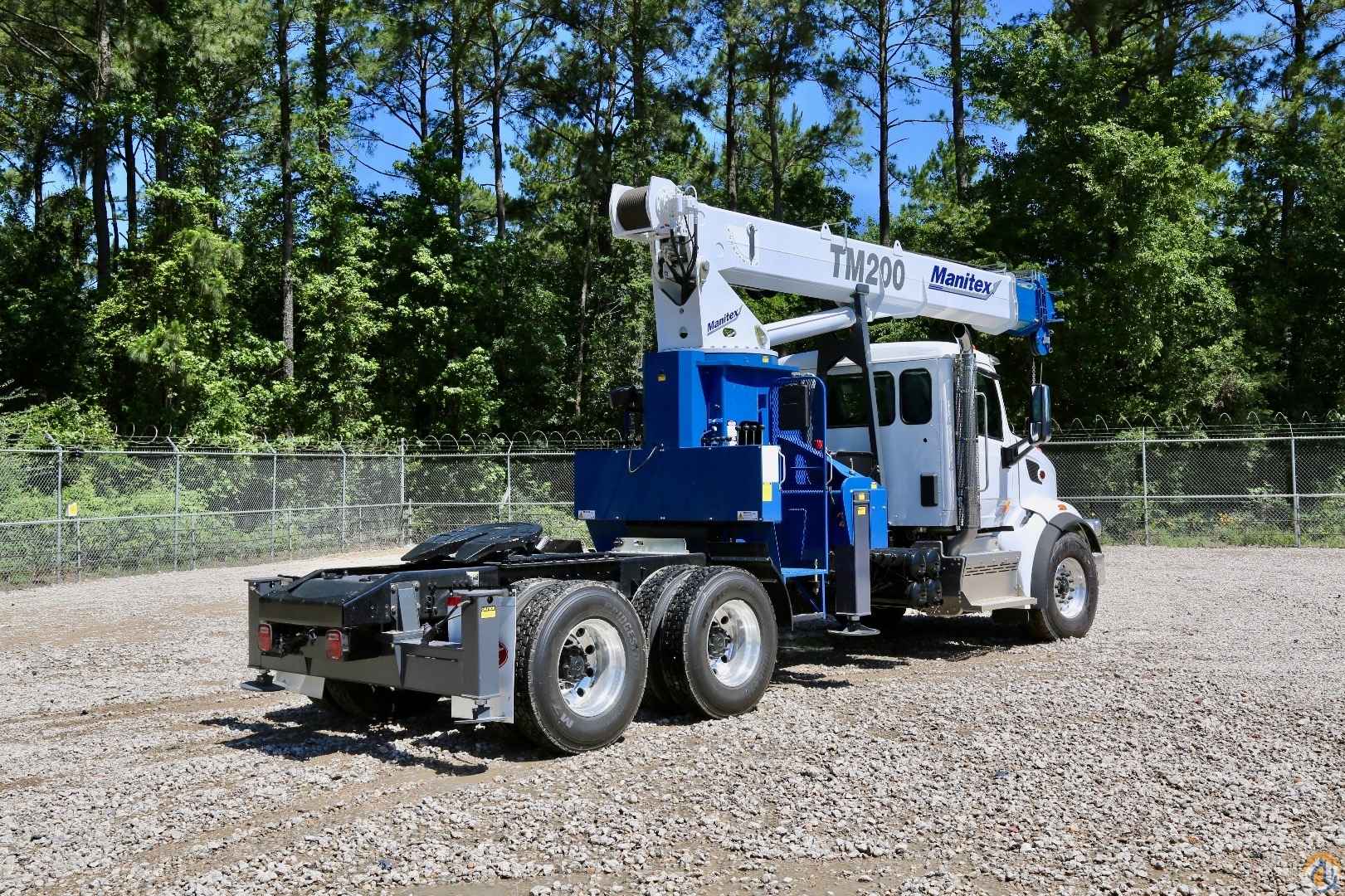

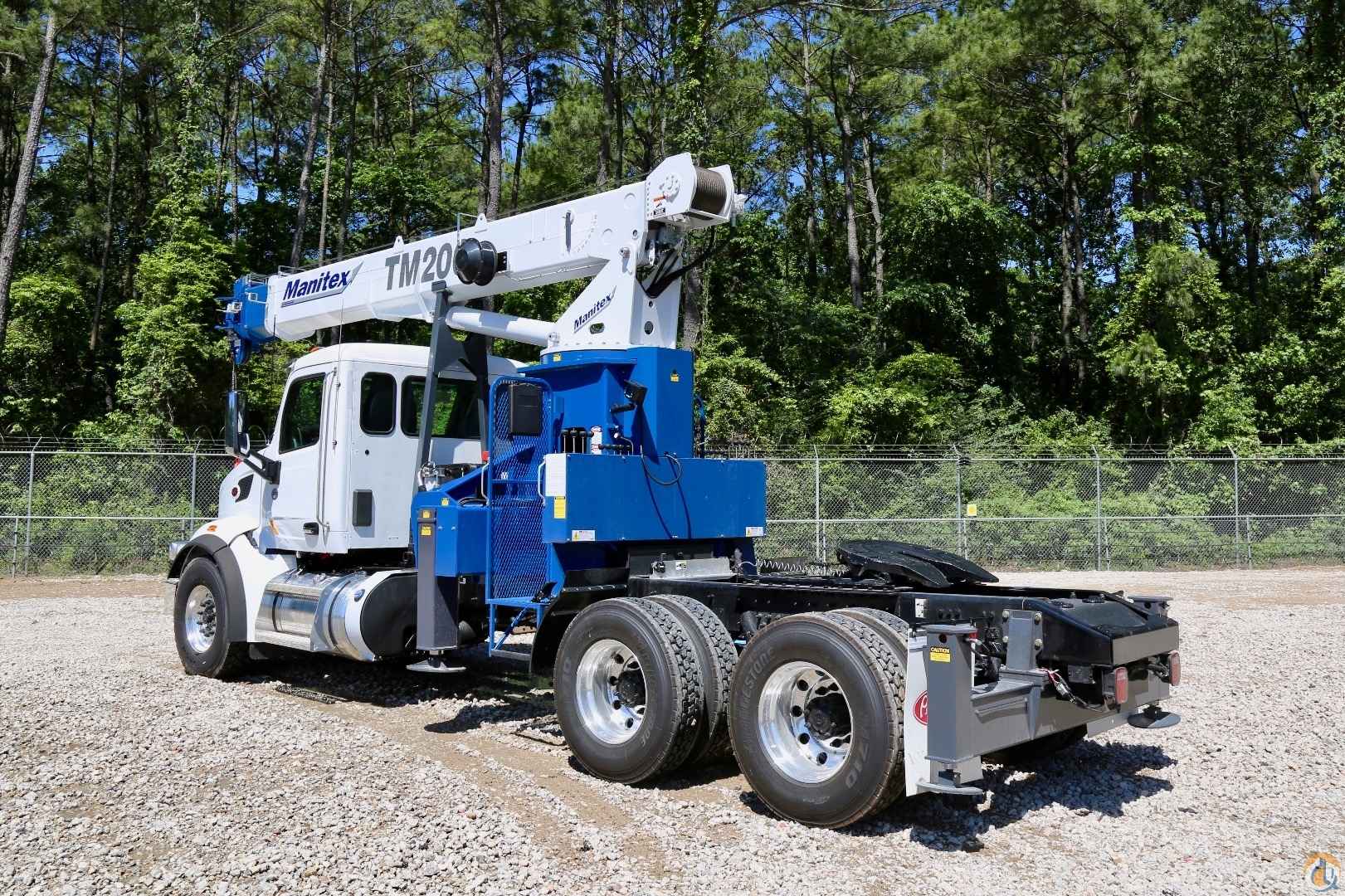

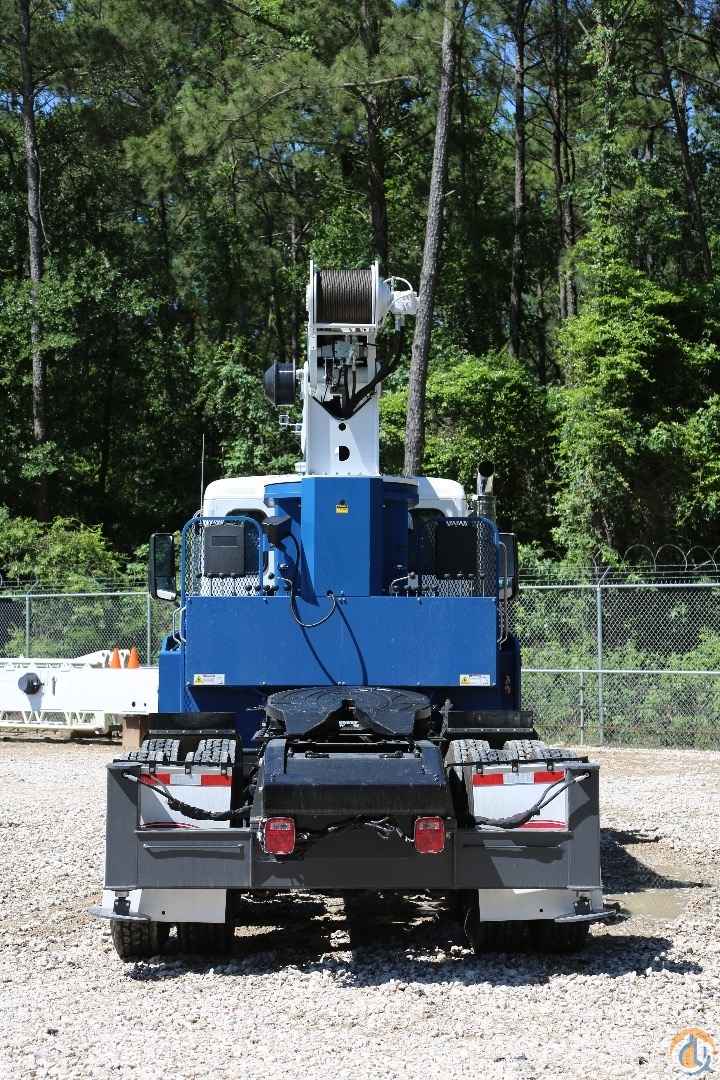

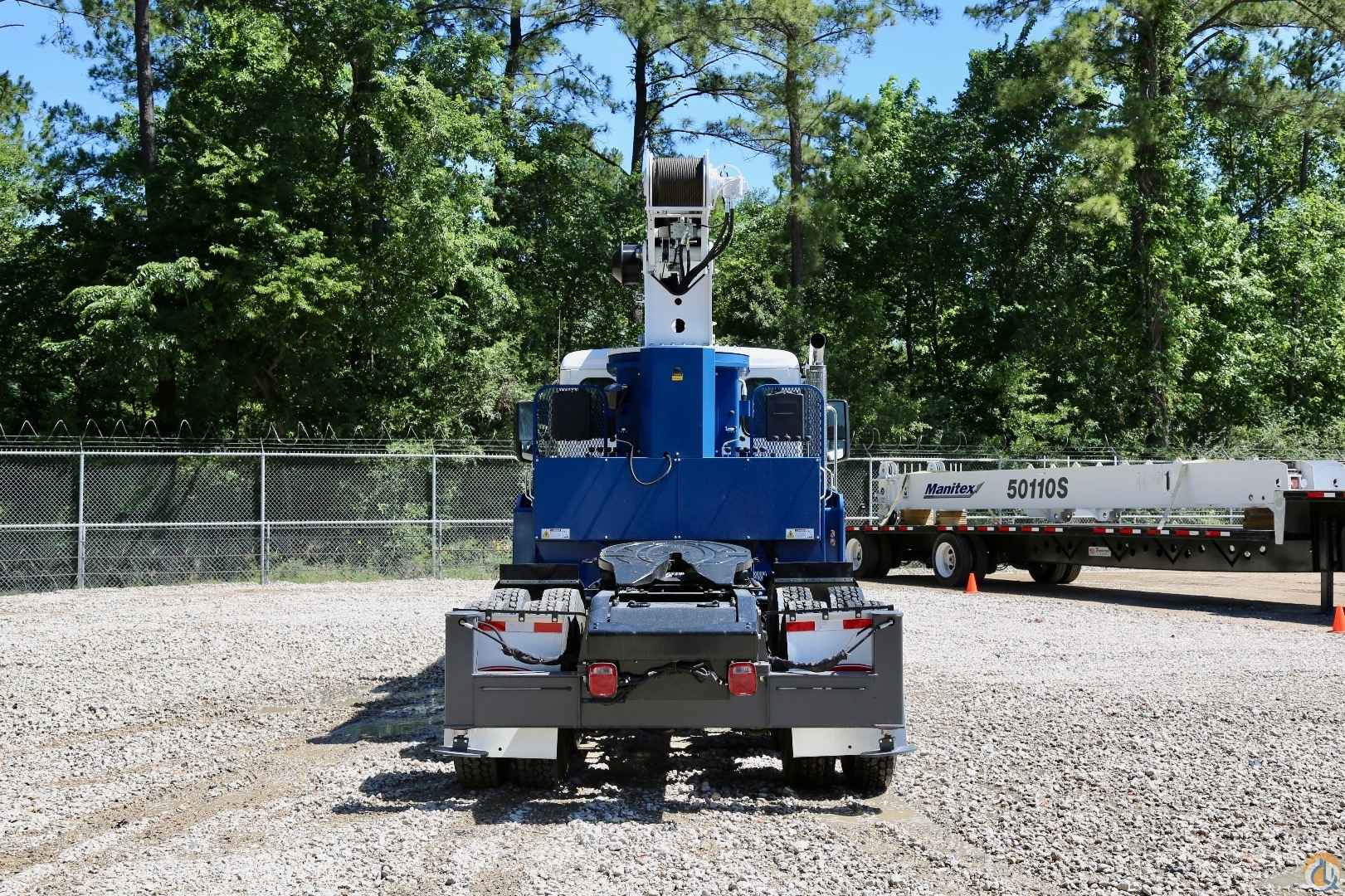

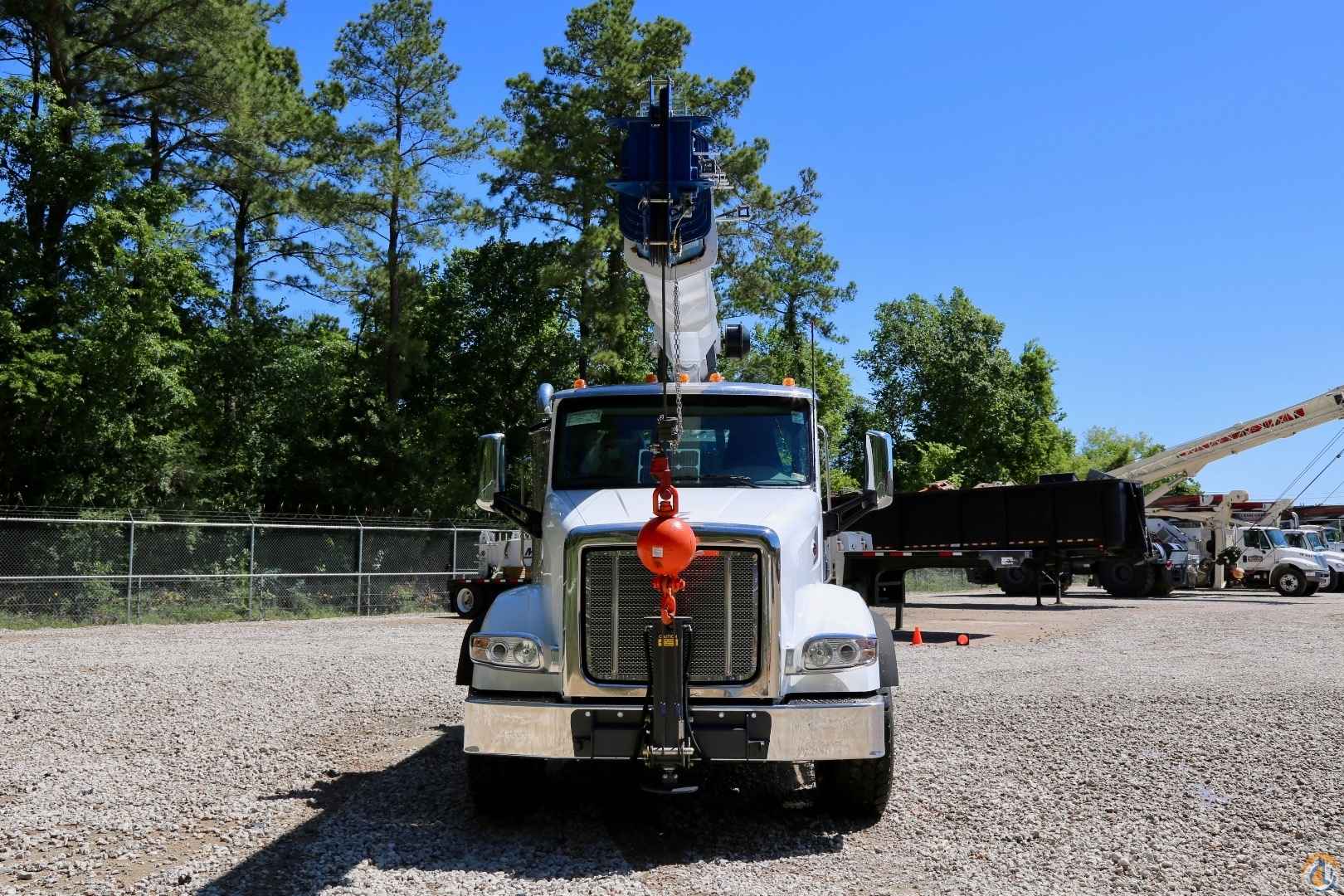

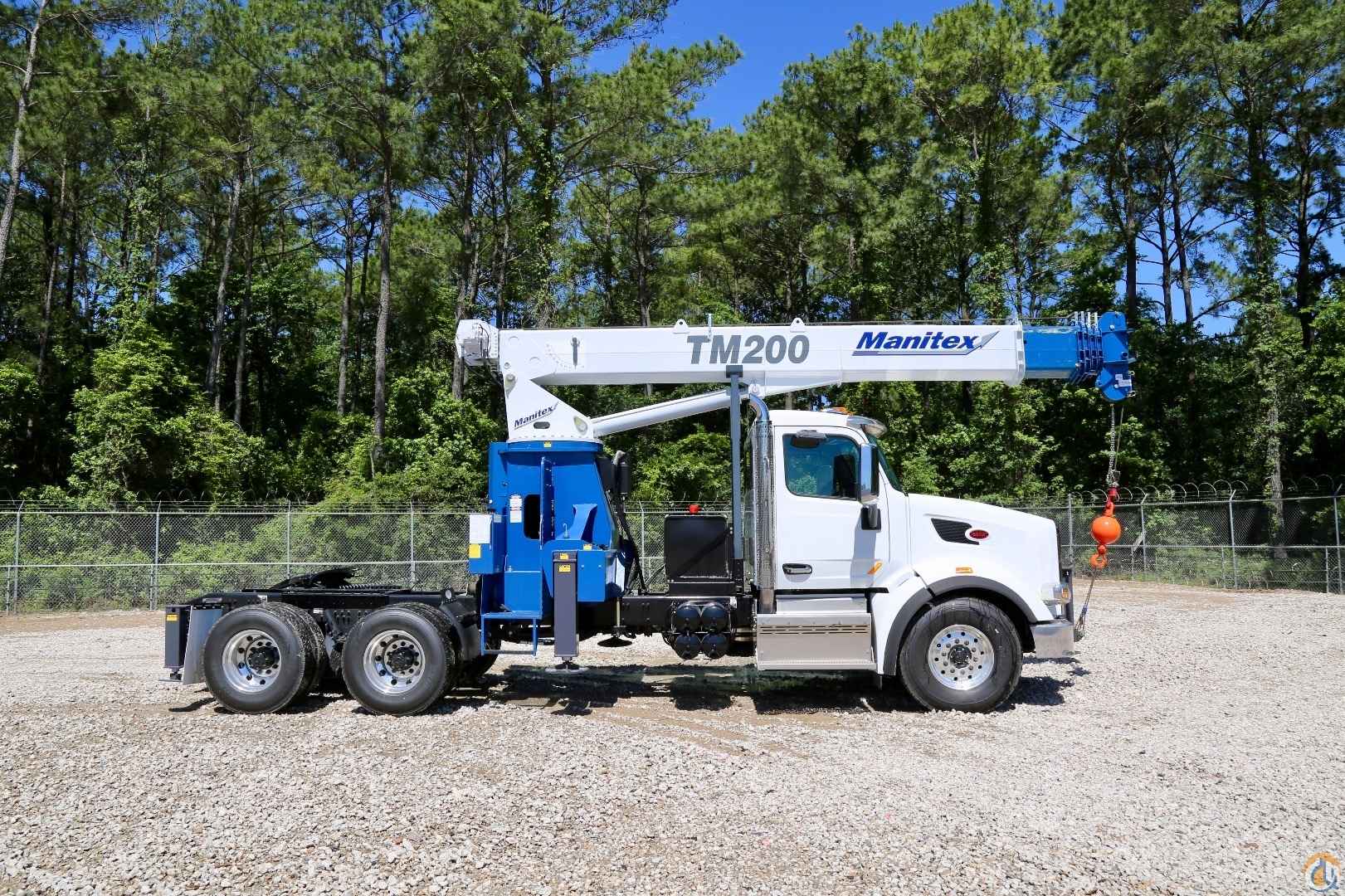

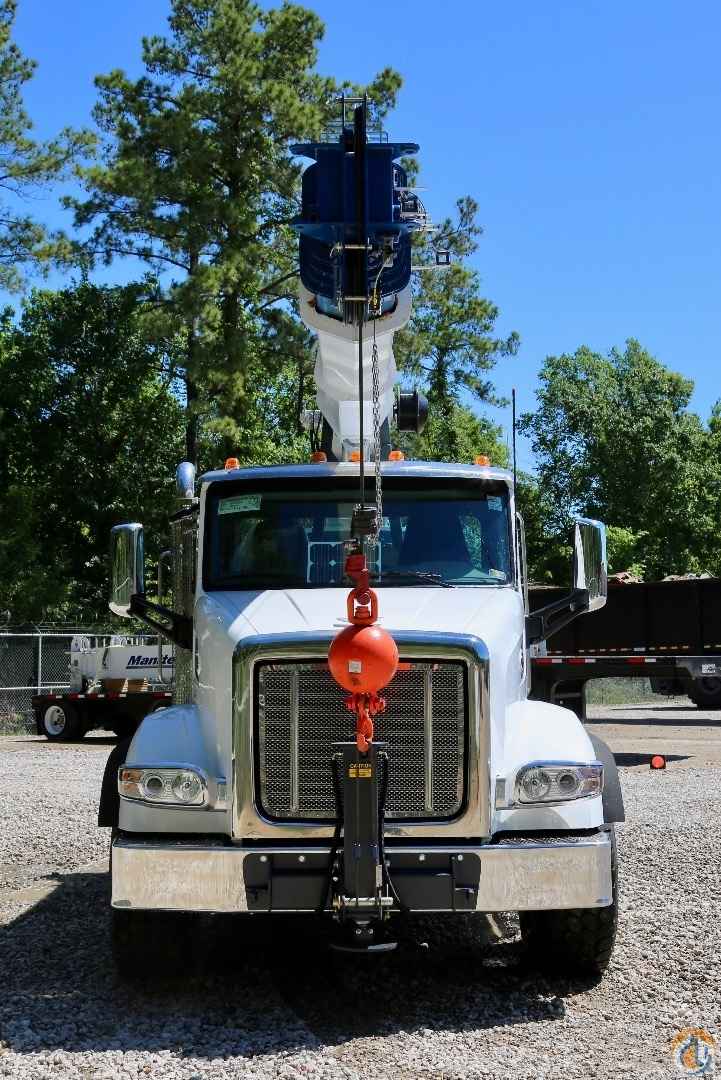

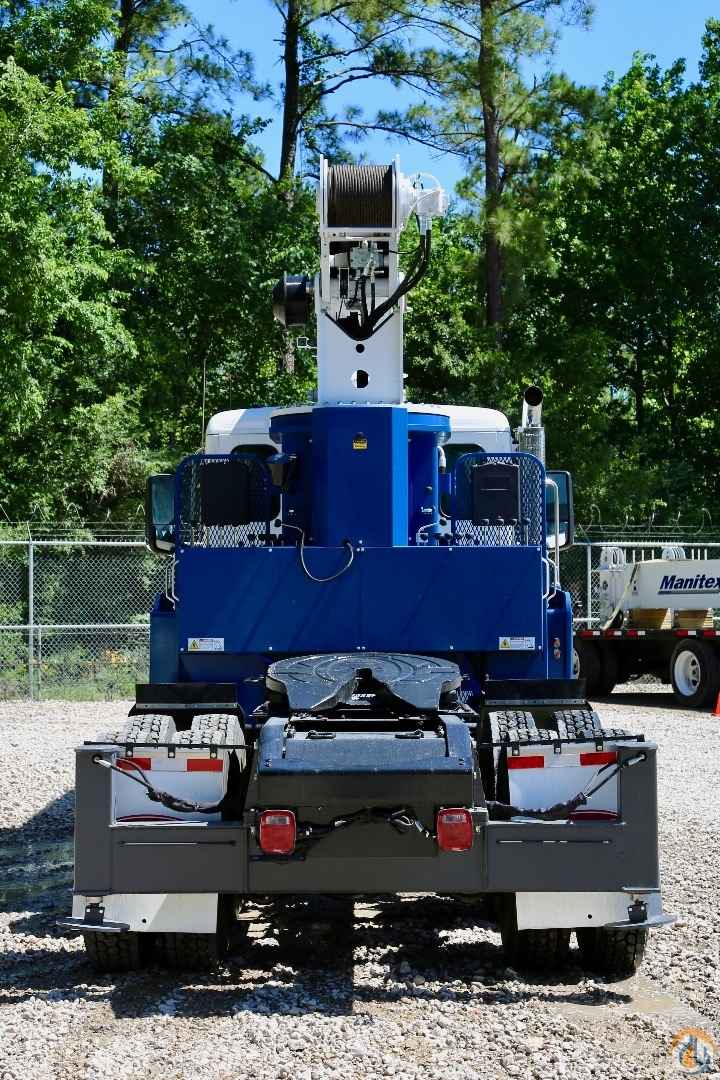

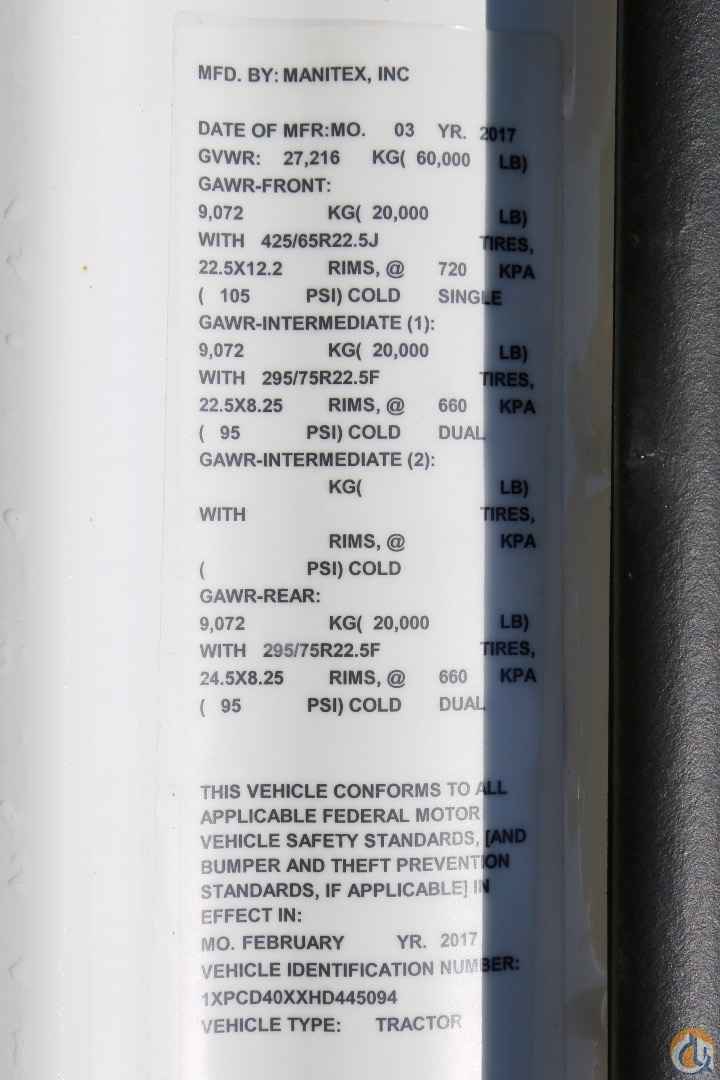

New Manitex 2085T / TM200 mounted to Peterbilt 567 chassis

Features

20 Ton (18.1 mton) Capacity

6-Section 85’ (25.9m) Combination Sequential & Proportional Telescopic Boom

95’ (28.95 m) Maximum Main Boom Tip Height

19’-8” (6 m) Out-and-Down Outriggers Fully Extended

7’-5” (2.25 m) H-Style Rear Stabilizers

2-Speed Planetary Hoist with Grooved Drum and Negative Draft Flange

Load Moment Indicator with Digital Display, CAN Bus, Overload Shutdown

Externally Wired Anti Two Block.

Rugged, Weatherproof Electrical System with Circuit Status LEDs

Removable Boom Rest

System Pressure Gauge

Clamp-On Mounting

Manitex UPTime Comprehensive Support

Specs

BOOM

Formed pentagonal 6-section telescoping type, extended and retracted sequentially and proportionally by a double-acting hydraulic cylinders and cable-crowd system. Easily replaceableand adjustable high-density nylon slide pads.

2085TM 6-Section 85’ (25.9m) Combination Sequential & Proportional Boom

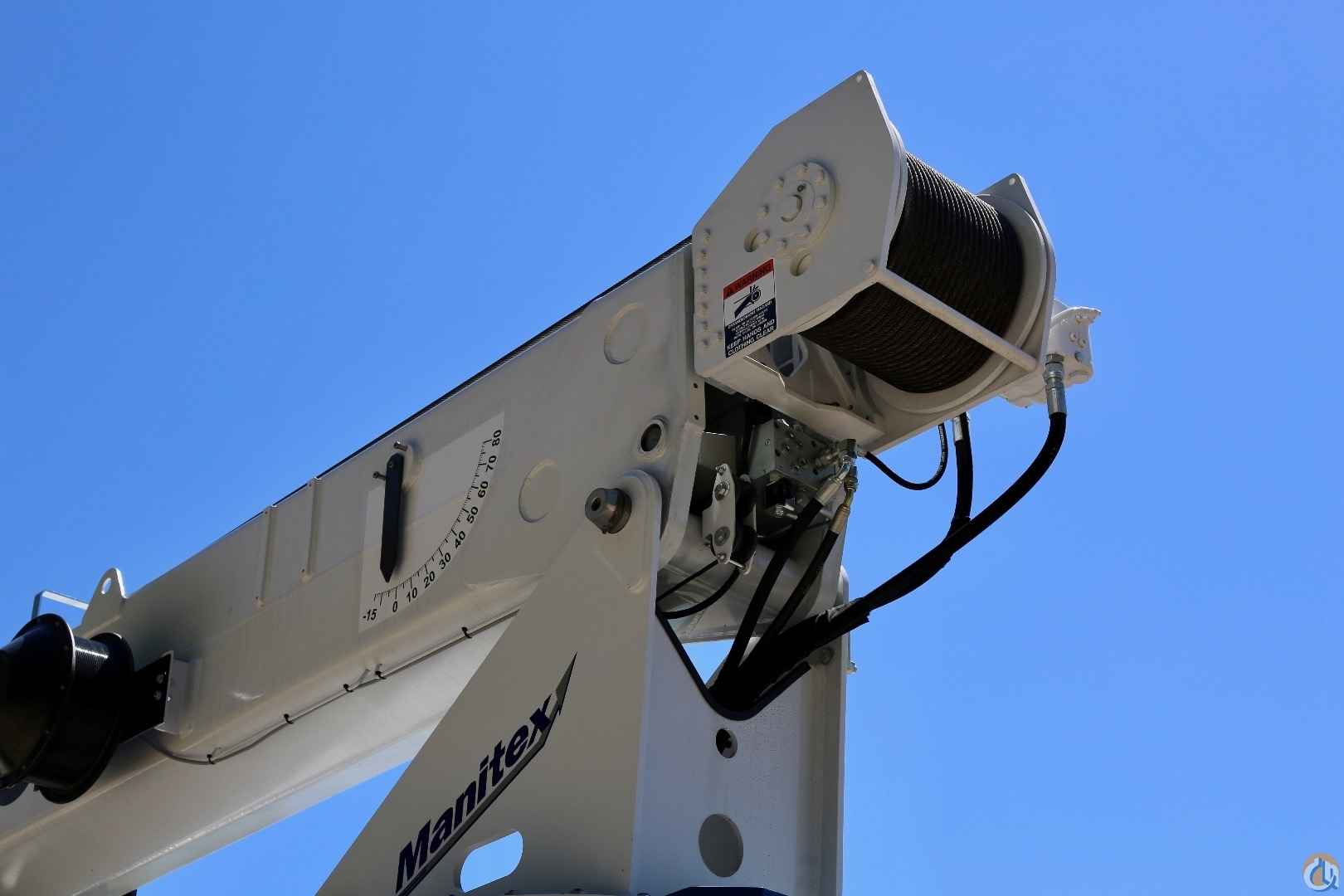

Quick Reeve Boom Point – Two high-density nylon load sheaves mounted on heavy-duty roller bearings. Two removable pin-type rope guards.

Boom Elevation – Double-acting hydraulic cylinder. Working range from 9Þ below horizontal to 80.6Þ above.

Load Hook – 7-ton (6,4 mton) capacity hook with heavy-duty swivel and weight is provided for single-line operation.

HOIST

Maximum theoretical line speed 247 fpm (75,3 mpm). Maximum theoretical bottom-layer line pull 11,500 lb (2 227 kg). Two-speed planetary reducer. Wet multi-disc internal brake is spring-applied, pressure-released.

Wire Rope – 300’ (91,4 m) of 9/16" (14.3 mm) rotation resistant type.

SWING SYSTEM

Externally mounted, double-reduction planetary driven by hydraulic motor. Maximum theoretical swing speed 1.5 rpm. Spring-applied, pressure-released parking brake. Ball-bearing swing circle with external gear.

OUTRIGGERS

Out and Down Outriggers type with double-acting hydraulic cylinders operated independently for precise leveling. Bubble level located near outrigger controls

STABILIZERS

7’-5” (2.25 m) H-Style Rear Stabilizers or Optional A-Frame Style

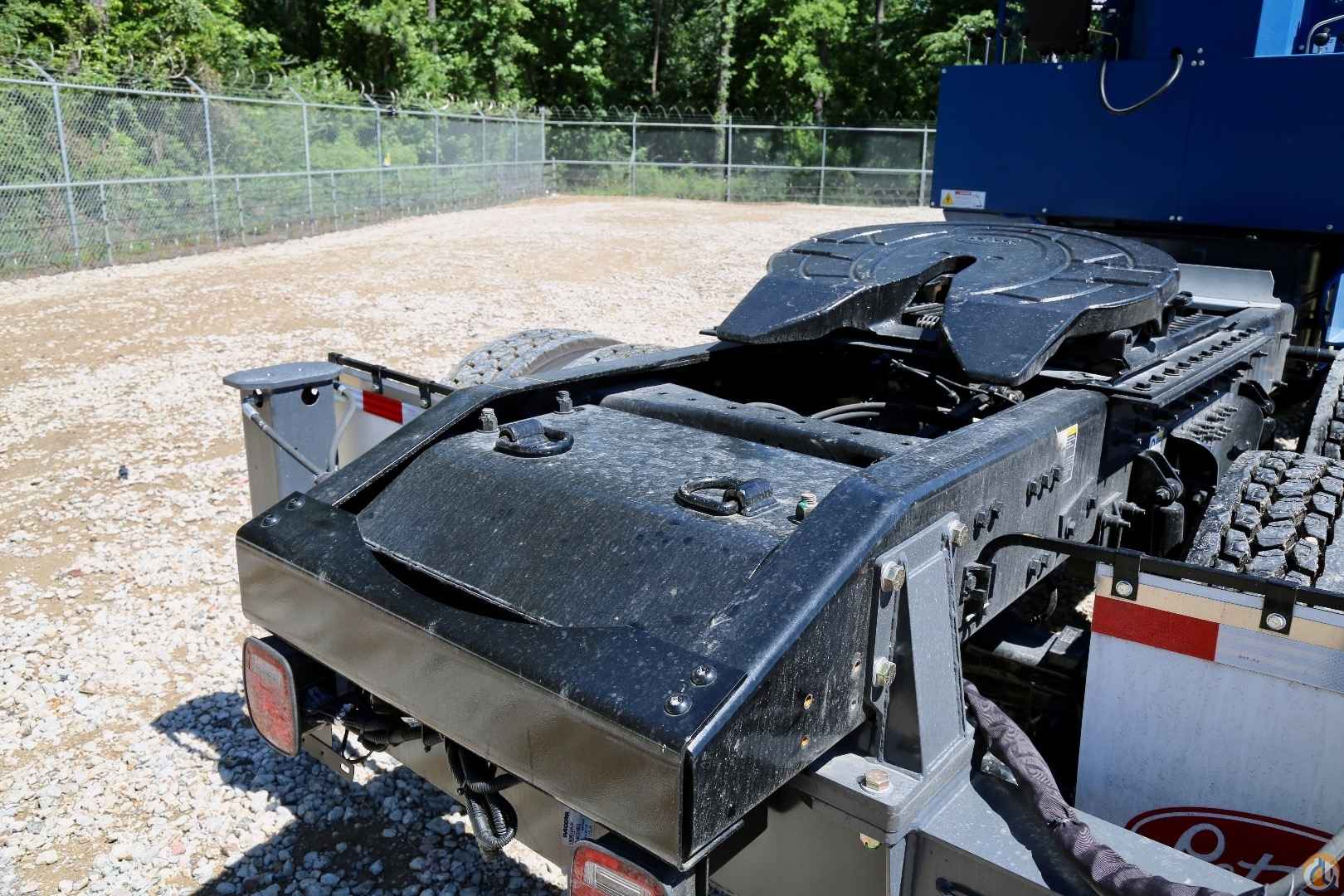

MOUNTING

Pedestal and subframe are mounted to chassis by threaded rods and clamp plates. No welding, drilling, or bolting to truck frame is required.

Subframe - Torsional resistant, rigid 4-plate design which is mounted under crane.

Boom Rest - Removable Heavy-duty fabrication mounted behind the cab.

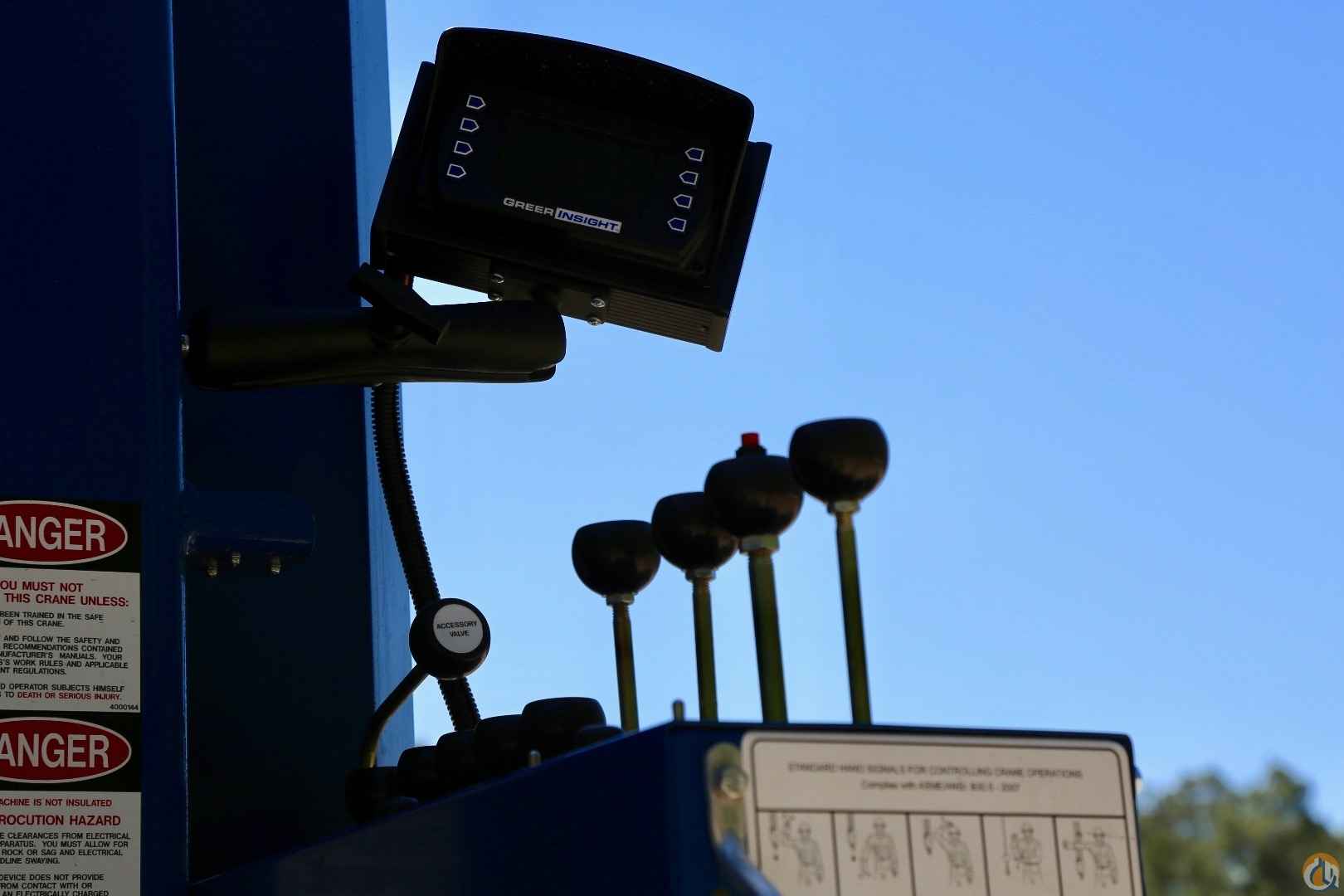

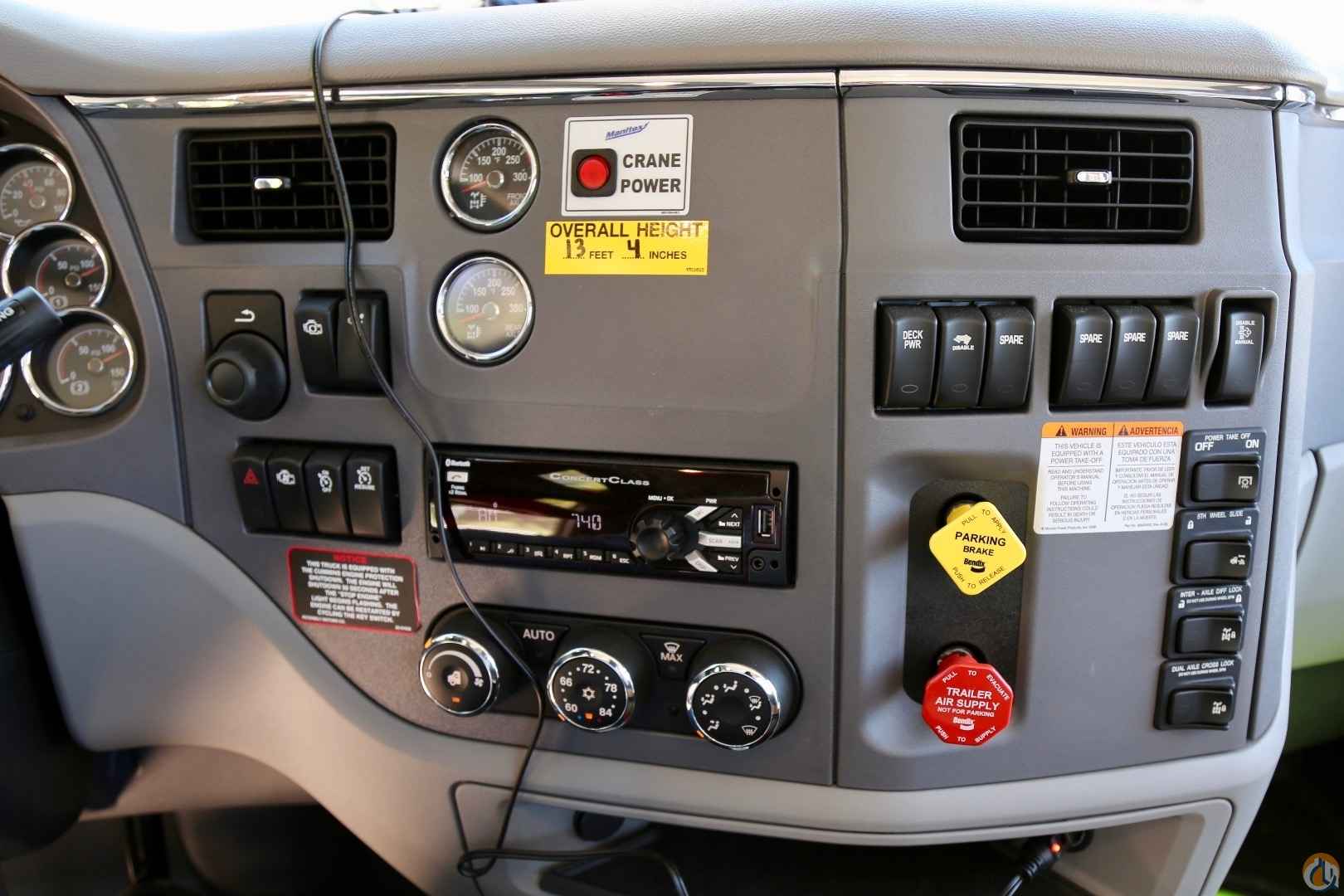

CONTROL SYSTEM

Dual operator platforms are equipped with four single-lever crane controls arranged to ASME B30.5 standards. Fully proportional control valves and system pressure gauge. Each station also includes outrigger and stabilizer controls, engine start/stop, foot throttle, signal horn, boom-angle indicator, bubble levels, beverage container, load chart, and range diagram.

HYDRAULICS

Hydraulic System – A 3-section gear pump direct-mounted to power take-off on truck transmission provides 32 gpm (133 lpm) to the hoist, 8 gpm (30 lpm) to the swing circuit and 21 gpm to the other crane functions. 70-gallon baffled reservoir includes suction ball valve with strainer two 25-micron filters in the return line. Use of SAE O-ring and face seal O-ring hydraulic fittings throughout system.

Hydraulic Cylinders – All load-holding cylinders are equipped with integral holding valves.

WARNING SYSTEMS

Load Moment Indicator - CAN bus system maximizes expansion capabilities. Senses boom hoist cylinder pressure, boom length and boom angle. Audio-visual warning indicated overload conditions and overload shutoff feature prevents continuing overload. Operator can access all relative crane configuration and load conditions via display at the operator station.

Externally Wired Anti-Two-Block System – Audible warning and shutoff functions prevent hook from contacting boom point. Wireless system minimizes down time typically associated with damaged cables in wired systems. Internal wired Anti-Two-Block System option available.

Back-Up Alarm – Supplied on factory-mounted cranes, electronic audible motion alarm activated when truck transmission is in reverse gear.

GENERAL

Electrical – State-of-the-art, weather-resistant components throughout with hermetically sealed power in relays. Enclosure includes power in relays and circuit status LEDs which are designed to withstand high pressure washing and varying climates.

Design/Welding – Design conforms to AMSI B30.5. Welding conforms to AWS D1.1. Tested to SAE 1063 and SAE 765.

Manuals – Operator, service and parts manuals depict correct crane operation, maintenance procedures and parts listing.

Warranty – 12-month warranty covers parts and labor resulting from defects in material and workmanship.

Ref no: BM-2158, PO38638
