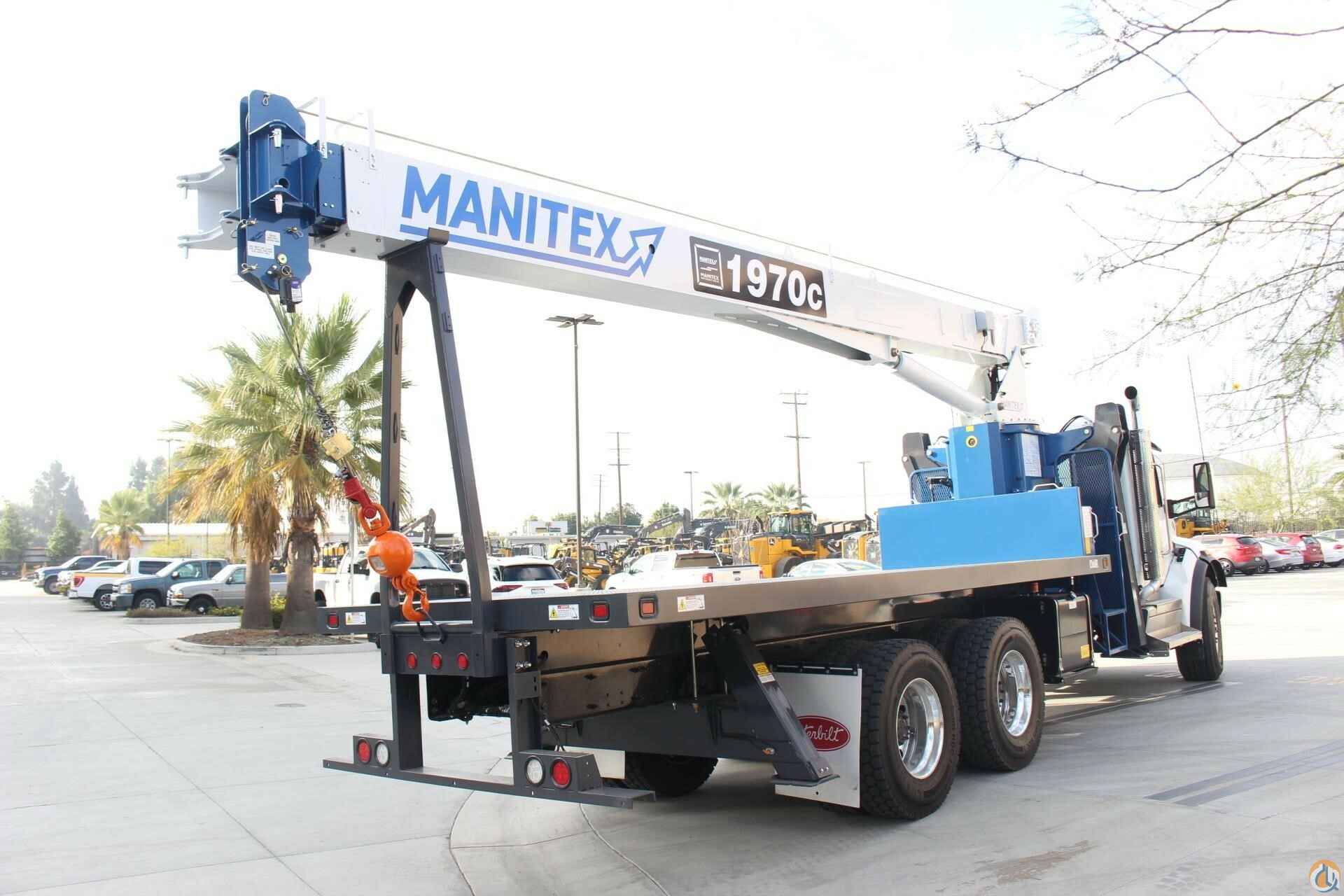

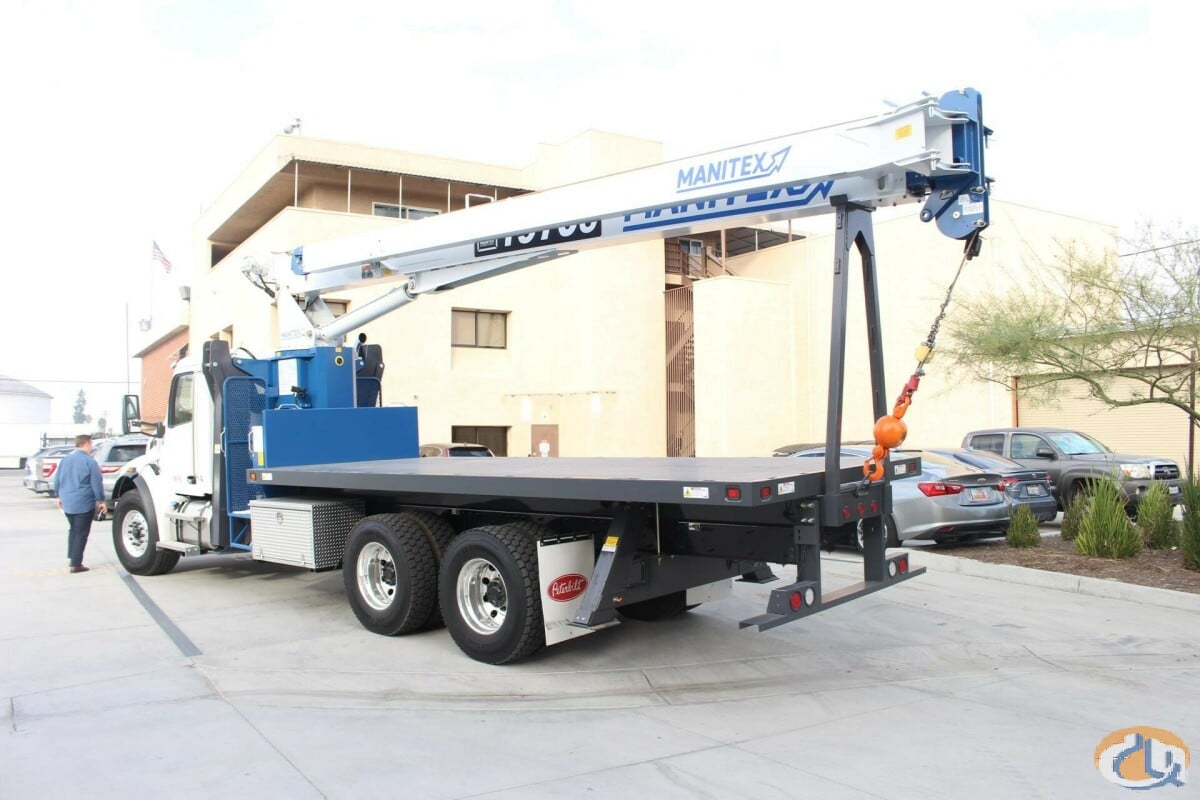

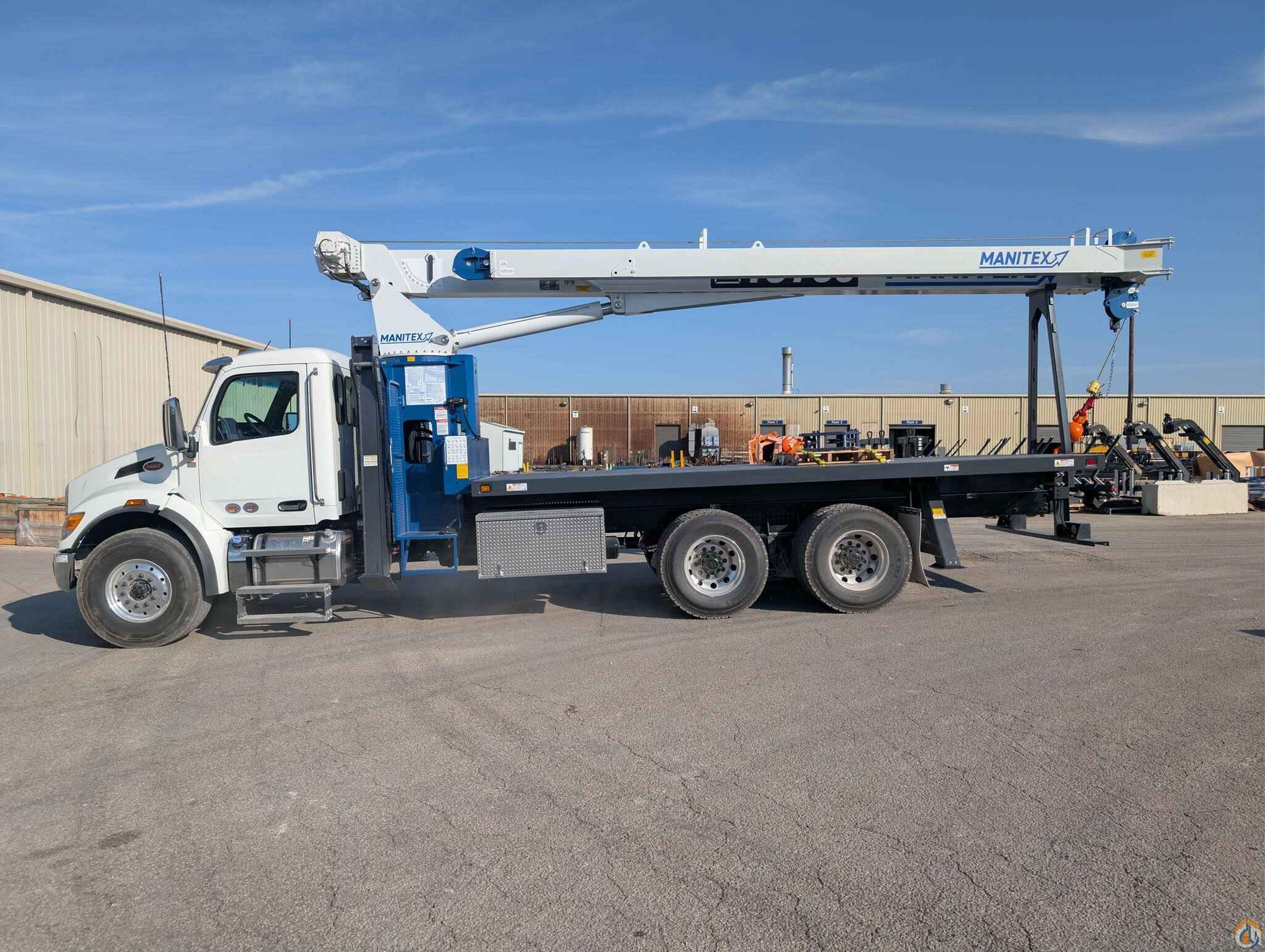

MANITEX 1970C
19 TON CRANE
Standard features:

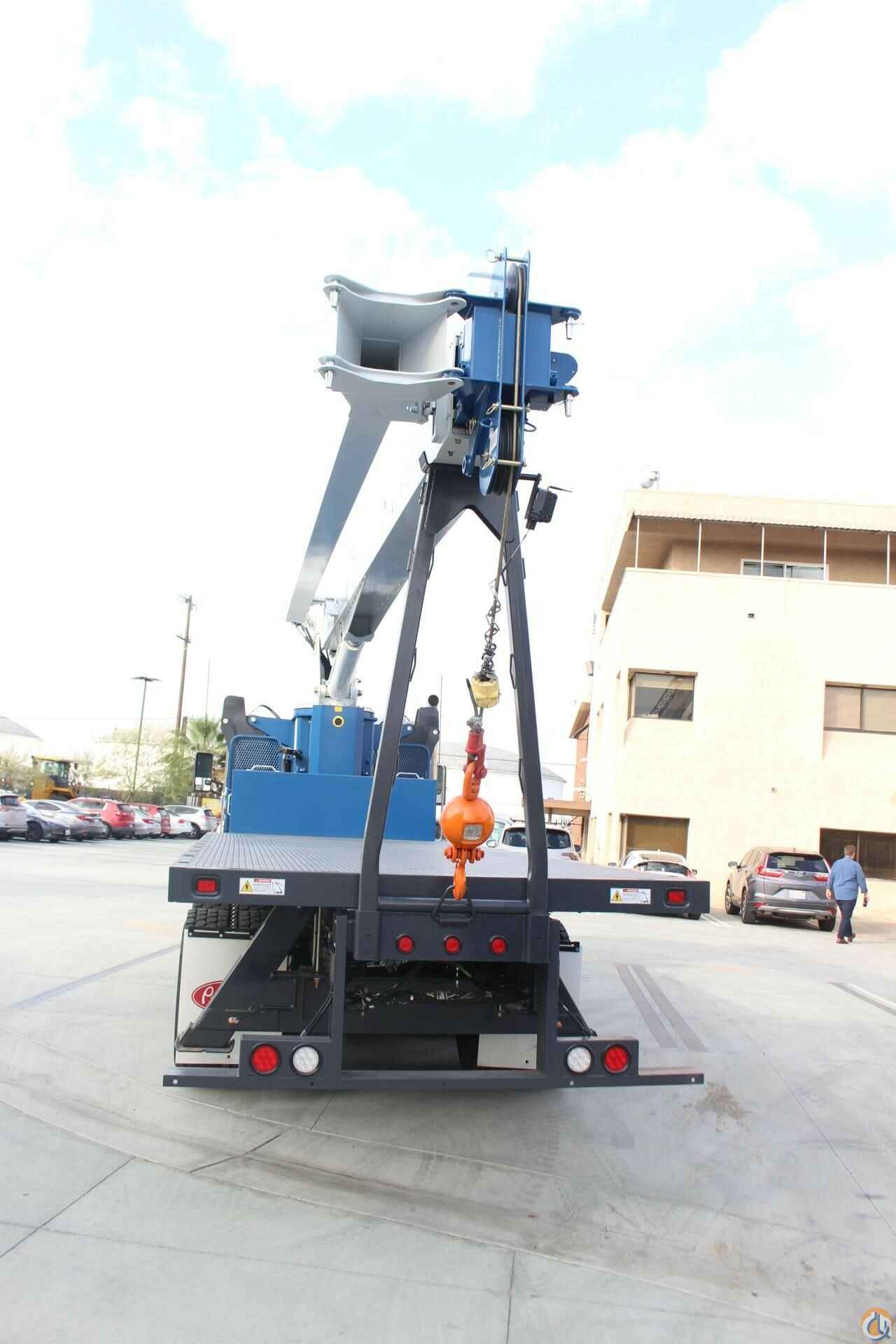

70’ Three-Section Telescopic Boom, 19 Ton base rating at 5’ radius, 2-speed Hoist w/Grooved Drum, 7 Ton Hook and Ball, 3-Load Sheave Quick Reeve Boom Head, Externally wired Anti-Two Block w/lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non continuous Rotation, Removable Boom Rest, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Foot Throttle, Electronic Throttle, Bubble Level, 300’ of 9/16” EIPS IWRC Wire Rope, 70 Gallon HD Reservoir w/Suction Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Load Moment Indicator – Audio/Visual Alert w/Shutoff, Audible Outrigger /Stabilizer Motion Alarm, A-Frame Outriggers (21’6” spread width), A-frame rear stabilizers, 3-Section Hydraulic Pump – CCW Rotation is Standard, Subframe for 20’ bed, Outrigger Monitoring System verification only, Signal Horn.

Additional Options Included:

• Radio A2B
• 1 Piece 24’ Jib Radio A2B
• Standard Mount Installation
• 20’ Steel Bed with 1/8 thick Steel Thread Plate
• 3 Section Vane Pump-Clockwise Rotation
• Hotshift PTO
• Drive Shaft for Pump Installation
• Rotation Resistant Rope in lieu of Standard
• 15 Ton 1-Sheave Quick Reeve Block for 2-3 part line 9/16” rope
• Chassis Mounted Hydraulic Reservoir in Lieu of Standard
• Aluminum Toolbox (48” L x 24” W x 24” H) – Chassis Mounted

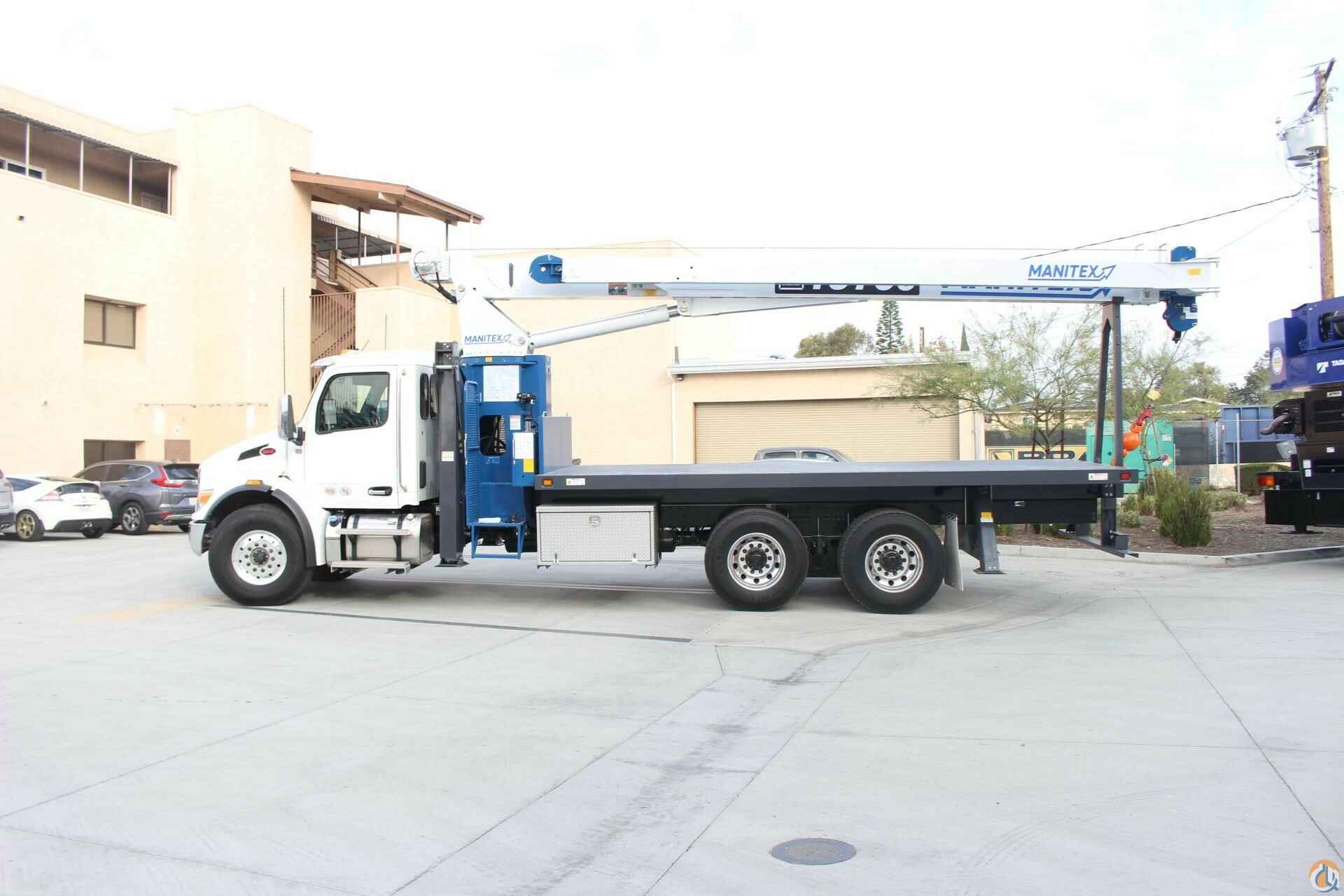

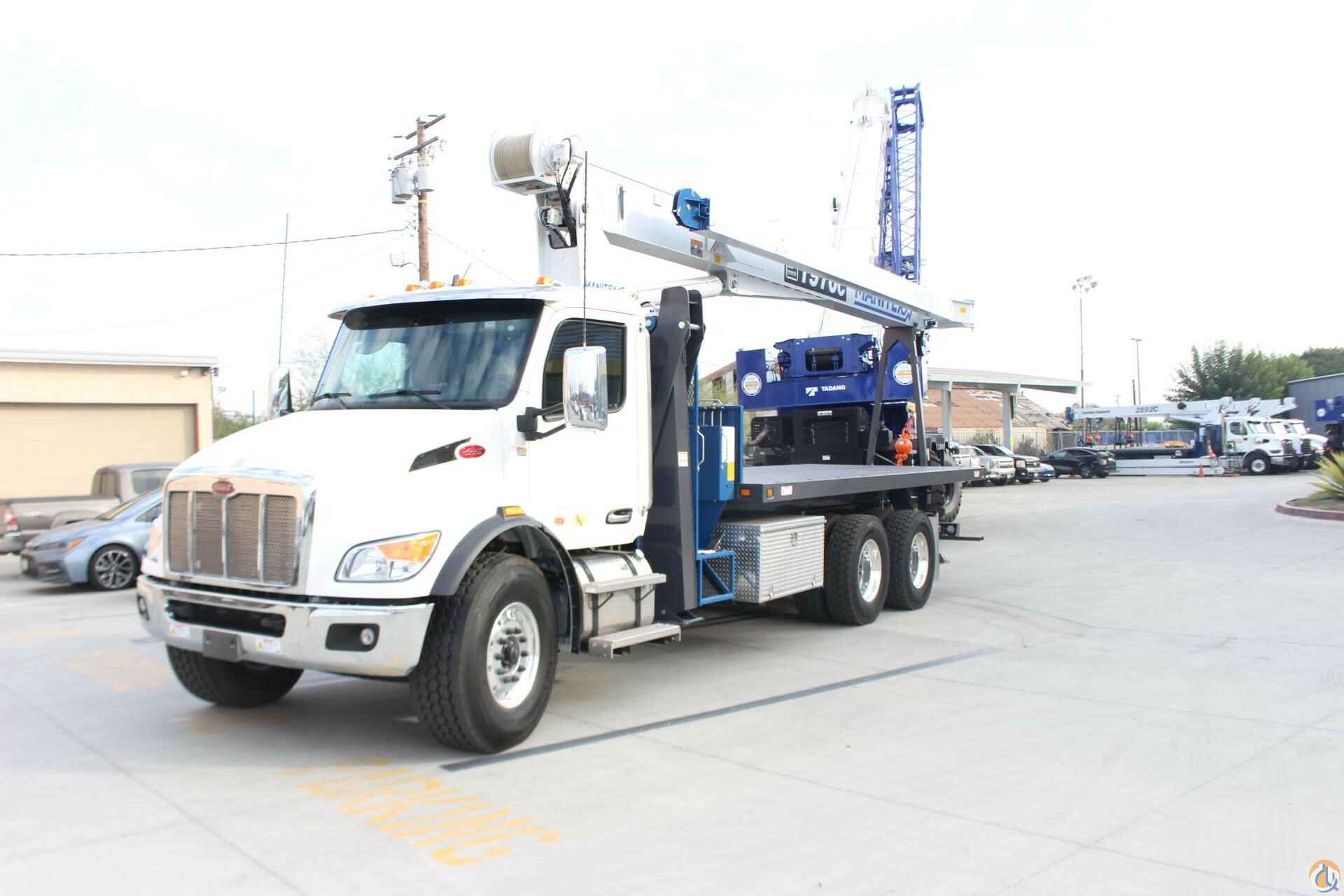

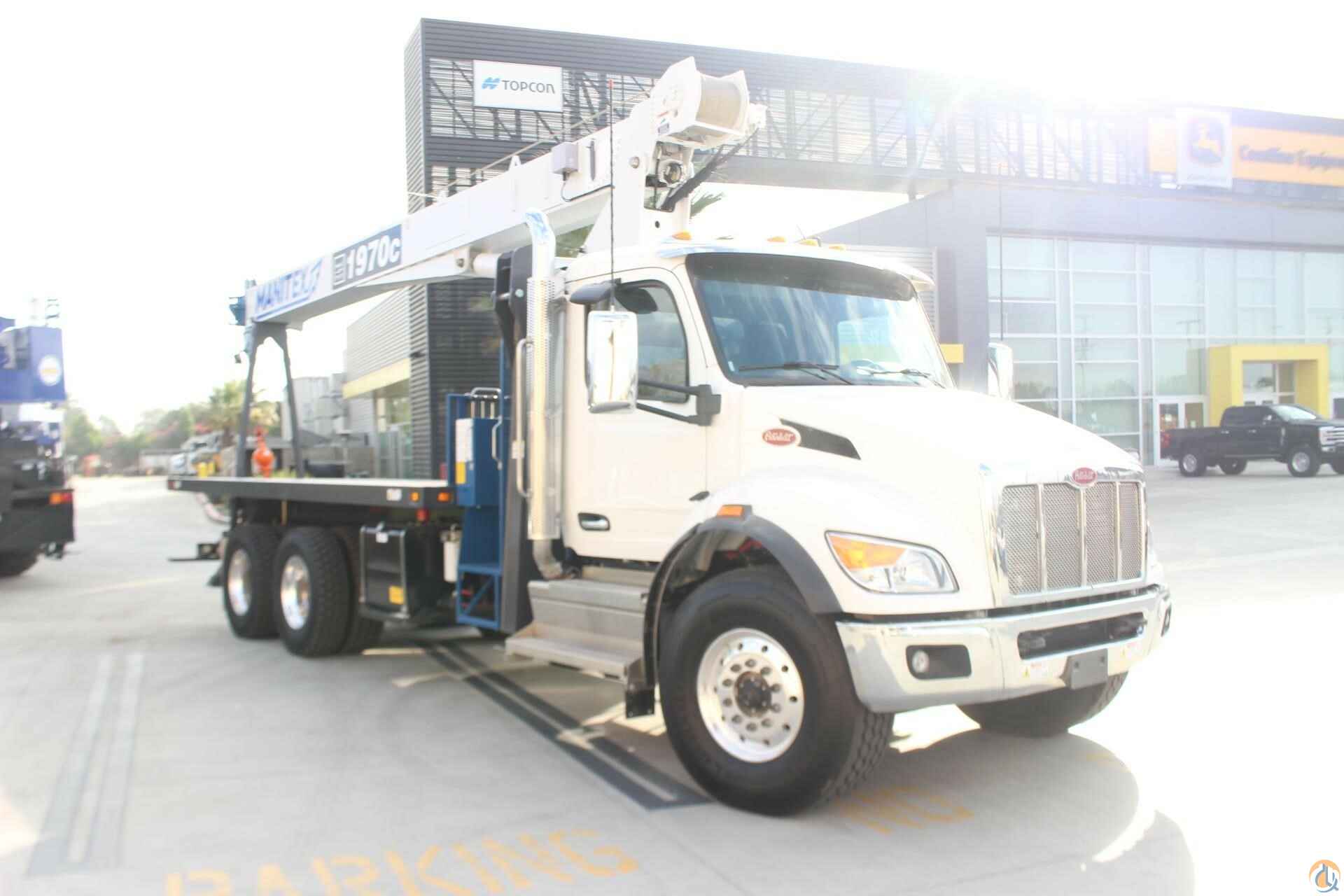

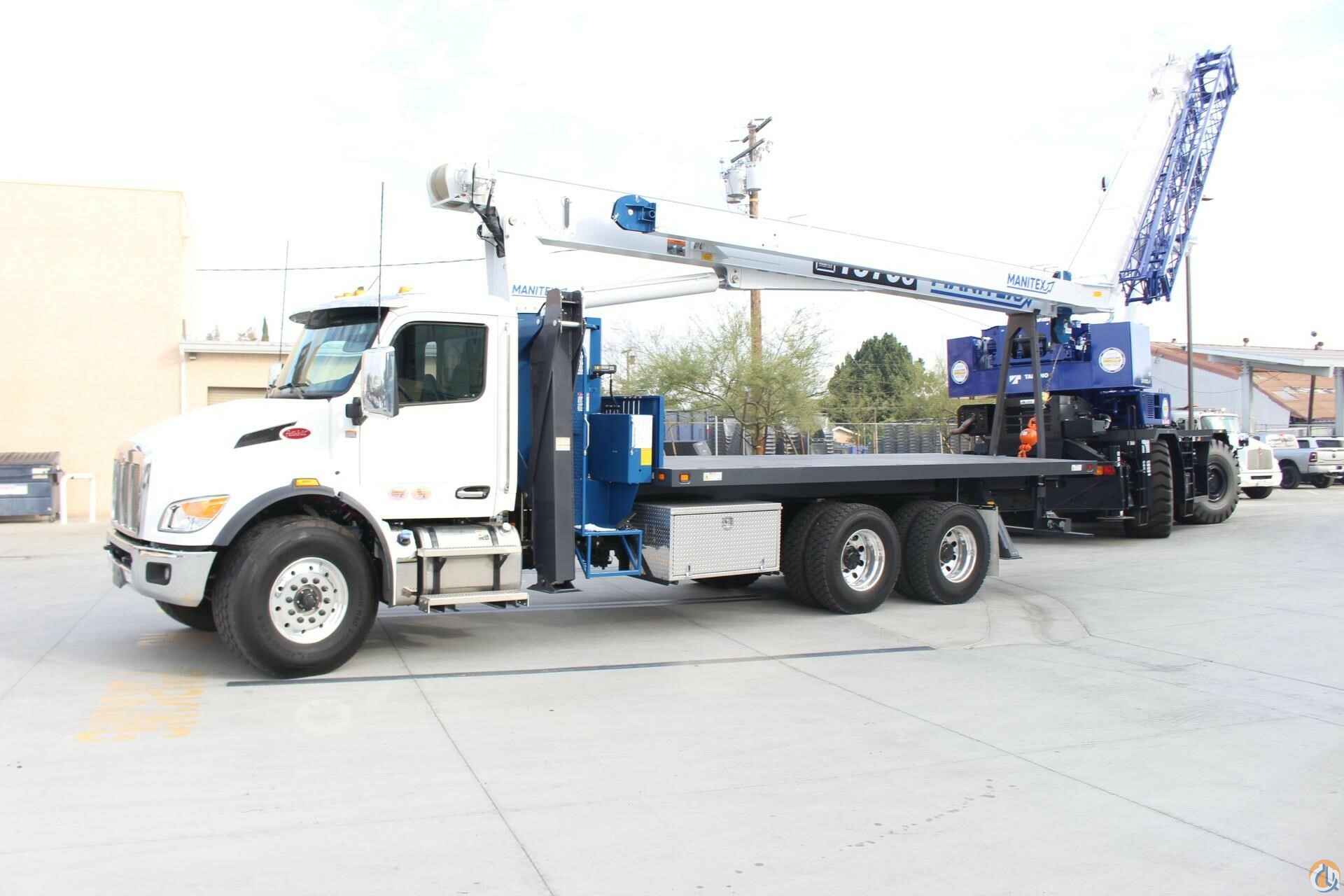

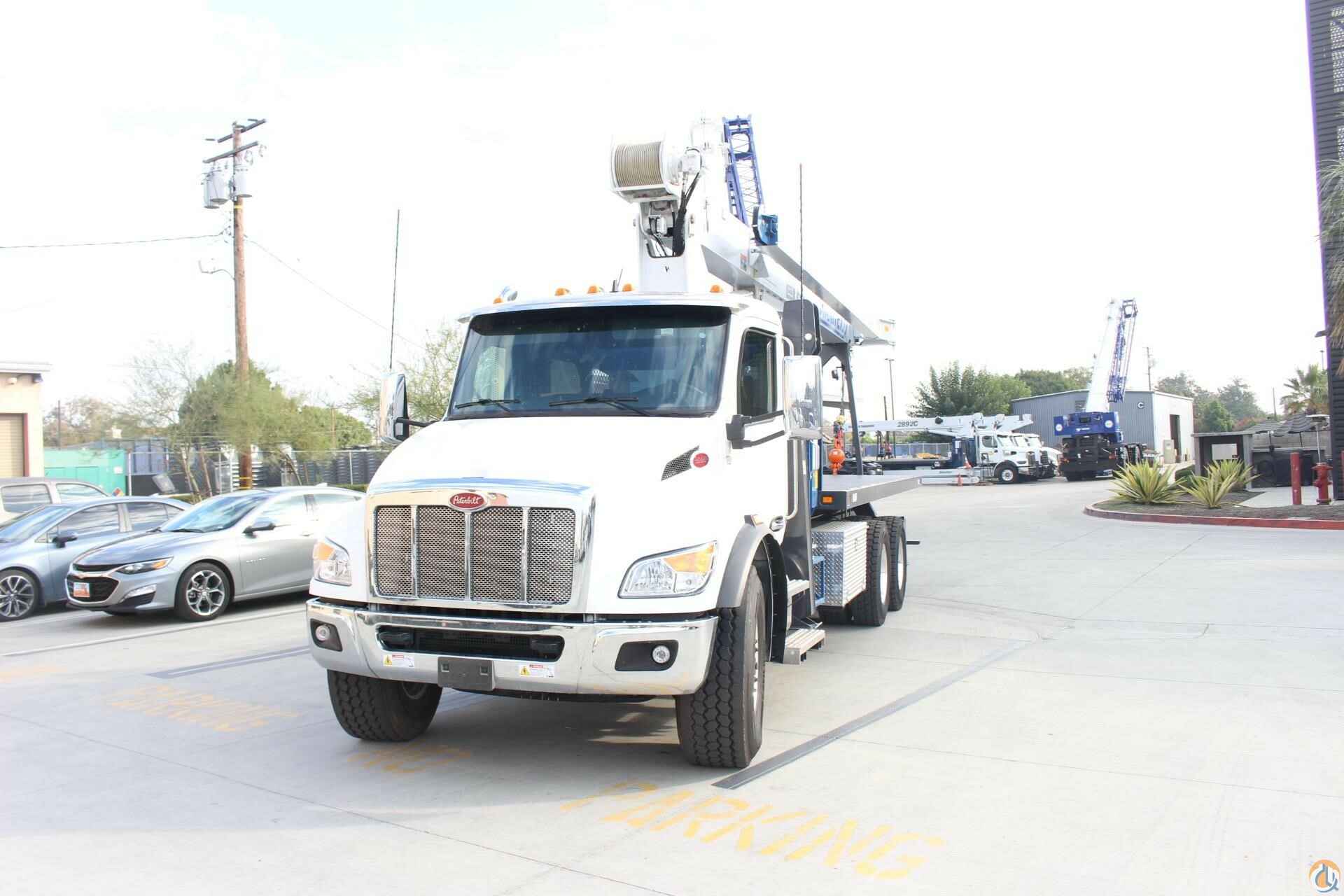

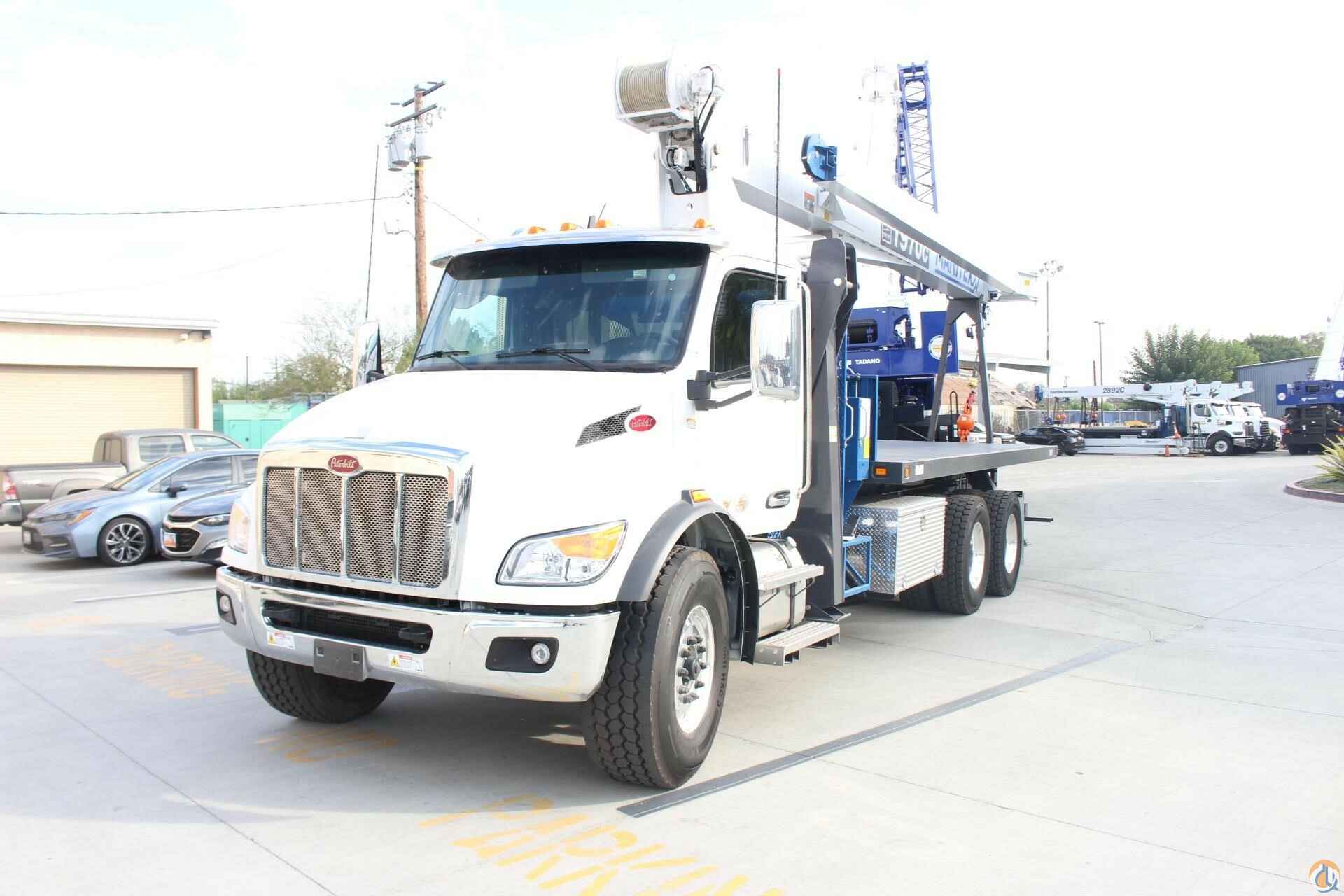

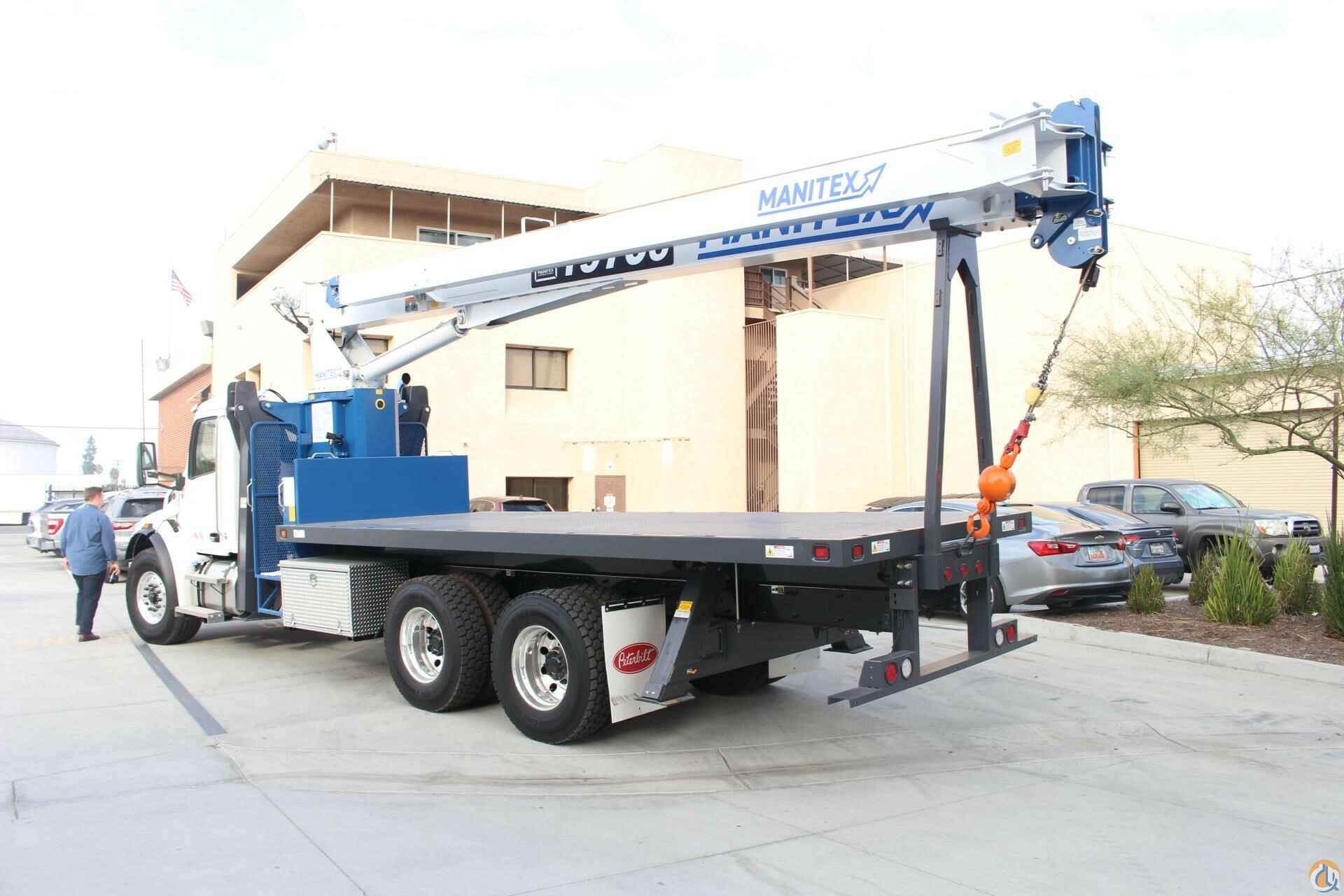

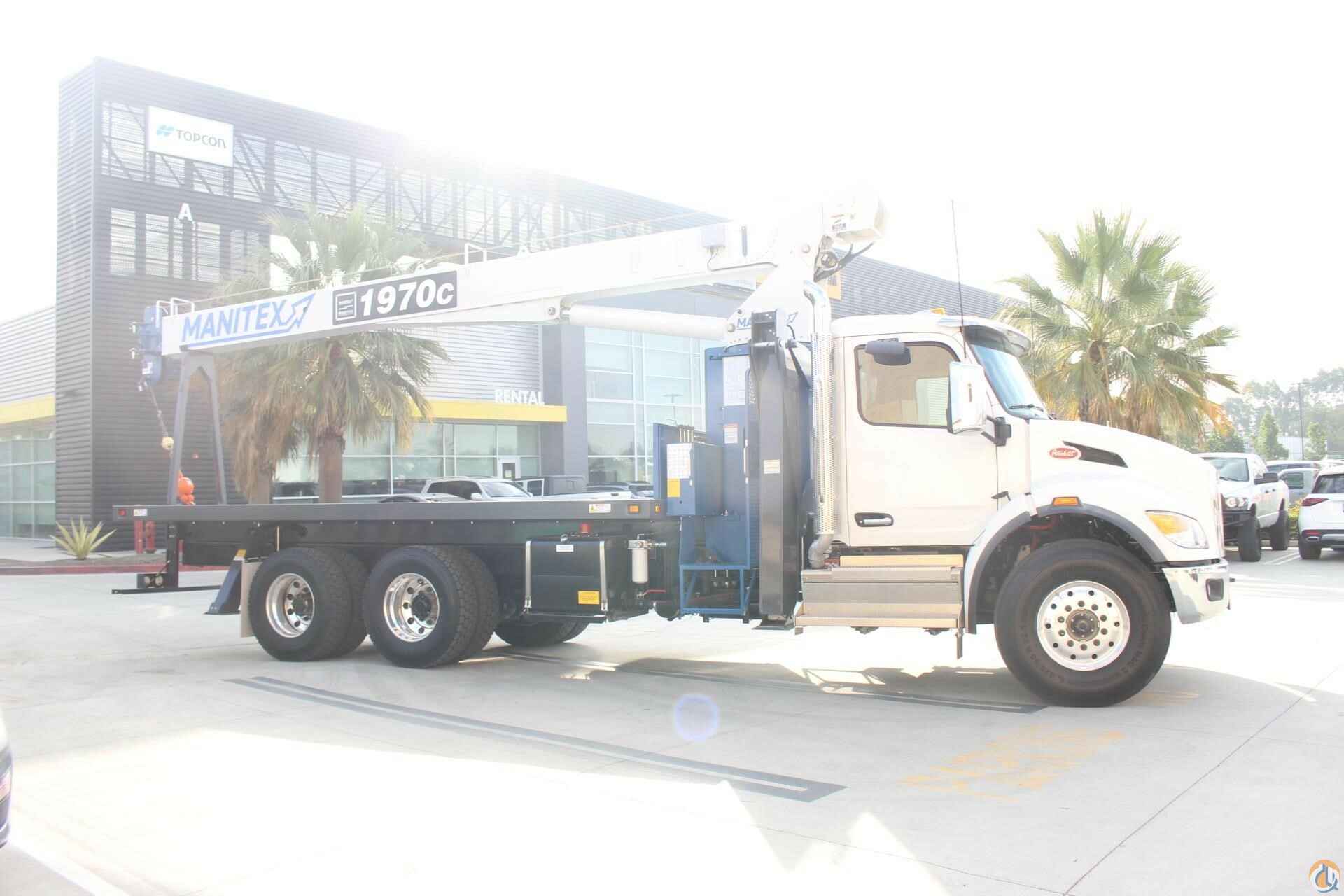

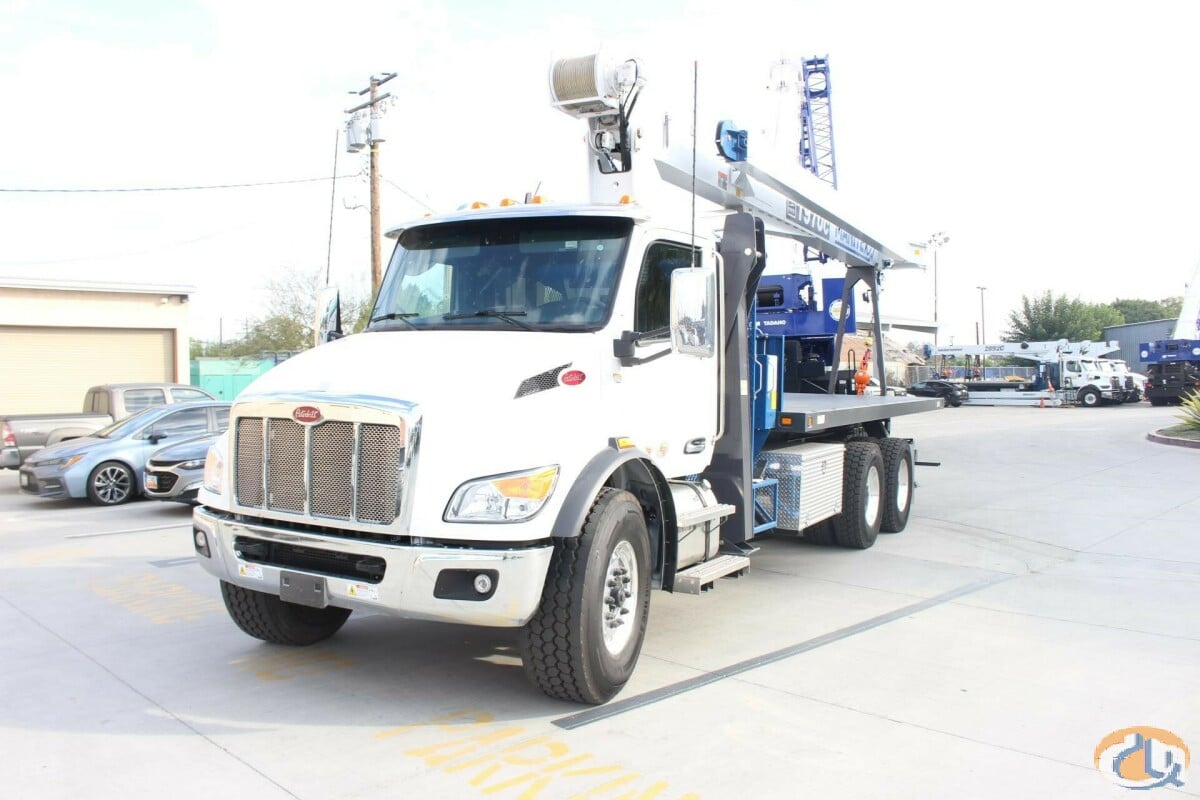

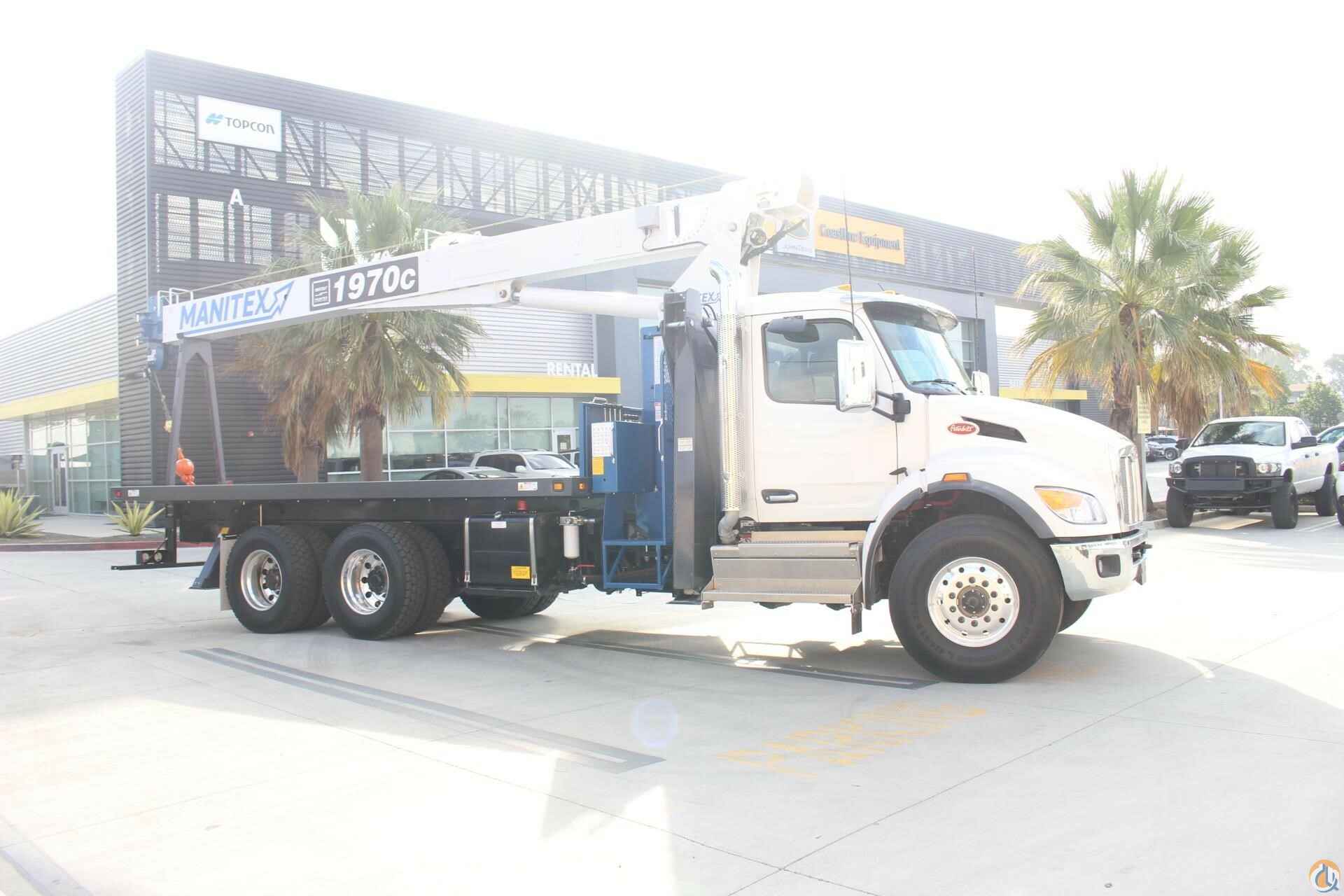

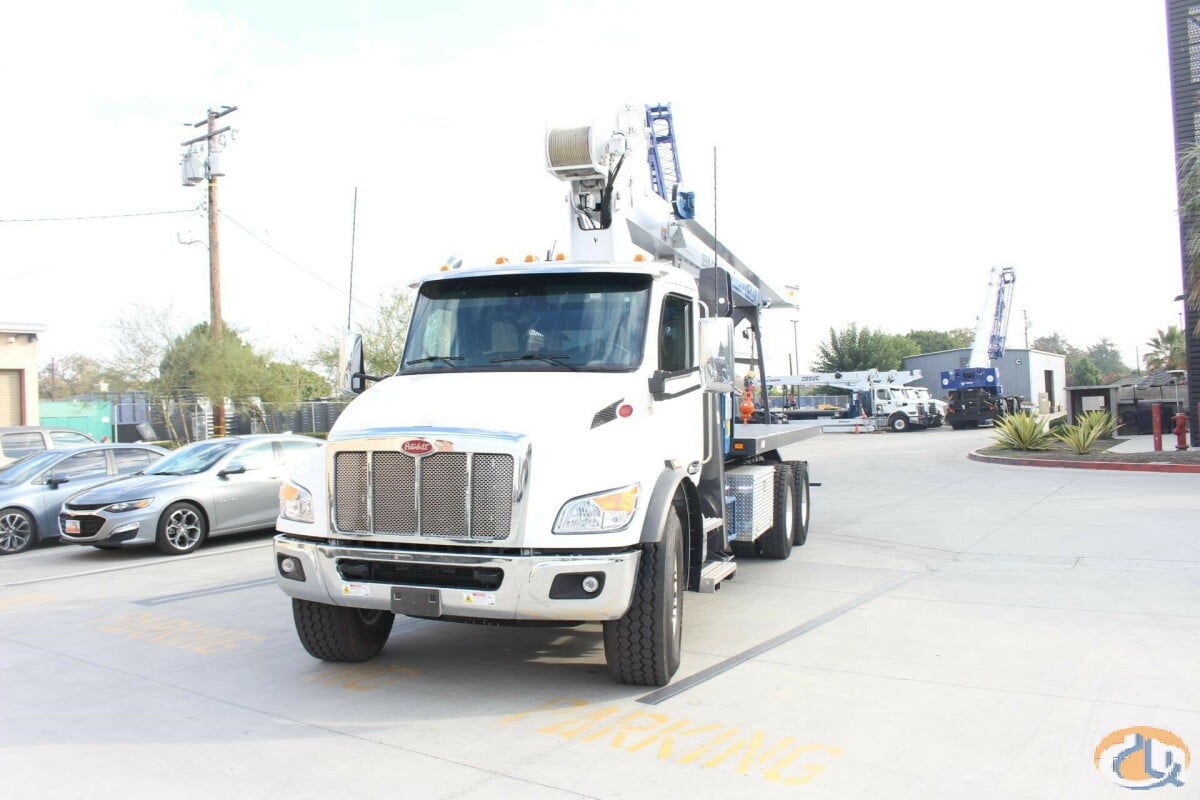

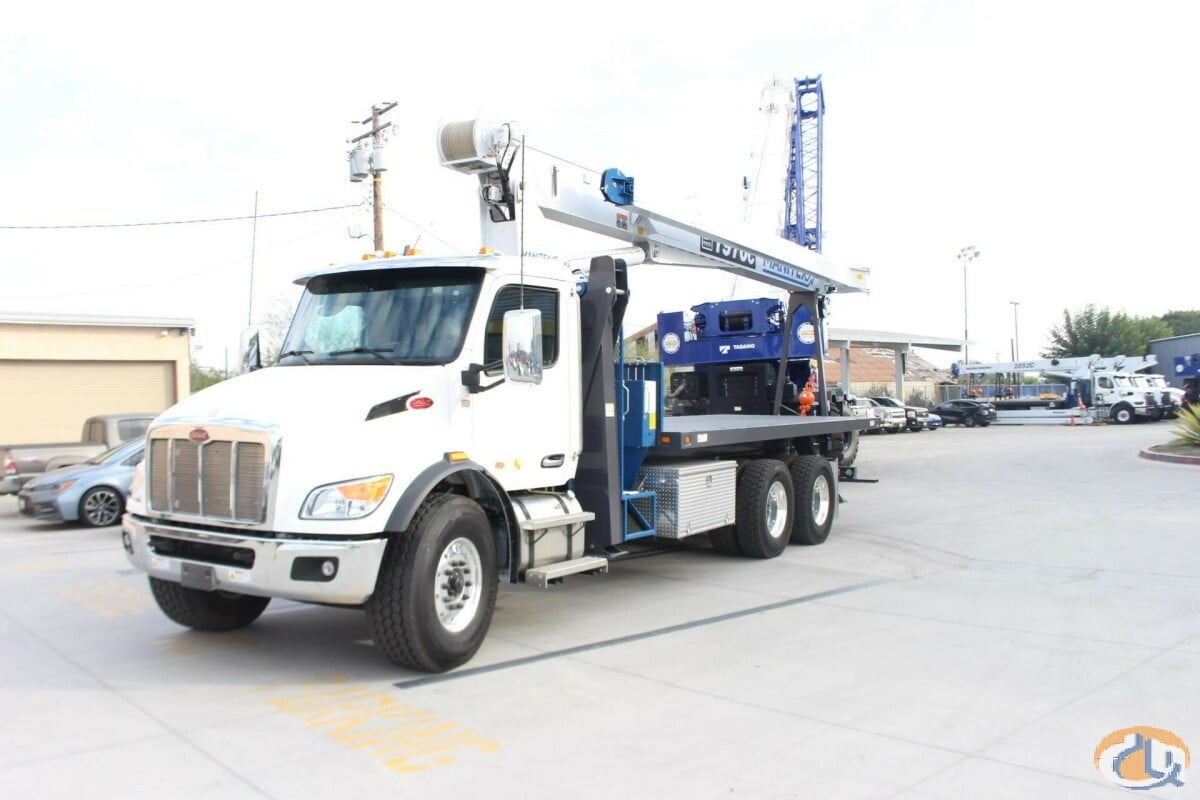

MOUNTED ON PETERBILT 548

Mounted on a 2026 Peterbilt 548 tractor chassis with a Paccar PX-9 370 HP diesel engine, Allison 3000 RDS-P Gen 5 Transmission, Dana Spicer D2000F 20,000 lb. front axle, Dana Spicer DSH40 40,000 lb. rear axle, Full set of Alcoa polished wheels, D-Shape Aluminum 50 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Gray/Black, AM/FM/WB Bluetooth Phone and audio radio, Air Horn mounted under cab, Dual heated mirrors, Stainless steel sunvisor, Unit is painted Axalta Two Stage White.
