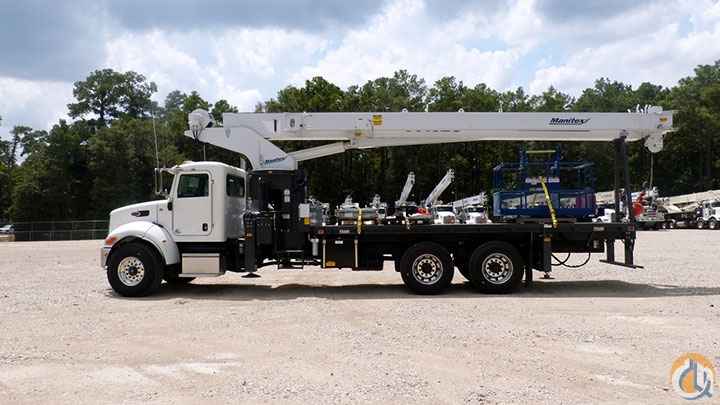

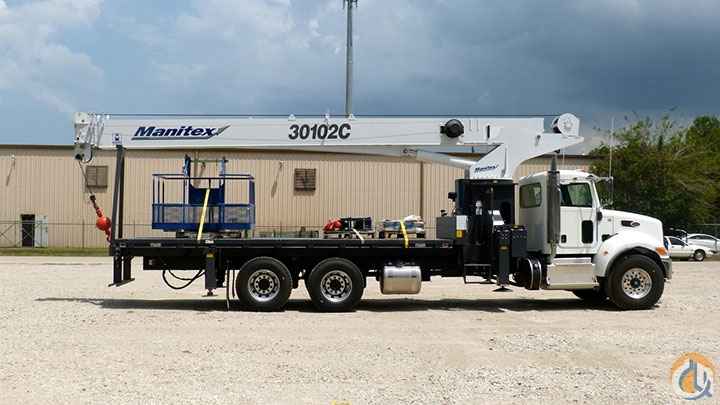

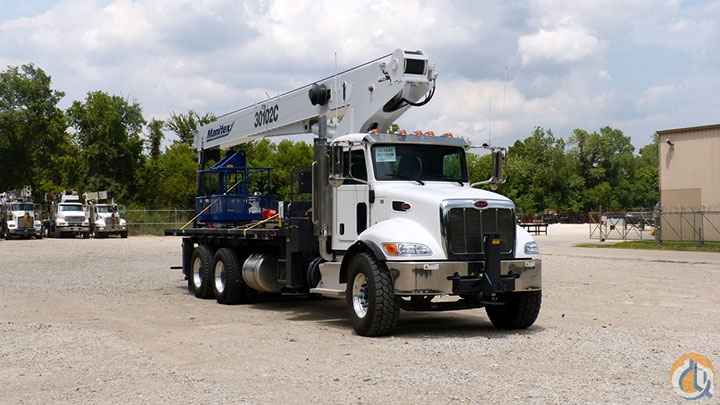

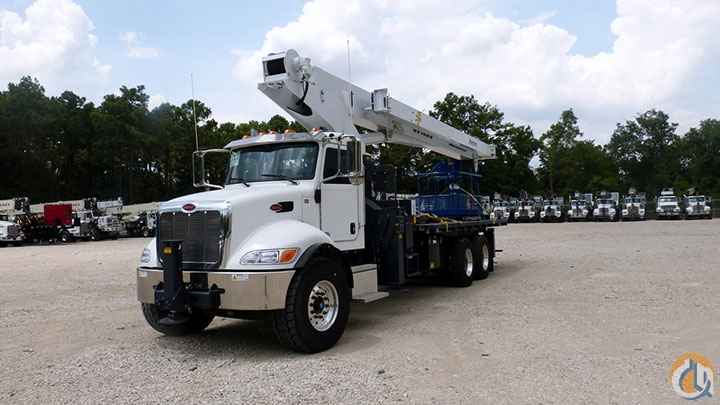

New Manitex 30102C Boom Truck Boom Truck Crane (Sold)

STANDARD FEATURES

2-speed Hoist w/ Grooved Drum

5 Ton (4.5 mt) Hook and Ball

3-Load Sheave Quick Reeve Boom Head

Radio Anti-Two Block w/ Lockout

Boom Hoist Cylinder

System Pressure Gauge

372° Non Continuous Rotation

Removable Boom Rest

Engine Start/Stop

Operator's Service/Parts Manuals

Boom Length and Angle Indicators

Mechanical Throttle

Foot Throttle

Signal Horn

Bubble Level

Beverage Cup Holders

4 Section Telescopic Boom

335' (102.11m) 9/16" (14.3mm) Rotation Resistant Wire Rope

Subframe for 22' (6.71 m) Bed

70 Gallon (265 liter) Reservoir w/Suction Strainer & Ball Valve

Pedestal, Turret, Rotation Bearing & Swing System

Dual Operator Control Stations

Can Bus Load Moment Indicator w/Internal length Cable-

Audio/visual Capacity Alert w/ Shut off

Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators

Audible Outrigger/Stabilizer Motion Alarm

A-frame Link Type Front Outriggers (22' 4" Spread Width)

Out and Down Rear Stabilizers (13 '7" Spread)

3-Section Hydraulic Pump

Outrigger Monitoring System for Verification Only

INCLUDED OPTIONS

Basic Machine w/102’ Four-Section Telescopic Boom

Out and Down Front Stabilizers

21' Heavy Hauler Steel Bed

Standard Mount Installation LMI

30 Ton, 3 Sheave Hook Block for 2 – 4 Part Line

2 Piece – 26’ to 46’ jib

Front Center Stabilizer (Requires Additional Mounting Charge)

Mounting--Front Center Stabilizer

Control valve for operation of single stabilizer, Required w/FBS

PDI/OSHA

TRUCK

2015 Peterbilt 348, Tandem axle chassis

Paccar PX-9 engine, 350 HP @2000 RPM; 1000 Lb./Ft/ @ 1400 RPM

Cruise control

Allison 3000 RDS-P Transmission, automatic

Dana Spicer D2000 front axle, 20,000 lb.

Dana Spicer DSP 41 rear axle, rated @ 40,000 lbs. w/ Differential Locks (2) axles

Wheel differential locks, both rear axles

Neway ADZ 246 air ride suspension, 46,000 lb.

Front tires: Bridgestone M854, 425/65R 22.5 on Alcoa aluminum wheels

Rear Tires: Bridgestone M799, 11R 22.5 on Alcoa aluminum wheels

Single, 70 gallon aluminum fuel tank, 11 gal DEF tank

Peterbilt UltraRide air suspension , high back driver seat

Peterbilt UltraRide air suspension, high back passenger seat

Tilt/Telescope steering column

Peterbilt “ConcertClass” AM/FM/WB/CD/USB/Sat/MP3 w/ Bluetooth

CabMate, cab air suspension

Call today! 866-458-5919
