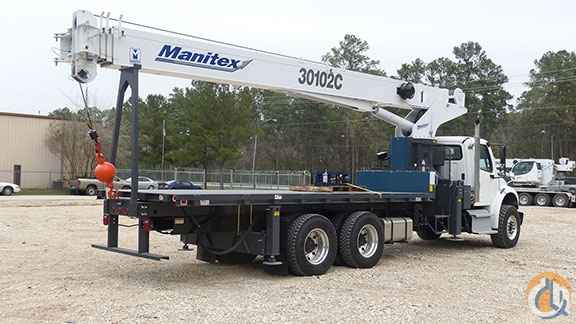

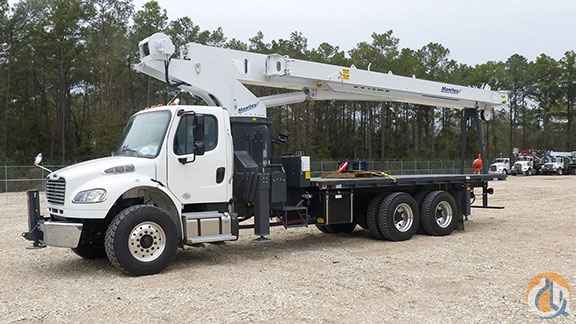

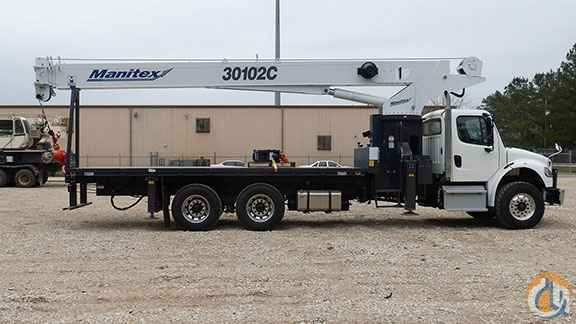

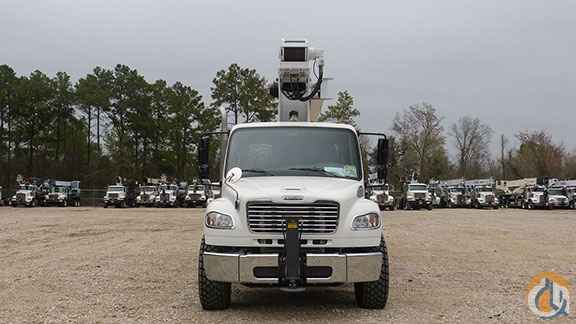

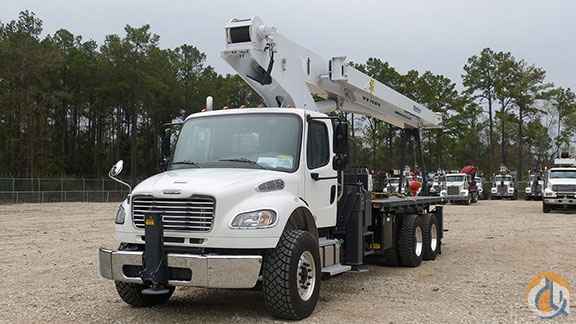

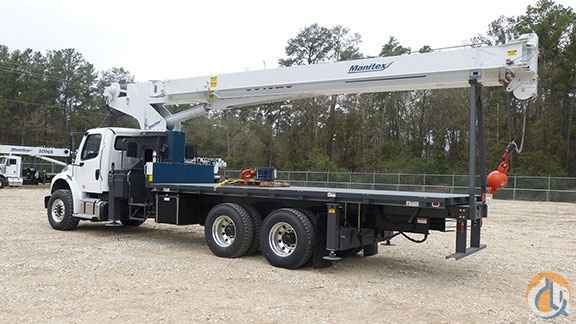

Manitex 30102C 30-Ton Boom Truck Boom Truck Crane (Sold)

STANDARD FEATURES

2-speed Hoist w/ Grooved Drum

5 Ton (4.5 mt) Hook and Ball

3-Load Sheave Quick Reeve Boom Head

335' (102.11m) 9/16" (14.3mm) Rotation Resistant Wire Rope

Dual Operator Control Stations

Radio Anti-Two Block w/ Lockout

Boom Hoist Cylinder

3-Section Hydraulic Pump

System Pressure Gauge

372° Non Continuous Rotation

Removable Boom Rest

Engine Start/Stop

Operator's Service/Parts Manuals

Boom Length and Angle Indicators

Mechanical Throttle

Foot Throttle

Signal Horn

Bubble Level

Beverage Cup Holders

4 Section Telescopic Boom

Subframe for 22' (6.71 m) Bed

70 Gallon (265 liter) Reservoir w/Suction Strainer & Ball Valve

Pedestal, Turret, Rotation Bearing & Swing System

Can Bus Load Moment Indicator w/Internal length Cable- Audio/visual Capacity Alert w/ Shut off

Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators

Audible Outrigger/Stabilizer Motion Alarm

A-frame Link Type Front Outriggers (22' 4" Spread Width)

Out and Down Rear Stabilizers (13 '7" Spread)

Outrigger Monitoring System for Verification Only

INCLUDED ITEMS

Basic Machine w/102’ Four-Section Telescopic Boom

21' Heavy Hauler Steel Bed

Standard Mount Installation LMI

30 Ton, 3 Sheave Hook Block for 2 – 4 Part Line

2 Piec – 26’ to 46’ jib

Front Center Stabilizer (Requires Additional Mounting Charge)

Mounting--Front Center Stabilizer

Control valve for operation of single stabilizer, Required w/FBS

PDI/OSHA

TRUCK

New Freightliner M2-106 Single Steer Tandem Rear Chassis

ISL9 350HP, 1000 LB./FT. Torque, Diesel Engine

Phillips block heater 115V 1000W

Cruise Control

Eaton Fuller RTO-11908LL Transmission

TRW THP-60 Power Steering Gear, 20 K

Detroit DA-F-20.0-5 20K Front Axle

Meritor MT-40-14X 40K Tandem Rear Axle

Freightliner TuffTrac 40,000 Spring, Rear Suspension

4.78 Rear Axle Ratio

Wheel Diff Locks

Front Tires: Goodyear G278 385/650R 22.5 Tires on Aluminum Wheels

Rear Tires: Goodyear 11.R 22.5 Tires (Qty 8) on Steel Disc Wheels

Dual 50 US Gallon Aluminum Fuel Tanks

6 US Gallon DEF Tank

Full Truck Kit w/ glad hands to end of frame

Heat/Defrost/Air Conditioning

Air Suspension Drivers Seat

2 man tool box fixed passenger seat

AM/FM/WB/Radio w/ front aux. input
