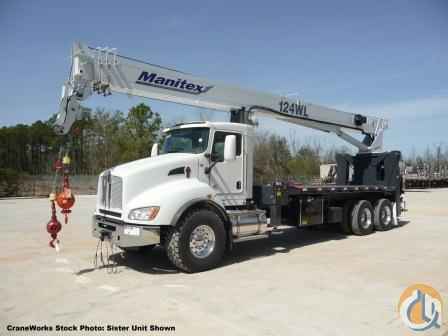

30-Ton Manitex 30124WL on Kenworth T440 Boom Truck Crane (Sold)
SOLD OUT
Houston, Texas
Houston, Texas
SOLD OUT
CraneWorks, LLC
Type
Boom Truck Cranes
Make
Manitex
Model
124 WL
Year
2015
Capacity
30.00 Tons
Condition
Excellent
Serial #
215867
Unit #
OPO29313
Boom
124
Standard Features
| 2-speed Hoist w/ Grooved Drum 5 Ton (4.5 mt) Hook and Ball 3-Load Sheave Quick Reeve Boom Head Hard Wired Anti-Two Block w/ Lockout Boom Hoist Cylinder System Pressure Gauge 372° Non Continuous Rotation Removable Boom Rest Engine Start/Stop Operator's Service/Parts Manuals Boom Length and Angle Indicators Electronic Throttle Foot Throttle Signal Horn Bubble Level Outrigger Monitoring System for Verification only. 3-Section Hydraulic Pump Auxiliary Winch with Auxiliary Sheave Head
| 4 Section Telescopic Boom 335' (102.11m) 9/16" (14.3mm) Rotation Resistant Wire Rope Subframe for 18' (5.5m) Bed 115 Gallon (435 liter) Reservoir w/Suction Strainer & Ball Valve Pedestal, Turret, Rotation Bearing & Swing System Dual Operator Control Stations Load Moment Indicator w/Internal Length Cable Audio/visual Capacity Alert w/ Shut off Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators Audible Outrigger/Stabilizer Motion Alarm A-frame Link Type Rear Outriggers (22' 4" Spread Width) Out and Down Front Stabilizers (19 '7" Spread) Rear Stabilizer |
Included Options
Standard mount
18’ heavy hauler steel bed
HYCAS hard wired ATB 102’
Truck
Kenworth T440
Engine: PX-9 370 2013 370@2000 365@2100 250@1400
Transmission: Allison 3000RDS 6-Speed
Immersion block heater 120V 1000W w/ plug under door
Retarder Jacobs for PX-8/9 ISL w/ 3-way switch
Front Axle: Dana Spicer D2000 rated 20K
Front Springs: Taperleaf 20K w/ shock absorbers
Rear Axle: Dual Dana Spicer D46-170HP rated at 46K
Rear Axle Ratio – 5.38
Rear Suspension: Tandem Neway ADZ246 46K
Front Tires & Wheels: Bridgestone M844F 445/65R22.5 20PR, Alcoa 82362 22.5x12.25 aluminum
Rear Tires & Wheels: Bridgestone M711 11R22.5 14PR, Alcoa 88367 22.5x8.25 aluminum, quantity 8
Fuel Tank: 90 US gallon 24.5in aluminum, located LH under cab
DEF tank location is on the LH
Cab Heater: w/integral defrosters and A/C 45,000 btu cab heater
Driver Seat: Kenworth Air cushion Plus HB Mordura
Rider Seat: Kenworth Toolbox Plus HB Mordura
Kenworth Radio with AM/FM/WB/CD/USB and Bluetooth
Electric LH & RH door locks
Electric-powered LH & RH door window lifts
