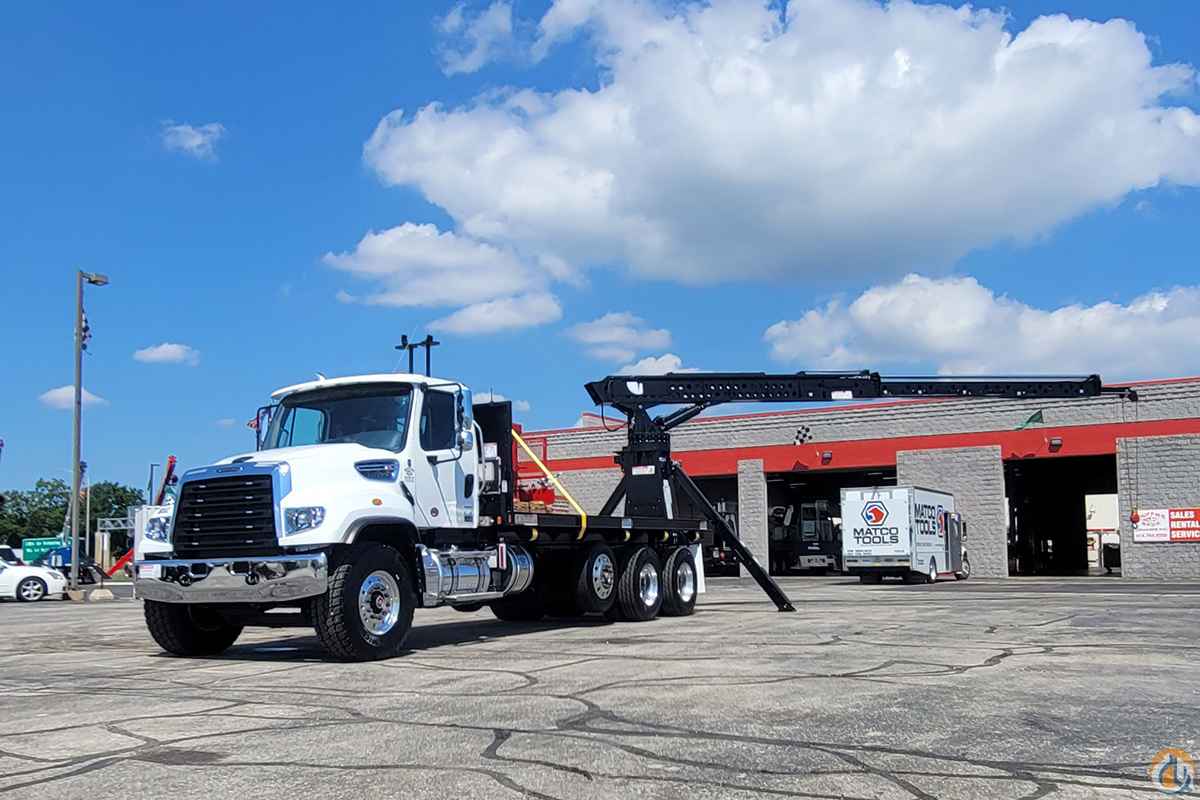

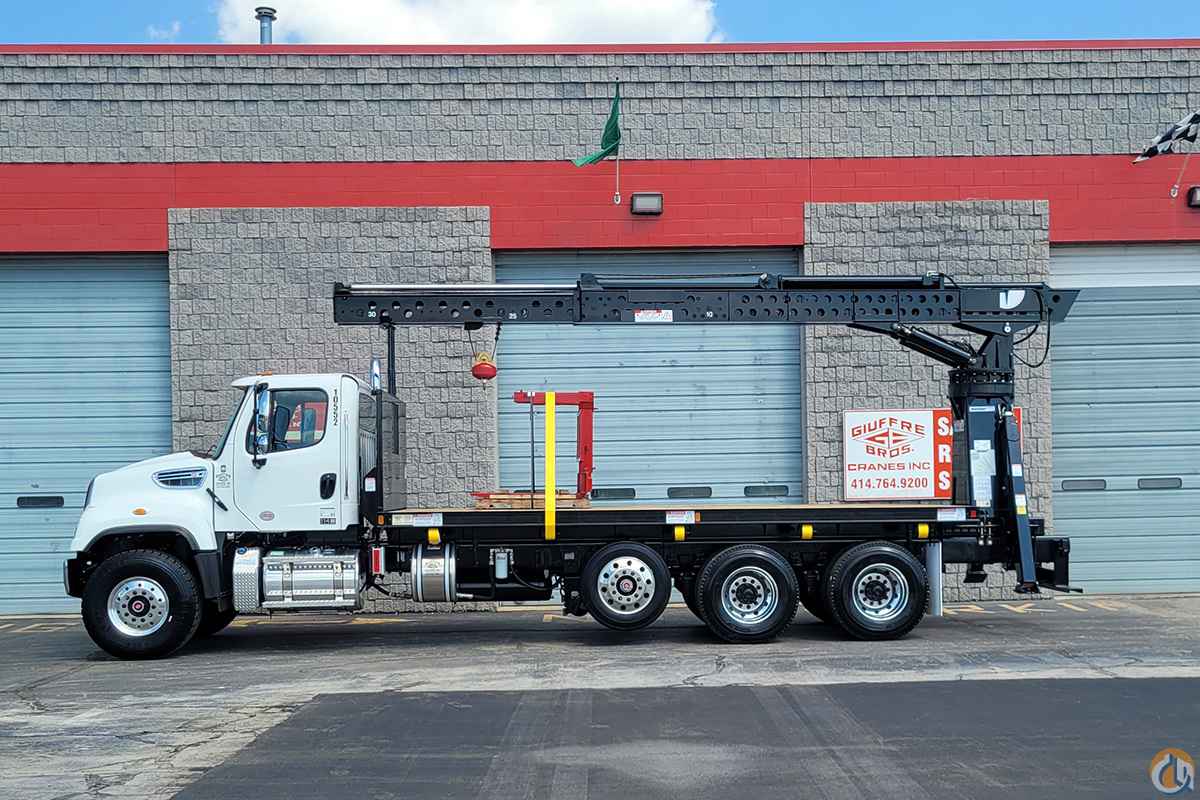

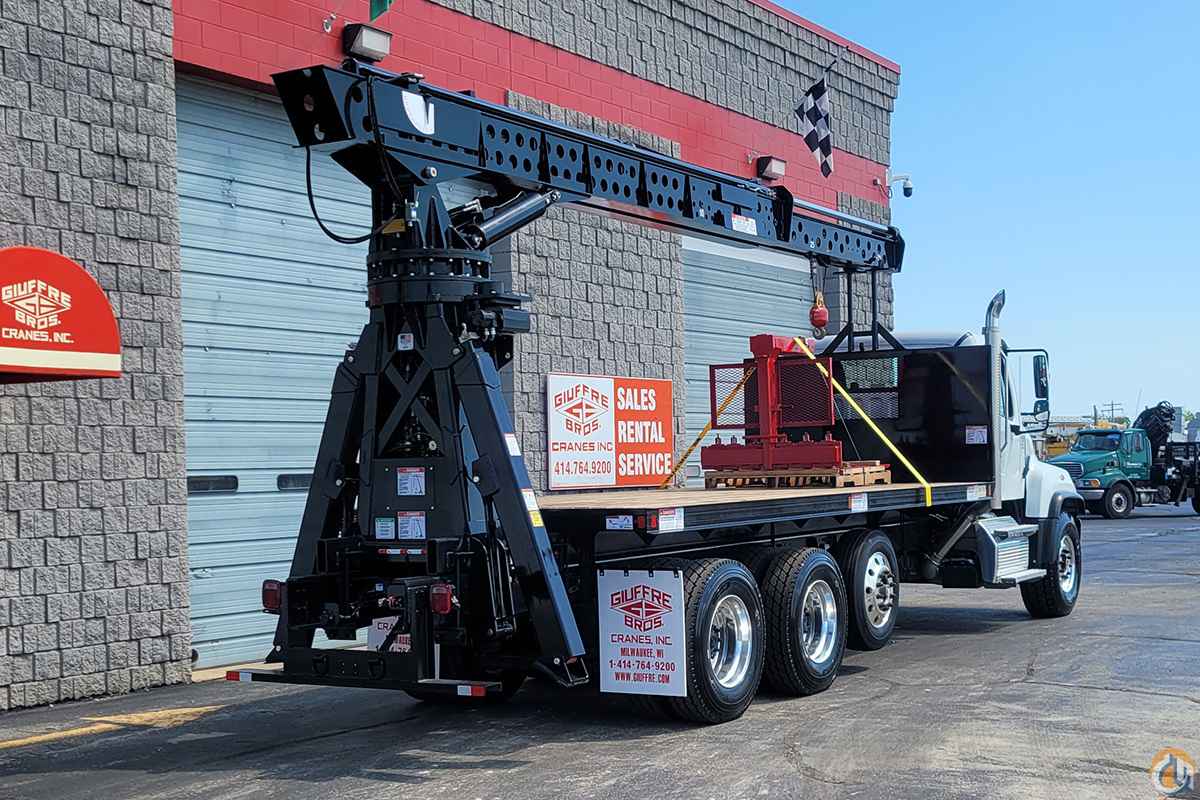

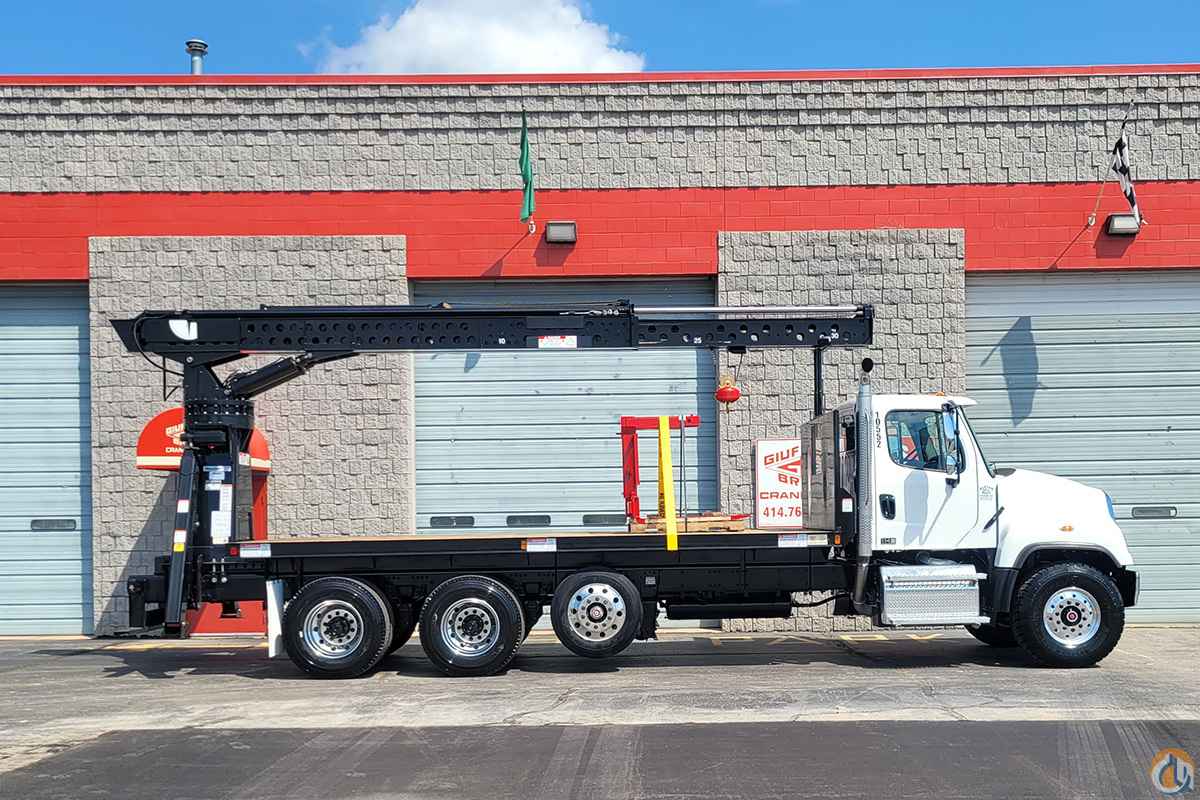

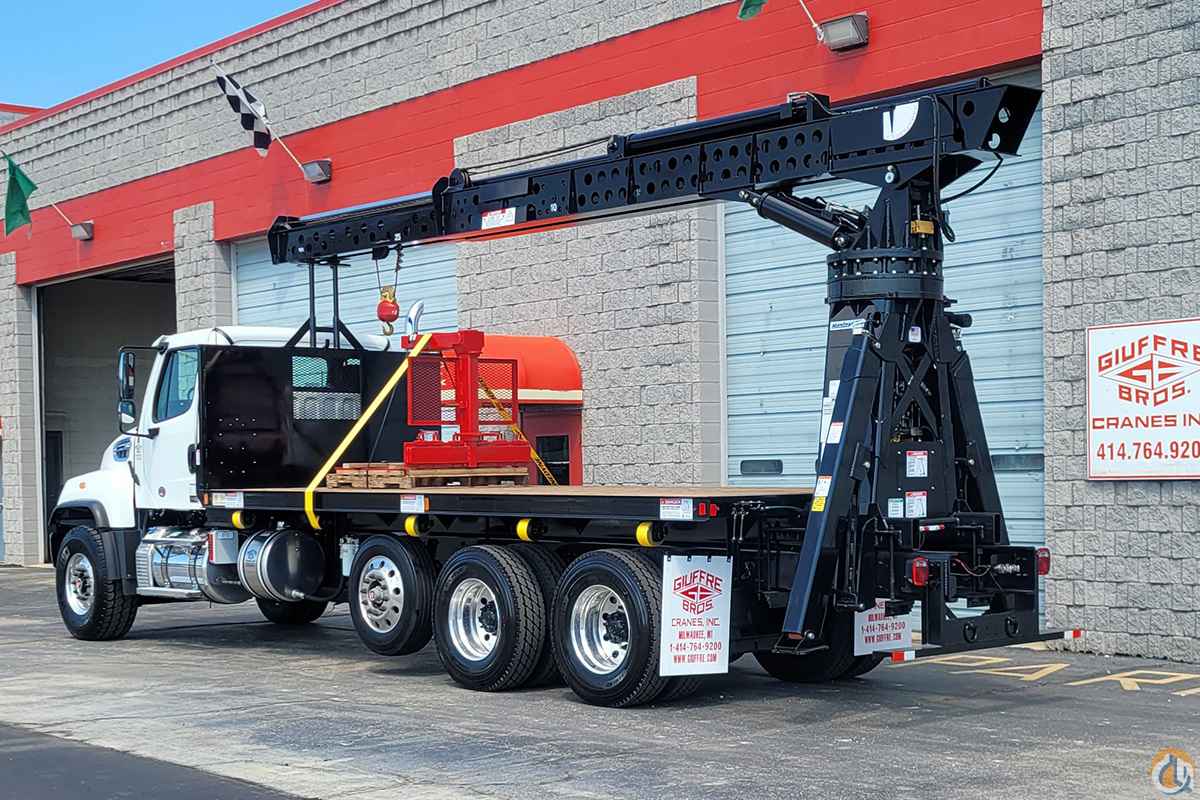

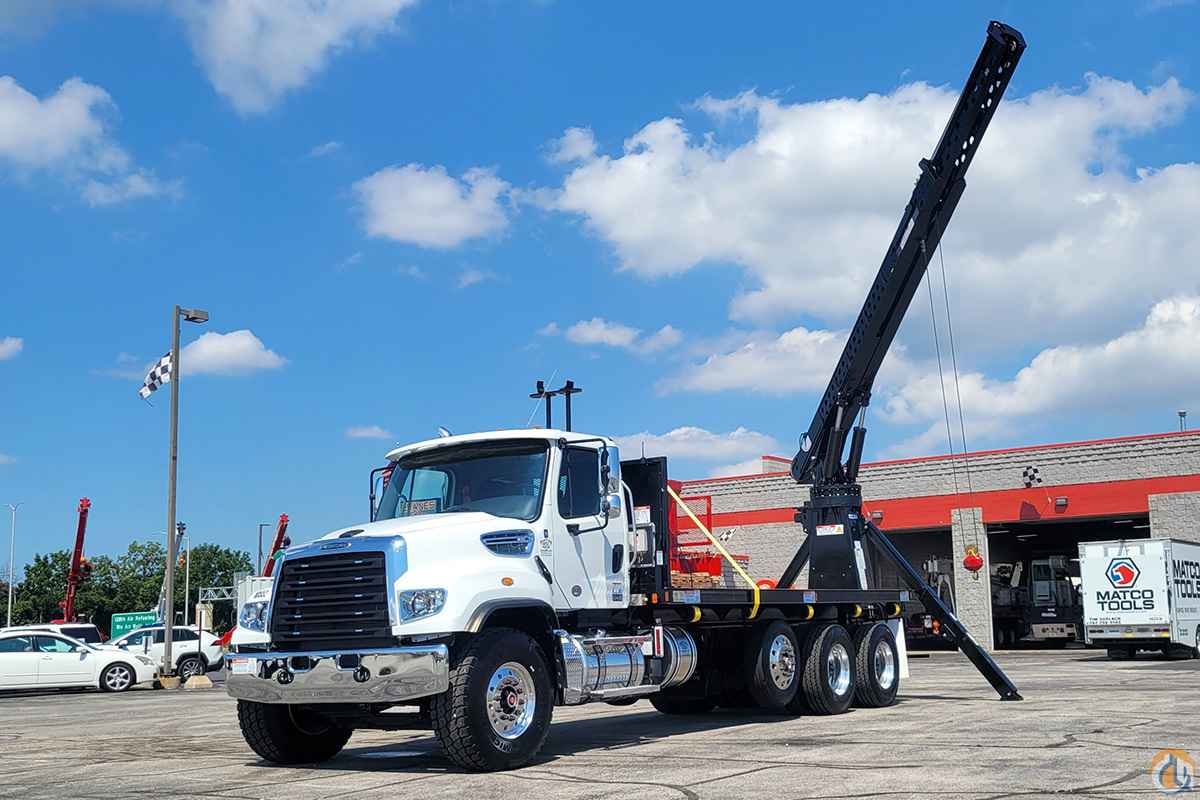

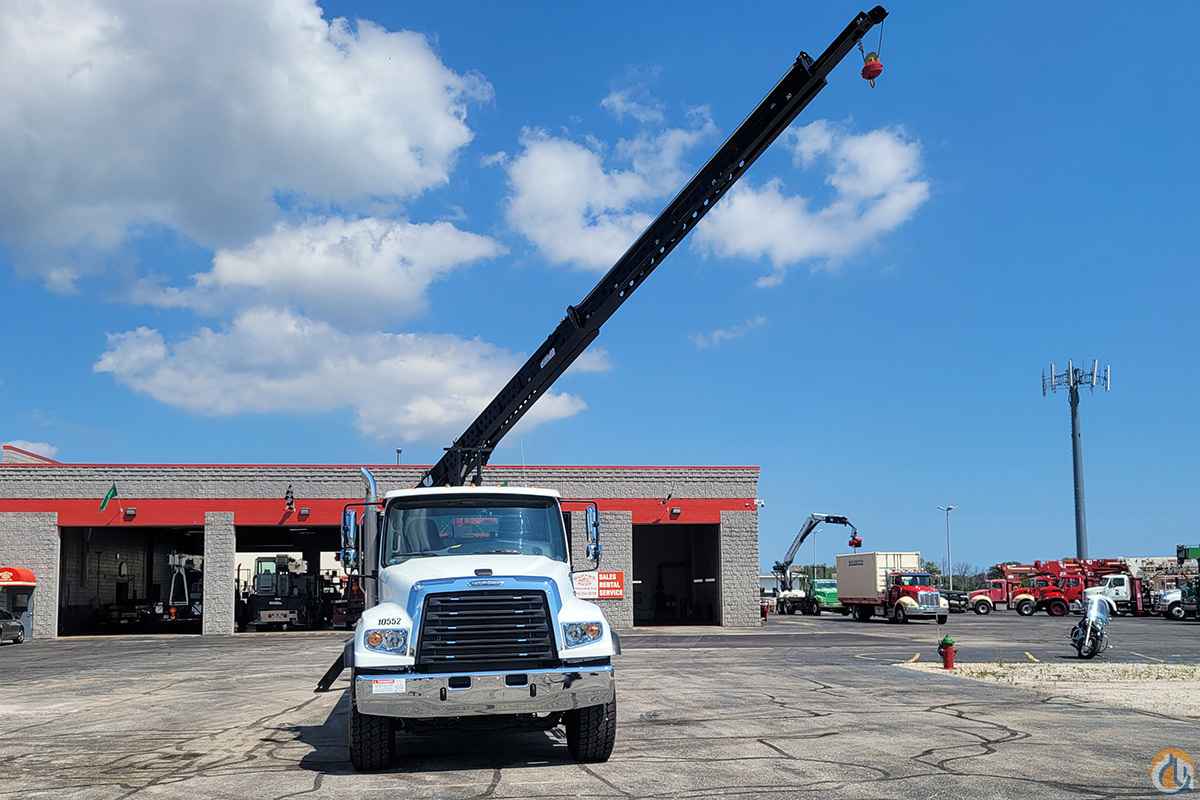

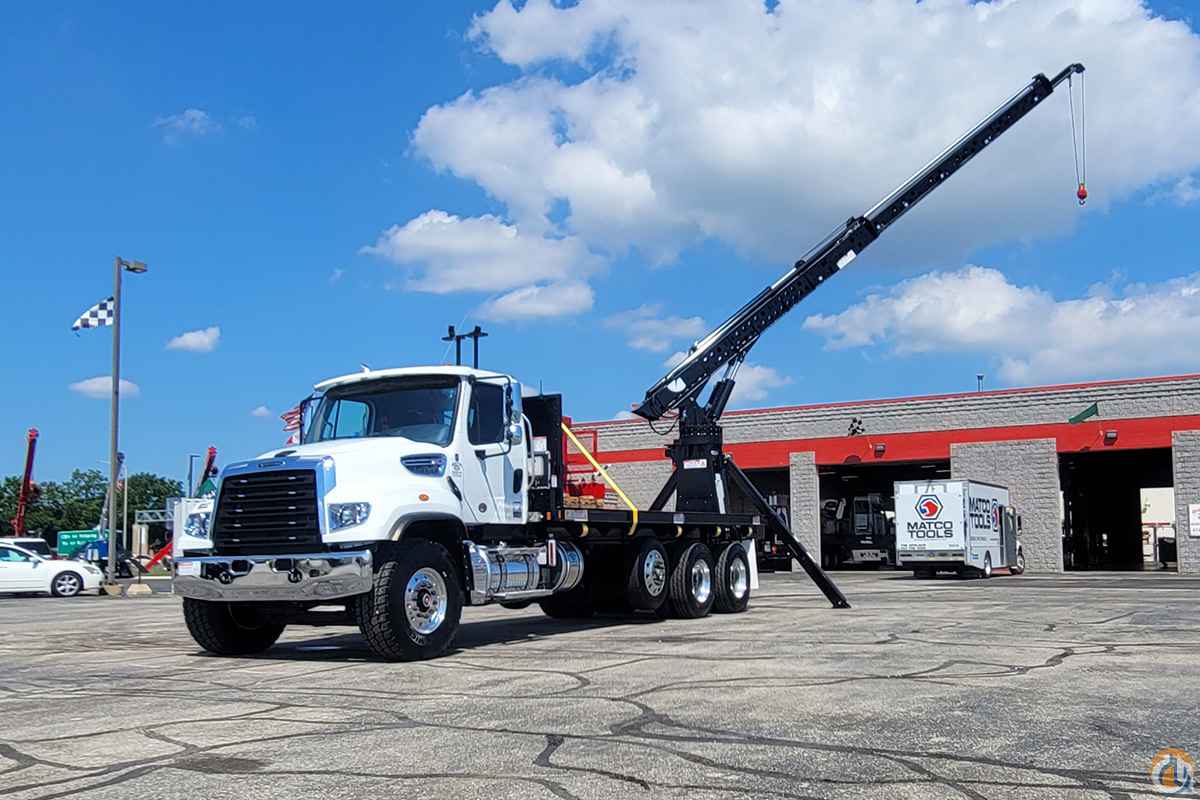

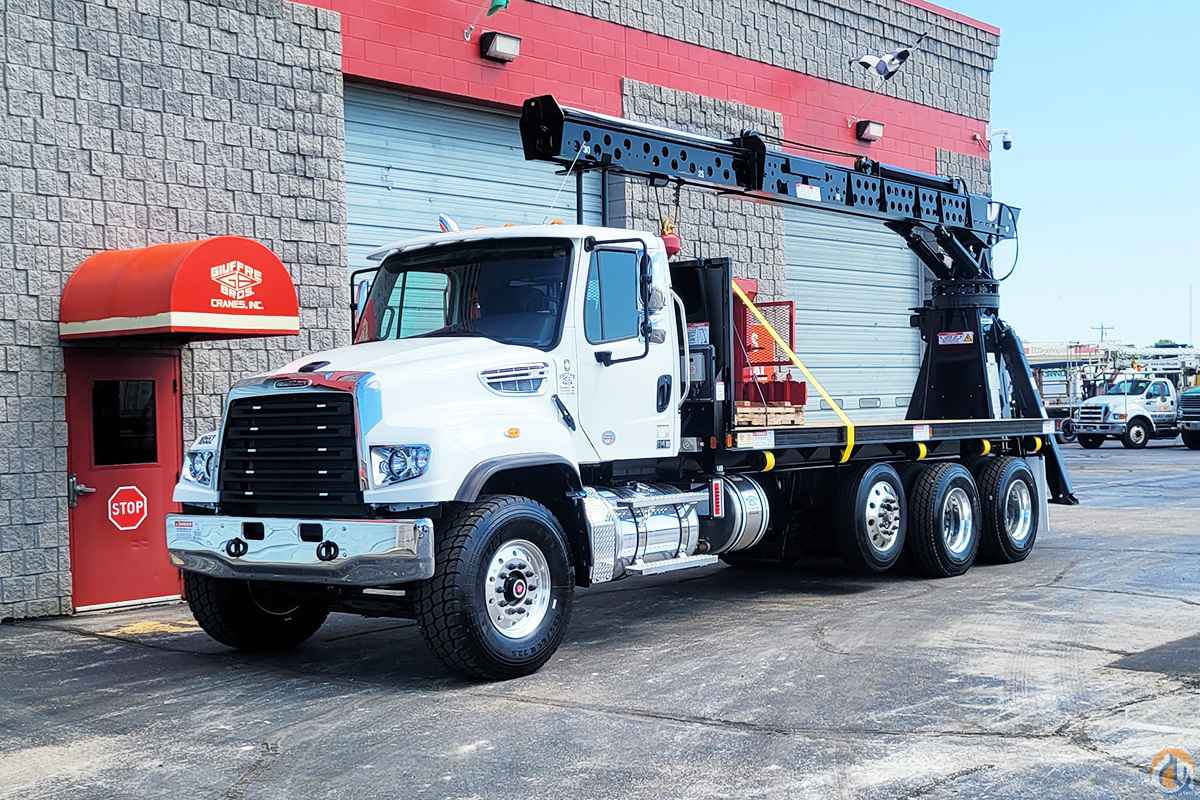

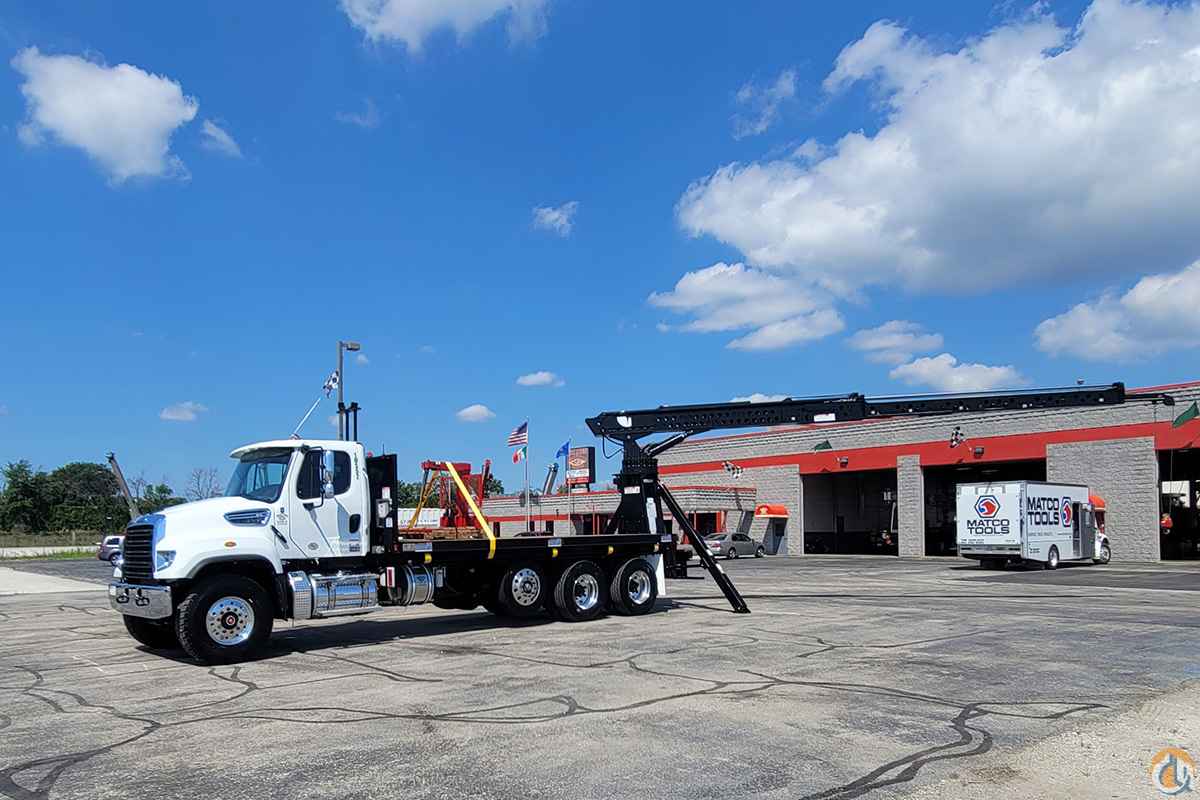

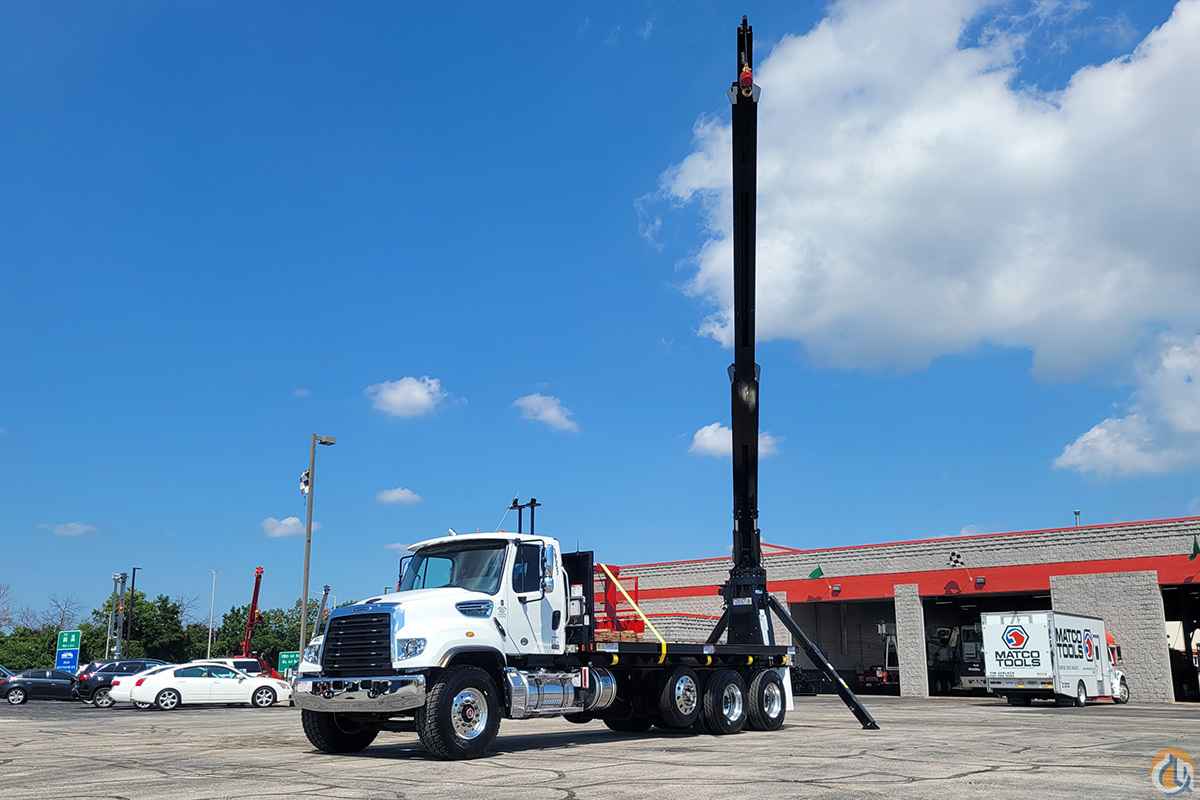

MANITEX SERIES 110 TROLLEY BOOM

MANITEX 110-35 E

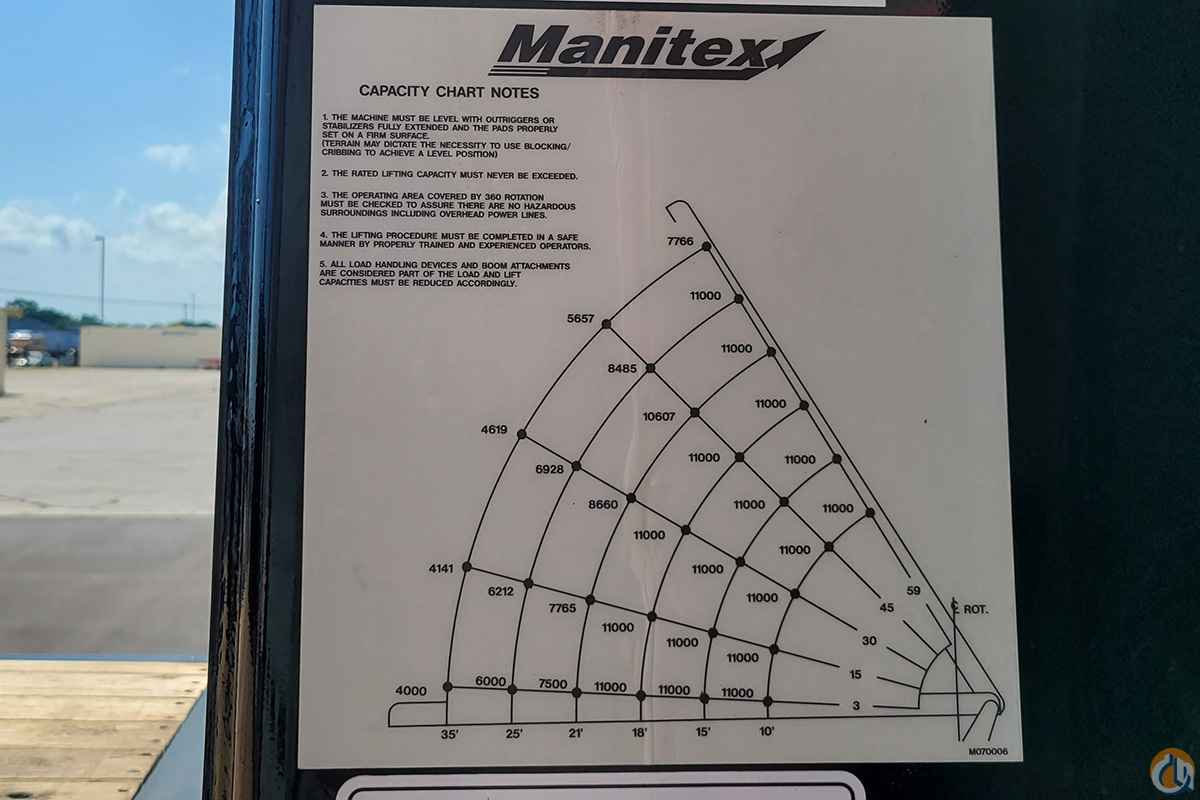

MAX LIFT CAPACITY @ 18' IS 11,000LBS

MAX LIFT @ 35' IS 4,000 LBS

22' 3" OVERALL RETRACTED LENGTH

34' 2" WITH HOOK OUT, AND 14" WITH HOOK IN

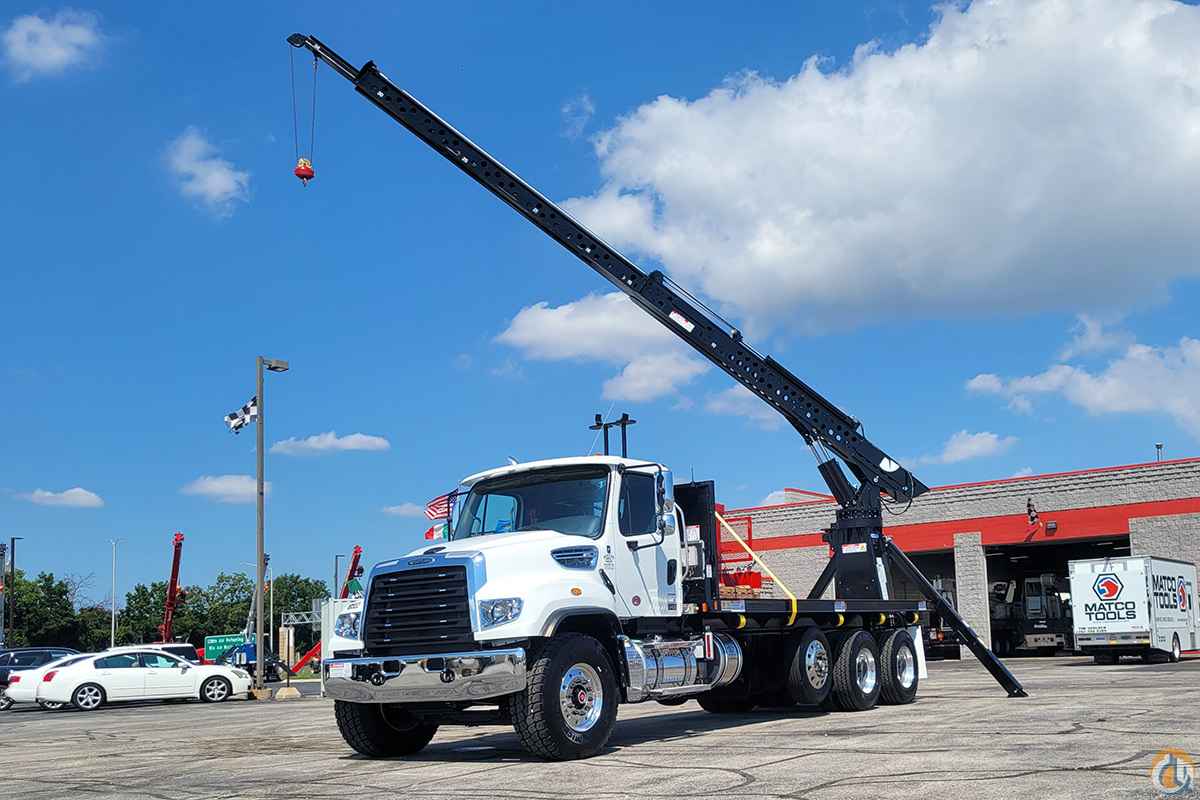

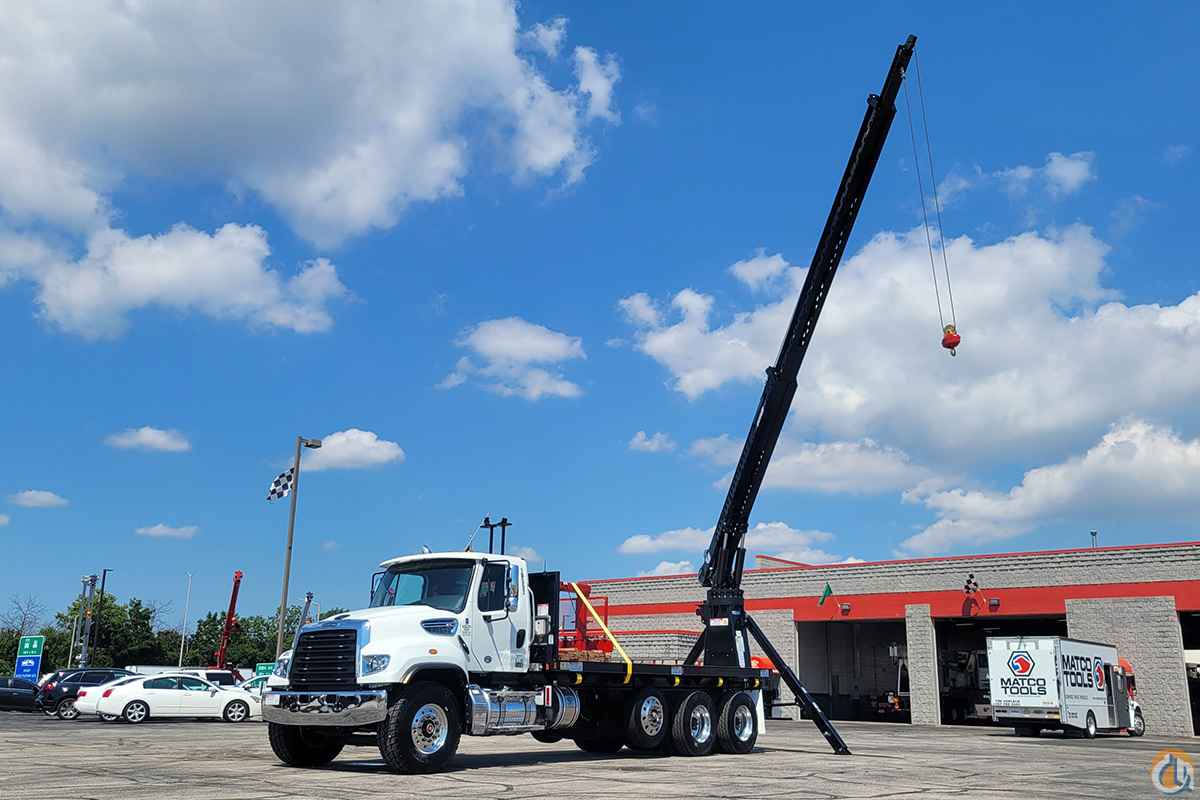

BOOM EXTENSION RADIUS OF 35'

MINIMUM RADIUS RETRACTED 15'1"

MAXIMUM RADIUS 43'

CONTINUOUS BOOM ROTATION

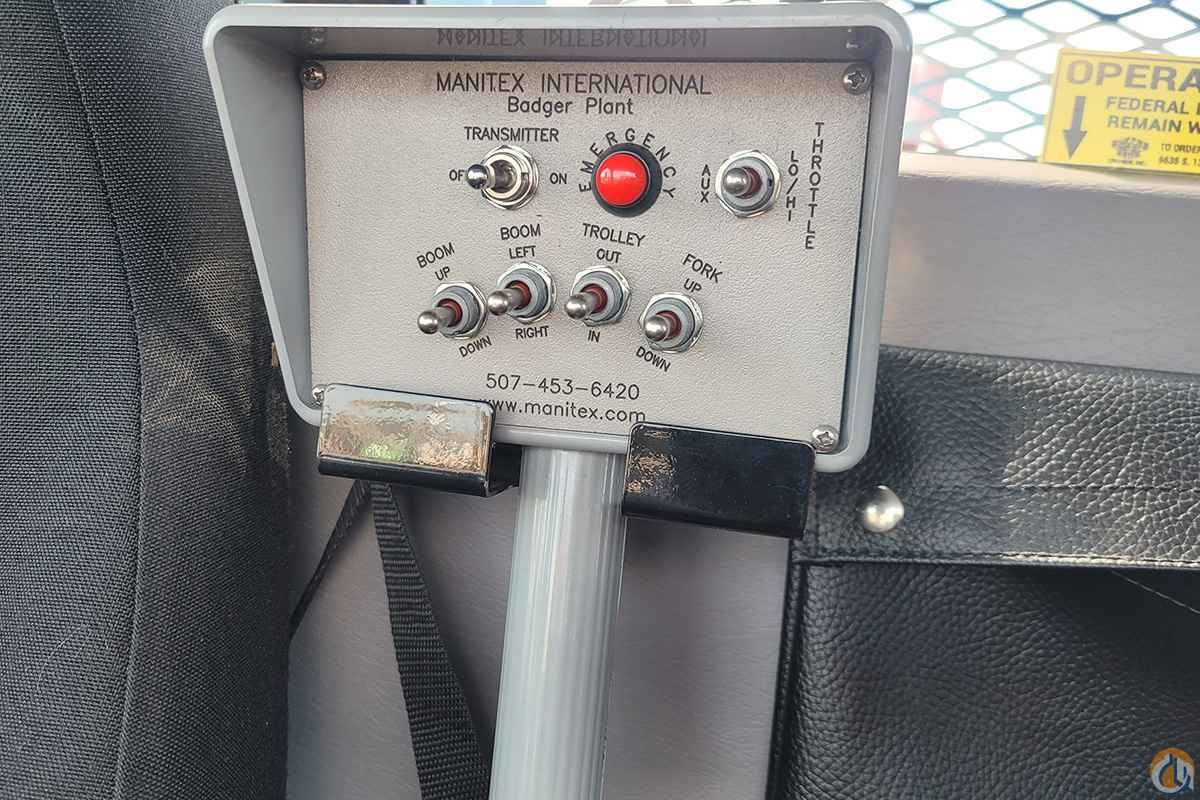

PROVEN PISTOL GRIP RADIO REMOTE CNTRLS

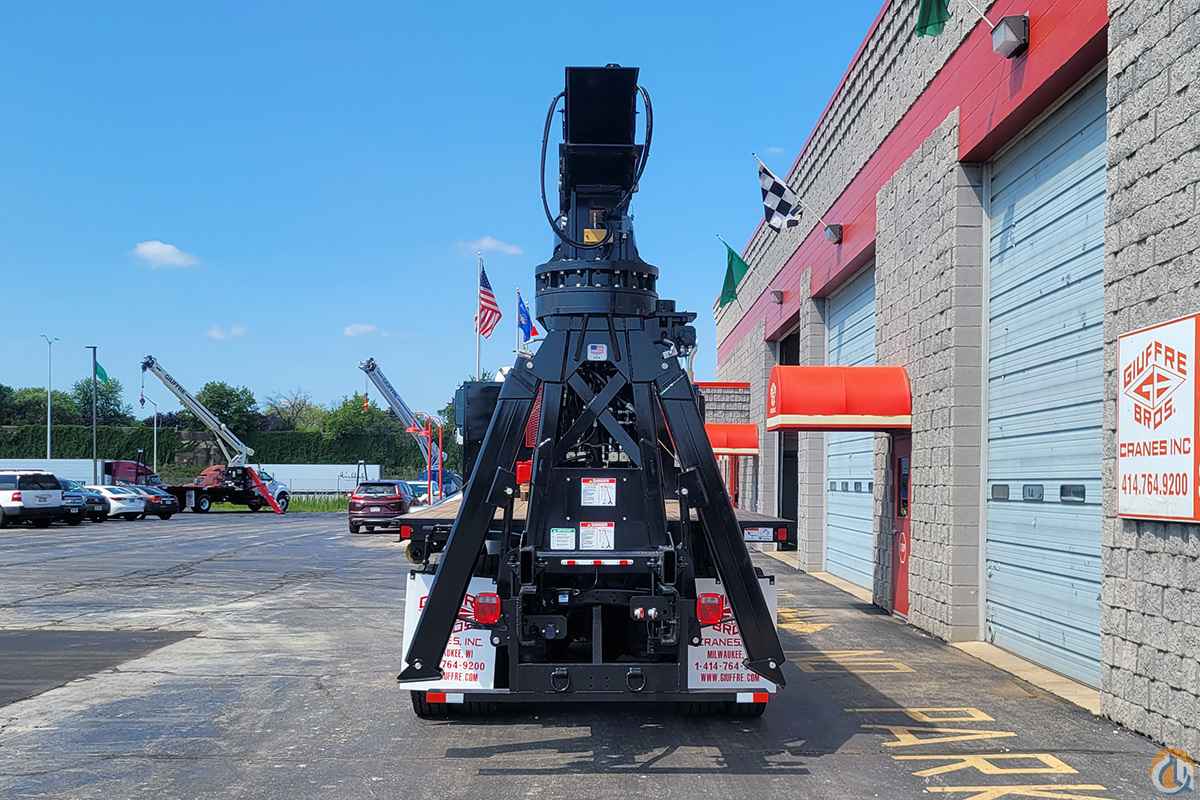

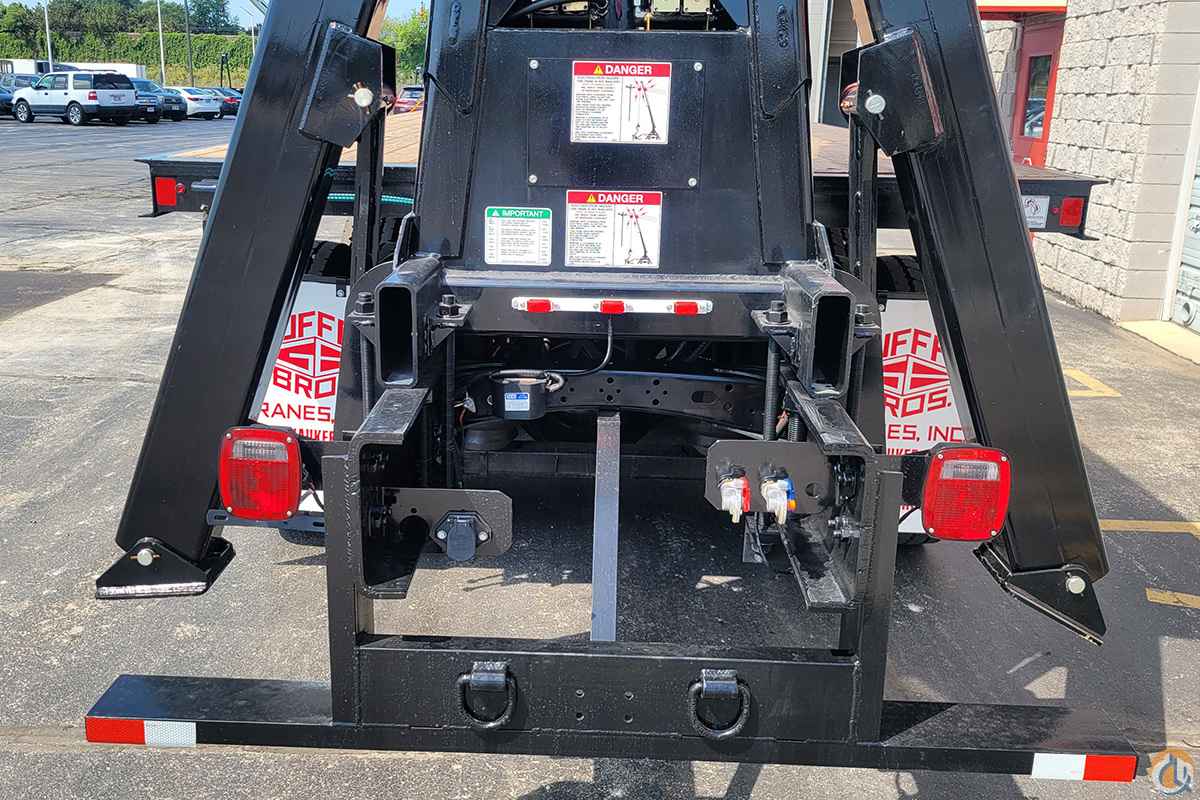

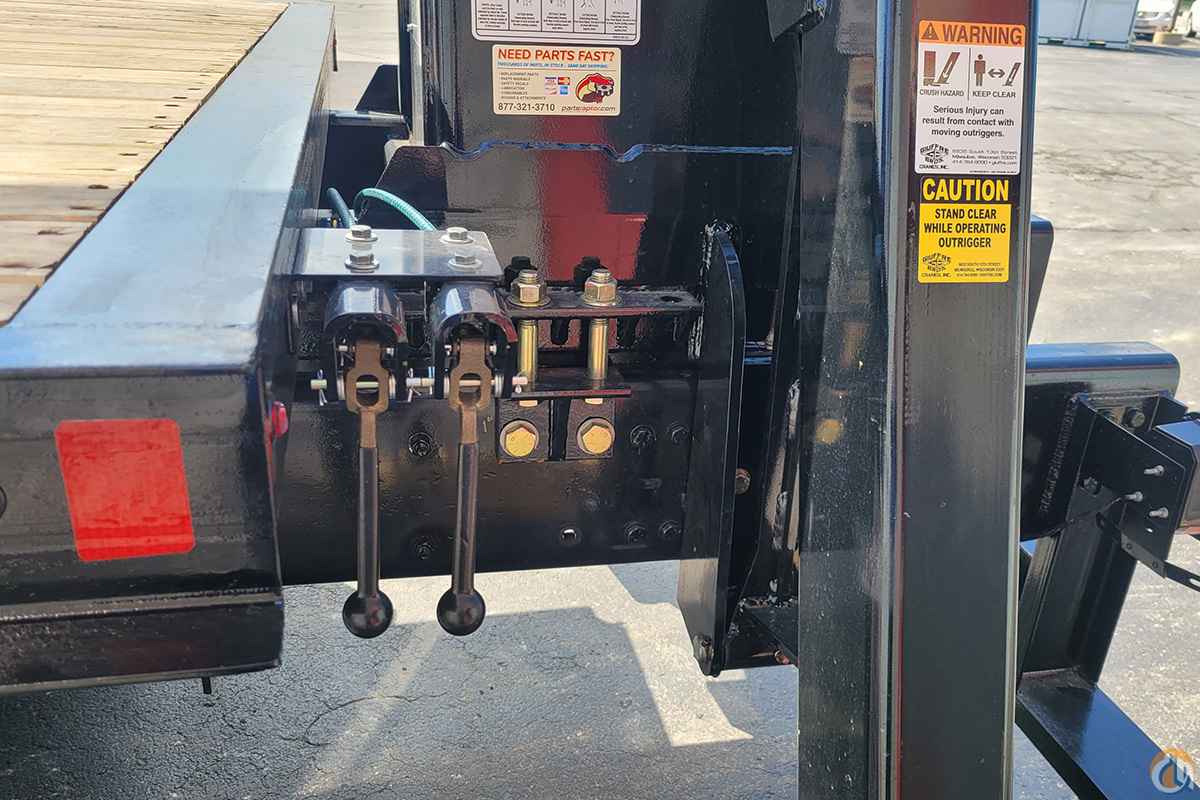

A-FRAME STYLE HYDRAULICS OUTRIGGERS

@ 15'6"

BOX TYPE BOOM CONSTRUCTION FOR

INCREASED STRENGTH / WEIGHT RATIO

DUAL ELEVATE CYLINDERS

LOW PRESSURE, OPEN CENTERED HYDRAULIC

VALVES INCREASE RELIABILITY AND

REDUCE MAINTENANCE

FLOW DIVIDER ALLOWS OPERATOR SEVERAL

FUNCTIONS SIMULTANEOUSLY

ALL STANDARD EQUIPMENT - 12 MONTH

STANDARD MANITEX FACTORY WARRANTY

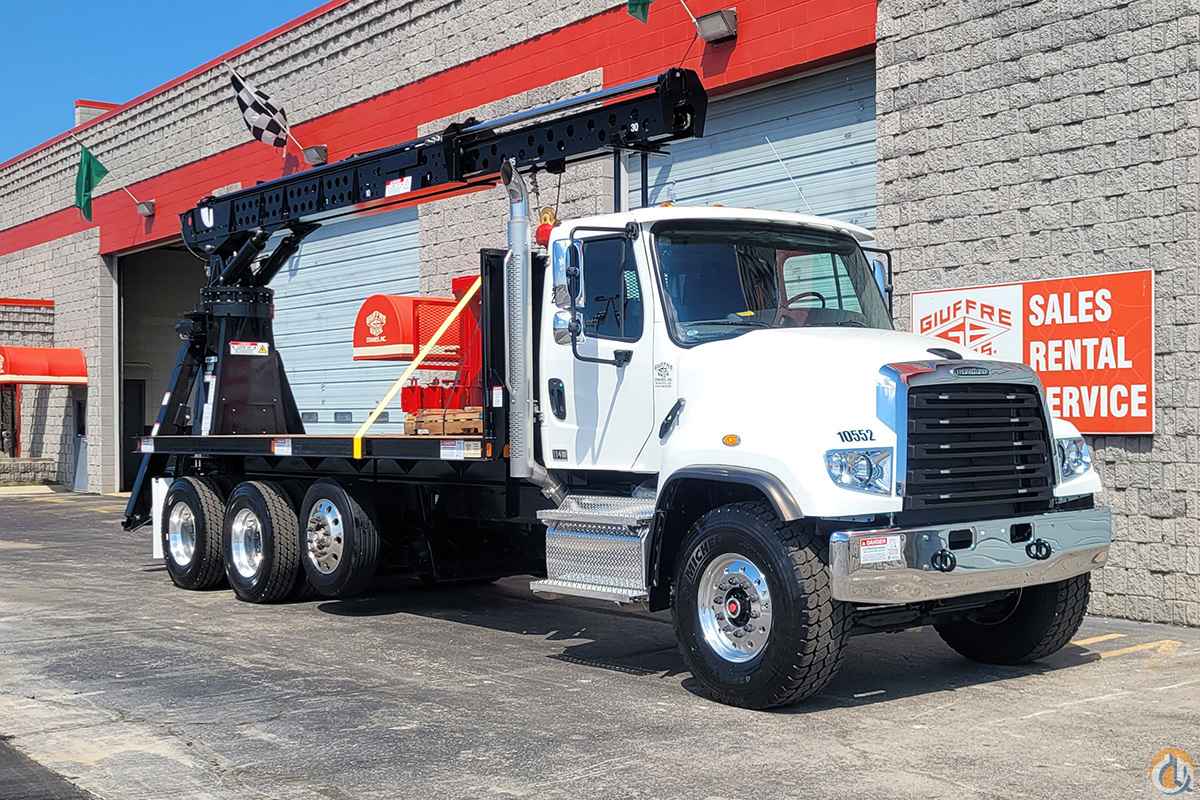

NEW 2022 FREIGHTLINER 114SD

DETROIT DD13 12.8L 470 HP @ 1625 RPM, 1900

GOV RPM, 1650 LB-FT @975 RPM

66,000 LB G.V.W.R.

46,000 LB TANDEM

20,000 LB FRONT STEER AXLE

HENDRICKSON PRIMAXX REAR AIR SUSP.

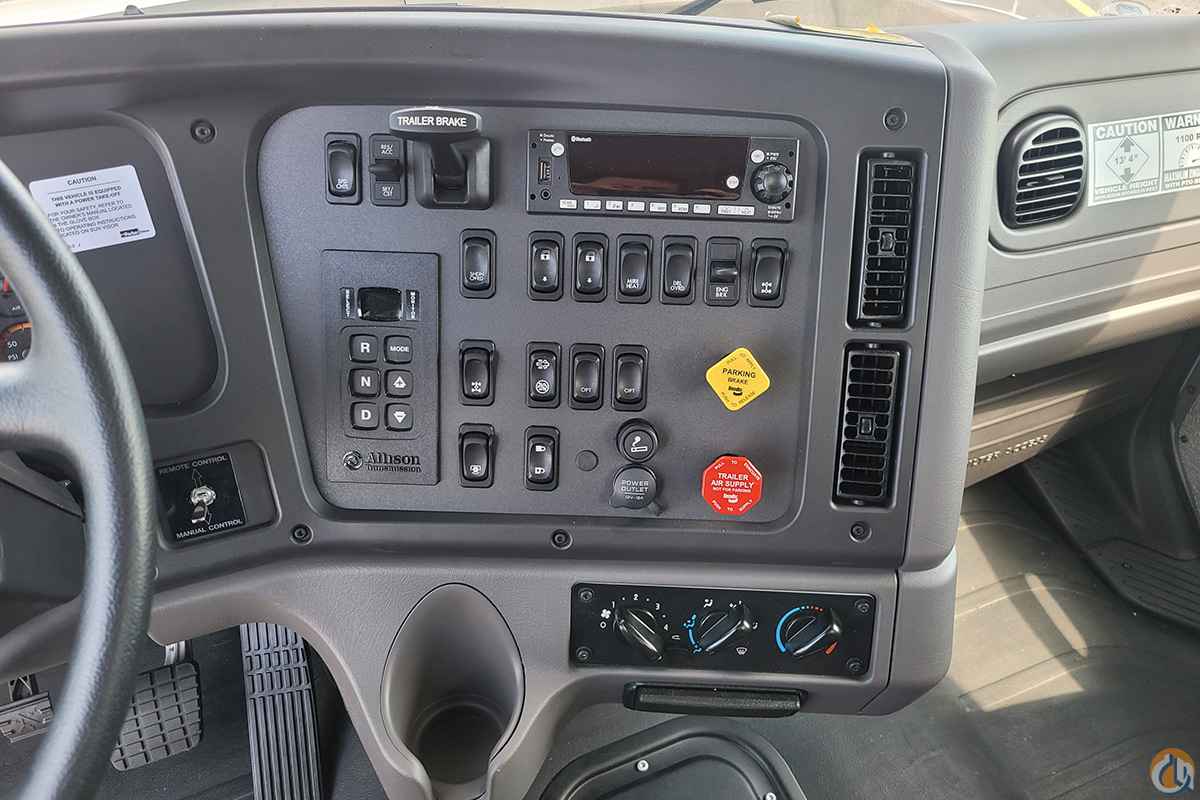

ALLISON 4500 RDS-P RUGGED DUTY

AUTOMATIC TRANSMISSION

DIFFERENTIAL LOCK TANDEM AXLES

w/ DRIVER CONTROLLED ROCKER SWITCH

IMMERSION TYPE BLOCK HEATER 110 - 120V

STANDARD OIL PAN

425-65R22.5 20PLY FRONT TIRES

11R-22.5 16PLY REAR TIRES

ALCOA POLISHED ALUMINUM WHEELS

FULL DOUBLE FRAME W/ FULL STEEL INSERT

AIR BRAKES w/ ABS & BENDIX SMART ATC

TRACTION CONTROL & AIR DRYER & HEATER

3 DTNA 12V BATTERIES (3000CCA) w/

DISCONNECT & JUMPER TERMINAL

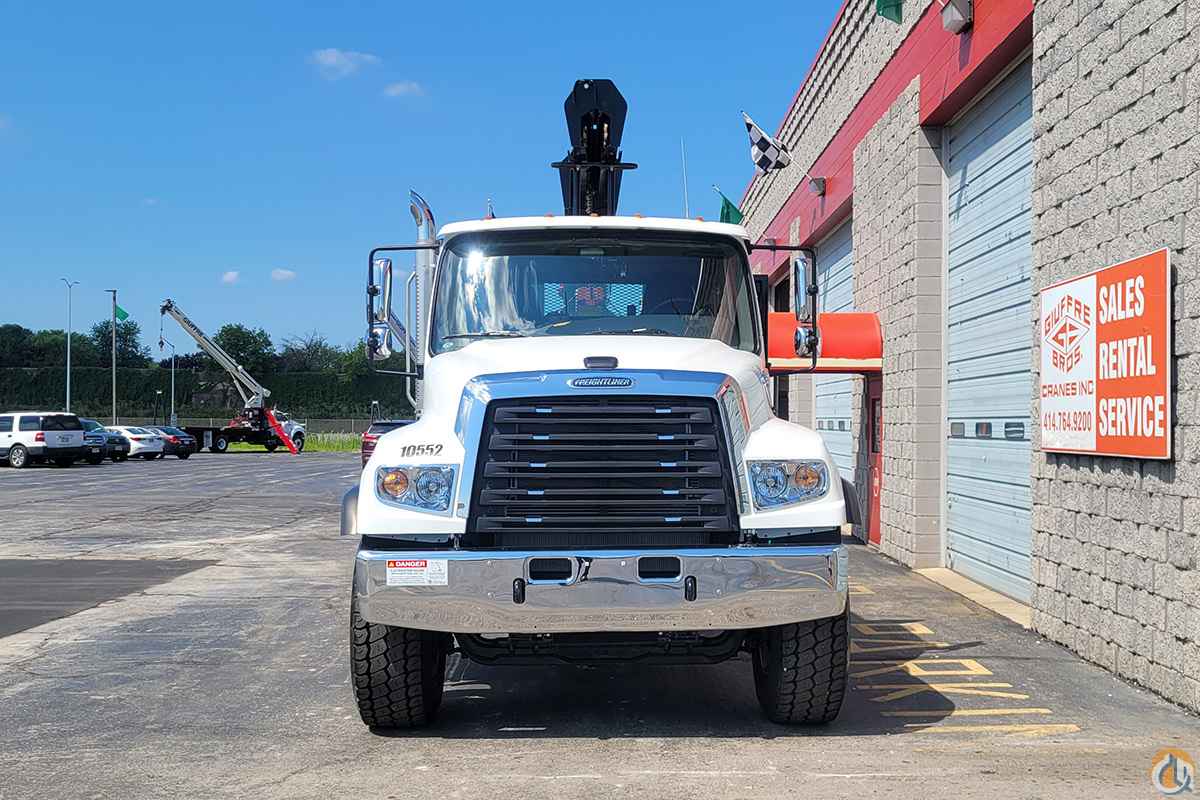

STAINLESS STL CROWN & GRILLE

VERTICAL CHROME RH EXHAUST STACK

AIR CONDITIONING / CRUISE / AIR HORN

CHROME STEEL SWEPT BACK BUMPER

160 AMP ALTERNATOR -STD. BRUSH

80 GAL ALUMINUM FUEL TANK (LH - U/C)

DAVCO FUEL/WATER SEPARATOR WITH

ESOC

AM/FM/WB/USB/MP3 RADIO w/ BLUETOOTH

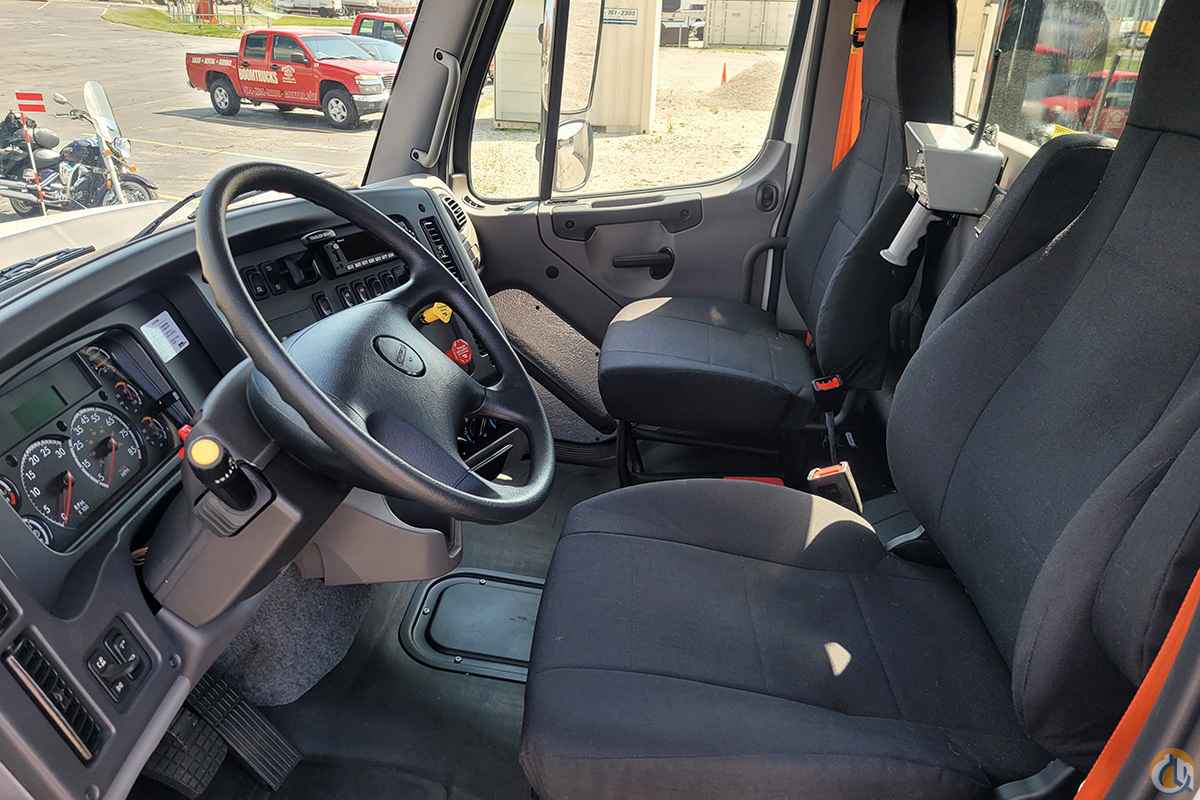

AIR RIDE HIGH BACK DRIVER'S SEAT

ALUMINUM CAB WITH AIR SUSPENSION

DUAL WEST COAST STEEL MIRRORS

ONE PIECE CURVED WINDSHIELD

POWER DOOR LOCKS & POWER WINDOWS

EXTERIOR STAINLESS STEEL SUNVISOR

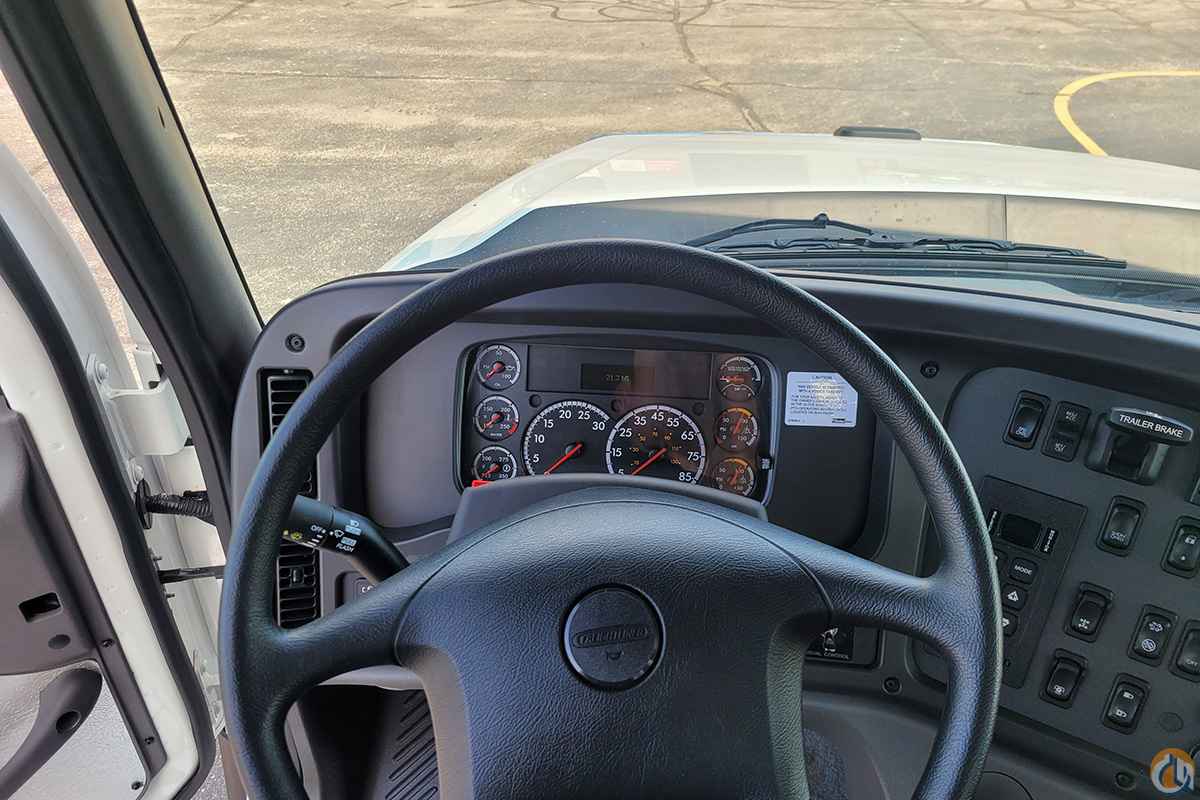

COMPLETE GAUGE PACKAGE

PAINTED FREIGHTLINER  WHITE L0006
