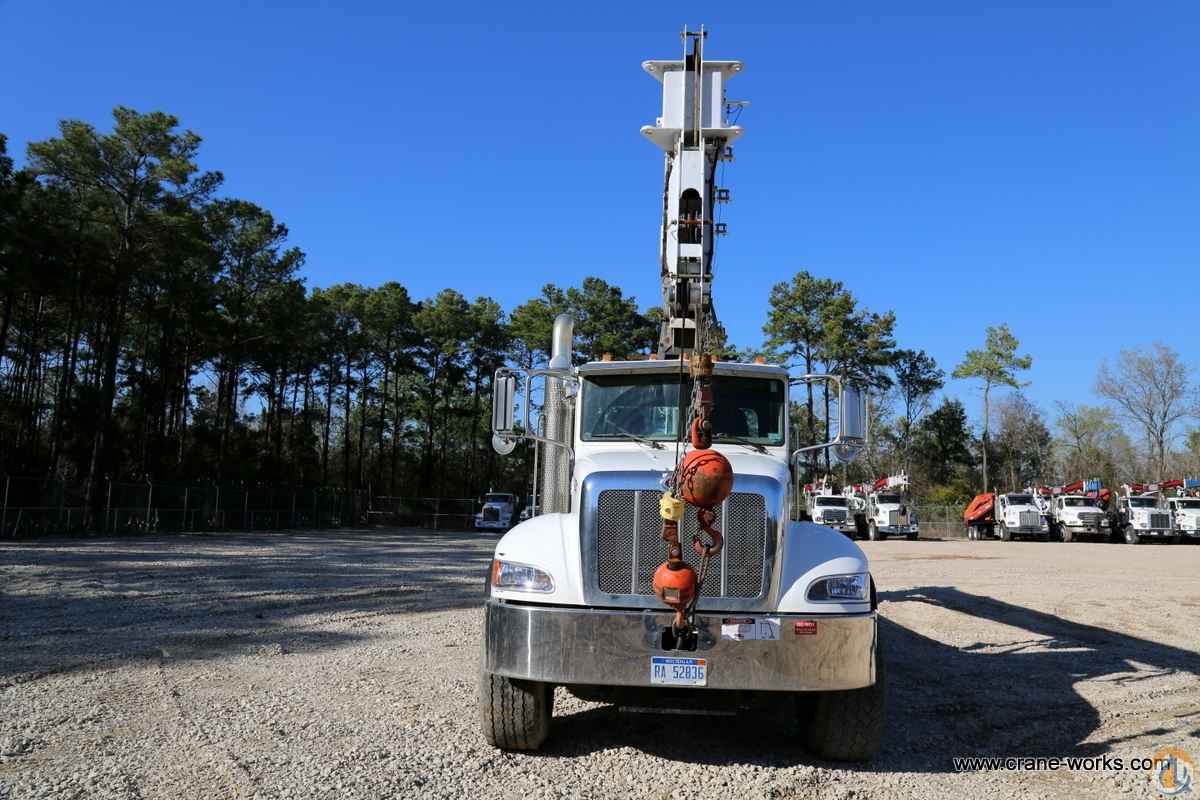

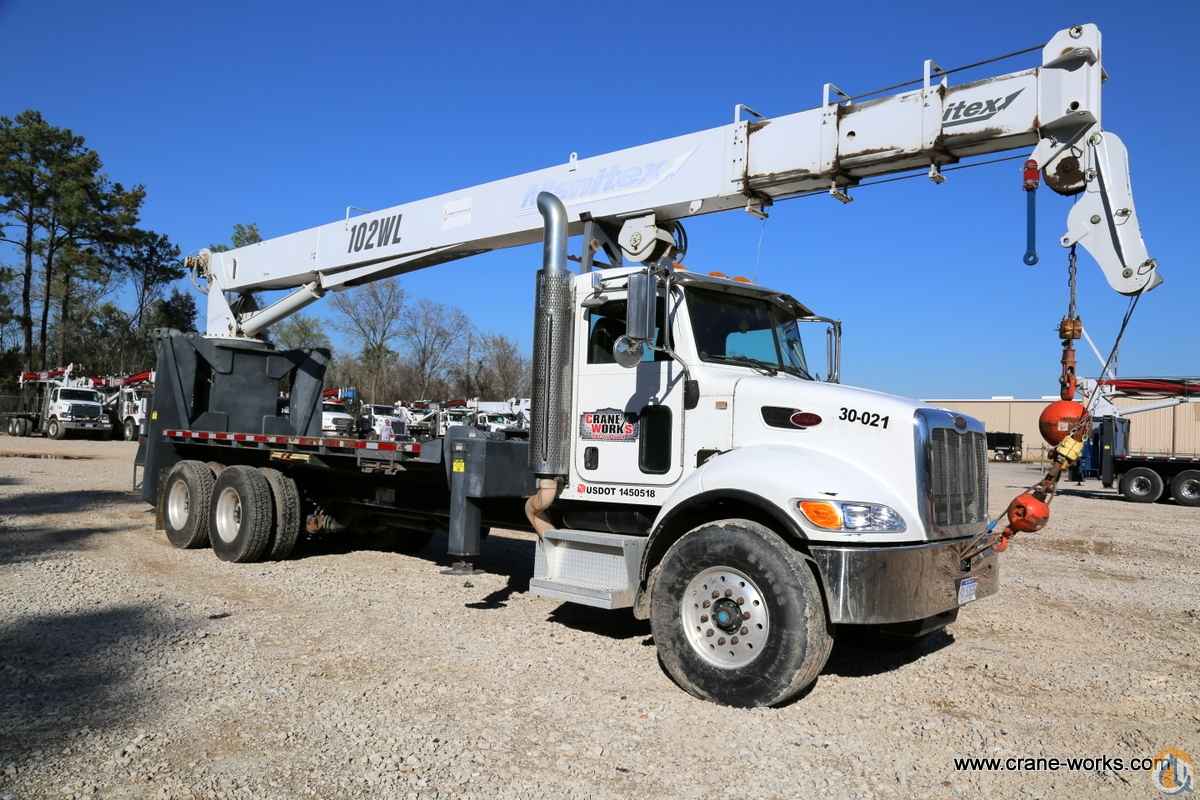

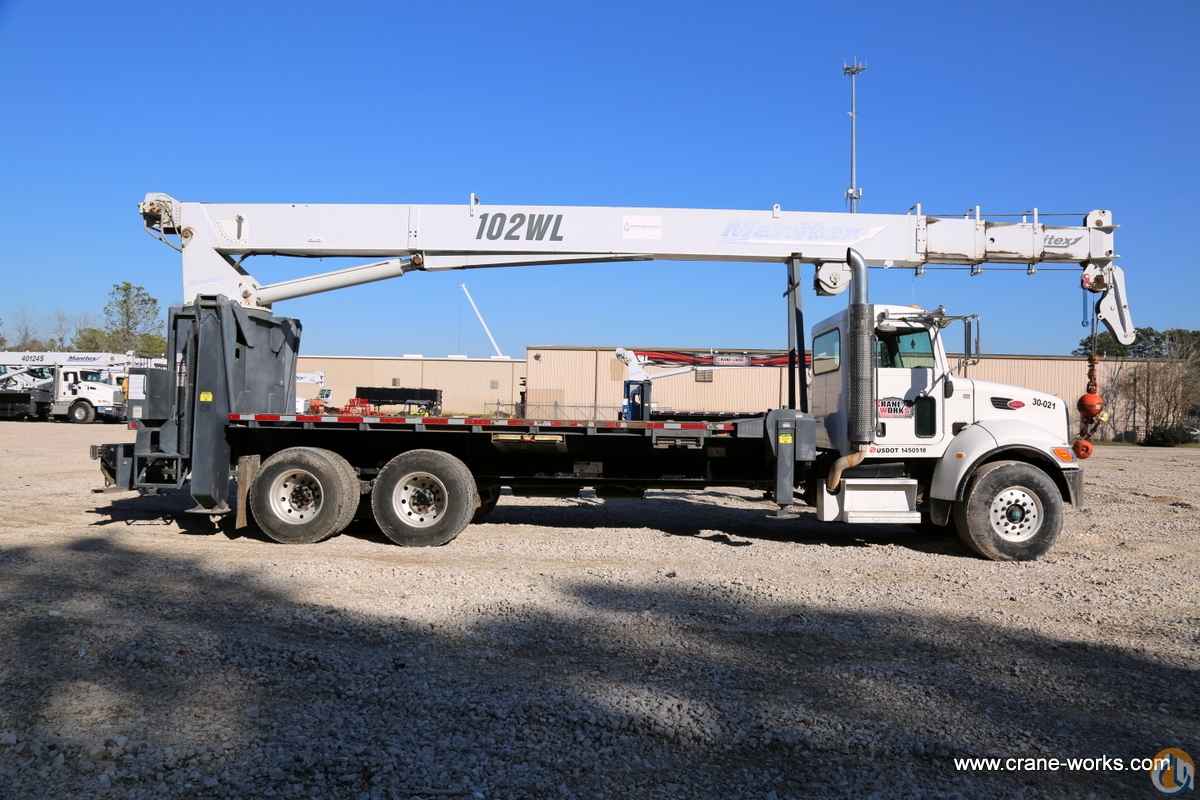

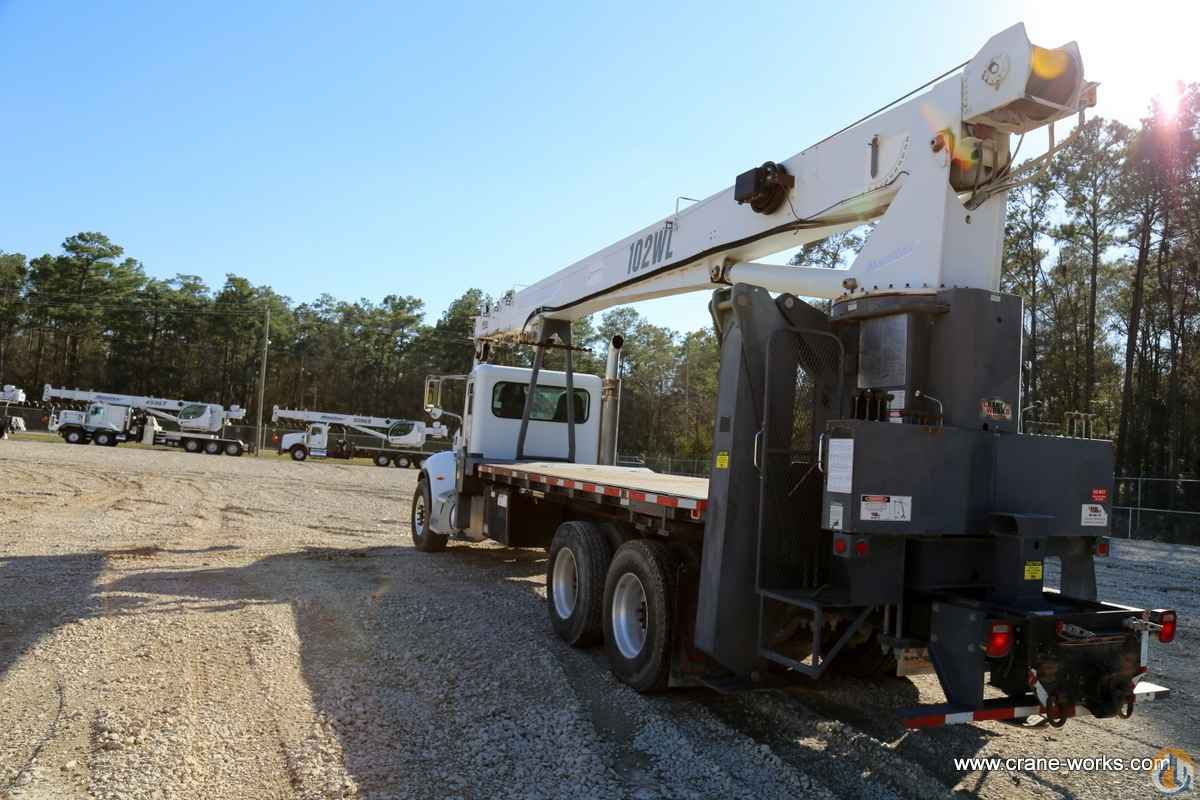

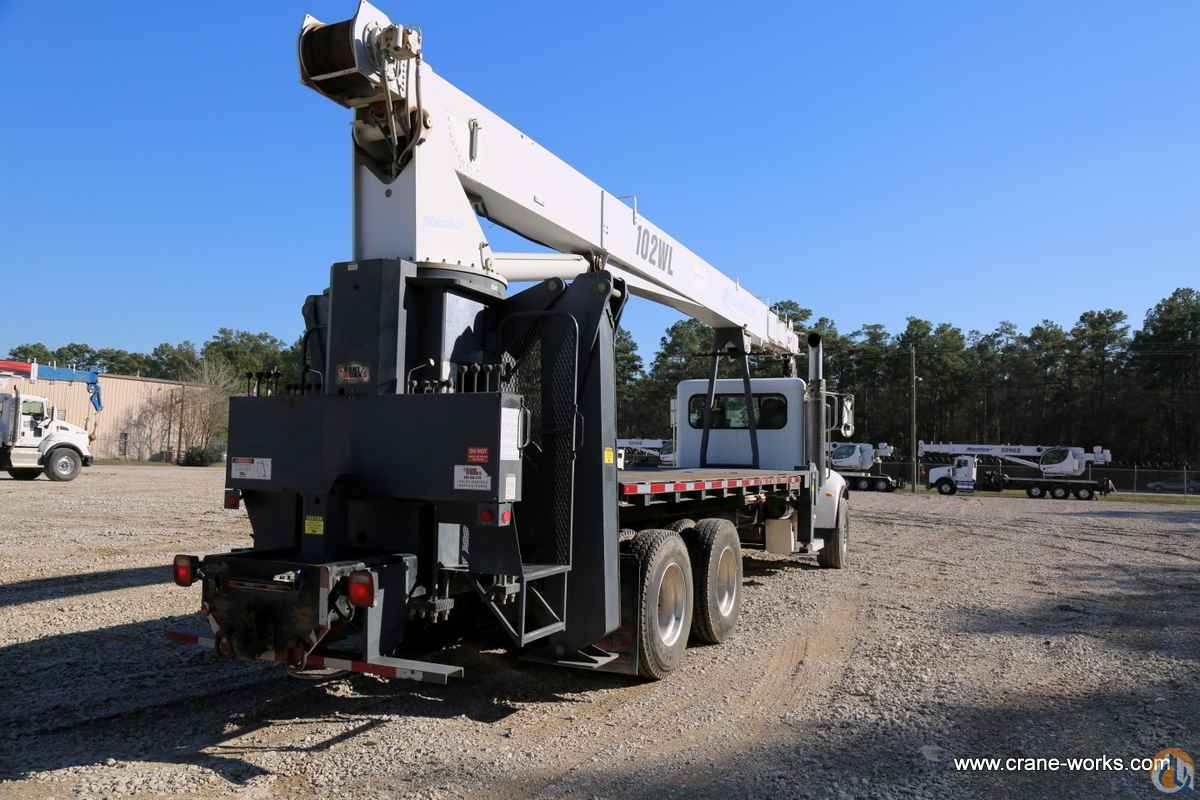

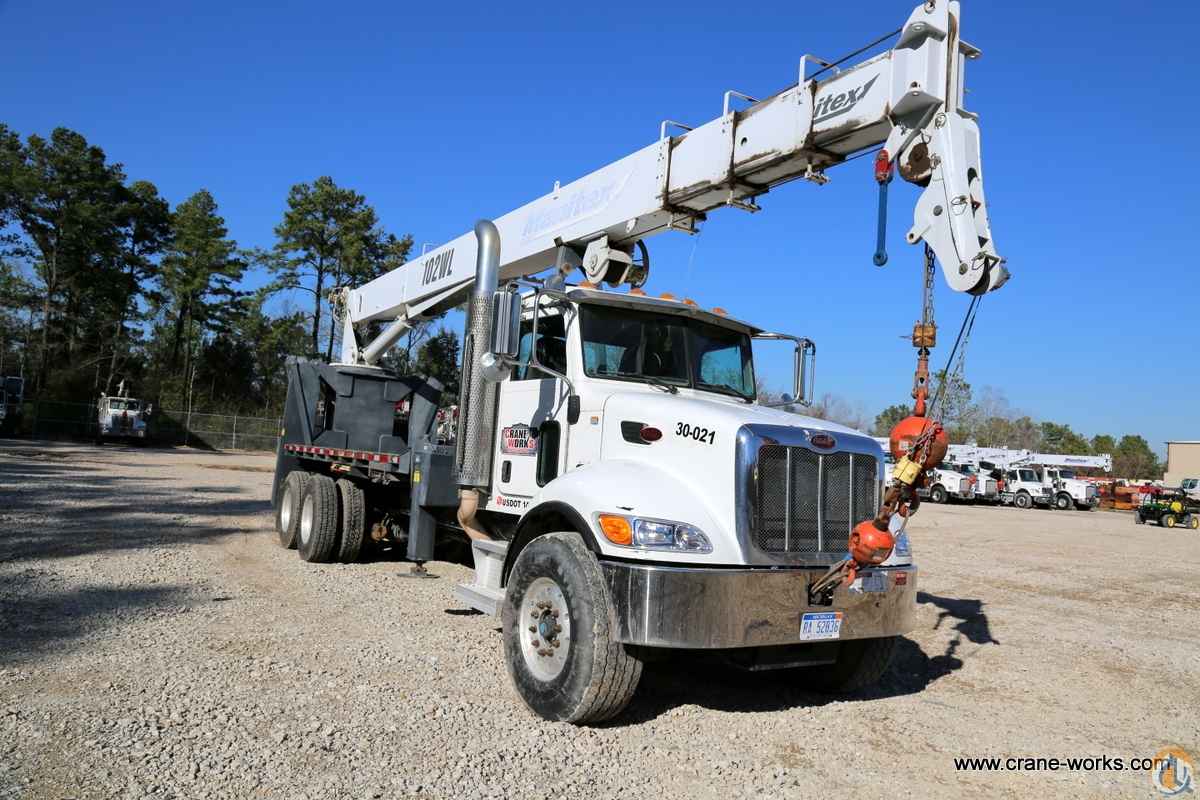

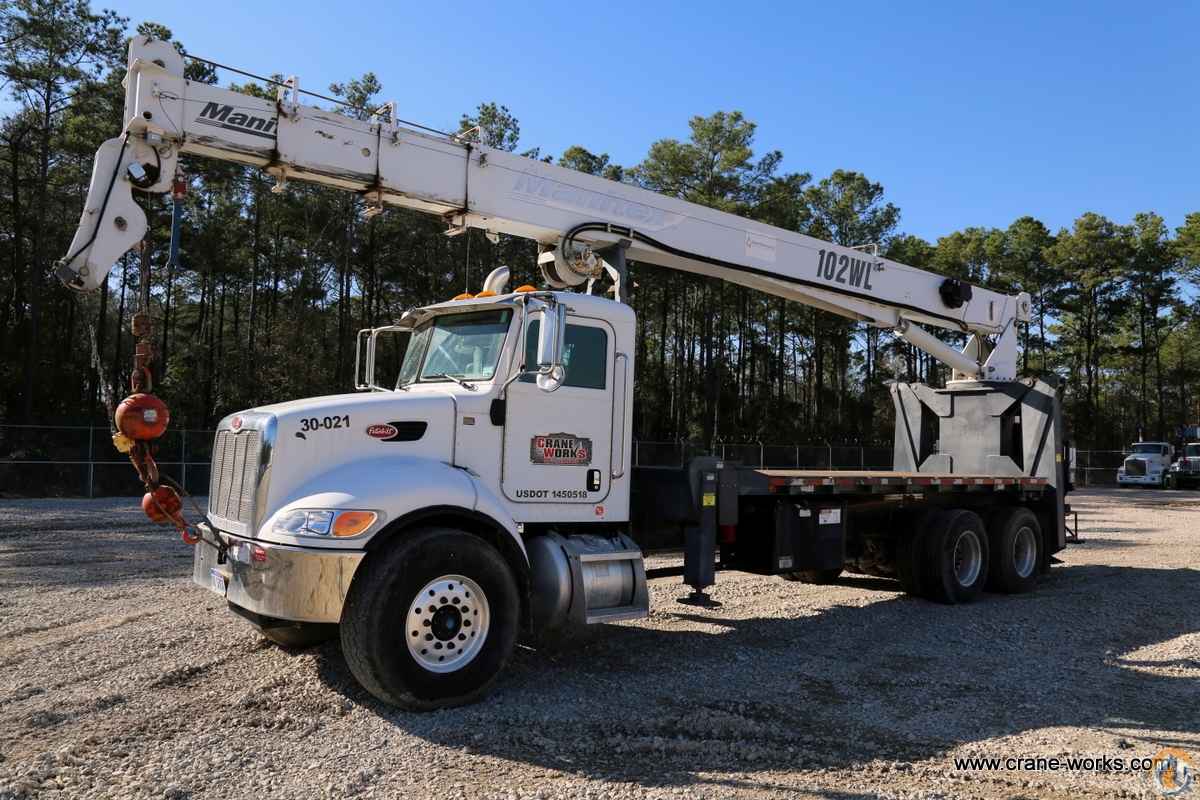

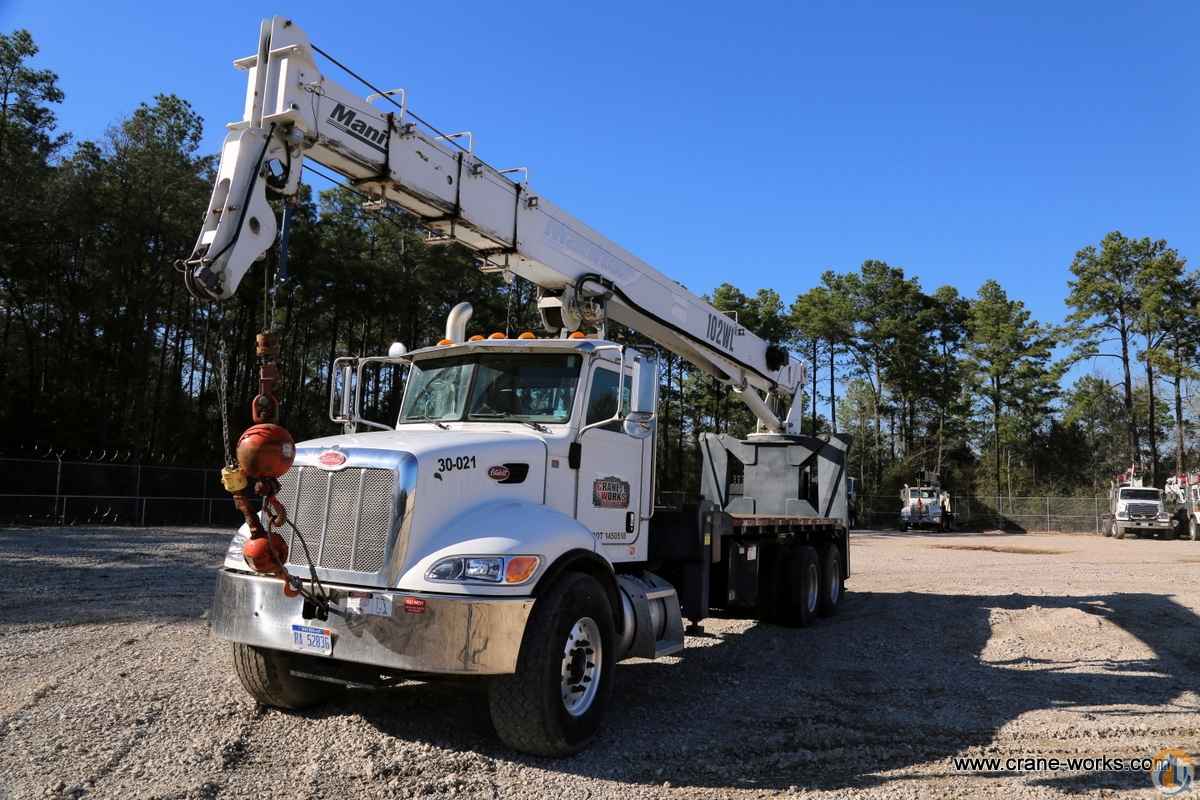

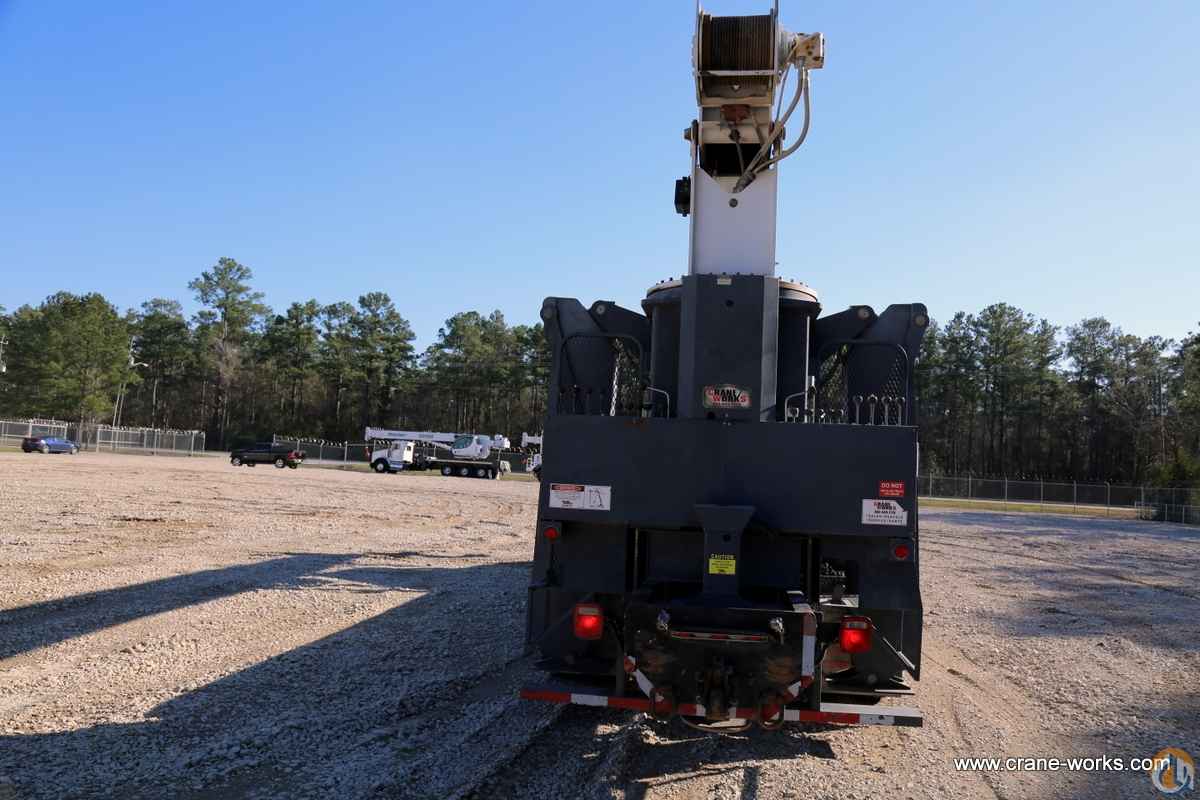

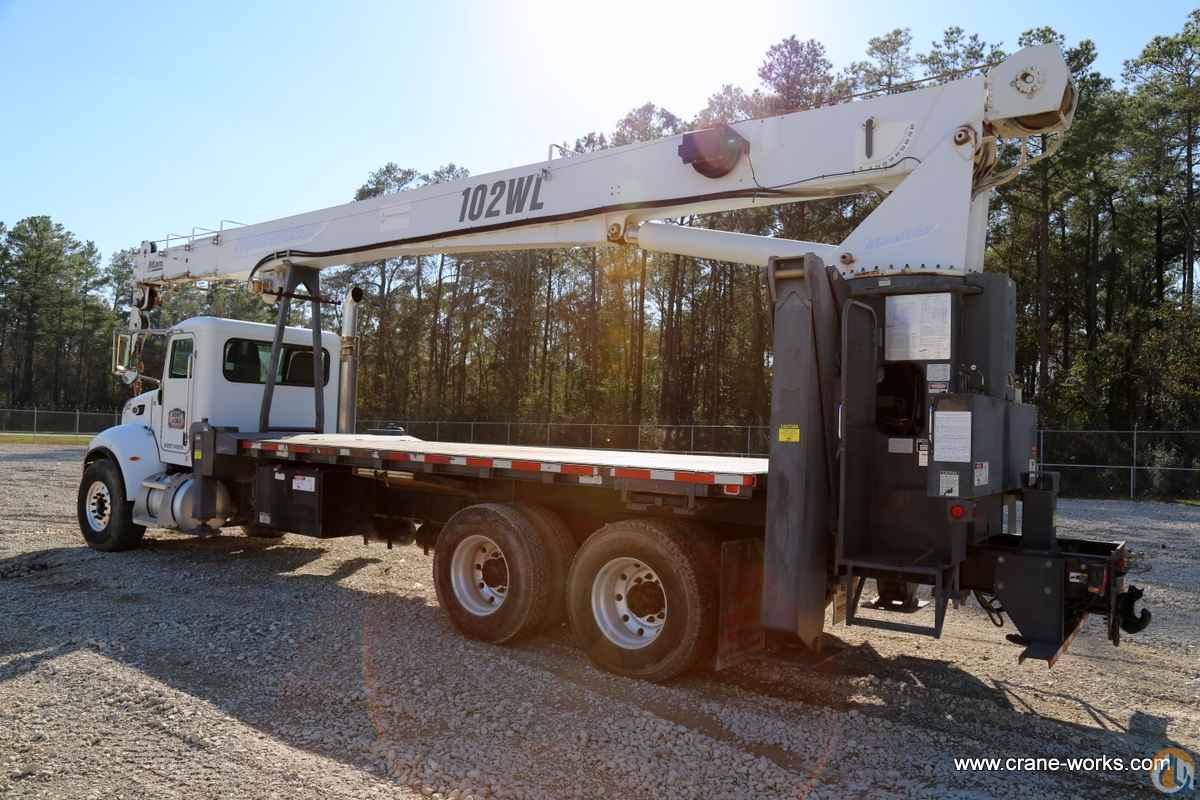

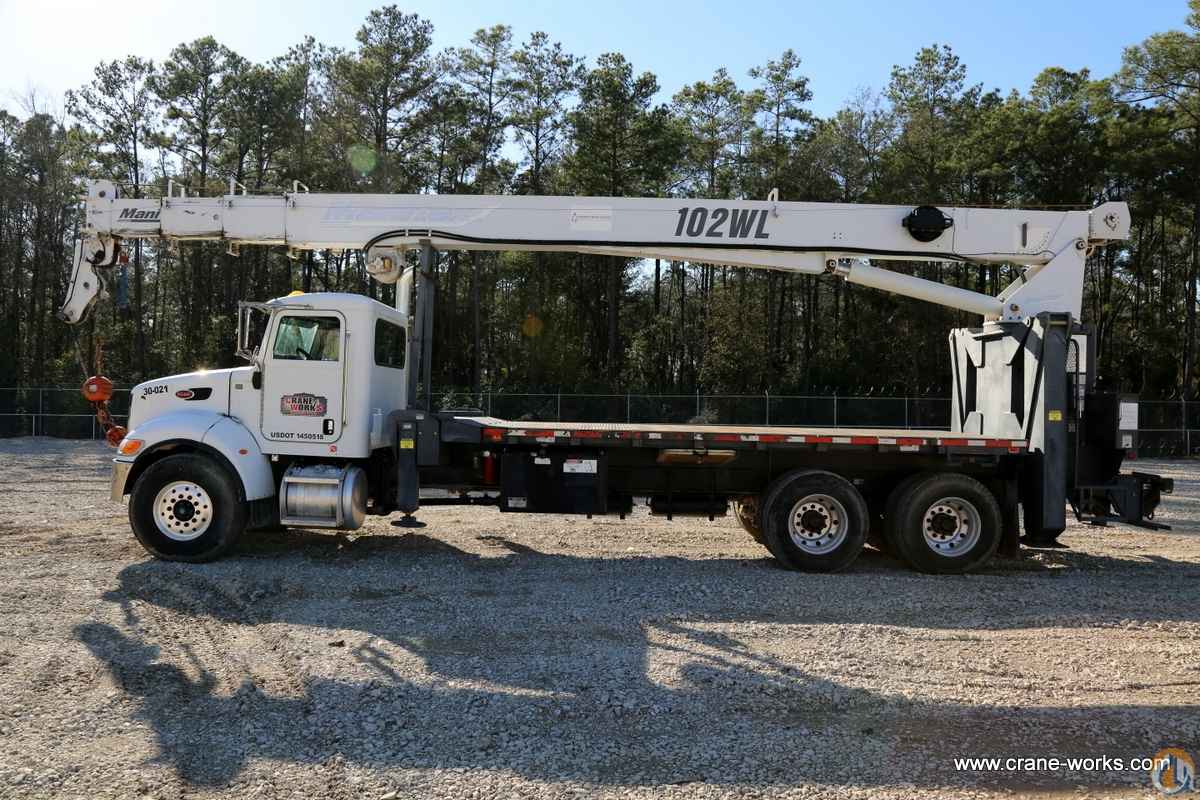

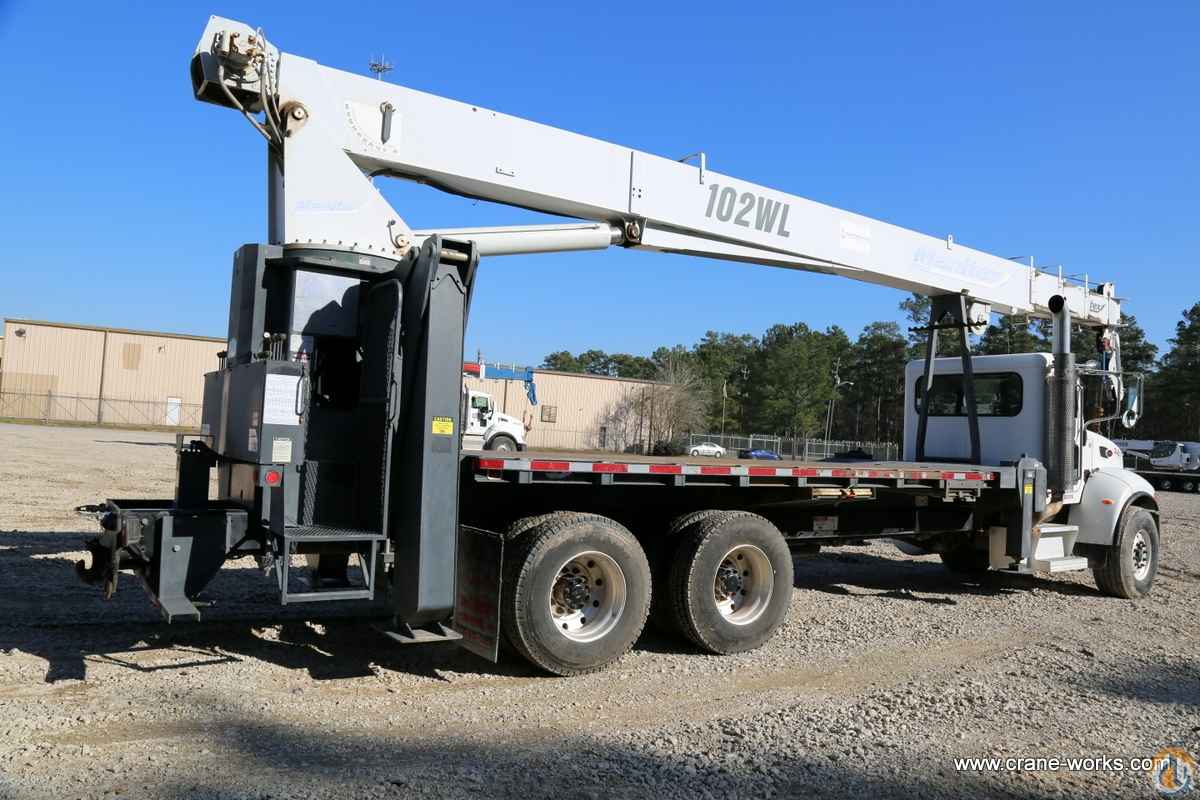

Sold MANITEX 102WL BOOM TRUCK MOUNTED ON 2009 PETERBILT 340 CHASSIS Crane in Houston Texas | Crane Network

Type: Boom Truck Cranes

Make: Manitex

Model: 102 WL

Year: 2009

Capacity: 30.00 Tons

Condition: Very-good

Unit #: 30-021

Location: Houston, Texas

Boom: 102

Notes

STANDARD FEATURES

2-speed Hoist w/ Grooved Drum
5 Ton (4.5 mt) Hook and Ball
3-Load Sheave Quick Reeve Boom Head
Hard Wired Anti-Two Block w/ Lockout
Boom Hoist Cylinder
System Pressure Gauge
372° Non Continuous Rotation
Removable Boom Rest
Engine Start/Stop
Operator's Service/Parts Manuals
Boom Length and Angle Indicators
Mechanical Throttle
Foot Throttle
Signal Horn
Bubble Level
Auxiliary Winch with Auxiliary Sheave Head
4-Section Telescopic Boom
335' (102.11m) 9/16" (14.3mm) Rotation Resistant Wire Rope
Subframe for 18' (5.5m) Bed
70 Gallon (265 liter) Reservoir w/Suction Strainer & Ball Valve
Pedestal, Turret, Rotation Bearing & Swing System
Dual Operator Control Stations
Load Moment Indicator w/Internal Length Cable
Audio/visual Capacity Alert w/ Shut off
Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators
Audible Outrigger/Stabilizer Motion Alarm
Out and Down Front Stabilizers (19 '7" Spread)
Rear Stabilizer

INCLUDED ITEMS

Basic Machine w/ 102’ 4-Section Boom W/3-Sheave Head
18' Heavy Hauler Steel Bed
Auxiliary Winch w/Auxiliary Sheave Head
Standard Mount Installation
HYCAS Hard Wired ATB

TRUCK CHASSIS

2009 Peterbilt 340 Single Steer Tandem Rear Chassis
Paccar PX-8, 330 HP Diesel Engine
Engine Turbo Brake
Immersion block heater 120V 1000W
Cruise Control
Allison 3000RDS Automatic Transmission
Dual power steering gears: 20K
Dana Spicer D2000 20K Front Axle
Dana Spicer DSP-41 40K Tandem Rear Axle
Hendrickson RT-403, 40K Spring Rear Suspension
5.57 Rear Axle Ratio
Wheel Diff Lock
Front Tires: 425/65R2 Tires on Aluminum Wheels
Rear Tires: 11R 22.5 Tires on Aluminum Wheels (outside only)
60 US Gallon 24.5 Aluminum Fuel Tank
Pintle Hitch w/ Full Truck Kit w/ glad hands to end of frame
Heat/Defrost/Air Conditioning
Air Ride Drivers Seat
Fixed Suspension Passenger Seat
AM/FM/CD/ Radio
