Boom Details

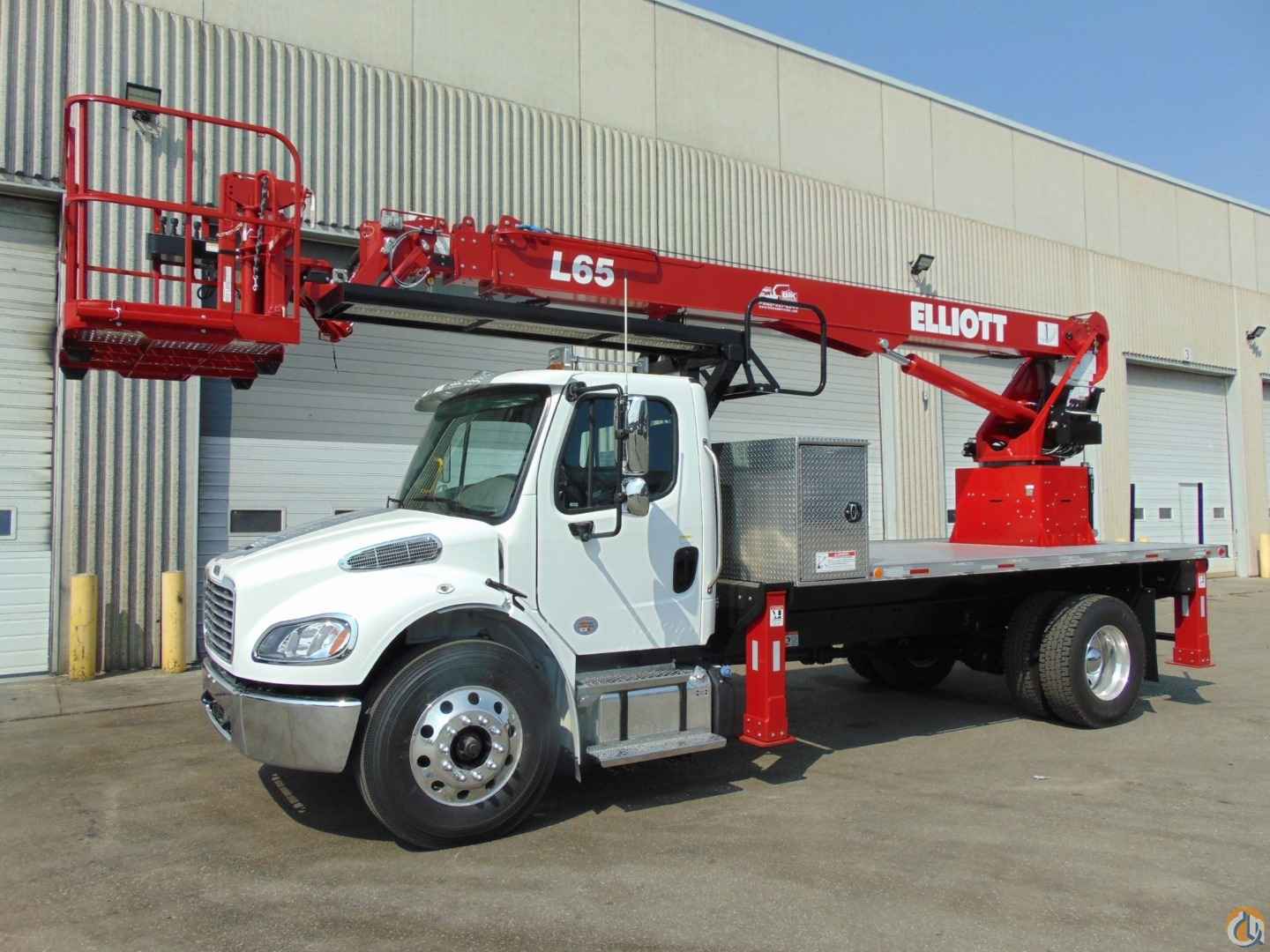

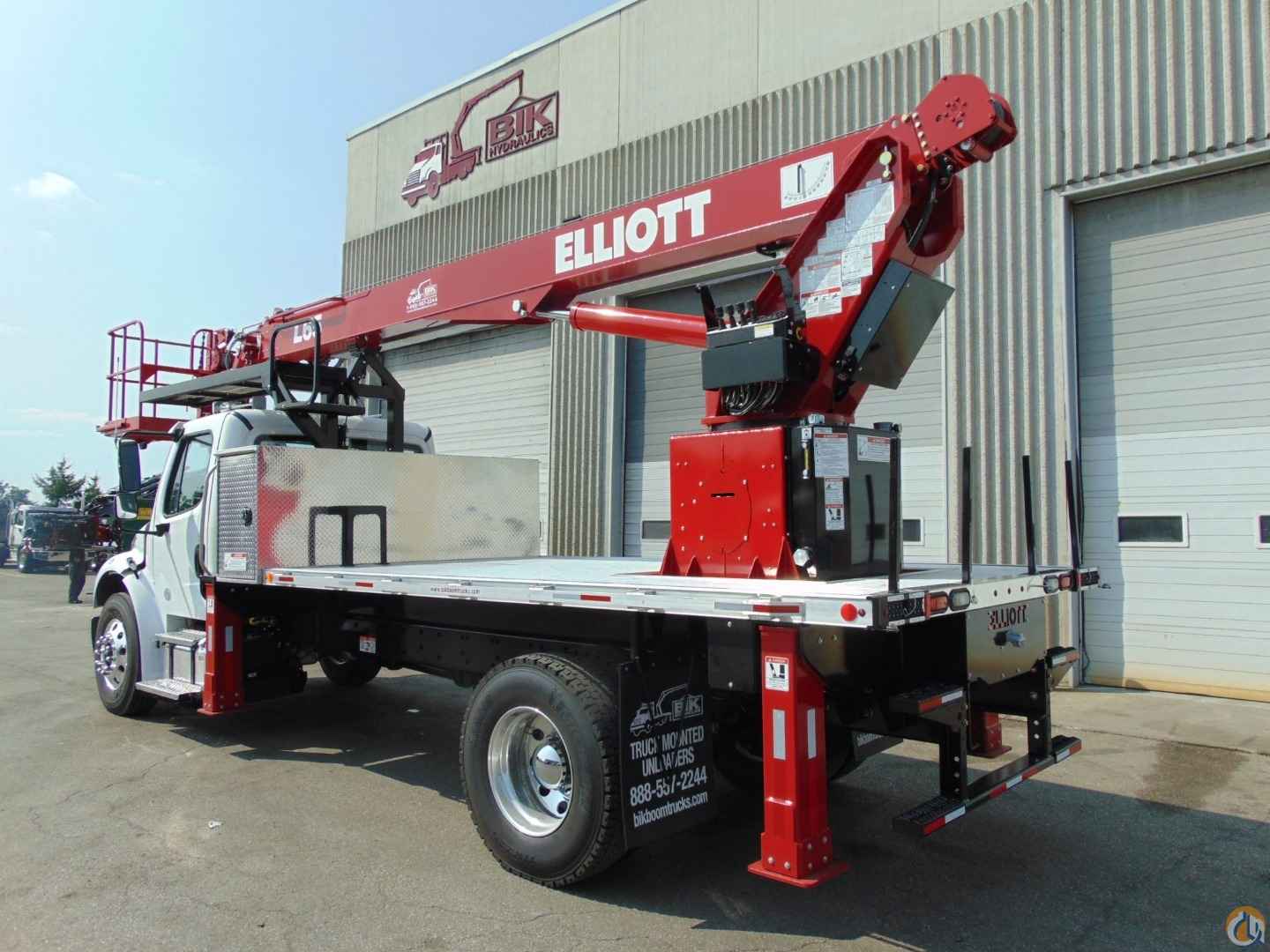

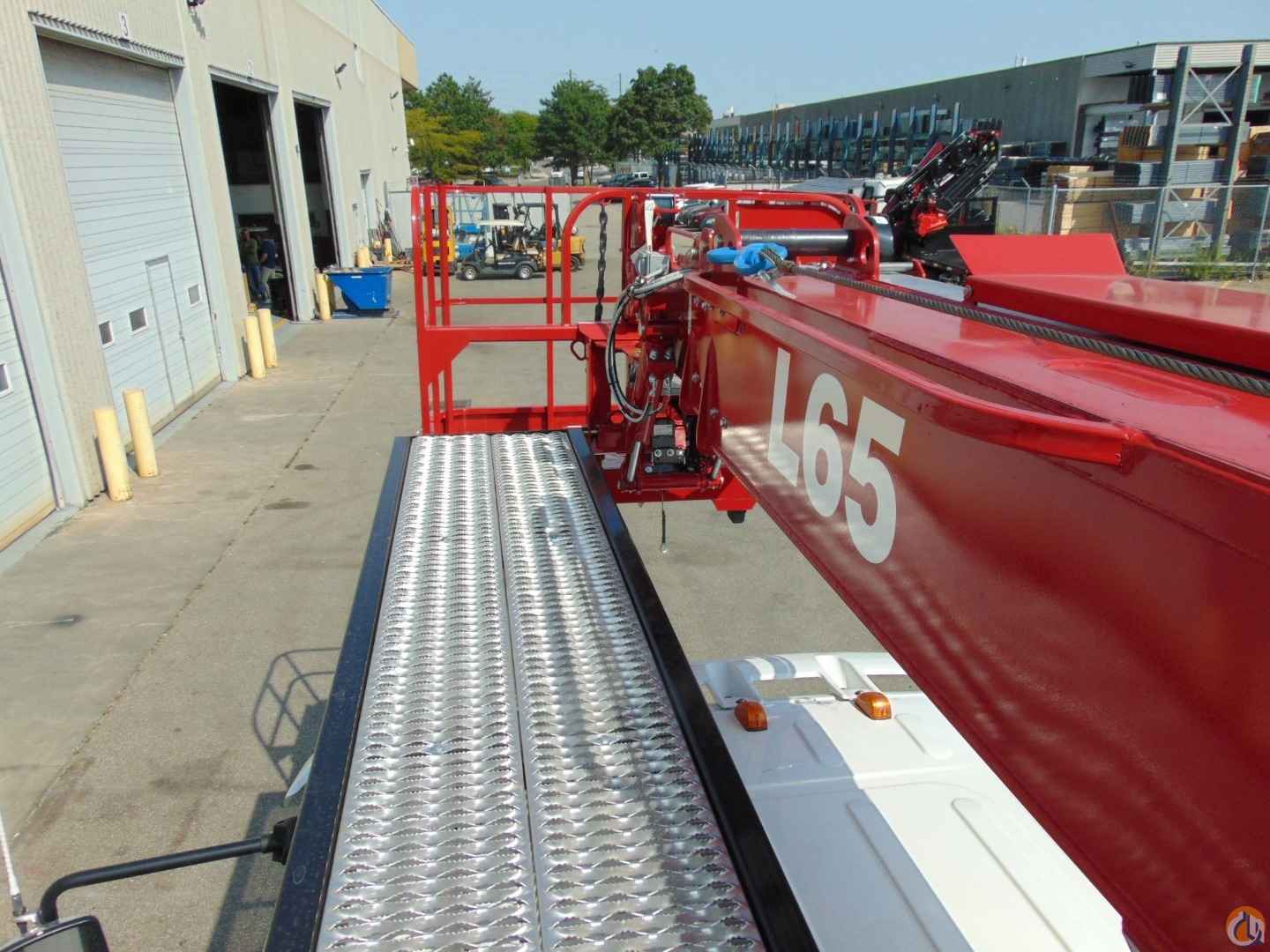

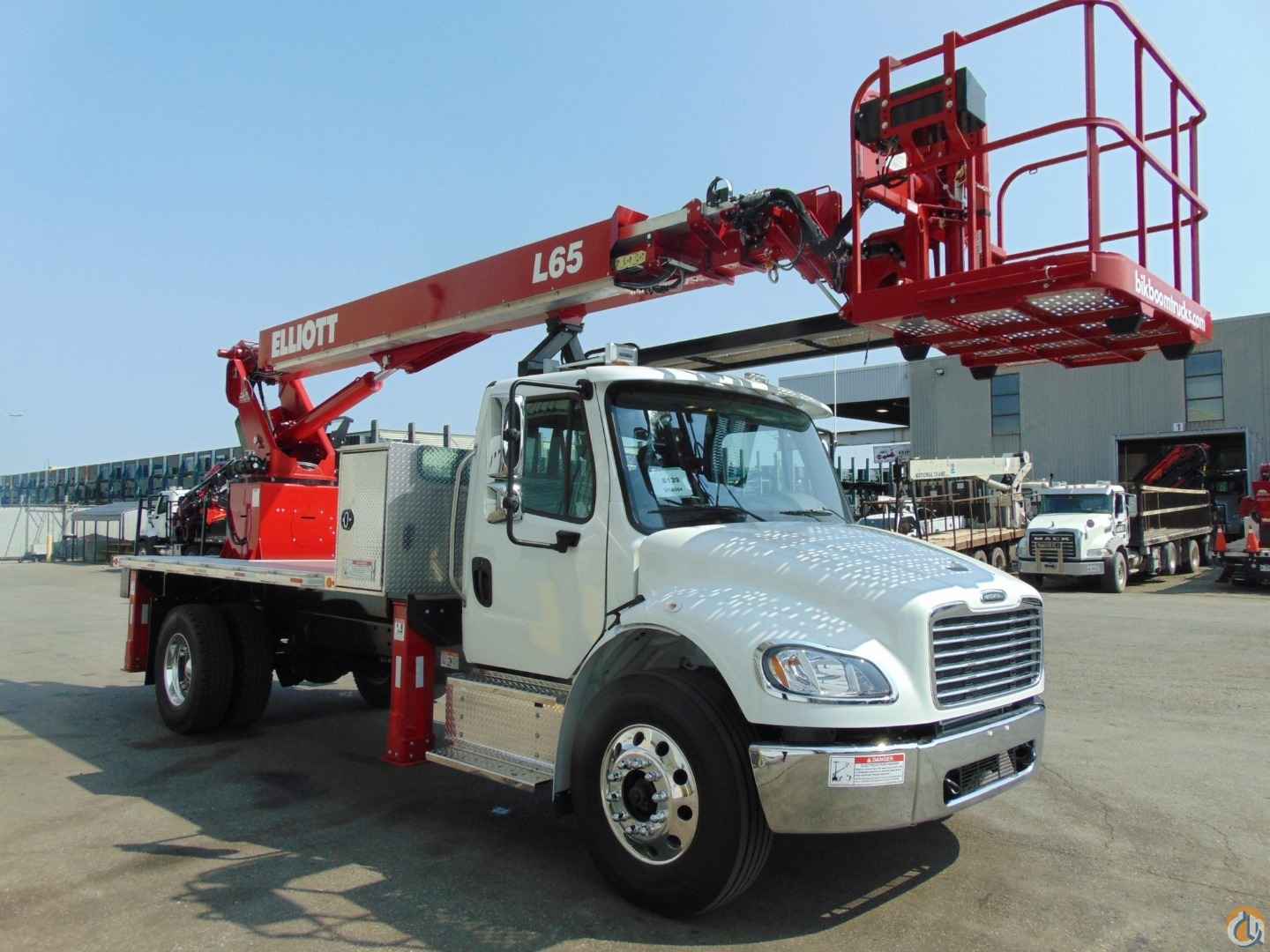

New – Elliott L65 R HiReach: Hydraulic reach to 65’ vertical working height and 59’ horizontal side reach
- Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
- New PTO (Chelsea), Hydraulic Pump
- Supply and Return Lines
- Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested. Painted Red at Factory.
Standard Features include:

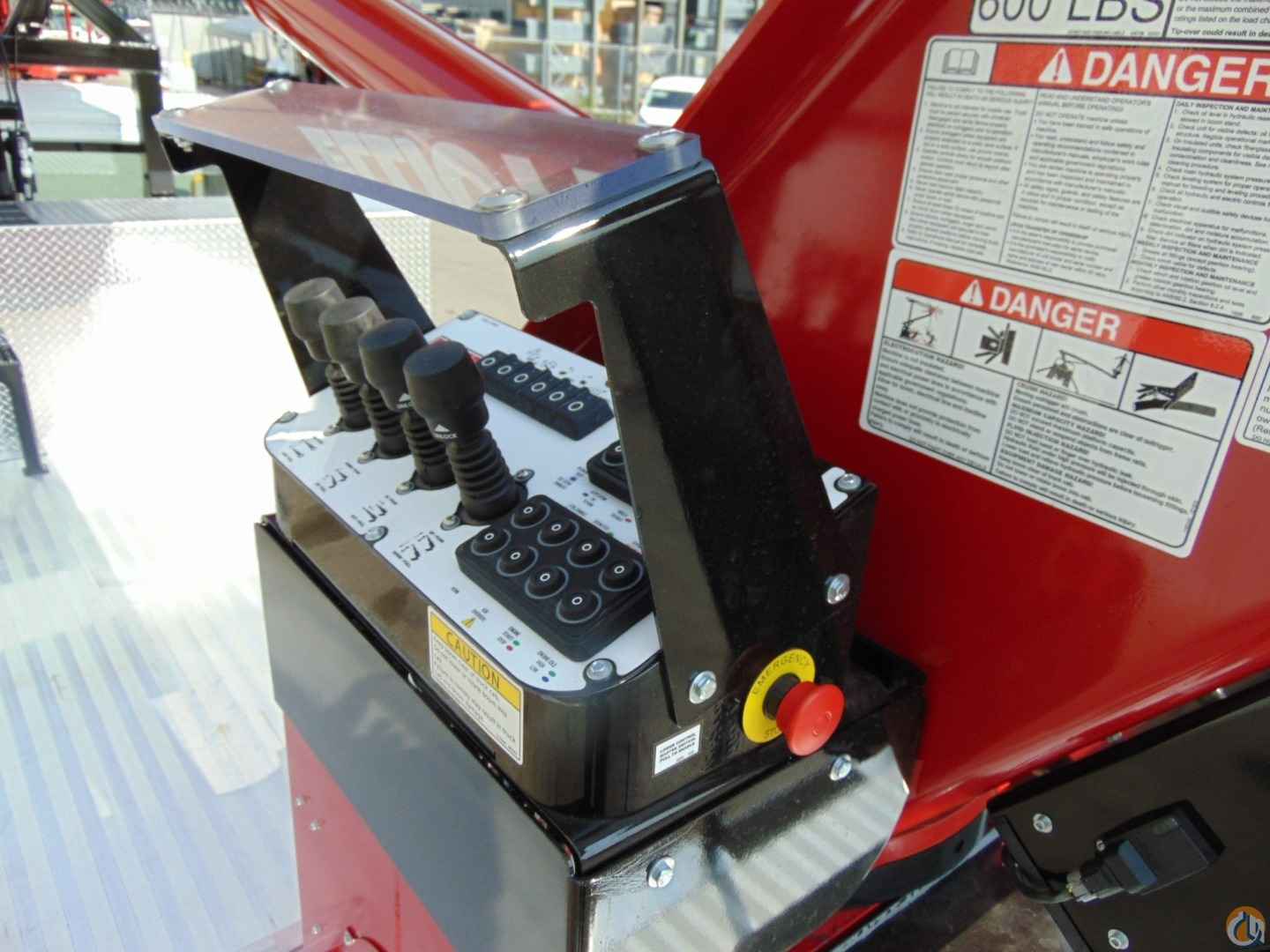

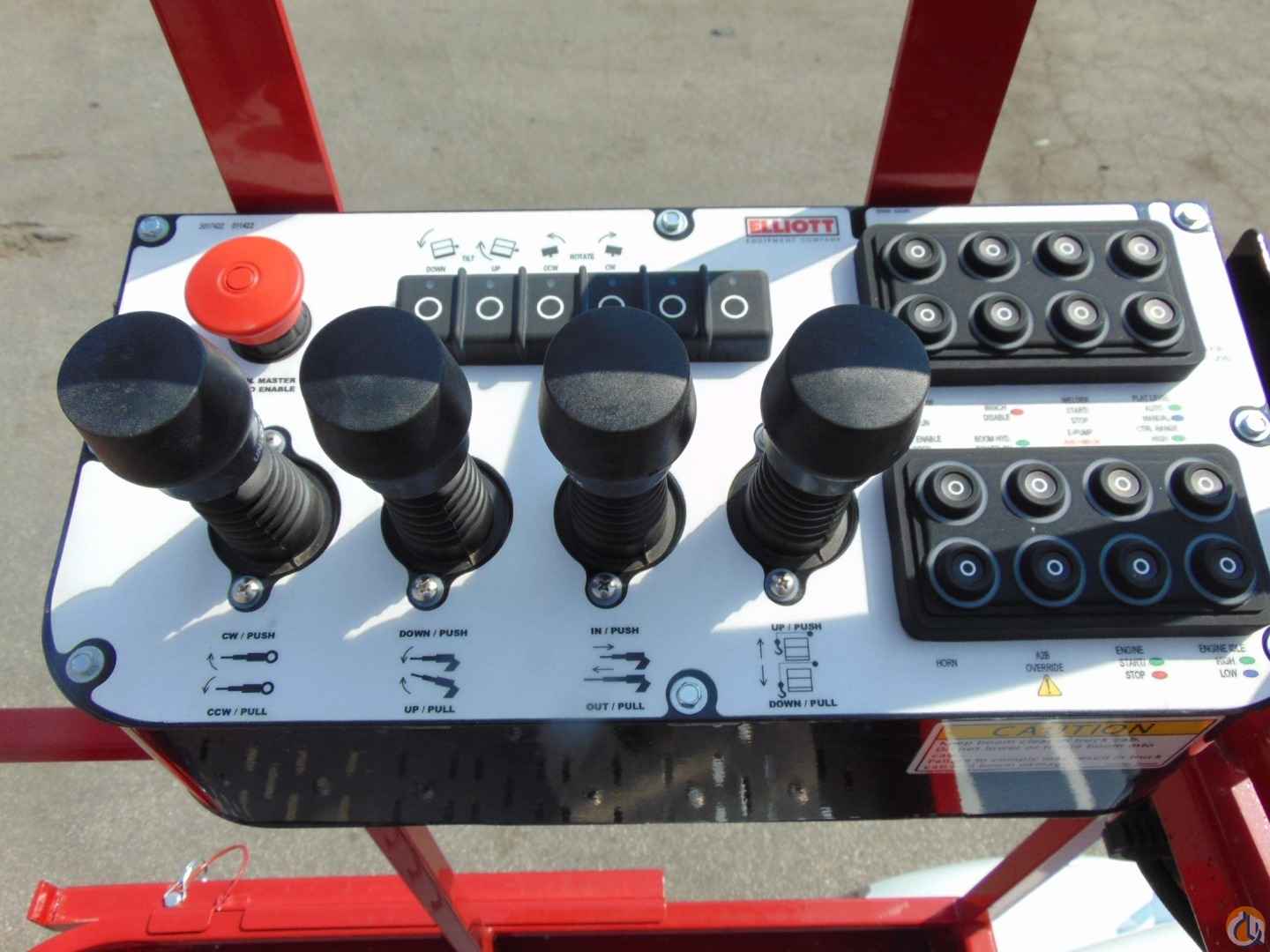

- Controls in basket and at turret

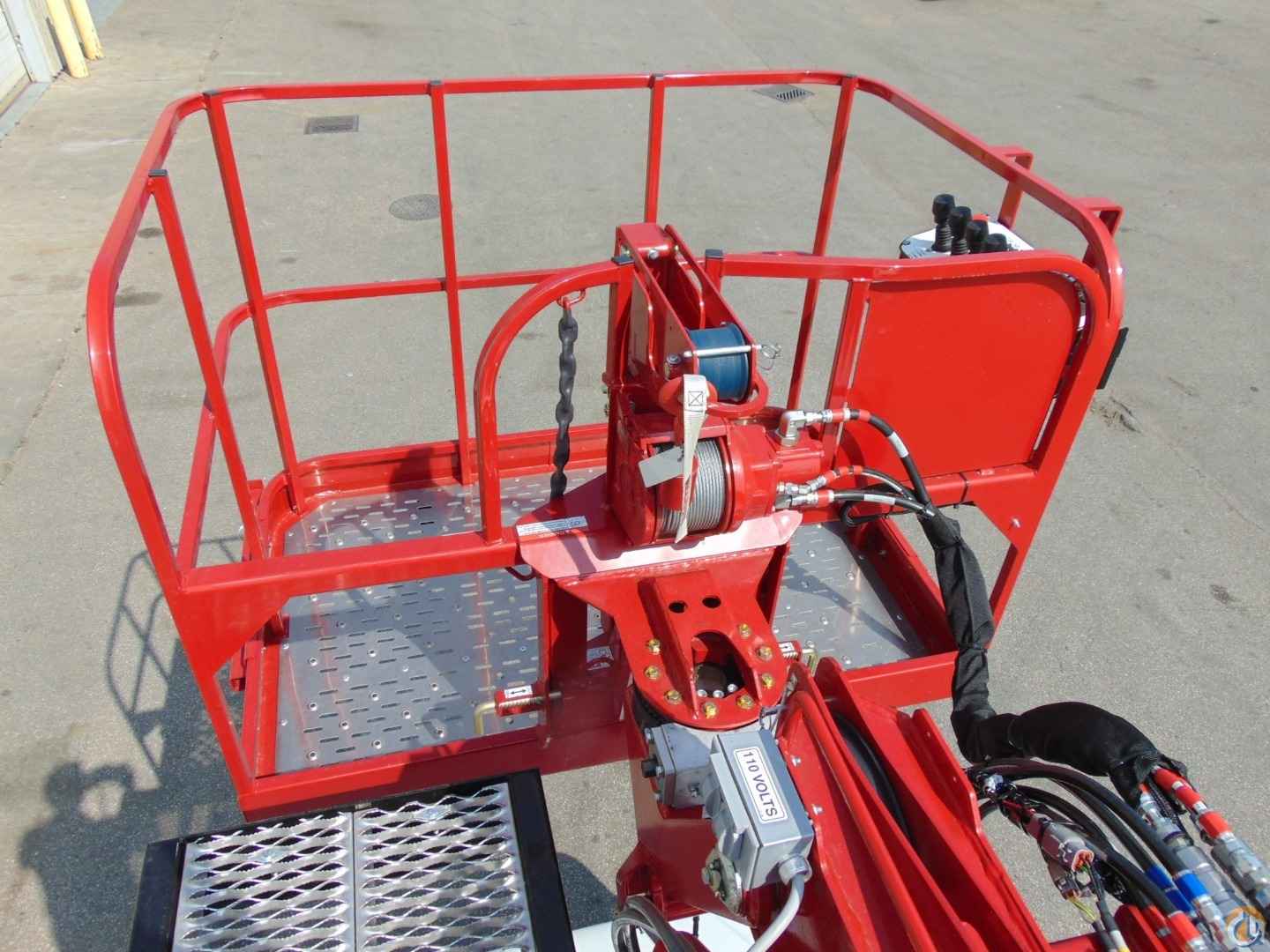

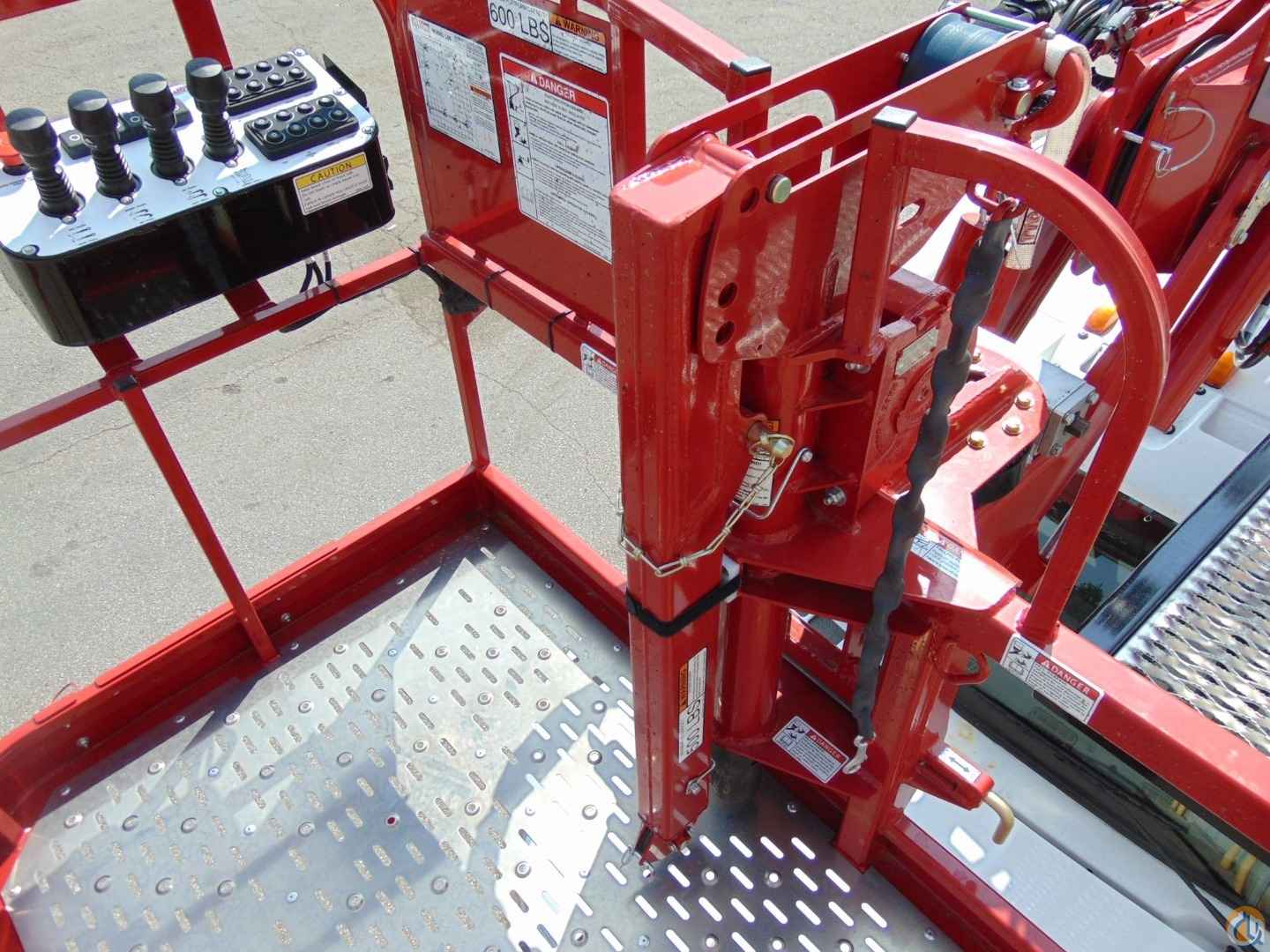

- Work platform is 40”x 60” with 40” high rails, with safety attachment loops.
- One double acting 6” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.

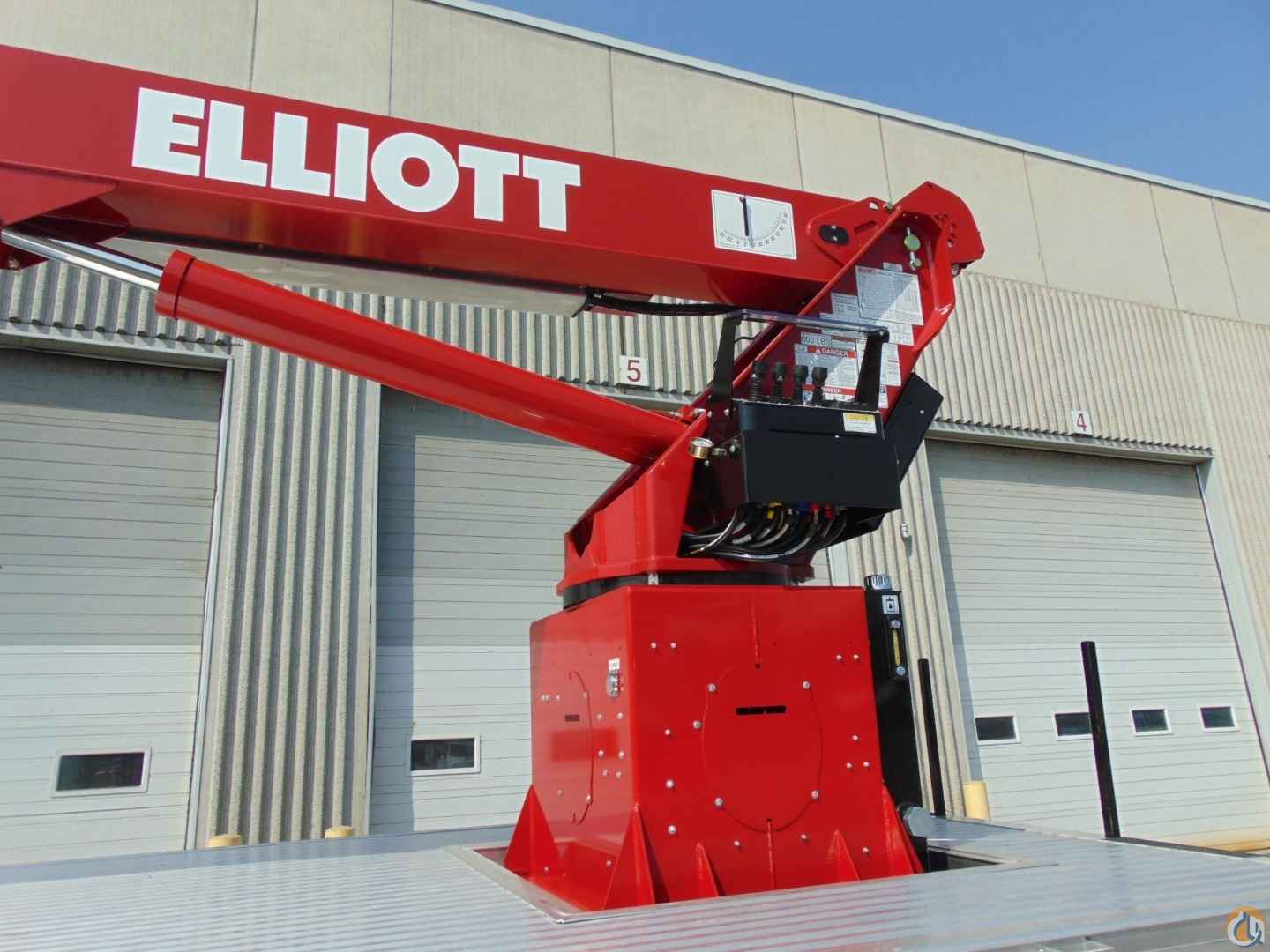

- Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.

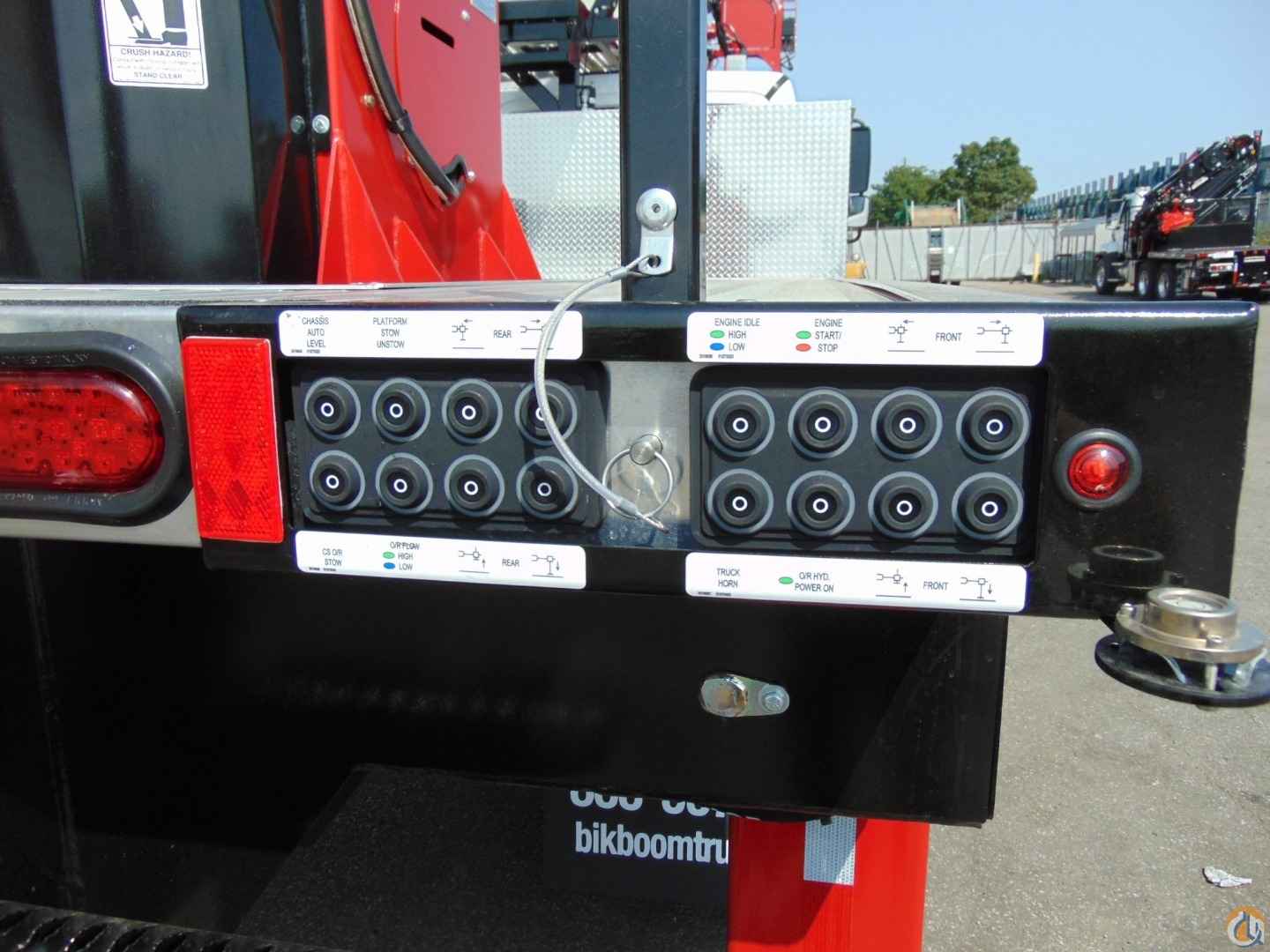

- Hydraulic OUT and DOWN driver side controls with a 18’ spread. Load Holding Valves on each cylinder for Safety and Security of Operator and Load.
Included Options Are:
- 5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
- Platform mounted stow & Go jib with hydraulic winch drum mounted on horizontal arm
- 110 V power supply to work platform, Sign forks on platform (2 pcs)

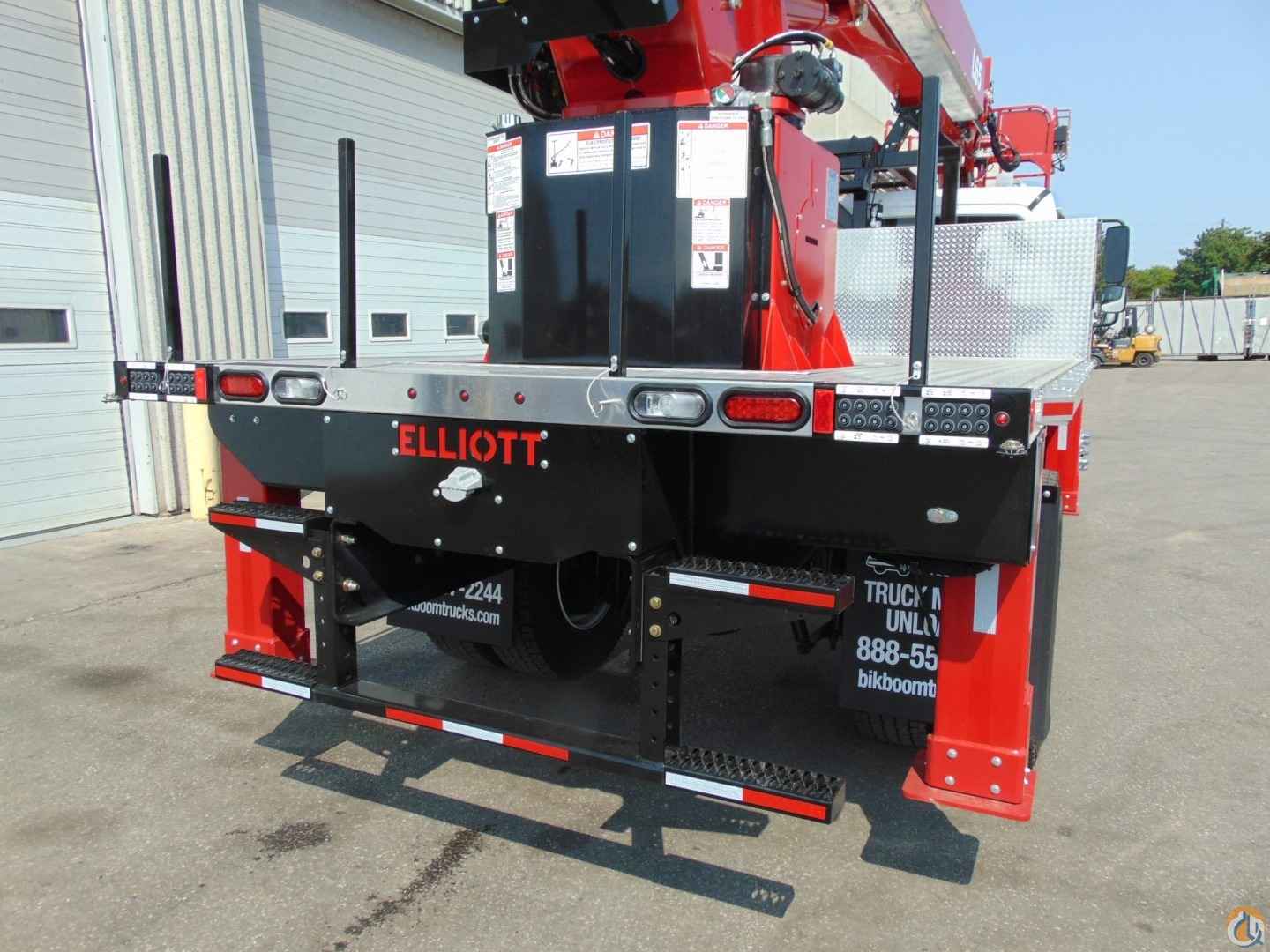

- 14’ x 96” Aluminum bed, Truck cab windshield guard, steel carrier cover
- 8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck
