Boom Details

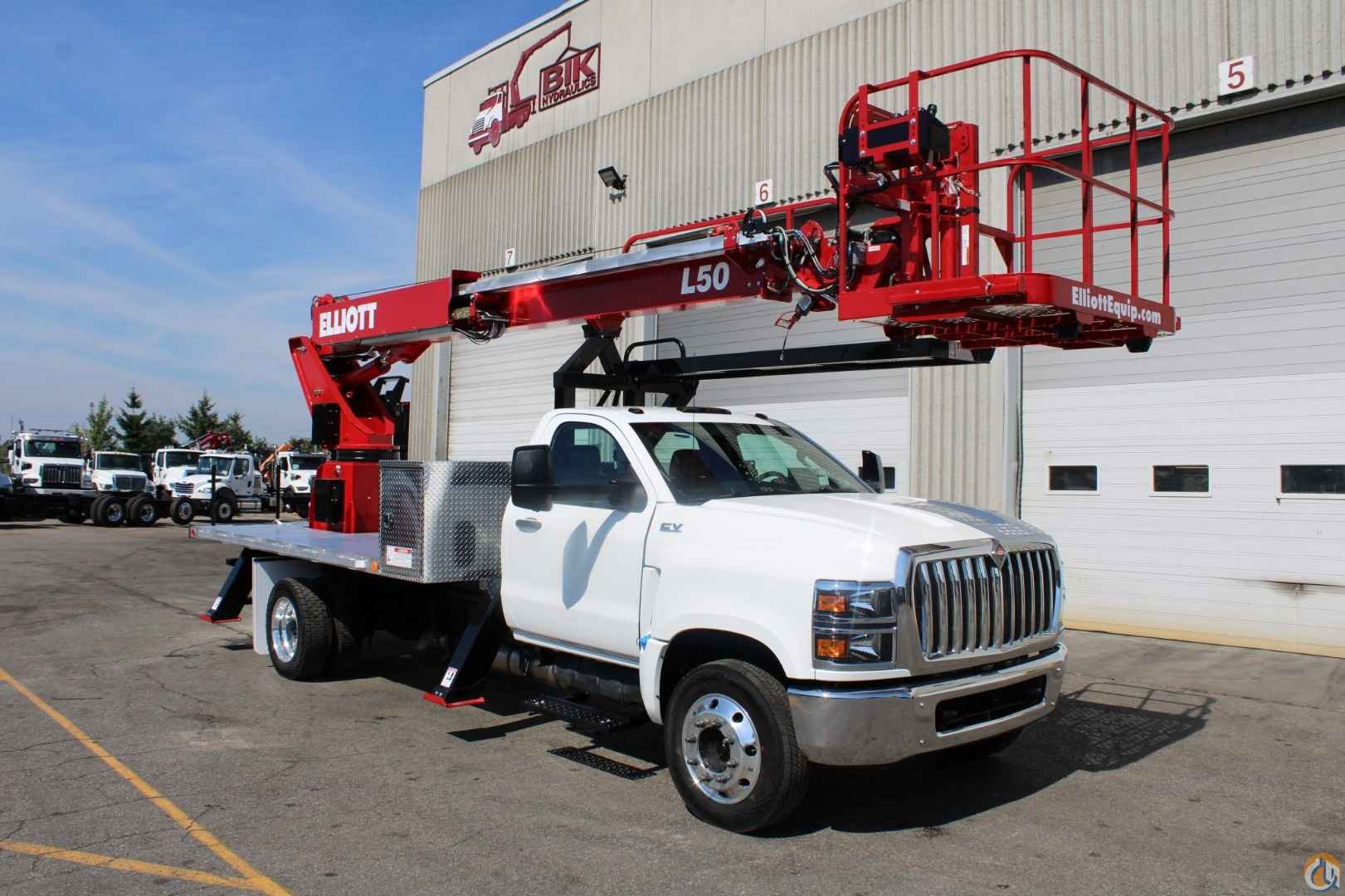

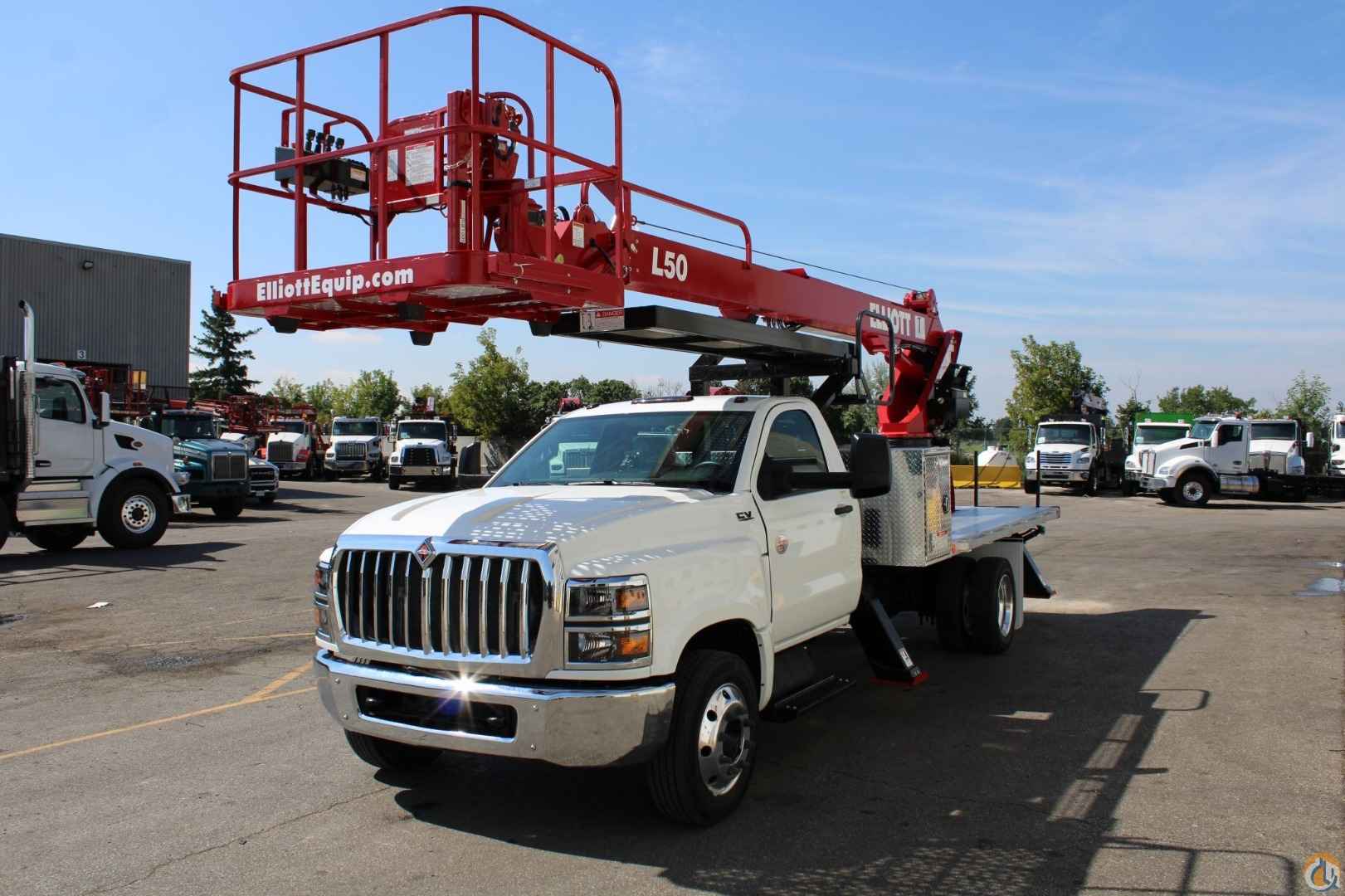

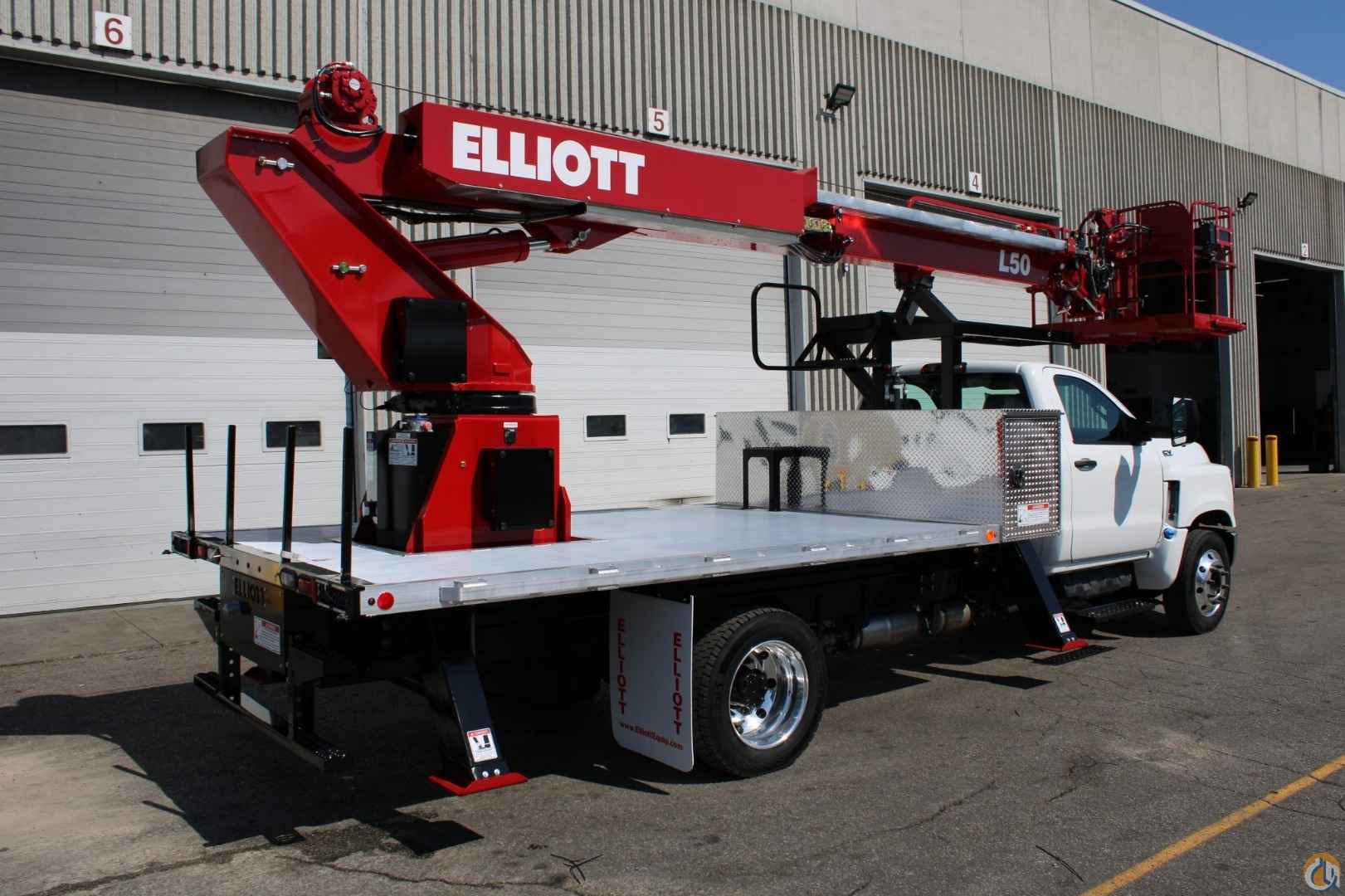

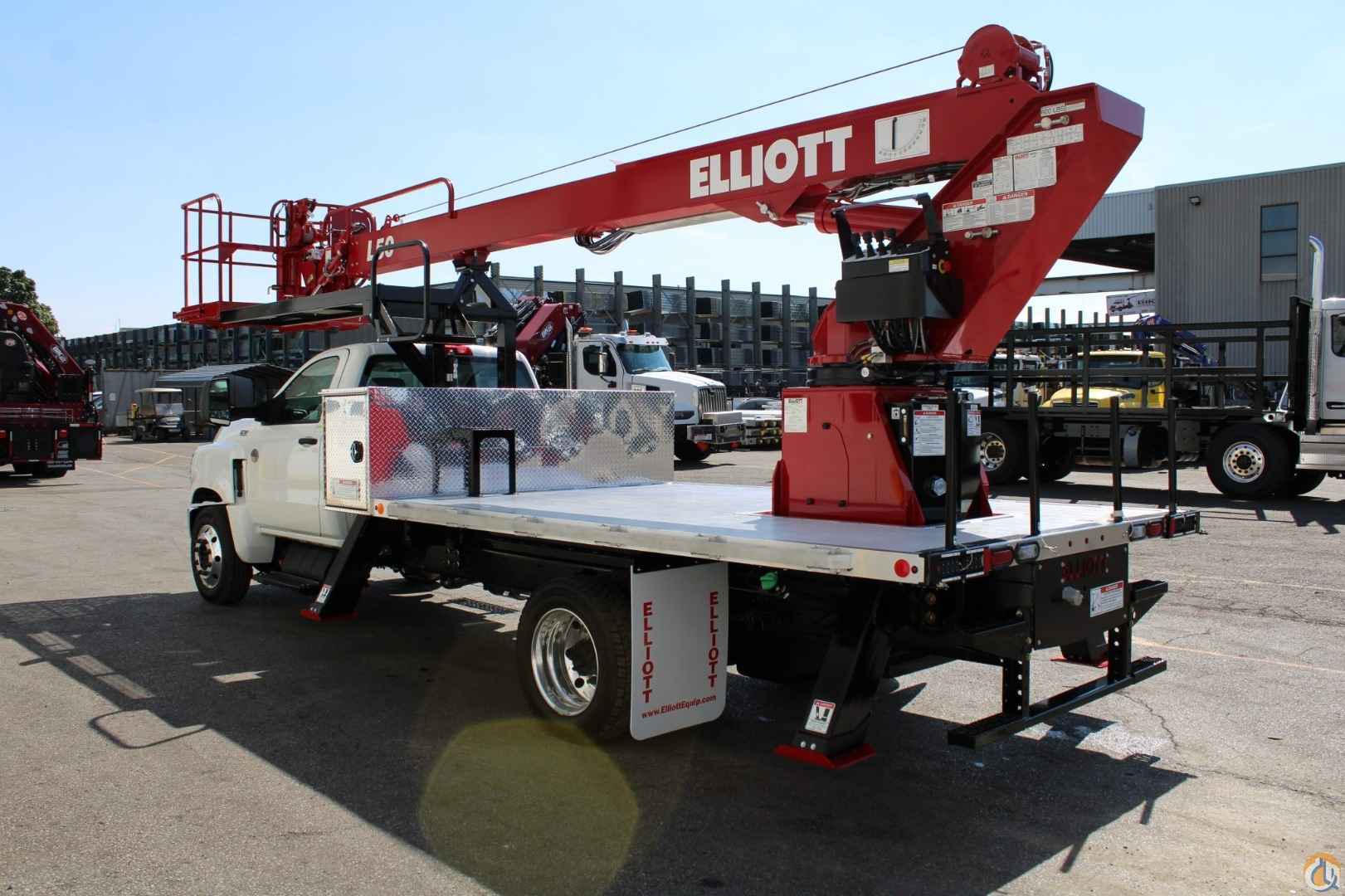

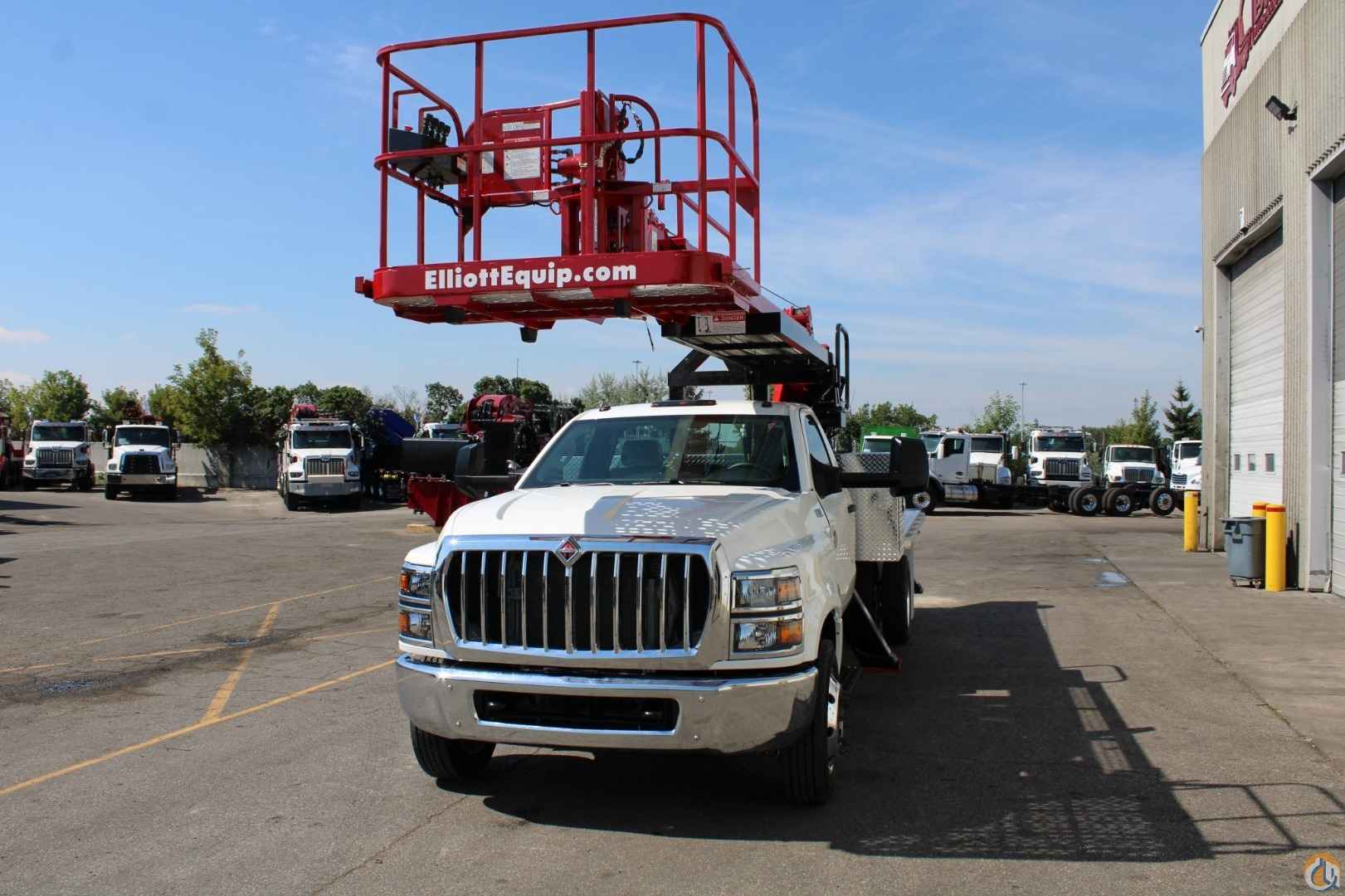

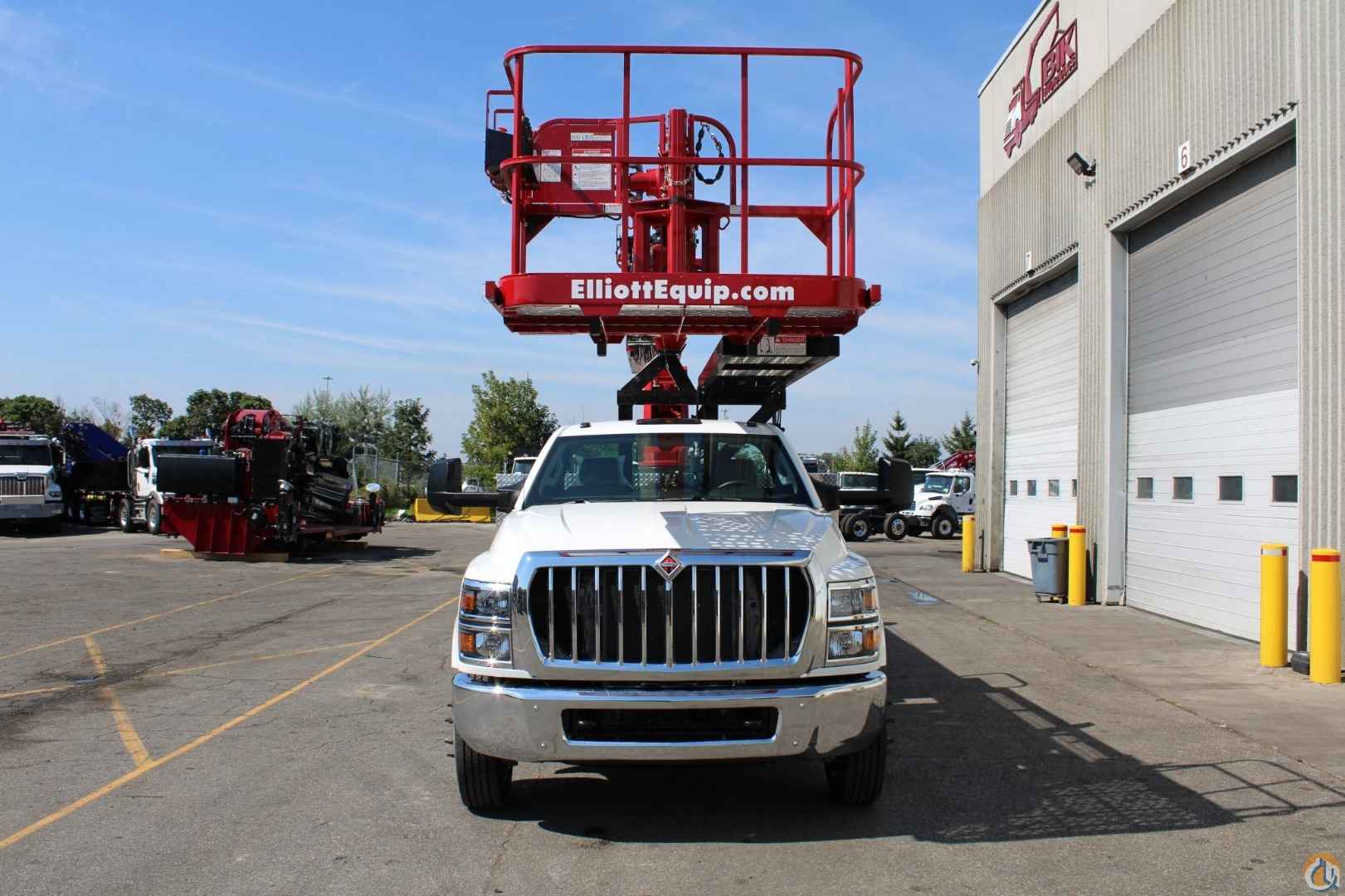

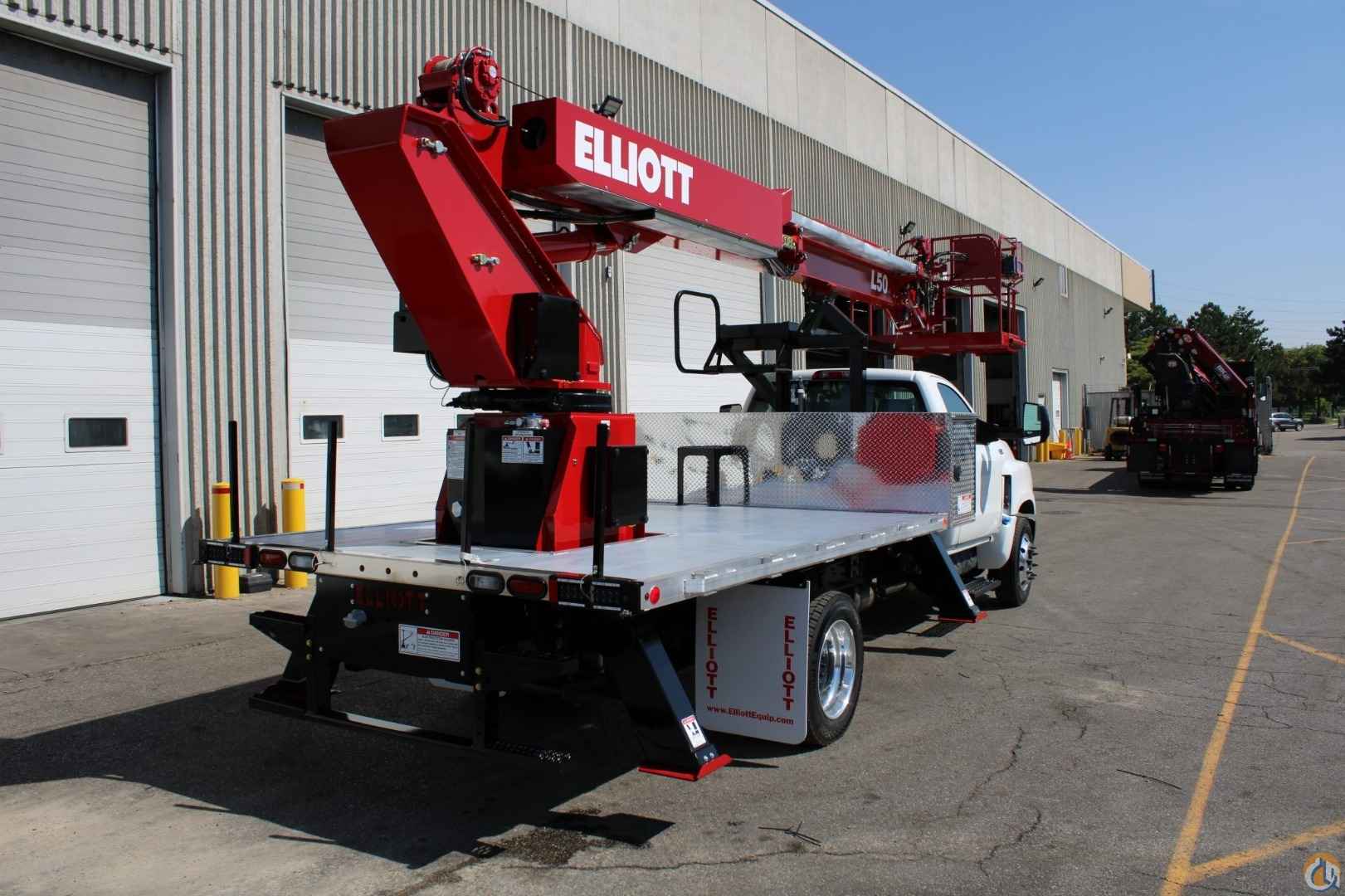

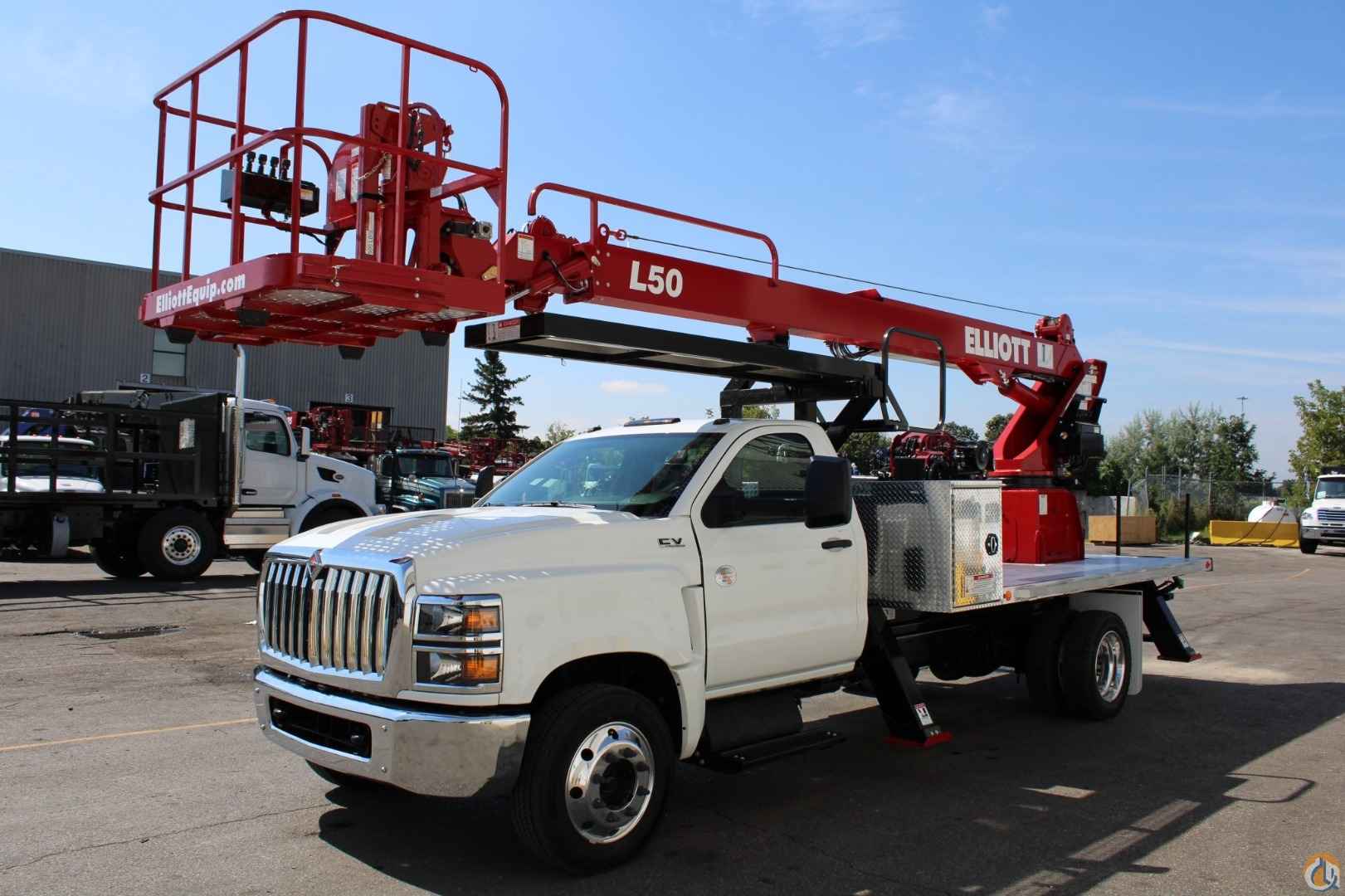

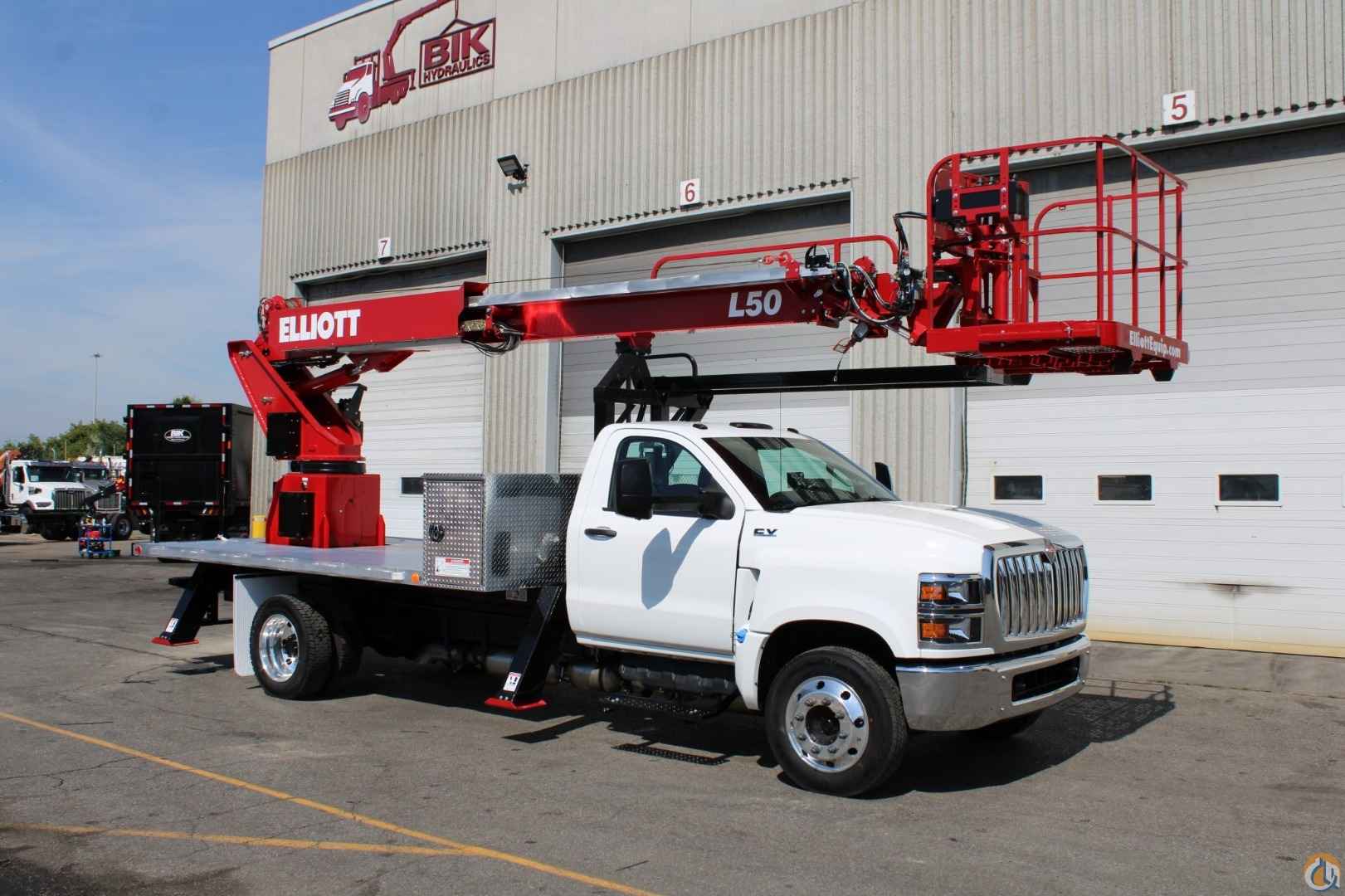

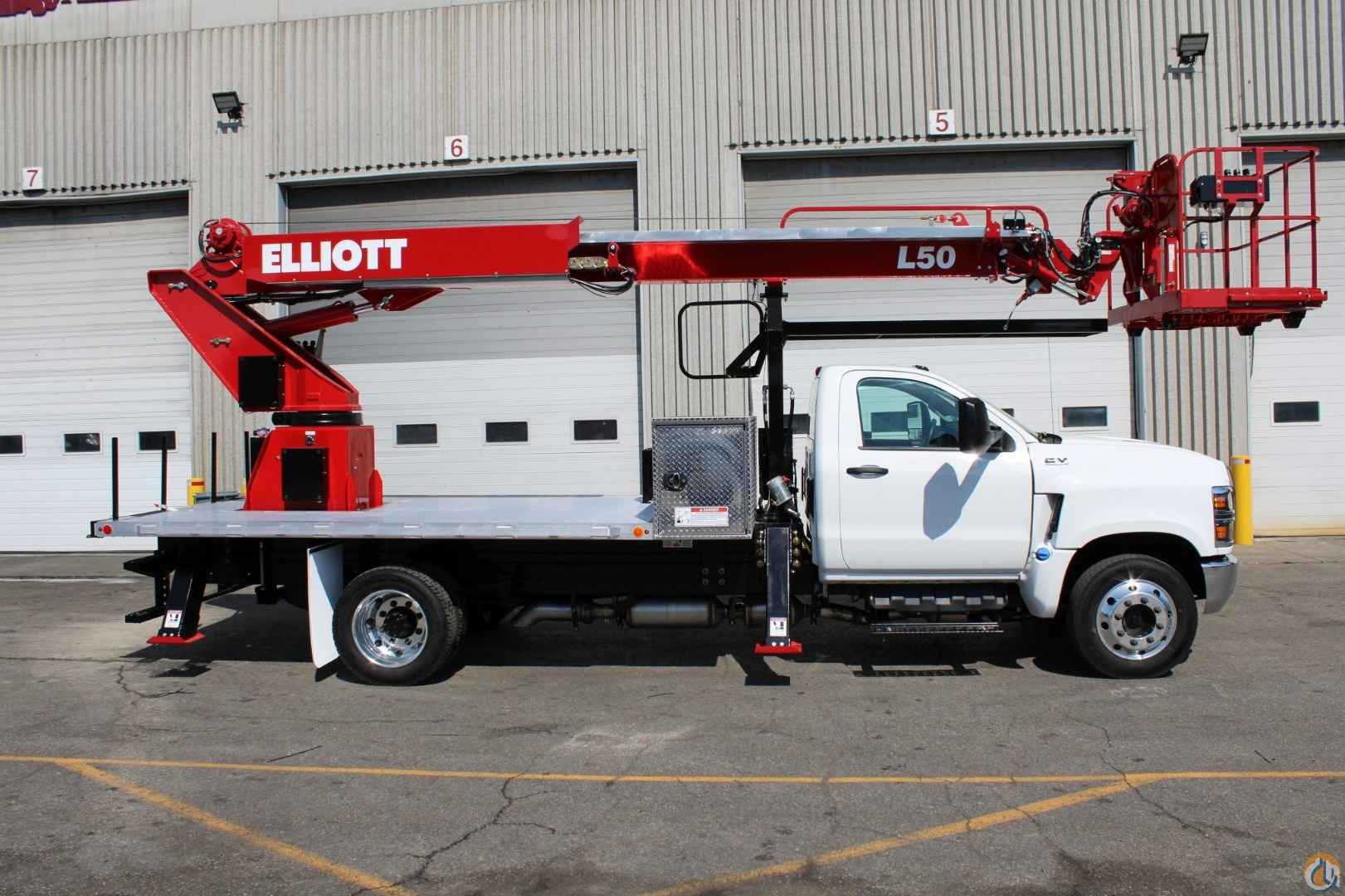

New – Elliott L50 HiReach
Hydraulic reach to 50’ working height and 40’ working side reach– Platform Capacity 500lbs
- Installed by Elliott factory technicians, prepped, primed, and painted. New Air Operated PTO (Chelsea), Hydraulic Pump, Supply and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested.
Standard Features include:

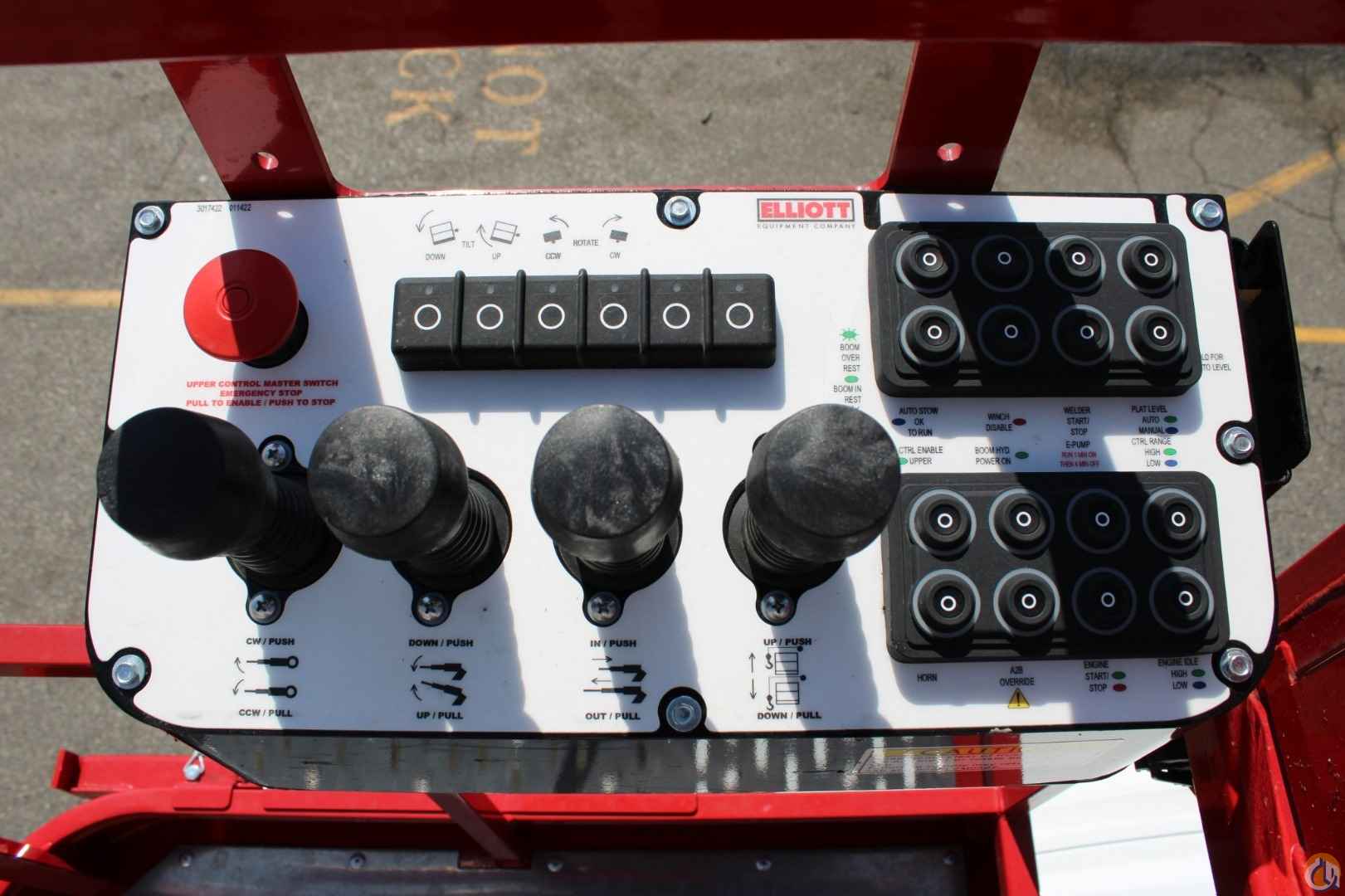

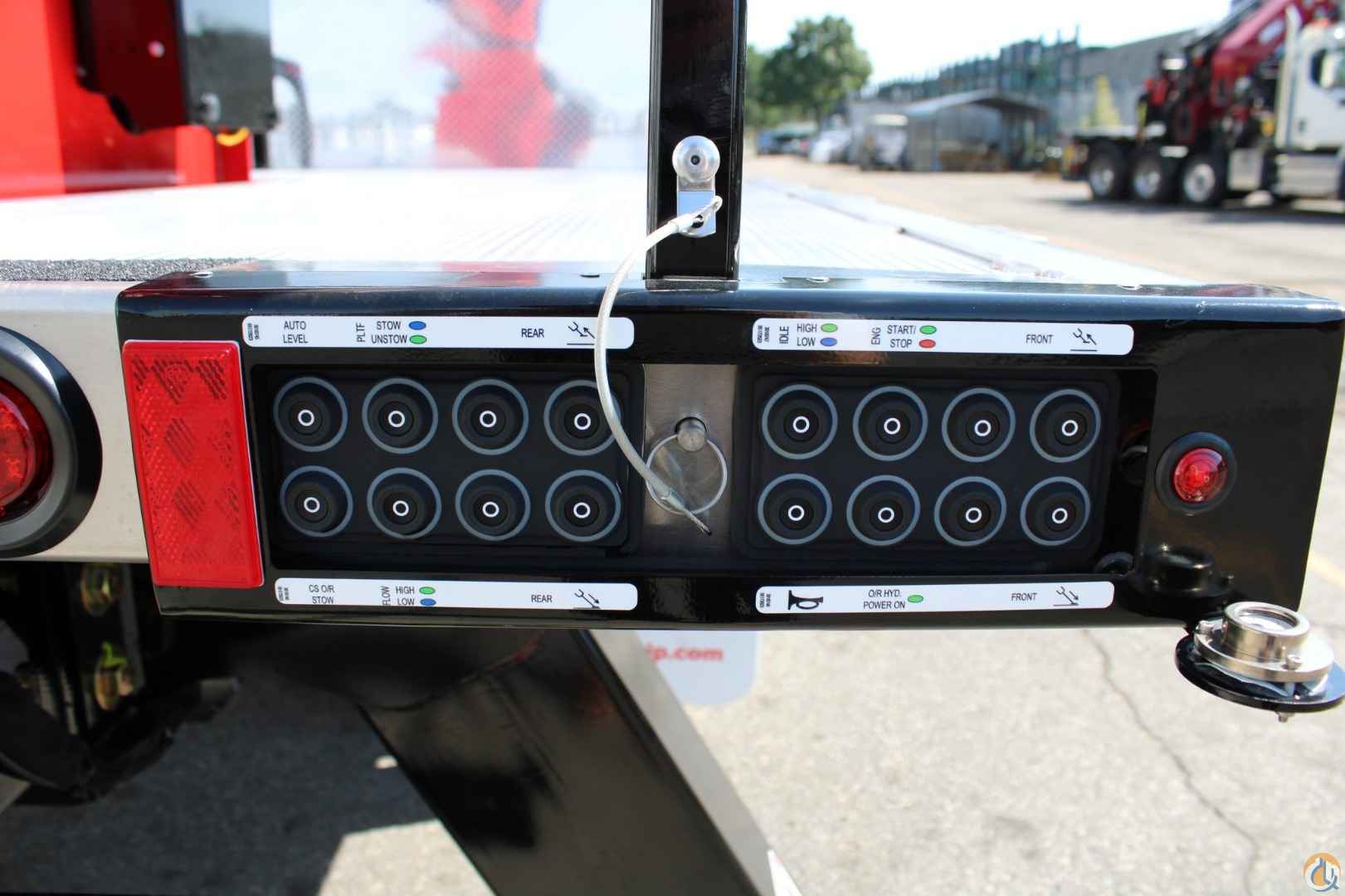

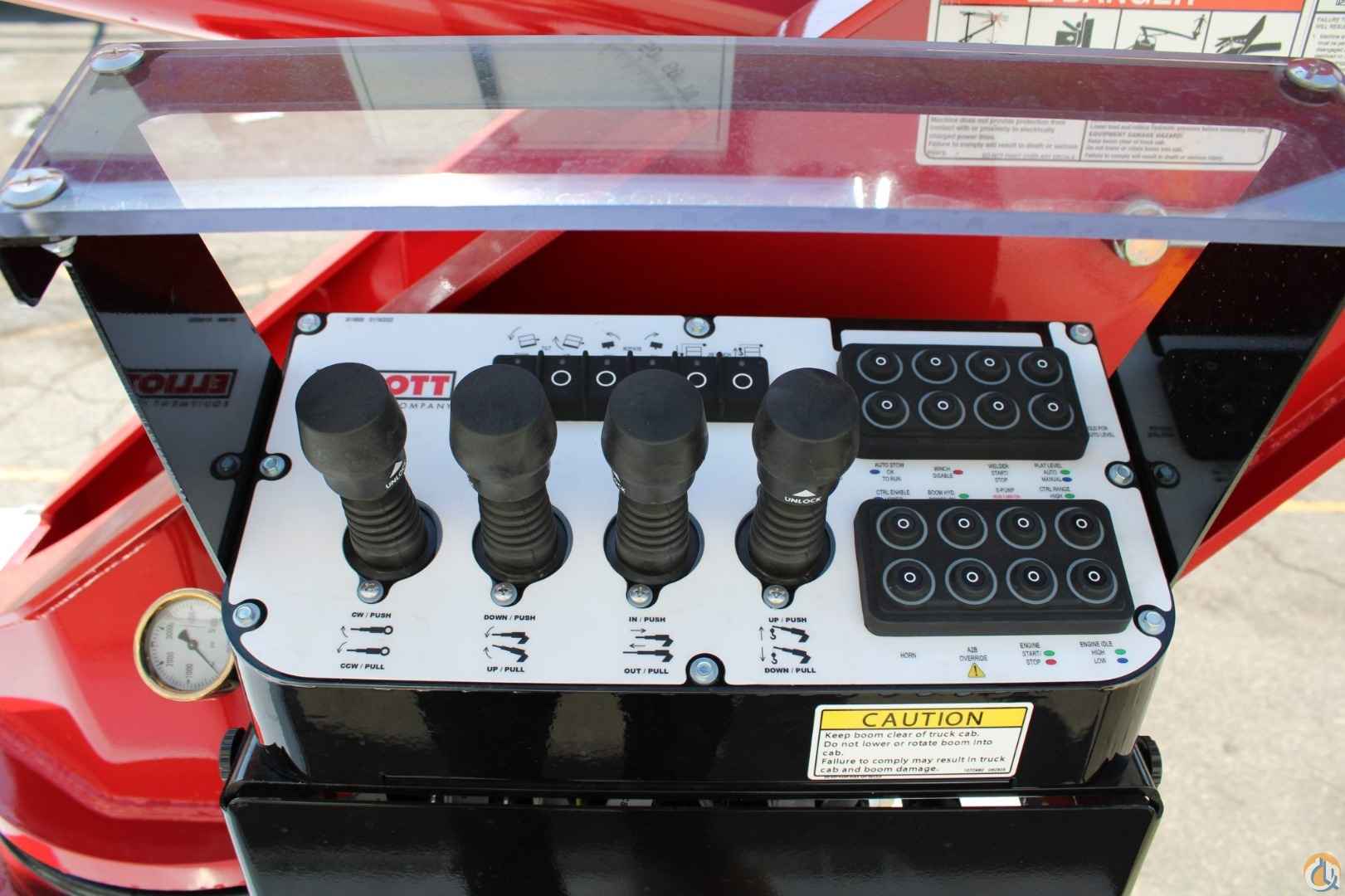

- Three individual proportional electronic controllers. Boom ground controls located on roadside of turret, remote controls for boom operations from platform operate from a removable control box (HI, Low and start stop toggles are also located in the platform).

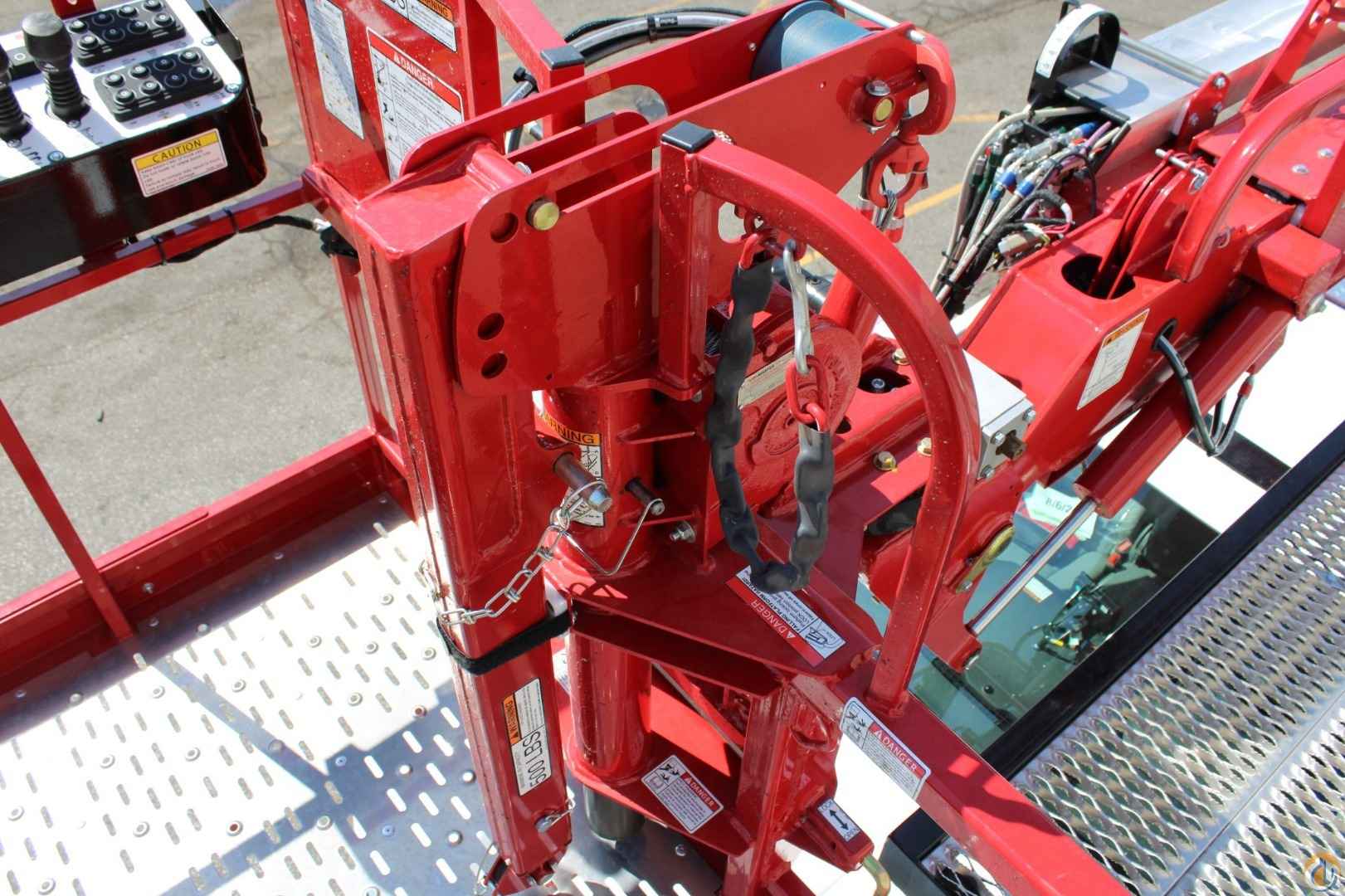

- Work platform is a EZR hydraulically self-levelling and rotating, 30” x 54” with 40” high rails work platform, with safety attachment loops.
- Remote start & stop at upper and lower controls.

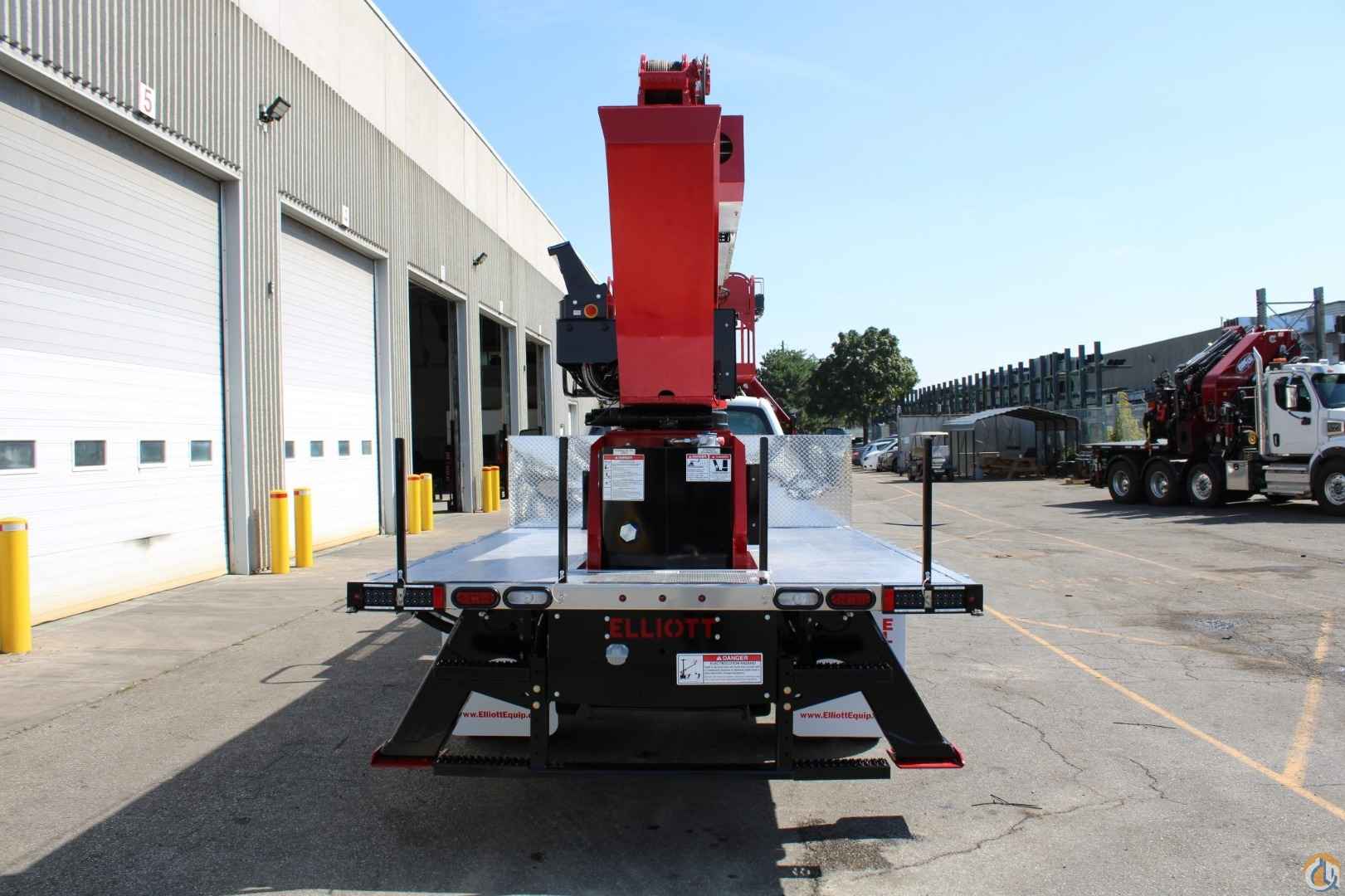

- Front outriggers straight down rear A-Frame type hydraulic stabilizers at rear
- Hydraulic powered continuous rotation with no stops with ball bearing slewing bearing and self-locking gear box.
- Load Holding Valves on each cylinder for Safety and Security of Operator and Load.
Included Options Are:

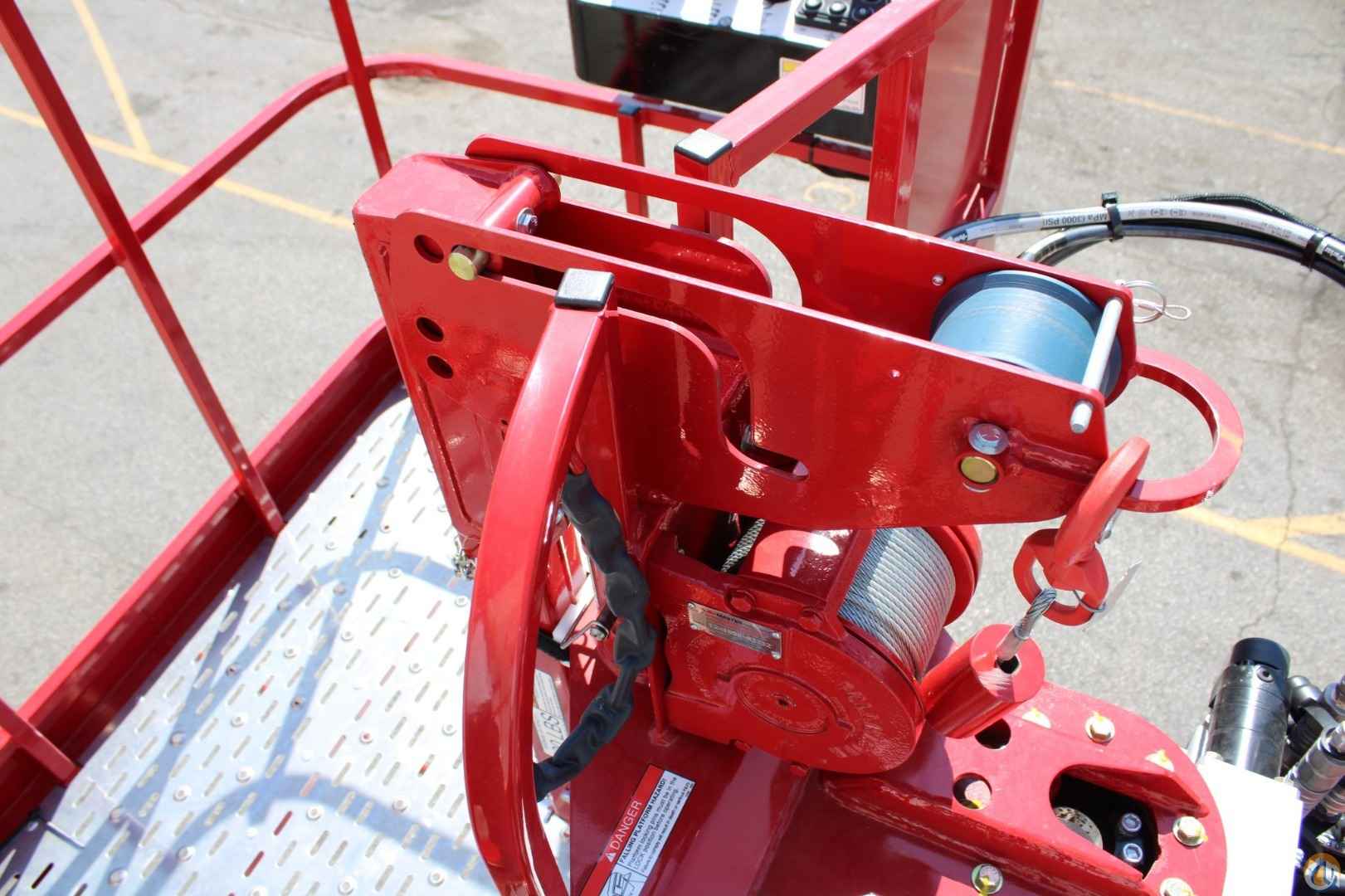

- 500lb cap jib winch in basket – Deck mounted cross box 9’ wide at front

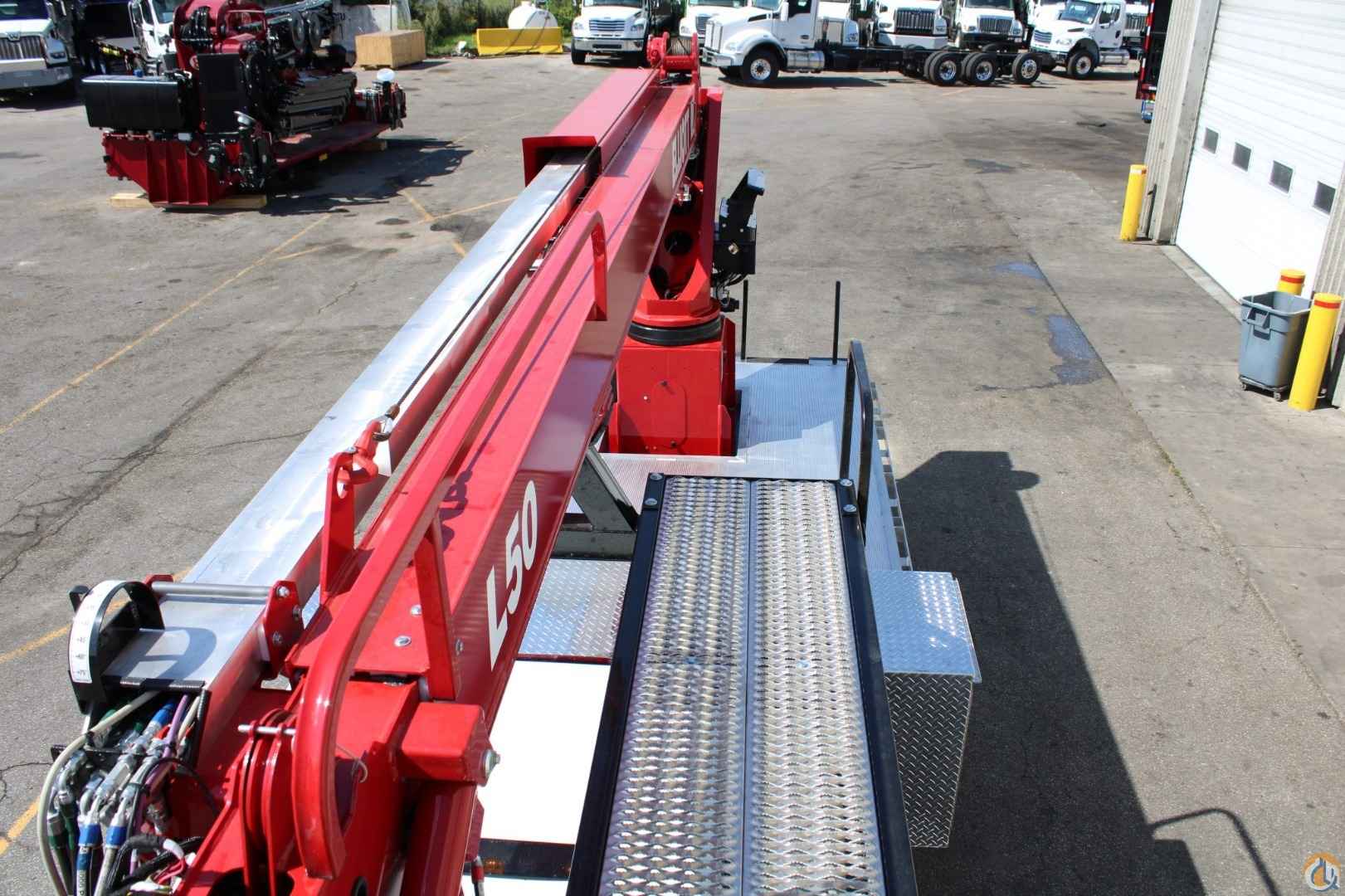

- 13’ low profile deck Aluminium deck – 2,000lb main boom winch
- New Auto stow – New Self Leveling Stabilizing System
