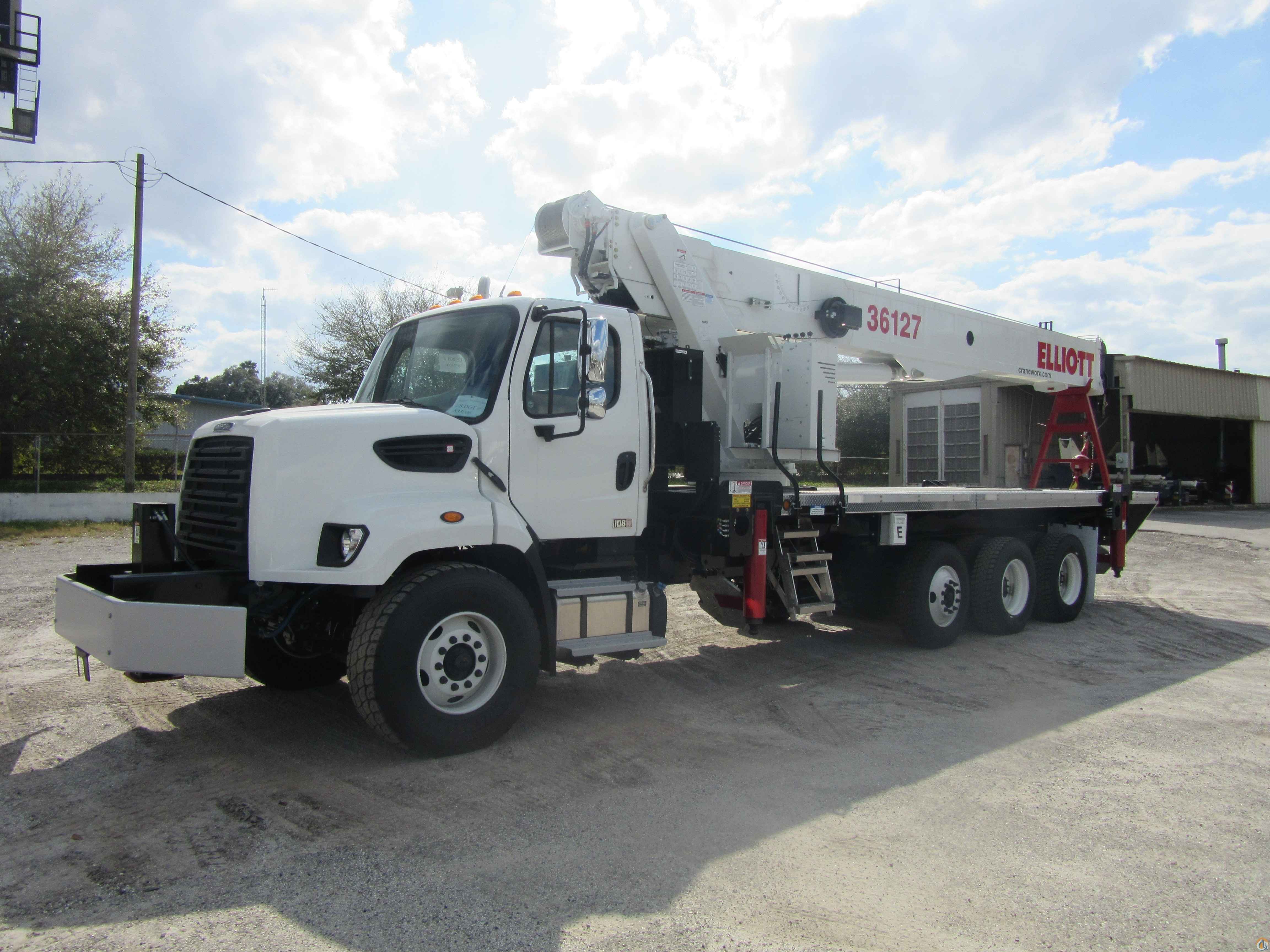

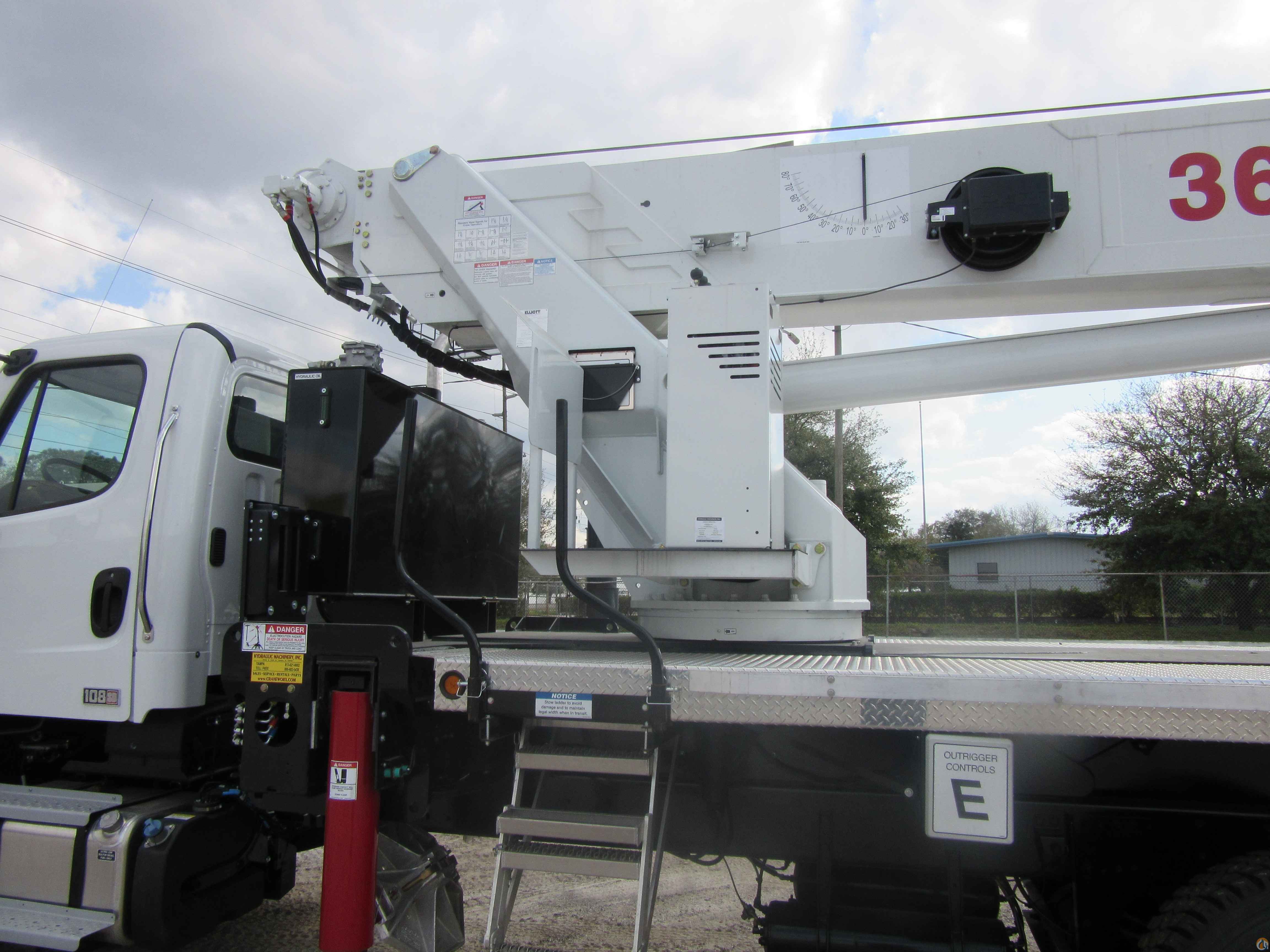

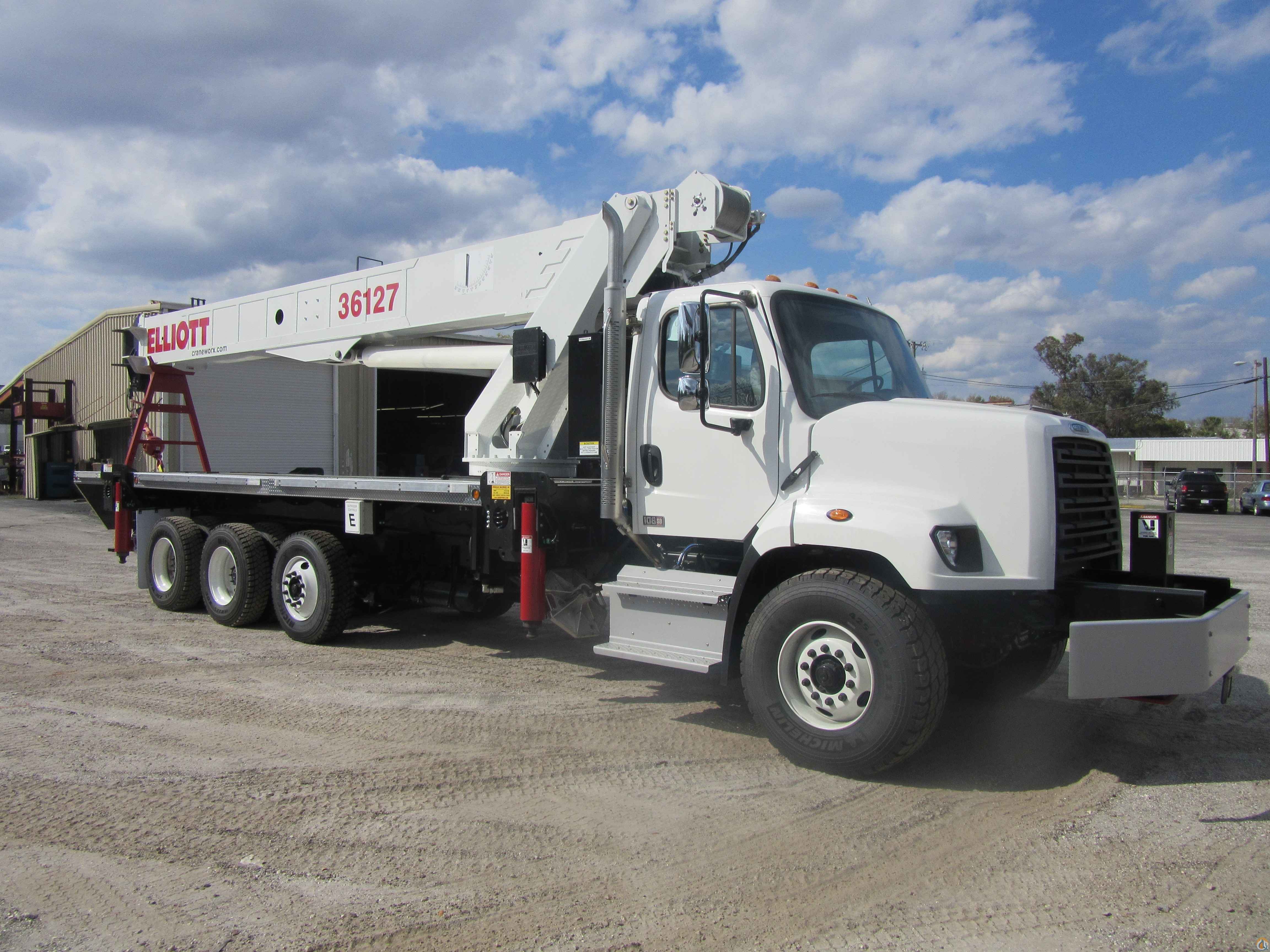

2014 Elliott 36127F Mounted on 2015 Freightliner SD108

Truck has a pusher axle only for additional payload of up to 5500lbs.

Truck is federal Bridge law compliant without that axle down.

Stand up operator station.

Truck weight 53,500lbs. 17,920 lbs in the front & 35,580 lbs in the rear.

36 Ton @ 5’ Stand Up Ride Around
127’ 5 Section Proportional Boom

350 HP Cummins ISC Diesel
See Load Chart for Full Capacity Range Fuller RTO-11908LL Transmission
360 Degree Work Area/360 Degree Rotation Ceramic Twin Plate Clutch
2 Speed Planetary Winch w/9,060lbs

Bare Vertical Exhaust Stack w/ Heat Shield
Drum Pull & 425’ of 9/16” Cable 20,000# Front Axle
Intergral Bed/ Subframe with Boom Rest 58,000# Rear Axles w/ Pusher
Out/Down 21’ 2” Front & Rear Outriggers Steel Rims
Aluminum Pads Bendix ABS Air Brakes
Load Moment Indicator HD Double C 30.0 Frame w/ Operator Display Monitor @ Seat 1-50 Gallon Aluminum Fuel Tank
RCI Outrigger & Anti 2 Block Alarms 425/65R22.5 Front Tires

Swing Seat Controls w/ Start & Stop 11R22.5-14 Rear Tires
120 Gallon Reservoir w/10 Micron Filter A/C & Heater

Gauge package, Cab visor, Air Shift Operated Power Take Off

AM/FM Stereo

Air drivers seat, Fixed passenger

Motivated Seller

For More Information, Contact Paul Prillaman at (757) 871-7520
