2007 ELLIOTT 32105R Boom Truck Crane (Sold)

2007 ELLIOTT 32105R

31’ – 105’ ft. high strength 4-Section Boom – proportionally extended

2-Stage side stow jib to 44’

372 degree non-continuous rotation

180 degree area of operation, boom length and angle indicators

Front mount sub-frame & 22 ft. – 3-piece steel bed integral with sub-frame

2-Sets Hydraulic Out & Down Outriggers – 20 ft. span each c/w removable ball socket aluminum pads

Independent individual outrigger controls – Mid and Full Span Outrigger load charts to be provide

Stand-up Operator Console & Platform – rotates with turret: includes: engine start/stop, lifting capacity charts, load range charts, bubble level gauge, signal horn, variable speed foot throttle, and system pressure gauge

120 Gallon hydraulic fluid reservoir with sight and temperature gauge

9/16” diameter rotation resistant wire rope – 425 ft. w/ 4-sheave boom head, down-haul ball w/ swivel hook

12,700 lb planetary burst of speed bare drum pull winch w/ 9,060 lb single line pull

Anti-two block device and Load Moment Indicator w/ hydraulic overload lockout

2-Speed Hoist, flared outrigger and stabilizer pads, gear pump & air shift PTO

36”aluminum checker plate storage box installed

15-Ton Sheave hook block for 2 & 3 part line

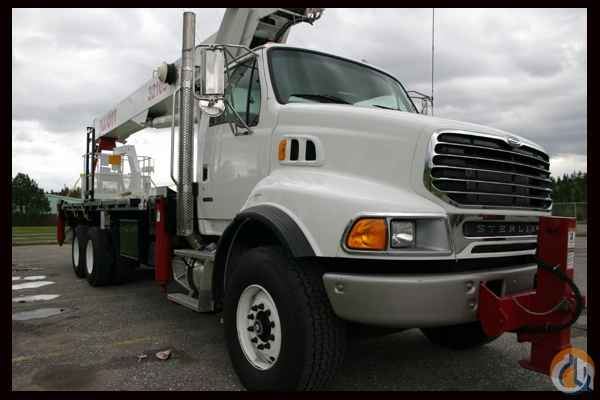

Mounted behind the cab of 2007 Sterling LT9513

Engine: Mercedes 450HP Fuller 8LL - 10 Speed Manual Transmission

20,000 lb Front Axle, 46,000 lb Rear Axle

Tuftrac Suspension, 4 Wheel Lock-ups

268" Wheelbase

Dual 60 gallon fuel tanks

Trailer air-brake package w/ 40-ton air pintle hook, d-rings on 1" plate

Aluminum front grill and chrome bumper

Front and rear aluminum rims

A/C

Custom Fully enclosed cab around operating station with heat by Cabin Nadeau
