2015 Elliott 1870F

BASIC UNIT (OO5999):

Mileage: 6669 as of 1/10/2017

PTO Hours: 352 as of 1/10/2017

Engine Hours: 638 as of 1/10/2017

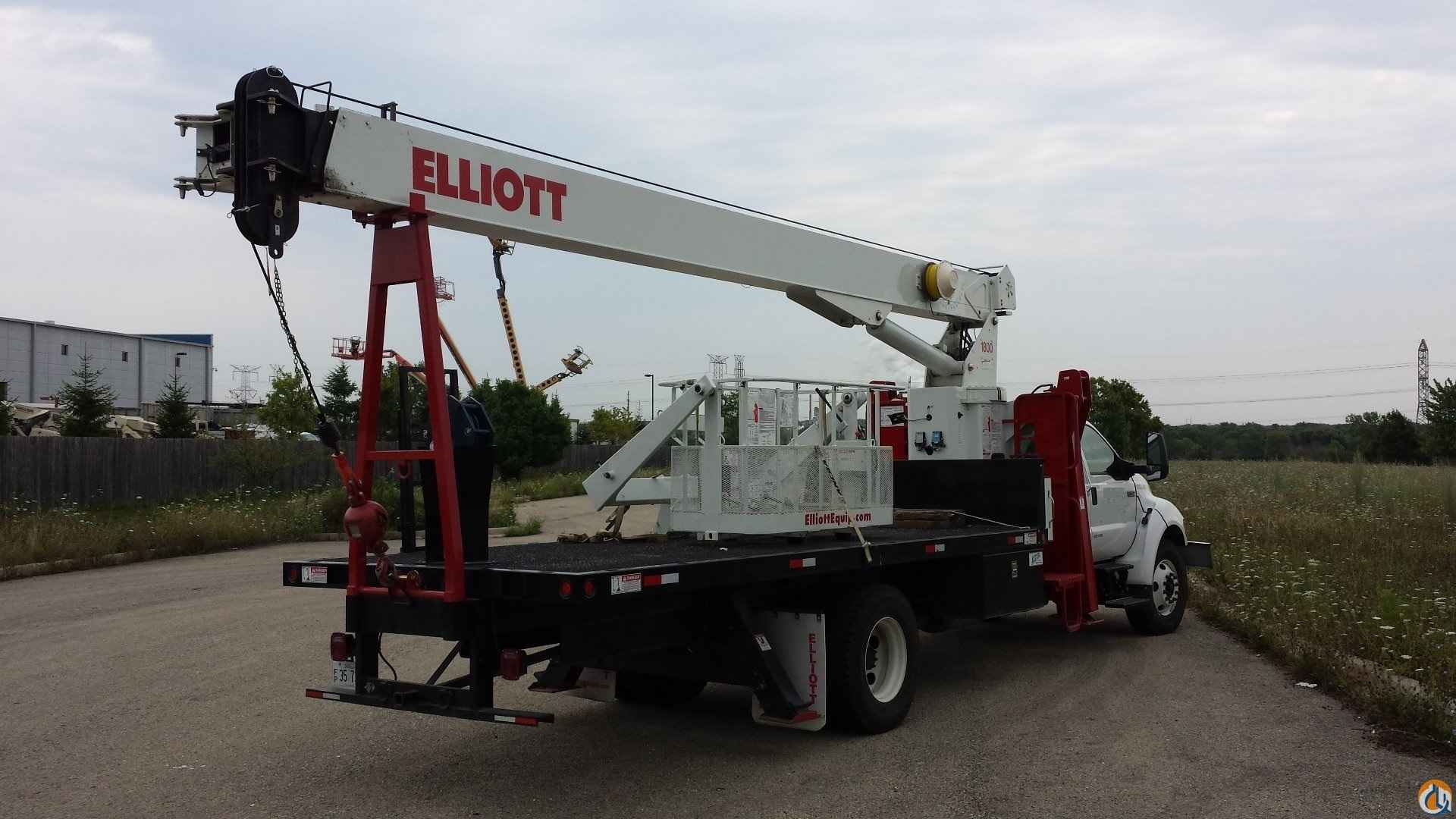

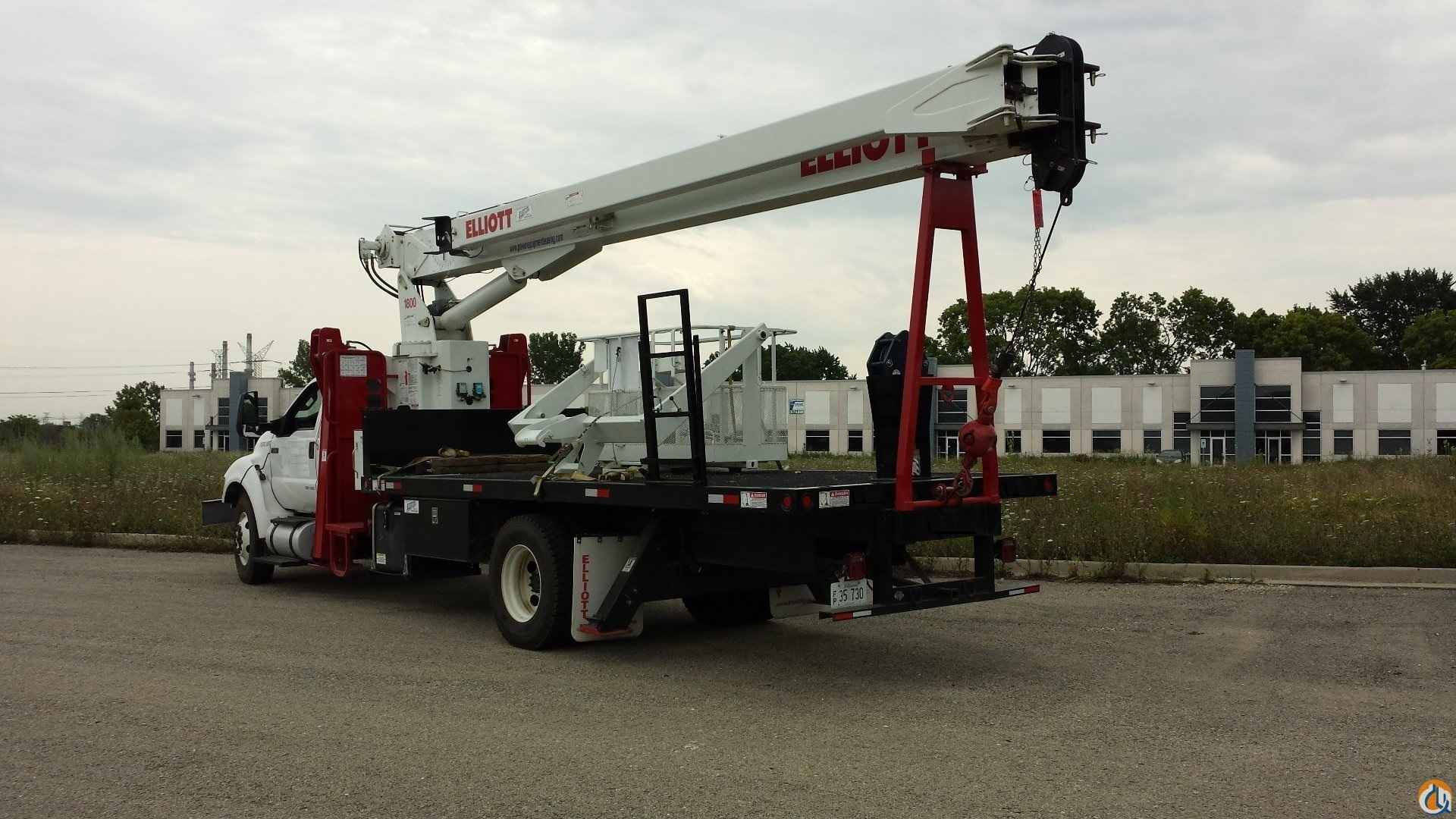

Front mount sub frame for a 20' bed, 27' retracted - 70' extended 3-section proportional boom, Sheave head equipped with three sheaves, Winch features: Burst of speed 12,800 lb. bare drum pull, 275' of 9'16" diameter 6x37 EIPS wire rope, 9,600 lb. single line pull, Internal boom hard-wired anti-two-block and Load Moment Indicator (LMI), Hydraulic overload protection system, 372 degree non-continuous rotation.  Hydraulic system includes: 3-section gear pump (counterclockwise rotation), 70 gallon oil reservoir with sight and temperature gauge, 10 micron return line filter, Single gate valve on suction line. Dual operator control console with platforms: Engine start/stop switch, Independently controlled outrigger and stabilizer levers, Bubble level gauge, Signal horn, Variable speed foot throttle, Lifting capacity chart, range diagram chart, and boom angle indicator, System pressure gauge (roadside), Cup holder, 12V power outlet, Horizontal, removable type boom rest at end of sub frame, Downhaul weight with hook. Maximum tip height of 80', Maximum lifting capacity of 18 US tons at a 5' radius.  Electronic throttle interface. Rear bumper with receiver tube, Backup alarm, Safety triangle kit, Unit certified to ANSI B30.5 for Mobile Cranes.

Selected Options:

20' Steel Bed With Grip Deck Coating (1,950 lbs.)

23' to 40' 2-Piece Jib With Manual Extension (Side Stows on Boom) (1,000 lbs.)

"A" frame link type outriggers at crane pedestal with 20'10" spread

"A" frame type rear stabilizers behind rear axle with 10'4" spread

Front Bumper Stabilizer for 360 Degree Area of Operation. (Includes Additional Control Valve)

15-Ton Single Sheave Hook Block for 2/3 Parts of Line (240 lbs.)

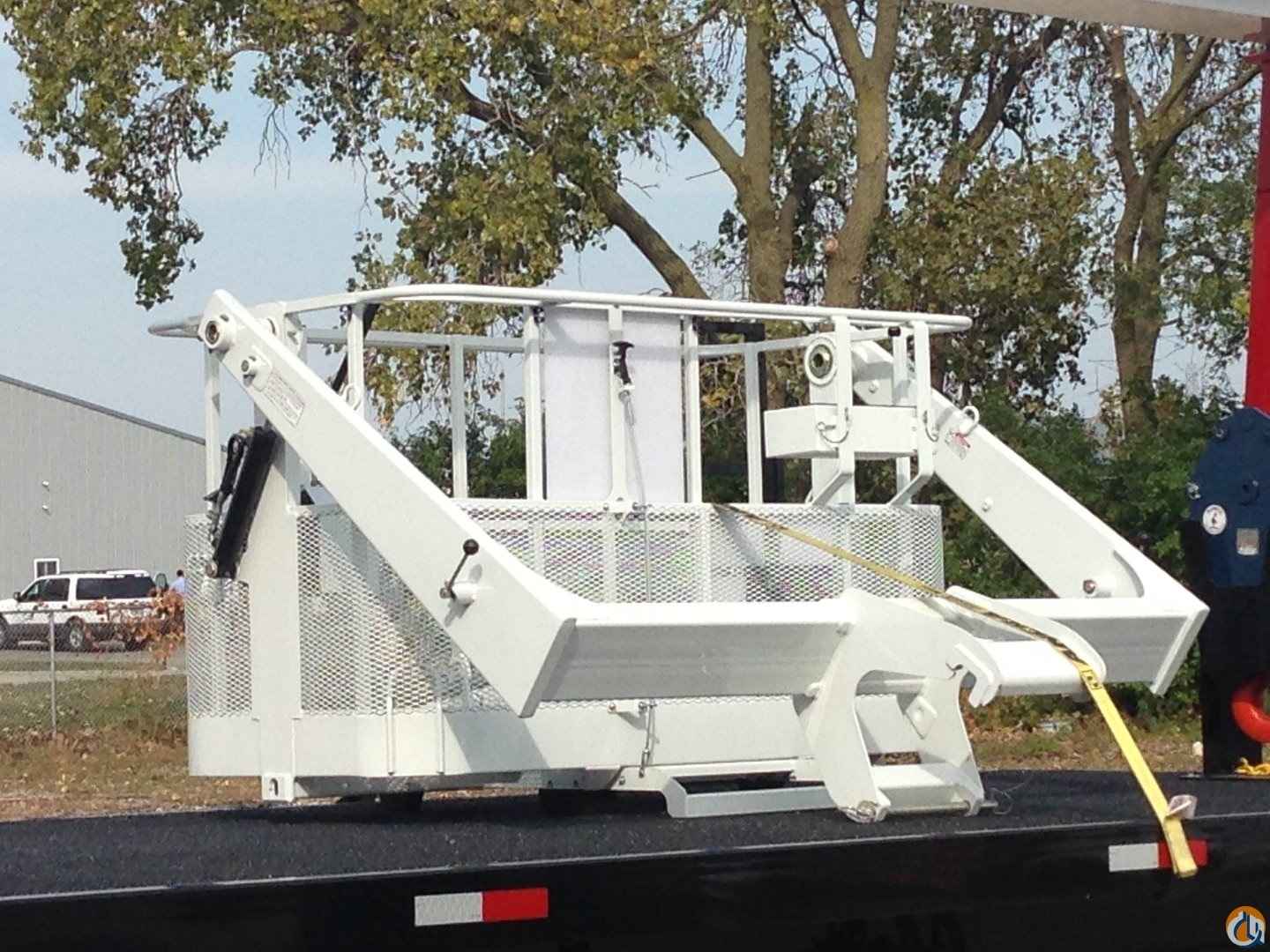

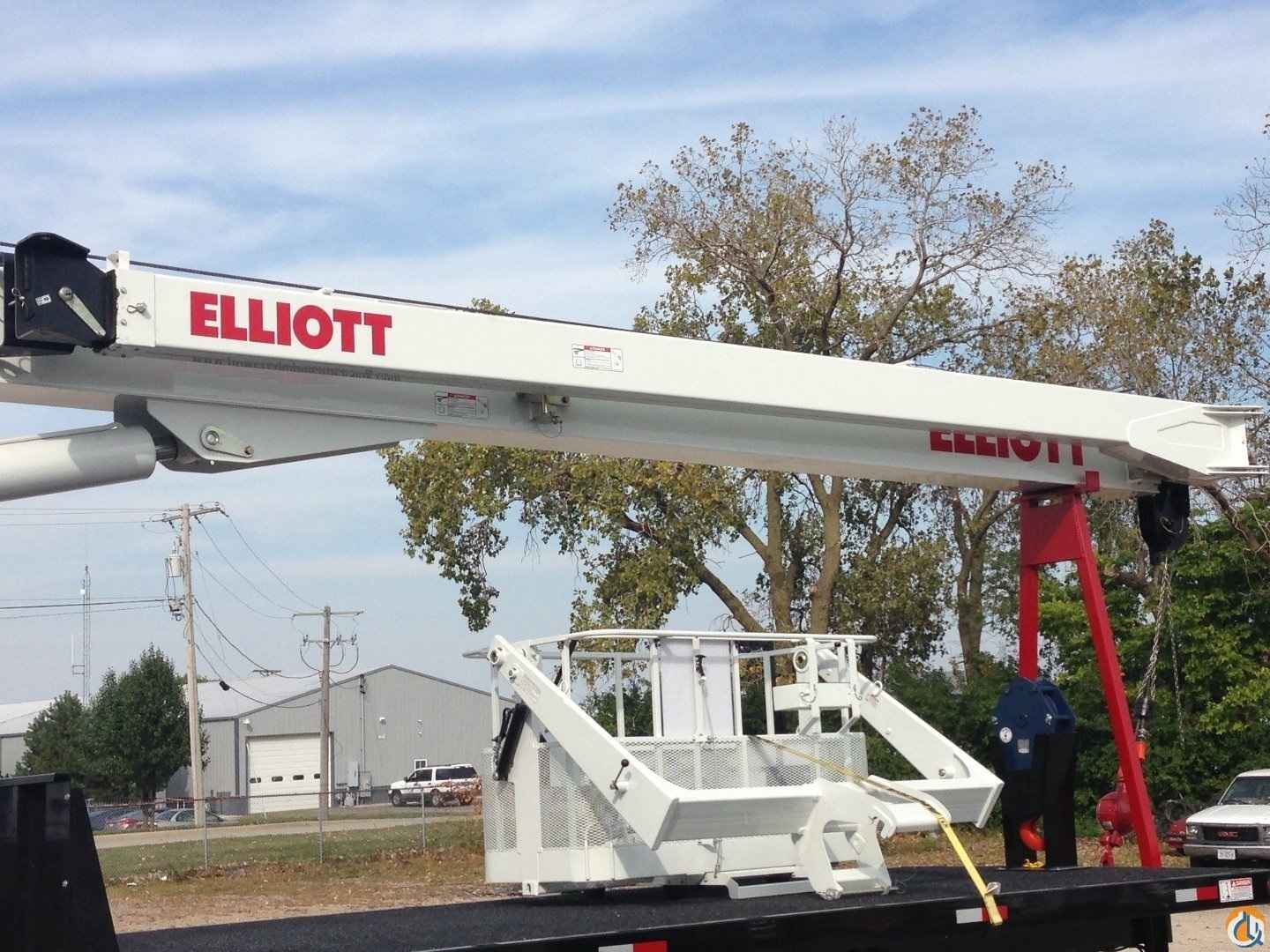

2 Person Gravity-Leveled Yoke Mount Steel Basket (36" x 72") (600 lbs.)

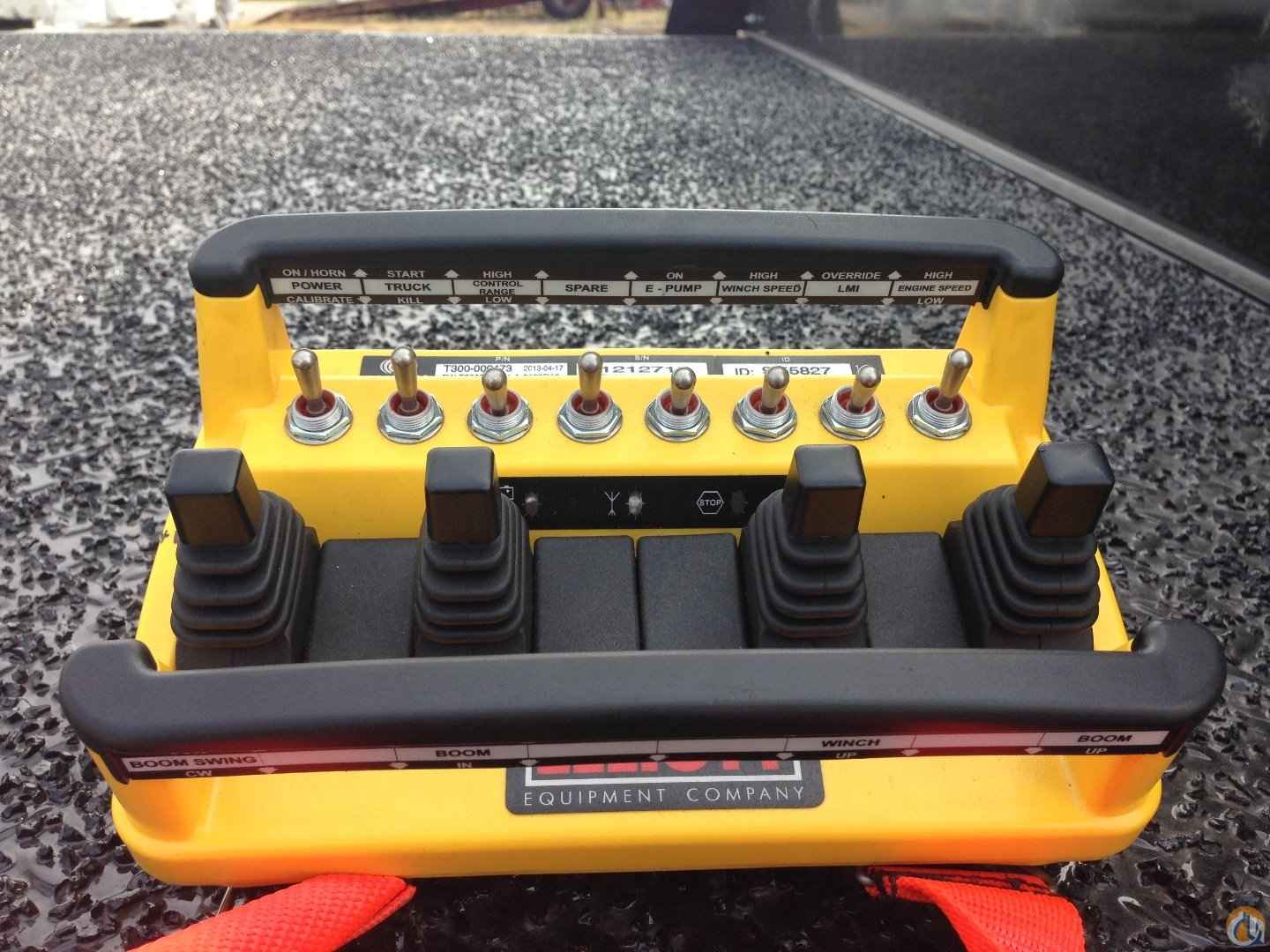

4-Function Radio Remote Controls (2-Section Gear Pump in Lieu of 3-Section Pump)

Hot Shift PTO (Required For Automatic Transmission)

2 Steel Underbody Boxes Mounted 48" x 20" x 18" (130 lbs.)

24" High Bulkhead at Front of Bed (125 lbs.)

Fold Down Bed Access Ladder With Grab Handles

Vertical Holder On Bed For 2/3 Part Line Hook Block

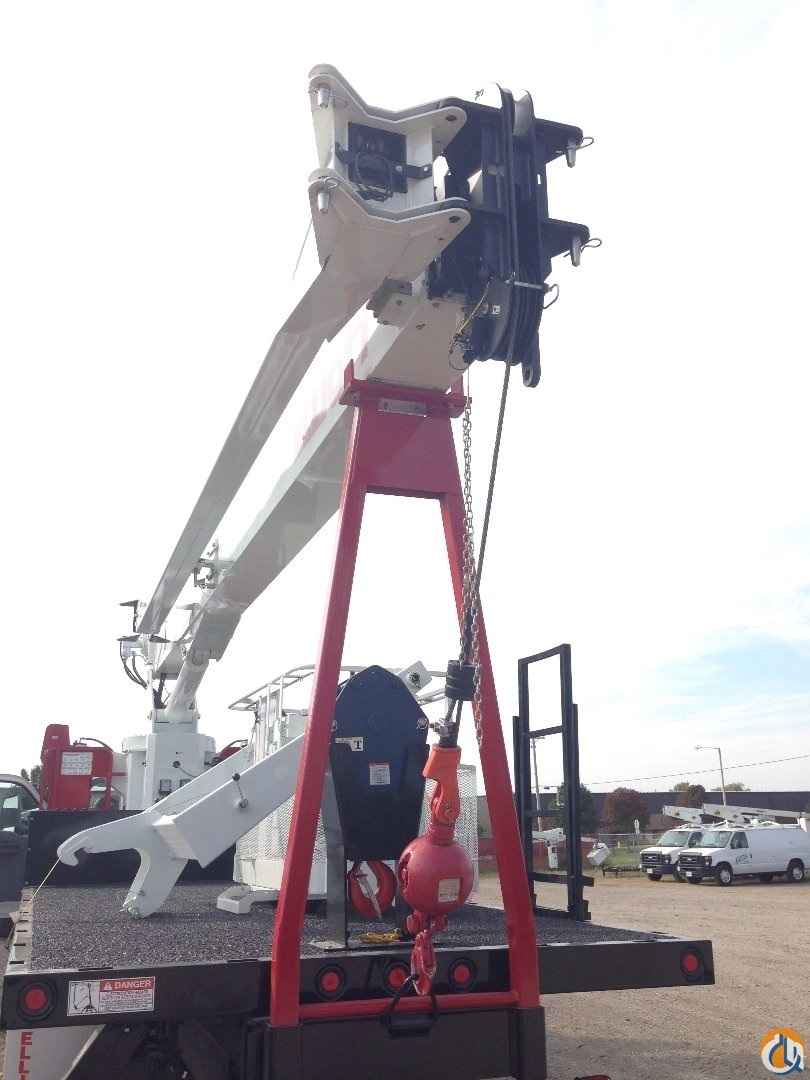

Down hall Ball Storage on Boom Rest

Paint Crane Frame, Turret, Boom, and Control Console, Chassis Cab – White

Paint Sub base, Bed, Rear Stabilizers, and Reservoir – Black

Paint Main Outriggers, Operator Platform and Boom Rest - Red

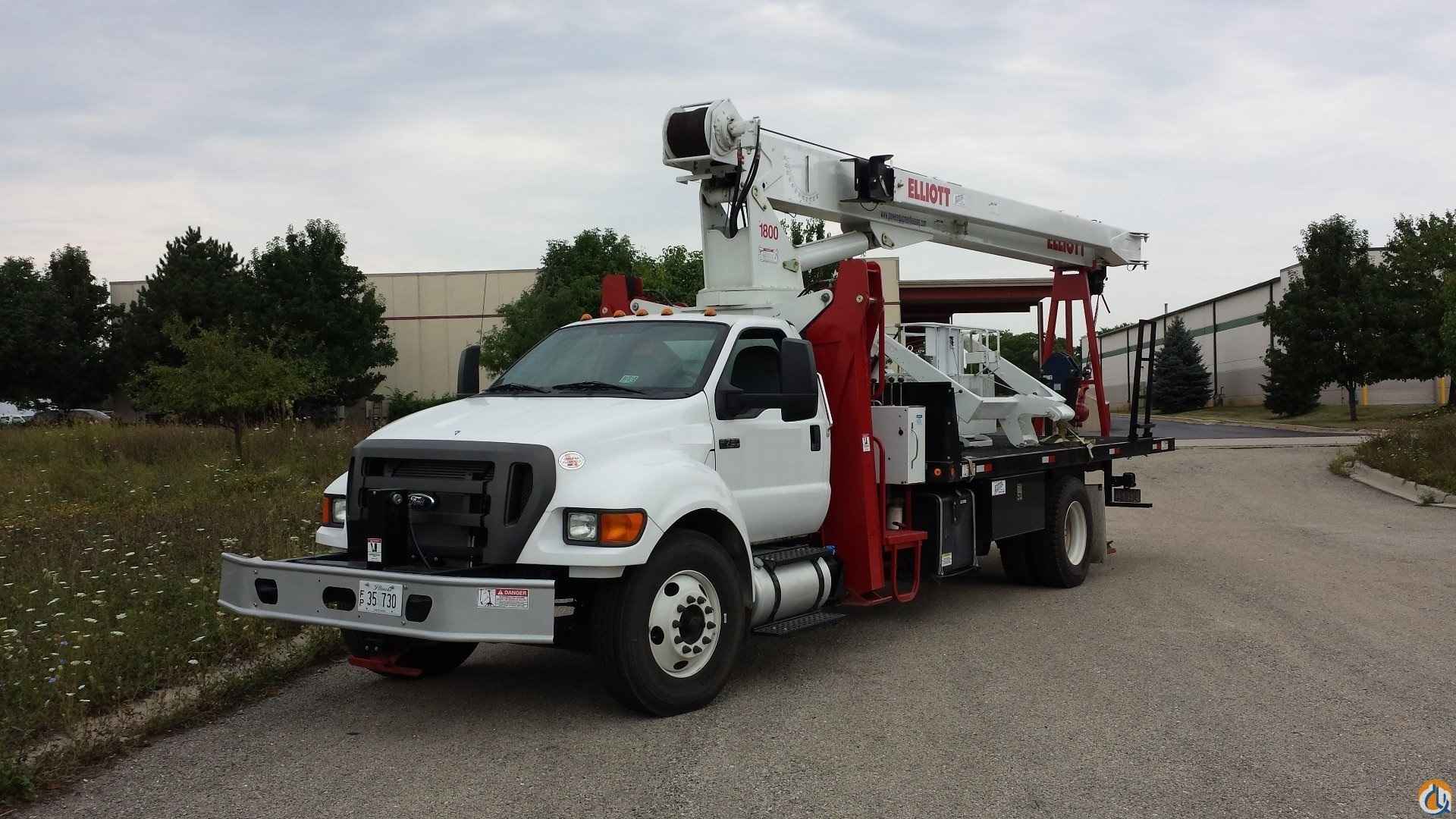

2015 Ford F-750 XL Chassis (3FRXF7FKXFV671158):

260 HP (660 ft/lbs.) Cummins ISB diesel engine

230" WB; 156" CA, 87"

AF Allison 3000 RDS 6-speed automatic transmission

33,000 GVWR, 13,200 lbs. front axle, 21,000 lbs. rear axle

11R22.5 front and rear tires

Disc wheels, Air brakes, Air dryer

(2) front two hooks

Engine block heater

50 gallon fuel tank (LH), 5 gallon Diesel Exhaust Fluid (DEF)

AM/FM stereo, Tinted glass, Air conditioning, Cruise control

Air ride driver/2-man passenger seat
