BOOM DETAILS

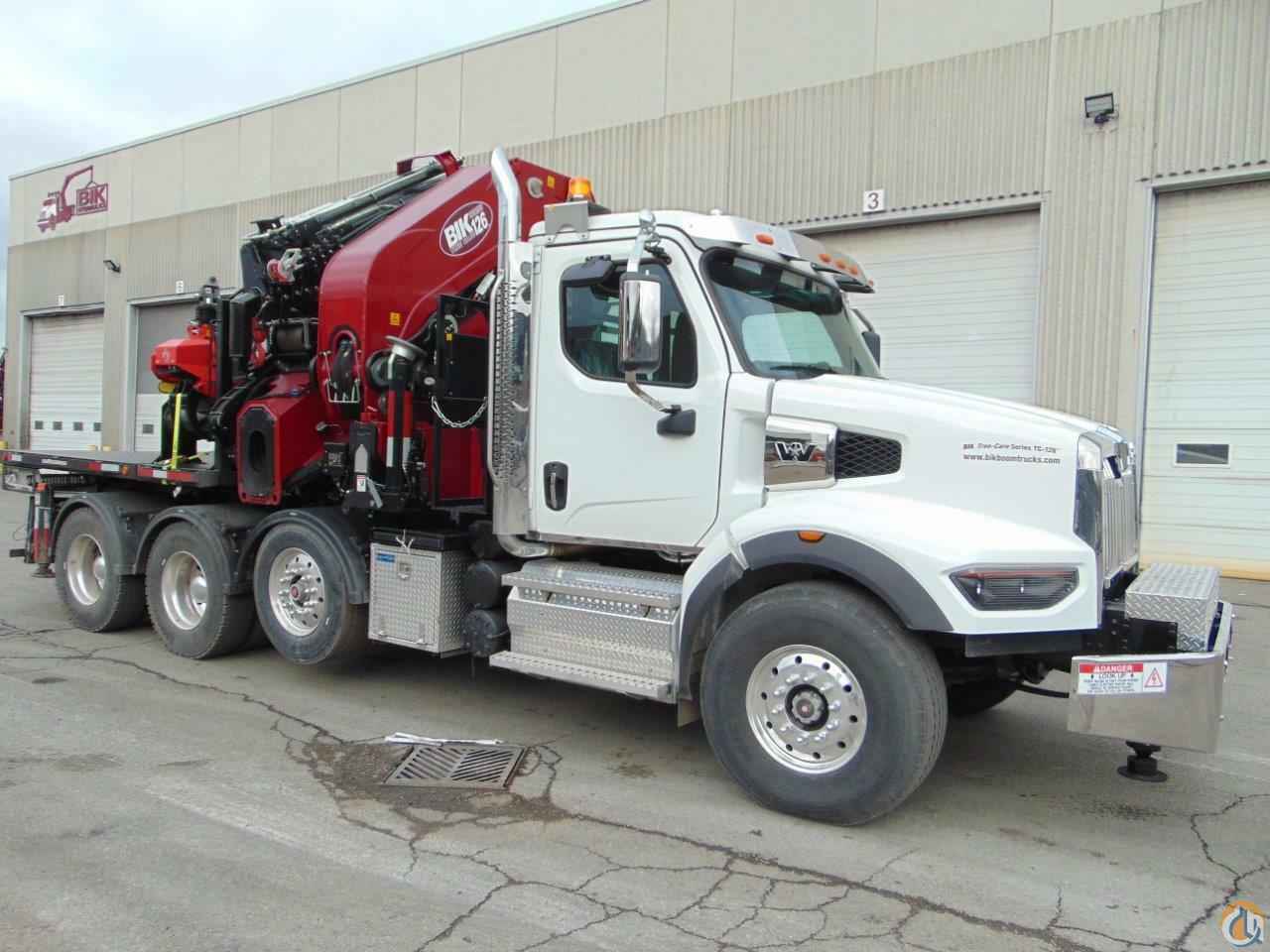

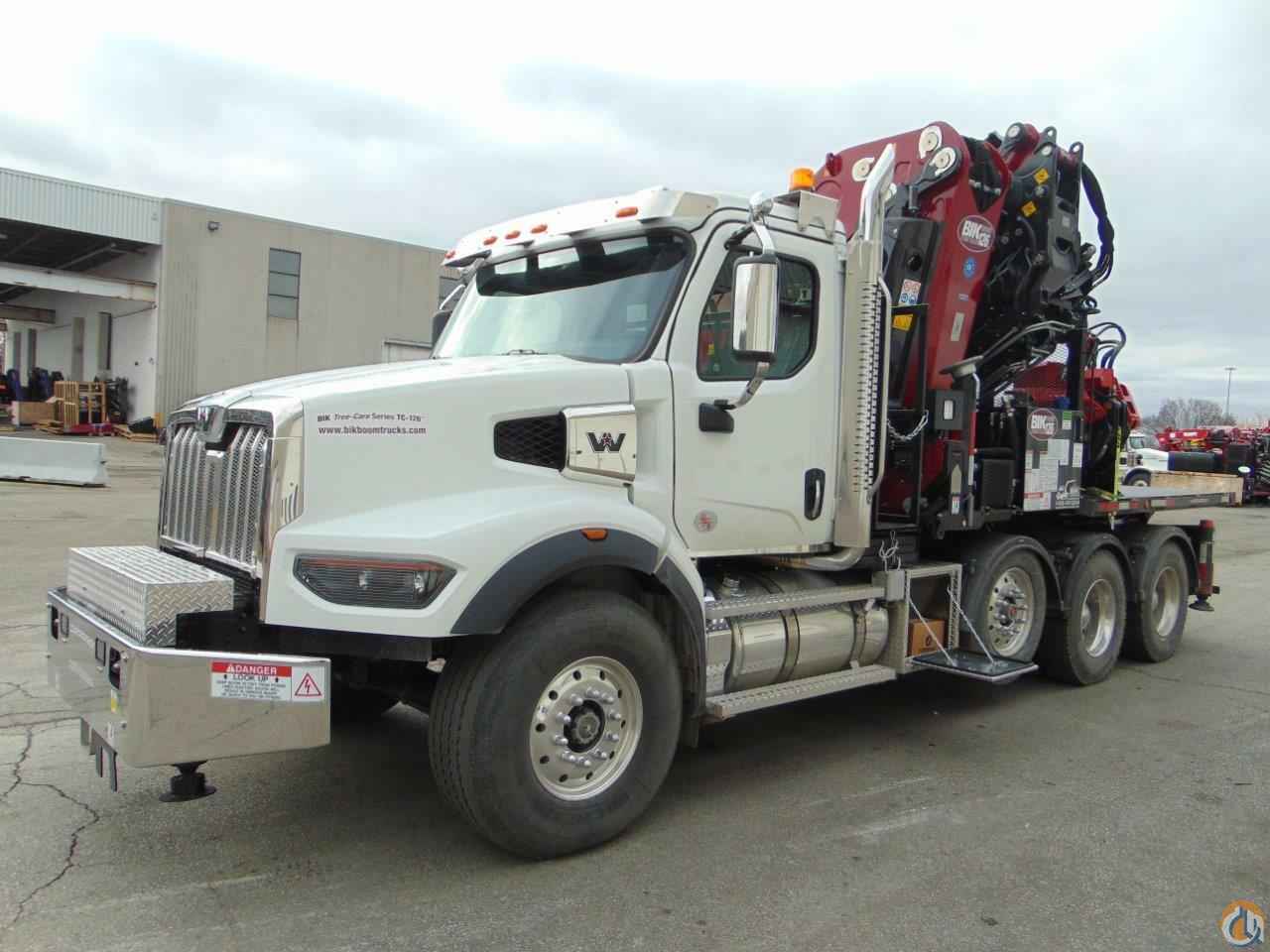

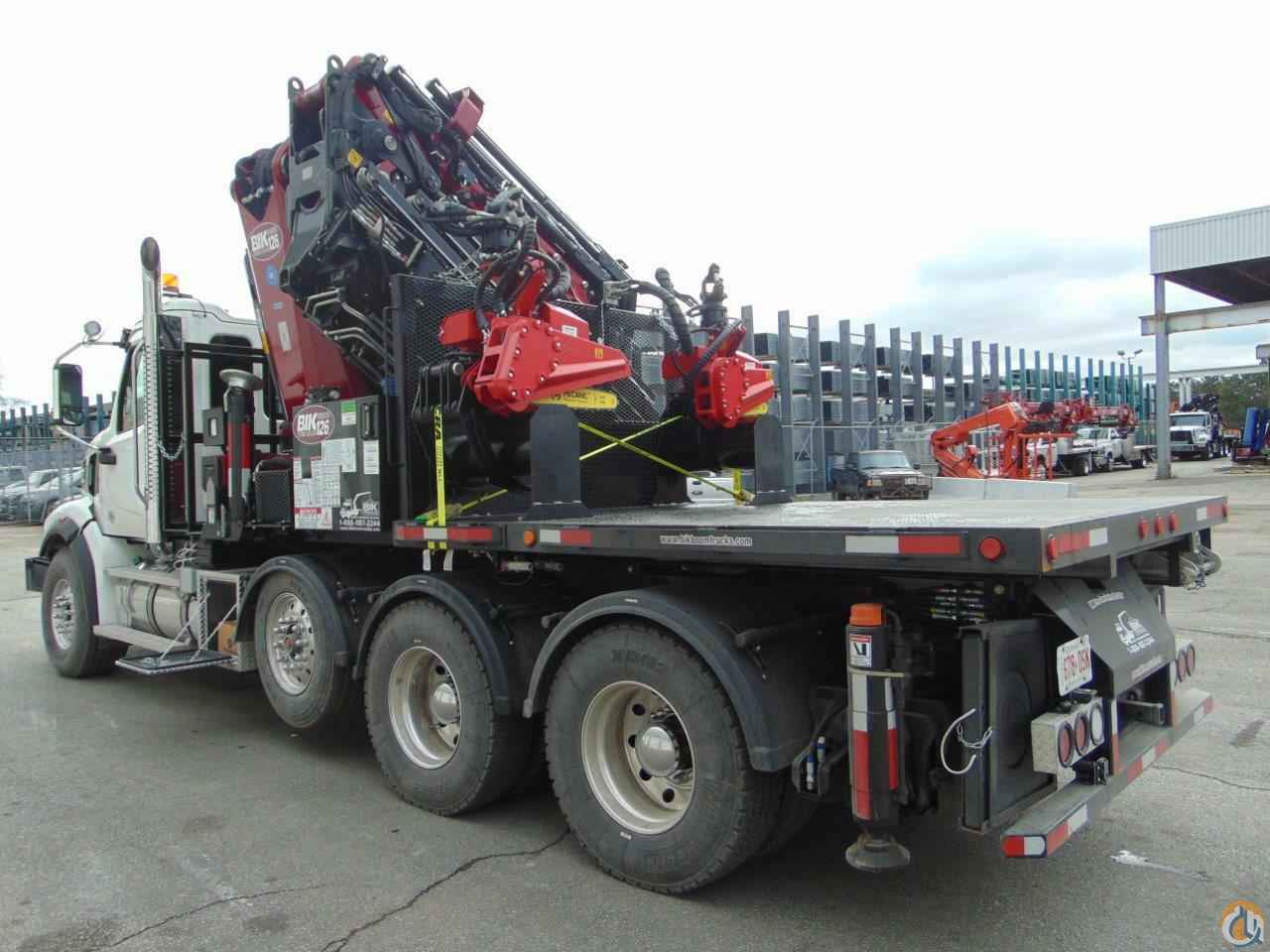

BIK Tree-Care Series TC-126 – 100 ton/m Knuckle Boom
- 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
- Including (1) Grapple extention in jib
- Boom Capacity of 2,050 lbs @ 126’ Vertical Reach
- Main Boom Horizontal Capacity:
- 36,800 lb @ 16’
- 20,000 lb @ 23’
- 16,000 lb @ 33’
- 11,000 lb @ 47’
- 7,200 lb @ 67’
- Jib Horizontal Capacity:
- 3,200 lb @ 76’
- 2,200 lb @ 100’
- 2,000 lb @ 104’
- 1,630 lb @ 110’
- w/Grapple extn to 114’
- PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st knuckle
- 25 degree negative angle at jib Continuous Rotation and Dual Planetary Gear Rotation
- Special Extra High Tensile Steel Structure
- Hydraulic Extra Wide Main outriggers at pedestal – 29’ – 6” span – hydraulic tilting when retracted. Radio controlled
- Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom, – Lifting winch on boom plumbed to jib
- DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
- Engineer Stability Certified to operate at 100% Full load chart in ALL area’s – 360 degree working area
- Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, load chart in FT. & LBS.
