BOOM DETAILS

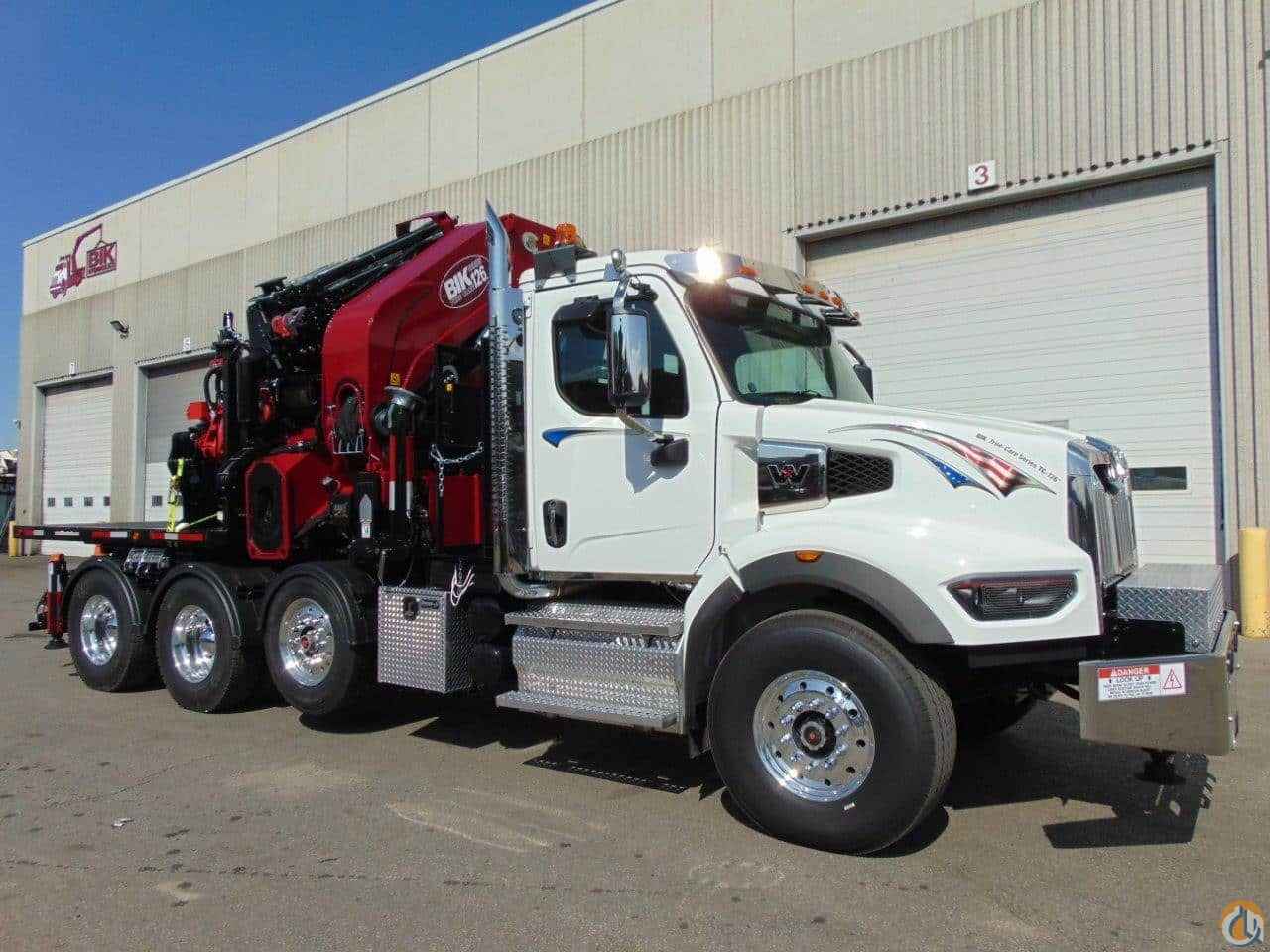

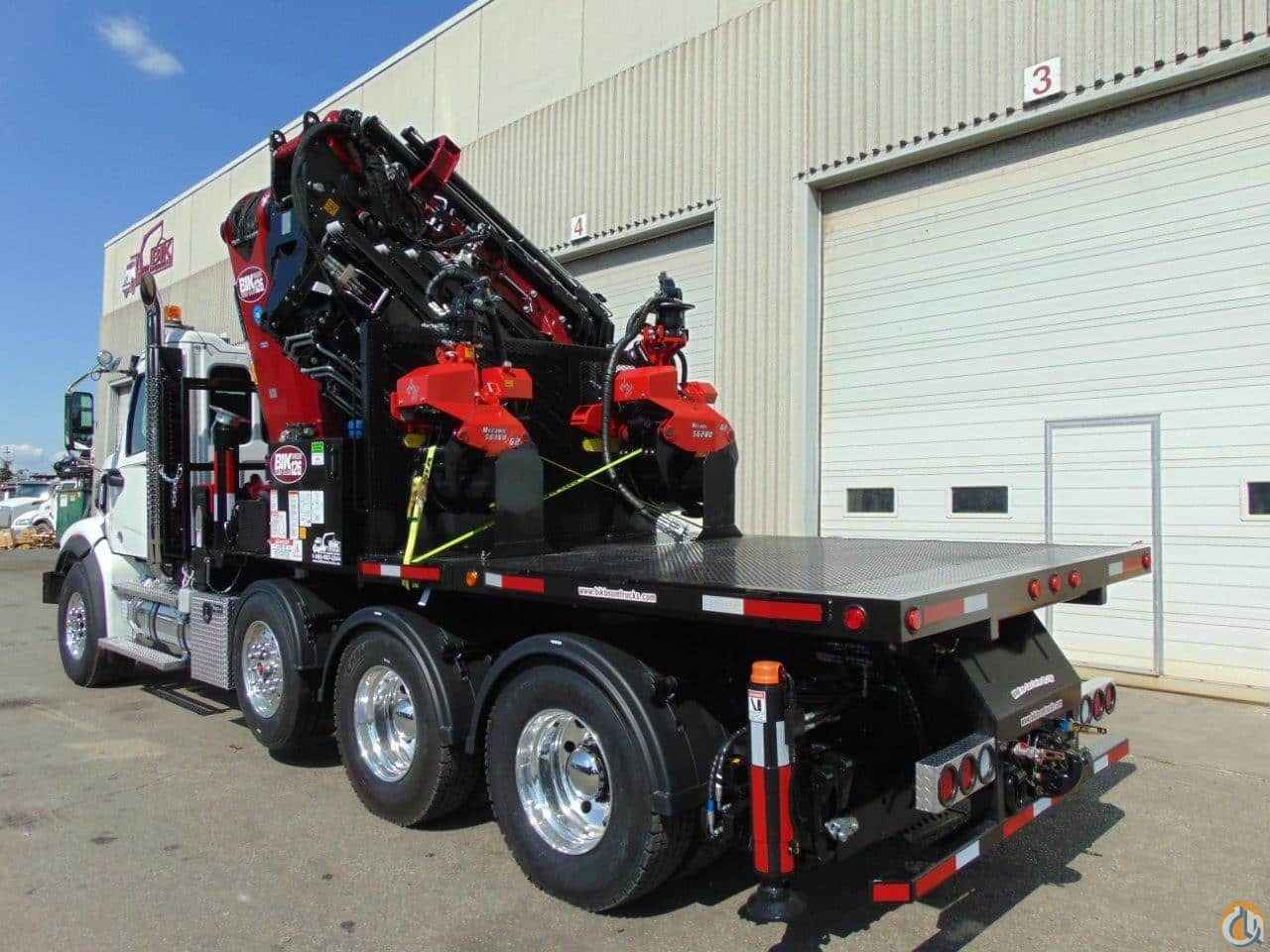

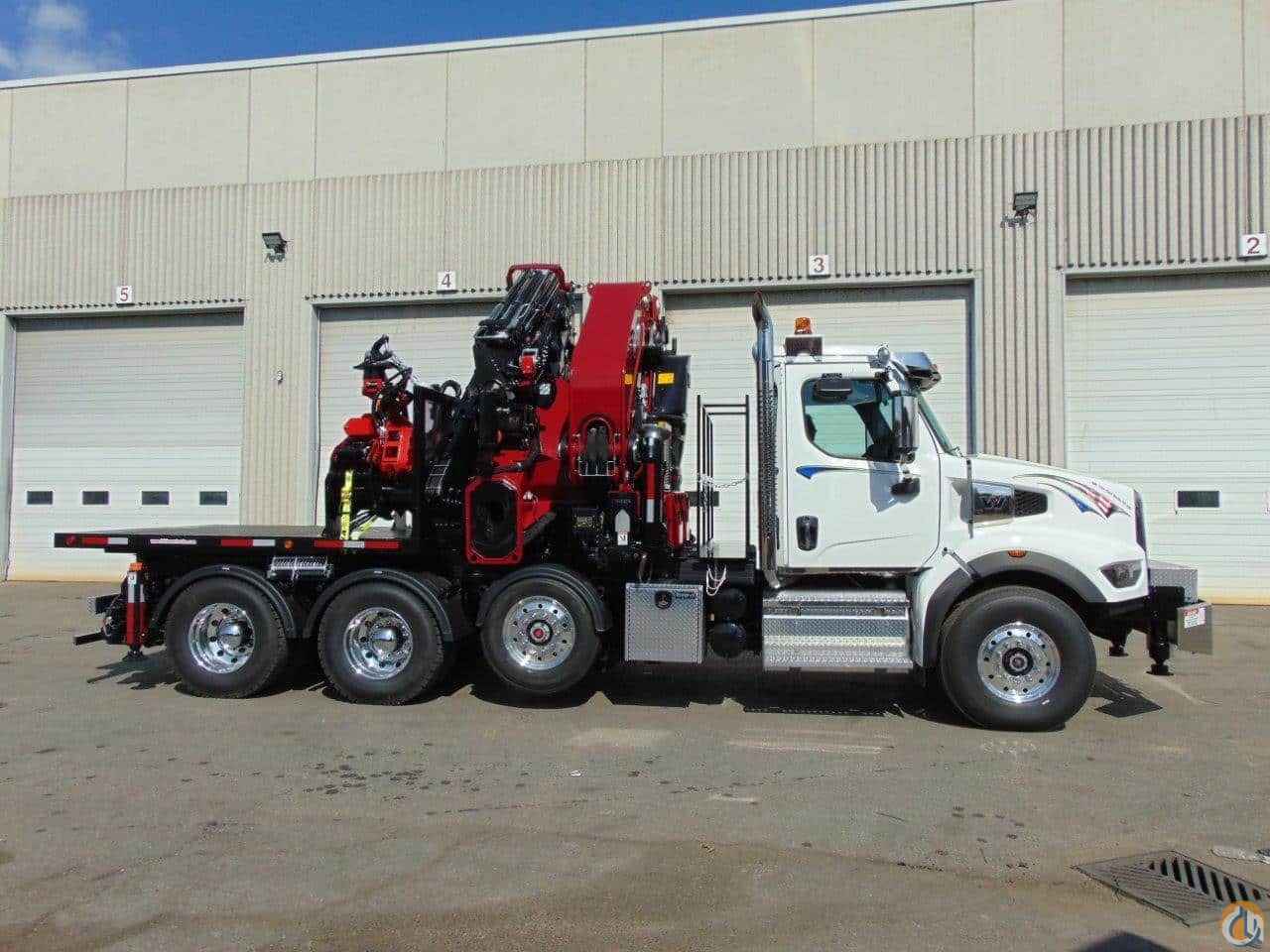

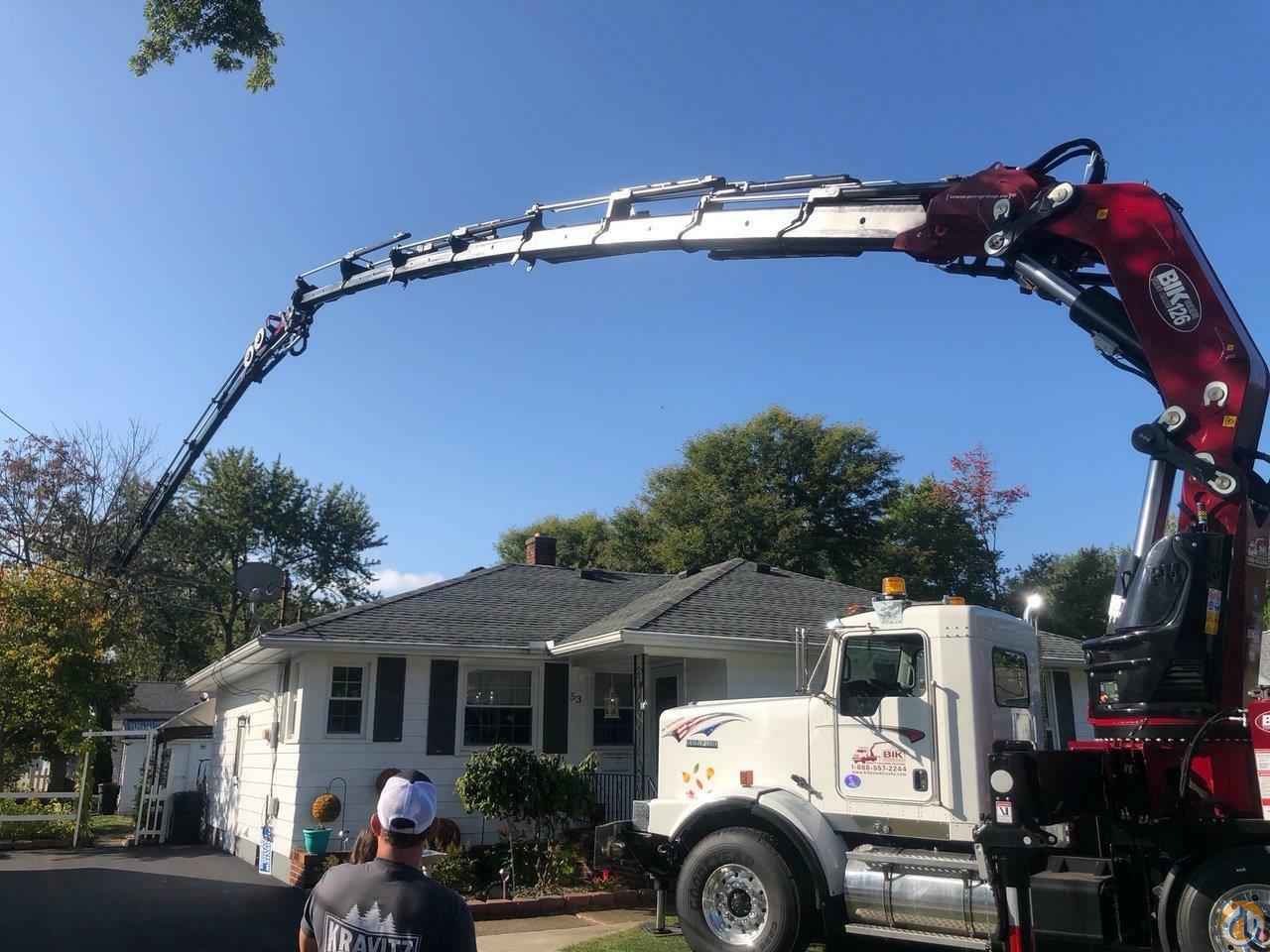

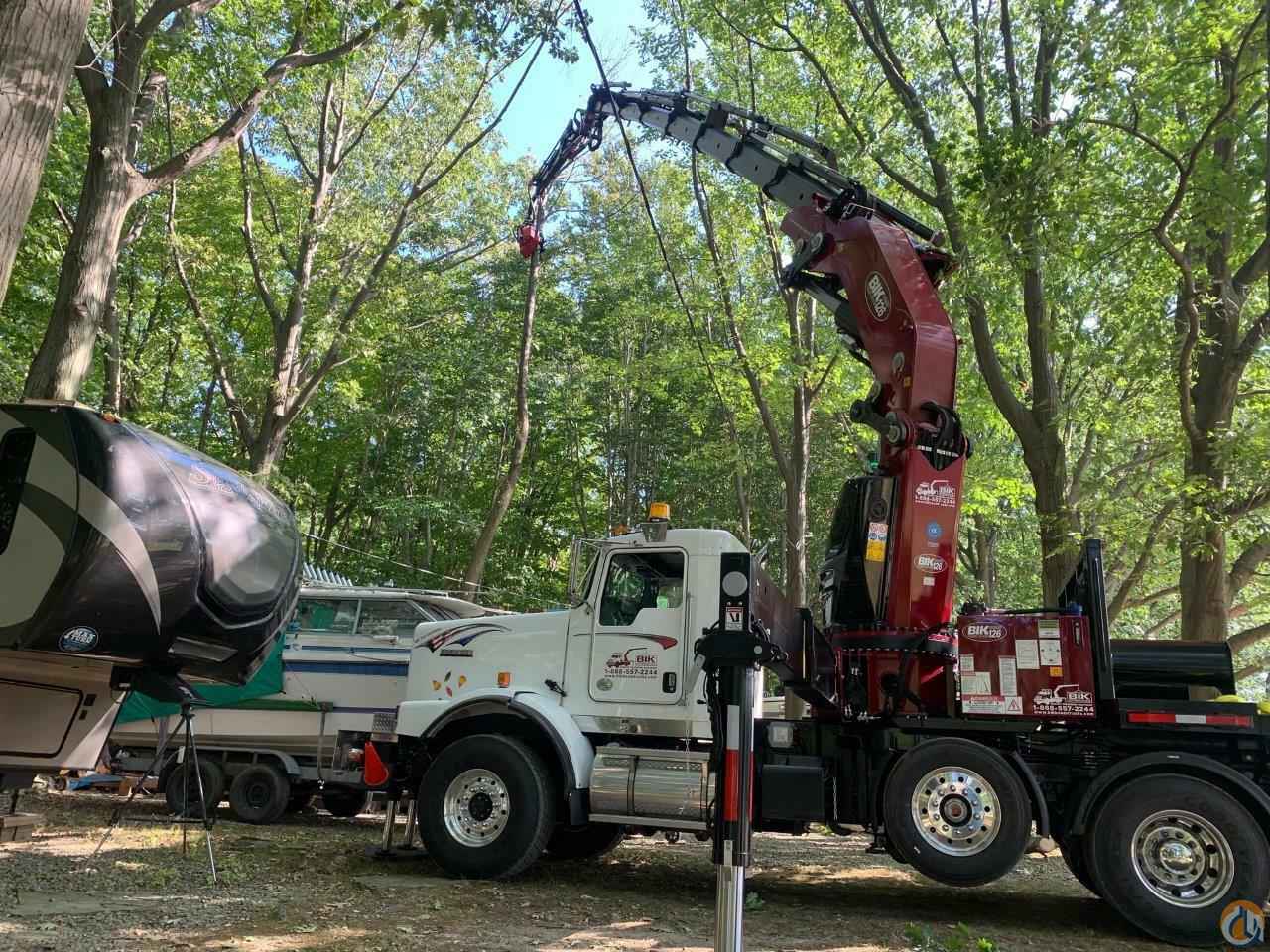

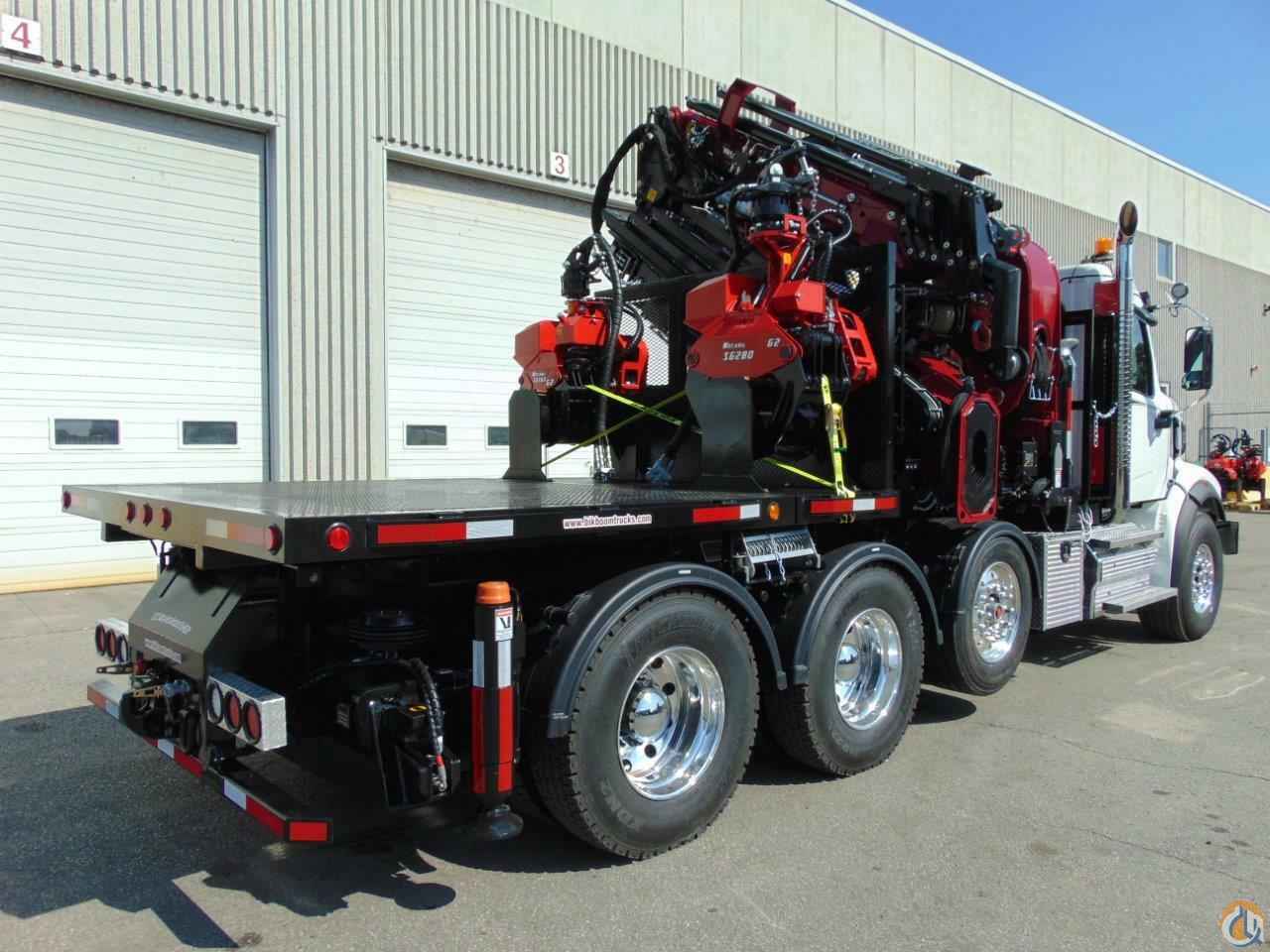

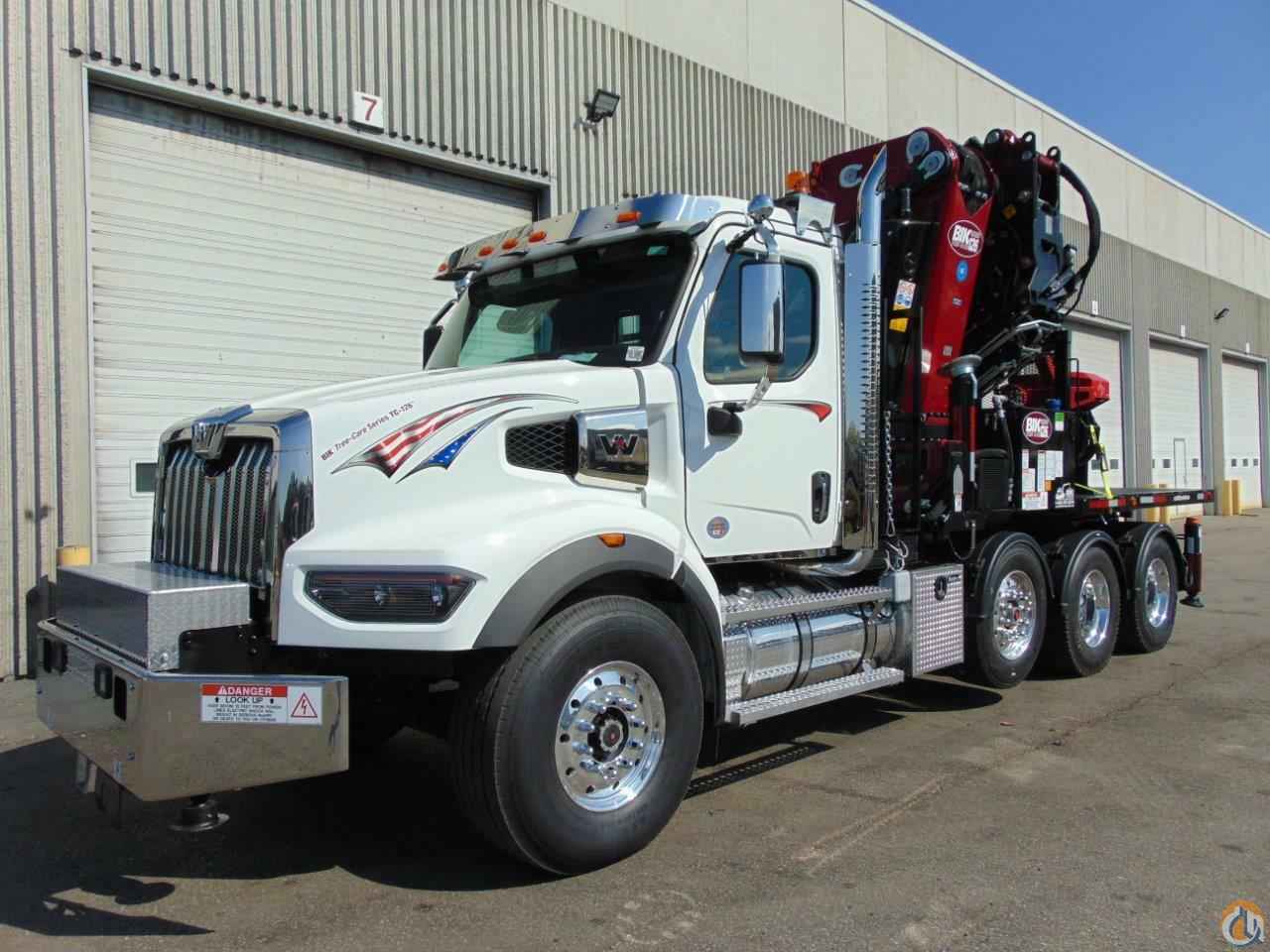

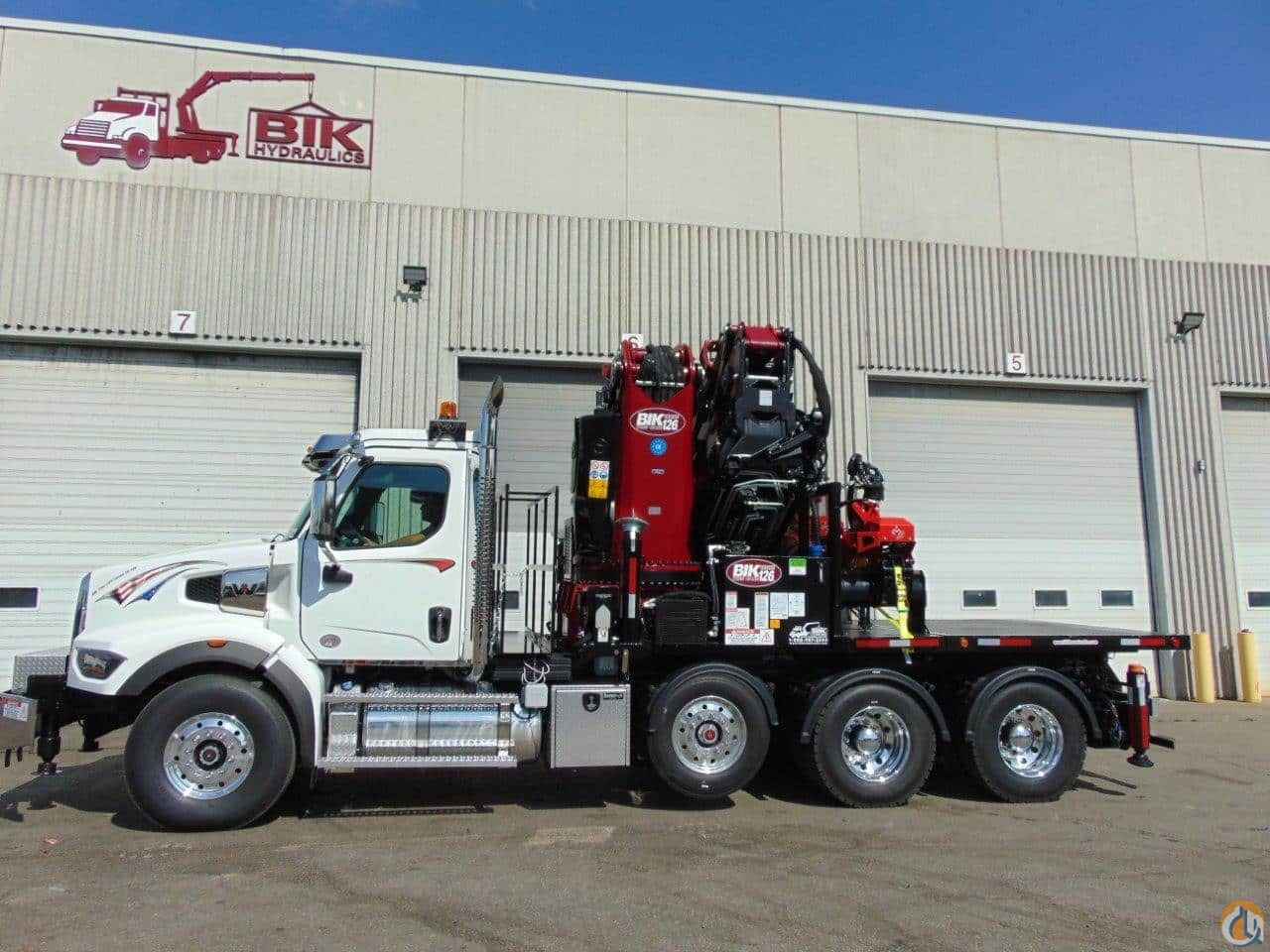

New – BIK Tree-Care Series TC-126 – 100 ton/m Knuckle Boom
- 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
- Including (1) Grapple extention in jib
- Boom Capacity of 2,050 lbs @ 126’ Vertical Reach
- Main Boom Horizontal Capacity:
- 36,800 lb @ 16’
- 20,000 lb @ 23’
- 16,000 lb @ 33’
- 11,000 lb @ 47’
- 7,200 lb @ 67’
- Jib Horizontal Capacity:
- 3,200 lb @ 76’
- 2,200 lb @ 100’
- 2,000 lb @ 104’
- 1,630 lb @ 110’
- w/Grapple extn to 114’
- Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Motors, – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
- Remote or Side Control Pad Operated 6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted
- 2- Rear Aux Stabilizers behind t/a drives – 26’ Span
- Dual front bumper mtd Stabilizers at front integral truck frame extension
- Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46 Enviro Friendly Biodegradable Hydraulic Oil
- Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
- Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
- DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
- Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord
- Boom Factory Painted Dark Red/Burgundy prior to assembly

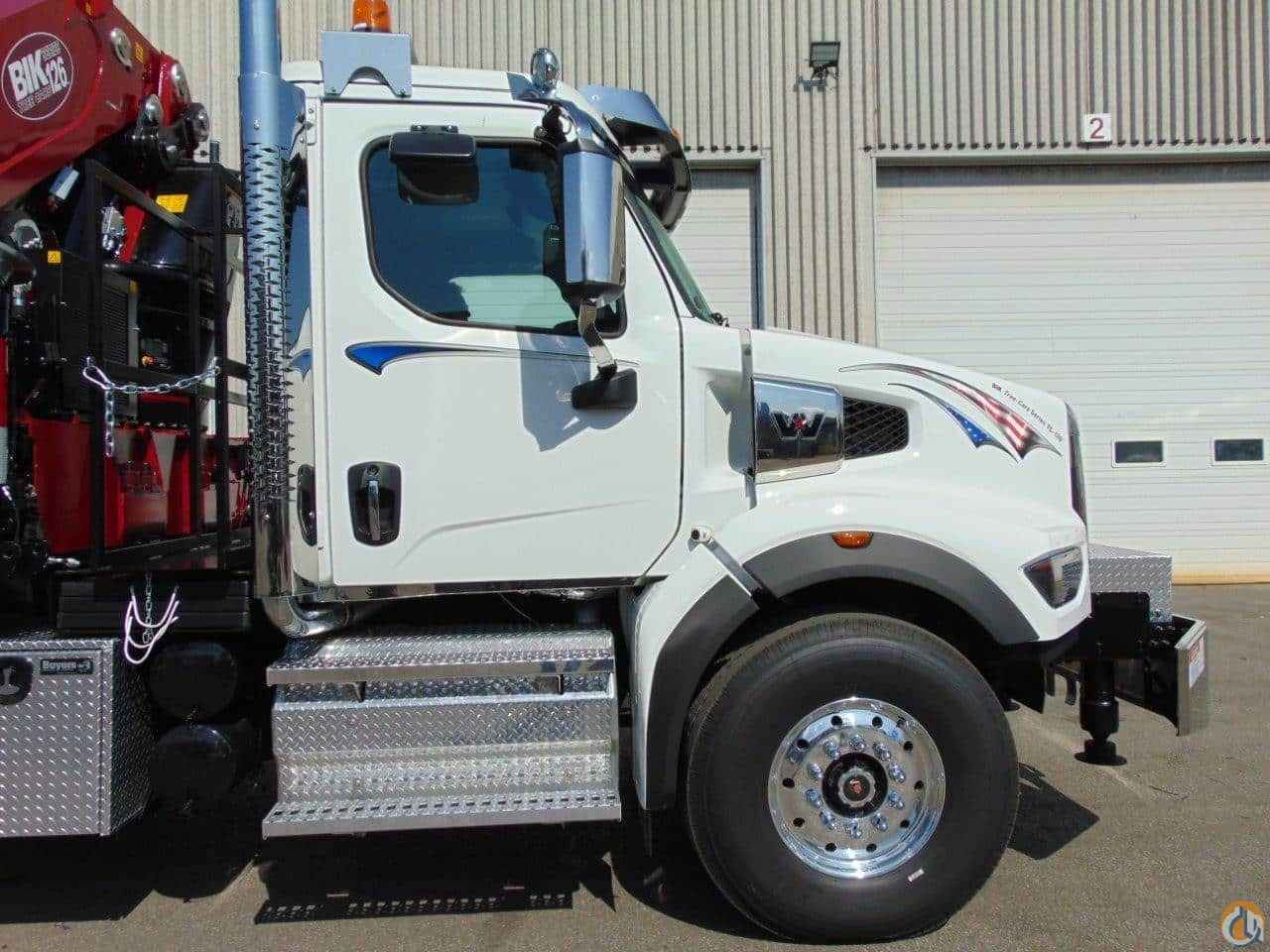

- Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards
- Load Chart in FT. & LBS.
- Engineer Stability tested & Certified for 360 Degree / 100% capacity load chart capacity in all area’s & zones when stabilizers are fully deployed
