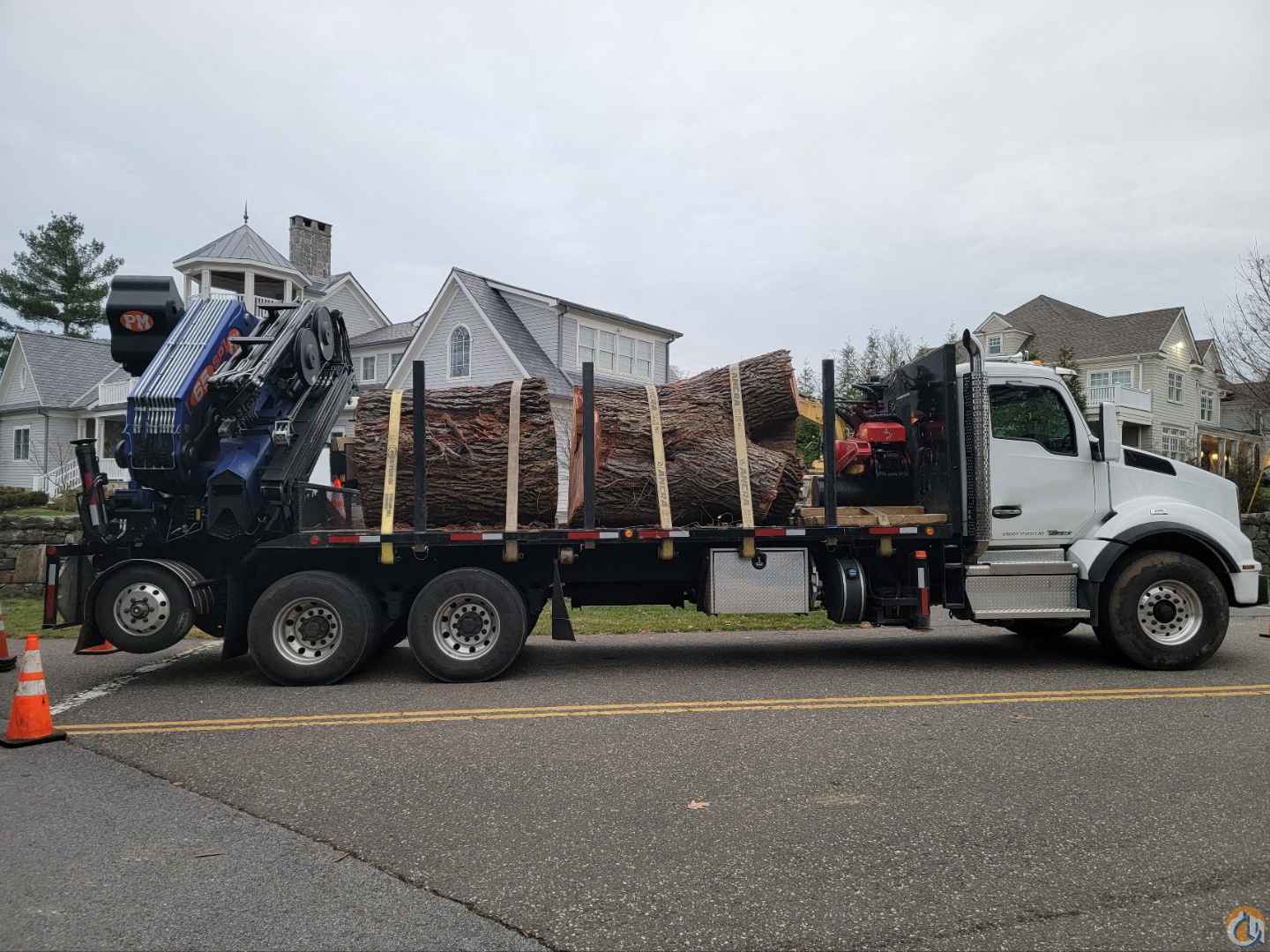

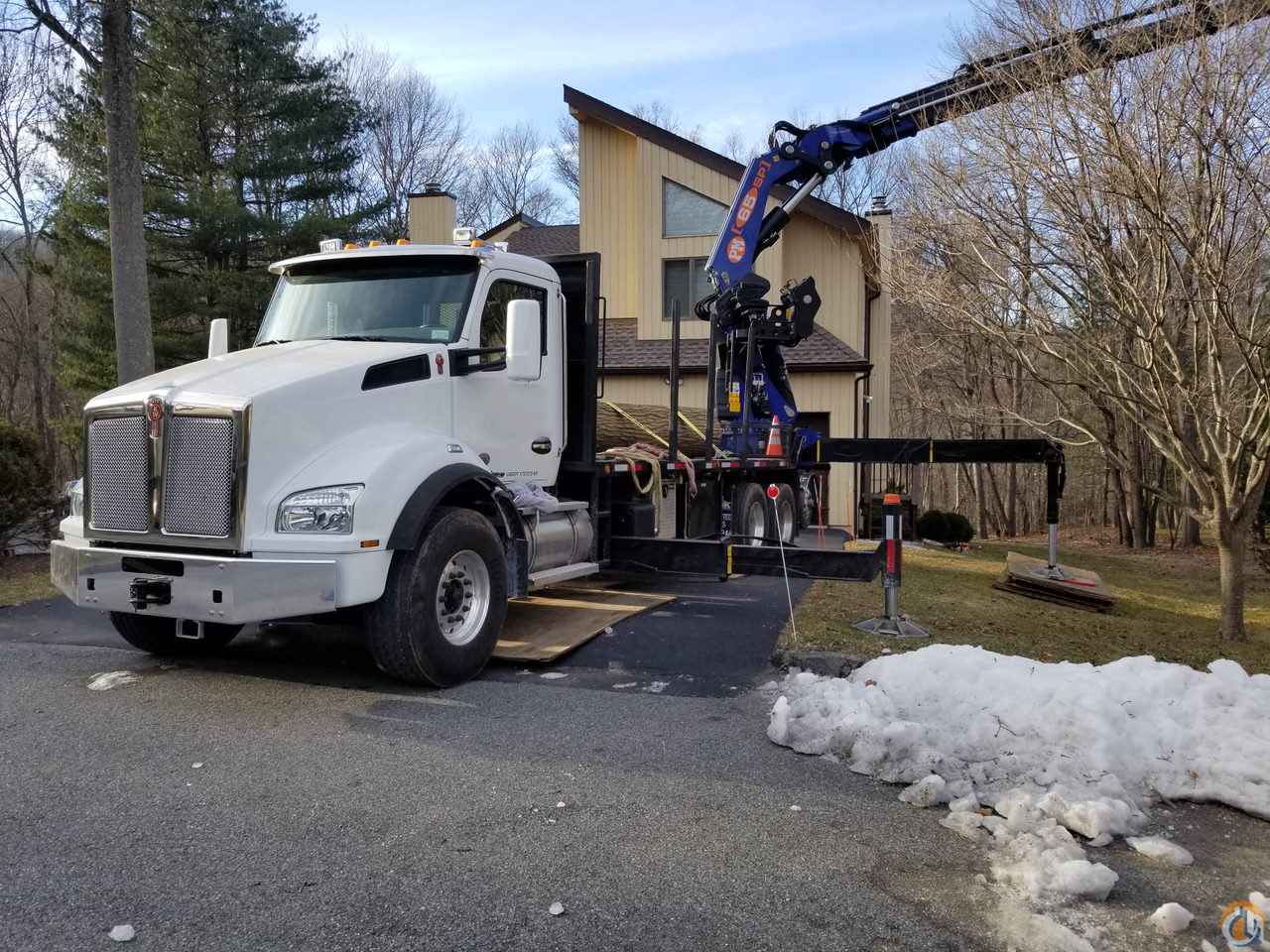

2019 BIK TC-106 Boom Truck Crane for Sale

BOOM DETAILS

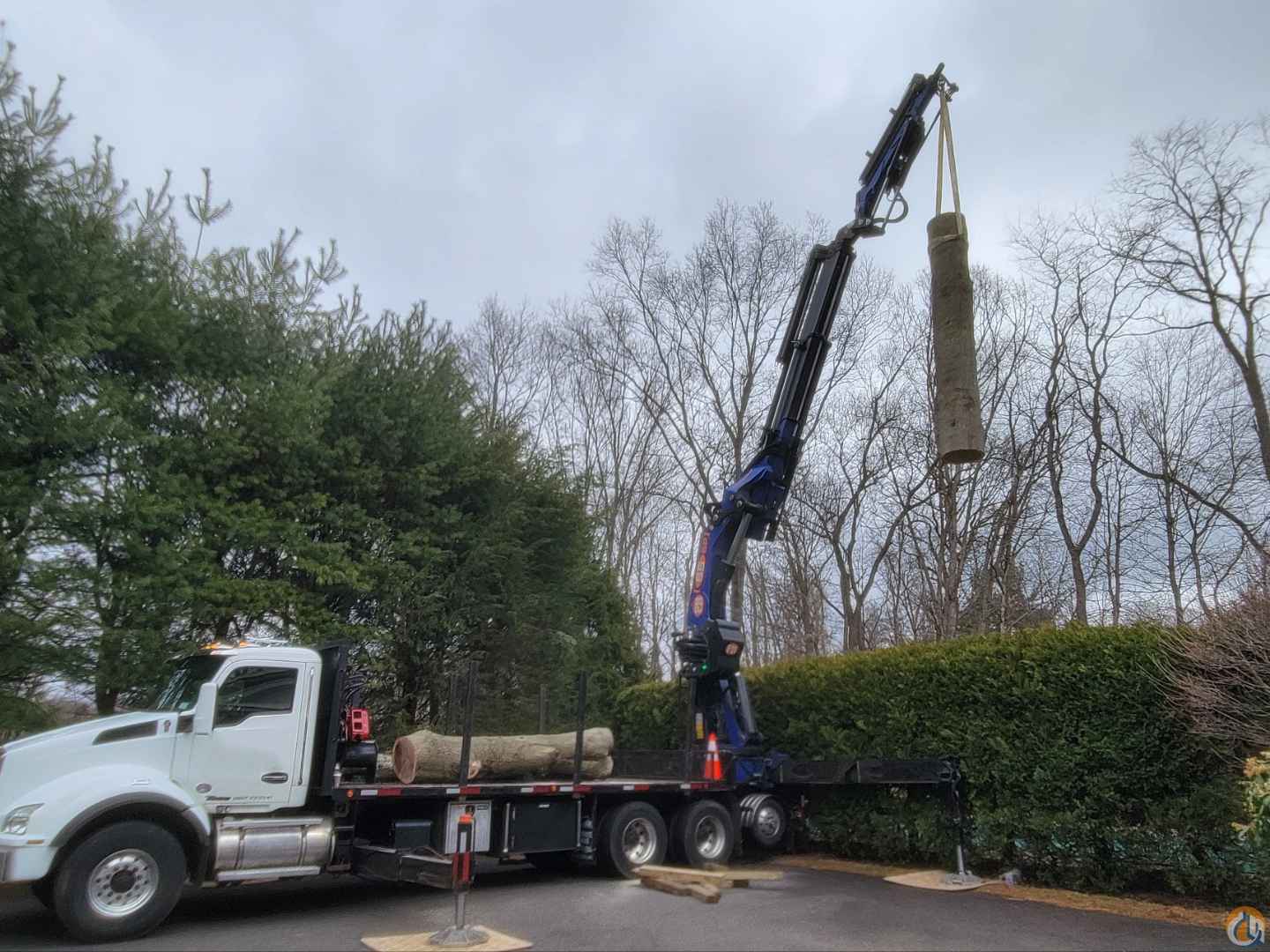

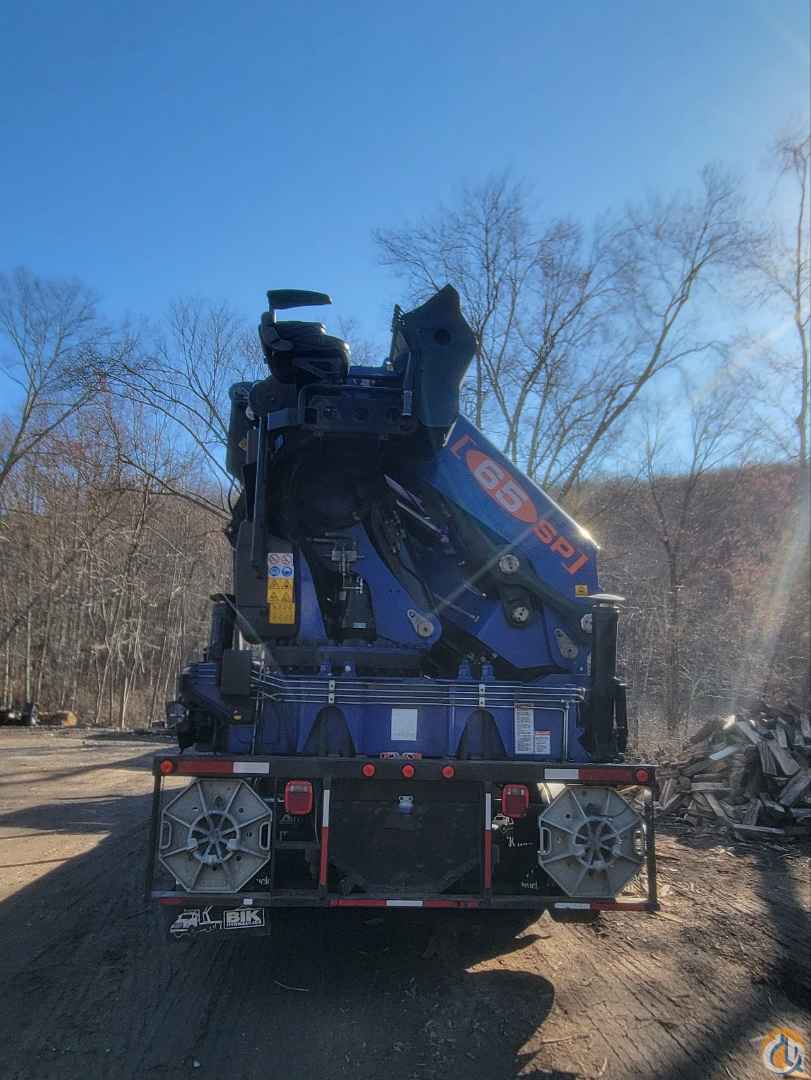

PM 65026SP +J1416 KNUCKLE BOOM (TC-106)

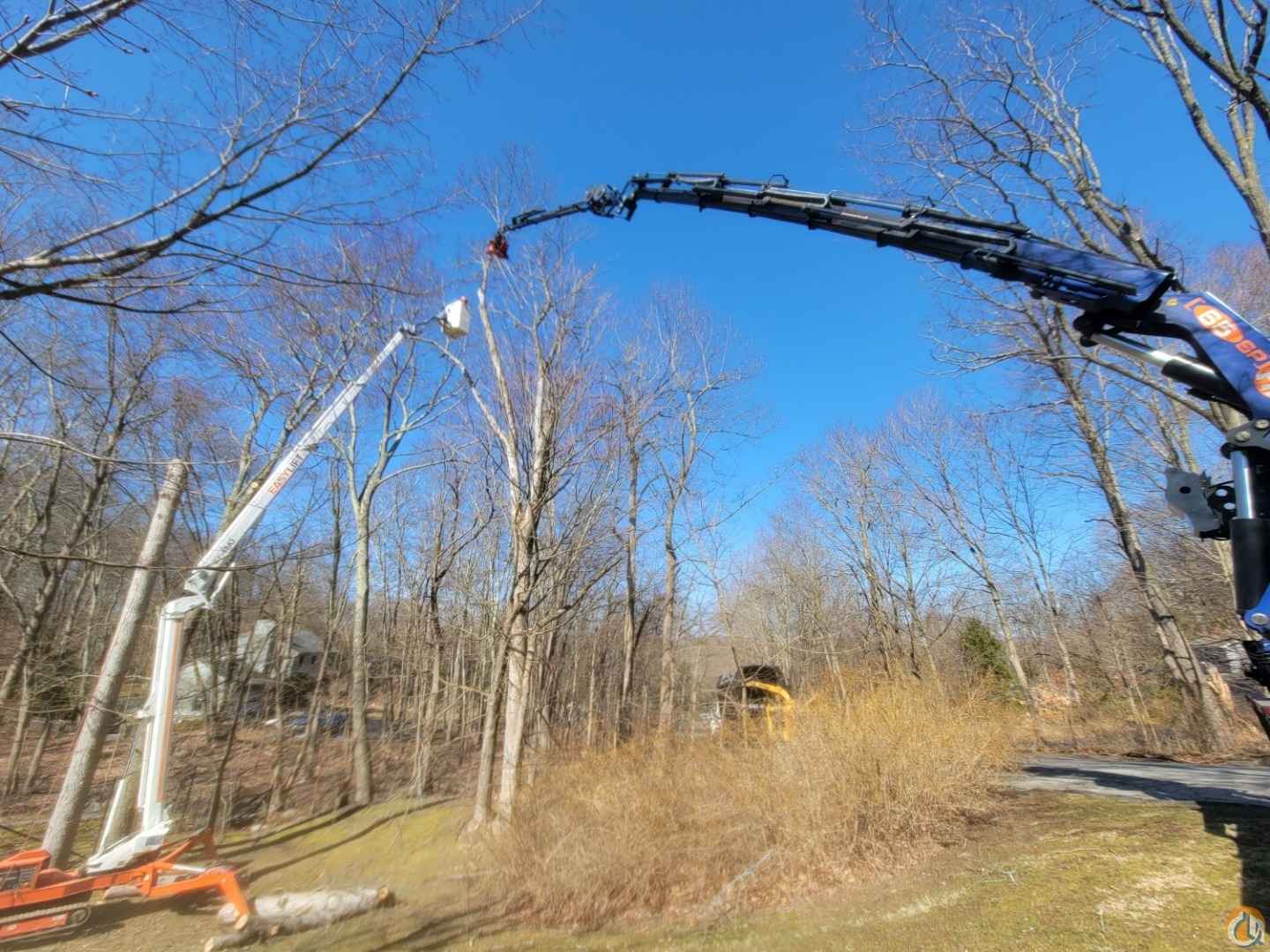

• Folding Hydraulic 6 ext Knuckle Boom with Detachable 5 ext jib + 1-grapple manual
• Including (1) Grapple-Manual extention in jib to (106’ vertical)
• Main Boom Horizontal Capacity:
  • 48,500 lb @ 8’ 2”
  • 28,260 lb @ 14’ 5”
  • 15,340 lb @ 25’ 3”
  • 10,000 lb @ 37’
  • 7,210 lb @ 50’ 2”
• Jib Horizontal Capacity:
  • 3,850 lb @ 59’ 1”
  • 3,000 lb @ 74’ 6”
  • 2,340 lb @ 81’ 1”
  • 2,100 lb @ 87’
  • Manual extn to 94’
• PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation

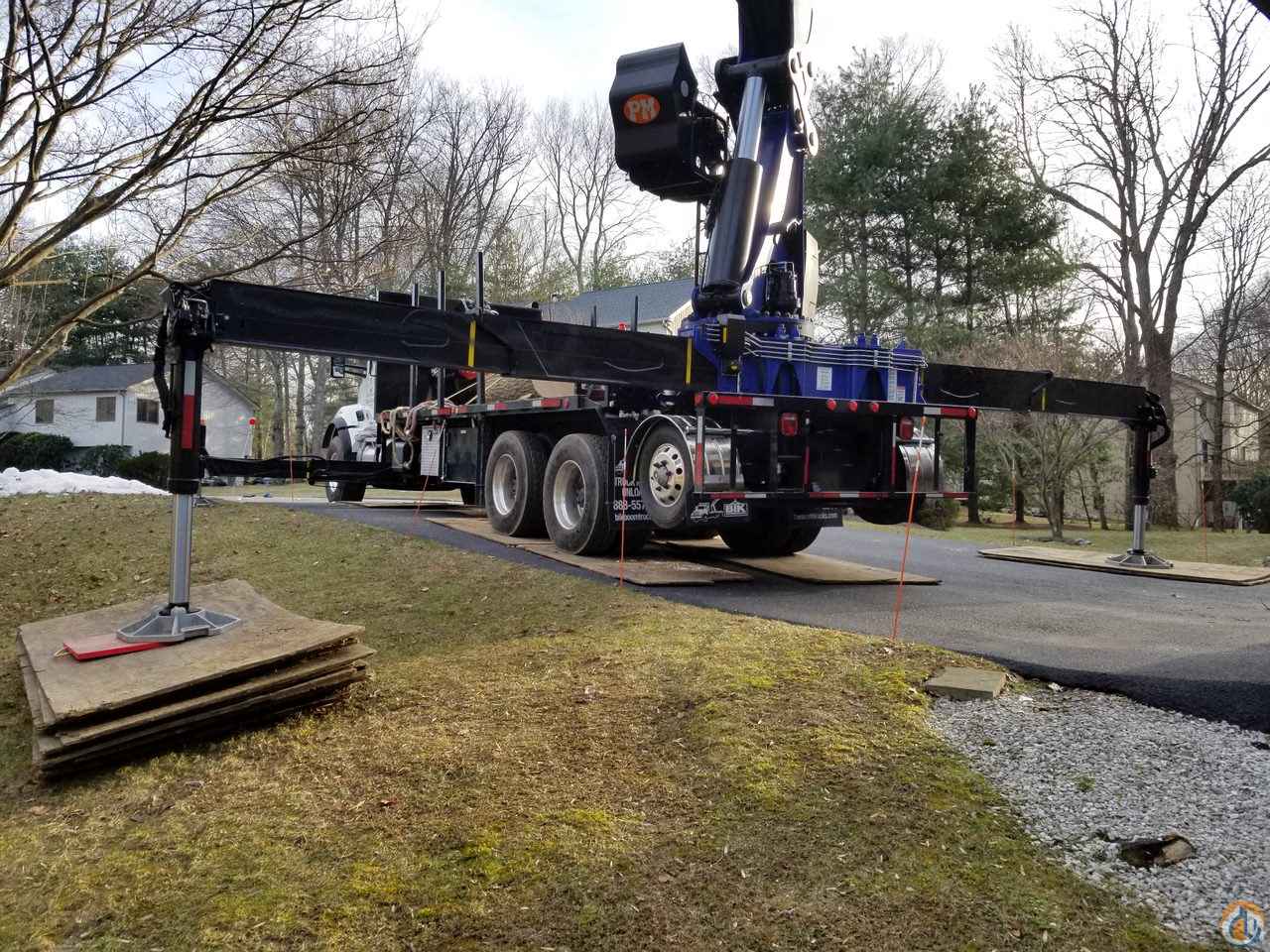

• 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – 360 degree full load chart stability, aux stab behind cab
• Hydraulic Oil Cooler, high pressure return filter and min. 100 –gallon hyd aluminum oil tank with gate valves mounted at front under deck
• 7 – Section DANFOSS Proportional Control Valve at Top-Seat with Ladder Access – & SCANRECO Proportional Radio Remote Control
• PM – Power Tronic onboard load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
• Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode

DECK DETAILS

19’ 6” x 102” Steel Flat Deck:

• Steel headboard w/ Side Wrap Winches
• Steel Checker plate Floor
• Winch bar and holder
• 2-Deck access Ladders at Headboard
• 2-Ladders at rear
• Reflectors and Mud-flaps
• 6 – Sliding Winches and track under deck.
• Alum Storage Boxes

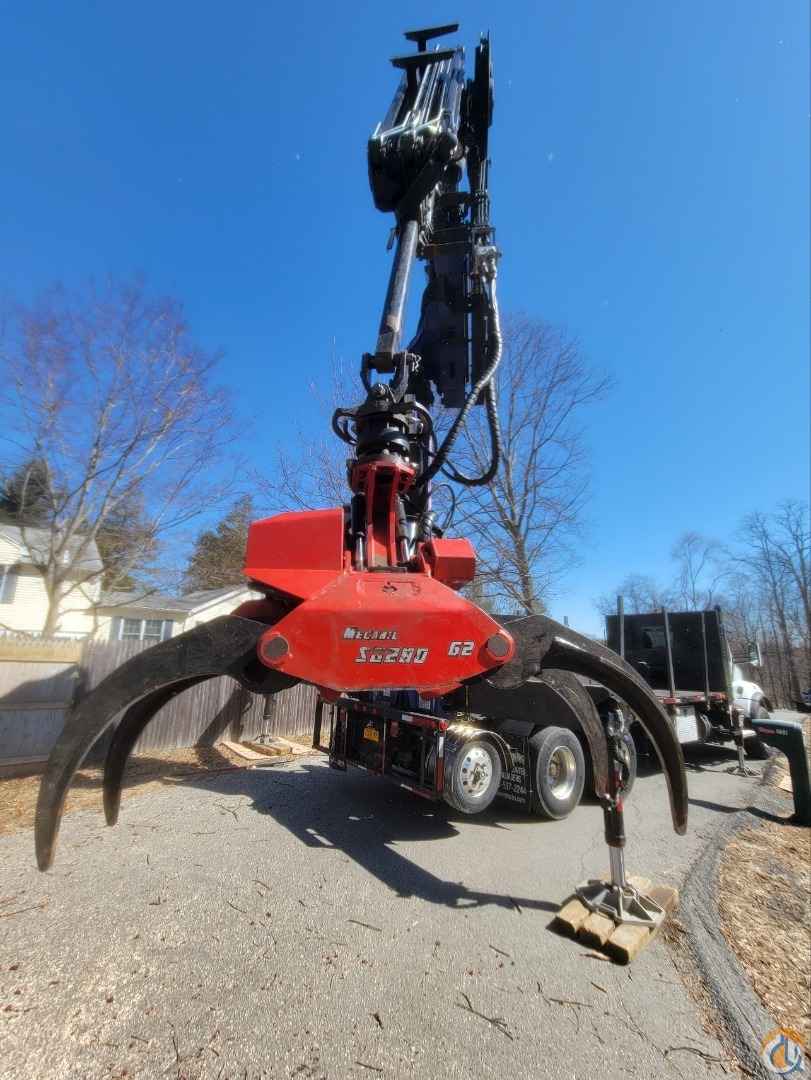

• Grapple saw holder with SG-280 saw
