BOOM DETAILS

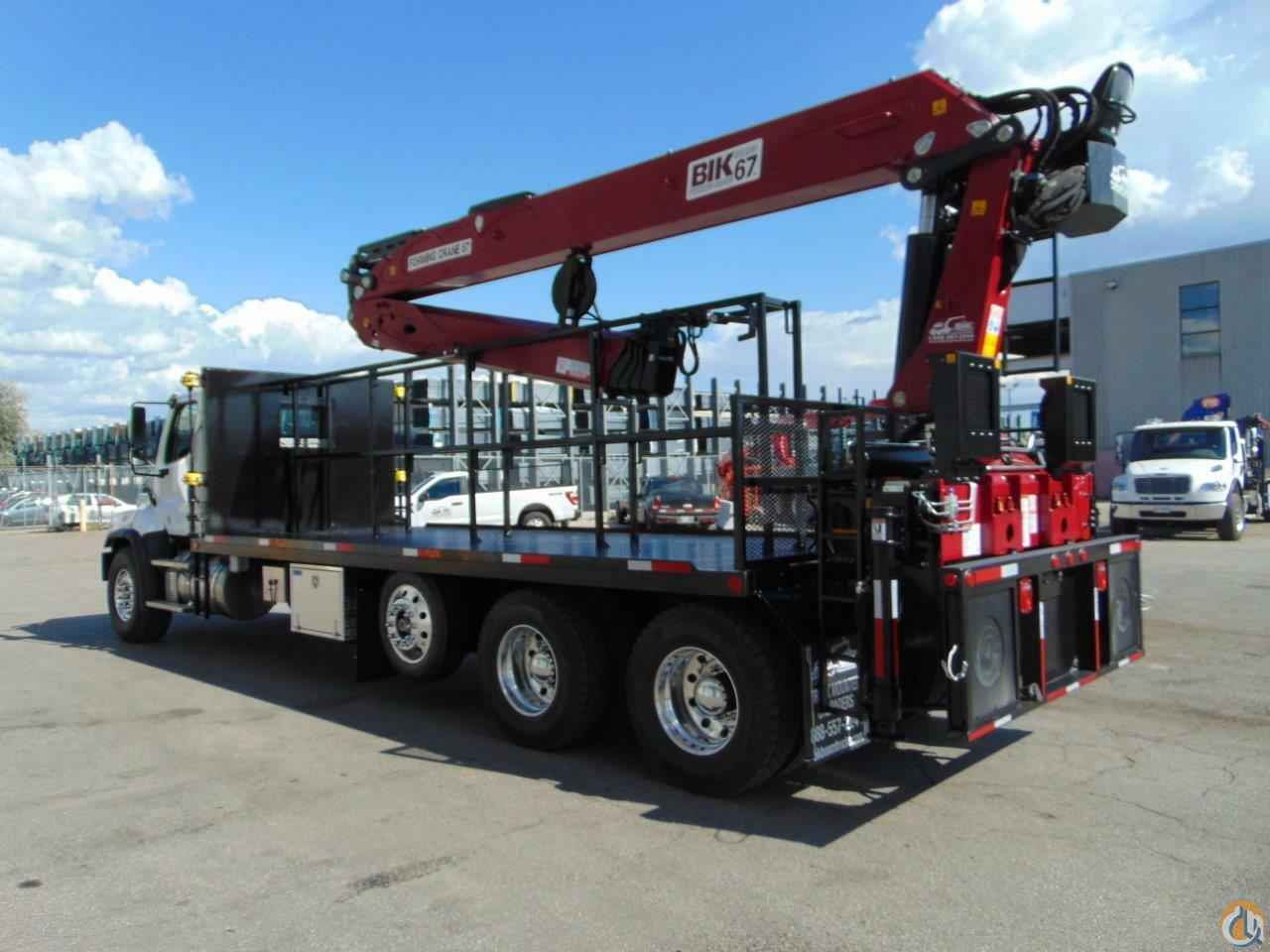

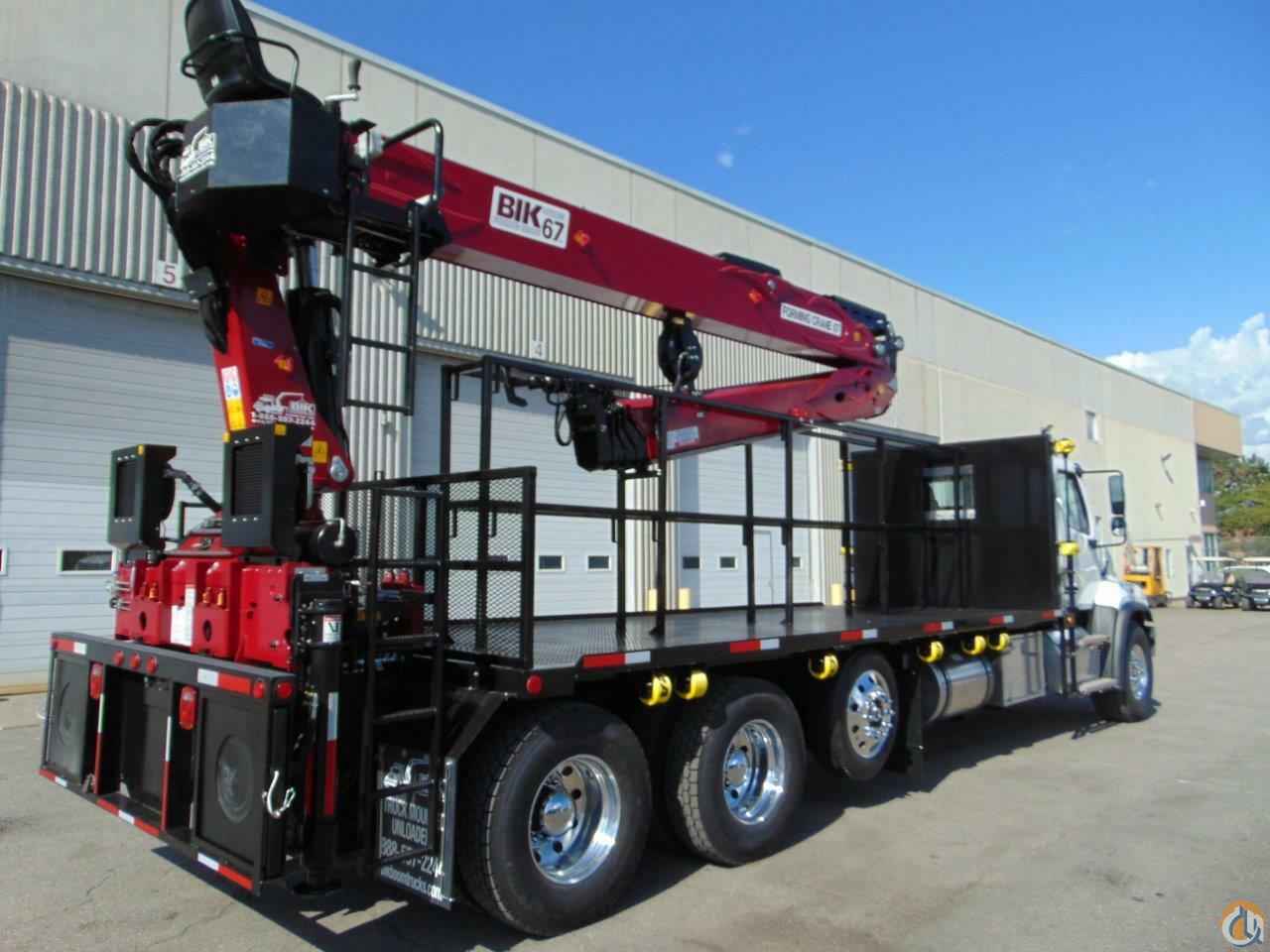

NEW – BIK SERIES FORMING CRANE FC-67 UNLOADER
- 4 Hyd. Extensions to 67’ Horizontal Reach
- Rearward 70’ Simulated Reach with Reverse-Mount
- Horizontal Capacities are:
- 7,400 lb @ 28’
- 3,100 lb @ 55’
- 2,600 lb @ 62’
- 2,300 lb @ 67’
- Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
- Rack & Pinion Type 390 Degree Non-Continuous Rotation, Mechanical Stop Between Main Boom and Boom Unit
- Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
- Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
- Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
- Two Hydraulic Oil Coolers, High Pressure Return Filter and Return Line Filter
- Under Deck Frame Mounted 70-Gal Aluminum Oil Tank

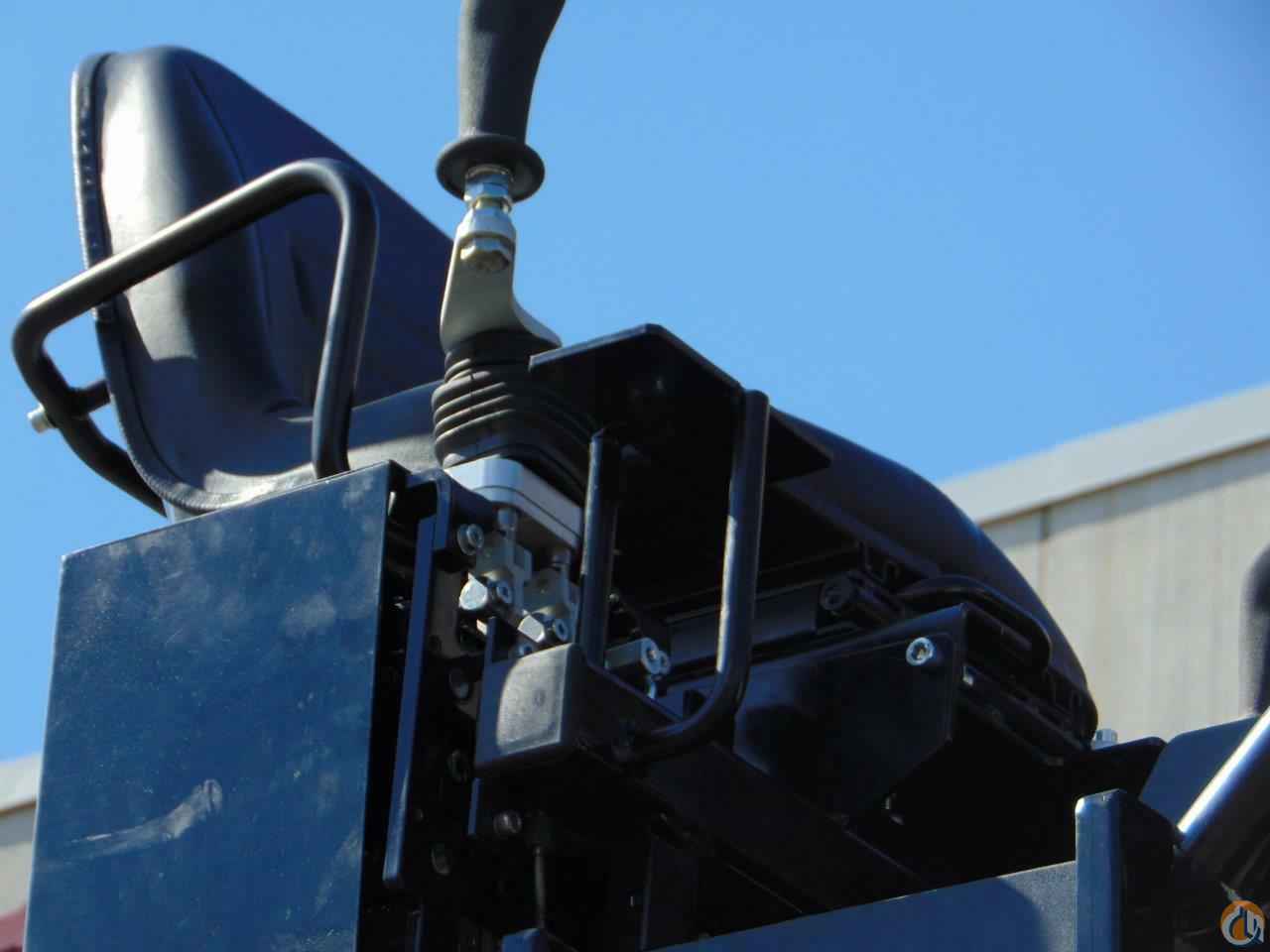

- DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
- Hydraulic Hook Rotator with T-Hook at End of Boom

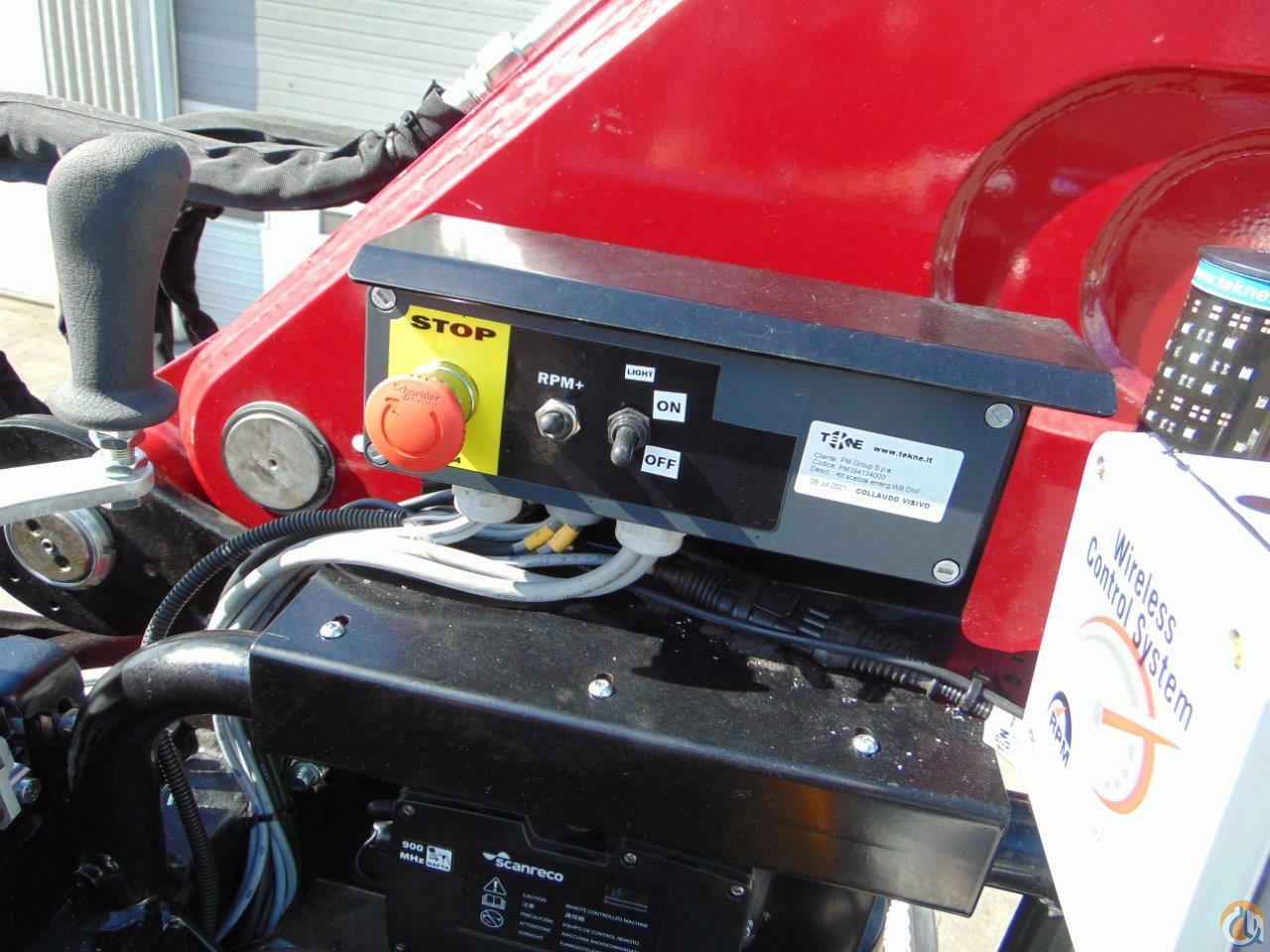

- SCANRECO Proportional Radio Remote Control Included: 2 Batteries, In-Cab Charger, and Back-up Cord
- Crane Painted BIK Red, Load Chart on Boom in FT. & LBS.
- Load Tested & Installed End-of-Frame on Pre-Engineered Sub Base
DECK DETAILS
NEW – 22’ 4” X 102” STEEL CHECKER PLATE FLAT DECK INSTALLED
- Checker Plate Steel Deck Surface
- 66”+ Headboard with Removable Center Divider and 2” Lip Around Deck for Form Cage Handling
- 24” Removable Rear Tailboard, Winch Bar Holder and Winch Bar
- Ladder, Reflectors and 5 Side Lights
- Integrated Torque Box with X-Bracing and Sheer Plating Mount to Frame for Optimum Stability
- Primed/Painted Gloss Black
TRUCK DETAILS

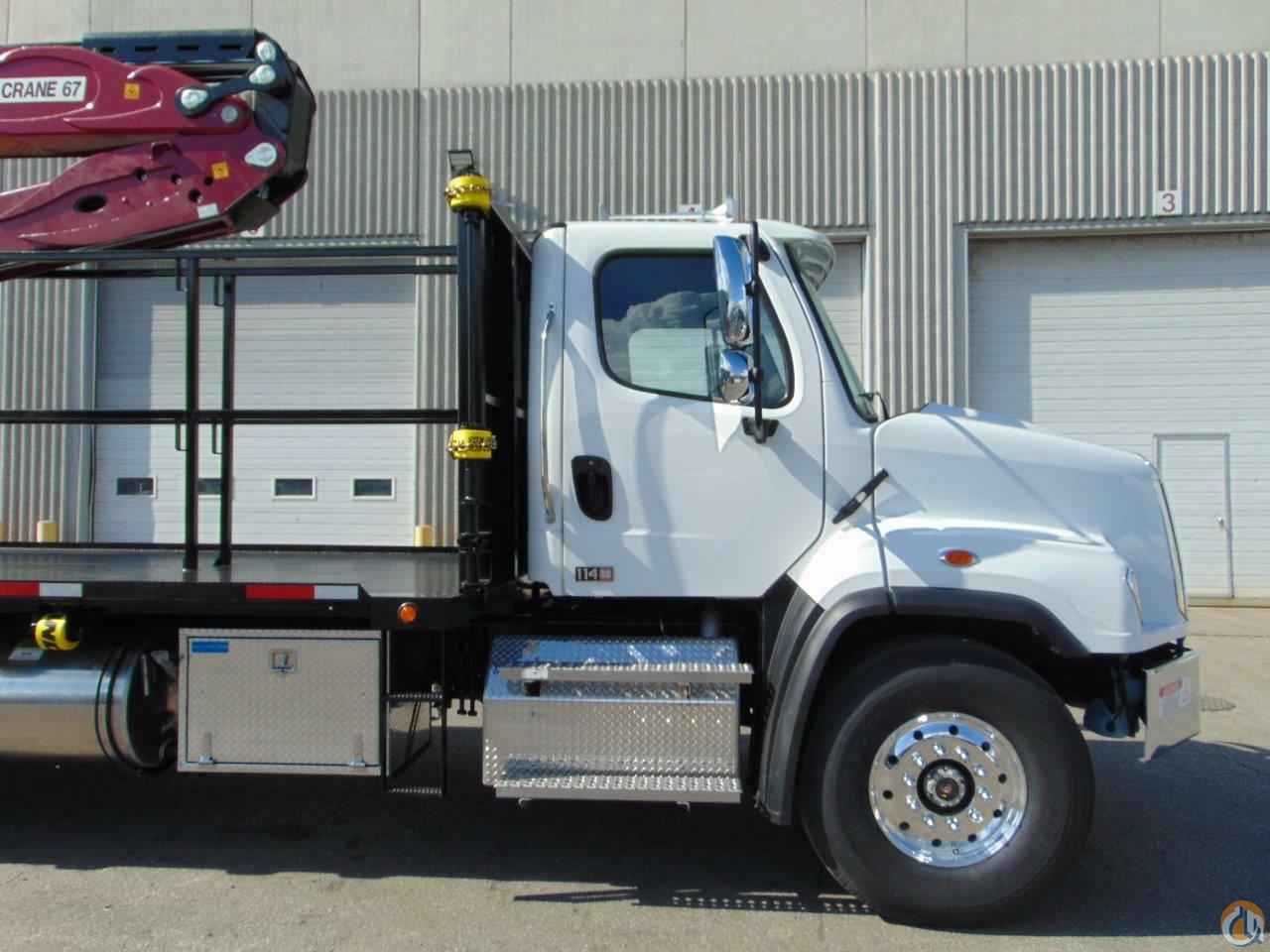

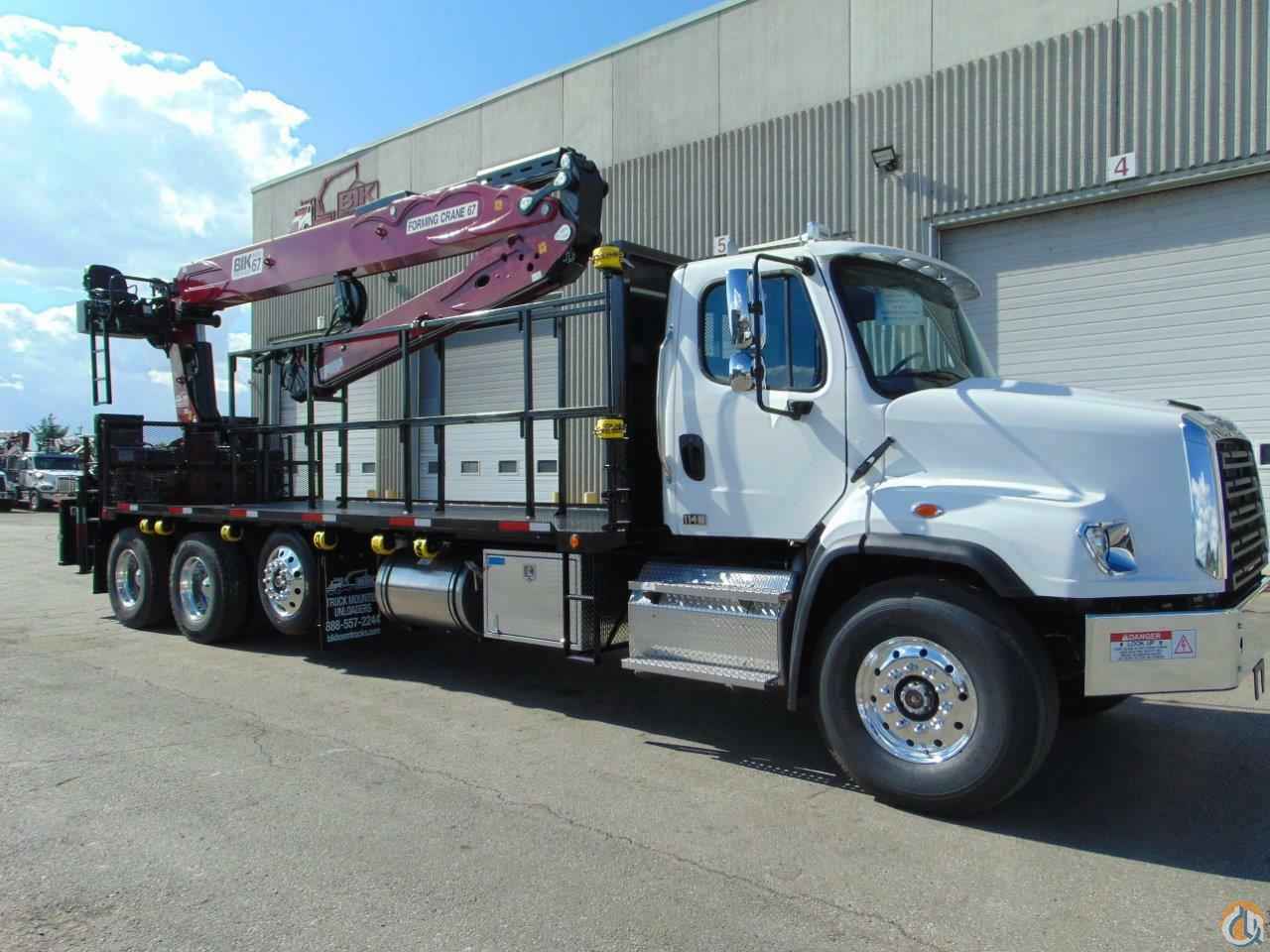

New – Freightliner 114SD 4-Axle Diesel Truck: 79,000 lb GVWR
- 12L Cummins Desiel, 460 hp, Fuller 8LL stand trans
- 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
- 13,000 lb self steer lift axle ahead of t/a
- 46,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on aluminum rime, Double-Frame Chassis
- Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, engine block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…
Also Included:
- Two sets of Aluminum stabilizer pads with holders mounted on truck
- 24” aluminum checker plate storage box, hydraulic rotator
- 1” drawplate installed at rear
