Boom Details

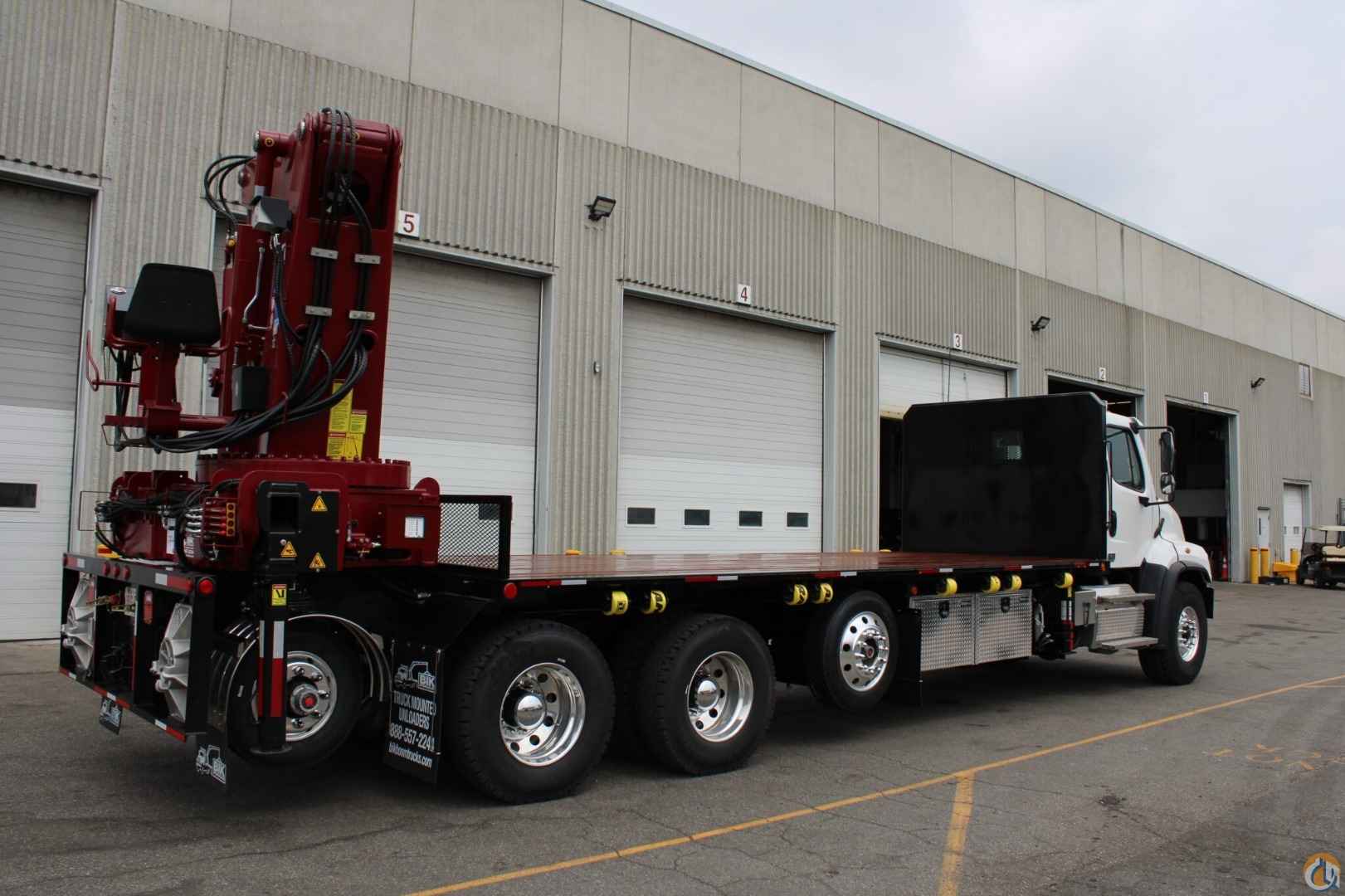

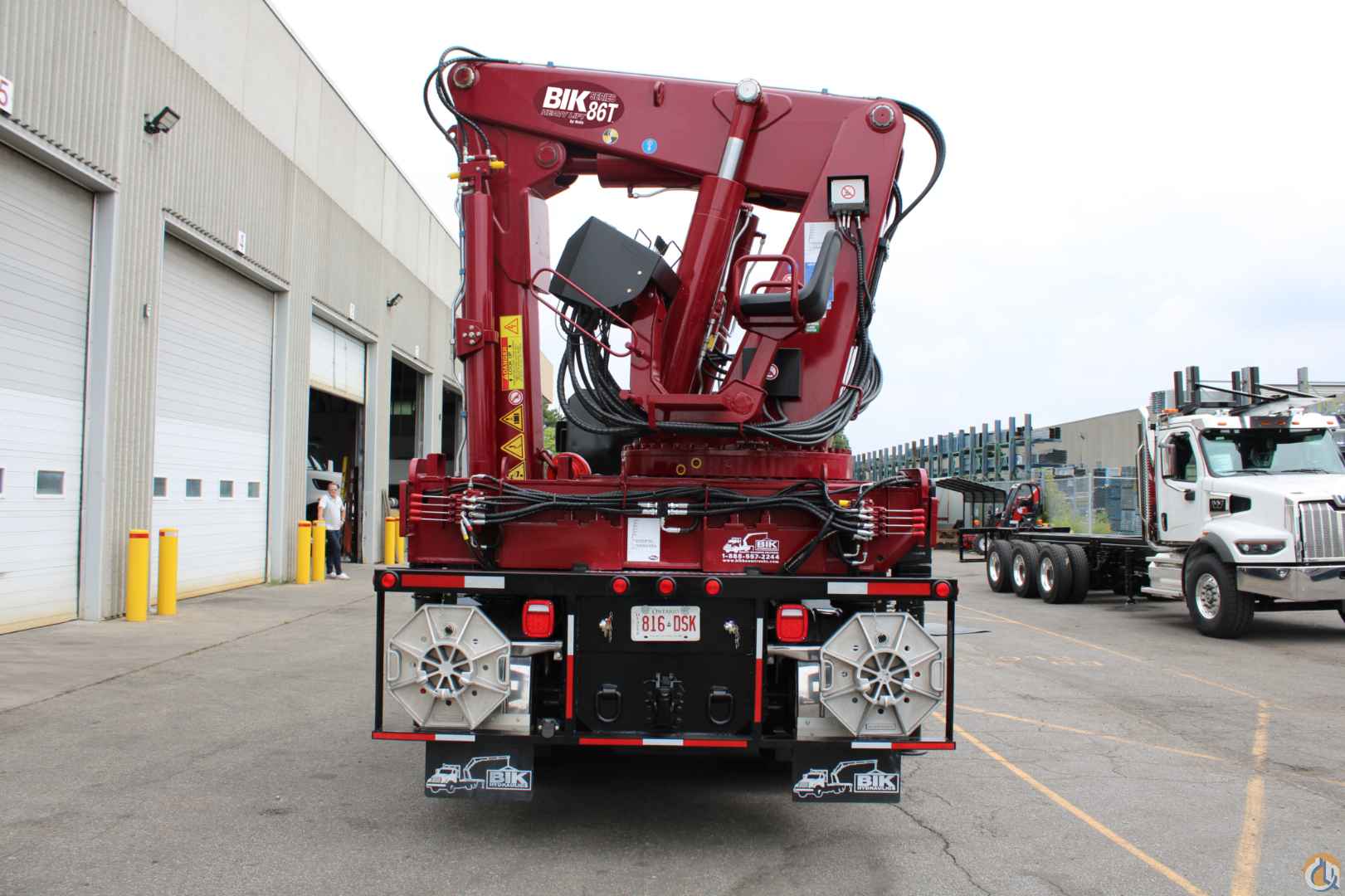

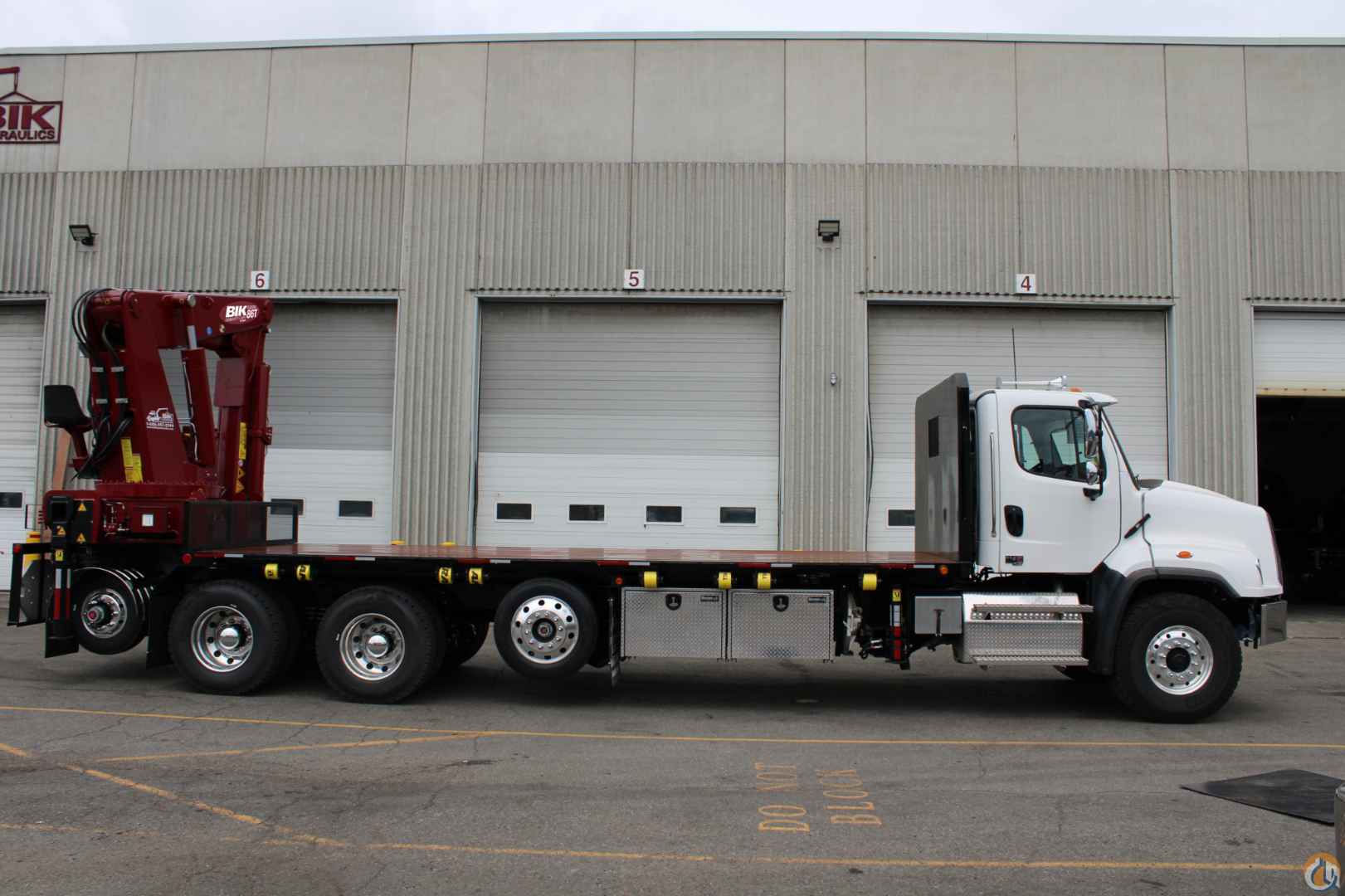

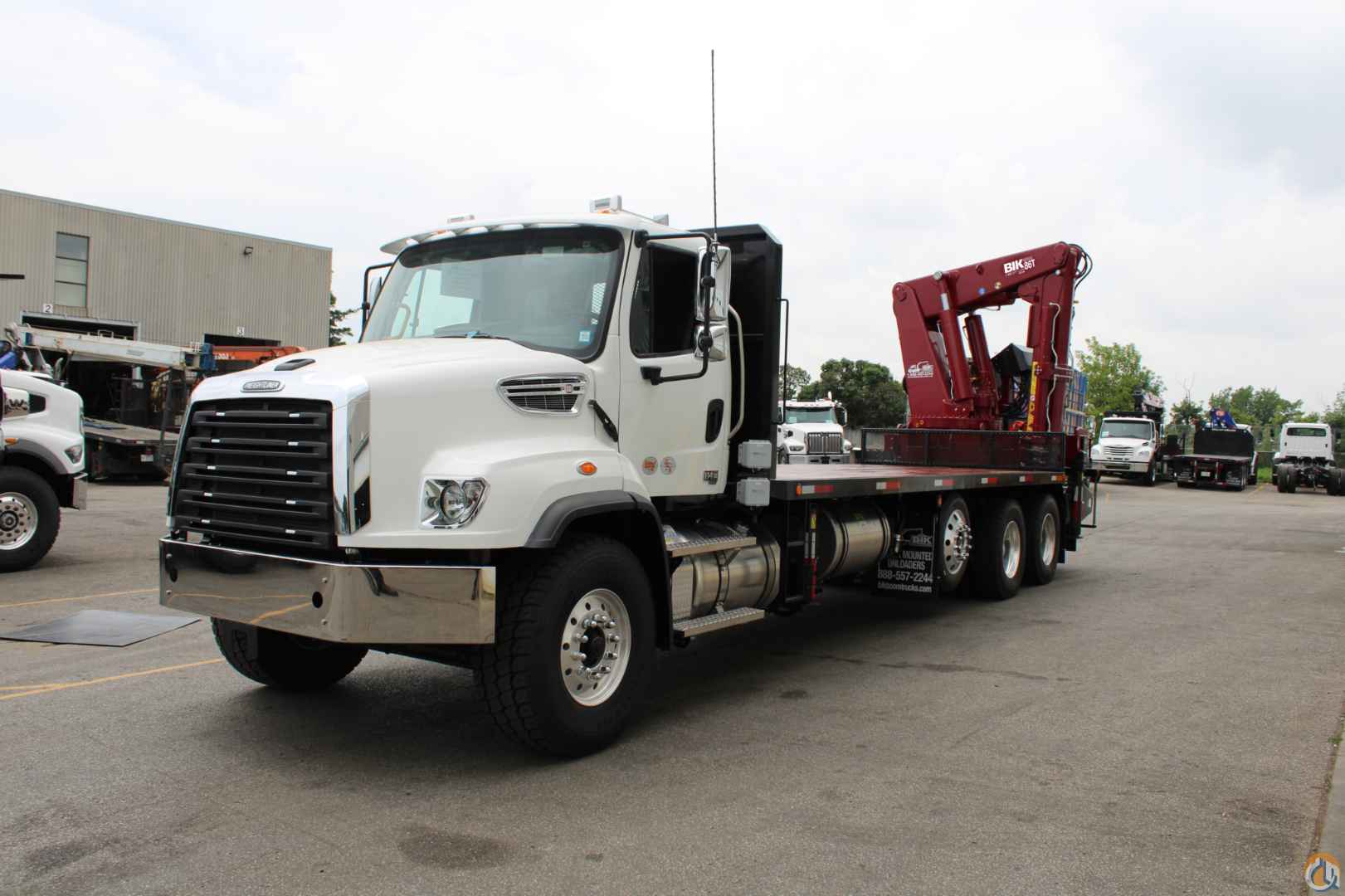

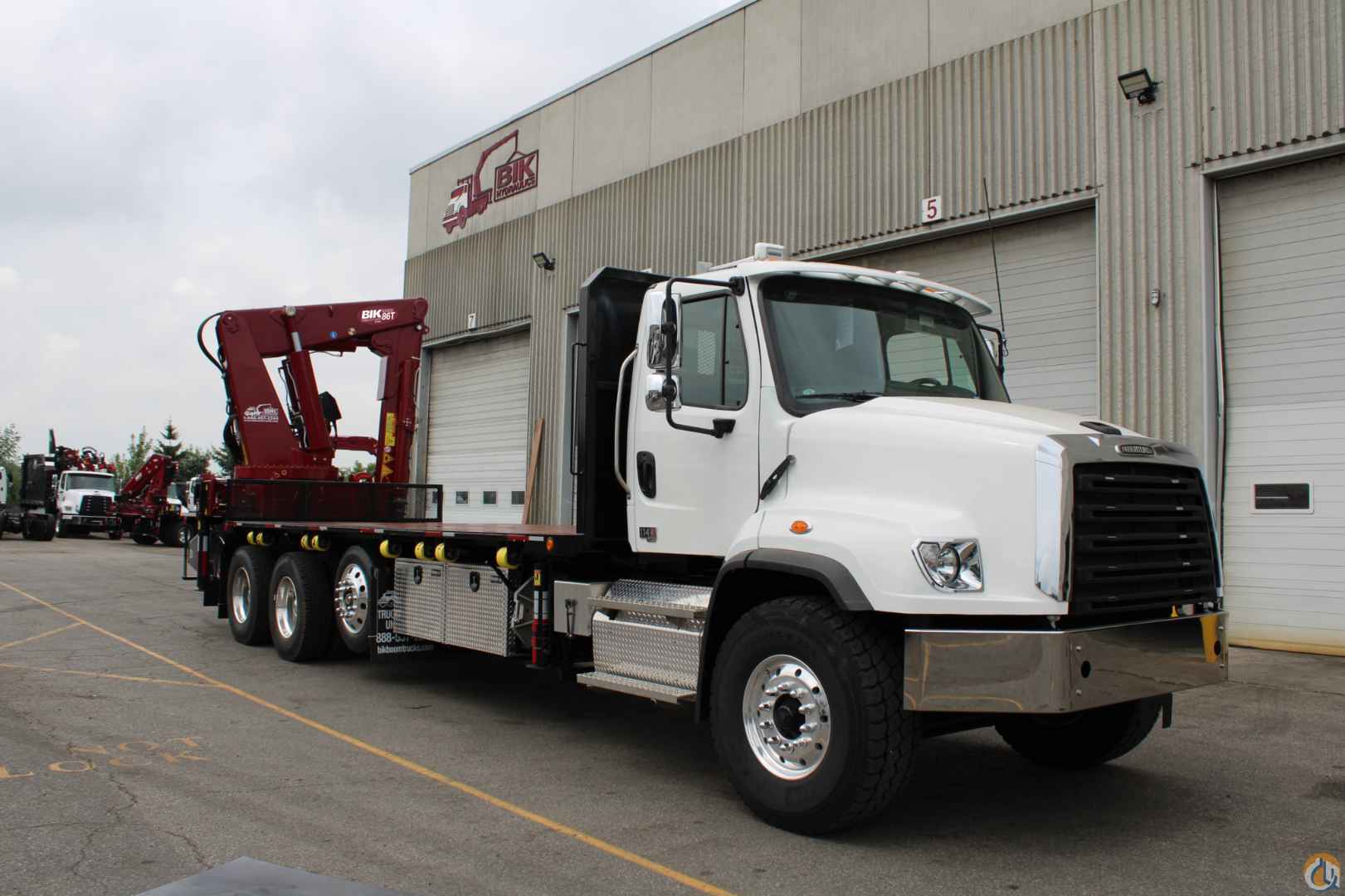

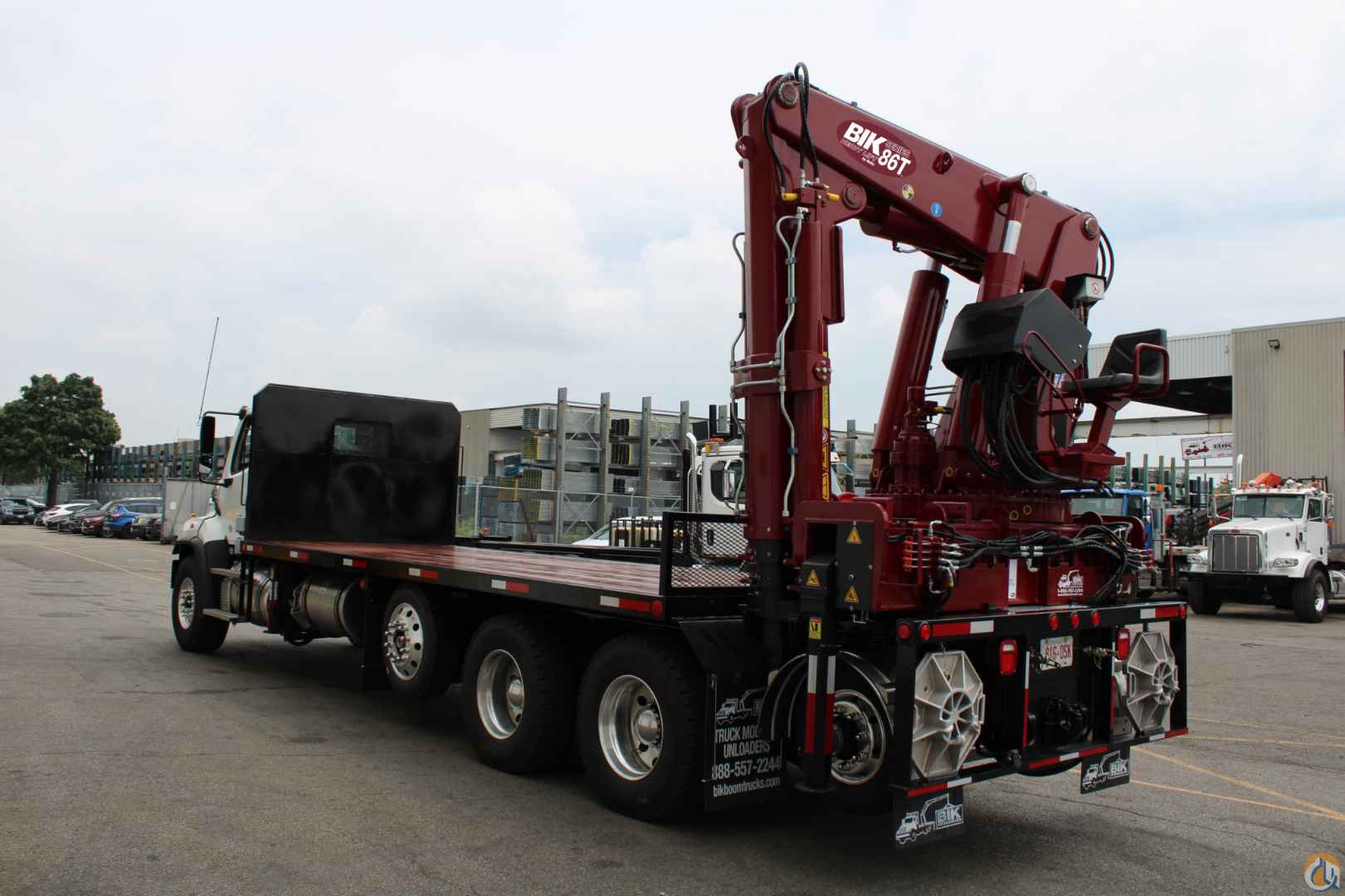

New – BIK “Heavy-Lift” Series HL-86T Knuckle Boom – (aka: Heila 70000)
- 86 ton/m – 3 -hyd extensions to 28’ of hyd reach
- HORIZONTAL Capacities:
- 62,525 lb at 8.5’
- 38,000 lb at 14’
- 30,550 lb at 18.5’
- 23,330 lb at 23’
- 17,860 lb at 28’
- Installed END OF FRAME on shear-plated Sub Frame by BIK
- prepped, primed and painted
- New Air Operated PTO
- Hydraulic Pump, Supply and Return Lines
- Hydraulic tank mounted on truck frame w/ shut-off valve
- 12V connections to radio remote control
- Load Testing and operator orientation .
Standard Features include:
- DANFOSS Proportional Valve Controls – single sided operator control station w/ fully proportional operator control
- SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
- CENTERED KNUCKLE / No off-set, DUAL MAIN LIFT CYLINDERS and DUAL EXTENSION CYLINDERS: for un-matched performance for Heavy Lifting
- PLANETARY PEDESTAL – CONTINUOUS BOOM ROTATION – Superior Control & Turning Torque, with reduced lifetime maintenance and wear
- Hydraulic OUT and DOWN 2-sided, independently controlled stabilizers beneath pedestal.
- Radio Remote includes: 6-micro speed reducing settings from handheld unit, emergency stop, 2-batteries with in-cab charger, 50’ back-up cord
- Load Holding Valves on each cylinder for Safety and Security of Operator and Load, JIC North American standard hydraulic fittings throughout.
