Boom Details

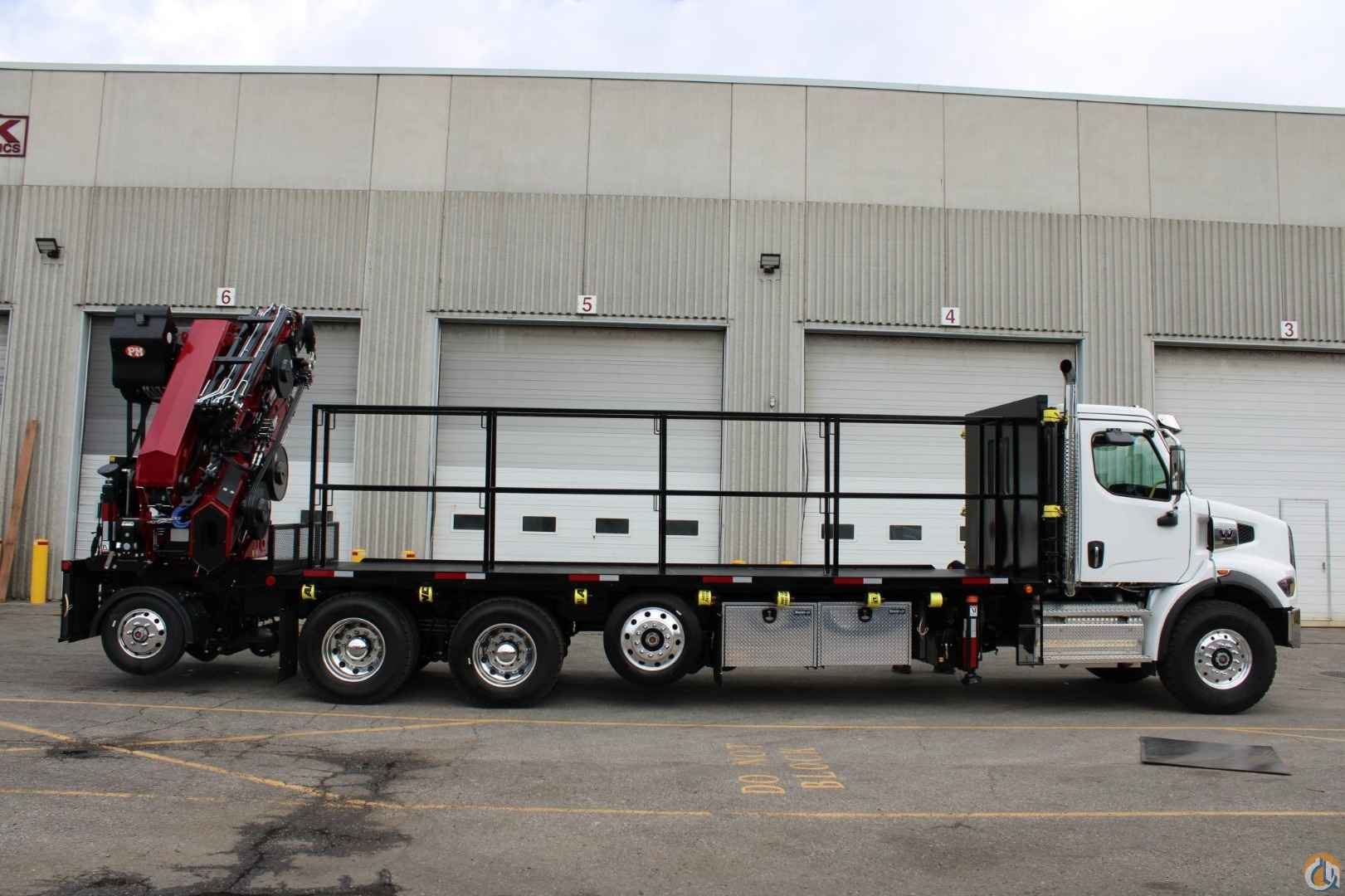

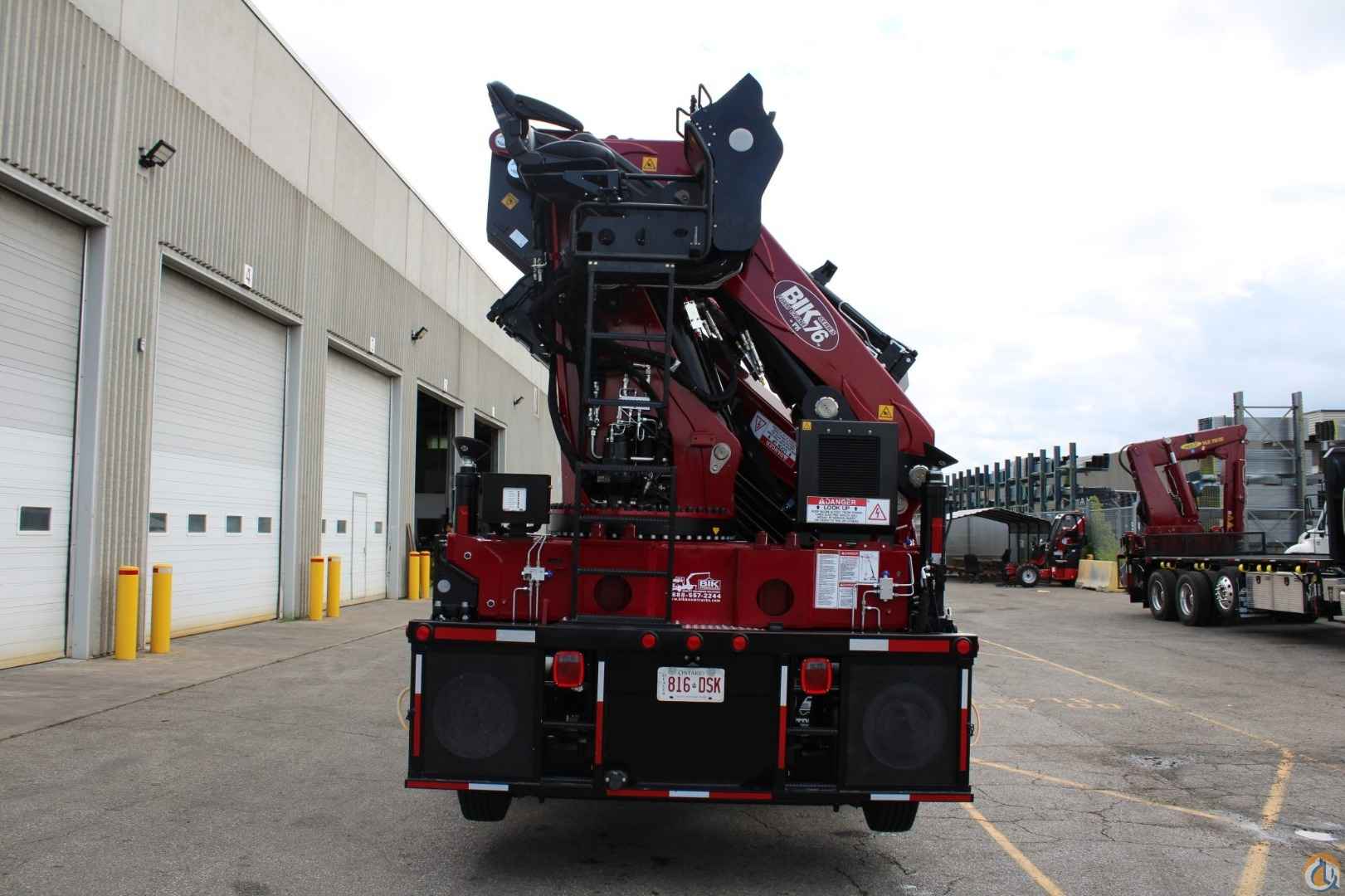

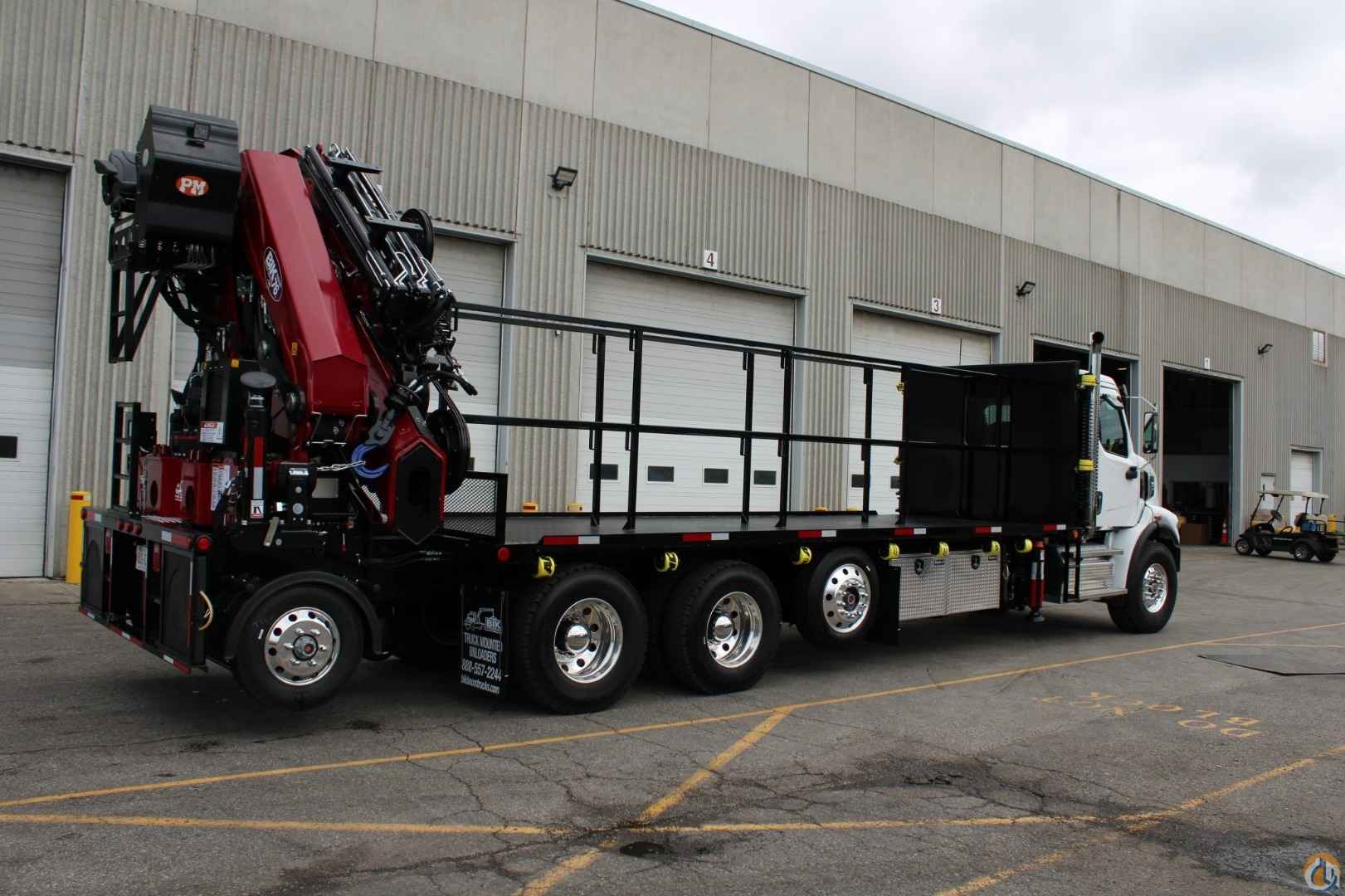

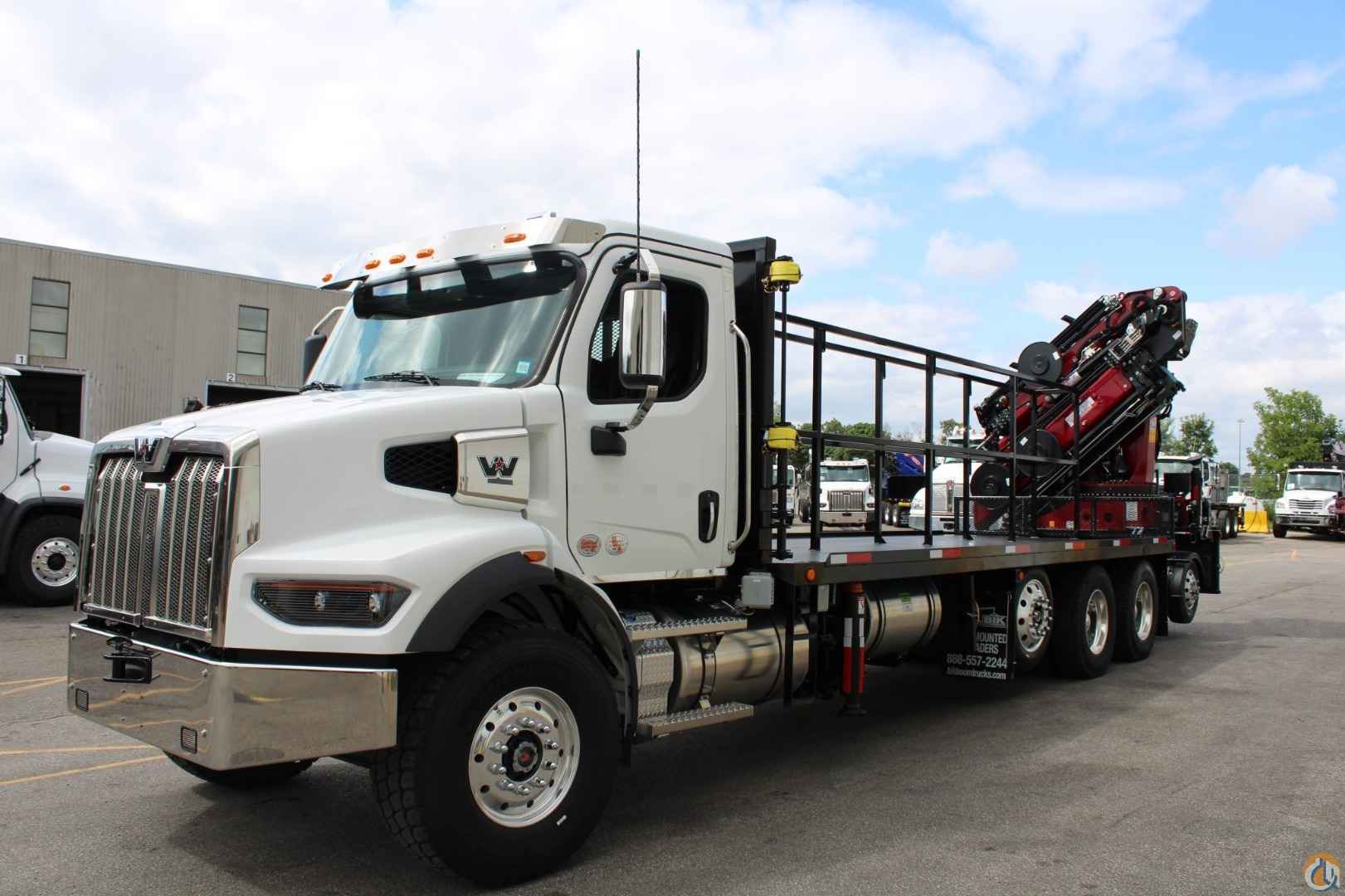

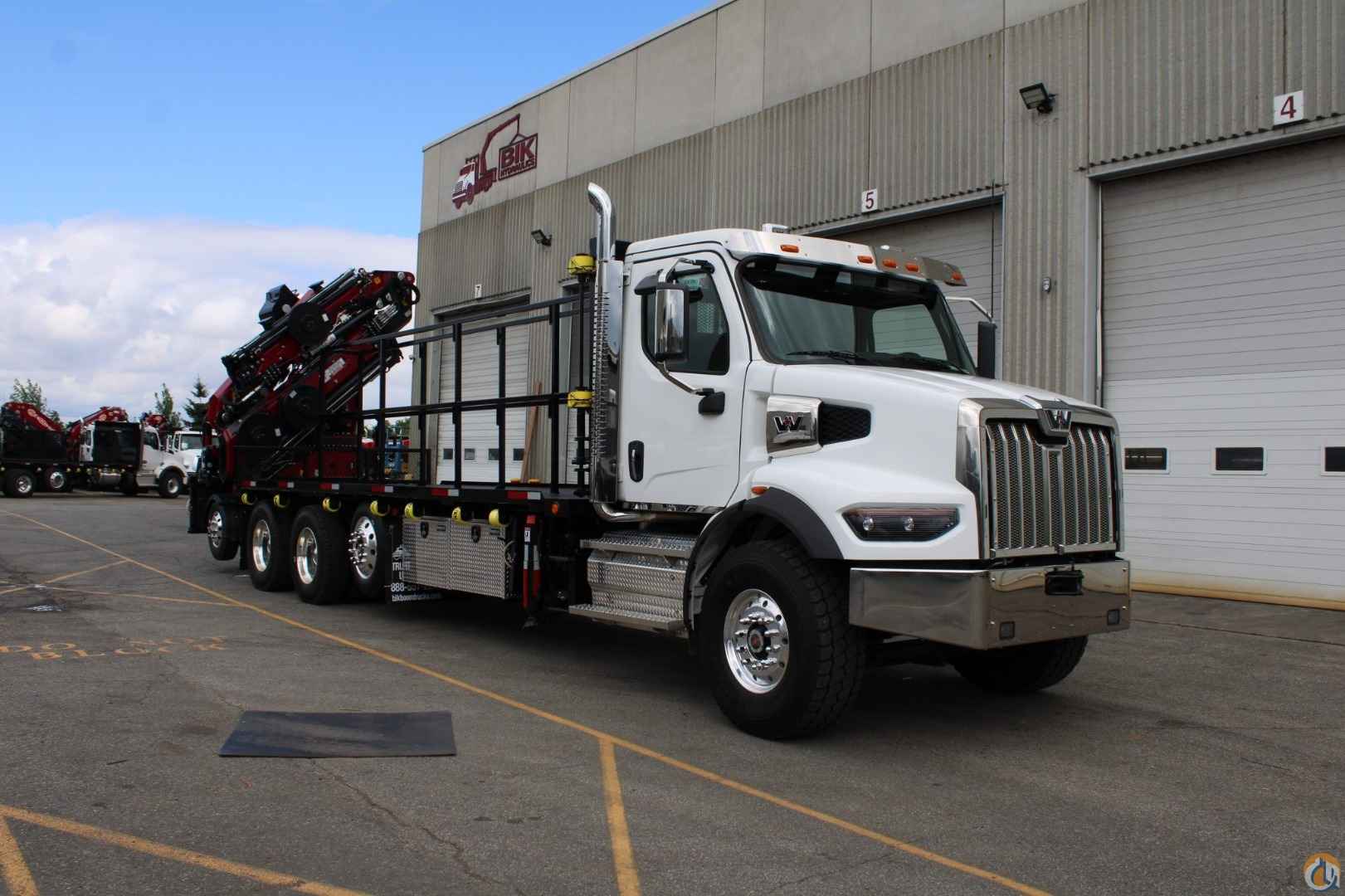

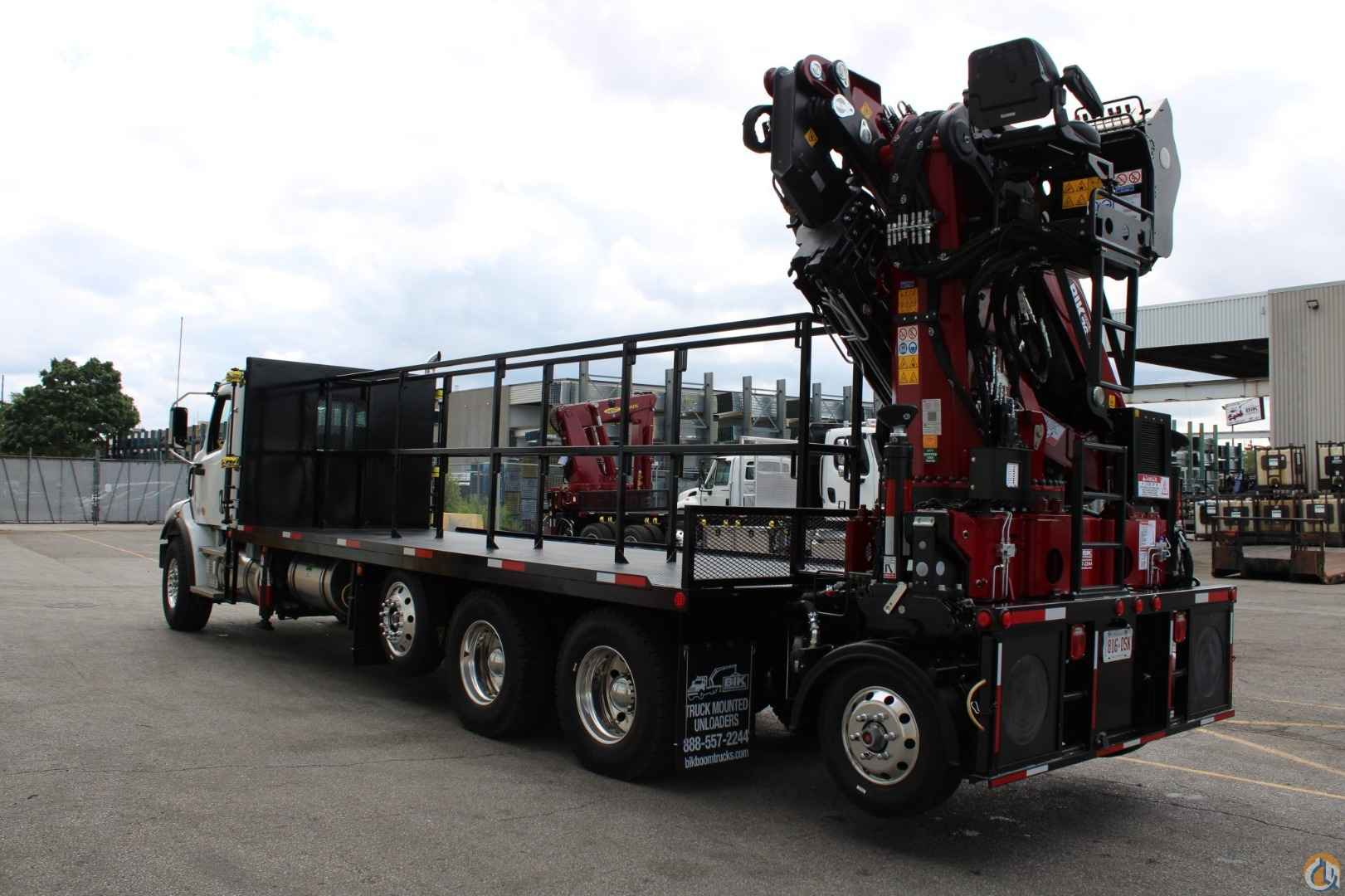

NEW – BIK SERIES FORMING CRANE FC-67 UNLOADER

• 51.5 ton/m Folding Hyd 4 ext Knuckle Boom with Detachable 5 ex jib-76′ Horizontal Reach
• Main Boom Horizontal Capacities:
  • 22,600 lb @ 14′
  • 18,880 lb @ 19’6″
  • 11,970 lb @ 25′
  • 9,500 lb @ 30′
  • 7,810 lb @ 38’5″
• Jib Horizontal Capacities:
  • 3,850 lb @ 48’
  • 3,310 lb @ 52’
  • 3,030 lb @ 59’
  • 2,540 lb @ 64’
  • 2,540 lb @ 64’
  • 2,200 lb @ 76’
• PM Power-Link connections at Main, Knuckle & Jib Cylinders, Double pilot operated on slewing and pilot opera ed check valves
• Powerful Planetary Gear Drive – Continuous Boom Rotation that can operate at severe angles without any electronic limitation
• Extra Wide Main outriggers at pedestal, double beam -hyd out & down 26′ 3″ span, Front Xtra Wide 21′ Span Aux Stabilizers
• Hydraulics Oil Cooler high pressure return filter and min. 100 -gallon hyd aluminum oil tank with gate valves mounted at front under desk
• Simplified Hydraulics – Hydraulic overload LLD protection and load holding valve – Offers Simplicity, Reliability

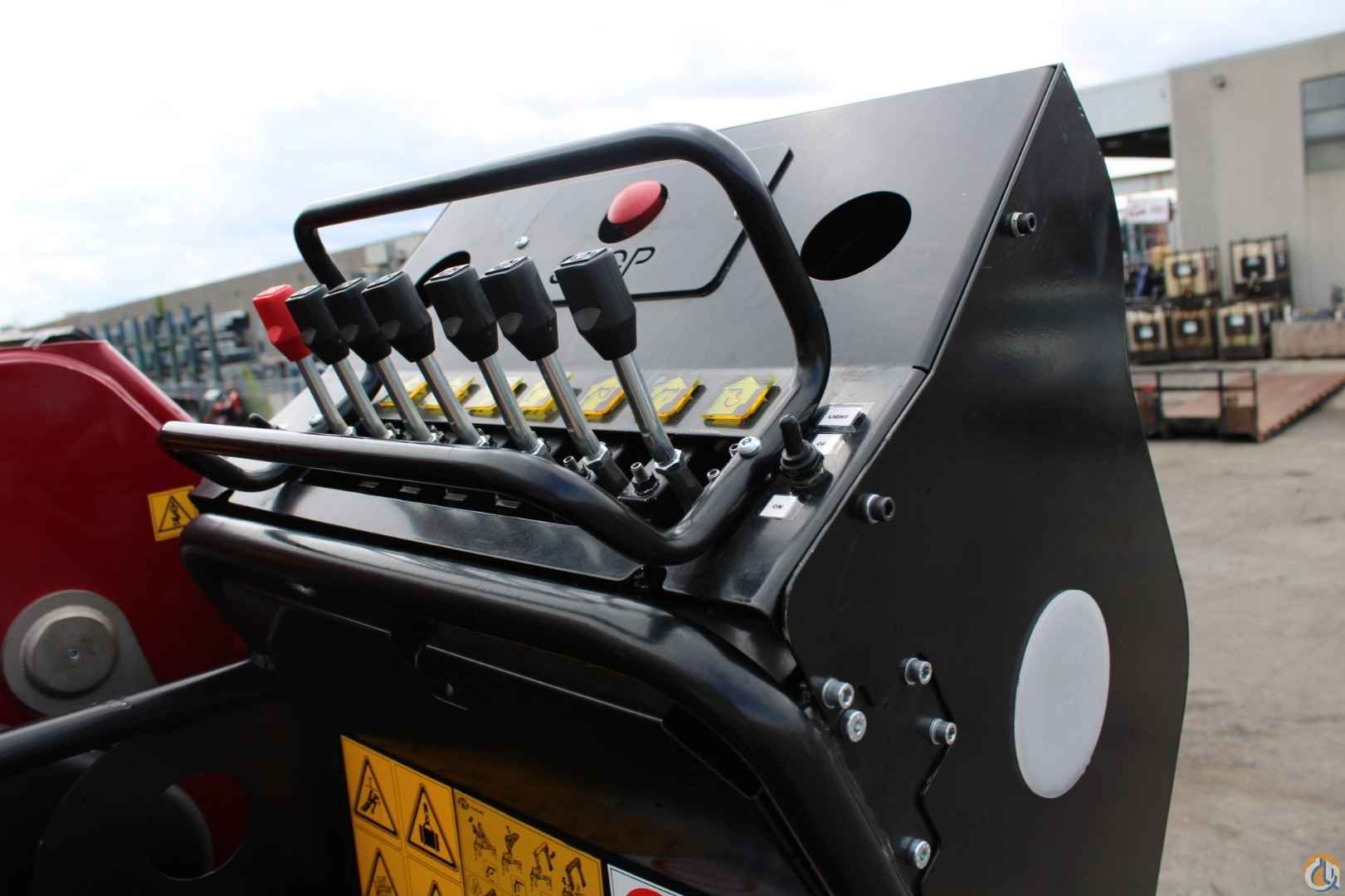

• Top Seat Controls – with access ladder to seat, manual levers –SCANRECO Radio remote with back up corded remote

Warranty: 1-Yr. part & labor on entire boom, 3-Yr. on Structural Components by PM – 24/7 Crane-Tech Support by BIK
Installed at rear with integral sub-frame, 3/8′ front and centre, sheer plating mount of sub base for max1m1zed torsion strength

Deck Details

NEW – 21′ “LOW PROFILE” Steel Checker plate Flat Deck (will accommodate up to 18 form cages)

• Installed on pre-engineered 6 main sub frame & extension with X-braces for Tortional support lied to truck frame by sheer plating at front, center and rear
• Side welded 3″ cross members to accommodate deck height at approx. 50″
• Checker plate steel deck surface, 66″ +headboard, 8 – under deck sliding tie-down Winch straps on passenger side
• Winch bar holder and winch bar, dual ladder access at front, reflectors and side lights as required by DOT standards.
