Boom Details

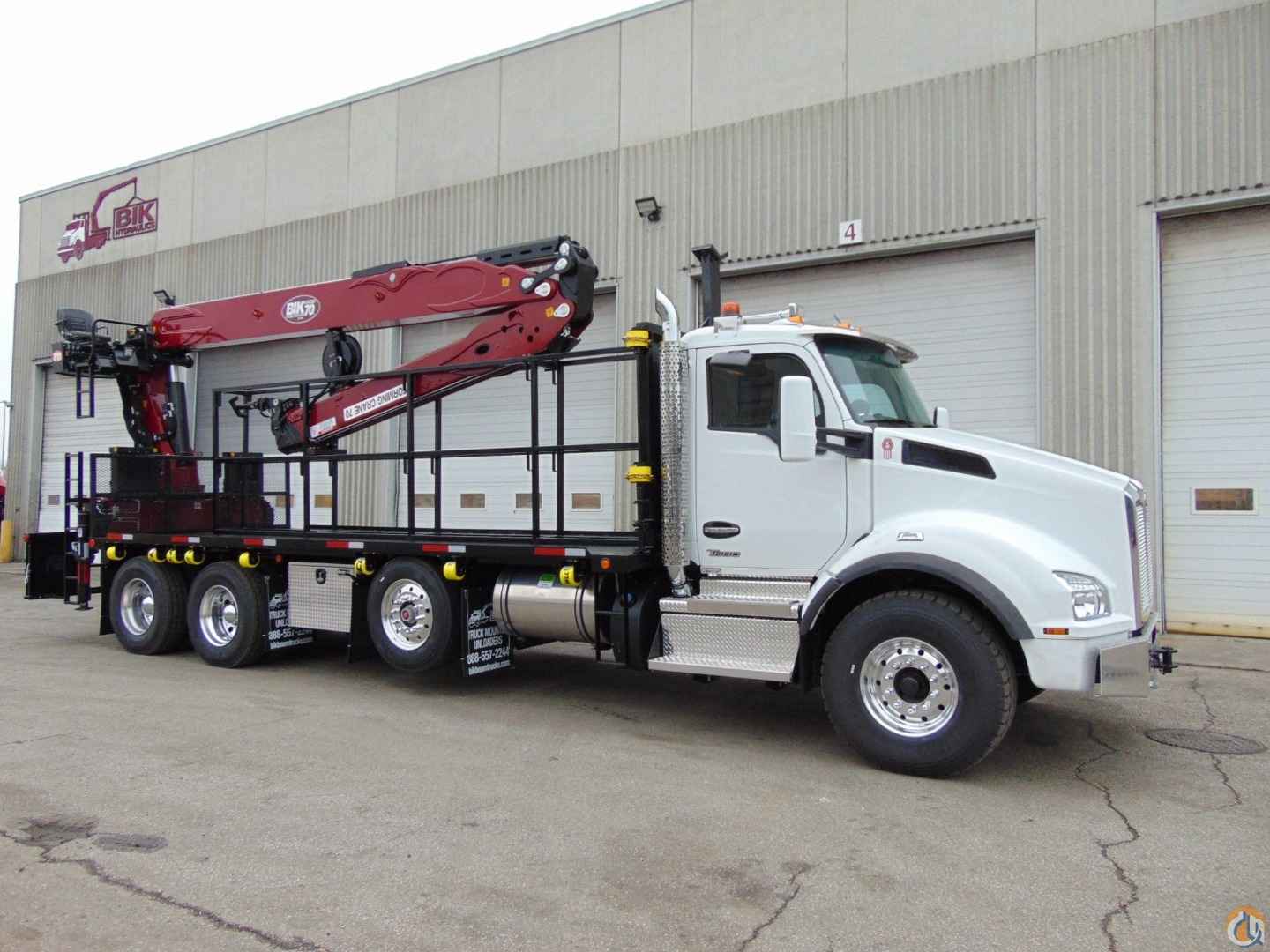

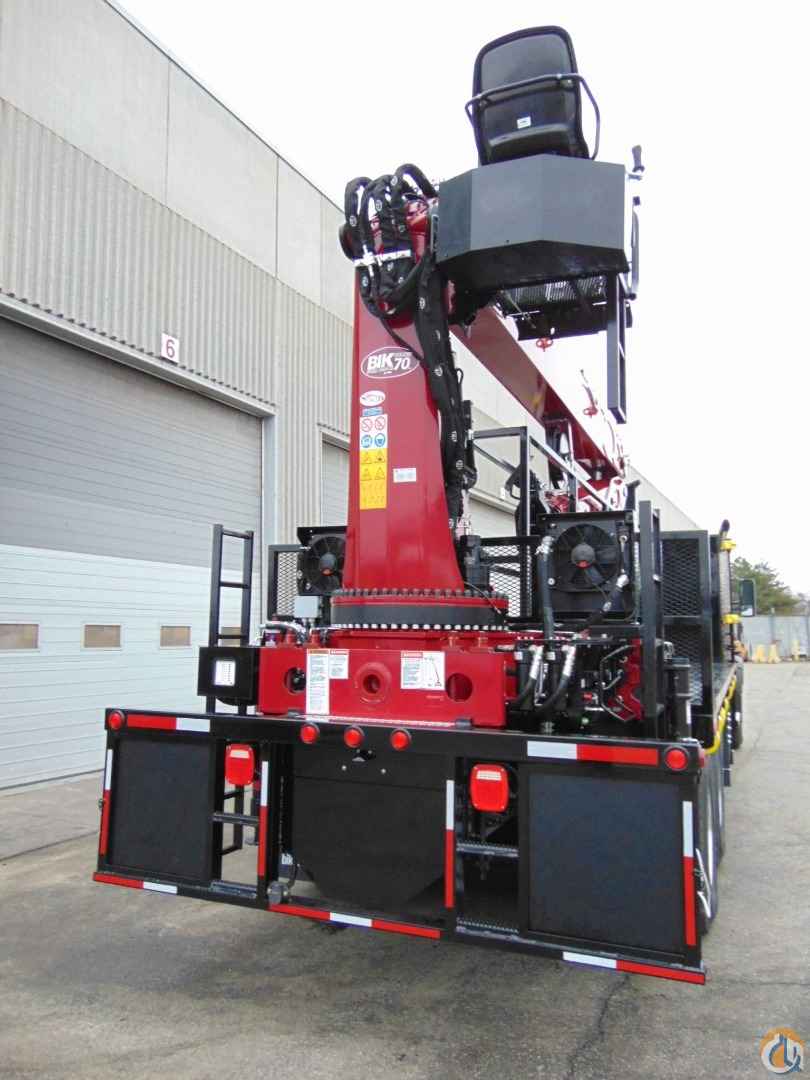

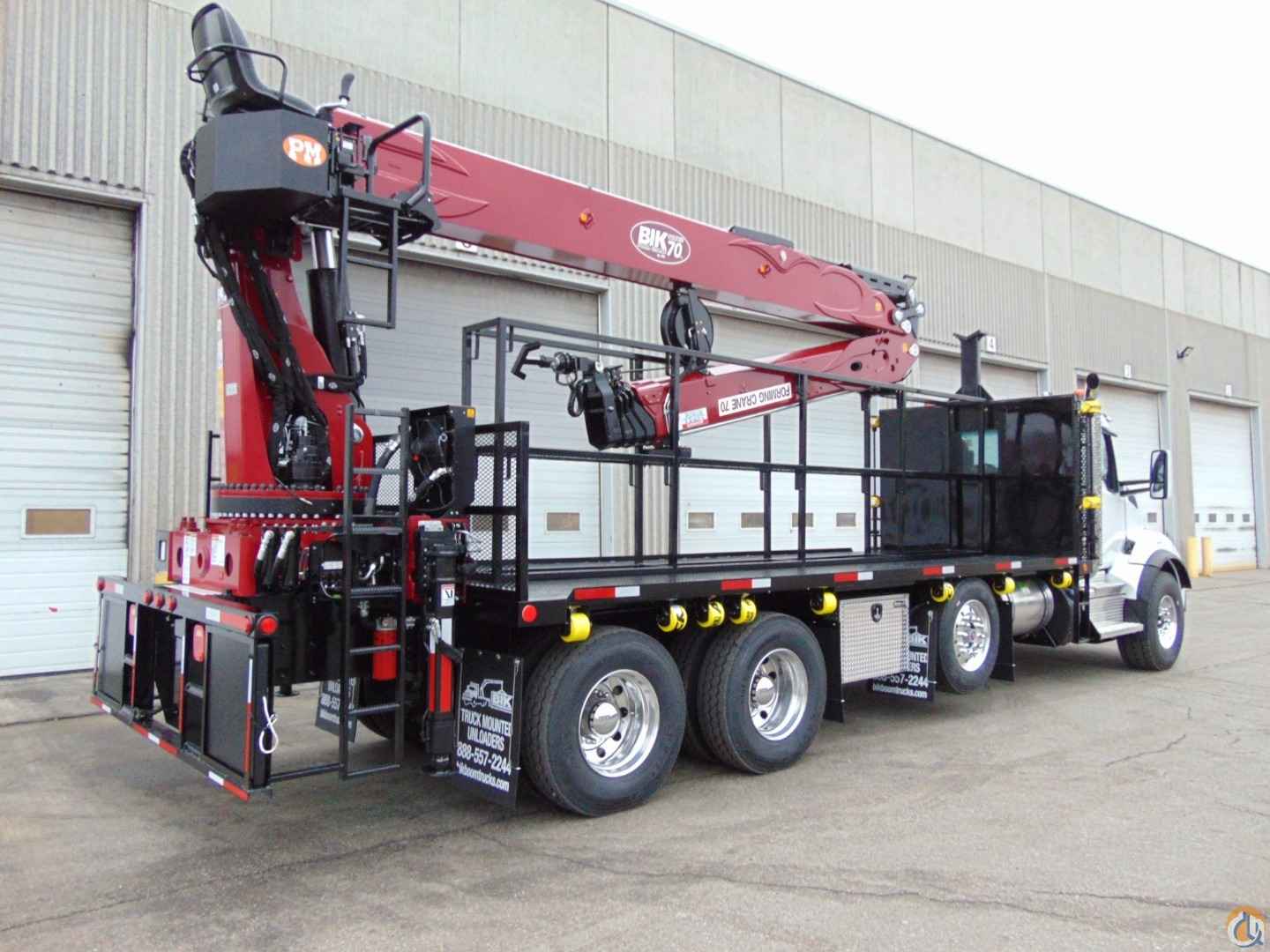

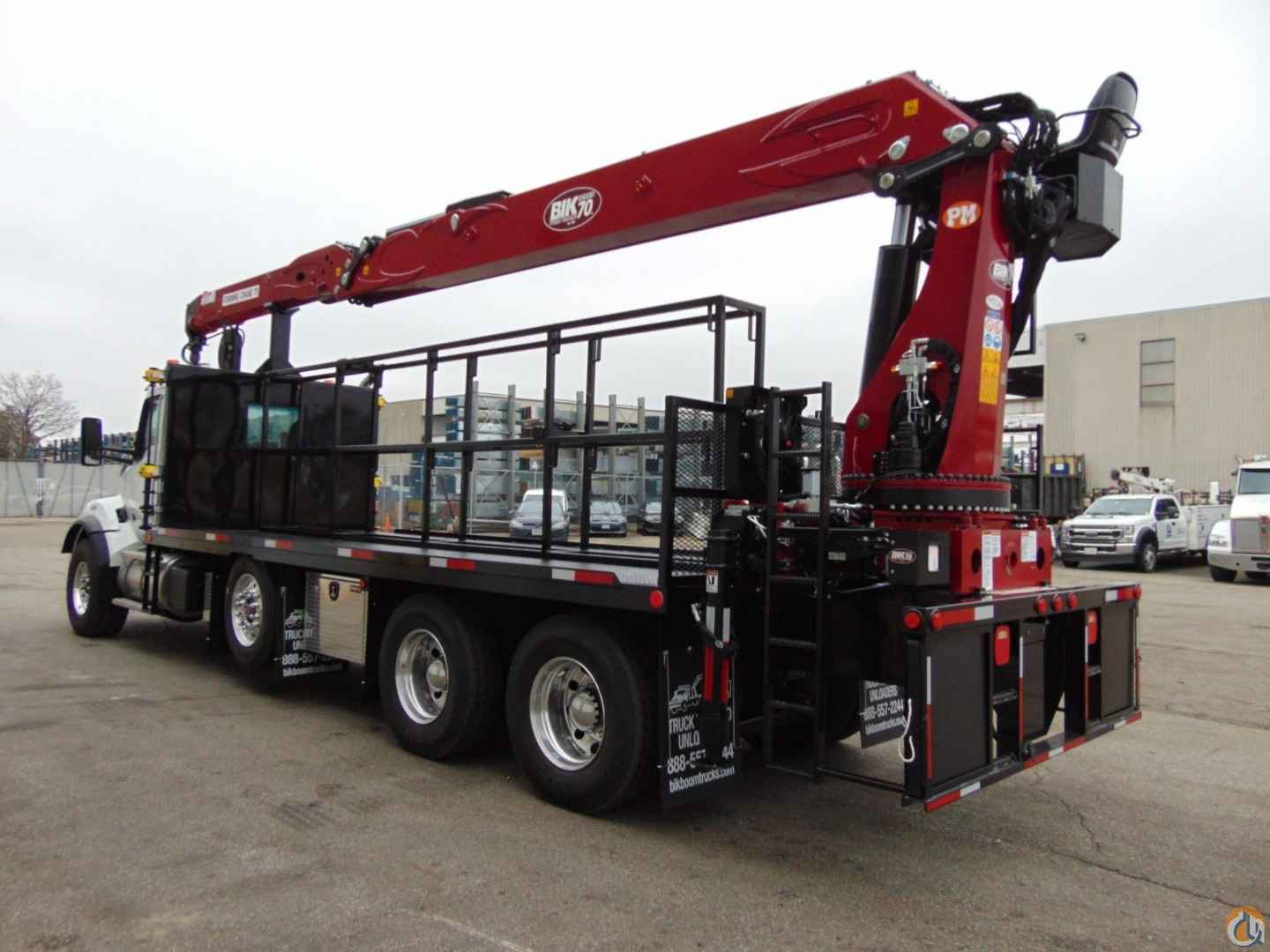

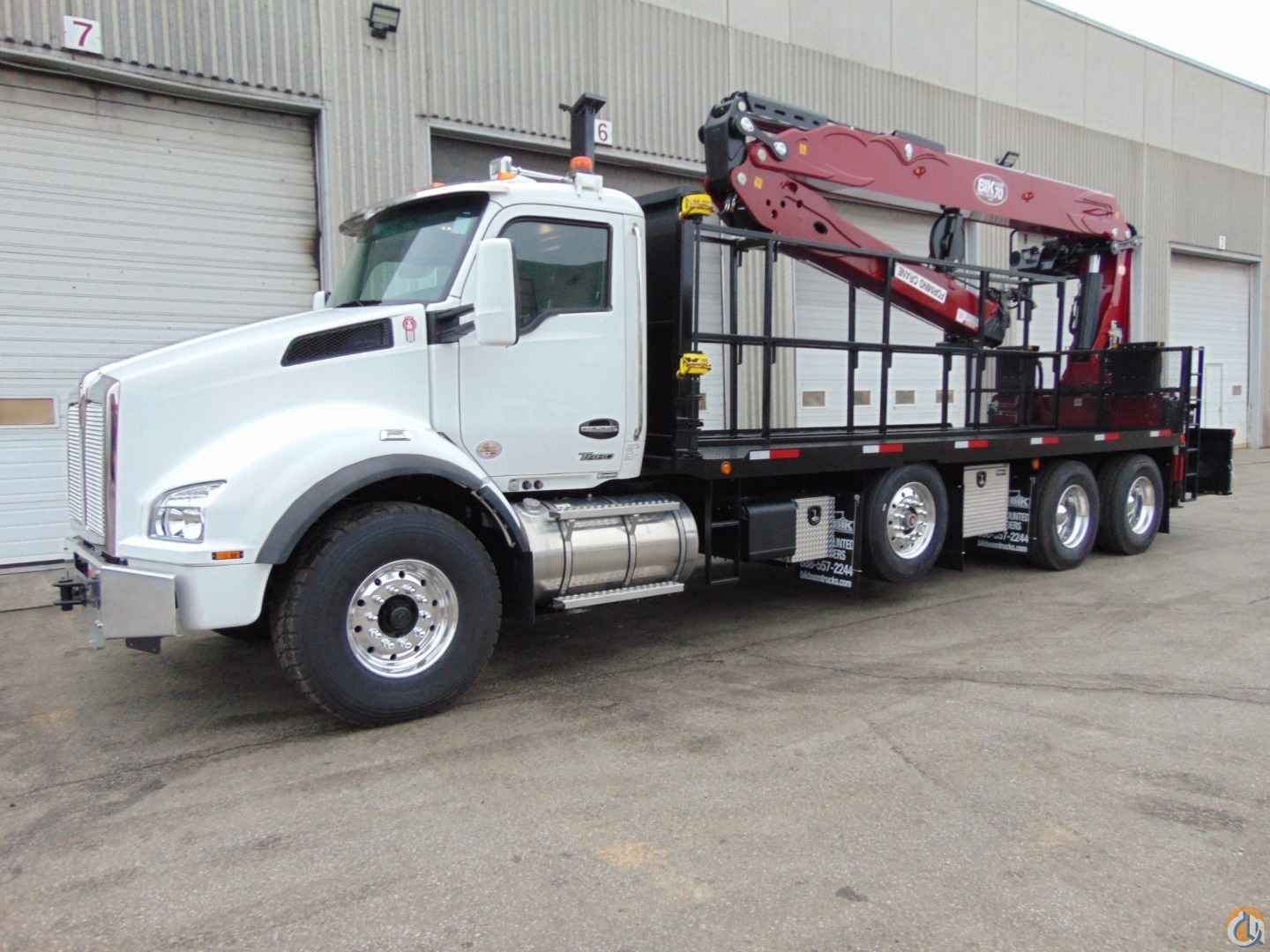

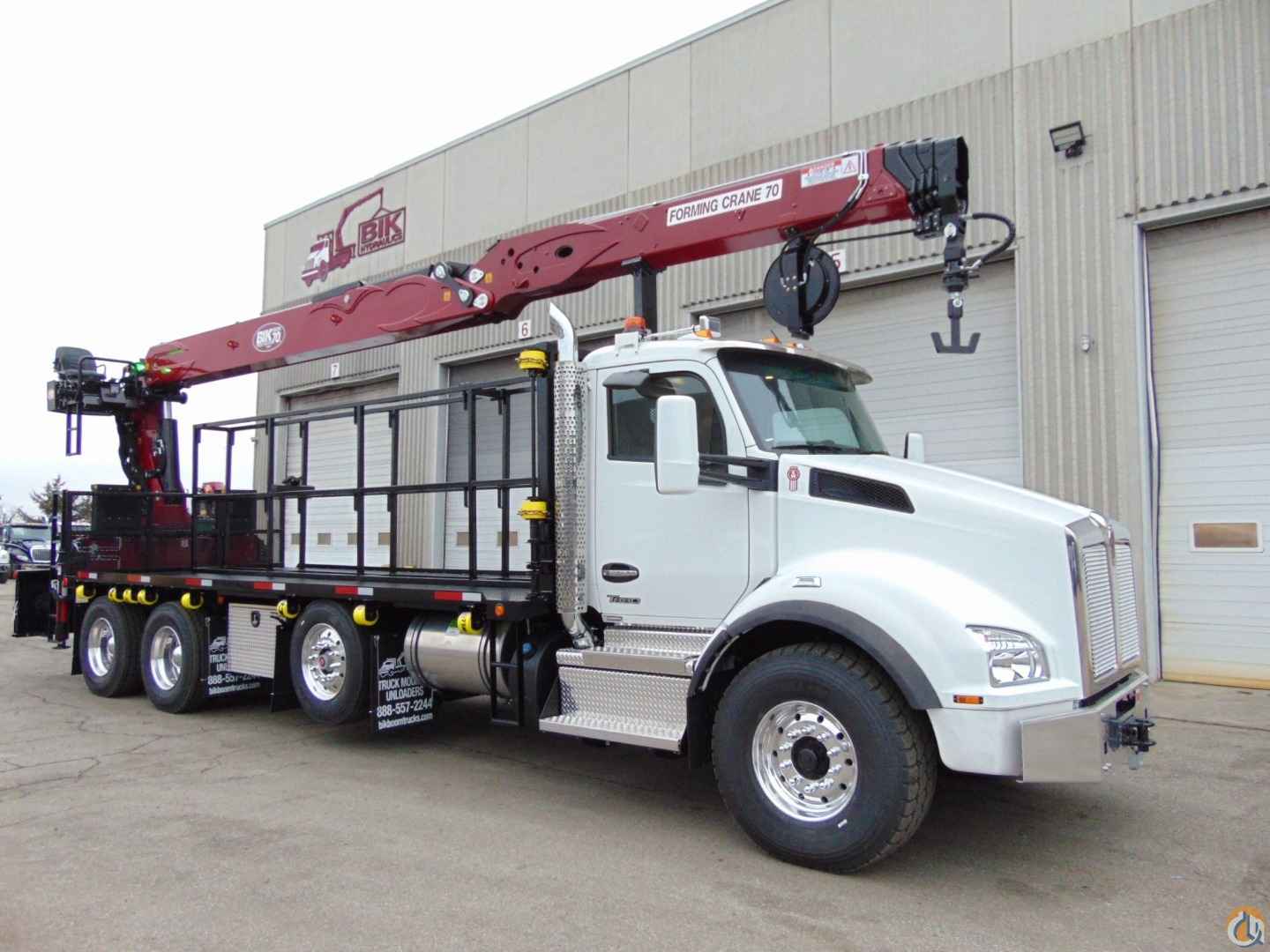

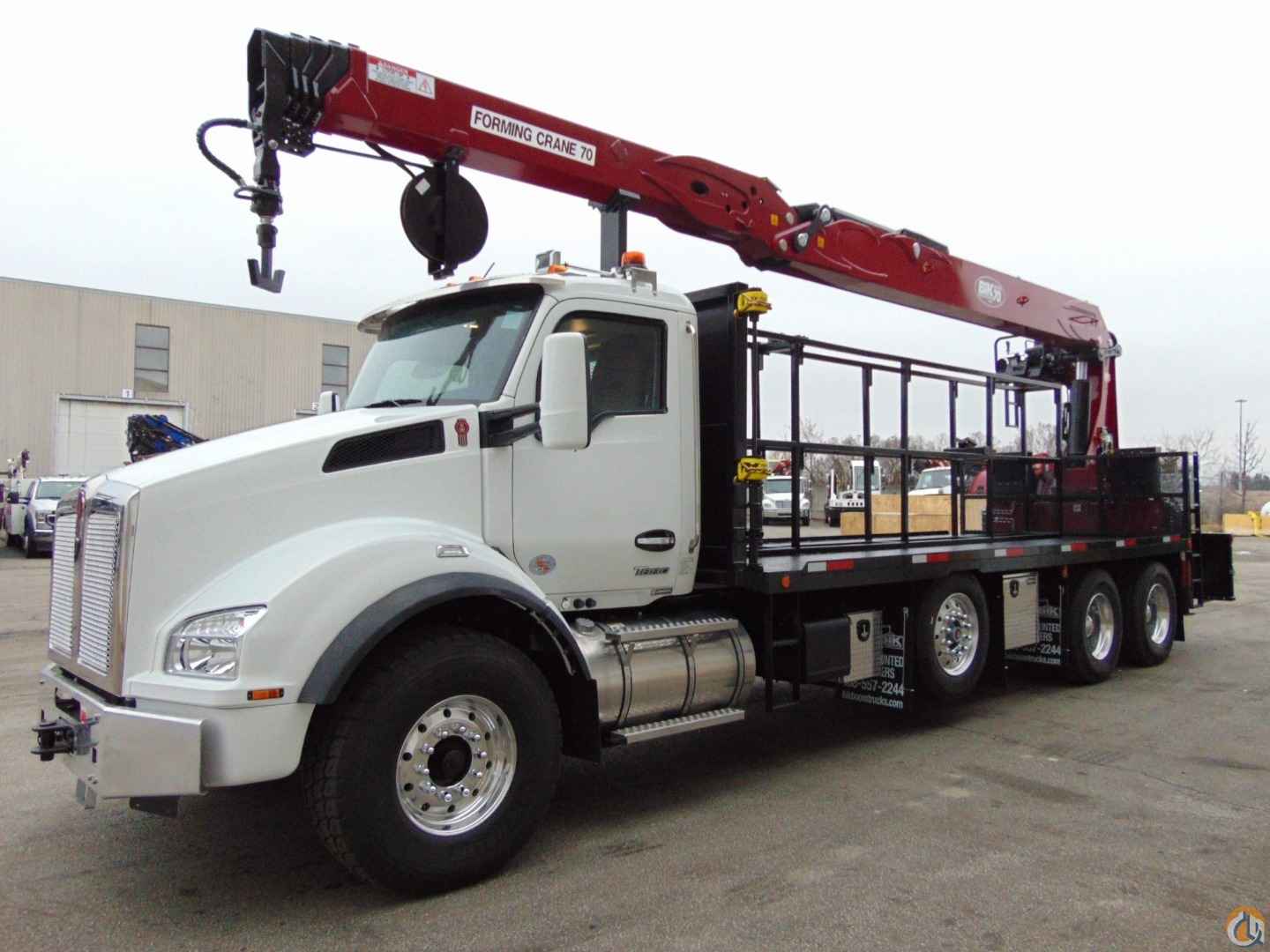

NEW – BIK SERIES FORMING CRANE FC-70 UNLOADER
- 4 Hyd. Extensions to 70’ Horizontal Reach rearward with reverse turret mount
- Horizontal Capacities are:
- Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
- Dual Planetary Gear Drive continuous rotation for maximized slewing torque and power for extreme grades
- Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
- Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
- Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
- Hydraulic Oil Coolers, High Pressure Return Filter and min 40-gallon oil tank for boom.
- Under Deck Frame Mounted 70-Gal Aluminum Oil Tank
- DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
- Hydraulic Hook Rotator with T-Hook at End of Boom
- DANFOSS Valve – At Top Seat Level controls with access ladder, Hydraulic hook rotator with T-hook at end of boom
- SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord
- Crane Painted BIK Red, load chart on boom in FT. & LBS. – Load Tested & Installed end of frame on pre-engineered subbase.
