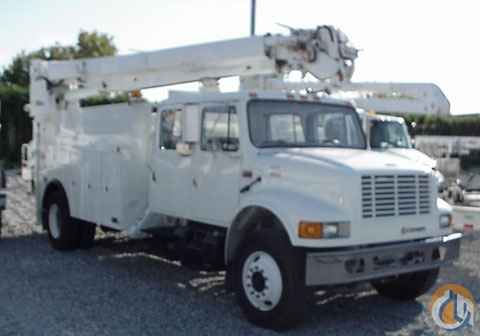

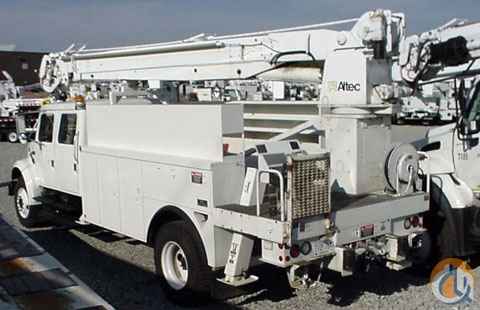

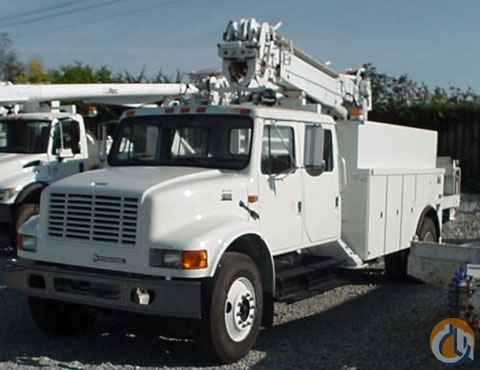

D947-TC Boom Truck Crane (Sold)

S/N..1HTSCAAN22H528808. - ALTEC model D947-TC hydraulic derrick/boom, right rear corner mount, with a turntable winch, built in accordance with ALTECƒ##s standard specifications. - A. 360 degree continuous rotation. - B. Side load protection. - C. Hydraulically extended, full capacity fiberglass upper boom. - D.Primary outriggers: 'Swing Out' walking beam jack on curbside retracts within confines of pedestal. Modified 'A' frame jack on street side constructed as integral part of mainframe. Each jack independently controlled at rear of truck per ALTECƒ##s standard specifications. - E. Derrick device powder coated white per ALTECƒ##s standard manufacturing process. - F. Derrick overload protection. - G.Outrigger motion alarm. - H.Boom stow protection. - I. Cable guides, two (2), for turntable winch units. - J. Engine start/stop switch on main control panel. - K. Load indicator gauge installed at control console. - L. Two (2) operators and maintenance/parts manuals. - ANSI use criteria, platform use or combined digger derrick/platform use. - ANSI dielectric designation, insulated unit, 46kv and below. - Boom flares, transferable with fiberglass tip on end of third stage. - Single station with 'T' stand for corner mount with streetside controls. - Valve for auxiliary outriggers. - Outriggers, auxiliary, flat shoe, 'A' frame with 149' maximum spread. - 650-40238 Power Distribution Module - Upper controls with pole guide, transferable, two (2) handle selector type, for all derrick and winch functions, one (1) lever for dump valve, including automatic 2-speed throttle with boom tip tools circuit. - Outrigger interlock system. - Pole guide interlock, prevents third stage boom extension until pole guides are in 'full up' positions. - Reservoir assembly, includes 60 gallon reservoir, filter and magnetic suction separator. DERRICK AND HYDRAULIC ACCESSORIES - Primary outriggers are to be installed at rear behind rear axle. - Auxiliary outriggers are to be installed between back of cab and front of body. - All outrigger controls to be located at rear corners of vehicle to provide visibility of outriggers by operator. - Hydraulic oil reservoir to be installed in front of cargo area. - Hydraulic oil and lubricants installed. - Sub-base assembly installed.Build-up right rear springs for right rear corner mounted derricks. - Wheel chocks, pair, rubber, 10' L x 9' W x 5 A#' H. - Synthetic braided winch line rope, with eye in each end, 1' diameter, and 115ƒ## long, with 7,600 lbs. of capacity. - Boom storage support, installed. - Pump ƒ## Vane type, tandem. - Cab controlled heavy-duty SAE power take-off, for use with Allison MD series automatic transmission, installed with indicator light in cab. - Flow divider, 8 GPM, for use with hose reel. - Spring operated hose reel with two (2) 50-foot hydraulic hoses, 3/8' pressure line and 1/2' return line. Includes HTMA quick couplings with dust caps. NOTE: LOCATE HOSE REEL ON REAR OF PEDESTAL PAYOUT TO CURBSIDE.Dp model 52945-S16CDU Utility capstan bumper, 16,000 in. lb. including model 55114 capstan head.Derrick and Hydraulic Total Chassis: Only 9010 miles! - 2002 International Model 4700 4x2 crew cab and chassis - 226' wheelbase, 121' CA, 121' AF - Two (2) front mounted tow hooks - 110,000 PSI frame rails - 110,000 PSI Inverted 'L' reinforcement - Full width front bumper - 12000 lb. front axle with 14000 lb. suspension including shock absorbers - Air brake system, dual, for straight truck applications - Automatic front and rear slack adjusters - Trailer connections, four wheel, with hand control valve and tractor protection valve - Air brake ABS - Air compressor, Bendix Tu-Flo 550, 13.2 CFM - Steering gear, Sheppard M100 - Exhaust system, right hand, horizontal muffler and short tailpipe - Intermittent windshield wipers - Air horn, two, chrome - Trailer connection socket, 7-way - Alternator, Delco 22-SI, 100 amp - Three batteries, maintenance free, 1950.
