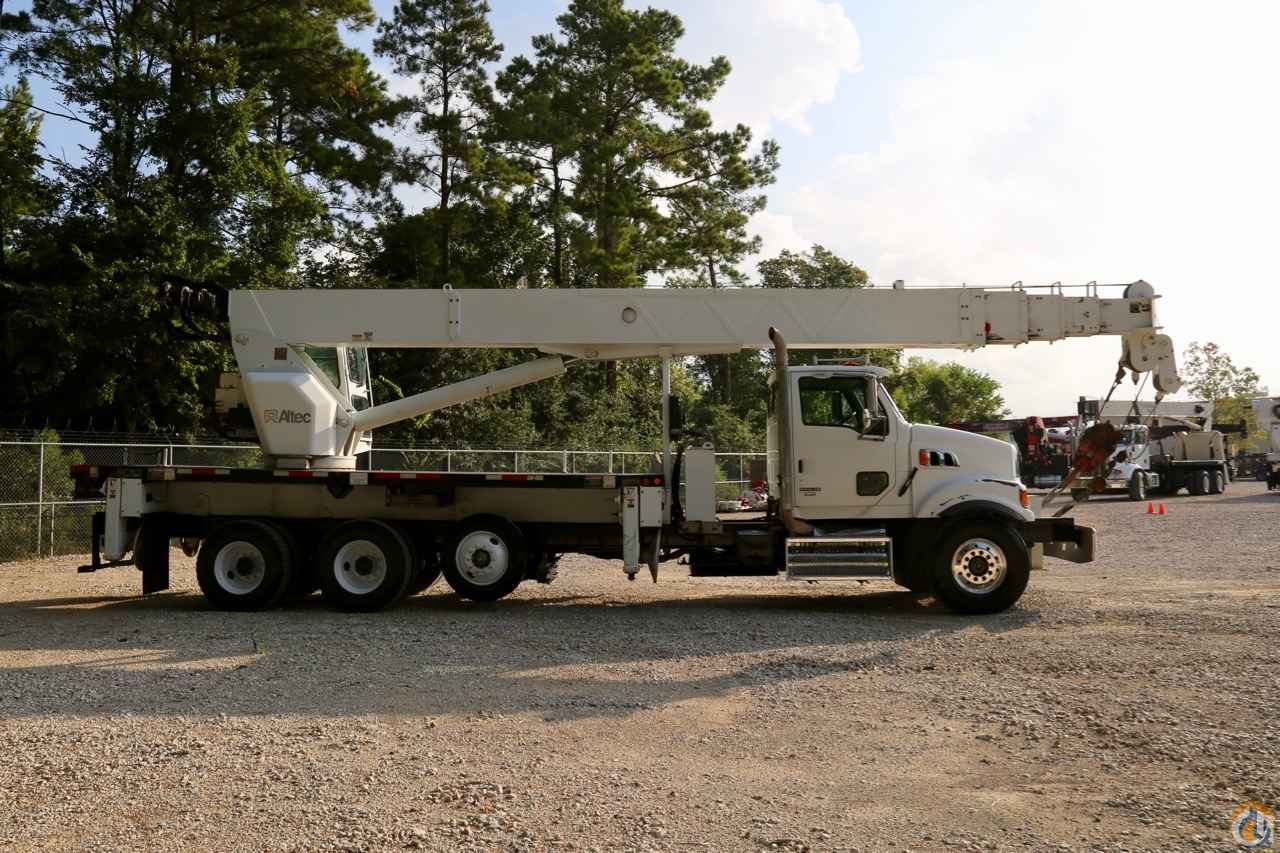

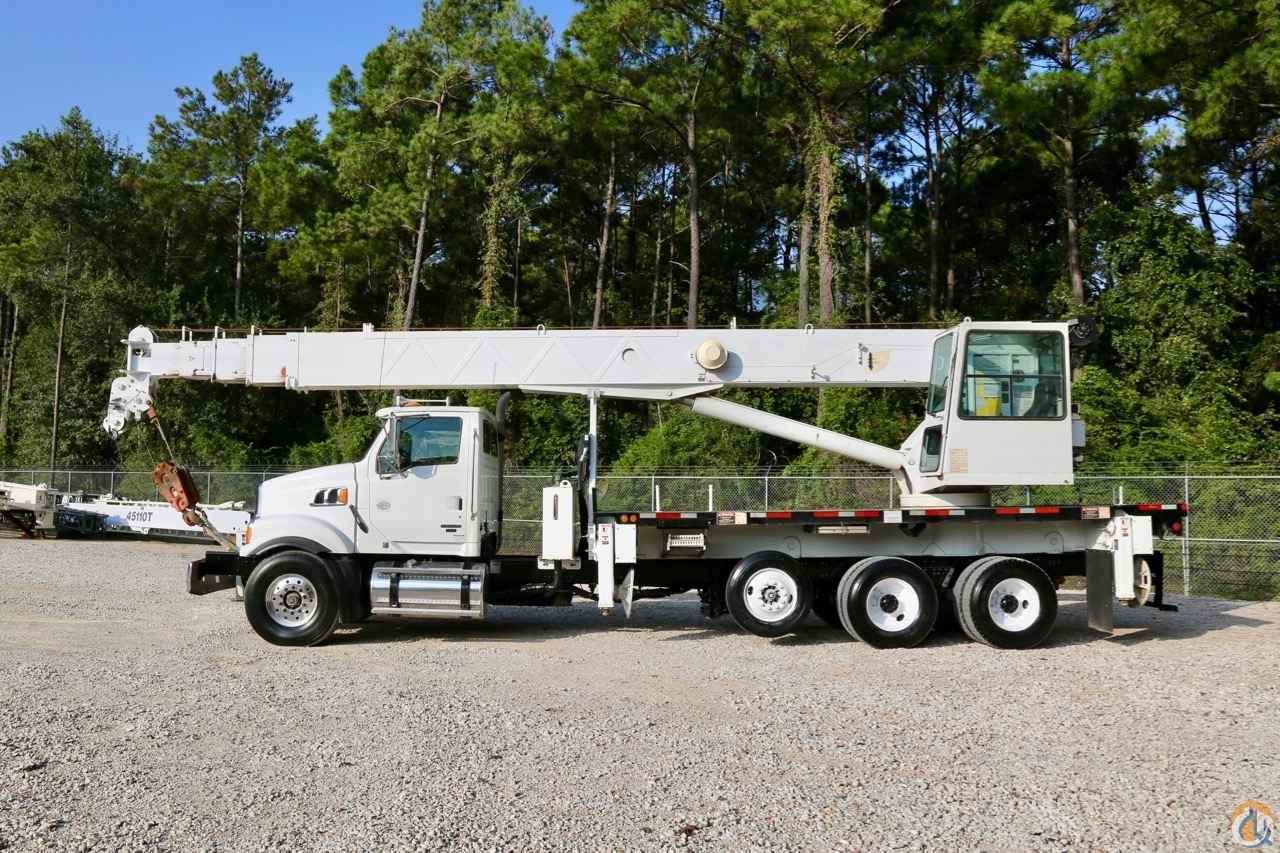

Standard Features

76,000 lb (38T) Maximum Lifting Capacity

127 ft (38.7 m) 5-Section Non-Insulated Boom  137 ft (41.8 m) Maximum Sheave Height

Stowed Travel Height of 12.9 ft (3.9 m)

Vehicle Travel Length of 38 ft (11.6 m) Sequential Out-and-Down Outriggers

Full Span 24 ft (7.3 m) • Mid Span 15.75 ft (4.8 m) • Short Span 8.17 ft (2.5 m)

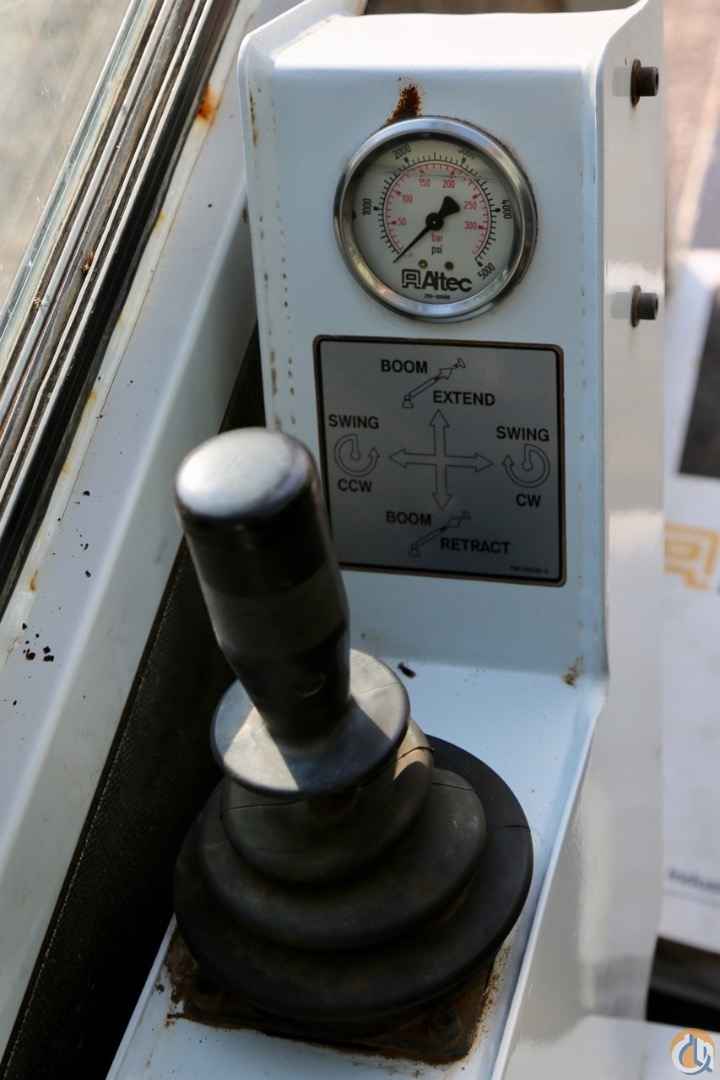

Hydraulic Pilot-Operated Control System

Continuous Rotation

Hydraulic Oil Cooling System

Life Cycle Tested for Reliability

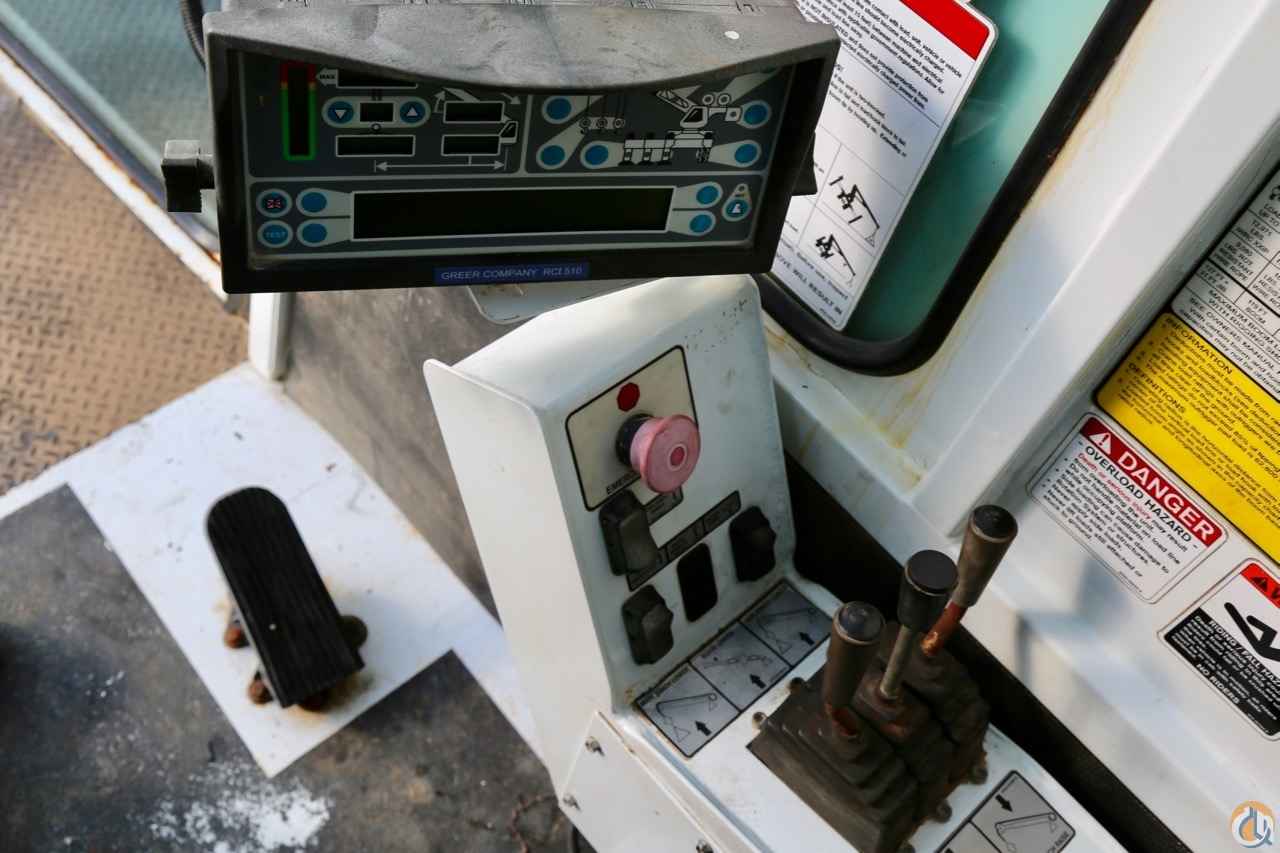

Altec LMAP (Load Moment & Area Protection) System

Rated Capacity Limiter

Displays: Boom Length, Boom Angle, Load on Hook, Percent of Rated Capacity

Electronic Working Area Definition

Operator Defined Audible Alarm Set-Points for Boom Angle, Length and Rotational Position

Outrigger Boom Interlock System

Outrigger Motion Alarm

Back-Up Alarm

Emergency Stop at Operator Controls

Winch Drum Rotation Indicator

Anti-Two Block Device

Front Bumper Outrigger

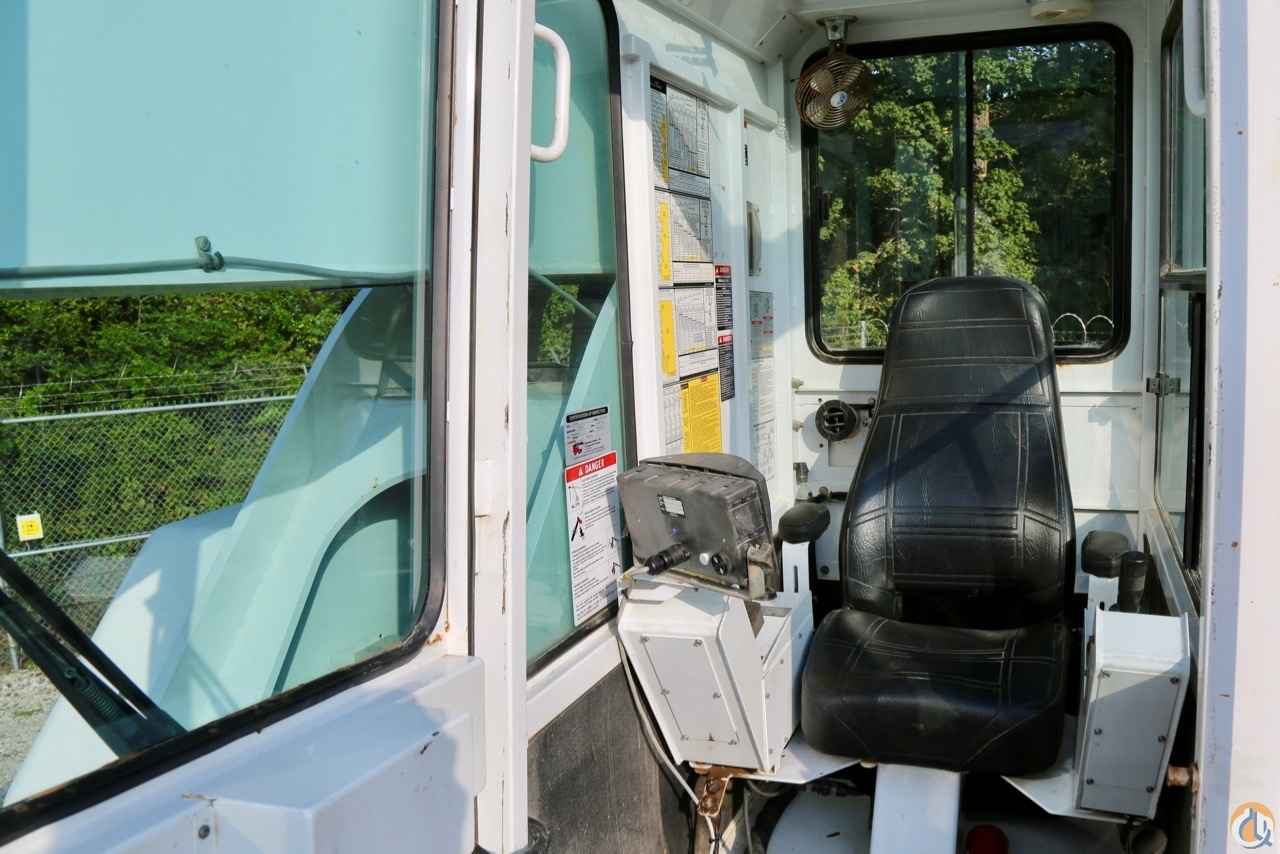

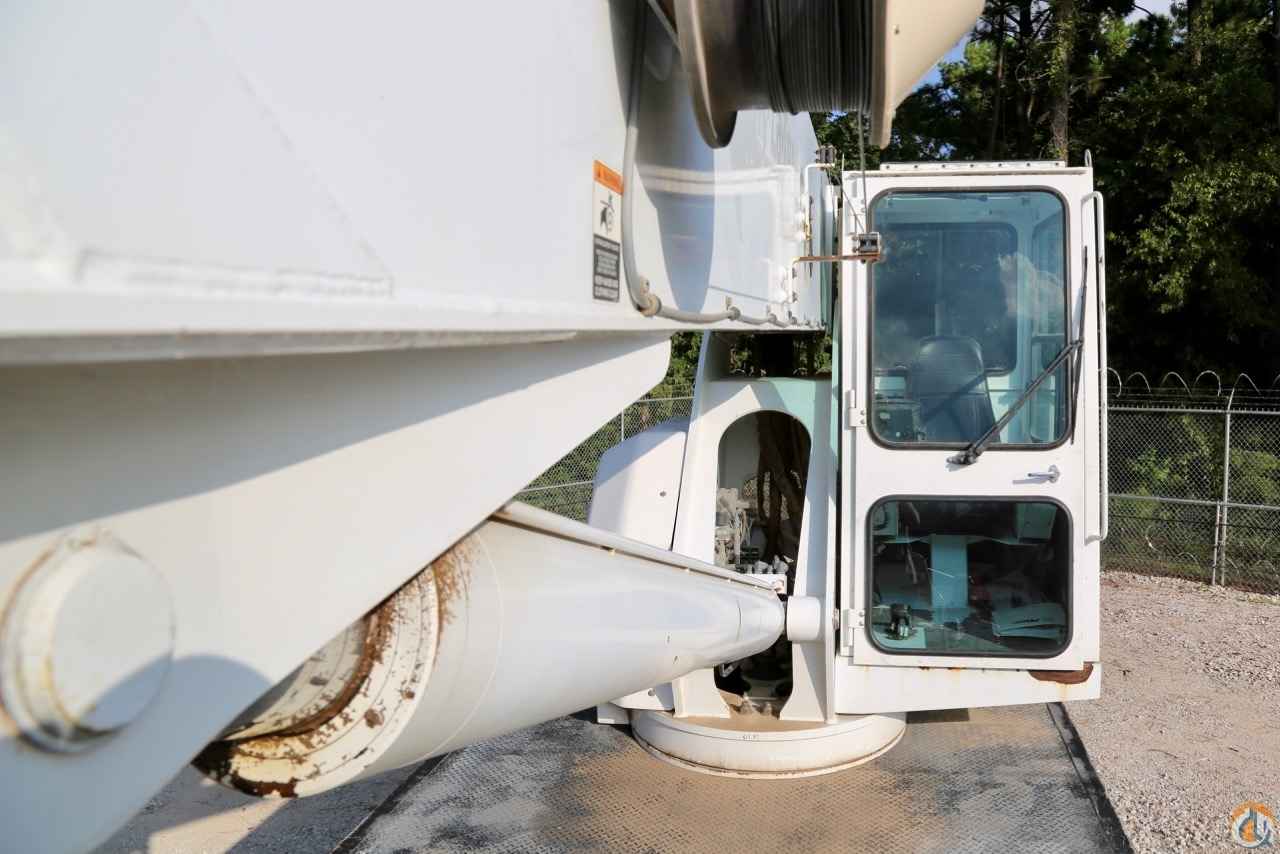

Altec Opti-View® Riding Seat Control Station

Included Items

20’ Steel bed with skid resistant surface

Pintle hitch with D Rings

Front bumper stabilizer

Rotation Resistance Rope in lieu of standard lay

Braden Aux Winch

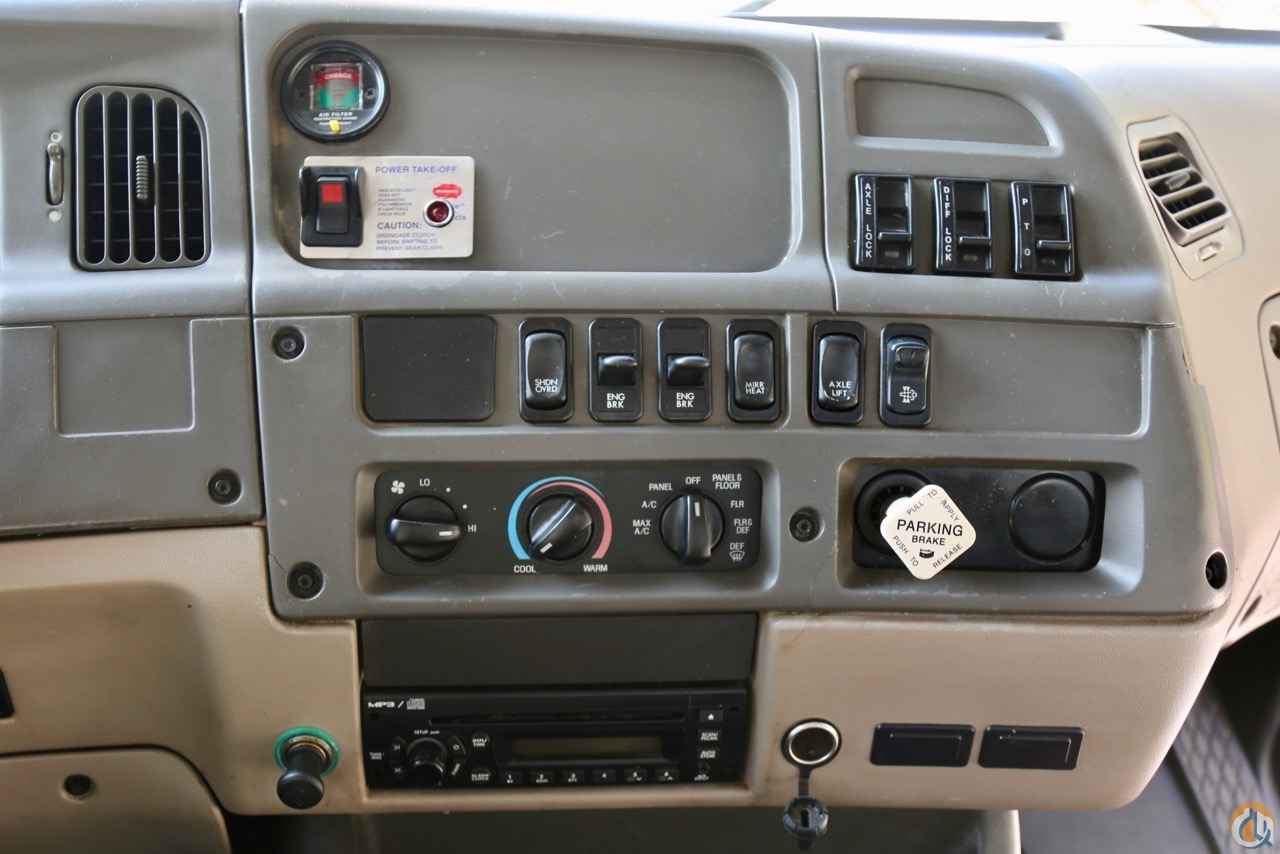

A/C in cab

Truck

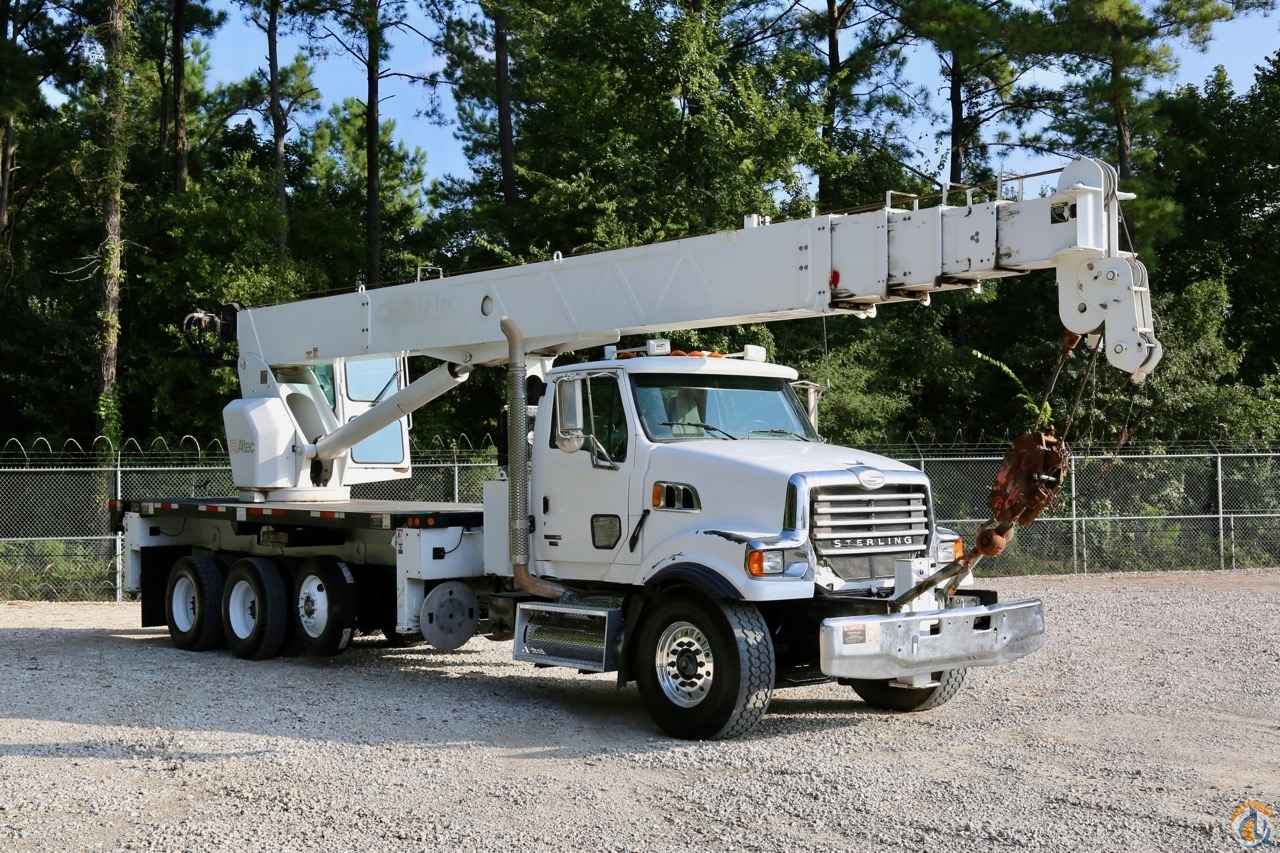

2009 Sterling LT7500 Daycab

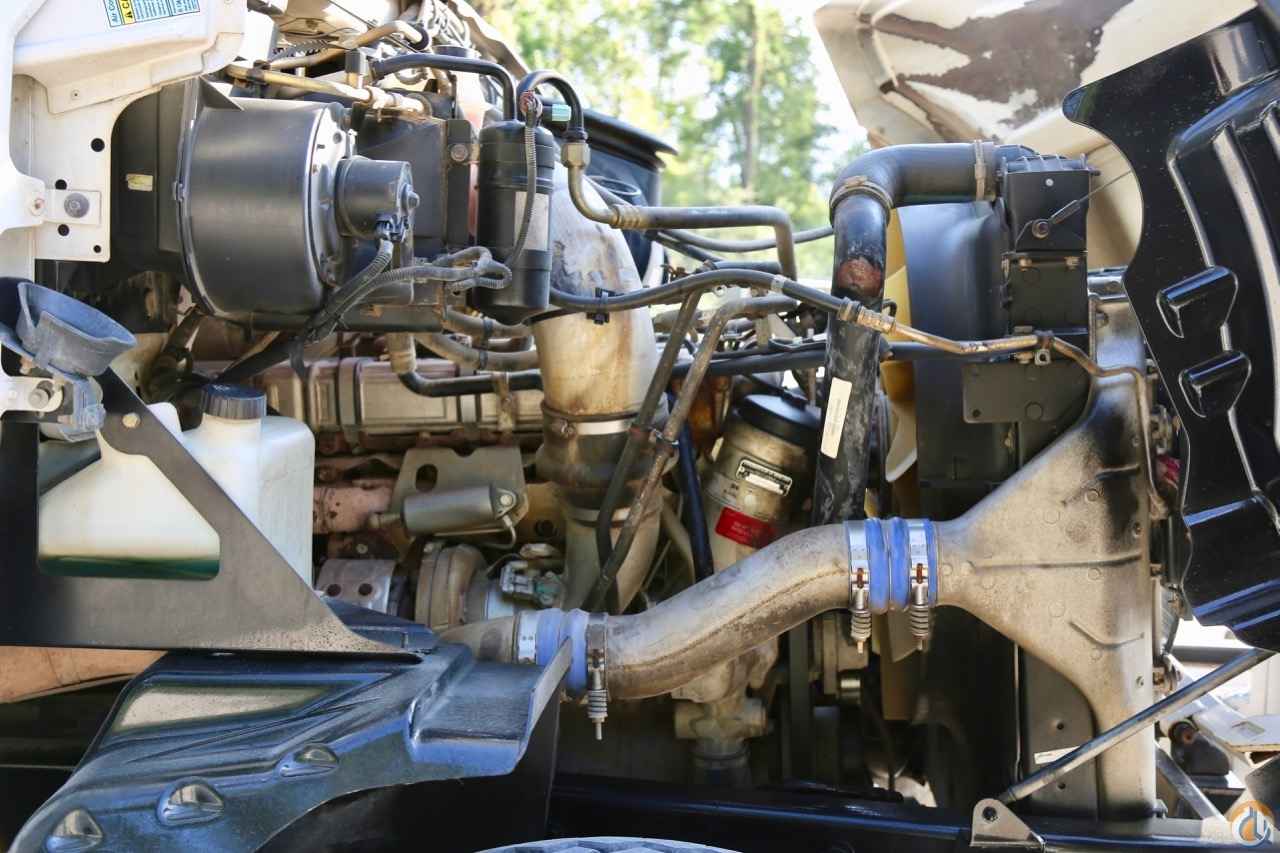

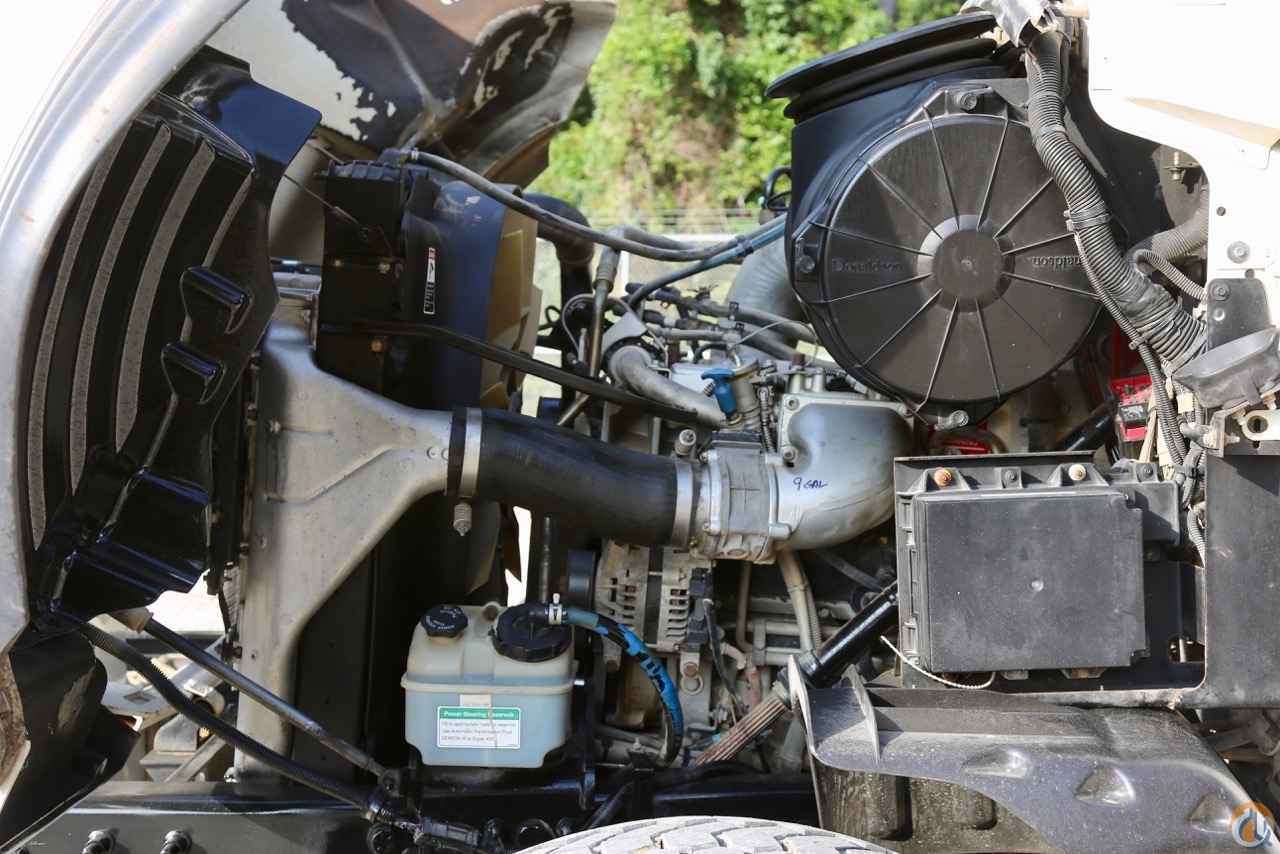

Mercedes 450hp Engine

Engine brake

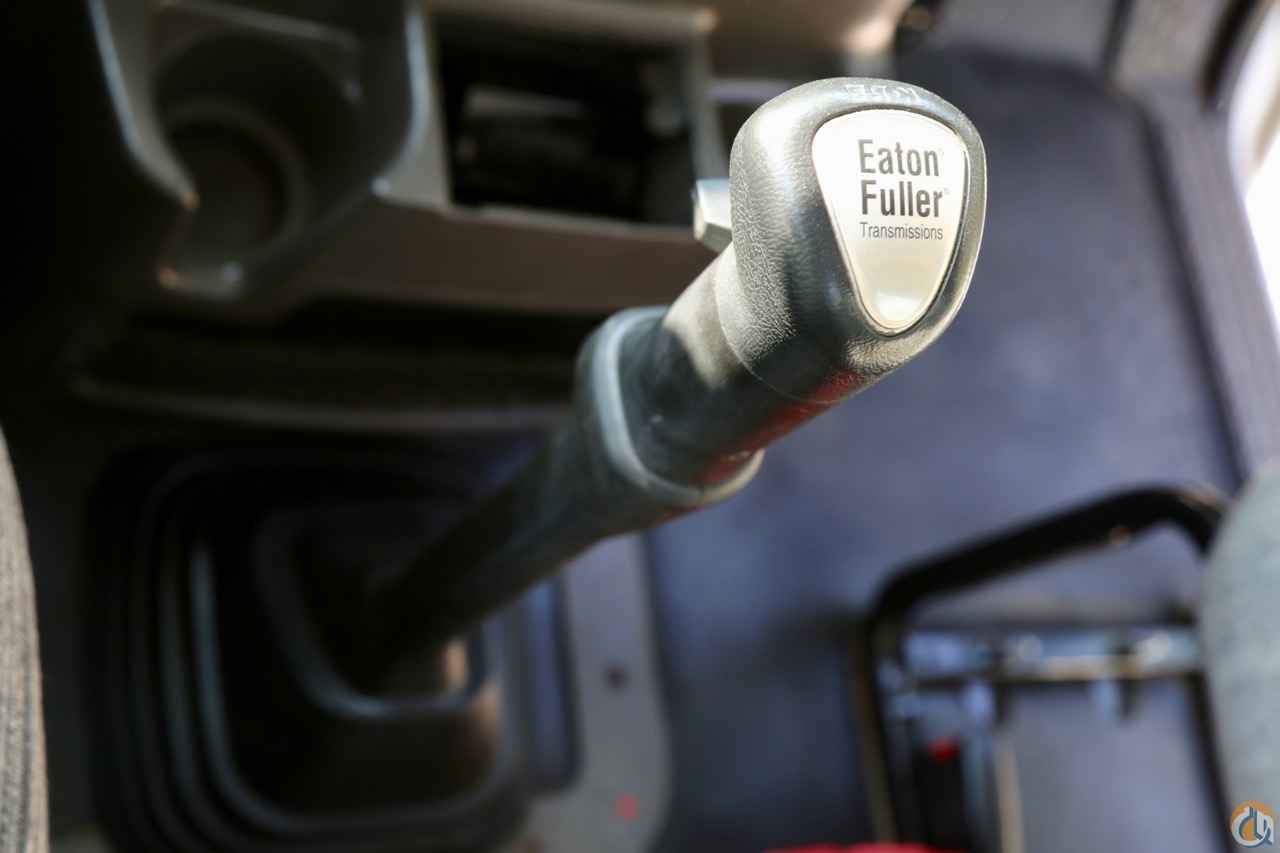

Fuller 10sp manual transmission

Front Axle 20k lb. rated

Rear Axle 40k lb. rated tandem

Pusher Axle 10,400 lb. rated

Hendrickson Haulmaax rubber block suspension

425/65R22.5 front tires on alum wheels

11R22.5 rear tires on steel disc wheels

Single 100 gal fuel tank

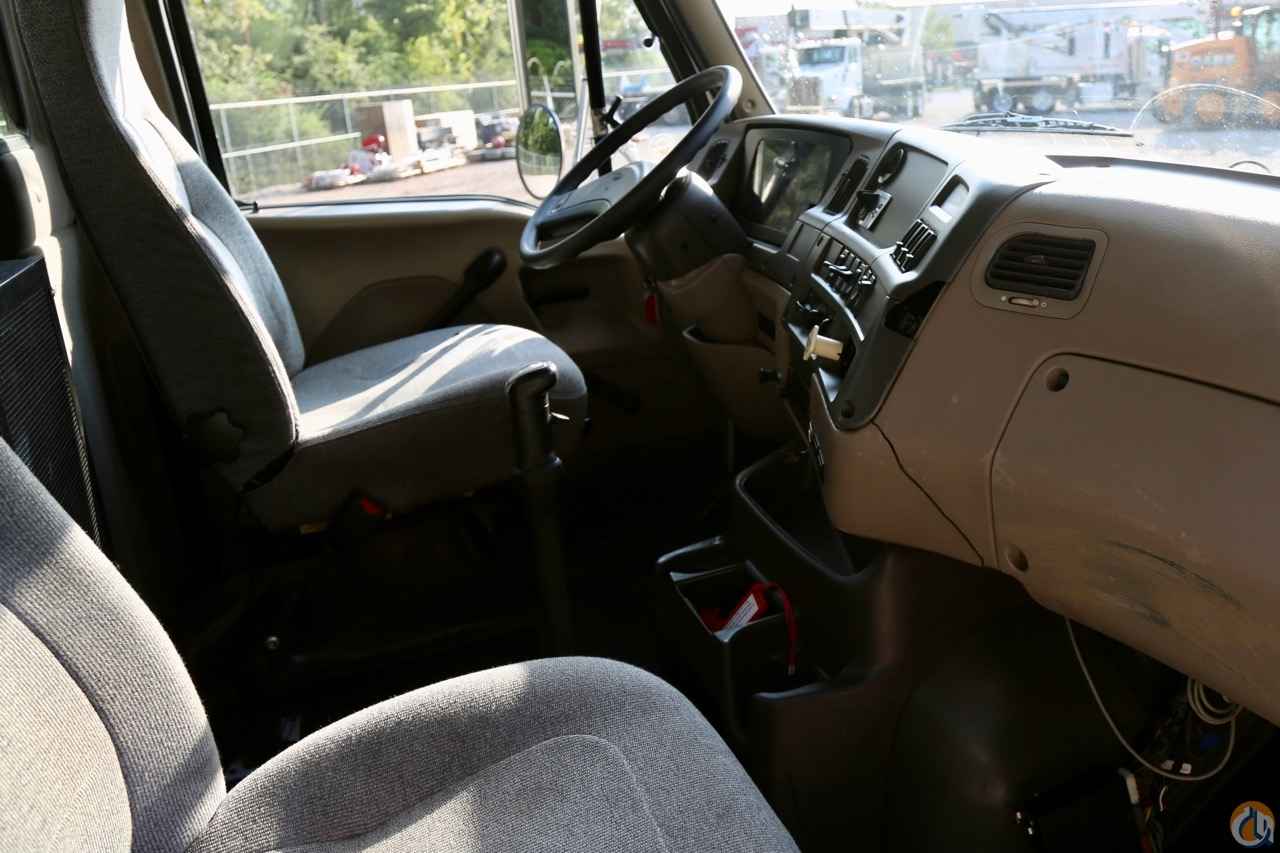

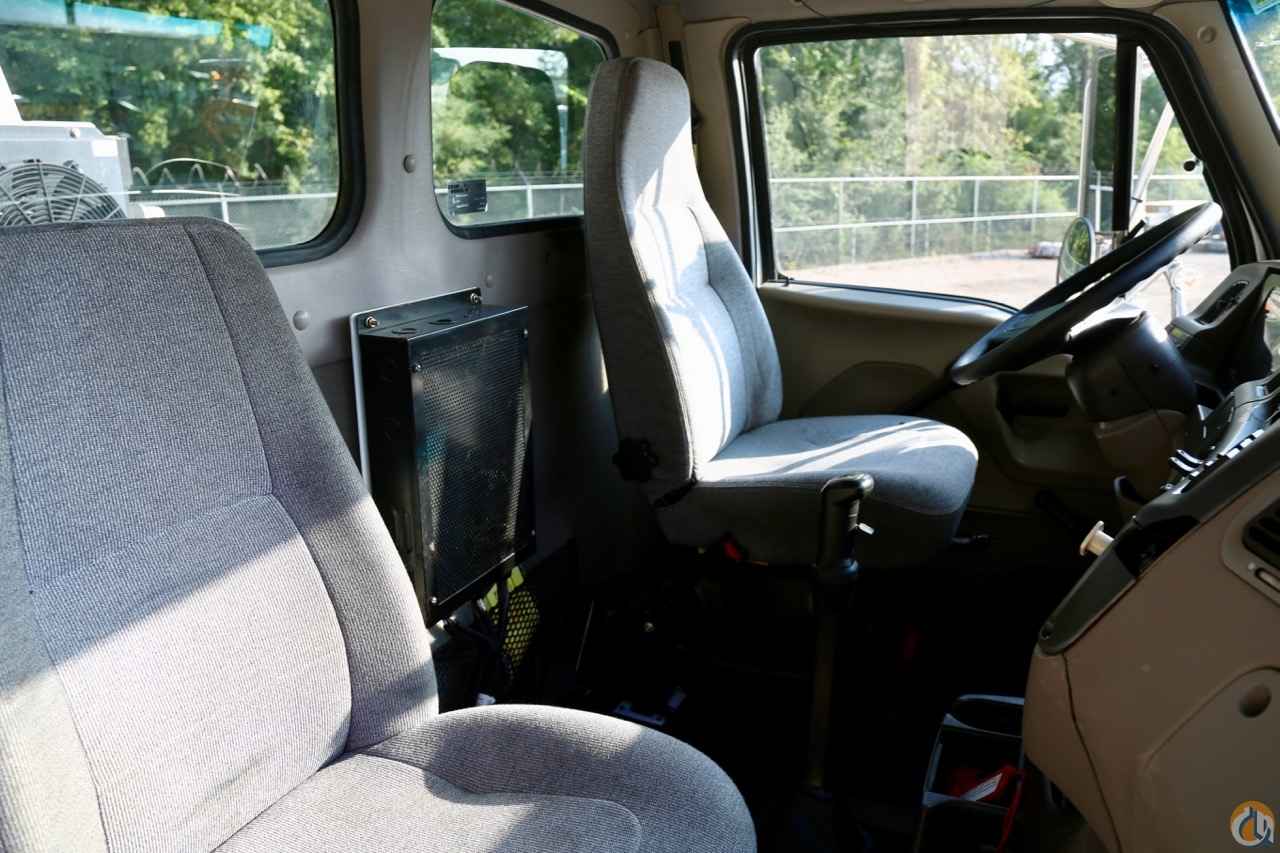

Driver seat highback air suspension

Passenger seat midback non-air suspension
