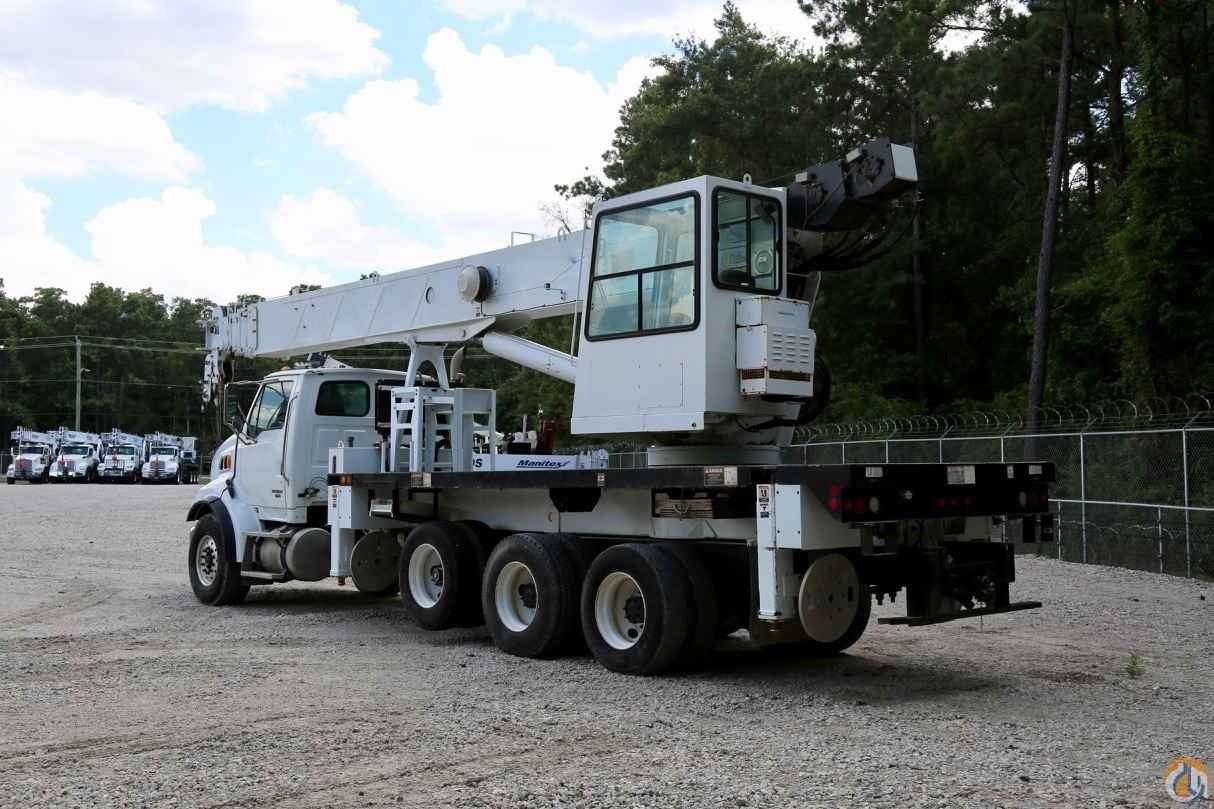

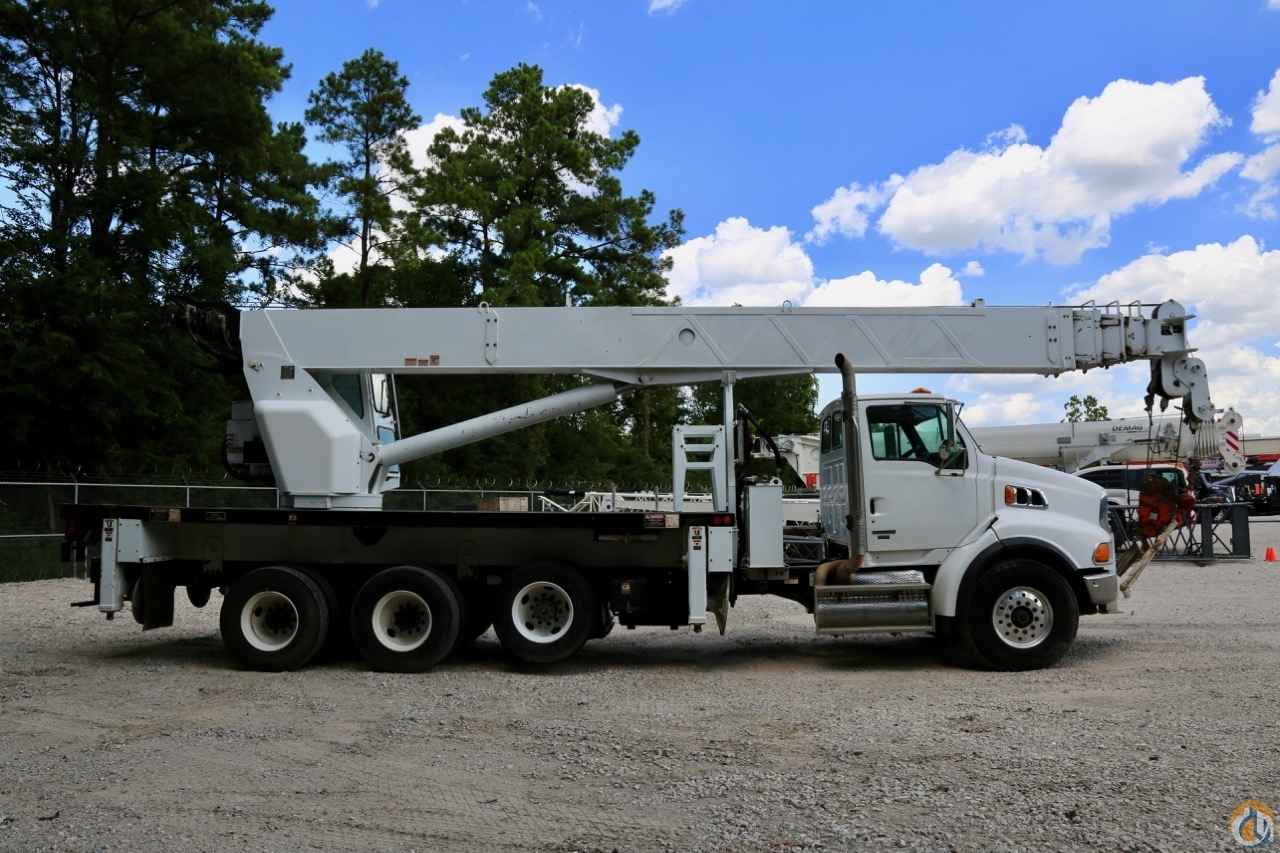

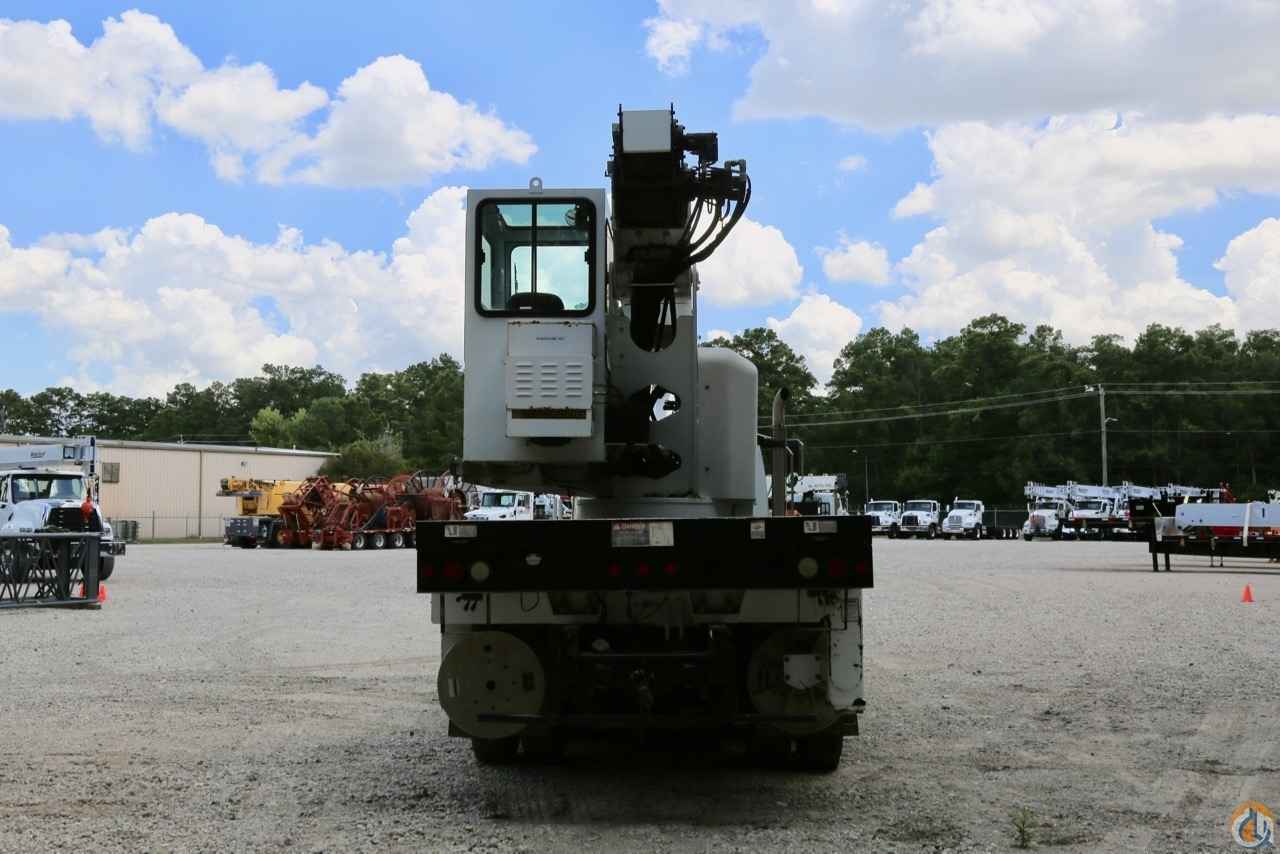

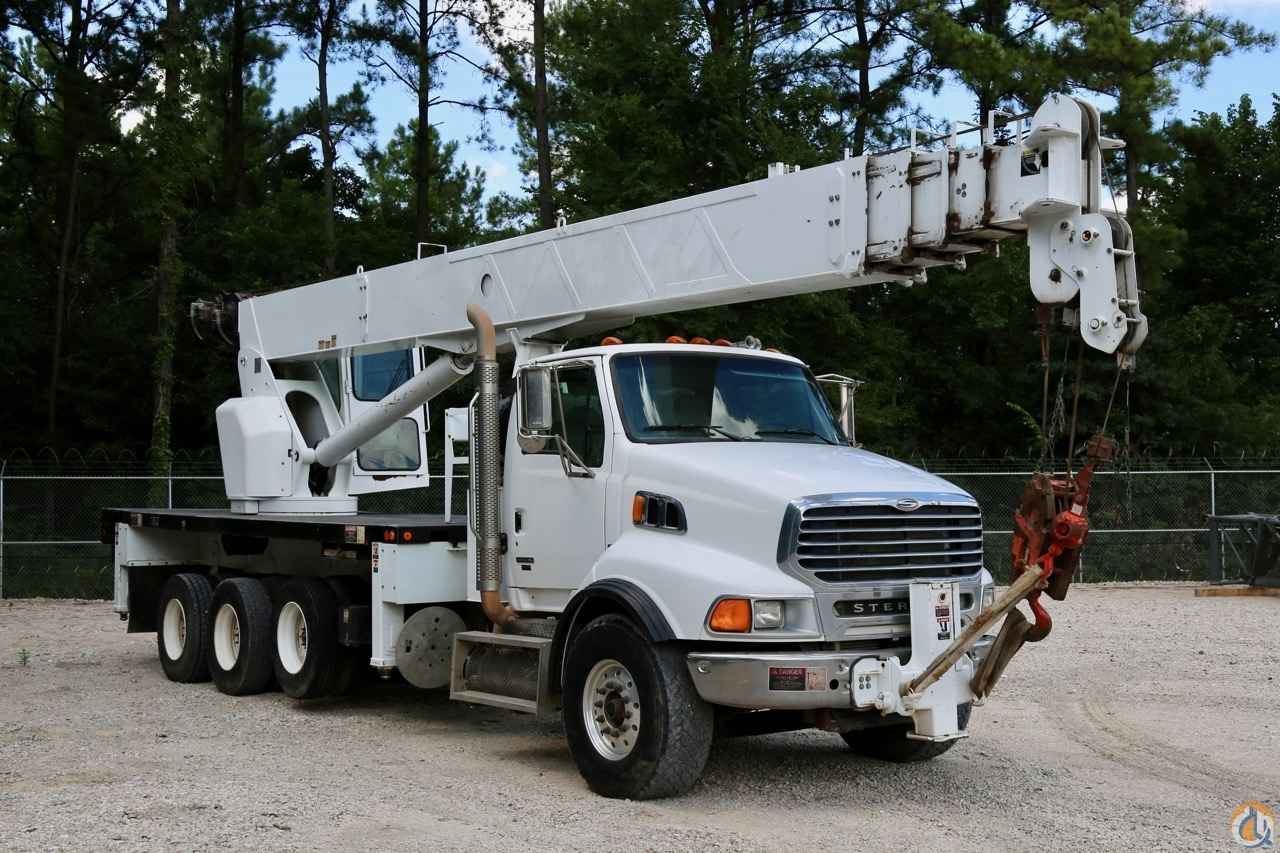

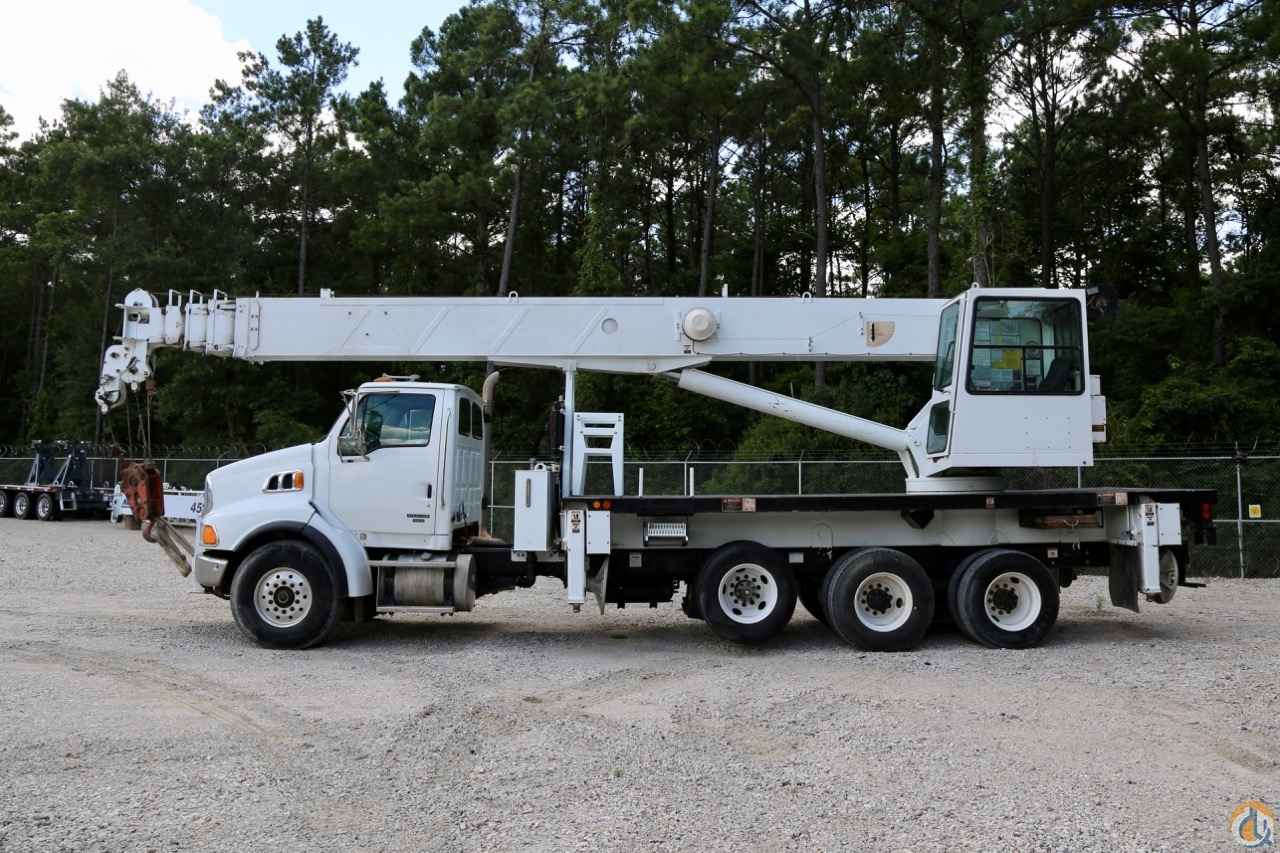

Standard Features

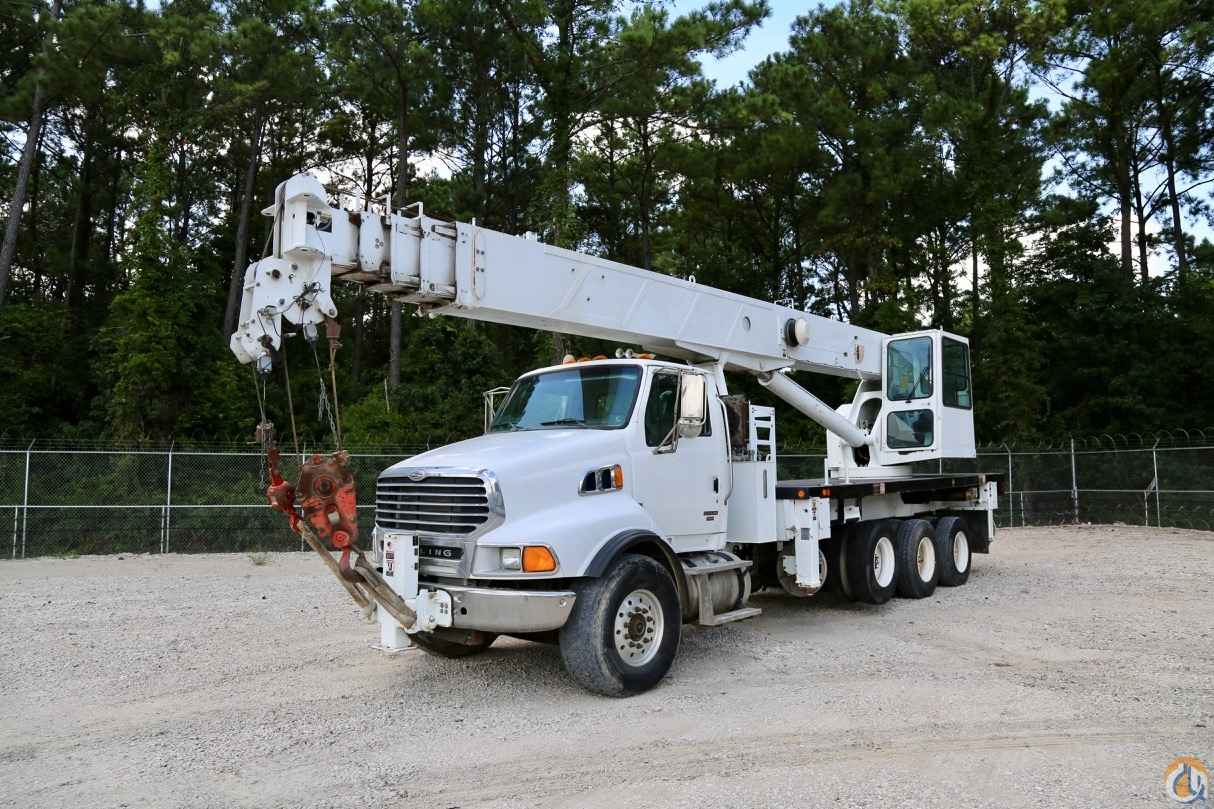

76,000 lb (38T) Maximum Lifting Capacity

127 ft (38.7 m) 5-Section Non-Insulated Boom  137 ft (41.8 m) Maximum Sheave Height

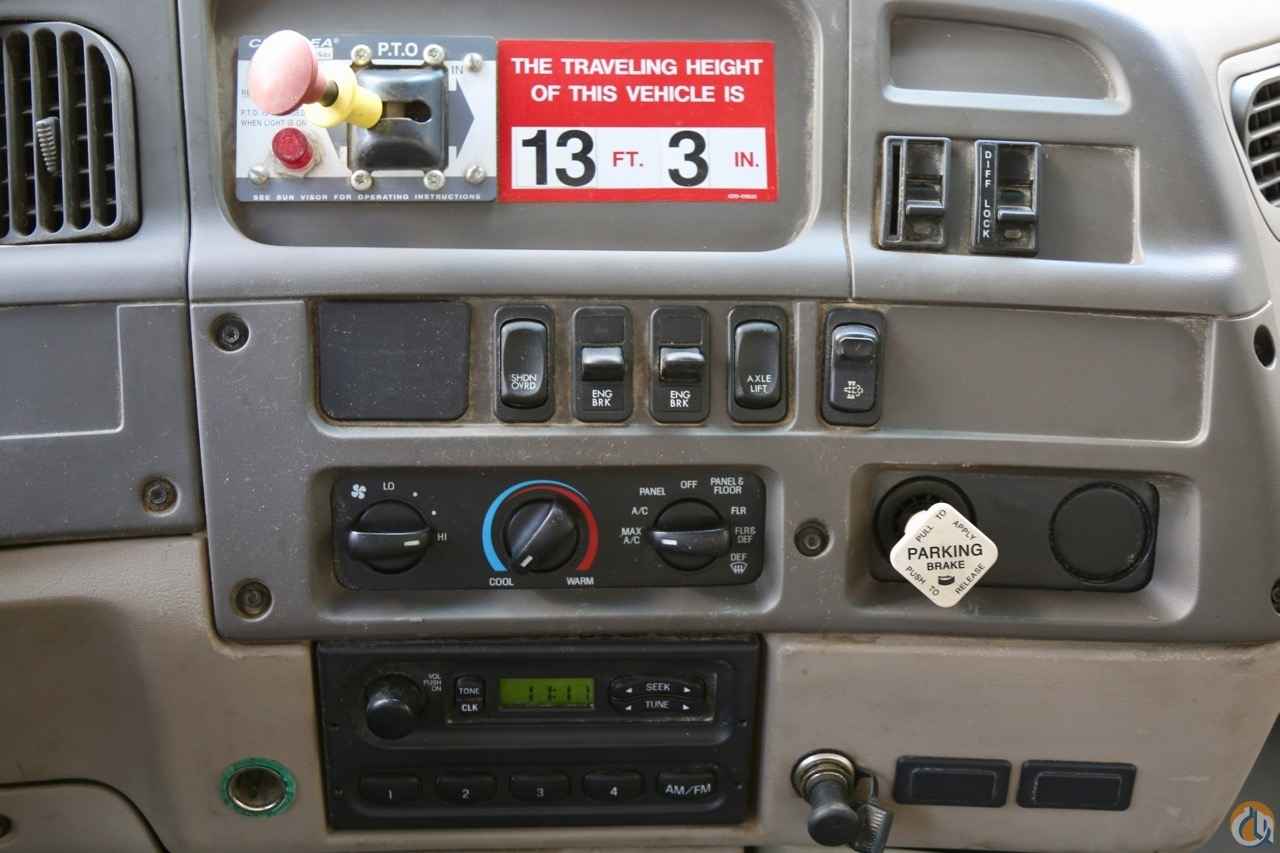

Stowed Travel Height of 12.9 ft (3.9 m)

Vehicle Travel Length of 38 ft (11.6 m) Sequential Out-and-Down Outriggers

Full Span 24 ft (7.3 m) • Mid Span 15.75 ft (4.8 m) • Short Span 8.17 ft (2.5 m)

Hydraulic Pilot-Operated Control System

Continuous Rotation

Hydraulic Oil Cooling System

Life Cycle Tested for Reliability

Altec LMAP (Load Moment & Area Protection) System

Rated Capacity Limiter

Displays: Boom Length, Boom Angle, Load on Hook, Percent of Rated Capacity

Electronic Working Area Definition

Operator Defined Audible Alarm Set-Points for Boom Angle, Length and Rotational Position

Outrigger Boom Interlock System

Outrigger Motion Alarm

Back-Up Alarm

Emergency Stop at Operator Controls

Winch Drum Rotation Indicator

Anti-Two Block Device

Front Bumper Outrigger

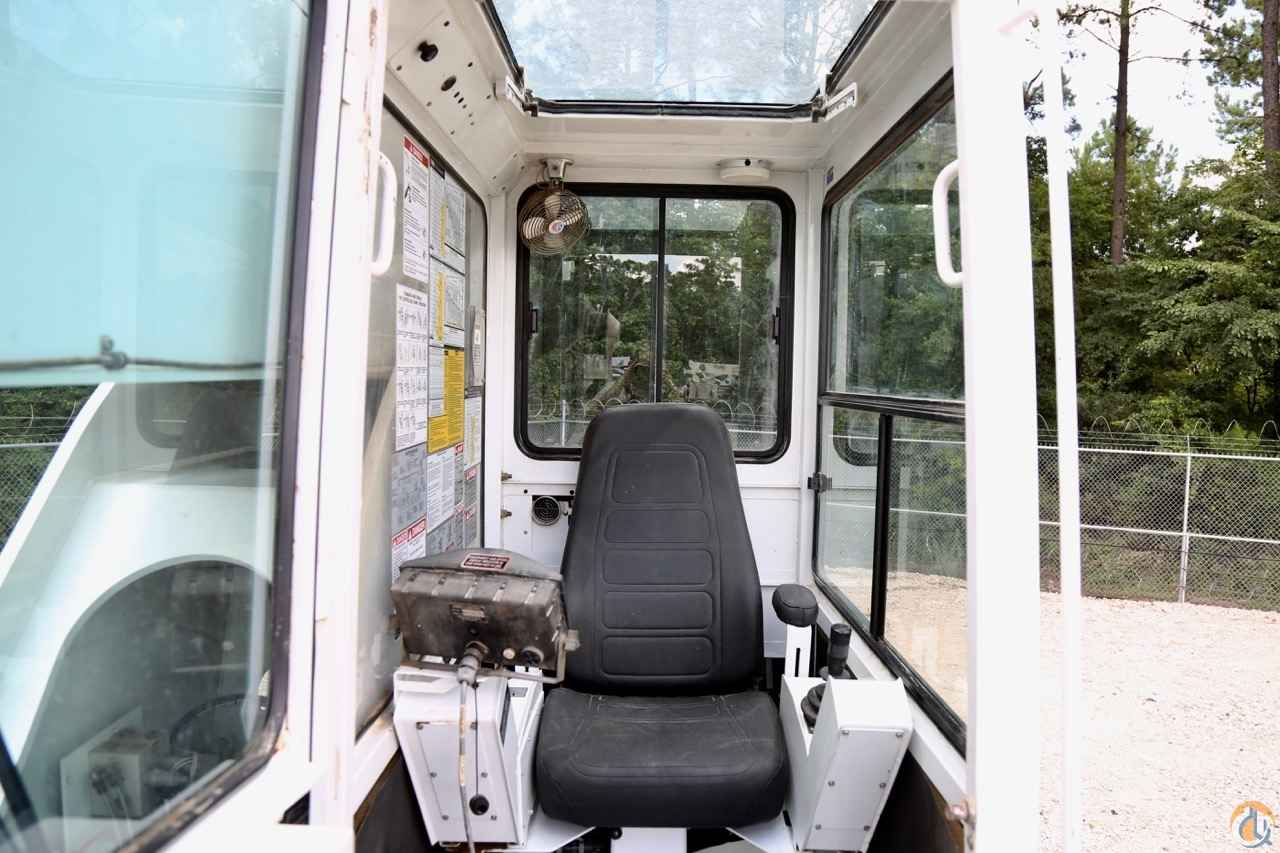

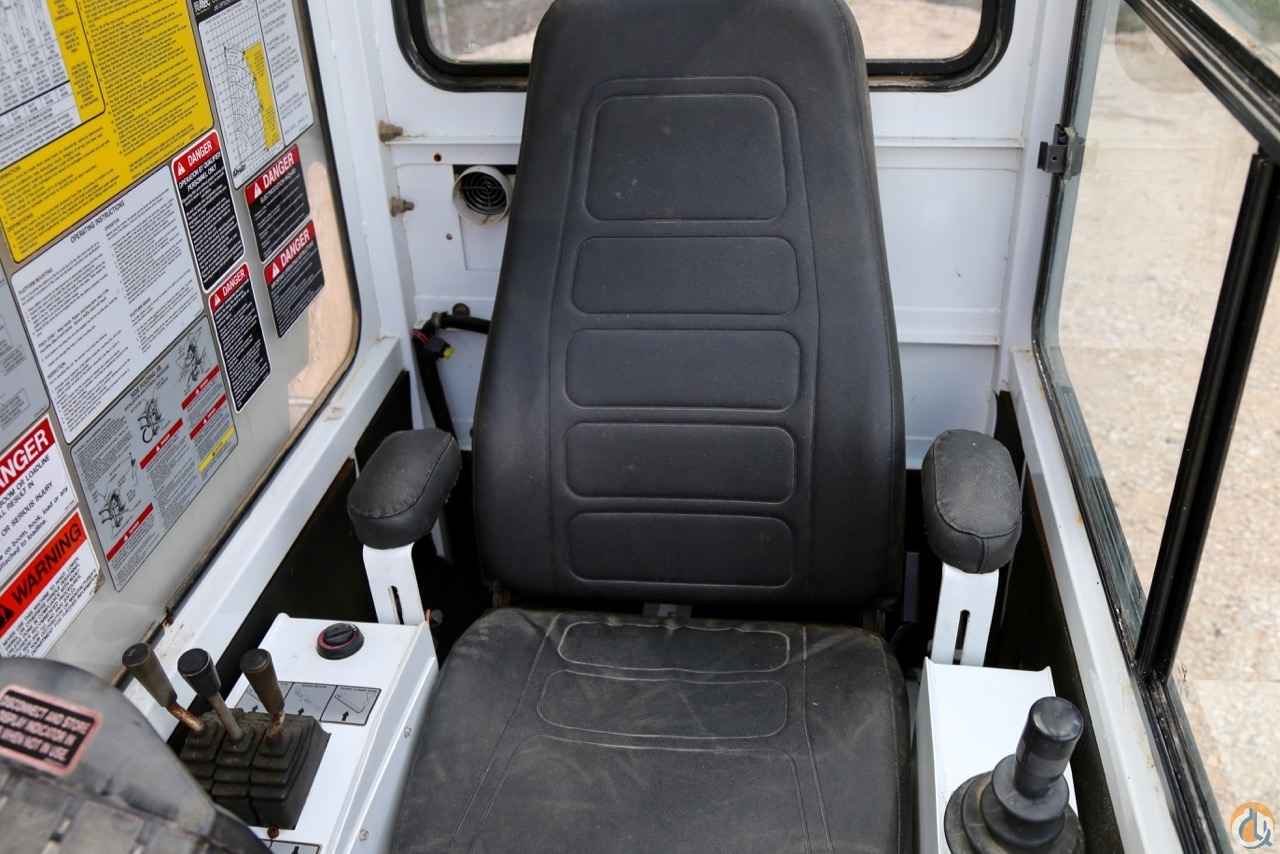

Altec Opti-View® Riding Seat Control Station

Included Items

Rotation Resistance Rope in lieu of standard lay

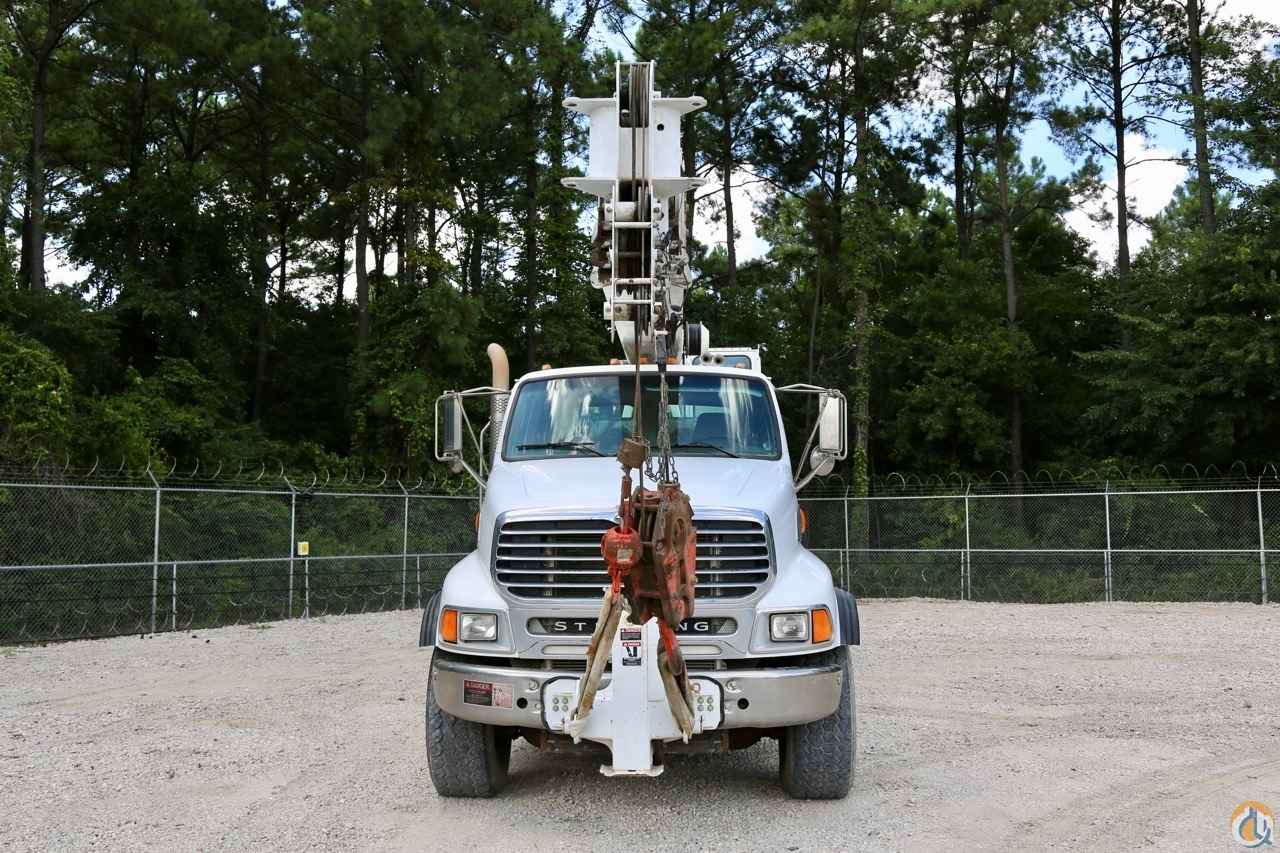

Front bumper stabilizer

20T hook block

Braden Aux Winch

A/C in cab

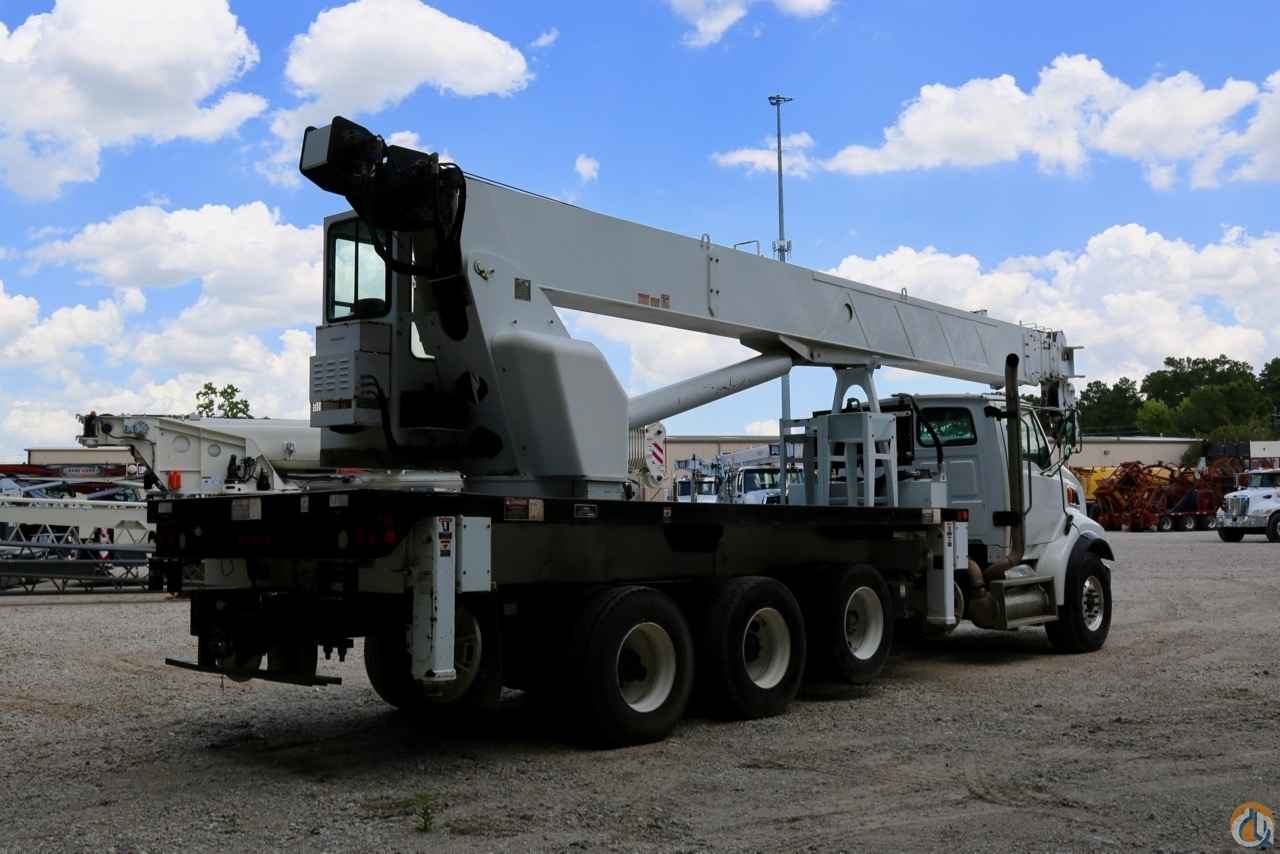

20’ Steel bed

Pintle hitch with D rings

Truck

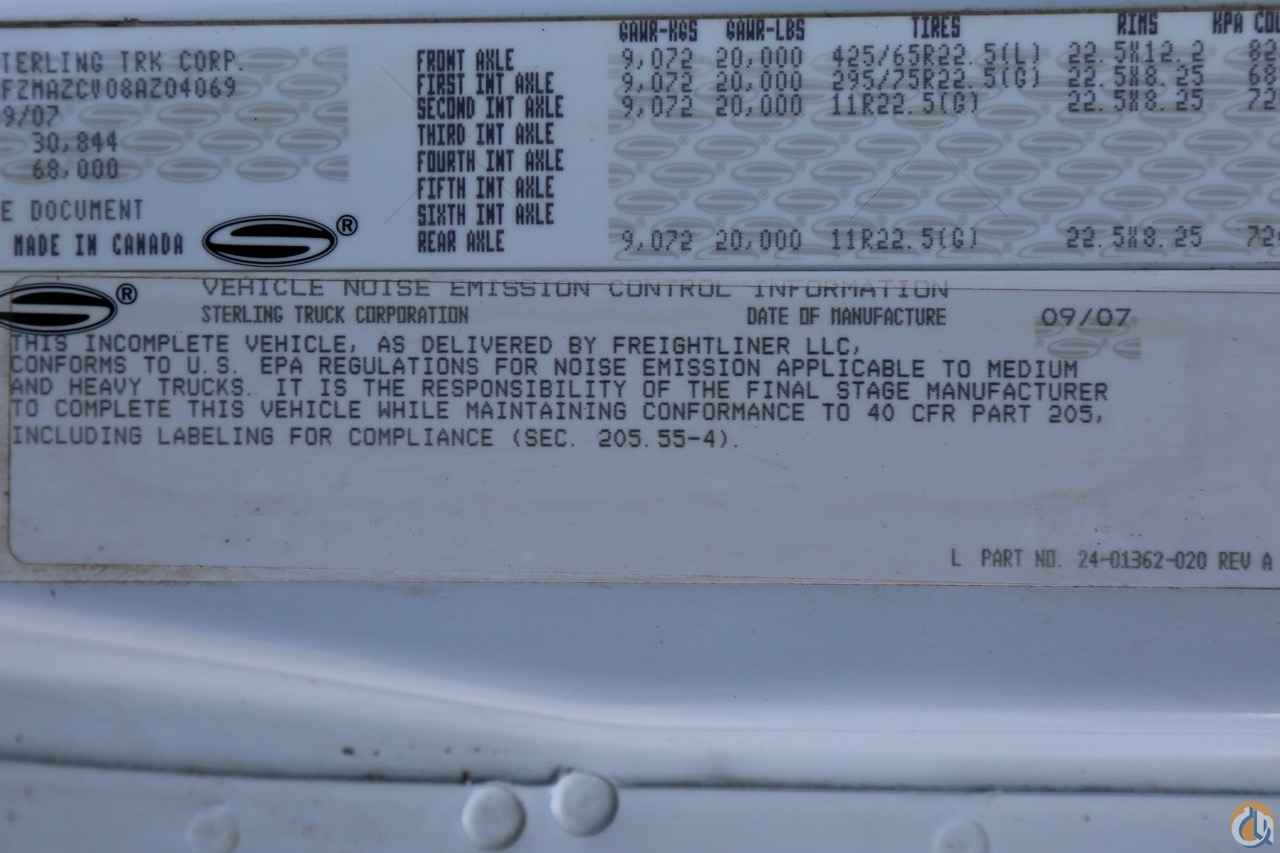

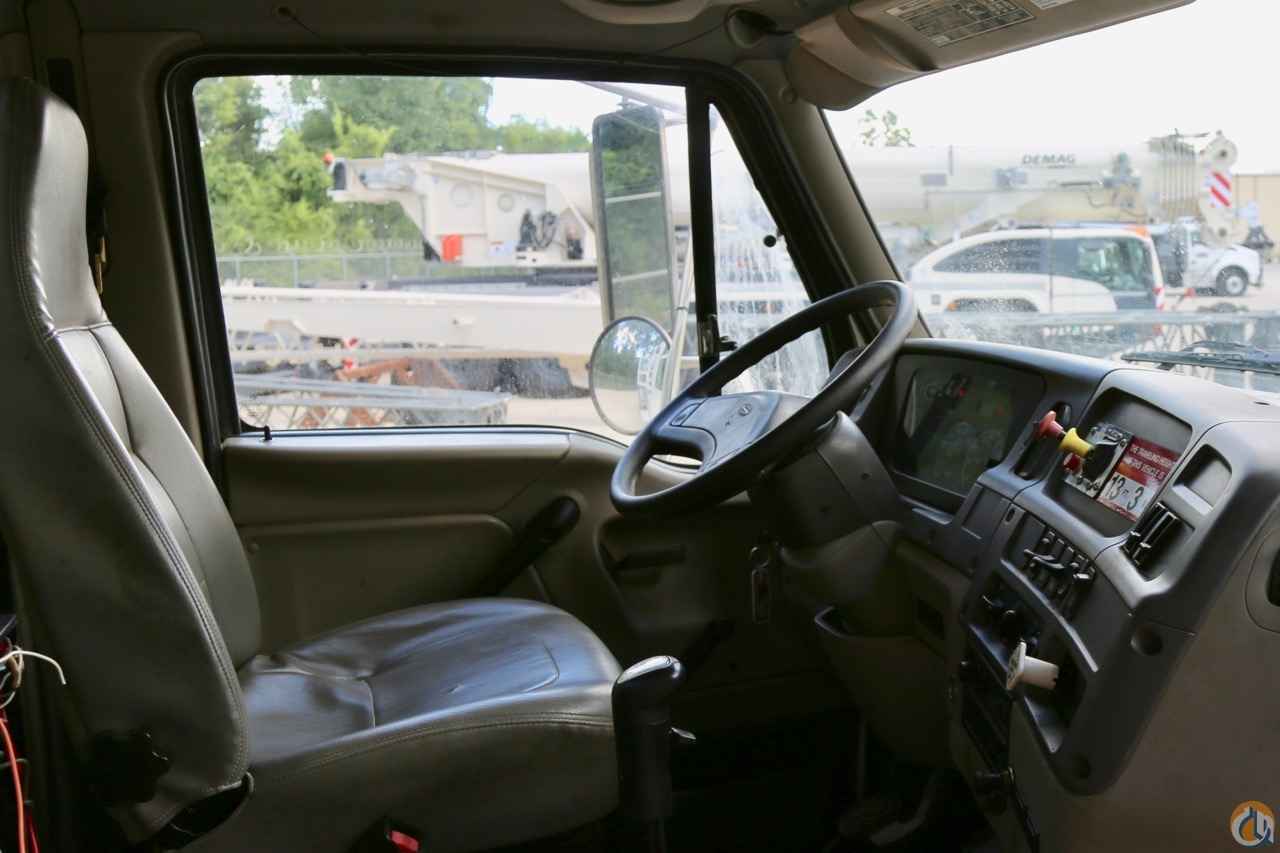

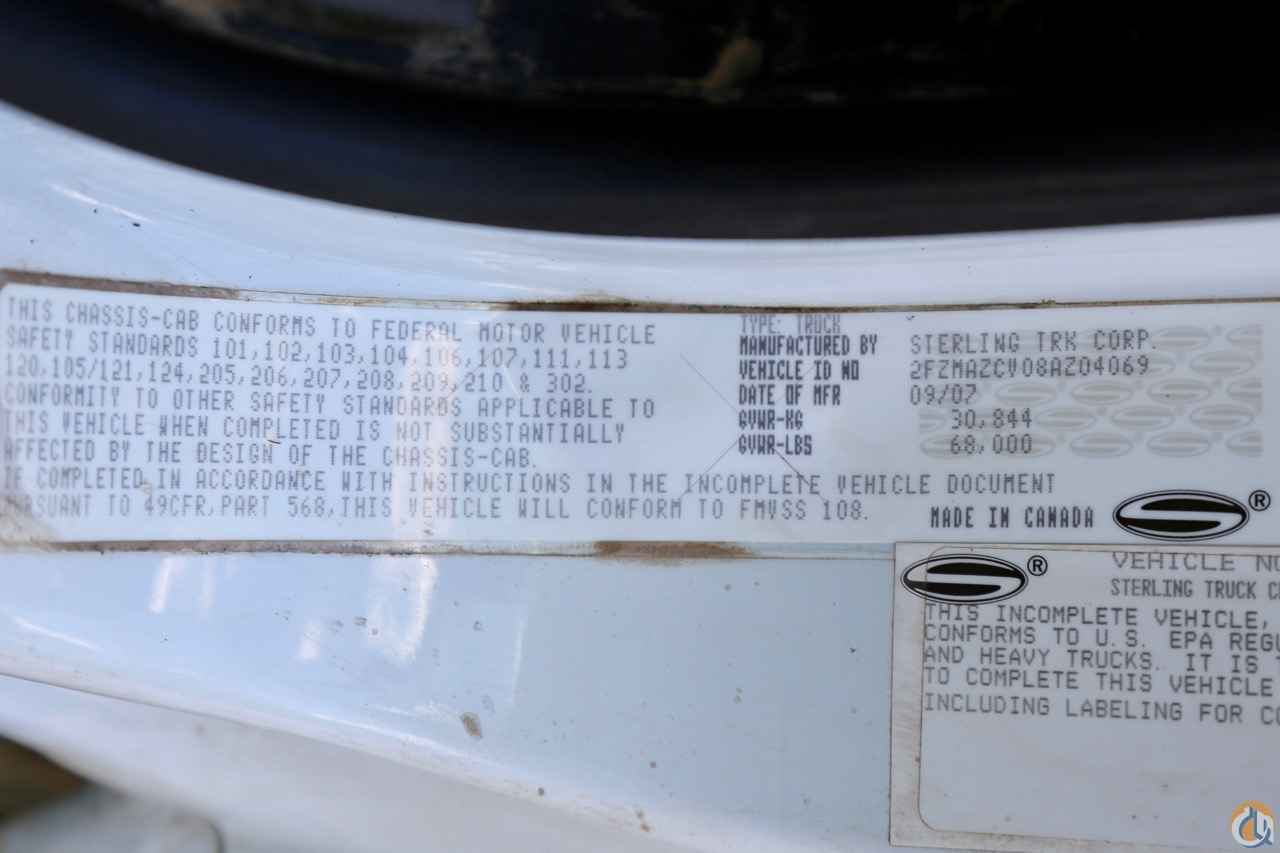

2008 Sterling LT7500 Daycab

Mercedes Engine

Engine brake

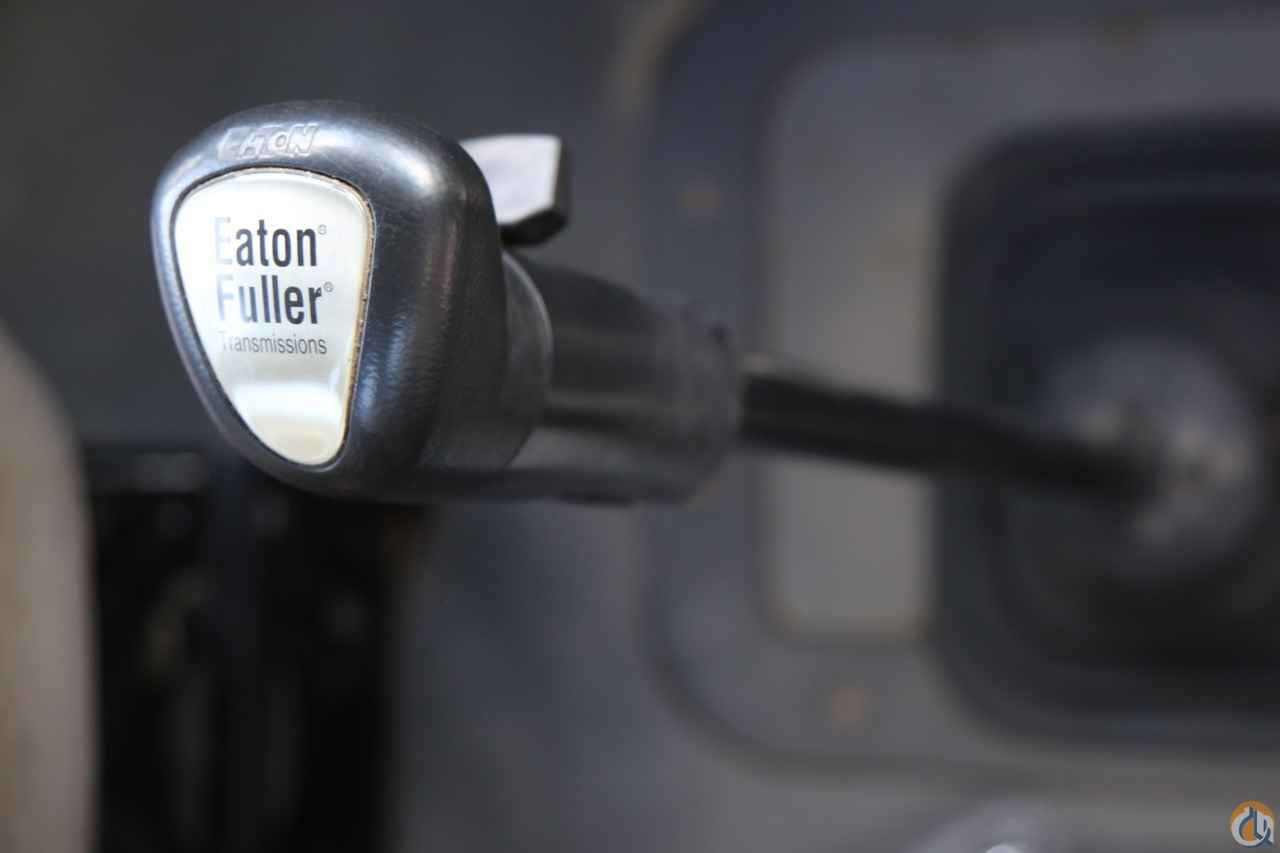

Fuller 10sp manual transmission

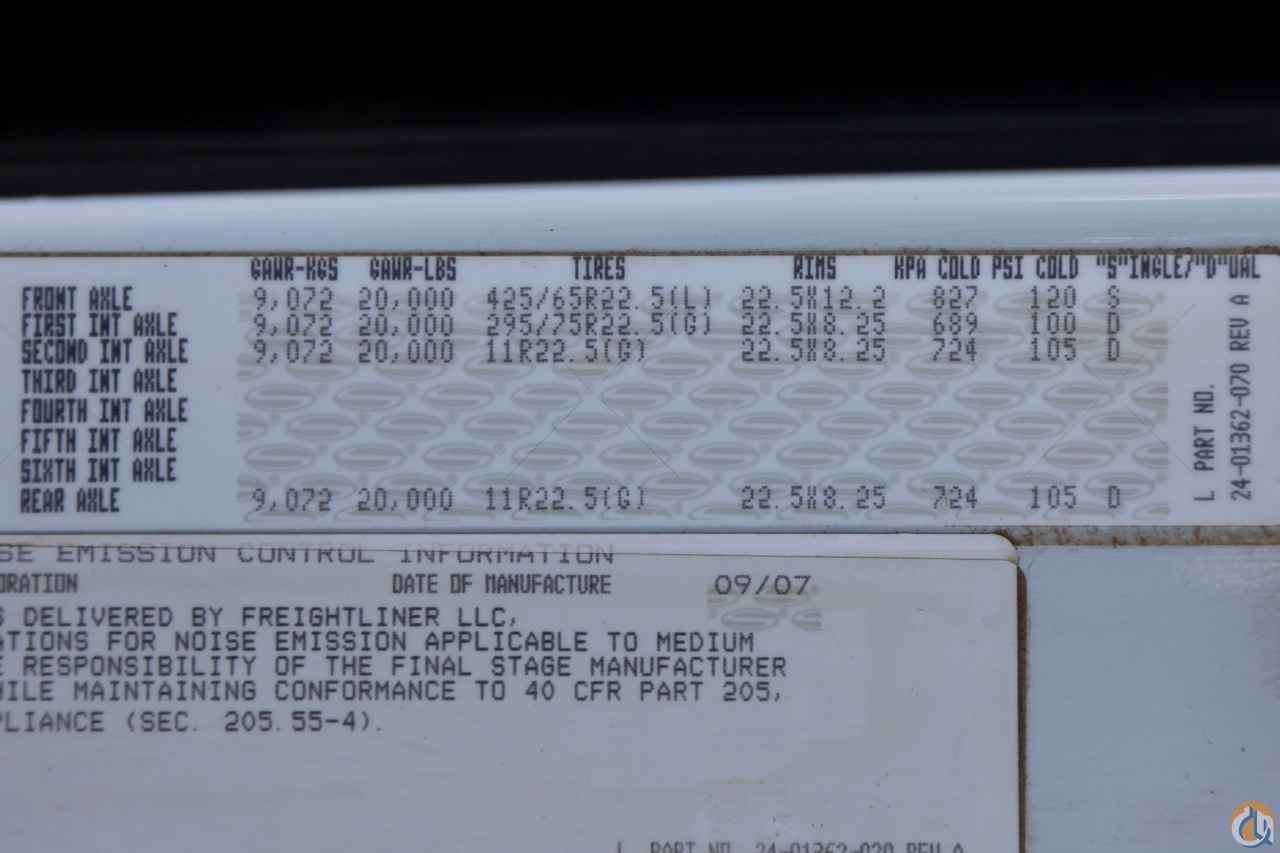

Front Axle rated 20k lbs

Rear Axles 40k lb. tandem

Pusher Axle rated 20k lb.

Hendrickson RTE spring suspension

425/65R22.5 front tires on alum wheels

11R22.5 rear tires on steel disc wheels

Single 60 gal fuel tank

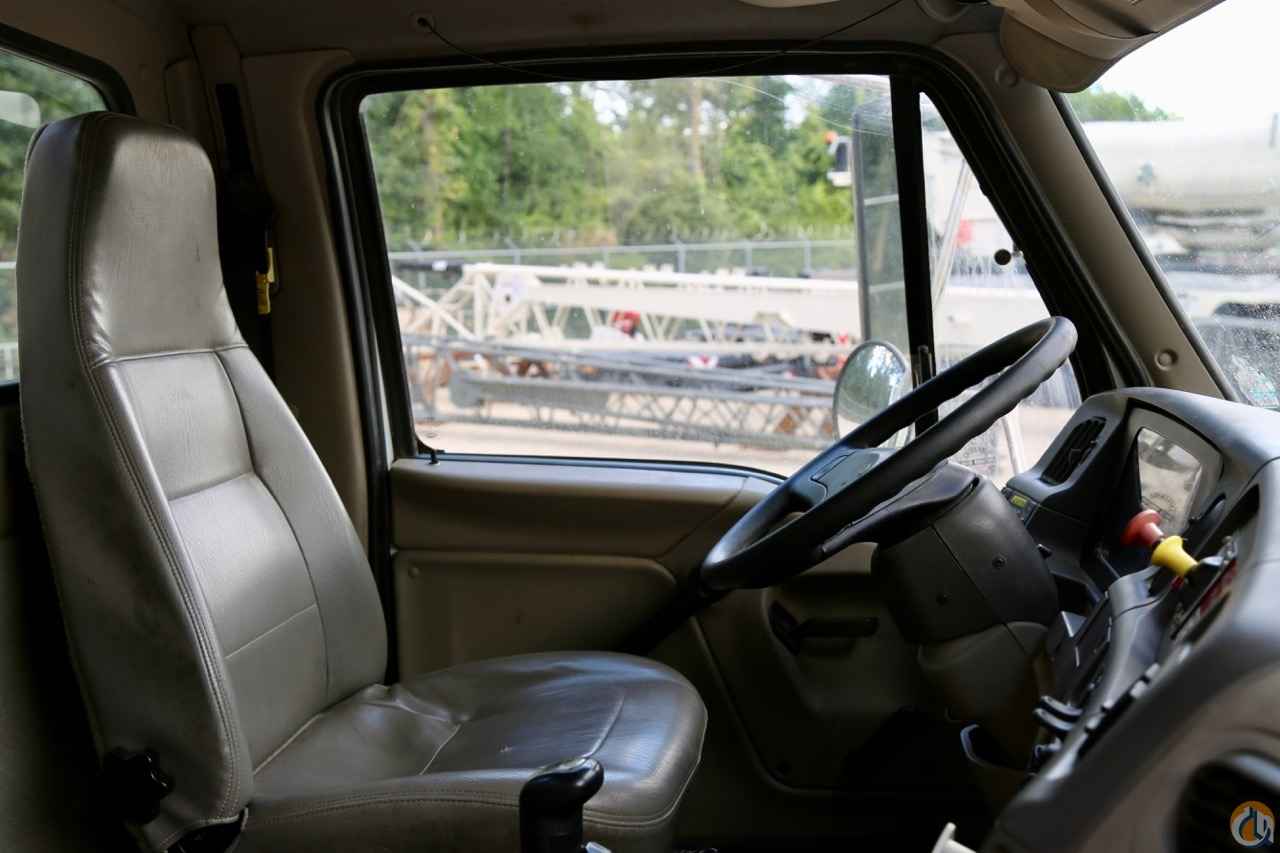

Driver seat air suspension

Passenger seat non-air suspension
