Specs

 • 76,000 lb (34,475 kg) Maximum Lifting Capacity

• 127 ft (38.7 m) 5-Section Non-Insulated Boom

• 137 ft (41.8 m) Maximum Sheave Height

• Stowed Travel Height of 12.9 ft (3.9 m)

• Vehicle Travel Length of 38 ft (11.6 m)

• Sequential Out-and-Down Outriggers

• Full Span 24 ft (7.3 m)

• Mid Span 15.75 ft (4.8 m)

• Short Span 8.17 ft (2.5 m)

• Hydraulic Pilot-Operated Control System

• Continuous Rotation

• Hydraulic Oil Cooling System

• Life Cycle Tested for Reliability

Safety Features

• Altec LMAP (Load Moment & Area Protection) System

  • Rated Capacity Limiter

  • Displays: Boom Length, Boom Angle, Load on Hook, Percent of Rated Capacity

  • Electronic Working Area Definition

  • Operator Defined Audible Alarm Set-Points for Boom Angle, Length and Rotational Position

• Outrigger Boom Interlock System

• Outrigger Motion Alarm

• Back-Up Alarm

• Emergency Stop at Operator Controls

• Winch Drum Rotation Indicator

• Anti-Two Block Device

• Front Bumper Outrigger

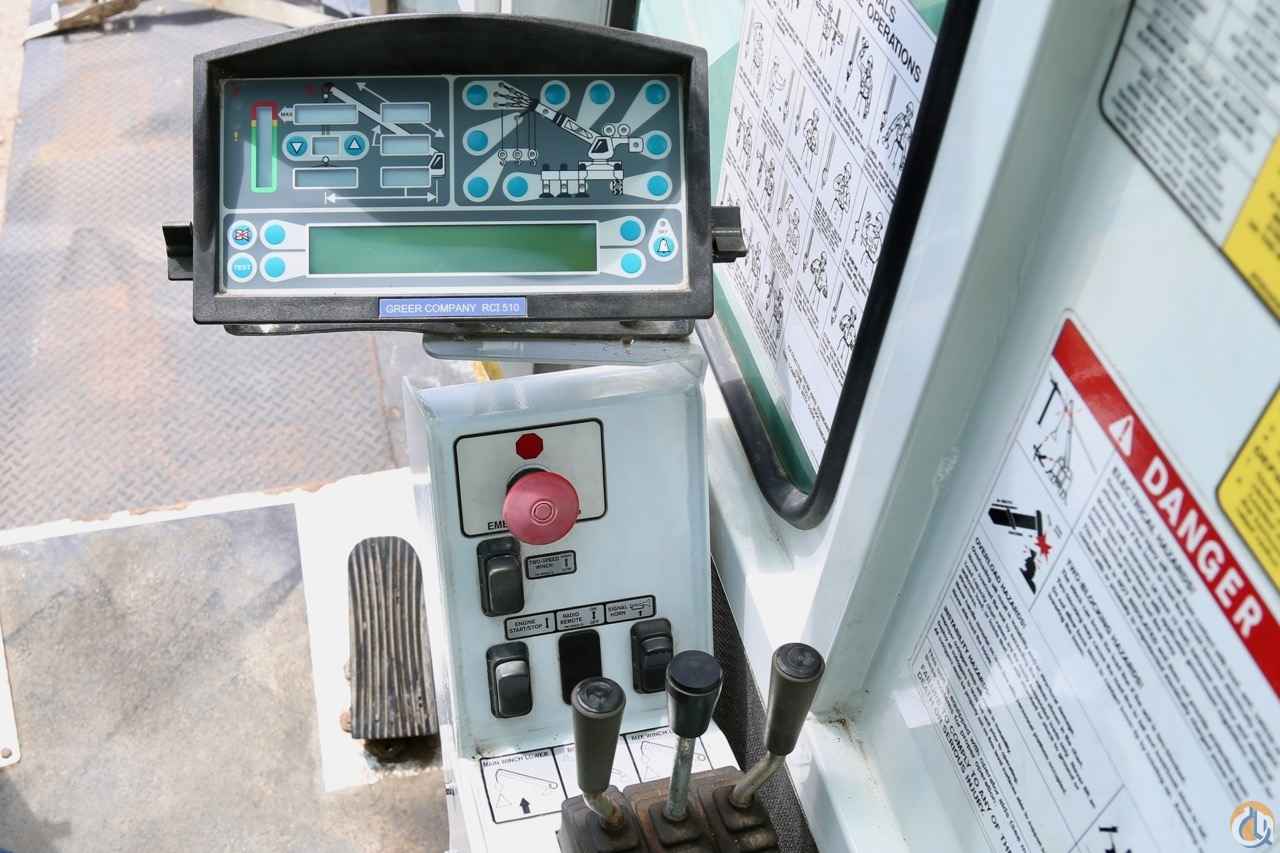

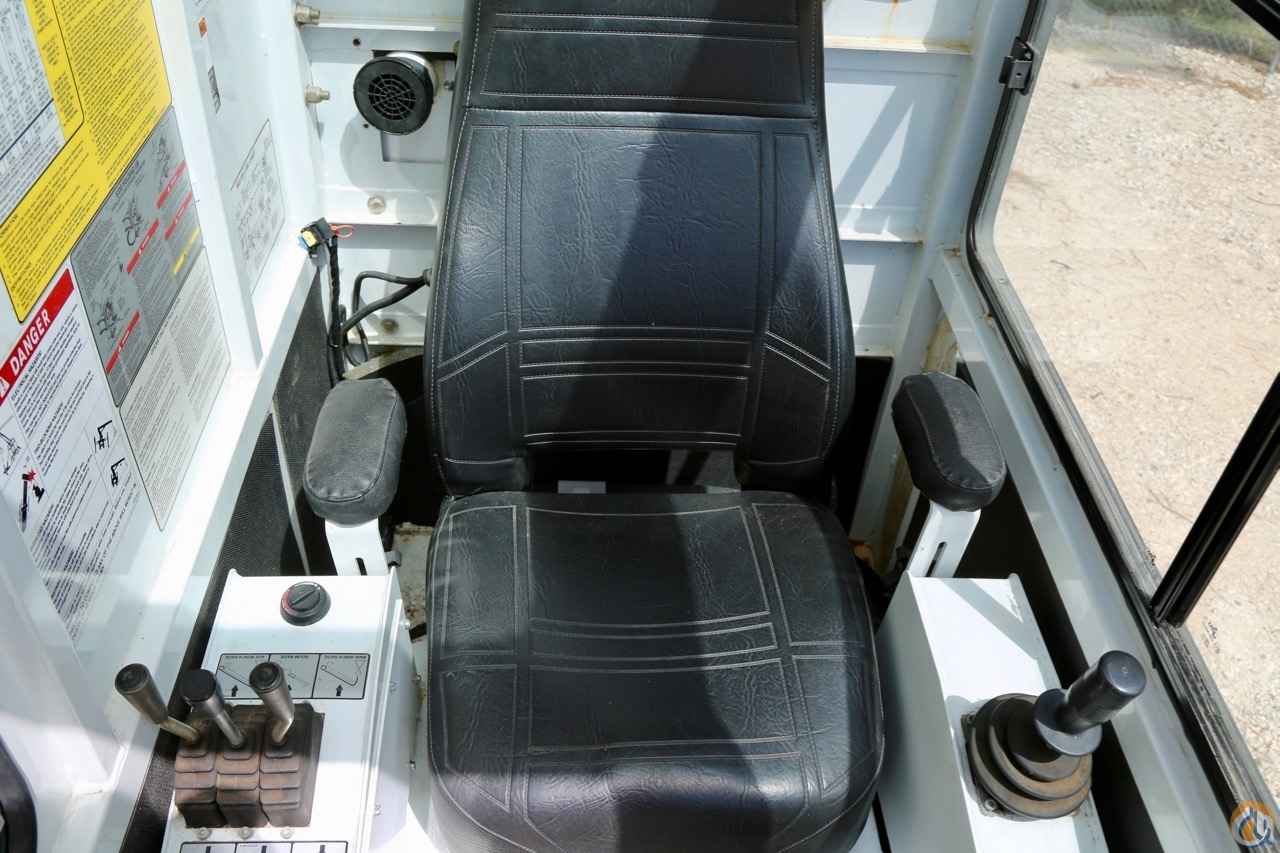

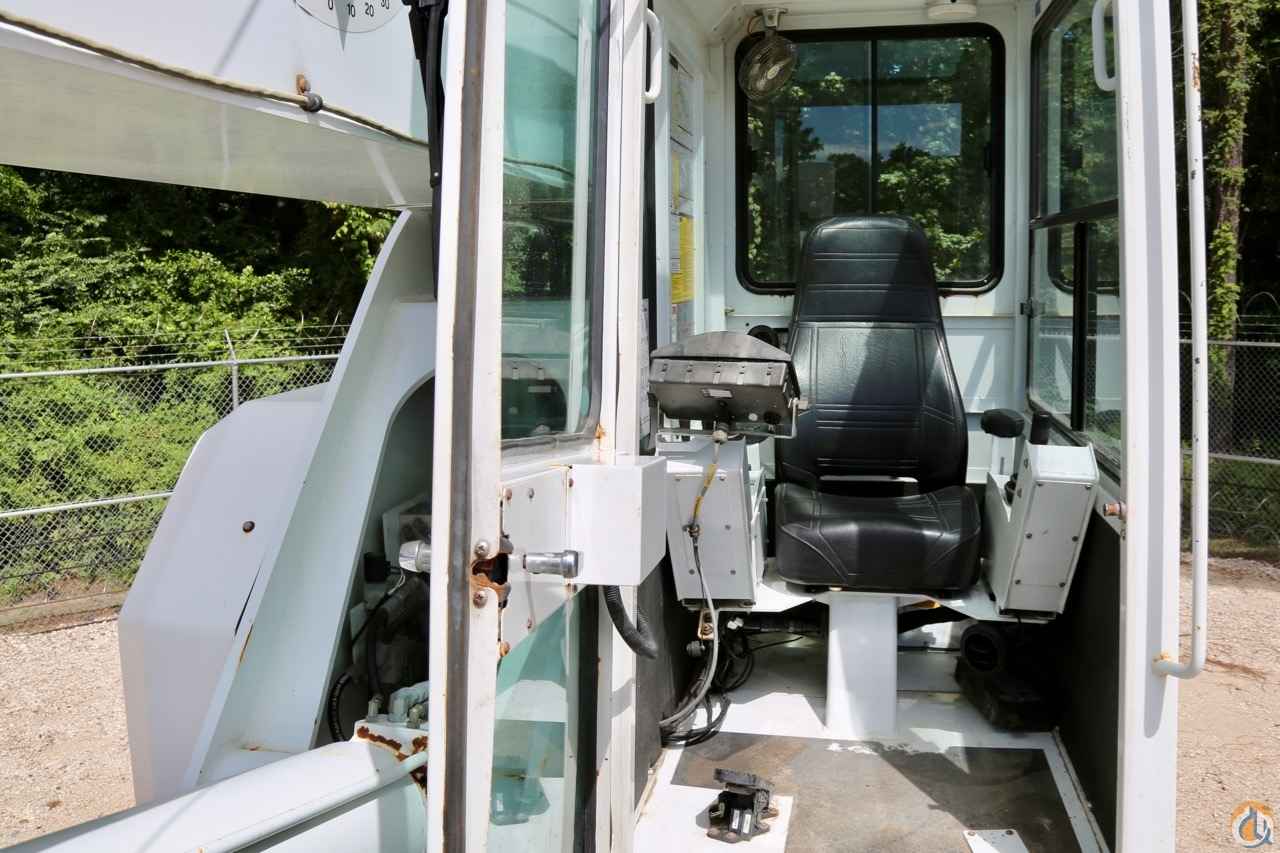

• Altec Opti-View® Riding Seat Control Station
